uuWhen Driving uTire Pressure Monitoring System (TPMS)
Driving
Tire Pressure Monitoring System (TPMS)
Instead of directly measuring the pressu re in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated. This will caus e the low tire pressure/TPMS indicator to
come on and a message to appear on the i-MID.
You must start TPMS calibration every time you:
• Adjust the pressure in one or more tires.
• Rotate the tires.
• Replace one or more tires.
Before calibrating the TPMS:
• Set the cold tire pressu re in all four tires.
2Checking Tires P. 372
Make sure:
•The vehicle is at a complete stop.
• The shift lever is in
(N.
• The shift lever is in
(P.
• The ignition switch is in ON
(w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■TPMS Calibration
U.S. models
1 Tire Pressure Monitoring System (TPMS)
The system does not monitor the tires when driving
at low speed.
Conditions such as low ambient temperature and
altitude change directly a ffect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become over-inflated in warmer
weather.
The low tire pressure indica tor will not come on as a
result of over inflation.
The TPMS may not function pr operly if tire type and
size are mixed. Make sure to use the same size and
type of tire. 2 Checking and Maintaining Tires P. 372
The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:
•You rapidly accelerate, decelerate, or turn the
steering wheel.
•You drive on snowy or slippery roads.•Snow chains are used.
The low tire pressure/TPMS indicator may come on
under the following conditions:
•A compact spare tire is used.•There is a heavier and une ven load on the tires,
such as when towing a trailer, than the condition at
calibration.
•Snow chains are used.
Manual transmission models
Automatic transmission (CVT) models
All models
14 CIVIC 2D_SI-31TS86210.book 322 ページ ２０１４年１月２９日　水曜日　午後８時９分

372
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ification’s page for the specified pressure.
Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm
2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the si de of the tire. Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 377
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS. 2 TPMS Calibration P. 322
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
U.S. models
14 CIVIC 2D_SI-31TS86210.book 372 ページ ２０１４年１月２９日　水曜日　午後８時９分

393Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non-slippery surface, and apply the parking
brake.
2. Put the shift lever in
(P.
2. Put the shift lever in
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Automatic transmission (CVT) models
Manual transmission models
All models
14 CIVIC 2D_SI-31TS86210.book 393 ページ ２０１４年１月２９日　水曜日　午後８時９分

uuIf a Tire Goes Flat uChanging a Flat Tire
394
Handling the Unexpected
1. Open the trunk floor lid.
2. Take the tool case out of the trunk. Take
the jack and wheel nut wrench out of the
tool case.
3. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
4. Place a wheel block or ro ck in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire1 Getting Ready to Replace the Flat Tire
NOTICE
Do not mount the compact spare on the front. If
mounted on the front, the compact spare, smaller in
size than the normal tire, may damage the
differential.
If either front tire goes flat, remove the rear tire on
the same side, and mount the compact spare on the
rear and the rear tire on the front.
2.4 ℓ engine models
Tool Case
Spare Tire
Wheel
Blocks
The tire to be replaced.
14 CIVIC 2D_SI-31TS86210.book 394 ページ ２０１４年１月２９日　水曜日　午後８時９分

395
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected

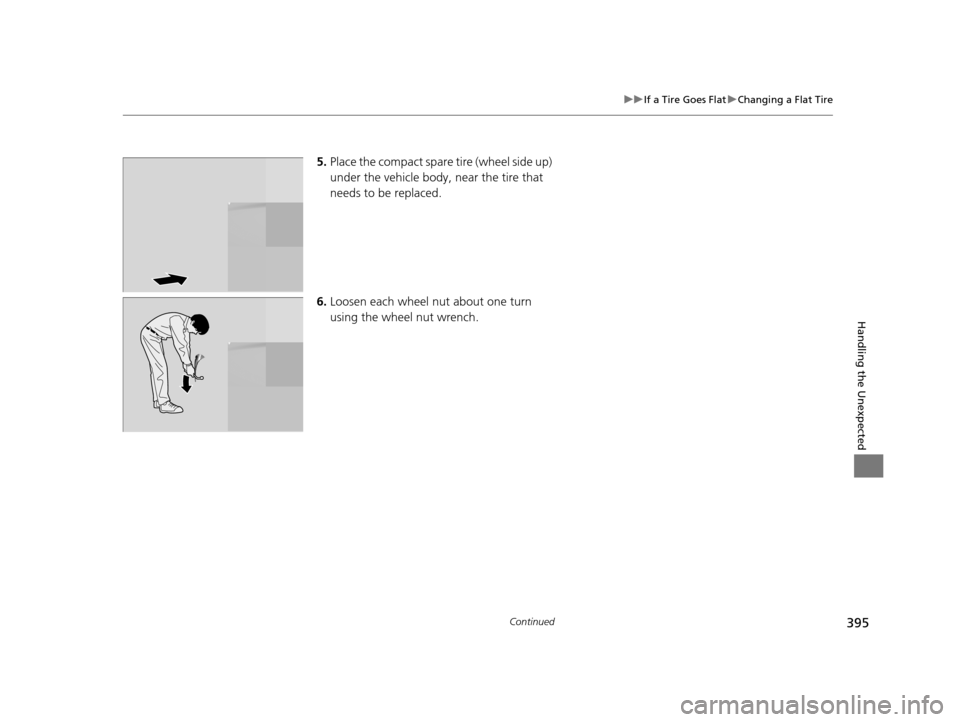

5. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
6. Loosen each wheel nut about one turn
using the wheel nut wrench.
14 CIVIC 2D_SI-31TS86210.book 395 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued397
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
1. Remove the wheel nuts, wheel cover, and
flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
Do not attempt to forcibly pry the wheel cover off
with a screwdriver or other tool.
The wheel cover cannot be removed without first
removing the wheel nuts.
Models with wheel cover
Models with aluminum wheels
Wheel
CoverModels with wheel cover
All models
14 CIVIC 2D_SI-31TS86210.book 397 ページ ２０１４年１月２９日　水曜日　午後８時９分

uuIf a Tire Goes Flat uChanging a Flat Tire
398
Handling the Unexpected
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.Spacer
ConeWing
Bolt
For compact spare tireFor full-
size tire
Models with aluminum wheels
All models
14 CIVIC 2D_SI-31TS86210.book 398 ページ ２０１４年１月２９日　水曜日　午後８時９分

419
uuSpecifications u
Continued
Information
■Brake/Clutch Fluid
■ Automatic Transmission (CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.6 US qt (3.4 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.48 US gal (5.59 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Except EX-L model
*2: EX-L model
RegularSizeP205/55R16 89H*1
P215/45R17 87V*2
Pressure
psi(kPa[kgf/cm2])32 (220 [2.2])
Compact
Spare Size
T135/80D15 99M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 6 1/2J*1
17 x 7J*2
Compact Spare15 x 4T
14 CIVIC 2D_SI-31TS86210.book 419 ページ ２０１４年１月２９日　水曜日　午後８時９分

421
uuSpecifications u
Information
■Brake/Clutch Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Optional for U.S. models (summer tires)
RegularSize225/40R18 92V
225/40R18 92Y*1
Pressure
psi(kPa[kgf/cm2])33 (230 [2.3])
32 (220 [2.2])*1
Compact
Spare Size
T135/80D16 101M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2JCompact Spare16 x 4T
14 CIVIC 2D_SI-31TS86210.book 421 ページ ２０１４年１月２９日　水曜日　午後８時９分

437
Index
Reporting Safety Defects......................... 424
Resetting a Trip Meter ............................... 84
S
Safe Driving................................................ 25
Safety Check ............................................... 29
Safety Labels .............................................. 63
Safety Message .......................................... 23
Seat Belts .................................................... 30
Automatic Seat Belt Tensioners ................. 32
Checking .................................................. 36
Fastening .................................................. 33
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 57
Pregnant Women...................................... 35
Reminder .................................................. 31
Warning Indicator ............................... 31, 69
Seat Heaters ............................................. 151
Seats .......................................................... 137
Adjusting ................................................ 137
Front Seats.............................................. 137
Rear Seats ............................................... 143
Seat Heaters ........................................... 151
Security System ........................................ 116
Immobilizer System Indicator..................... 74
Security System Alarm Indicator ................ 74
SEL/RESET Knob .......................................... 83
Select Lever ........................ 16, 305, 307, 311
Operation ......................... 16, 306, 308, 311
Releasing ................................................ 406 Won’t Move ............................................ 406
Selecting a Child Seat ................................. 54
Selector Knob (Audio) .............................. 166
Shift Lever ........................... 16, 305, 307, 311
Shift Lever Position Indicator ..................... 68
Shift Position Indicator ..................... 306, 308
Shifting (Transmission) ............. 305, 307, 311
Side Airbags ................................................ 44
Side Curtain Airbags ................................... 46
Smart Entry System Indicator ..................... 74
Smart Entry with Push Button Start
System ..................................................... 107
SMS Text Message ............ 245, 259, 274, 283
Snow Tires ................................................. 380
Spare Tire .................................. 393, 419, 421
Spark Plugs ........................................ 418, 420
Specifications ............................................ 418
Specified Fuel ............................ 332, 418, 420
Speedometer .............................................. 81
SRS Airbags (Airbags) ................................. 40
Starting the Engine .......................... 298, 300
Does Not Start ......................................... 400
Engine Switch Buzzer .............................. 122
Jump Starting .......................................... 403
Steering Wheel ......................................... 134
Adjusting ................................................. 134
Stopping .................................................... 330
Summer Tires ............................................ 380
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering Wheel) ............................................. 2, 3, 122 System Message Indicator
.......................... 73
T
Tachometer................................................. 81
Temperature High Temperature Indicator ....................... 70
Low Temperature Indicator........................ 70
Outside Temperature Display ..................... 86
Temperature Sensor ................................... 86
Text Message .................................... 245, 259
Time (Setting) ........................................... 100
Tire Pressure Monitoring System
(TPMS) ..................................................... 322
Indicator............................................ 72, 412
Tires ........................................................... 372
Air Pressure ............................. 373, 419, 421
Checking and Maintaining ...................... 372
Inspection ............................................... 372
Labeling .................................................. 373
Puncture (Flat Tire) .................................. 393
Regulations ............................................. 375
Rotation .................................................. 379
Spare Tire ................................ 393, 419, 421
Summer .................................................. 380
Tire Chains .............................................. 380
Wear Indicators ....................................... 377
Winter..................................................... 380
Tools .......................................................... 392
Towing a Trailer ....................................... 297
14 CIVIC 2D_SI-31TS86210.book 437 ページ ２０１４年１月２９日　水曜日　午後８時９分
