HONDA CIVIC COUPE 2015 9.G Owners Manual

190
uuAudio System Basic Operation uDisplay Setup
Features

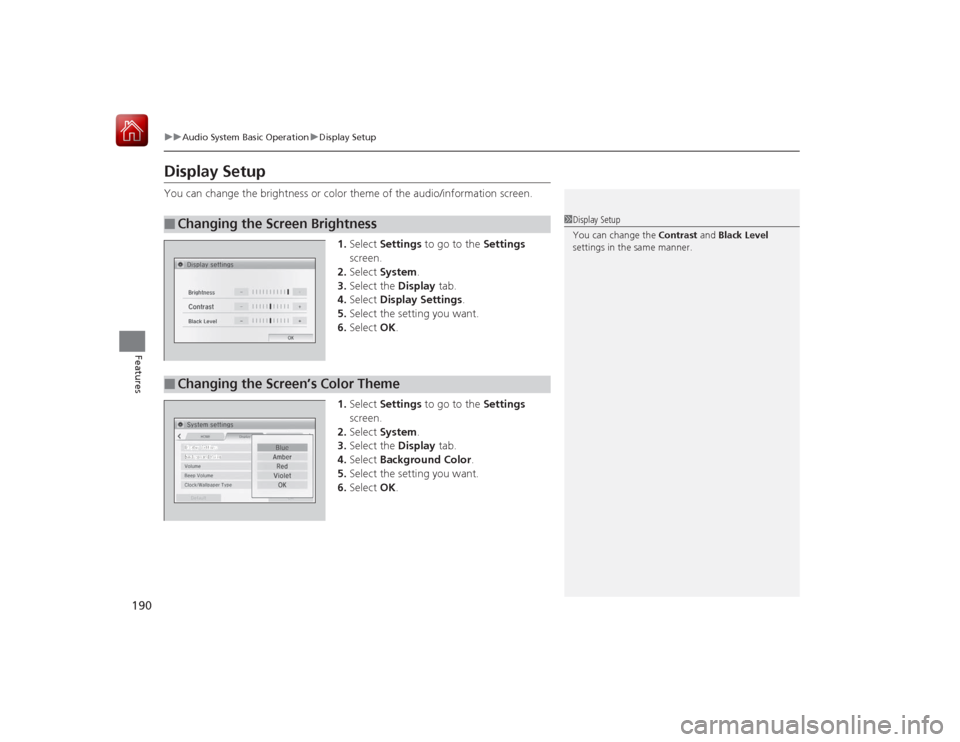

Display SetupYou can change the brightness or col or theme of the audio/information screen.
1. Select Settings to go to the Settings
screen.
2. Select System .
3. Select the Display tab.
4. Select Display Settings .
5. Select the setting you want.
6. Select OK.
1. Select Settings to go to the Settings
screen.
2. Select System .
3. Select the Display tab.
4. Select Background Color .
5. Select the setting you want.
6. Select OK.■
Changing the Screen Brightness
1Display Setup
You can change the Contrast and Black Level
settings in the same manner.
■
Changing the Screen’s Color Theme

191
uuAudio System Basic Operation uPlaying AM/FM Radio
Continued
Features

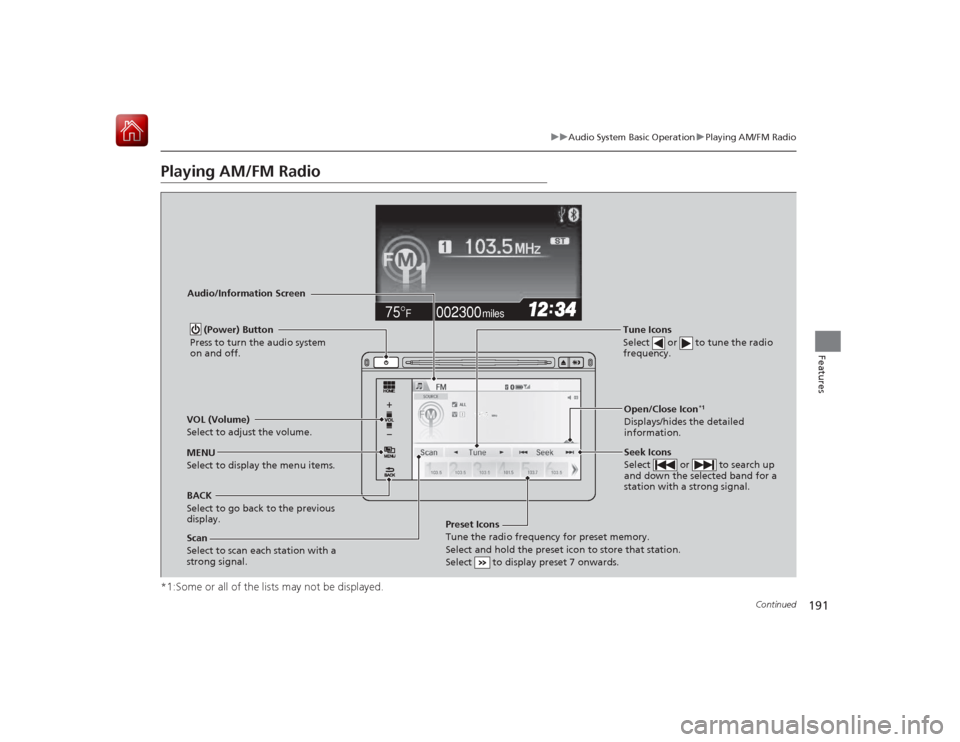

Playing AM/FM Radio*1:Some or all of the lists may not be displayed.
002300
75°
F miles
Audio/Information Screen
Tune Icons
Select or to tune the radio
frequency.BACK
Select to go back to the previous
display. (Power) Button
Press to turn the audio system
on and off.
Preset Icons
Tune the radio frequency for preset memory.
Select and hold the preset ico n to store that station.
Select to display preset 7 onwards.
MENU
Select to display the menu items. VOL (Volume)
Select to adjust the volume.
Open/Close Icon
*1
Displays/hides the detailed
information.
Scan
Select to scan each station with a
strong signal.
Seek Icons
Select or to search up
and down the selected band for a
station with a strong signal.

uuAudio System Basic Operation uPlaying AM/FM Radio
192Features

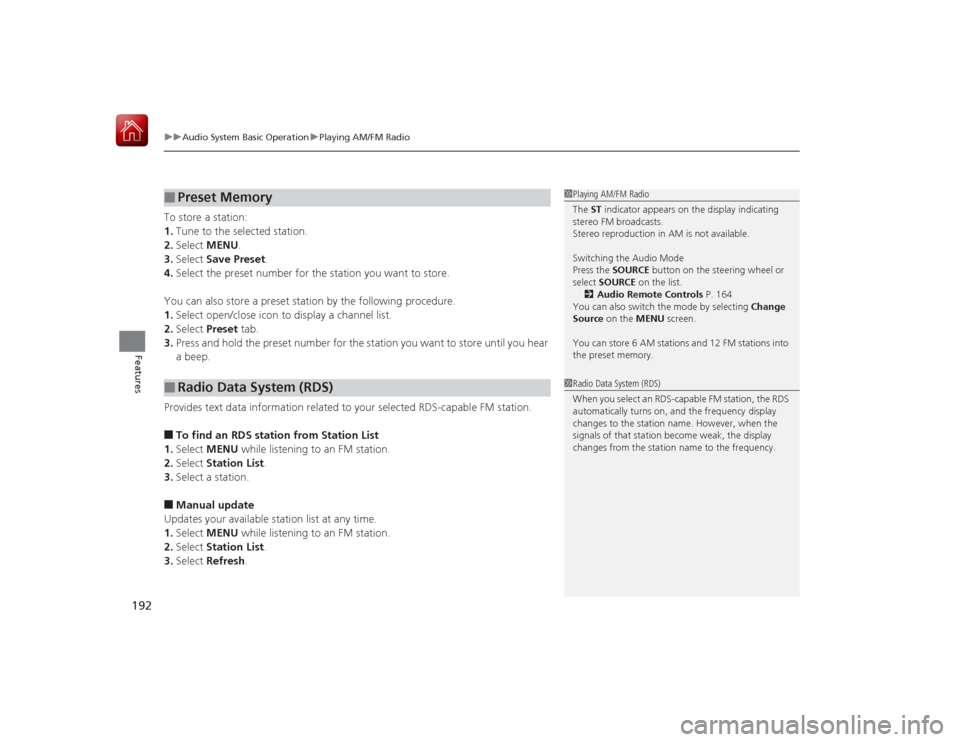

To store a station:
1. Tune to the selected station.
2. Select MENU .
3. Select Save Preset .
4. Select the preset number for the station you want to store.
You can also store a preset station by the following procedure.
1. Select open/close icon to display a channel list.
2. Select Preset tab.
3. Press and hold the preset number for the station you want to store until you hear
a beep.
Provides text data information related to your selected RDS-capable FM station.■To find an RDS station from Station List
1. Select MENU while listening to an FM station.
2. Select Station List .
3. Select a station.■Manual update
Updates your available station list at any time.
1. Select MENU while listening to an FM station.
2. Select Station List .
3. Select Refresh .■
Preset Memory
■
Radio Data System (RDS)
1Playing AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the SOURCE button on the steering wheel or
select SOURCE on the list.
2 Audio Remote Controls P. 164
You can also switch the mode by selecting Change
Source on the MENU screen.
You can store 6 AM stations and 12 FM stations into
the preset memory.1 Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the station name to the frequency.

193
uuAudio System Basic Operation uPlaying AM/FM Radio
Features

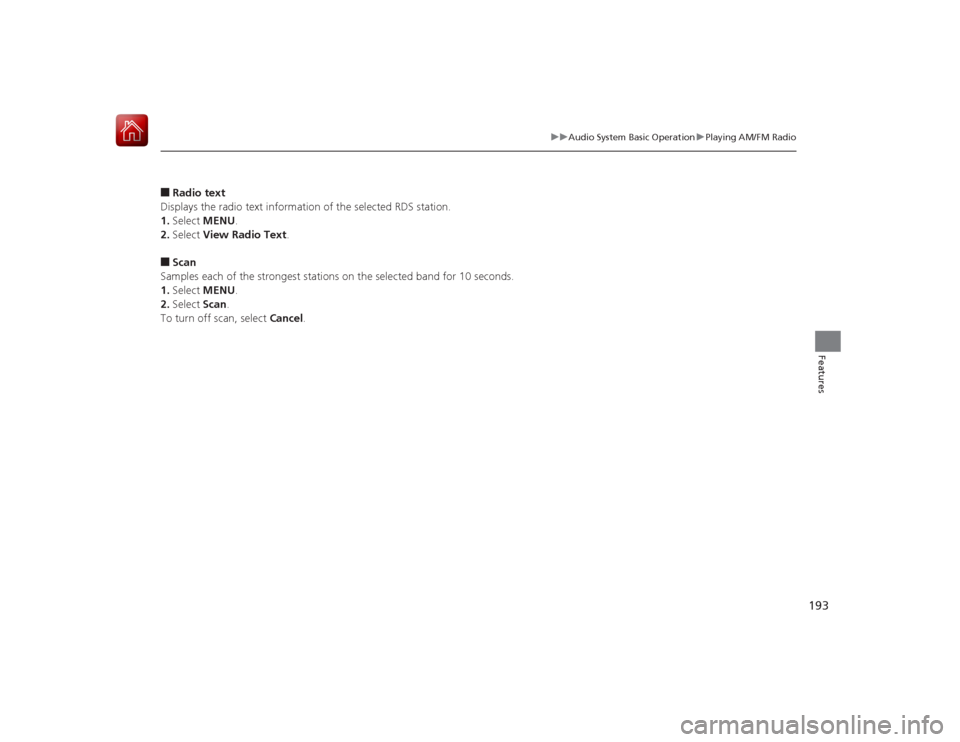

■Radio text
Displays the radio text information of the selected RDS station.
1. Select MENU .
2. Select View Radio Text .■Scan
Samples each of the strongest stations on the selected band for 10 seconds.
1. Select MENU .
2. Select Scan.
To turn off scan, select Cancel.

194

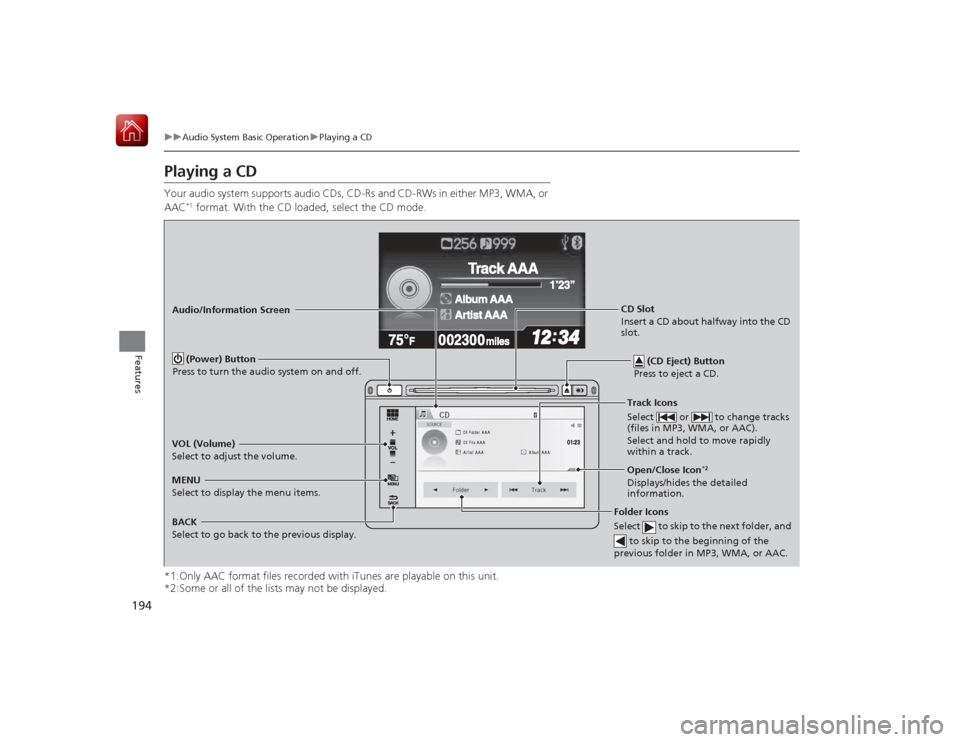

uuAudio System Basic Operation uPlaying a CD
Features
Playing a CDYour audio system supports audio CDs, CD-Rs and CD-RWs in either MP3, WMA, or
AAC
*1 format. With the CD loaded, select the CD mode.
*1:Only AAC format files recorded with iTunes are playable on this unit. *2:Some or all of the lists may not be displayed.
NO>d‡Šƒ>___
_ _Š€“‹>___
NO>d
Audio/Information Screen
BACK
Select to go back to the previous display. (Power) Button
Press to turn the audio system on and off.
Track Icons
Select or to change tracks
(files in MP3, WMA, or AAC).
Select and hold to move rapidly
within a track.
MENU
Select to display the menu items. CD Slot
Insert a CD about halfway into the CD
slot.
(CD Eject) Button
Press to eject a CD.VOL (Volume)
Select to adjust the volume.
Folder Icons
Select to skip to the next folder, and to skip to the beginning of the
previous folder in MP3, WMA, or AAC.
Open/Close Icon
*2
Displays/hides the detailed
information.

Continued
195
uuAudio System Basic Operation uPlaying a CD
Features

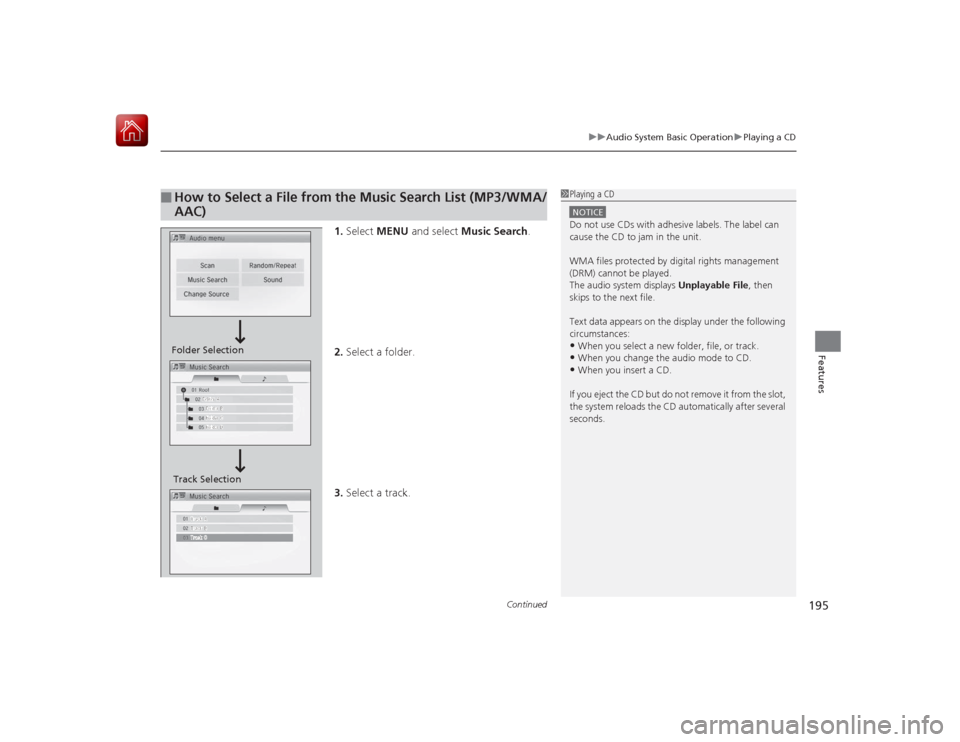

1. Select MENU and select Music Search .
2. Select a folder.
3. Select a track.
■
How to Select a File from the Music Search List (MP3/WMA/
AAC)
1 Playing a CDNOTICEDo not use CDs with adhesive labels. The label can
cause the CD to jam in the unit.
WMA files protected by digital rights management
(DRM) cannot be played.
The audio system displays Unplayable File, then
skips to the next file.
Text data appears on the display under the following
circumstances:•When you select a new folder, file, or track.•When you change the audio mode to CD.•When you insert a CD.
If you eject the CD but do not remove it from the slot,
the system reloads the CD automatically after several
seconds.
Folder Selection
Track Selection

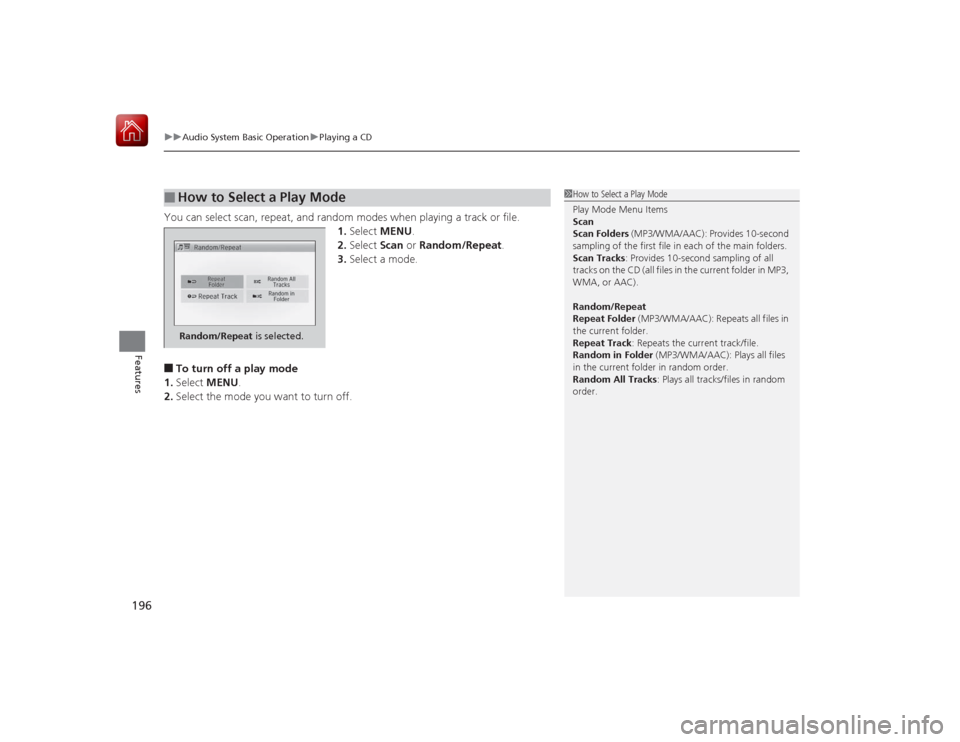

uuAudio System Basic Operation uPlaying a CD
196Features
You can select scan, repeat, and random modes when playing a track or file.
1. Select MENU .
2. Select Scan or Random/Repeat .
3. Select a mode.■To turn off a play mode
1. Select MENU .
2. Select the mode you want to turn off.■
How to Select a Play Mode
1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders (MP3/WMA/AAC): Provides 10-second
sampling of the first file in each of the main folders.
Scan Tracks : Provides 10-second sampling of all
tracks on the CD (all files in the current folder in MP3,
WMA, or AAC).
Random/Repeat
Repeat Folder (MP3/WMA/AAC): Repeats all files in
the current folder.
Repeat Track : Repeats the current track/file.
Random in Folder (MP3/WMA/AAC): Plays all files
in the current folder in random order.
Random All Tracks : Plays all tracks/files in random
order.
Random/Repeat is selected.

197
uuAudio System Basic Operation uPlaying an iPod
Continued
Features

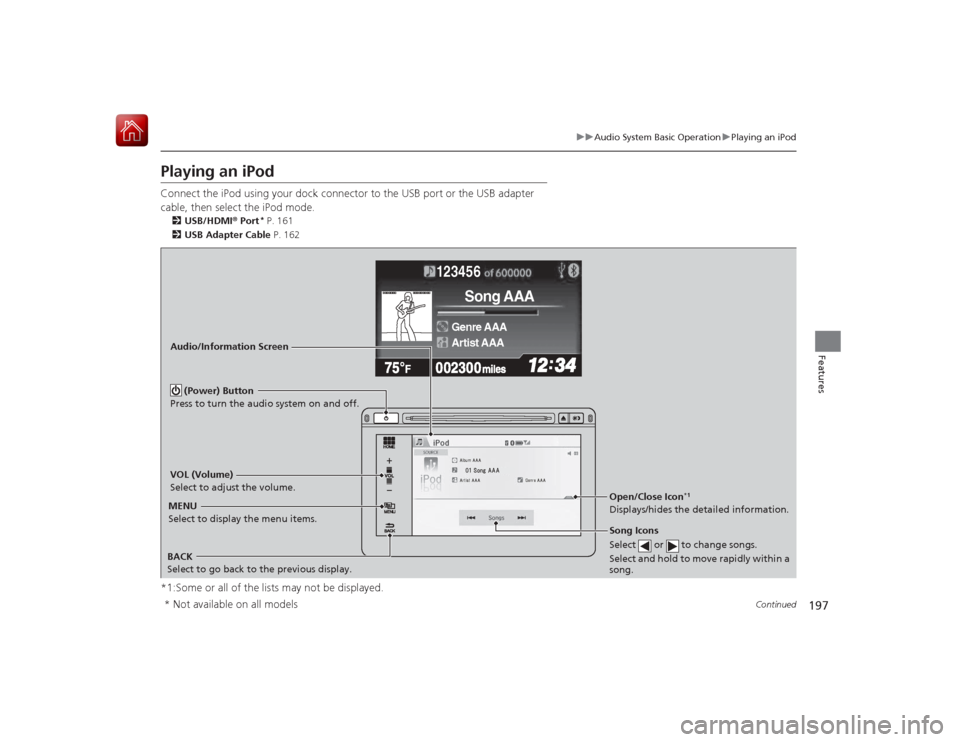

Playing an iPodConnect the iPod using your dock connector to the USB port or the USB adapter
cable, then select the iPod mode.2 USB/HDMI® Port
* P. 161
2 USB Adapter Cable P. 162
*1:Some or all of the lists may not be displayed.
eƒŒ
_
NO>q_Š€“‹>___
123456
Genre AAA
Song AAA
Artist AAA
Audio/Information Screen
BACK
Select to go back to the previous display. VOL (Volume)
Select to adjust the volume.
Song Icons
Select or to change songs.
Select and hold to move rapidly within a
song.MENU
Select to display the menu items. (Power) Button
Press to turn the audio system on and off.
Open/Close Icon
*1
Displays/hides the detailed information.
* Not available on all models

uuAudio System Basic Operation uPlaying an iPod
198Features
1. Select MENU and select Music Search .
2. Select the items on that menu.
■
How to Select a Song from the Music Search List
1How to Select a Song from the Music Search List
Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle's audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 212
If you operate the music app on your iPhone/iPod
while the phone is connected to the display audio
system, you may no longer be able to operate the
same app on the display audio. Reconnect the device
if necessary.
Folder Selection
Track Selection

Continued
199
uuAudio System Basic Operation uPlaying an iPod
Features

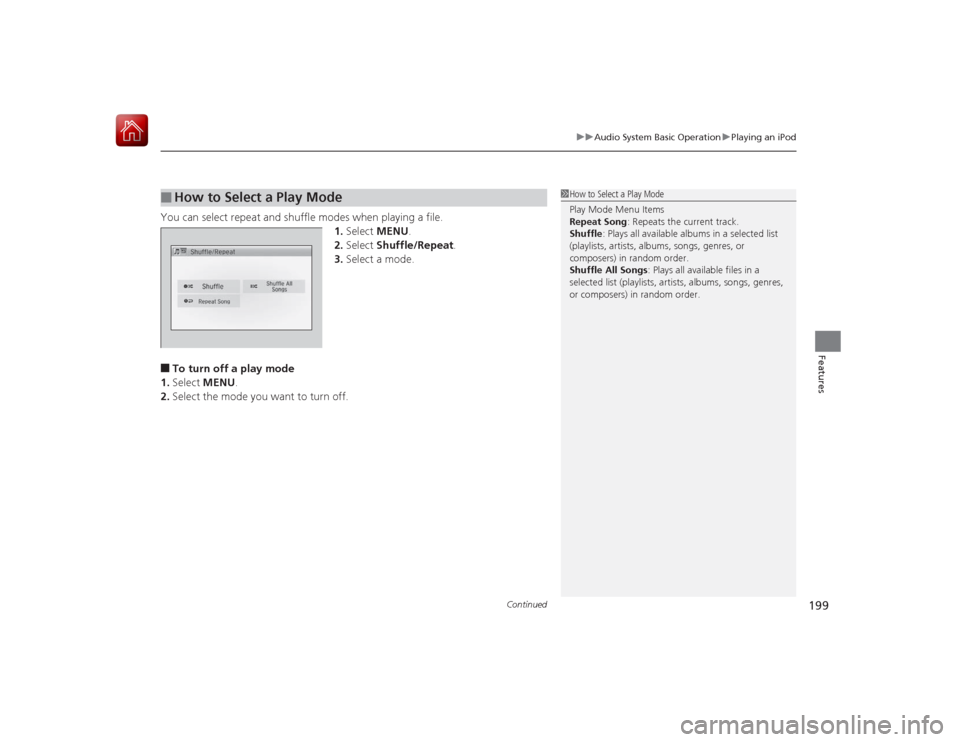

You can select repeat and shuffle modes when playing a file.
1.Select MENU .
2. Select Shuffle/Repeat.
3. Select a mode.■To turn off a play mode
1. Select MENU .
2. Select the mode you want to turn off.■
How to Select a Play Mode
1How to Select a Play Mode
Play Mode Menu Items
Repeat Song : Repeats the current track.
Shuffle : Plays all available albums in a selected list
(playlists, artists, albums, songs, genres, or
composers) in random order.
Shuffle All Songs : Plays all available files in a
selected list (playlists, artists, albums, songs, genres,
or composers) in random order.
