HONDA CIVIC COUPE 2015 9.G Quick Guide

34 || 35
VEHICLE CONTROLS
VEHICLE CONTROLS
Interior and Exterior Lights
Operate interior and exterior lights when the vehicle is on or off.
Brightness Control
Adjust instrument panel brightness when the
vehicle is on.
To brighten: T urn the knob to the right.
T

o dim: Turn the knob to the left.
A beep sounds when the brightness reaches
minimum or maximum.
Interior Lights Change the interior light settings using the switch
on the ceiling.
ON position: Interior lights remain on.
Door -activated position: Interior lights come on
when any of the doors are opened, the driver’ s door
is unlocked, or the vehicle is turned off.
OFF position:

Interior lights remain off.
Map lights*: Press the front map lights to turn on or off.
Exterior Lights Rotate the switches on the headlight lever to operate the exterior light\
s.
OFF: All exterior lights are off.
: Turn on exterior lights except headlights.
AUTO: T urn on the automatic lighting feature*.
Headlights turn on or off depending on ambient
brightness when the vehicle is on. Headlights
automatically come on after the wipers are
engaged for a certain time.
:

Turn on all exterior lights including headlights.
: Turn fog lights* on or off.
Control knob
Off
Door-activated
position
Map lights
High beams
Low beams Flashing the high beams Fog
lights*
One-Touch Turn Signal
Use this quick and convenient method to signal a lane change.
Lightly push the turn signal lever up or down for a
three-blink sequence.
For a continuous signal, push the lever up or down
until it locks into place.
Wiper Operation
The windshield wipers and washers can be used when the vehicle is on. Mo\
ve the
wiper lever up or down to the desired position.
Headlight-Wiper Integration*
When the headlights are in the AUTO position,
they automatically turn on when the front
wipers operate several times within a certain
interval. The headlights turn off shortly after
the wipers are turned off, or if there is enough
ambient light.
Intermittent WipersWhen you move the lever to the INT position,
the wipers operate based on the wiper delay.
Adjust the wiper delay using the adjustment
ring*.
Left turn Right turn
Do not use the wipers when the windshield is dry. The windshield will get
scratched, or the rubber blades will get damaged.
In cold weather, the blades may freeze to the windshield, becoming stuck.
Operating the wipers in this condition may damage the wipers. Use the de\
froster
to warm the windshield, or manually clear the windshield of ice and snow\

before turning on the wipers.
NOTICE
*if equipped
Intermittent time
adjustment ring*
Pull to
use
washer.
MIST
OFF
INT: Low speed intermittent
LO: Low speed wipe
HI: High speed wipe
1
1
2
2
3
3
4
4
5
5
*if equipped

36 || 37
VEHICLE CONTROLS
VEHICLE CONTROLS
Adjusting the Seats
Make seat adjustments before driving to ensure the best comfort and safe\
ty.
Adjusting the Front Seats
Adjust the driver’s seat as far back as possible while
allowing you to maintain full control of the vehicle.
You should be able to sit upright and well back in the
seat, adequately press the pedals without leaning
forward, and grip the steering wheel comfortably.
The passenger’ s seat should be adjusted so that it
is as far back from the front airbag in the dashboard
as possible.
The National Highway T

raffi c Safety Administration and Transport Canada
recommend that drivers allow at least 10 inches (25 cm) between the ce\
nter of the
steering wheel and the chest.
Power Driver’s Seat*
Move back and allow suffi cient space.
Horizontal
position
adjustment
Height
adjustment Seat-back
angle
adjustment
Reclining the seat-back too far can result in serious injury or death in\
a crash.
Adjust the seat-back to an upright position, and sit well back in the se\
at.
WARNING
Sitting too close to a front airbag can result in serious injury or deat\
h if the
front airbags infl ate.
Always sit as far back from the front airbags as possible while maintain\
ing
control of the vehicle.
WARNING
*if equipped
Manual Seats*
Floor Mats*
Position the front seat fl oor mats properly, and anchor
them. If they are not properly positioned, the fl oor
mats can interfere with the front seat functions.
Do not put additional

oor mats on top of the
anchored mats.
Height adjustment
(driver’s seat only)
Horizontal position adjustment
Pull up on the bar to move the seat,
then release the bar. Seat-back angle
adjustment
Pull up the lever to
change the angle.
Sitting improperly or out of position can result in serious injury or de\
ath in a
crash.
Always sit upright, well back in the seat, with your feet on the fl oor.
WARNING
Unlock
Lock
*if equipped

38 || 39
VEHICLE CONTROLSVEHICLE CONTROLS
Adjusting the Head Restraints
Your vehicle is equipped with head restraints in all seating positions. Head
restraints are most effective for protection against whiplash and other rear-impact
crash injuries.
The center of the back of the occupant’s head
should rest against the center of the restraint. The
tops of the occupant’s ears should be level with the
center height of the restraint.
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down while
pressing the release button.
To remove the head restraint: Pull the restraint up
as far as it will go. Then push the release button,
and pull the restraint up and out.
To reinstall a head restraint: Insert the legs back
in place, then adjust the head restraint to an
appropriate height while pressing the release
button. Pull up on the restraint to make sure it is
locked in position.
In order for the head restraint system to work properly:
• Do not hang any items on the head restraints, or from the restraint legs.
• Do not place any object between an occupant and the seat-back.
• Install each restraint in its proper location.
Improperly positioning head restraints reduces their effectiveness and
increases the likelihood of serious injury in a crash.
Make sure head restraints are in place and positioned properly before driving.
WARNING
Failure to reinstall, or correctly reinstall, the head restraints can result in
severe injury during a crash.
Always replace the head restraints before driving.
WARNING
Folding Down the Rear Seats
The rear seat-back(s*) can be folded down to make room for large items in the
trunk.
1. Remove the center shoulder belt from the guide.
2. Pull the release lever in the trunk to release the
lock.
3. Fold down the seat-back. Remove the rear head
restraints if necessary (see page 38).
Push the seat-back up fi rmly until it locks into
place to return it to its original position.
Make sure all items in the trunk or items extending through the opening into
the rear seats are properly secured. Loose items can fl y forward if you have to
brake hard.
Guide
Center shoulder belt
Release lever*
Release lever
*if equipped

40 || 41
VEHICLE CONTROLS
VEHICLE CONTROLS
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so\
that you
can comfortably grip the steering wheel in an appropriate driving postur\
e.
1. Pull up the steering wheel adjustment lever.
2. Move the steering wheel up or down, and in
or out.
3. Push down the steering wheel adjustment lever to lock the steering wheel in position.
Adjusting the Mirrors
Adjust the angle of the mirrors for the best visibility when you are sit\
ting in the
correct driving position.
Rearview Mirror with Day/Night Positions
Manually adjust the position to reduce headlight
glare from vehicles behind you. Flip the tab to
switch between day and night positions.
Power Door MirrorsAdjust the power door mirrors when the vehicle is on.
L/R selector switch: Select the left or right mirror.
After adjusting the mirror, return the switch to the
center position.
Mirror position adjustment switch: Press the switch
left, right, up, or down to move the mirror

.
To adjust
To lockLever
Adjusting the steering wheel position while driving may cause you to los\
e
control of the vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the vehicle is stopped.
WARNING
DownNight positionTa b
Day
position
Up
Adjustment switchSelector
switch
Air Conditioning System*
Manually control the front and rear heating and cooling in your vehicle’\
s interior
using the buttons on the dashboard.
Fan control
dial A/C
button*
MAX A/C*
button Windshield
defroster buttonTemperature
control dial
Recirculation and/or Fresh
Air button:
Recirculation mode
(indicator on): Recirculates
air from the vehicle’s
interior.
Fresh Air mode (indicator
off): Maintains outside
ventilation. Rear defogger/
heated door
mirrors button*Vent mode
buttons
*if equipped

42 || 43
VEHICLE CONTROLS
VEHICLE CONTROLS
Climate Control System*
The automatic climate control system can maintain your preferred interio\
r
temperature by selecting the proper mix of heated or cooled air and fan \
speed. Use
the buttons on the dashboard to control the system.
Seat Heaters*
Quickly warm the front seats when the vehicle is on.
Press the seat heater switch in the front console to
the LO or HI position. An indicator appears for the
selected setting. Return the switch to the middle
position to turn off.
AUTO button: Press, then
use the temperature
control dial to set your
preferred temperature.
Temperature
control dial
A/C
buttonFan control
dial
Recirculation button:
Recirculation mode
(indicator on):
Recirculates air from the
vehicle’s interior.
Fresh Air mode (indicator
off): Maintains outside
ventilation. Rear defogger/
heated door
mirrors button*
Windshield
defroster
button ON/OFF
button
Mode button:
Change airfl ow
location.
Heat-induced burns are possible when using seat heaters.
Persons with a diminished ability to sense temperature (e.g., persons w\
ith
diabetes, lower-limb nerve damage, or paralysis) or with sensitive skin should
not use the seat heaters.
WARNING
*if equipped
Customized Features*
Use the Vehicle Menu in the i-MID to customize certain features, such as the
display, the trip computer, and door locking/unlocking. Use the steering wheel
controls to make and enter selections when the vehicle is stopped.
Changing Settings Using the Touchscreen*
Select items on the touchscreen to make and enter selections.
1. Select SETTINGS.
2. Select an option (Clock/Info, Audio, Bluetooth, Phone, Camera, System, \
or
Navi*).
3.

Select a setting option, and make your preferred changes.
4. Press BACK to exit the menus.
MENU
SOURCE Button
Press to go to the next
display.
SOURCE Button
Press to set your selection.
MENU Button
Press to go to Vehicle Menu. + Button
Press to scroll upwards.
Button
Press to go back to the
previous display.
- Button
Press to scroll downwards.
*if equipped

44 || 45
AUDIO AND CONNECTIVITY
VEHICLE CONTROLS
Setting the Clock
Adjust the time using the steps described for your vehicle type.
Using the CLOCK Knob
Use this method for vehicles with one display.
1. Press the CLOCK knob to enter the clock screen.
2. T

urn the knob to adjust the hour value.
Press the knob to set.
3. Turn the knob to adjust the minute value. Press the knob to set.
Using the Settings Menu
Use this method for vehicles with display audio. Touch items to make selections.
1. Select Settings.
2. Select

Clock/Info.
3. Select Clock Adjustment.
4. Adjust the hour and minute values.
5. Select OK when complete.
On vehicles with navigation, the time is automatically set using GPS sig\
nals.
Clock knob
AUDIO AND CONNECTIVITY
Learn how to operate the vehicle’s audio system.
Basic Audio Operation
Connect audio devices and operate buttons and displays for the audio sys\
tem.
USB/ HDMI Port* 1. Open the port cover in the front console.
2. Connect a USB fl

ash drive or iPod/iPhone
® cable
connector to the USB port, or an HDMI cable to the
HDMI port.
An additional USB cable is located in the center
console.
iPod and iPhone are trademarks of Apple, Inc.
Additional cables and accessories sold separately.
Auxiliary Input Jack*
Connect standard audio devices with a 1/8-inch
(3.5 mm) stereo miniplug.
1. Open the AUX cover in the front console.
2. Insert the miniplug attached to the audio device
into the jack. The audio system switches to
AUX mode. Use the device to control the audio.
State or local laws may prohibit the operation of
handheld electronic devices while operating a vehicle.
Accessory Power Socket
Open the socket cover in the front console to use
power when the vehicle is on.
Do not insert an automotive type cigarette lighter element. This can ove\
rheat the
power socket.
NOTICE
*if equipped

46 || 47
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Steering Wheel Controls*
You can operate certain functions of the audio
system using the steering wheel controls.
SOURCE button: Cycle through available audio
modes.
/ buttons: Change presets, tracks, albums, or
folders.
+ / - buttons: Adjust audio volume.
MENU button: On vehicles with display audio, press and hold to view options for
the current audio source. Use the other buttons to navigate through the \
options.
FM/AM/SiriusXM
® Radio
Press
or for the next or previous station.
Press and hold
or for the next or previous strong station.
CD/iPod
®/USB/Bluetooth® Audio
Press
or for the next or previous track.
Press and hold
or for the next or previous folder (CD/USB).
Pandora
®
Press for the next song.
Press and hold
or for the next or previous station.
*if equipped
Adjusting the Sound
Adjust various sound settings.
V ehicles with information display
Press the TUNE/SOUND knob to scroll through
sound modes. Rotate the knob to adjust the
setting for each mode.
V

ehicles with one display
Use the selector knob to make and enter selections.
1. Press the SETUP button.
2. Select Sound Settings.
3. Select a sound mode to change, and adjust it using the selector knob.
4. Press the Back button to exit the menu.
Vehicles with display audio
Make and enter selections using the touchscreen.
1. Select Settings.
2. Select Audio.
3. Select Sound.
4. Select the tabs to change the sound mode and adjust the setting.
5. Select OK when complete.
Tune/Sound Knob
Setup
button
Selector
knob
Button

48 || 49
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY

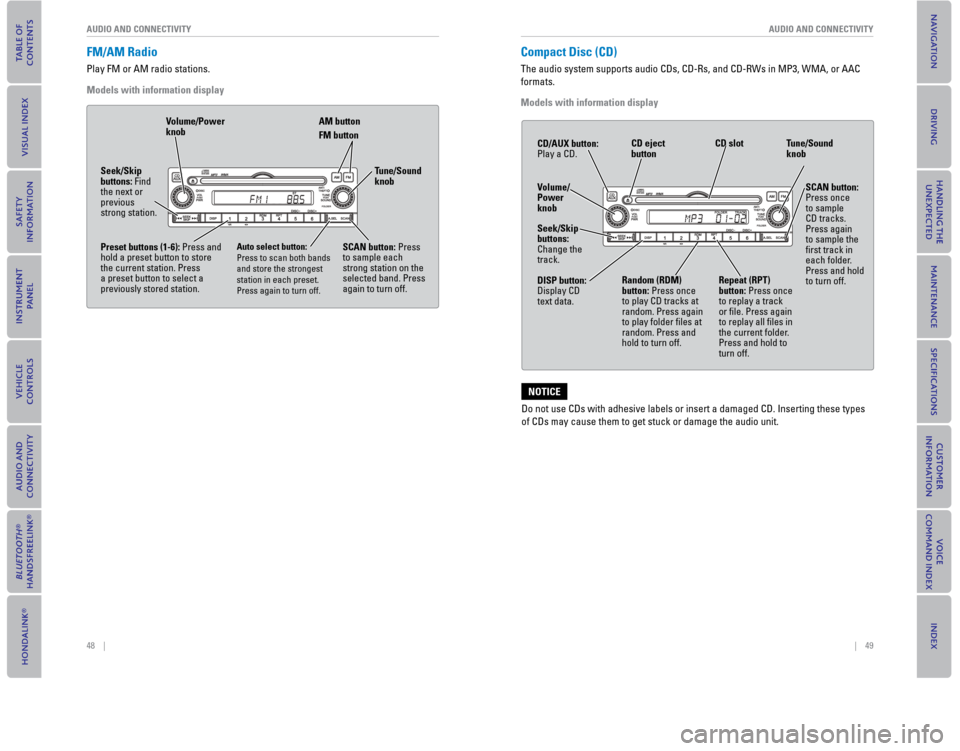

FM/AM Radio
Play FM or AM radio stations.
Models with information display
Volume/Power
knob AM button
FM button
Tune/Sound
knob
SCAN button: Press
to sample each
strong station on the
selected band. Press
again to turn off.
Auto select button:
Press to scan both bands
and store the strongest
station in each preset.
Press again to turn off.
Seek/Skip
buttons: Find
the next or
previous
strong station.
Preset buttons (1-6): Press and
hold a preset button to store
the current station. Press
a preset button to select a
previously stored station.
Compact Disc (CD)
The audio system supports audio CDs, CD-Rs, and CD-RWs in MP3, WMA, or A\
AC
formats.
Models with information display
Do not use CDs with adhesive labels or insert a damaged CD. Inserting th\
ese types
of CDs may cause them to get stuck or damage the audio unit.
NOTICE
Volume/
Power
knob CD eject
button
CD slot Tune/Sound
knob
SCAN button:
Press once
to sample
CD tracks.
Press again
to sample the
fi rst track in
each folder.
Press and hold
to turn off.
Random (RDM)
button: Press once
to play CD tracks at
random. Press again
to play folder fi les at
random. Press and
hold to turn off.
Seek/Skip
buttons:
Change the
track. CD/AUX button:
Play a CD.
DISP button:
Display CD
text data.
Repeat (RPT)
button: Press once
to replay a track
or fi le. Press again
to replay all fi les in
the current folder.
Press and hold to
turn off.

50 || 51
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY

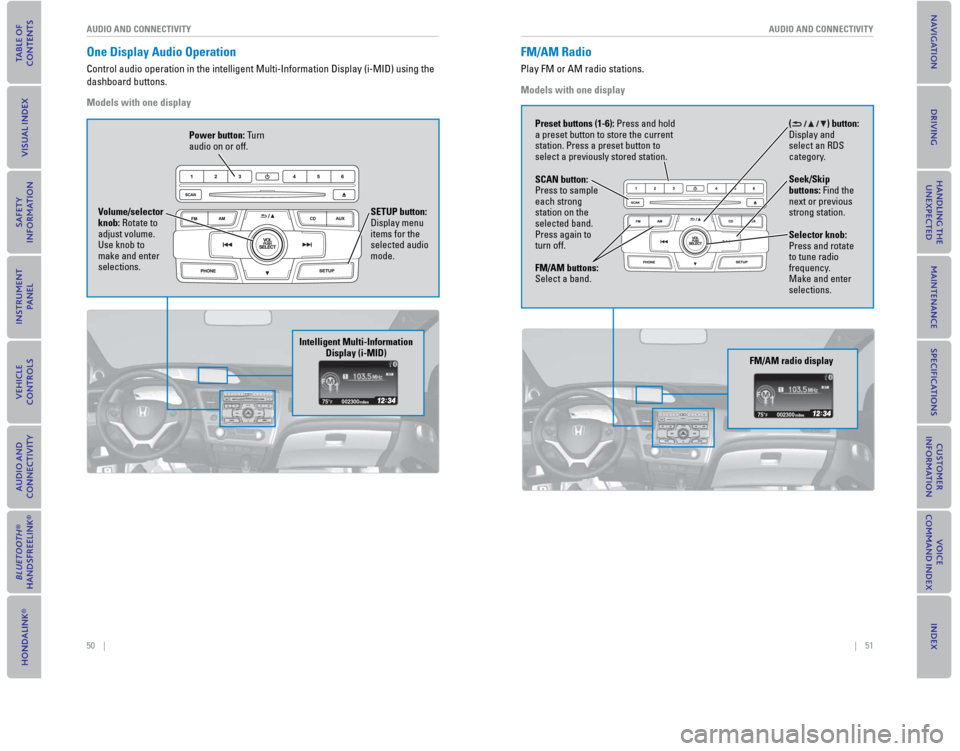

One Display Audio Operation
Control audio operation in the intelligent Multi-Information Display (i\
-MID) using the
dashboard buttons.
Models with one display
Intelligent Multi-Information
Display (i-MID)
002300
75°F miles
Volume/selector
knob: Rotate to
adjust volume.
Use knob to
make and enter
selections. SETUP button:
Display menu
items for the
selected audio
mode.
Power button: Turn
audio on or off.
FM/AM Radio
Play FM or AM radio stations.
Models with one display
() button:
Display and
select an RDS
category.
Seek/Skip
buttons: Find the
next or previous
strong station.
Selector knob:
Press and rotate
to tune radio
frequency.
Make and enter
selections.
Preset buttons (1-6): Press and hold
a preset button to store the current
station. Press a preset button to
select a previously stored station.
FM/AM buttons:
Select a band. SCAN button:
Press to sample
each strong
station on the
selected band.
Press again to
turn off.
FM/AM radio display
002300
75°F miles

52 || 53
AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY

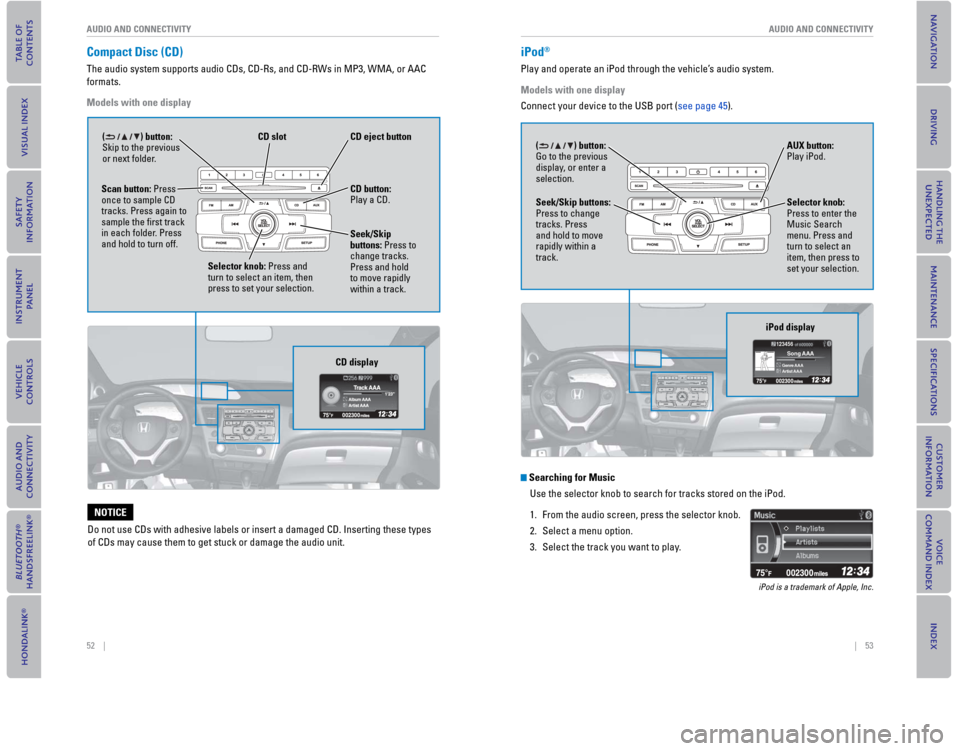

Compact Disc (CD)
The audio system supports audio CDs, CD-Rs, and CD-RWs in MP3, WMA, or AAC
formats.
Models with one display
CD display
CD button: Play a CD.
CD eject buttonCD slot
Selector knob: Press and turn to select an item, then press to set your selection.
Scan button: Press once to sample CD tracks. Press again to sample the fi rst track in each folder. Press and hold to turn off.Seek/Skip buttons: Press to change tracks. Press and hold to move rapidly within a track.
() button: Skip to the previous or next folder.
Do not use CDs with adhesive labels or insert a damaged CD. Inserting these types
of CDs may cause them to get stuck or damage the audio unit.
NOTICE
iPod®
Play and operate an iPod through the vehicle’s audio system.
Models with one display
Connect your device to the USB port (see page 45).
Searching for Music
Use the selector knob to search for tracks stored on the iPod.
1. From the audio screen, press the selector knob.
2. Select a menu option.
3. Select the track you want to play.
iPod is a trademark of Apple, Inc.
iPod display
123456
Genre AAASong AAA
Artist AAA
() button: Go to the previous display, or enter a selection.
Selector knob: Press to enter the Music Search menu. Press and turn to select an item, then press to set your selection.
Seek/Skip buttons: Press to change tracks. Press and hold to move rapidly within a track.
AUX button: Play iPod.
