HONDA CIVIC COUPE 2016 10.G Owners Manual

560
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 560 ページ >0>.>/６年>0月>/>0日　金曜日　午後４時>/６分

561

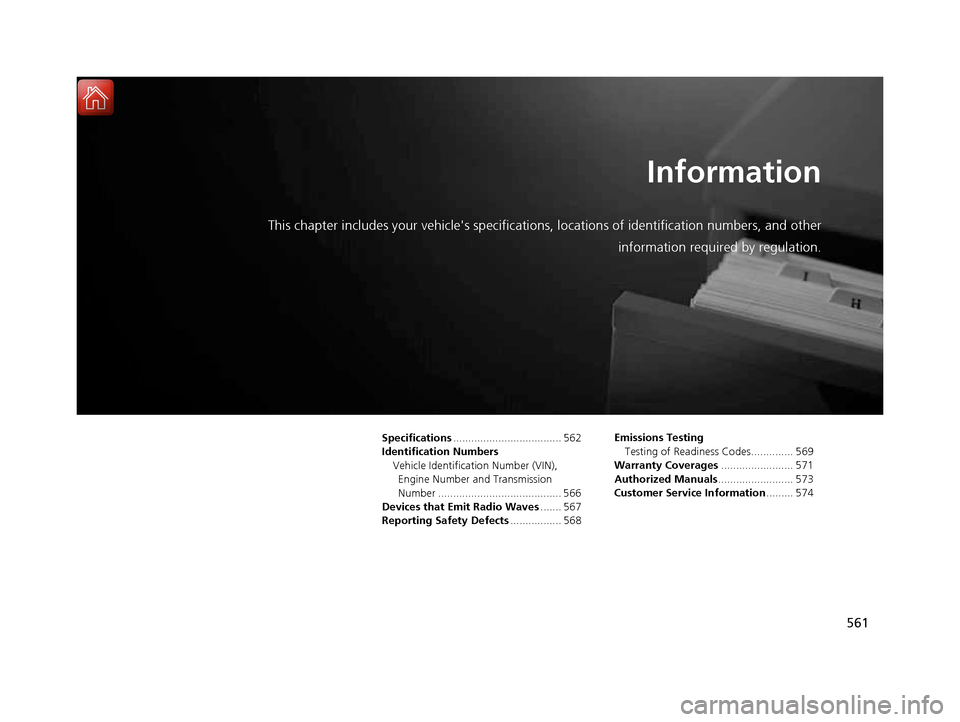

Information
This chapter includes your vehicl e's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 562
Identification Numbers Vehicle Identification Number (VIN),
Engine Number and Transmission
Number ......................................... 566
Devices that Emit Radio Waves ....... 567
Reporting Safety Defects ................. 568Emissions Testing
Testing of Readiness Codes.............. 569
Warranty Coverages ........................ 571
Authorized Manuals ......................... 573
Customer Service Information ......... 574
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 561 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

562
Information

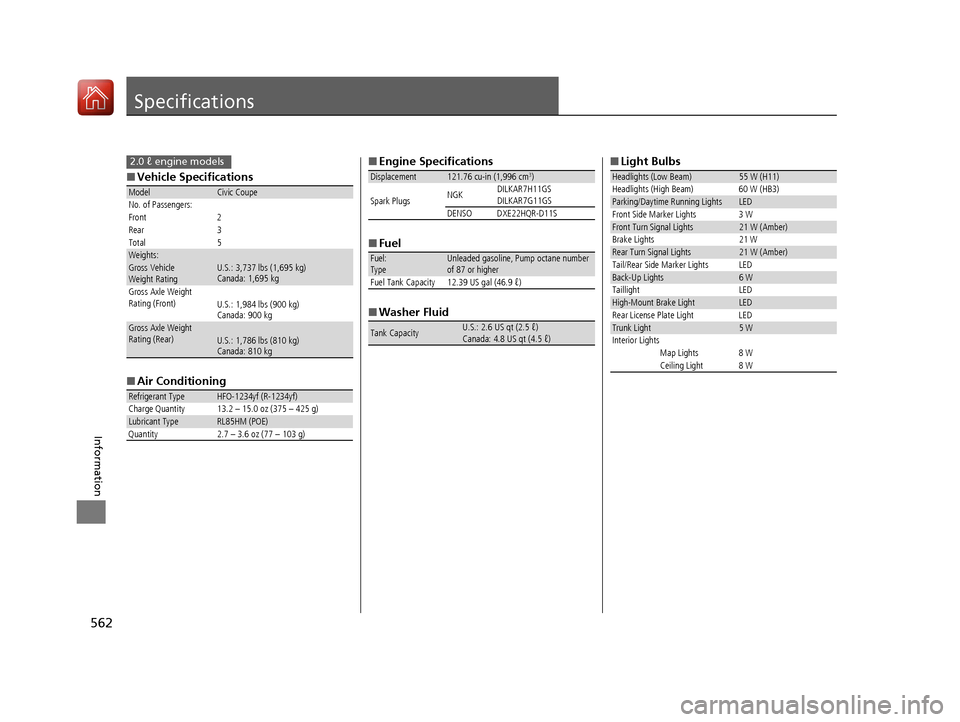

Specifications
■Vehicle Specifications
■Air Conditioning
ModelCivic Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,737 lbs (1,695 kg)
Canada: 1,695 kg
Gross Axle Weight
Rating (Front)U.S.: 1,984 lbs (900 kg)
Canada: 900 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,786 lbs (810 kg)
Canada: 810 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 2.7 – 3.6 oz (77 – 103 g)
2.0 ℓ engine models■Engine Specifications
■Fuel
■Washer Fluid
Displacement121.76 cu-in (1,996 cm 3
)
Spark Plugs NGK
DILKAR7H11GS DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■Light Bulbs
Headlights (Low Beam)55 W (H11)
Headlights (High Beam) 60 W (HB3)
Parking/Daytime Running LightsLED
Front Side Marker Lights 3 W
Front Turn Signal Lights21 W (Amber)
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights6 W
Taillight LED
High-Mount Brake LightLED
Rear License Plate Light LED
Trunk Light5 W
Interior Lights Map Lights 8 W
Ceiling Light 8 W
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 562 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

563

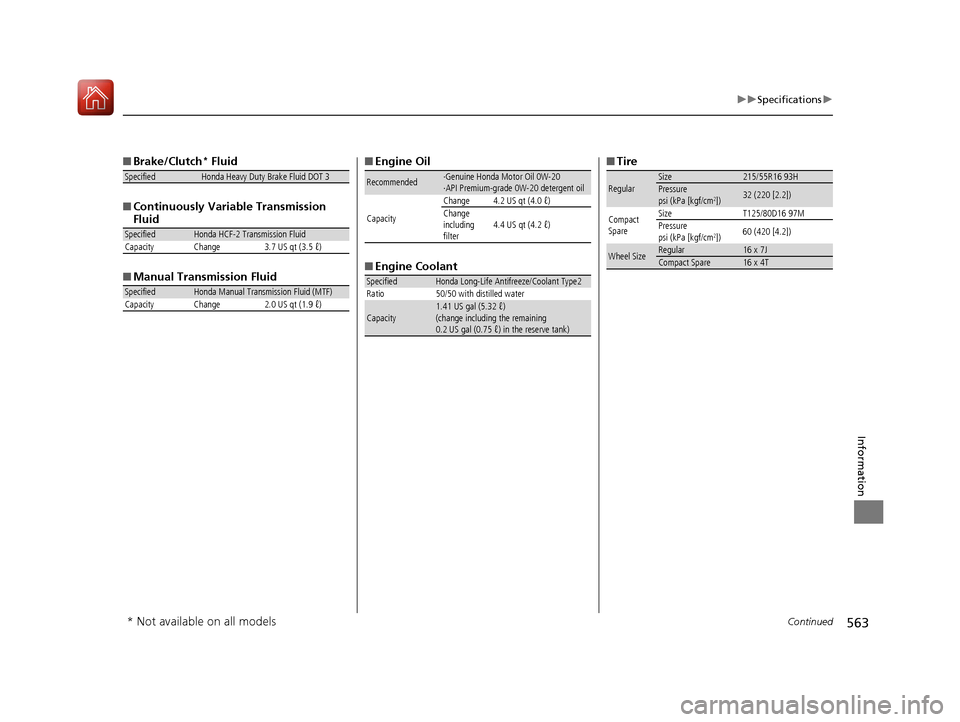

uuSpecificationsu
Continued
Information
■Brake/Clutch*
Fluid
■Continuously Variable Transmission Fluid
■Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.7 US qt (3.5 ℓ)
SpecifiedHonda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 ℓ)
■Engine Oil
■Engine Coolant
Recommended

564

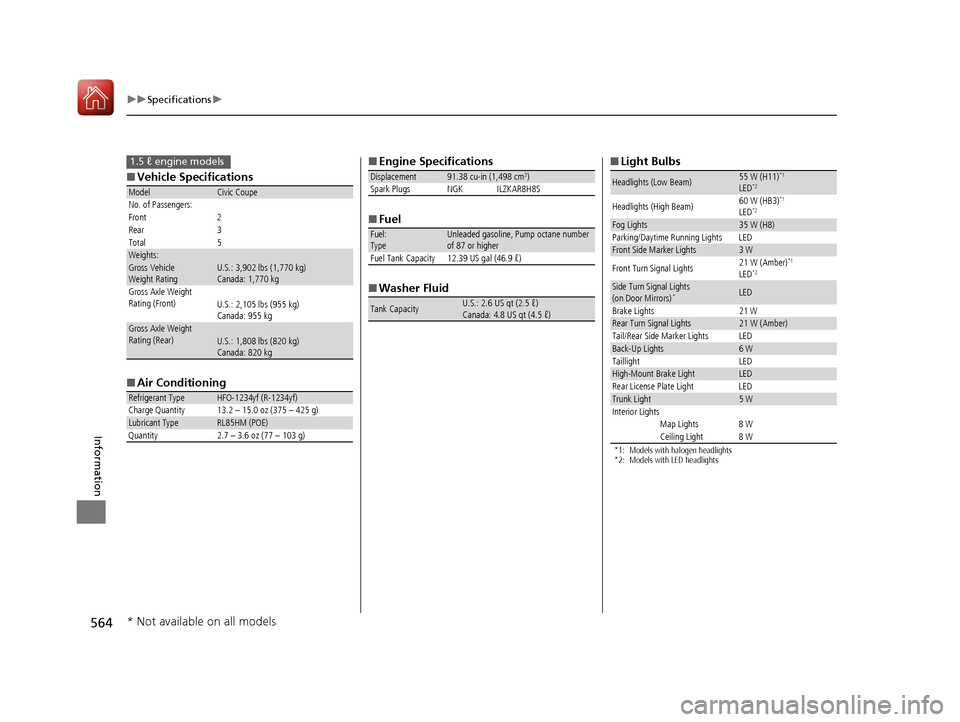

uuSpecificationsu
Information
■Vehicle Specifications
■Air Conditioning
ModelCivic Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,902 lbs (1,770 kg)
Canada: 1,770 kg
Gross Axle Weight
Rating (Front)U.S.: 2,105 lbs (955 kg)
Canada: 955 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,808 lbs (820 kg)
Canada: 820 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 2.7 – 3.6 oz (77 – 103 g)
1.5 ℓ engine models■Engine Specifications
■Fuel
■Washer Fluid
Displacement91.38 cu-in (1,498 cm 3
)
Spark Plugs NGK ILZKAR8H8S
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
Headlights (Low Beam)55 W (H11) *1
LED *2
Headlights (High Beam) 60 W (HB3)
*1
LED *2
Fog Lights35 W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)
*1
LED *2
Side Turn Signal Lights
(on Door Mirrors)
*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights6 W
Taillight LED
High-Mount Brake LightLED
Rear License Plate Light LED
Trunk Light5 W
Interior Lights Map Lights 8 W
Ceiling Light 8 W
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 564 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

565

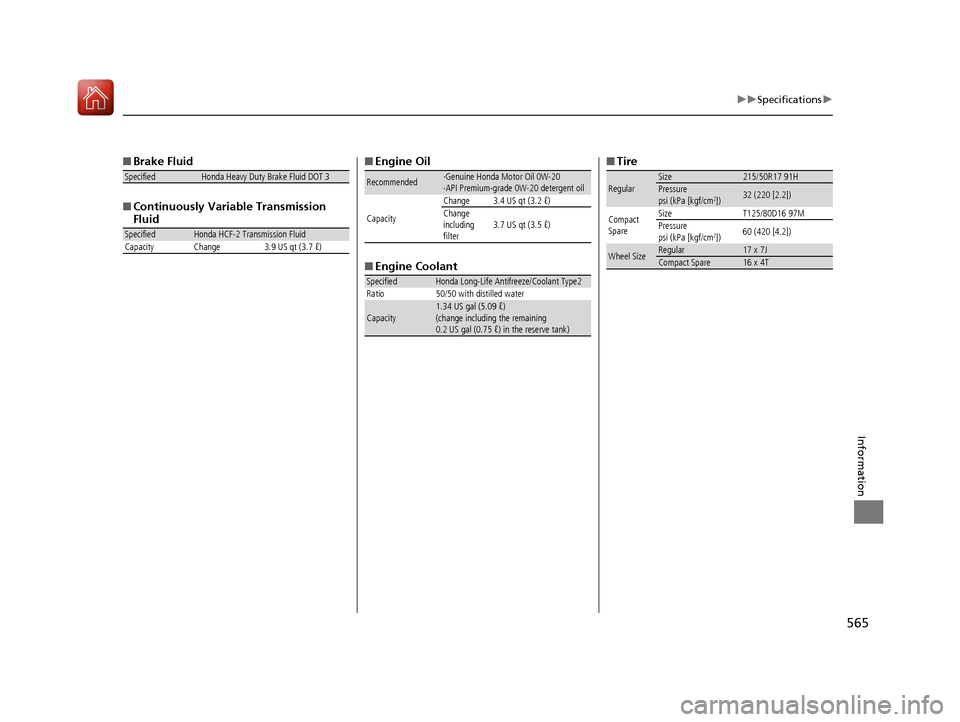

uuSpecificationsu
Information
■Brake Fluid
■Continuously Variable Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 ℓ)
■Engine Oil
■Engine Coolant
Recommended

566
Information

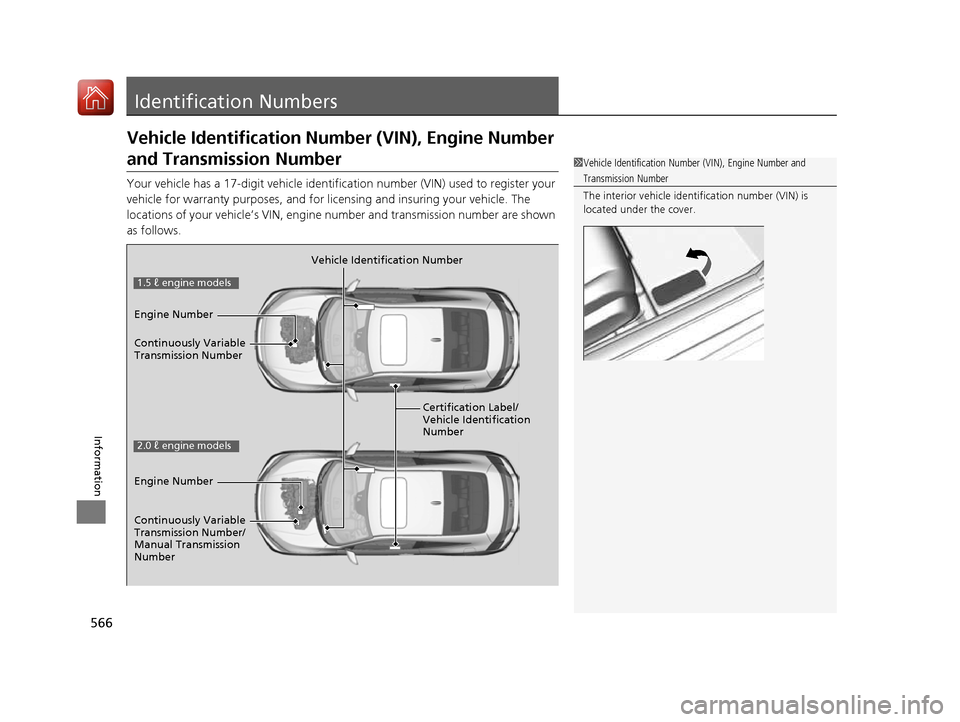

Identification Numbers
Vehicle Identification Number (VIN), Engine Number
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. The
locations of your vehicle’s VIN, engine number and transmission number are shown
as follows.1Vehicle Identification Number (VIN), Engine Number and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 ℓ engine models
1.5 ℓ engine models
Continuously Variable
Transmission Number
Engine Number
Continuously Variable
Transmission Number/
Manual Transmission
Number
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 566 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

567
Information

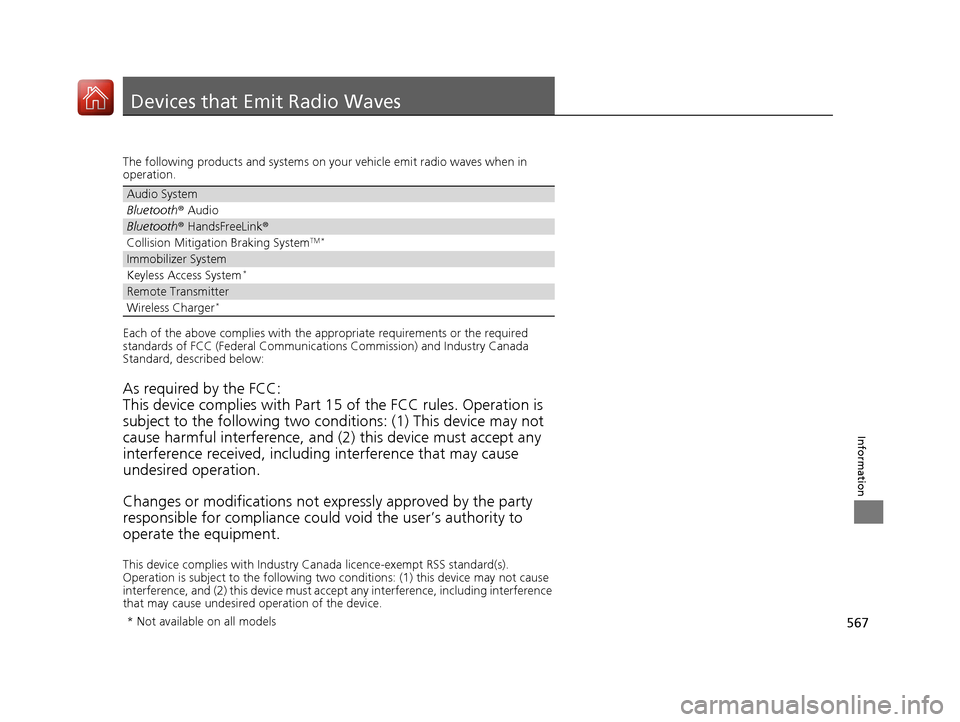

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC: This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth ® HandsFreeLink ®
Collision Mitigation Braking System TM *
Immobilizer System
Keyless Access System*
Remote Transmitter
Wireless Charger*
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 567 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

568
Information

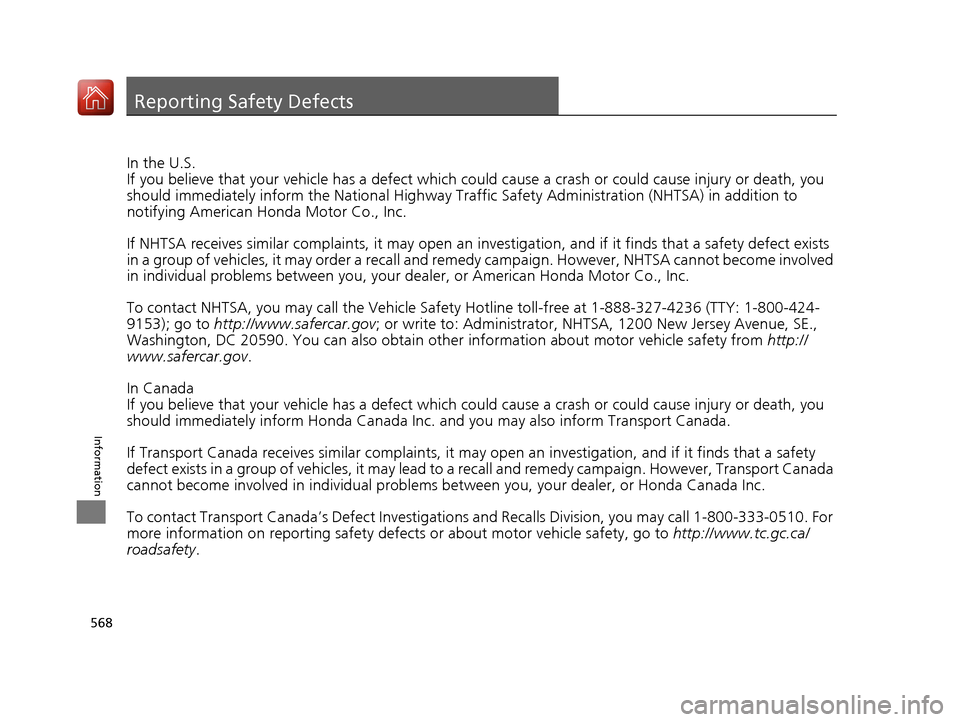

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 568 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

569
Continued
Information

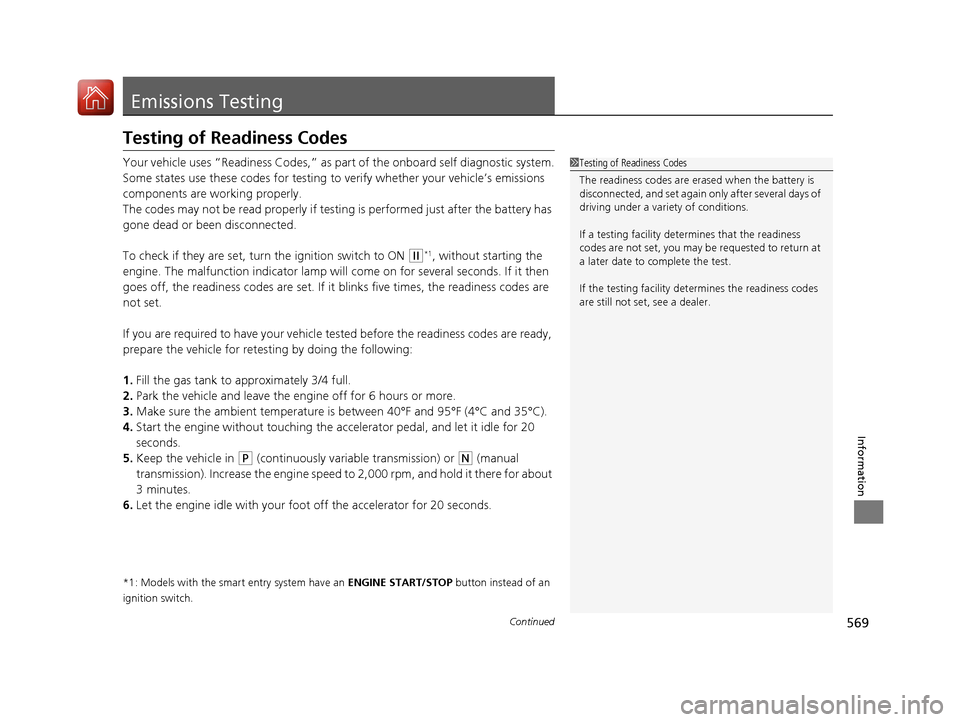

Emissions Testing
Testing of Readiness Codes
Your vehicle uses “Readiness Codes,” as part of the onboard self diagnostic system.
Some states use these codes for testing to
verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1
, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a vari ety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
