HONDA CIVIC COUPE 2016 10.G Quick Guide
Manufacturer: HONDA, Model Year: 2016, Model line: CIVIC COUPE, Model: HONDA CIVIC COUPE 2016 10.GPages: 82, PDF Size: 5.2 MB
Page 1 of 82
C2 | COVER COVER | C3
owners.honda.com (U.S.)
myhonda.ca (Canada)
AOG02600
31TBGG00 2016 Honda Civic Coupe Owner’s Guide
00X31-TBG-G000 ©2015 Honda Motor Co., Ltd. — All Rights Reserved Printed in U.S.A.2016
Civic Coupe
OWNER’S GUIDE
Page 2 of 82
Devices That Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation:
DISCLOSURES
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: •  How various systems in your vehicle were operating;
•  Whether or not the driver and passenger safety belts were buckled/fastened;
•  How far (if at all) the driver was depressing the accelerator and/or brake pedal;
and,
•  How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal
driving conditions and no personal data (e.g., name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties such as law enforcement that have the special equipment can read the information if they have access to the vehicle or the EDR. The data belong to the vehicle owner and may not be accessed by anyone else
except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record information about
powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains con dential.
• 
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)*
•  Audio system
•  Bluetooth ®
Audio
•  Bluetooth HandsFreeLink ® • 
Collision Mitigation Braking
Systemâ„¢ (CMBSâ„¢)*
•  Immobilizer system
•  Remote transmitter
•  Smart entry system*
•  Wireless charger*
Each of the above complies with the appropriate requirements or the required standards of the FCC (Federal Communications Commission) and Industry Canada, described below: As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is subject to the 
following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modiications not expressly approved by the party responsible for 
compliance could void the user’s authority to operate the equipment. As required by Industry Canada:  This device complies with Industry Canada license-exempt RSS standard(s). 
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR-type batteries in this vehicle may contain
perchlorate materials—special handling may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate/ for more information.
California Proposition 65 Warning
WARNING: This product contains or emits chemicals known to the state of
California to cause cancer and birth defects or other reproductive harm.
*if equipped
Page 3 of 82
INTRODUCTION TABLE OF CONTENTS
This Owner’s Guide is intended to help you quickly get acquainted with your
2016 Honda Civic Coupe. It provides basic information and instructions on technology
and convenience features, as well as emergency procedures and how to get assistance.
This guide is for vehicles sold in the United States and Canada. It covers all Civic Coupe models, so you may nd descriptions of features and equipment that are not in your
vehicle. Images throughout this guide are from U.S. vehicles and represent features and equipment that are available on some, but not all, models.
This guide is not intended to be a substitute for the Owner’s Manual. The Owner
Information CD enclosed in your glove box kit includes the Owner’s Manual, Navigation
Manual, and vehicle and tire warranties in electronic format. This information can be
viewed on a computer (PC or Mac platform) and saved or printed for your reference. You can also visit owners.honda.com (U.S.) or myhonda.ca (Canada) to view the complete
and most current information.
If you are the rst registered owner of your vehicle, you may request a complimentary
printed copy of the Owner’s Manual, Navigation Manual, or Vehicle Warranty within the
rst six months of vehicle purchase. To request a copy, visit owners.honda.com (U.S.)
and create or log in to your account. In Canada, please request a copy from your Honda
dealer. American Honda Motor Co., Inc. strives to be proactive in protecting our environment
and natural resources. By using electronic delivery for a considerable portion of the
information typically found in a vehicle owner’s manual, we are further reducing our impact on the environment.
Honda Automobile Customer Service
Your authorized Honda dealer should be able to answer any questions you have
about your vehicle. However, if you are dissatis ed with the information you receive, you can call Honda Automobile Customer Service (see page 150).
Phone (800) 999-1009 (U.S.) or (888) 946-6329 (Canada)
Honda Roadside Assistance
24-hour emergency road service is available to you in the United States and Canada
throughout your 3-year/36,000-mile warranty term. Services include jump starting, at tire and lockout assistance, towing, and more (limitations apply).
Phone (866) 864-5211 (U.S.) or (800) 465-7587 (Canada)
*if equipped
Visual Index .................................... 1
Steering Wheel and Nearby Controls ................1
Dashboard, Ceiling, and Other Controls .............2
Safety Information .........................3
Important Safety Information ...............................3
Seat Belts ................................................................ 5
Airbags.....................................................................8 Child Safety ........................................................... 14
Safety Label Locations ........................................21
Reporting Safety Defects....................................22
Instrument Panel.......................... 23
Malfunction Indicators........................................24 Condition Indicators ............................................ 26
On/Off Indicators .................................................. 27
Information Display*............................................28Driver Information Interface* ............................29
Vehicle Controls ..........................31
Using the Key or Remote Transmitter* .............31
Smart Entry System* ........................................... 32
Door Operation ..................................................... 34
Power Window Operation ..................................35
Power Moonroof Operation* ............................36
One-Touch Turn Signal ........................................36
Interior and Exterior Lights .................................37
Wiper Operation ................................................... 38
Adjusting the Seats..............................................40 Adjusting the Steering Wheel ............................44
Adjusting the Mirrors .......................................... 45
Climate Control System .......................................46
Seat Heaters* ....................................................... 49
Customized Features ........................................... 50
Setting the Clock .................................................. 51
Audio and Connectivity ..............52
Basic Audio Operation ........................................52
Models with color audio system ......................57
FM/AM Radio ........................................................ 58
iPod ®
.........................................................................................................................
59
USB Flash Drive....................................................60 Bluetooth Audio ................................................... 61
Models with Display Audio ...............................62
HondaLink ®*
....................................................................................................
63
Wi-Fi Connection..................................................64Ahaâ„¢ Radio .......................................................... 64
Apple CarPlay ®
...........................................................................................
65
Android Autoâ„¢ ..................................................... 66
FM/AM Radio ....................................................... 67
SiriusXM ®
Radio* ................................................. 68
iPod ®
.........................................................................................................................
69
USB Flash Drive....................................................70Bluetooth Audio ................................................... 71
Pandora ®
.............................................................................................................
72
Bluetooth Handsfreelink ............73
Basic HFL Operation ............................................ 73
Pairing a Phone .................................................... 74
Making a Call ........................................................ 75
Basic HFL Operation ............................................ 76
Pairing a Phone .................................................... 78
Making a Call ........................................................ 79
SMS Text Messaging and E-Mail* ....................80
HondaLink Assist..................................................81 Siri ®
Eyes Free ...................................................... 82
Navigation*................................... 83
Basic Navigation Operation ...............................83
Entering a Destination ......................................... 85
Routing ................................................................... 88
Page 4 of 82
| 1

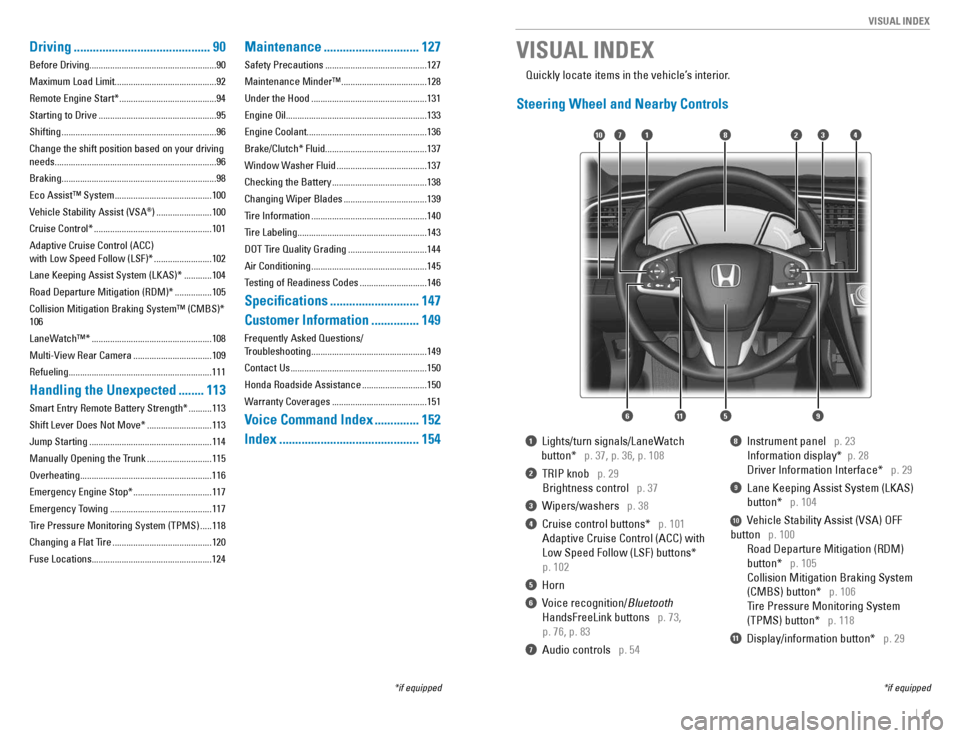

VISUAL INDEX
1 Lights/turn signals/LaneWatch
button*
p. 37, p. 36, p. 108
2 TRIP knob p. 29
Brightness control
p. 37
3 Wipers/washers p. 38
4 Cruise control buttons* p. 101
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) buttons*
p. 102
5 Horn
6 Voice recognition/ Bluetooth
HandsFreeLink buttons
p. 73,
p. 76, p. 83
7 Audio controls p. 54
8 Instrument panel p. 23
Information display* p. 28
Driver Information Interface* p. 29
9 Lane Keeping Assist System (LKAS)
button*
p. 104
10 Vehicle Stability Assist (VSA) OFF
button
p. 100
Road Departure Mitigation (RDM)
button*
p. 105
Collision Mitigation Braking System
(CMBS) button*
p. 106
Tire Pressure Monitoring System
(TPMS) button*
p. 118
11 Display/information button* p. 29
VISUAL INDEX
*if equipped
*if equipped
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
2
5
71310
6
48
911
Driving
........................................... 90
Before Driving.......................................................90
Maximum Load Limit............................................92Remote Engine Start* .......................................... 94
Starting to Drive ................................................... 95
Shifting ................................................................... 96
Change the shift position based on your driving
needs......................................................................96
Braking...................................................................98Eco Assistâ„¢ System .......................................... 100
Vehicle Stability Assist (VSA ®
) ........................ 100
Cruise Control* ................................................... 101
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)* .........................102
Lane Keeping Assist System (LKAS)* ............104
Road Departure Mitigation (RDM)* ................105
Collision Mitigation Braking Systemâ„¢ (CMBS)* 106
LaneWatchâ„¢* .................................................... 108
Multi-View Rear Camera ..................................109
Refueling..............................................................111
Handling the Unexpected ........113
Smart Entry Remote Battery Strength* ..........113
Shift Lever Does Not Move* ............................113
Jump Starting ..................................................... 114
Manually Opening the Trunk ............................115
Overheating.........................................................116 Emergency Engine Stop* ..................................117
Emergency Towing ............................................ 117
Tire Pressure Monitoring System (TPMS) .....118
Changing a Flat Tire ........................................... 120
Fuse Locations....................................................124
Maintenance .............................. 127
Safety Precautions ............................................ 127
Maintenance Minderâ„¢ .....................................128
Under the Hood .................................................. 131
Engine Oil.............................................................133
Engine Coolant....................................................136
Brake/Clutch* Fluid............................................137
Window Washer Fluid .......................................137
Checking the Battery ......................................... 138
Changing Wiper Blades ....................................139
Tire Information .................................................. 140
Tire Labeling ........................................................ 143
DOT Tire Quality Grading ..................................144
Air Conditioning .................................................. 145
Testing of Readiness Codes .............................146
Speci cations ............................ 147
Customer Information ...............149
Frequently Asked Questions/
Troubleshooting .................................................. 149
Contact Us ........................................................... 150
Honda Roadside Assistance ............................150
Warranty Coverages ......................................... 151
Voice Command Index ..............152
Index ............................................ 154
Page 5 of 82
2 || 3
SAFETY
VISUAL INDEX

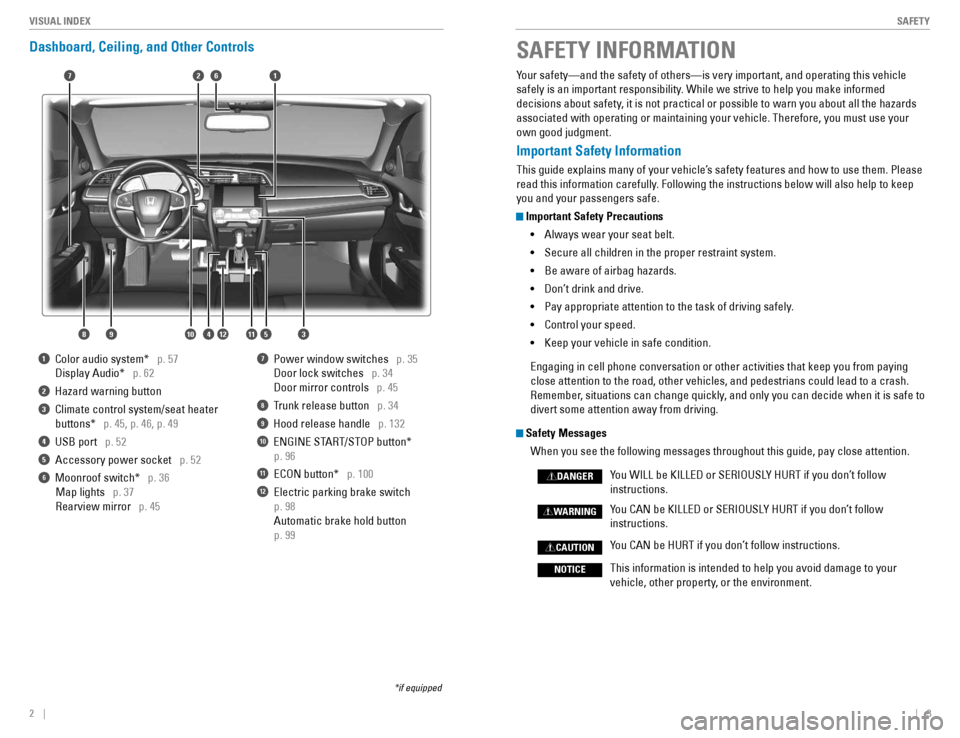

Dashboard, Ceiling, and Other Controls
1 Color audio system* p. 57
Display Audio* p. 62
2 Hazard warning button
3 Climate control system/seat heater
buttons*
p. 45, p. 46, p. 49
4 USB port p. 52
Accessory power socket p. 52
6 Moonroof switch* p. 36
Map lights p. 37
Rearview mirror p. 45
7 Power window switches p. 35
Door lock switches p. 34
Door mirror controls p. 45
8 Trunk release button p. 34
9 Hood release handle p. 132
10 ENGINE START/STOP button*
p. 96
11 ECON button* p. 100
12 Electric parking brake switch
p. 98
Automatic brake hold button
p. 99
*if equipped
SAFETY INFORMATION
2
3
71
8
6
4
Your safety—and the safety of others—is very important, and operating this vehicle
safely is an important responsibility. While we strive to help you make informed
decisions about safety, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. Therefore, you must use your own good judgment.
Important Safety Information
This guide explains many of your vehicle’s safety features and how to use them. Please
read this information carefully. Following the instructions below will also help to keep you and your passengers safe.
Important Safety Precautions
•  Always wear your seat belt.
•  Secure all children in the proper restraint system.
•  Be aware of airbag hazards.
•  Don’t drink and drive.
•  Pay appropriate attention to the task of driving safely.
•  Control your speed.
•  Keep your vehicle in safe condition.
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.
Safety Messages
When you see the following messages throughout this guide, pay close attention. You WILL be KILLED or SERIOUSLY HURT if you don’t follow
instructions. You CAN be KILLED or SERIOUSLY HURT if you don’t follow
instructions. You CAN be HURT if you don’t follow instructions.
This information is intended to help you avoid damage to your
vehicle, other property, or the environment.
DANGER
WARNING
CAUTION
NOTICE
5
59101112
Page 6 of 82
4 || 5
SAFETY
SAFETY

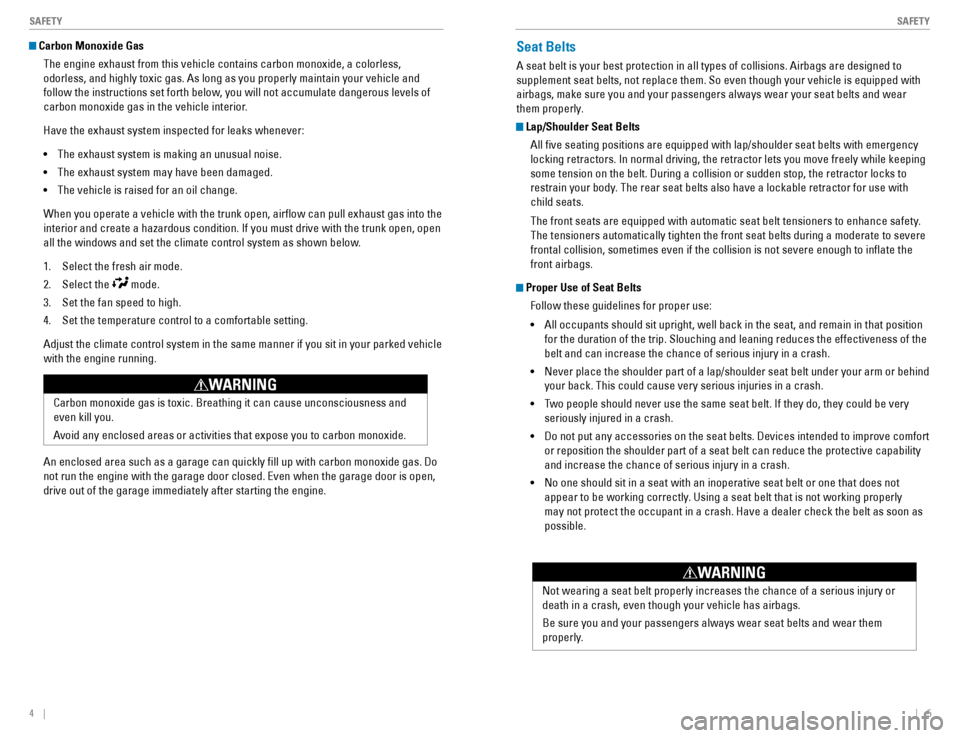

Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle and
follow the instructions set forth below, you will not accumulate dangerous levels of
carbon monoxide gas in the vehicle interior. Have the exhaust system inspected for leaks whenever:•  The exhaust system is making an unusual noise.
•  The exhaust system may have been damaged.
•  The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, air ow can pull exhaust gas into the interior and create a hazardous condition. If you must drive with the trunk open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the
mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked vehicle with the engine running. An enclosed area such as a garage can quickly ll up with carbon monoxide gas. Do not run the engine with the garage door closed. Even when the garage door is open, drive out of the garage immediately after starting the engine.
Seat Belts
A seat belt is your best protection in all types of collisions. Airbags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with
airbags, make sure you and your passengers always wear your seat belts and wear
them properly.
Lap/Shoulder Seat Belts
All ve seating positions are equipped with lap/shoulder seat belts with emergency
locking retractors. In normal driving, the retractor lets you move freely while keeping
some tension on the belt. During a collision or sudden stop, the retractor locks to
restrain your body. The rear seat belts also have a lockable retractor for use with child seats.
The front seats are equipped with automatic seat belt tensioners to enhance safety. The tensioners automatically tighten the front seat belts during a moderate to severe
frontal collision, sometimes even if the collision is not severe enough to in ate the front airbags.
Proper Use of Seat Belts
Follow these guidelines for proper use: •  All occupants should sit upright, well back in the seat, and remain in that position
for the duration of the trip. Slouching and leaning reduces the effectiveness of the belt and can increase the chance of serious injury in a crash.
•  Never place the shoulder part of a lap/shoulder seat belt under your arm or behind
your back. This could cause very serious injuries in a crash.
•  Two people should never use the same seat belt. If they do, they could be very
seriously injured in a crash.
•  Do not put any accessories on the seat belts. Devices intended to improve comfort
or reposition the shoulder part of a seat belt can reduce the protective capability and increase the chance of serious injury in a crash.
•  No one should sit in a seat with an inoperative seat belt or one that does not
appear to be working correctly. Using a seat belt that is not working properly may not protect the occupant in a crash. Have a dealer check the belt as soon as possible.
Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.
Avoid any enclosed areas or activities that expose you to carbon monoxide.
WARNING
Not wearing a seat belt properly increases the chance of a serious injury or death in a crash, even though your vehicle has airbags. Be sure you and your passengers always wear seat belts and wear them
properly.
WARNING
Page 7 of 82
6 || 7
SAFETY
SAFETY

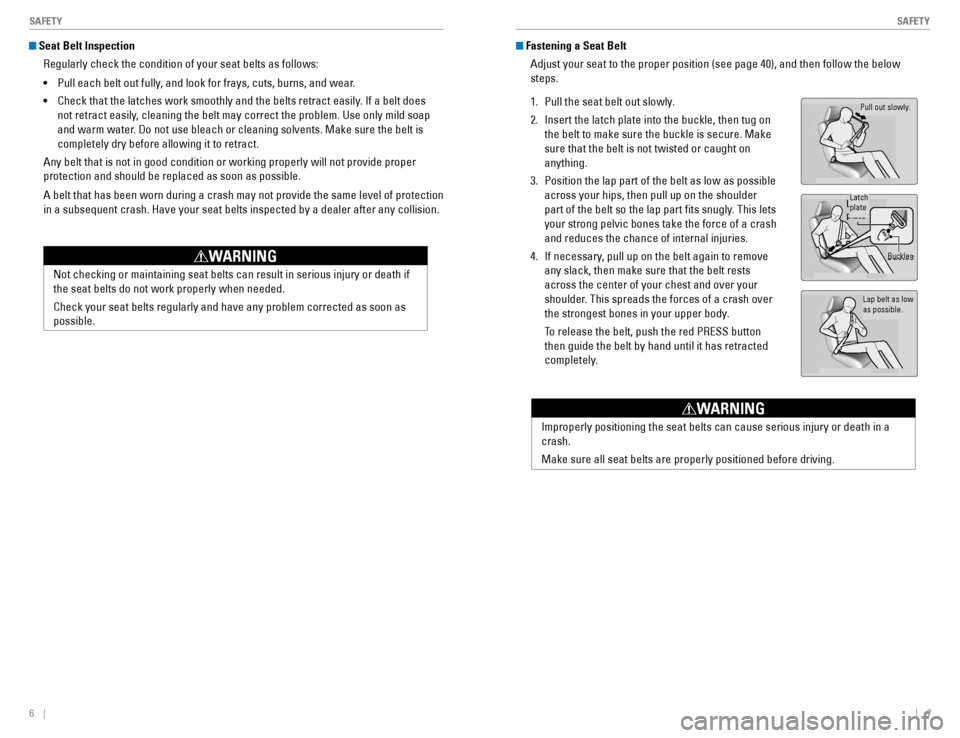

Seat Belt Inspection
Regularly check the condition of your seat belts as follows: •  Pull each belt out fully, and look for frays, cuts, burns, and wear.
•  Check that the latches work smoothly and the belts retract easily. If a belt does
not retract easily, cleaning the belt may correct the problem. Use only mild soap
and warm water. Do not use bleach or cleaning solvents. Make sure the belt is completely dry before allowing it to retract.
Any belt that is not in good condition or working properly will not provide proper protection and should be replaced as soon as possible. A belt that has been worn during a crash may not provide the same level of protection
in a subsequent crash. Have your seat belts inspected by a dealer after any collision.
Fastening a Seat Belt
Adjust your seat to the proper position (see page 40), and then follow the below steps.
1. Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then tug on the belt to make sure the buckle is secure. Make sure that the belt is not twisted or caught on anything.
3. Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder
part of the belt so the lap part ts snugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.
4. If necessary, pull up on the belt again to remove any slack, then make sure that the belt rests across the center of your chest and over your
shoulder. This spreads the forces of a crash over
the strongest bones in your upper body.
To release the belt, push the red PRESS button then guide the belt by hand until it has retracted
completely.
Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.
Check your seat belts regularly and have any problem corrected as soon as possible.
WARNING
Pull out slowly.
Lap belt as low as possible.
Latch plate
BuckleLatch plate
Buckle
Improperly positioning the seat belts can cause serious injury or death in a crash. Make sure all seat belts are properly positioned before driving.
WARNING
Page 8 of 82
8 || 9
SAFETY
SAFETY
Airbags
Your vehicle is equipped with three types of airbags: front airbags, side airbags, and side curtain airbags.
Front Airbags (SRS)
The front SRS airbags in ate in a moderate-to-severe frontal collision to help
protect the head and chest of the driver and/or front passenger. They are housed
in the center of the steering wheel for the driver, and in the dashboard for the front
passenger. Both airbags are marked SRS AIRBAG.
SRS (Supplemental Restraint System) indicates that the airbags are designed to
supplement seat belts, not replace them. Seat belts are the occupant’s primary restraint system.
Advanced Airbags
Your front airbags have advanced features to help reduce the likelihood of airbag- related injuries to smaller occupants.
The driver’s advanced front airbag system includes
a seat position sensor. If the seat is too far forward, the airbag in ates with less force, regardless of the severity of the impact.
If there is a problem with the driver’s seat position
sensor, the SRS indicator will come on and the airbag will in ate with full (normal) force, regardless
of the driver’s seating position.
The passenger’s advanced front airbag system has weight sensors. Although Honda recommends against carrying an infant or small child in front, if the sensors detect the weight of a child (up to 65 lbs or 29 kg), the system will automatically turn off the
passenger’s front airbag. For both advanced front airbags to work properly: •  Do not spill any liquid on or under the seats.
•  Do not put any object under the passenger’s seat.
•  Make sure any objects are positioned properly on the oor. Improperly positioned
objects can interfere with the advanced airbag sensors.
•  All occupants should sit upright and wear their seat belts properly.
•  Do not place any cover over any part of the passenger side dashboard.
Side Airbags
The side airbags help protect the torso and pelvis of the driver or a front passenger during a moderate-to-severe side impact. They are housed in the outside edge of the
driver’s and front passenger’s seat-backs. Both are marked SIDE AIRBAG.
Side Curtain Airbags
Side curtain airbags help protect the heads of the driver and passengers in outer seating positions during a moderate-to-severe side impact. The side curtain airbags
equipped in this vehicle are also designed to help reduce the likelihood of partial and complete ejection of vehicle occupants through side windows in crashes, particularly rollover crashes. The side curtain airbags are located in the ceiling above the side windows on both sides of the vehicle.
Both are marked SIDE CURTAIN AIRBAG. The side curtain airbags are designed to deploy
in a rollover, moderate-to-severe side impact, or a moderate-to-severe angled frontal collision. If the SRS control unit senses that your vehicle is
about to roll over, it immediately deploys both side curtain airbags and activates both front seat belt
tensioners. If the impact is on the passenger’s side,
the passenger’s side curtain airbag deploys even if there is no passenger in the passenger seat.
To get the best protection from the side curtain airbags, occupants should wear their seat belts properly and sit upright and well back in their seats.
Do not attach any objects to the side windows or roof pillars, as they can interfere with the proper operation of the side curtain airbags.
When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may in ate in a severe frontal collision. In this case, the side curtain airbags will deploy slightly after the front airbags.
Driver’s seat position
sensor
Passenger’s seat weight sensor
Side curtain airbag storage
Deployed side curtain airbag
Page 9 of 82
10 || 11
SAFETY
SAFETY
Important Facts About Your Airbags
Always wear your seat belt properly, and sit upright and as far back from the steering
wheel as possible while allowing full control of the vehicle. A front passenger should move their seat as far back from the dashboard as possible. Do not place hard or sharp objects between yourself and a front airbag. Carrying
hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag in ates. Do not attach or place objects on the front airbag covers. Objects on the covers
marked SRS AIRBAG could interfere with the proper operation of the airbags or be
propelled inside the vehicle and hurt someone if the airbags in ate.Do not attach accessories on or near the side airbags. They can interfere with the
proper operation of the airbags, or hurt someone if an airbag in ates.Do not attach any objects to the side windows or roof pillars. They can interfere with
the proper operation of the side curtain airbags.Do not cover or replace the front seat-back covers. This can prevent your side
airbags from properly deploying during a side impact
Passenger Airbag Off indicator
The indicator comes on to alert you that the front
passenger’s front airbag has been turned off. This
occurs when the front passenger’s seat weight sensors detect 65 lbs (29 kg) or less, the weight of an infant or small child, on the seat. Infants and small children should always ride properly restrained in a back seat.
The indicator also will come on when the front passenger‘s seat is empty; the
passenger’s front airbag will not deploy in a crash.
To ensure the passenger is detected properly, check that:•  There is no child seat or other object pressing against the rear of the seat-back.
•  There is no rear passenger pushing or pulling on the back of the front passenger’s
seat.
•  The front seat or seat-back is not forced back against an object on the seat or
oor behind it.
•  There is no object placed under or beside the front passenger’s seat.
•  The occupant is sitting in an upright position and the seat back is not excessively
reclined.
•  The occupant is not leaning against the door or center console.
•  The occupant’s feet are placed on the oor in front of them.
•  There are no objects hanging from the front passenger’s seat.
•  Only small, lightweight objects are in the seat-back pocket.
The passenger airbag off indicator may come on and go off periodically if the total weight on the seat is near the airbag cutoff threshold. Have your vehicle checked by a dealer as soon as possible if:•  None of the above conditions exist, and the indicator comes on with an adult
riding there.
•  The seat is empty and the indicator is off.
Do not allow an adult passenger to ride in the front seat when the indicator is on.
Airbag System Indicators
If a problem occurs in the airbag system, the SRS indicator comes on and a message appears on the Driver Information Interface*.
SRS (Supplemental Restraint System) indicator
If the indicator comes on at any other time besides vehicle start-up, or does not come on at all, have the system checked by a dealer as soon as possible. If
you don’t, your airbags and seat belt tensioners may not work properly when they are needed. An open glove box can cause serious injury to your passenger in a crash, even if the passenger is wearing the seat belt. Always keep the glove box closed while driving.
WARNING
*if equipped
*
Ignoring the SRS indicator can result in serious injury or death if the airbag
systems or tensioners do not work properly. Have your vehicle checked by a dealer as soon as possible if the SRS indicator alerts you to a possible problem.
WARNING
U.S.
Canad a
Page 10 of 82
12 || 13
SAFETY
SAFETY
1 Two SRS (Supplemental Restraint System) front airbags. The driver’s airbag
is stored in the center of the steering wheel; the front passenger’s airbag is stored in the dashboard. Both are marked SRS AIRBAG.
2 Two side airbags, one for the driver and one for the front passenger. The
airbags are stored in the outer edges of the seat-backs. Both are marked SIDE
AIRBAG .
3 Two side curtain airbags, one for each side of the vehicle. The airbags are
stored in the ceiling, above the side windows. The front and rear pillars are marked SIDE CURTAIN AIRBAG .
4 An electronic control unit that, when the vehicle is on, continually monitors
information about the various impact sensors, seat and buckle sensors,
rollover sensor, airbag activators, seat belt tensioners, and other vehicle information. During a collision, the unit records such information.
5 Automatic front seat belt tensioners. In addition, the driver’s and front passenger’s seat belt buckles incorporate sensors that detect whether or not the belts are fastened.
6 A driver’s seat position sensor. If the seat is too far forward, the airbag will
in ate with less force.
7 Weight sensors in the front passenger’s seat. The front passenger’s airbag will be turned off if the weight on the seat is about 65 lbs (29 kg) or less (the
weight of an infant or small child) or if the seat is empty.
8 Impact sensors that can detect a moderate-to-severe front or side impact.
9 An indicator on the dashboard that alerts you that the front passenger’s front airbag has been turned off.
Airbag System Components
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle inspected by a dealer in the following situations:
When the airbags have deployed
If an airbag has in ated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be replaced.
You should always use new, genuine Honda parts to replace parts after an airbag
deployment. Used, salvaged, aftermarket, or grey-market parts may not work correctly in a crash.
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not in ate, have your dealer inspect the following: the
driver’s seat position sensor, weight sensors in the passenger’s seat, front seat belt tensioners, and each seat belt that was worn during the crash.
Do not remove or modify a front seat without first consulting a dealer
This would likely disable or affect the proper operation of the driver’s seat position
sensor or the weight sensors in the passenger’s seat. If it is necessary to remove
or modify a front seat to accommodate a person with disabilities, contact a Honda
dealer. For U.S. vehicles, call Honda Automobile Customer Service at (800) 999-1009.
For Canadian vehicles, call Honda Canada Customer Relations at (888) 946-6329.
10 An indicator on the instrument panel that alerts you to a possible problem with the
airbag system or seat belt tensioners.
11 A rollover sensor that detects whether the vehicle is about to roll over and signal the control unit to deploy both side curtain airbags.
