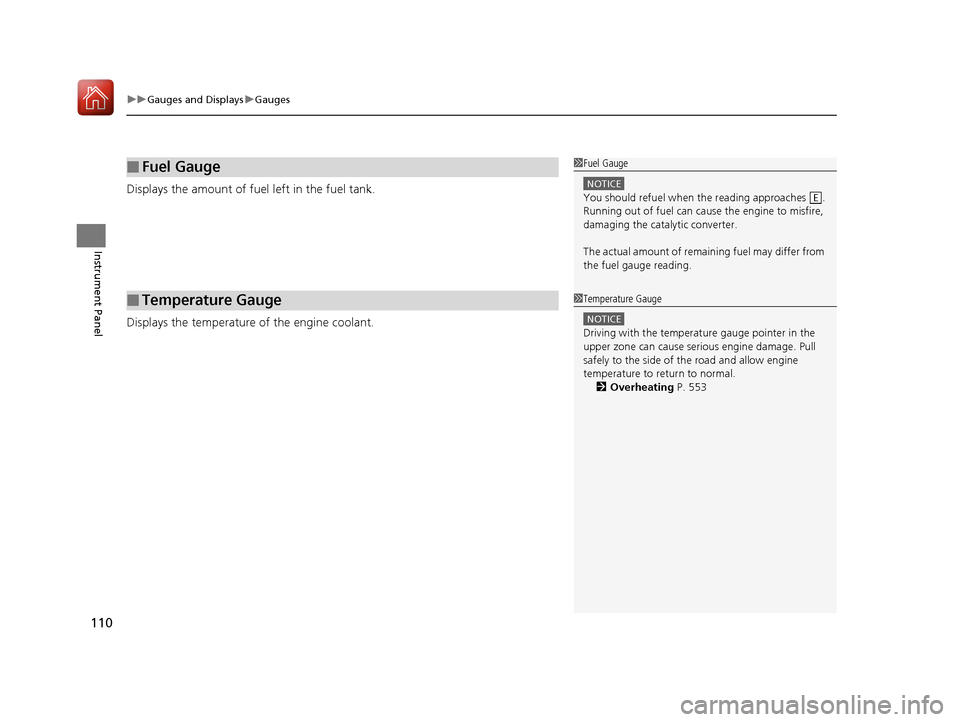

HONDA CIVIC COUPE 2017 10.G Owners Manual

uuGauges and Displays uGauges
110
Instrument Panel
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Fuel Gauge
■Temperature Gauge
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 553
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 110 ページ ２０１６年８月３１日　水曜日　午後５時４３分

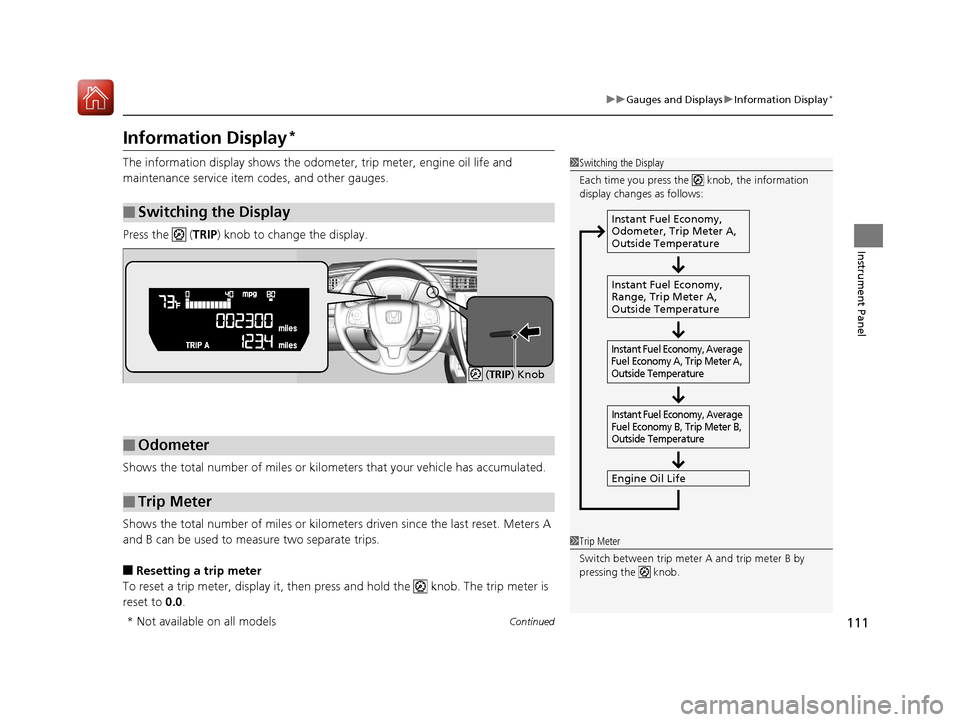

111
uuGauges and Displays uInformation Display*
Continued
Instrument Panel
Information Display*
The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Engine Oil Life
Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature
■Odometer
■Trip Meter
( TRIP) Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
* Not available on all models
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 111 ページ ２０１６年８月３１日　水曜日　午後５時４３分

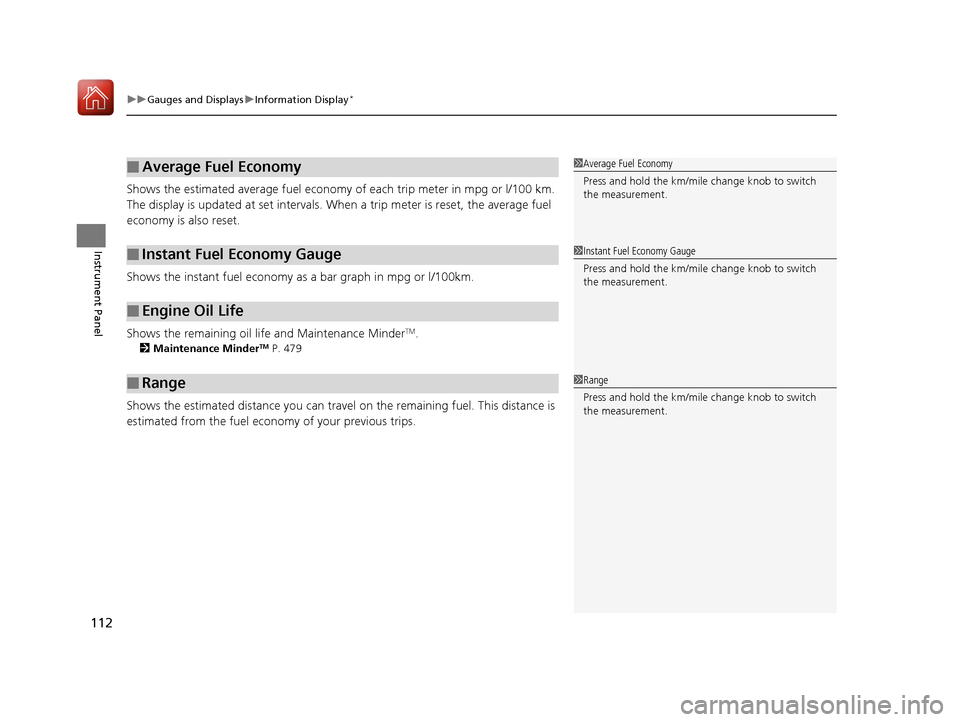

uuGauges and Displays uInformation Display*
112
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the instant fuel economy as a bar graph in mpg or l/100km.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 479
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
■Average Fuel Economy
■Instant Fuel Economy Gauge
■Engine Oil Life
■Range
1 Average Fuel Economy
Press and hold the km/mile change knob to switch
the measurement.
1Instant Fuel Economy Gauge
Press and hold the km/mile change knob to switch
the measurement.
1 Range
Press and hold the km/mile change knob to switch
the measurement.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 112 ページ ２０１６年８月３１日　水曜日　午後５時４３分

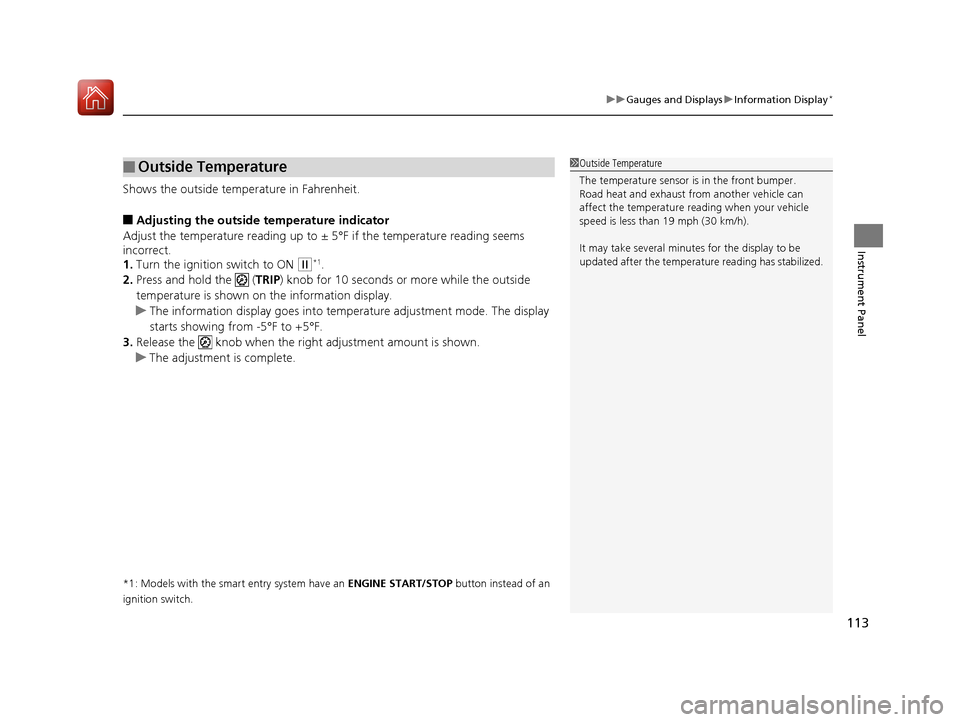

113
uuGauges and Displays uInformation Display*
Instrument Panel
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ± 5°F if the temperature reading seems
incorrect.
1. Turn the ignition switch to ON
(w*1.
2. Press and hold the ( TRIP) knob for 10 seconds or more while the outside
temperature is shown on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F.
3. Release the knob when the righ t adjustment amount is shown.
u The adjustment is complete.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 113 ページ ２０１６年８月３１日　水曜日　午後５時４３分

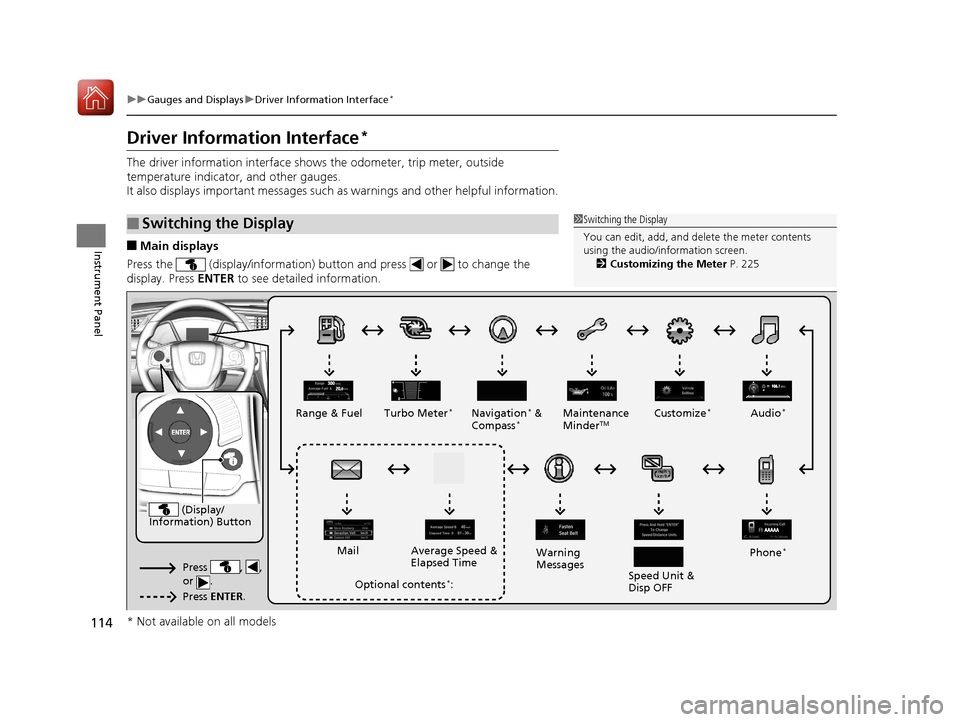

114
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Driver Information Interface*
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (display/information) butt on and press or to change the
display. Press ENTER to see detailed information.
■Switching the Display1Switching the Display
You can edit, add, and de lete the meter contents
using the audio/information screen.
2 Customizing the Meter P. 225
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range & Fuel Turbo Meter*Navigation* &
Compass*Maintenance
MinderTMCustomize*Audio*
Phone*
Speed Unit &
Disp OFF
Warning
Messages
Average Speed &
Elapsed Time
Mail
Optional contents*:
* Not available on all models
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 114 ページ ２０１６年８月３１日　水曜日　午後５時４３分

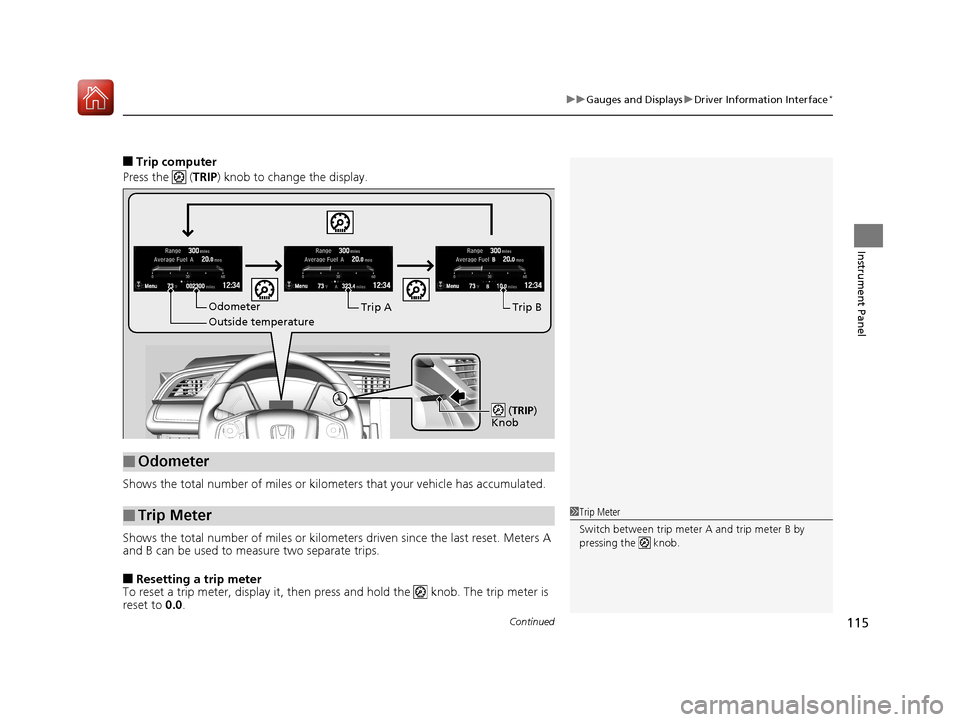

Continued115
uuGauges and Displays uDriver Information Interface*
Instrument Panel
■Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Odometer
■Trip Meter
Odometer
Outside temperature Trip ATrip B
(
TRIP )
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 115 ページ ２０１６年８月３１日　水曜日　午後５時４３分

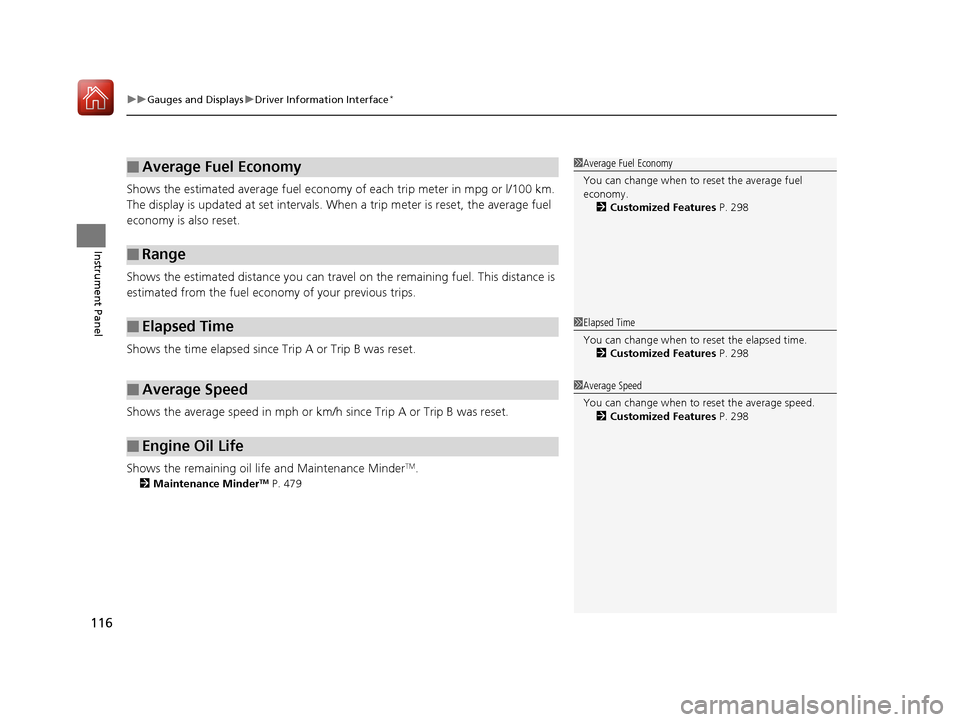

uuGauges and Displays uDriver Information Interface*
116
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 479
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 298
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 298
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 298
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 116 ページ ２０１６年８月３１日　水曜日　午後５時４３分

Continued117
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the audio/information screen to correct the temperature.
2Customized Features P. 298
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
When the turbo charger is producing boost,
this meter shows the boost pressure.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Outside Temperature
■Instant Fuel Economy
■Turbo Meter*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
■Turn-by-Turn Directions*1Turn-by-Turn Directions*
You can select whether th e turn-by-turn display
comes on during the route guidance. 2 Customized Features P. 298
* Not available on all models
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 117 ページ ２０１６年８月３１日　水曜日　午後５時４３分

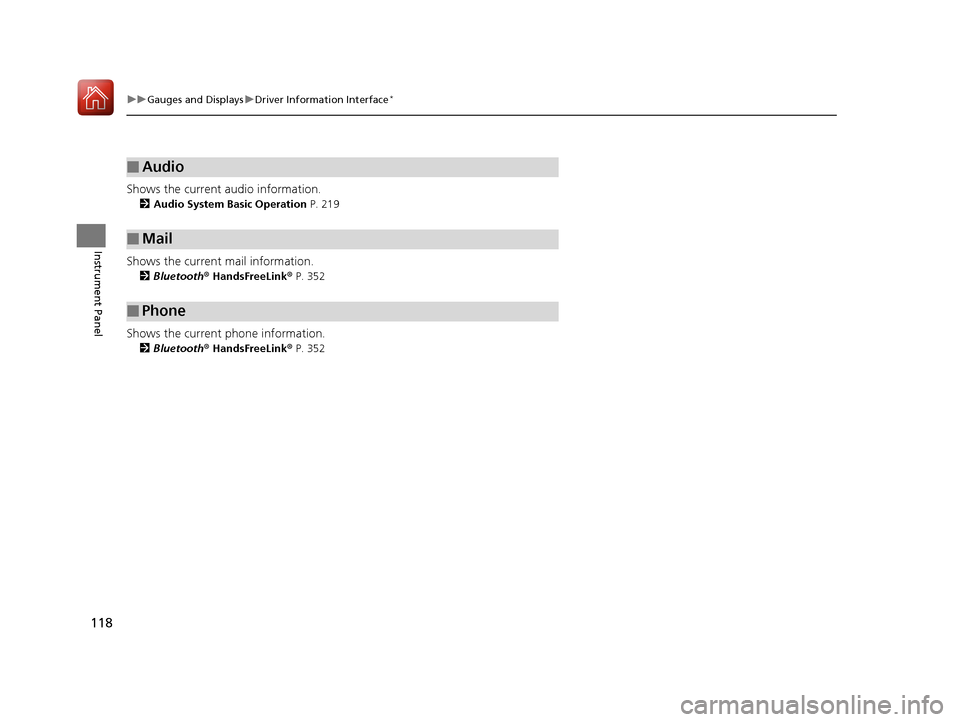

118
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Shows the current audio information.
2 Audio System Basic Operation P. 219
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 352
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 352
■Audio
■Mail
■Phone
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 118 ページ ２０１６年８月３１日　水曜日　午後５時４３分

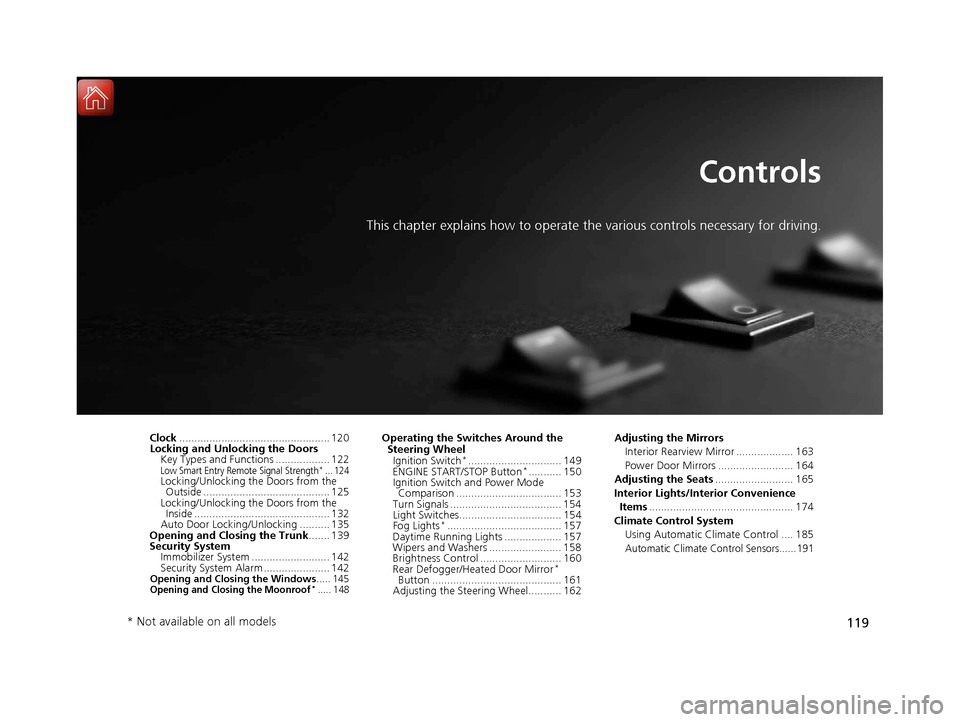

119
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 120
Locking and Unlocking the Doors Key Types and Functions .................. 122
Low Smart Entry Remote Signal Strength*... 124Locking/Unlocking the Doors from the Outside .......................................... 125
Locking/Unlocking the Doors from the Inside ............................................. 132
Auto Door Locking/Unlocking .......... 135
Opening and Closing the Trunk ....... 139
Security System Immobilizer System .......................... 142
Security System Alarm ...................... 142
Opening and Closing the Windows ..... 145Opening and Closing the Moonroof*..... 148
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 149
ENGINE START/STOP Button*........... 150
Ignition Switch and Power Mode Comparison ................................... 153
Turn Signals ..................................... 154
Light Switches.................................. 154
Fog Lights
*...................................... 157
Daytime Running Lights ................... 157
Wipers and Washers ........................ 158
Brightness Control ........................... 160
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 161
Adjusting the Steering Wheel........... 162 Adjusting the Mirrors
Interior Rearview Mirror ................... 163
Power Door Mirrors ......................... 164
Adjusting the Seats .......................... 165
Interior Lights/Interior Convenience Items ................................................ 174
Climate Control System Using Automatic Climate Control .... 185
Automatic Climate Control Sensors......191
* Not available on all models
17 CIVIC 2D HCM (KA KC KL)-31TBG6100.book 119 ページ ２０１６年８月３１日　水曜日　午後５時４３分
