Page 11 of 631
9
Quick Reference Guide

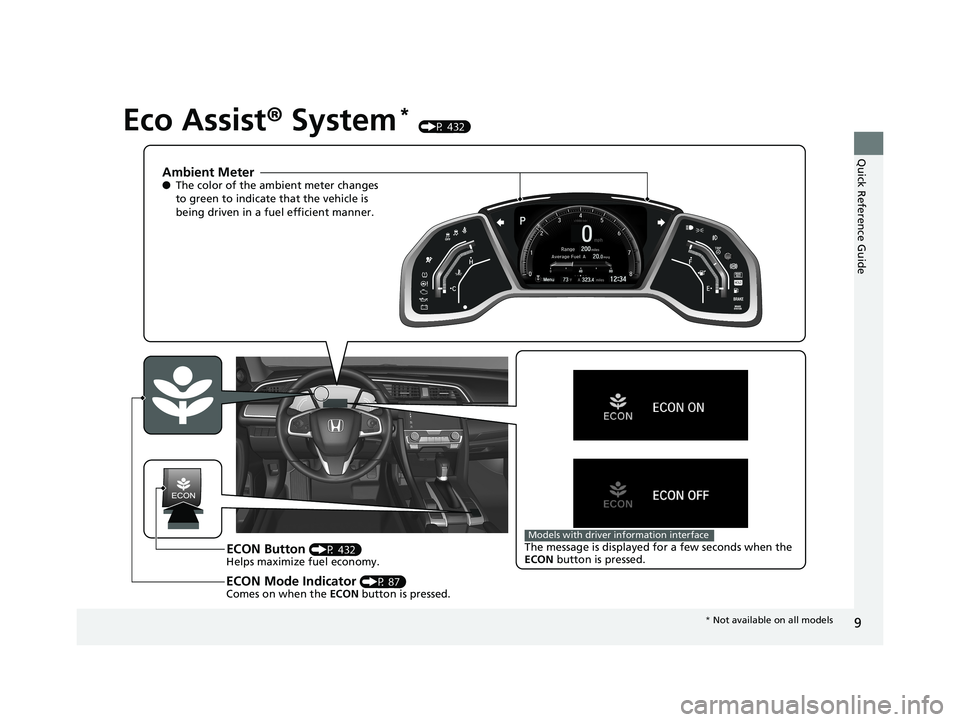

Eco Assist® System* (P 432)
200
323.412‰34
P
Menu40 80
Ambient Meter●The color of the ambient meter changes
to green to indicate that the vehicle is
being driven in a fuel efficient manner.
ECON Button (P 432)
Helps maximize fuel economy.
ECON Mode Indicator (P 87)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when the
ECON button is pressed.Models with driver information interface
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 9 ページ 2018年10月26日 金曜日 午前9時10分
Page 12 of 631
10
Quick Reference Guide
Safe Driving (P 33)
Airbags (P 46)
● Your vehicle is fitted with airb ags to help to protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 73)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 10 ページ 2018年10月26日 金曜日 午前9時10分
Page 13 of 631
11
Quick Reference Guide

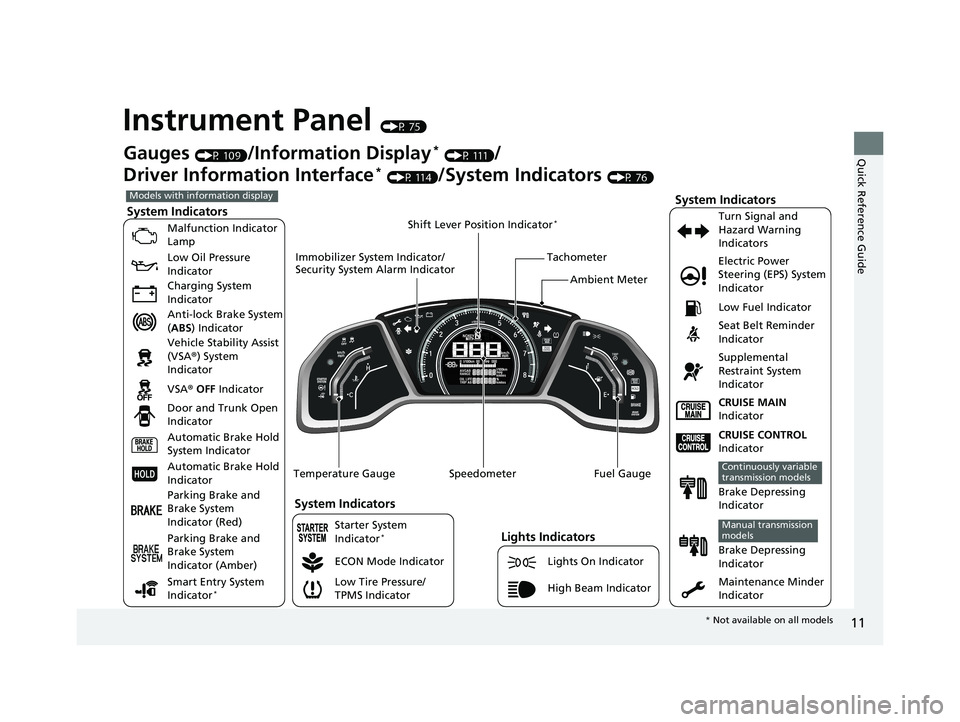

Instrument Panel (P 75)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door and Trunk Open
Indicator CRUISE MAIN
Indicator
Tachometer
Speedometer Fuel Gauge
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P 109)/Information Display* (P 111)/
Driver Information Interface
* (P 114)/System Indicators (P 76)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Temperature Gauge
Brake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
Indicator
Manual transmission
models
Smart Entry System
Indicator*
Starter System
Indicator*
Ambient Meter
*
Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 11 ページ 2018年10月26日 金曜日 午前9時10分
Page 14 of 631
12

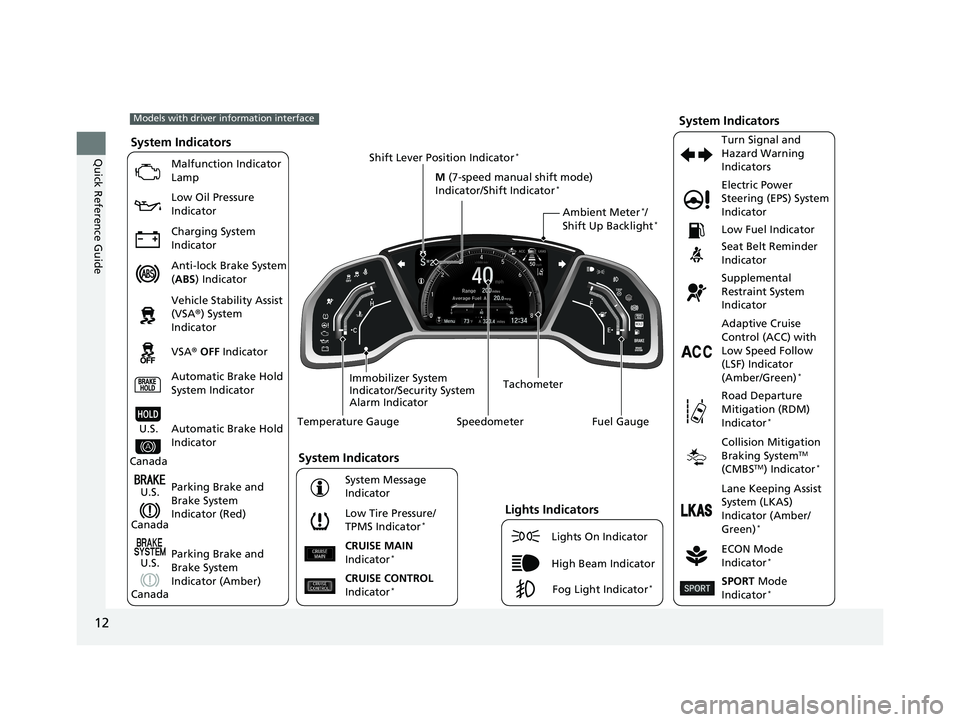

Quick Reference GuideSystem Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Speedometer Fuel Gauge
Immobilizer System
Indicator/Security System
Alarm Indicator Shift Lever Position Indicator
*
Low Fuel Indicator
ECON Mode
Indicator
*
Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF) Indicator
(Amber/Green)
*
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
*
CRUISE CONTROL
Indicator*
CRUISE MAIN
Indicator*
M (7-speed manual shift mode)
Indicator/Shift Indicator*
SPORT Mode
Indicator*
Ambient Meter*/
Shift Up Backlight*
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 12 ページ 2018年10月26日 金曜日 午前9時10分
Page 15 of 631
13
Quick Reference Guide

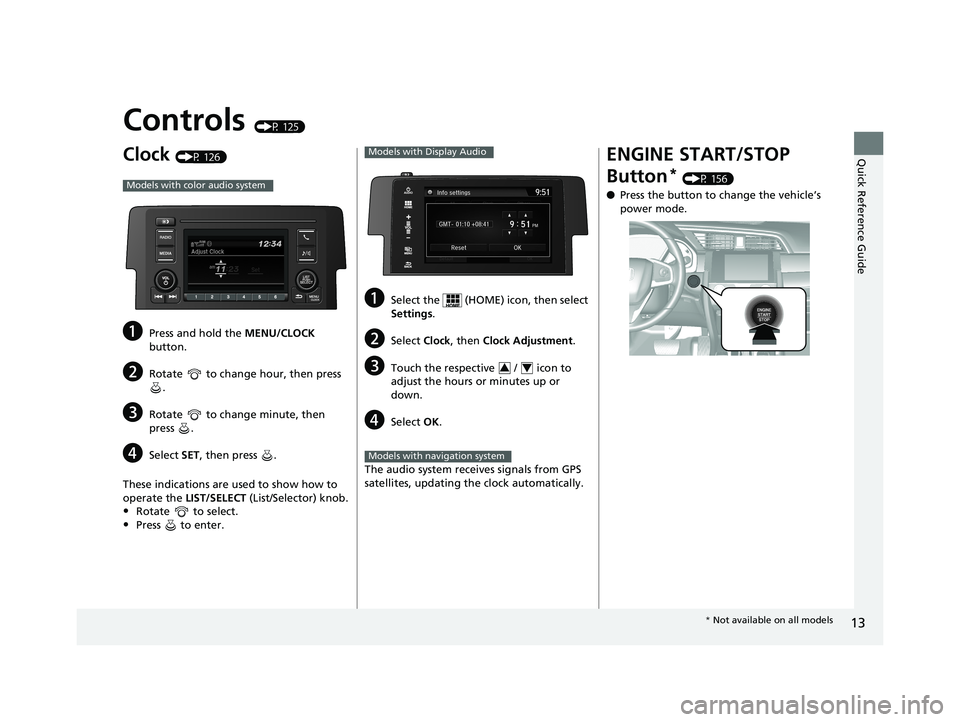

Controls (P 125)
Clock (P 126)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aSelect the (HOME) icon, then select
Settings.
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The audio system receives signals from GPS
satellites, updating the clock automatically.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 156)
● Press the button to change the vehicle’s
power mode.
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 13 ページ 2018年10月26日 金曜日 午前9時10分
Page 16 of 631

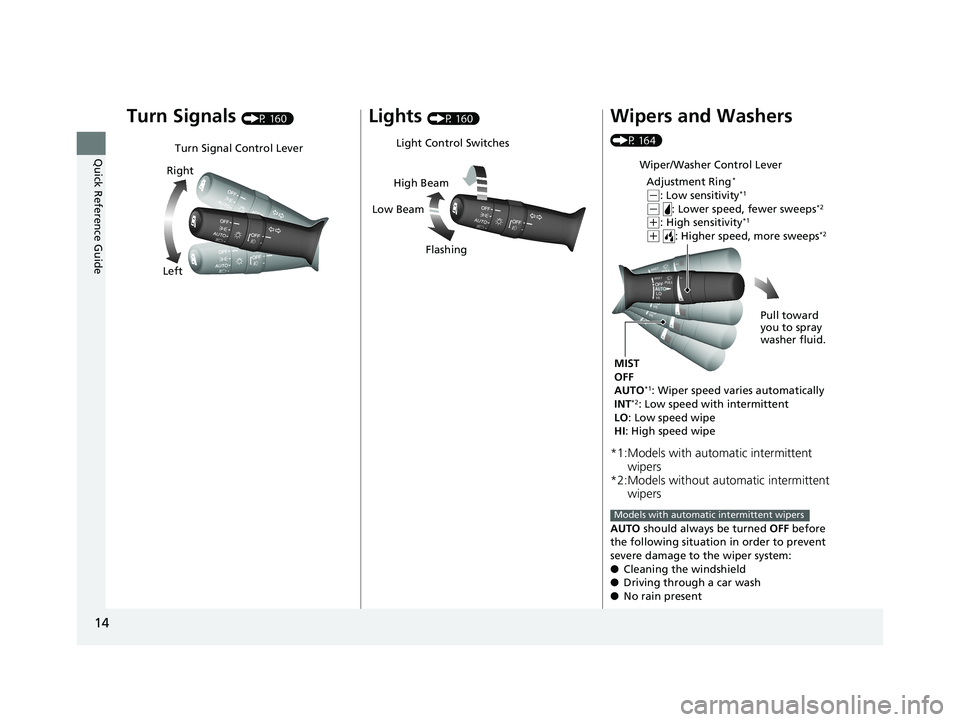

14
Quick Reference Guide
Turn Signals (P 160)
Turn Signal Control Lever
Right
Left
Lights (P 160)
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 164)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
(-: Low sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 14 ページ 2018年10月26日
金曜日 午前9時10分
Page 17 of 631
15
Quick Reference Guide

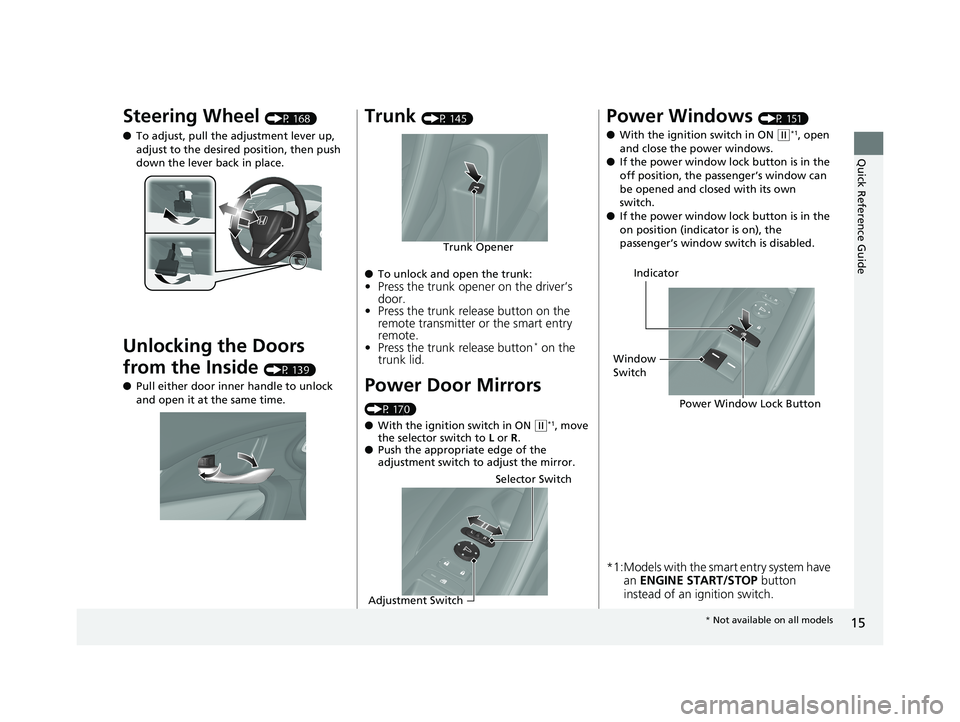

Steering Wheel (P 168)
● To adjust, pull the adjustment lever up,
adjust to the desired position, then push
down the lever back in place.
Unlocking the Doors
from the Inside
(P 139)
● Pull either door inner handle to unlock
and open it at the same time.
Trunk (P 145)
● To unlock and open the trunk:
•Press the trunk opener on the driver’s
door.
• Press the trunk release button on the
remote transmitter or the smart entry
remote.
• Press the trunk release button
* on the
trunk lid.
Power Door Mirrors
(P 170)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 151)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, the passenger’s window can
be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), the
passenger’s window switch is disabled.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 15 ページ 2018年10月26日 金曜日 午前9時10分
Page 18 of 631
16
Quick Reference Guide

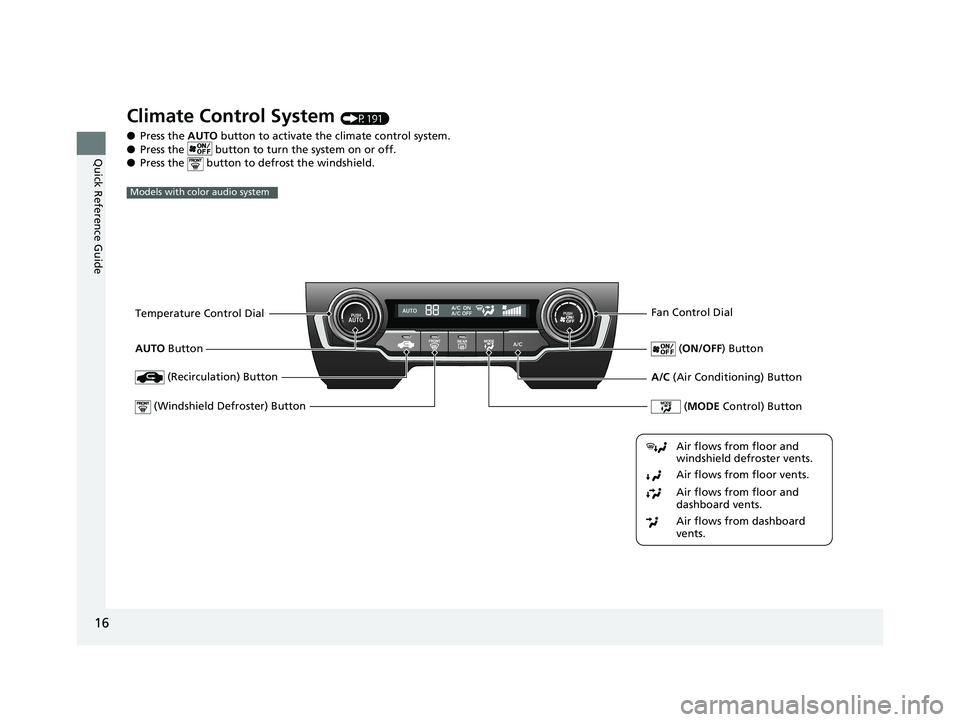

Climate Control System (P191)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
Models with color audio system
Fan Control Dial
(Windshield De froster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF) ButtonAUTO Button
A/C (Air Conditioning) Button
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 16 ページ 2018年10月26日 金曜日 午前9時10分
Page 19 of 631
17
Quick Reference Guide

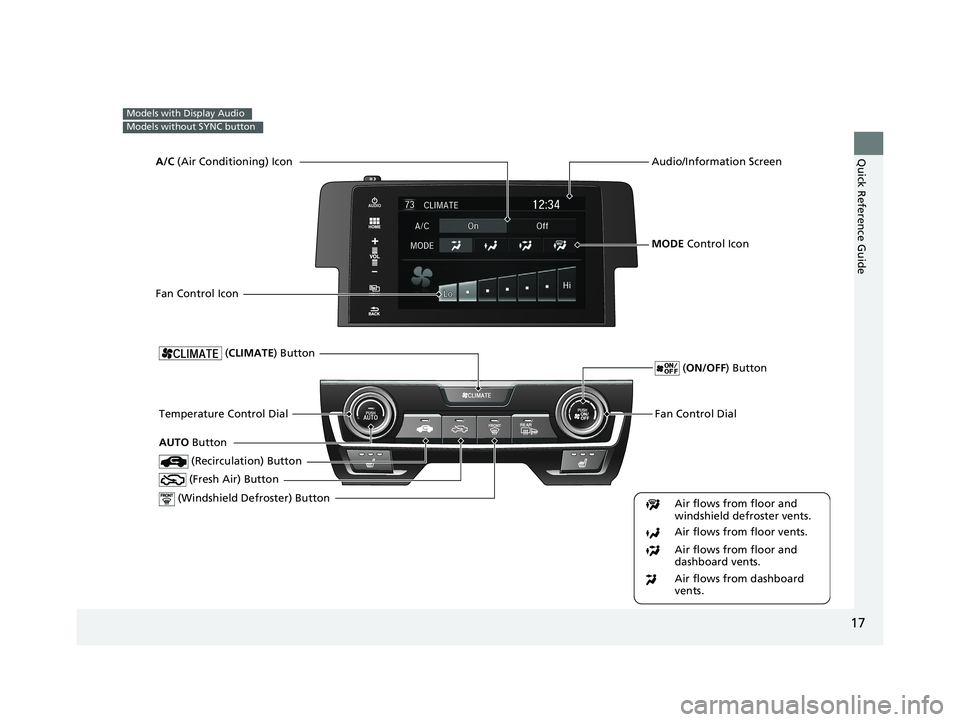

Models with Display Audio
Models without SYNC button
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(CLIMATE ) Button
(Fresh Air) Button
(ON/OFF ) Button
AUTO Button
Audio/Information Screen
MODE Control Icon
A/C
(Air Conditioning) Icon
Fan Control Icon
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 17 ページ 2018年10月26日 金曜日 午前9時10分
Page 20 of 631
18
Quick Reference Guide

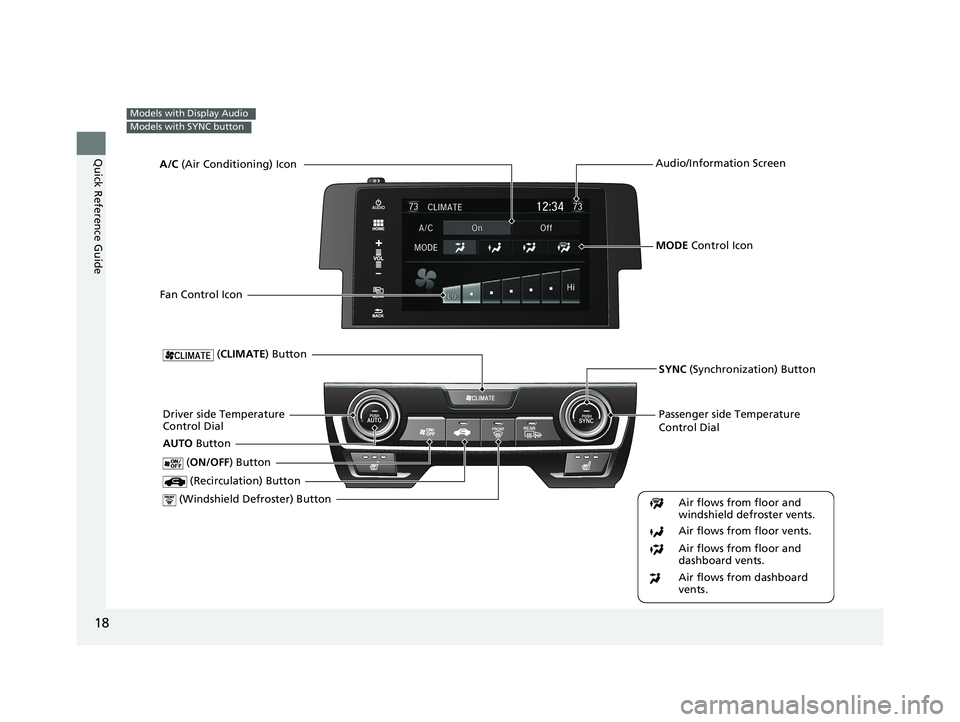

Models with Display Audio
Models with SYNC button
Passenger side Temperature
Control Dial
(Windshield Defroster) ButtonDriver side Temperature
Control Dial (Recirculation) Button
(CLIMATE ) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
SYNC (Synchronization) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
MODE Control Icon
A/C
(Air Conditioning) Icon
Fan Control Icon
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 18 ページ 2018年10月26日 金曜日 午前9時10分
