HONDA CIVIC COUPE 2019 Owner's Manual (in English)

569
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance
Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.
Except Canadian 1.5 L engine models
Canadian models
Canadian 1.5 L engine models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 569 ページ ２０１８年９月４日　火 曜日　午後１時３８分

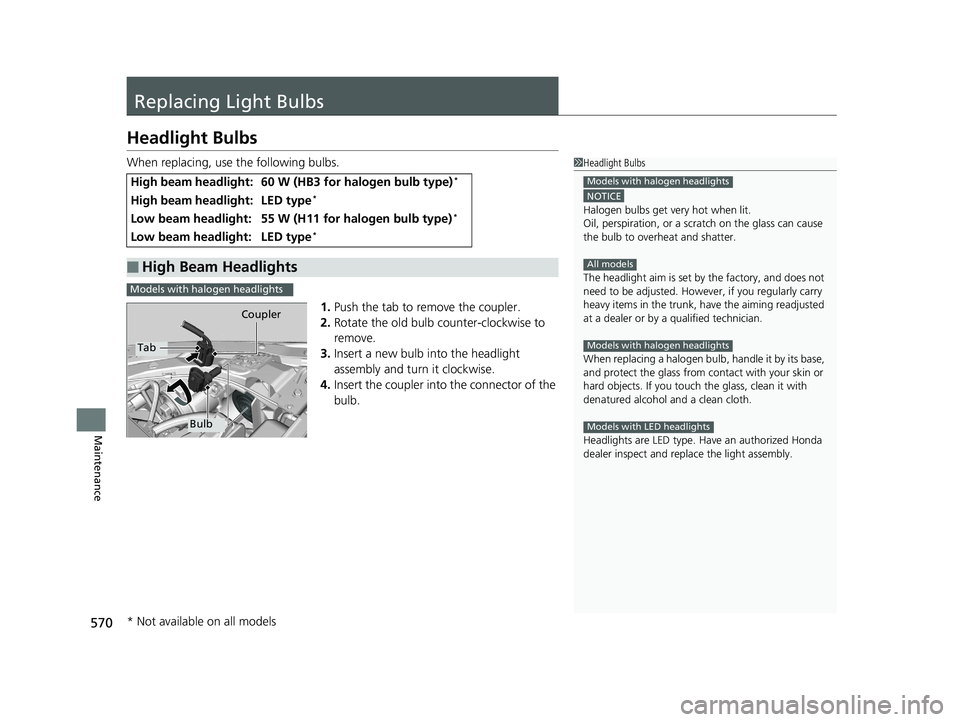

570
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
High beam headlight:60 W (HB3 for halogen bulb type)*
High beam headlight:LED type*
Low beam headlight:55 W (H11 for halogen bulb type)*
Low beam headlight:LED type*
■High Beam Headlights
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen headlights
All models
Models with halogen headlights
Models with LED headlights
Models with halogen headlights
Tab Coupler
Bulb
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 570 ページ ２０１８年９月４日　火
曜日　午後１時３８分

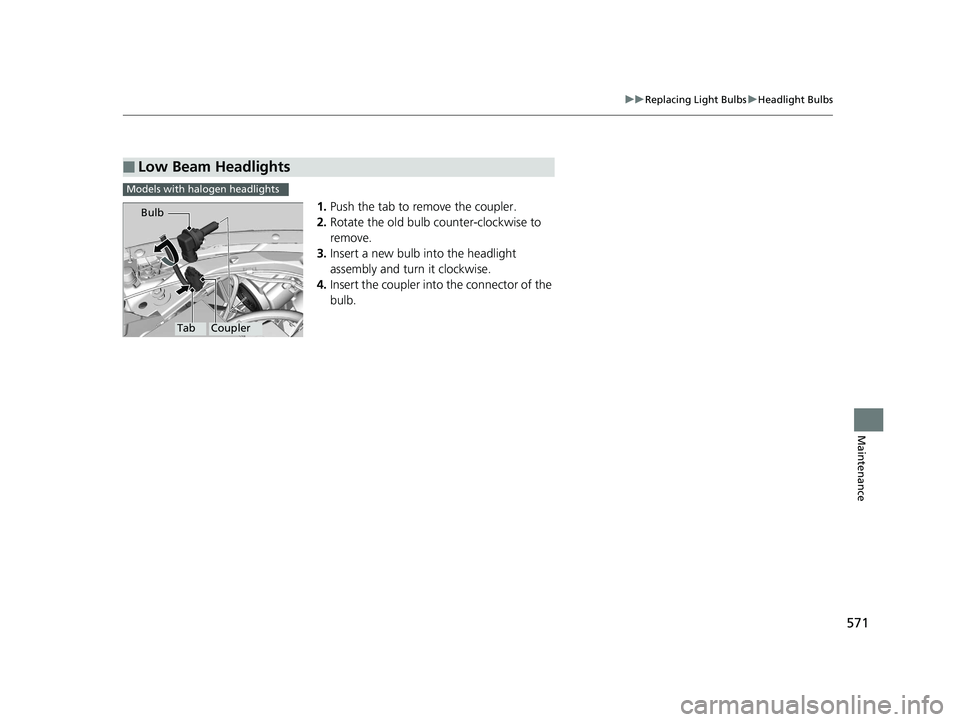

571
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
■Low Beam Headlights
Models with halogen headlights
TabCoupler
Bulb
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 571 ページ ２０１８年９月４日　火
曜日　午後１時３８分

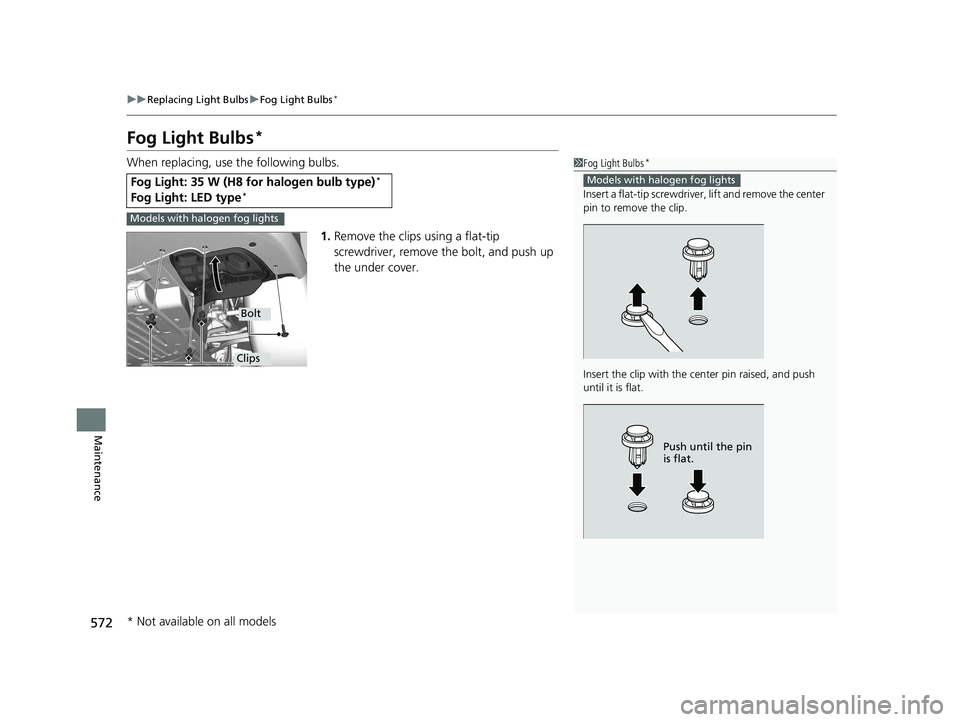

572
uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the clips using a flat-tip
screwdriver, remove the bolt, and push up
the under cover.
Fog Light: 35 W (H8 fo r halogen bulb type)*
Fog Light: LED type*
1Fog Light Bulbs*
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Models with halogen fog lights
Push until the pin
is flat.
Models with halogen fog lights
Bolt
Clips
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 572 ページ ２０１８年９月４日　火 曜日　午後１時３８分

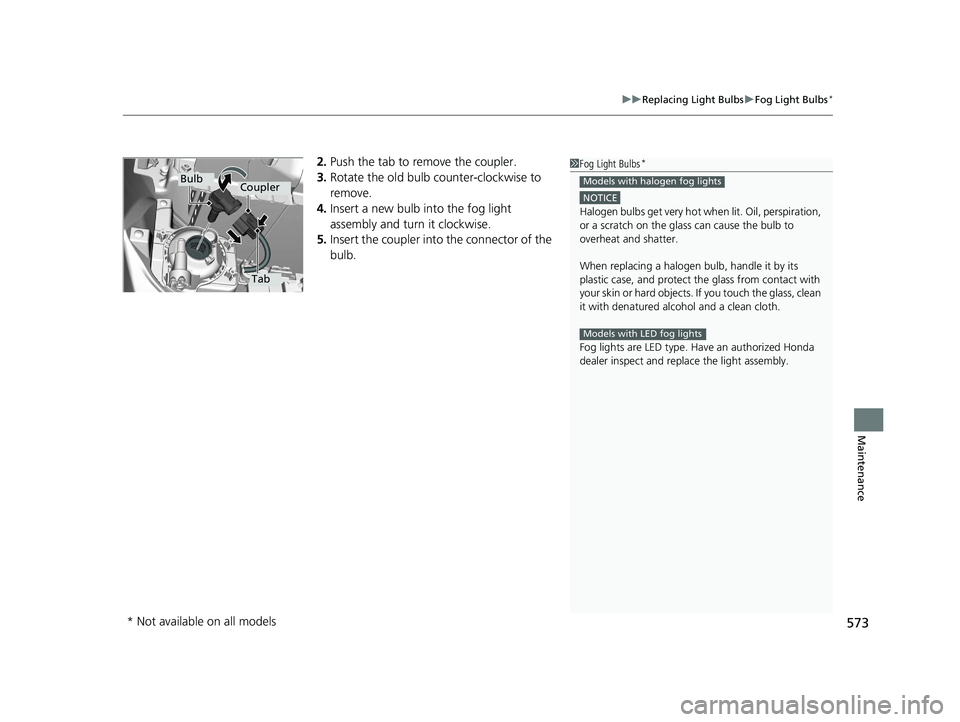

573
uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to
remove.
4. Insert a new bulb into the fog light
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.1 Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Fog lights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen fog lights
Models with LED fog lights
Tab
CouplerBulb
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 573 ページ ２０１８年９月４日　火 曜日　午後１時３８分

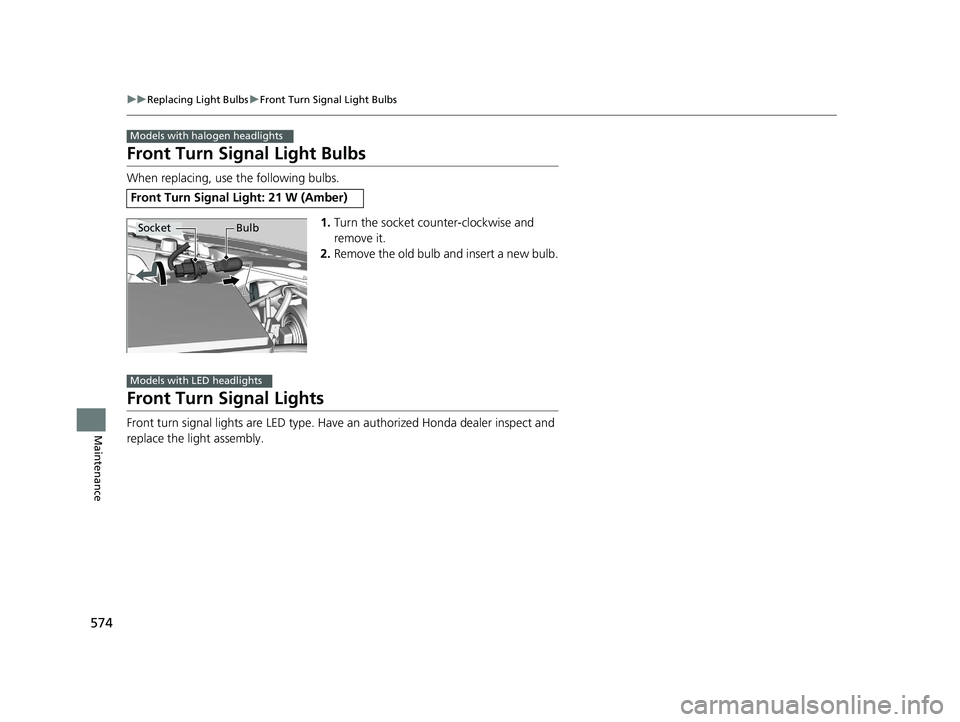

574
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Turn Signal Light: 21 W (Amber)
Models with halogen headlights
Socket Bulb
Models with LED headlights
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 574 ページ ２０１８年９月４日　火 曜日　午後１時３８分

575
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Continued
Maintenance

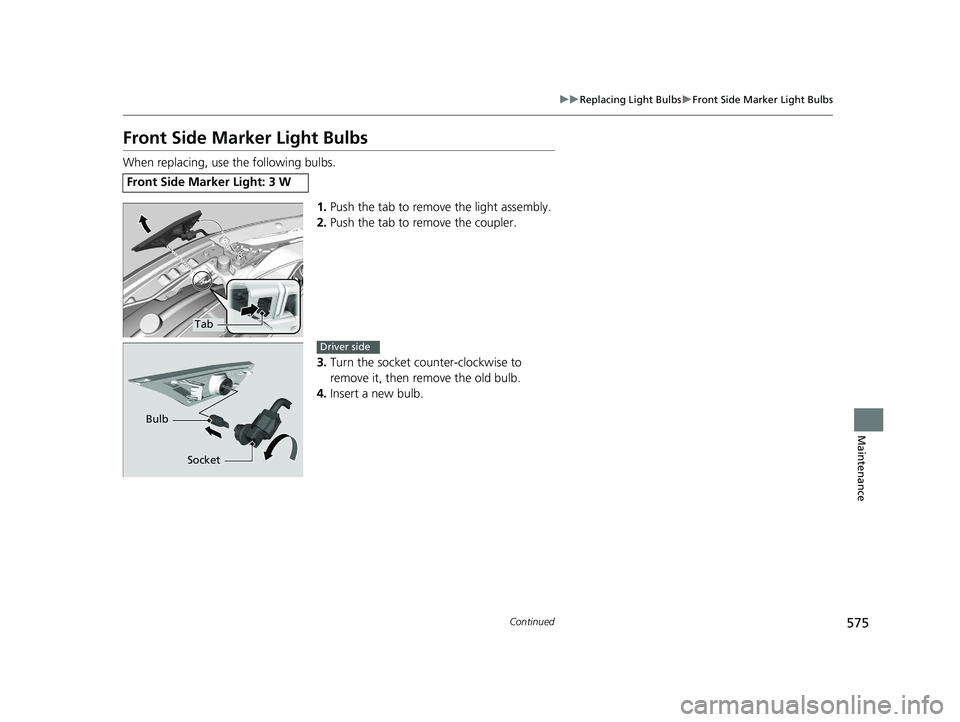

Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Push the tab to remove the light assembly.
2. Push the tab to remove the coupler.
3. Turn the socket counter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
Front Side Marker Light: 3 W
Tab
Socket
Bulb
Driver side
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 575 ページ ２０１８年９月４日　火
曜日　午後１時３８分

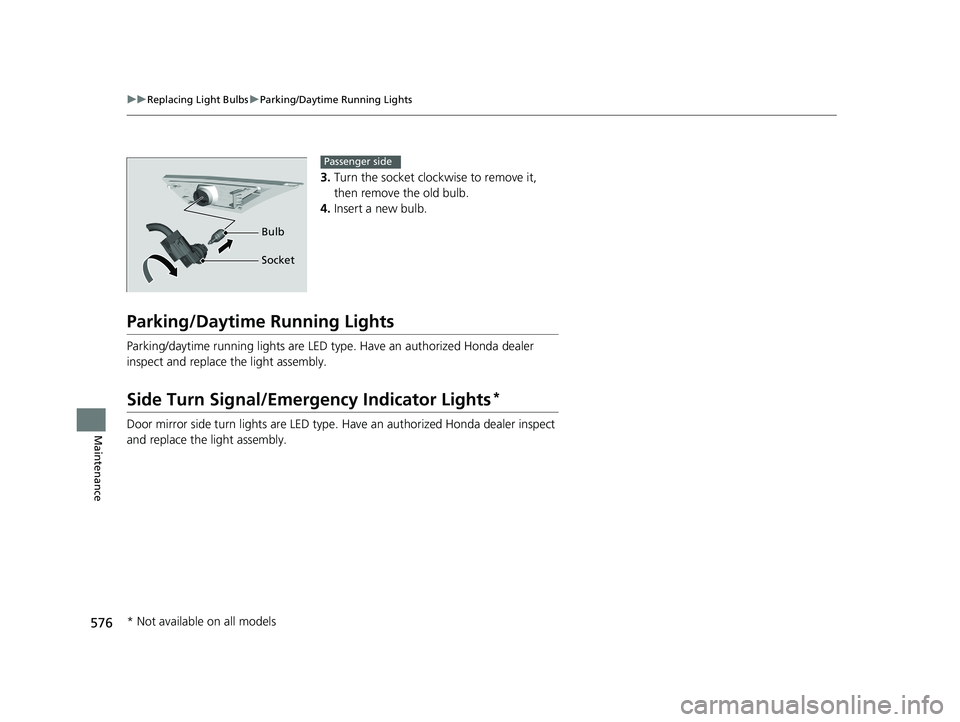

576
uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
3. Turn the socket clockwise to remove it,
then remove the old bulb.
4. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Bulb
Socket
Passenger side
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 576 ページ ２０１８年９月４日　火 曜日　午後１時３８分

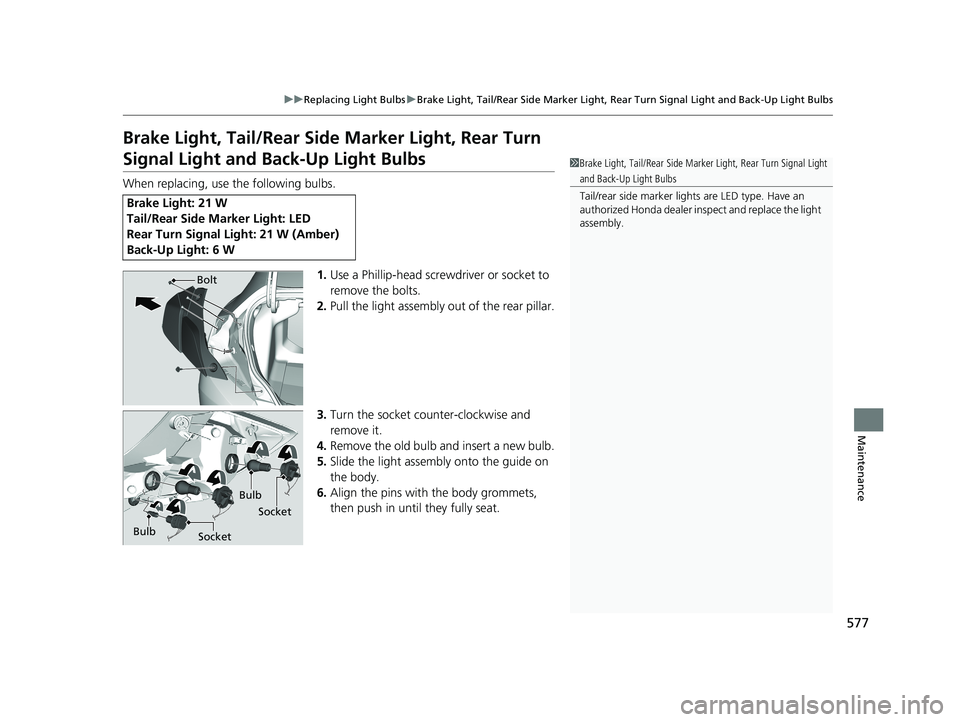

577
uuReplacing Light Bulbs uBrake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light and Back-Up Light Bulbs
Maintenance
Brake Light, Tail/Rear Side Marker Light, Rear Turn
Signal Light and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake Light: 21 W
Tail/Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 6 W
1Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light
and Back-Up Light Bulbs
Tail/rear side marker lights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Bolt
Bulb
Socket
Bulb Socket
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 577 ページ ２０１８年９月４日　火 曜日　午後１時３８分

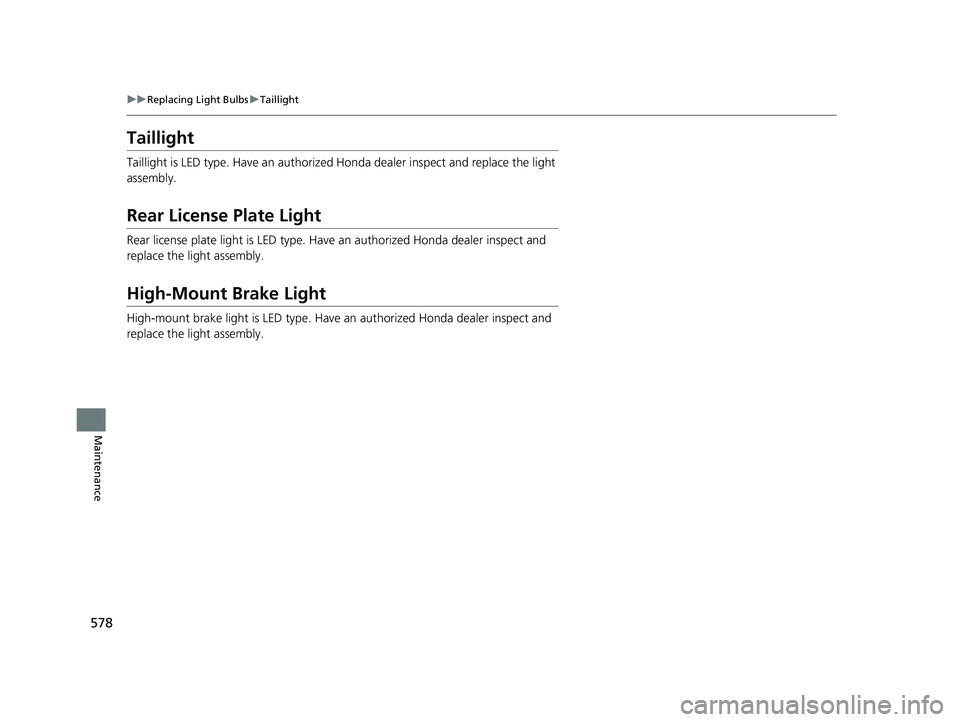

578
uuReplacing Light Bulbs uTaillight
Maintenance
Taillight
Taillight is LED type. Have an authorized Honda dealer inspect and replace the light
assembly.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
