HONDA CIVIC HATCHBACK 2002 7.G Service Manual
Manufacturer: HONDA, Model Year: 2002, Model line: CIVIC HATCHBACK, Model: HONDA CIVIC HATCHBACK 2002 7.GPages: 158, PDF Size: 2.39 MB
Page 41 of 158
µ
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.
To store a f requency:
Once a station’s f requency is stored,
simply press and release the proper
preset button to tune to it.
The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
You can store the
f requencies of your f avorite radio
stations in the six preset buttons.
Each button will store one f requency
on the AM band, and two
f requencies on the FM band.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
1. 2. 3.4.
Preset
Audio System
Comf ort and Convenience Feat ures133

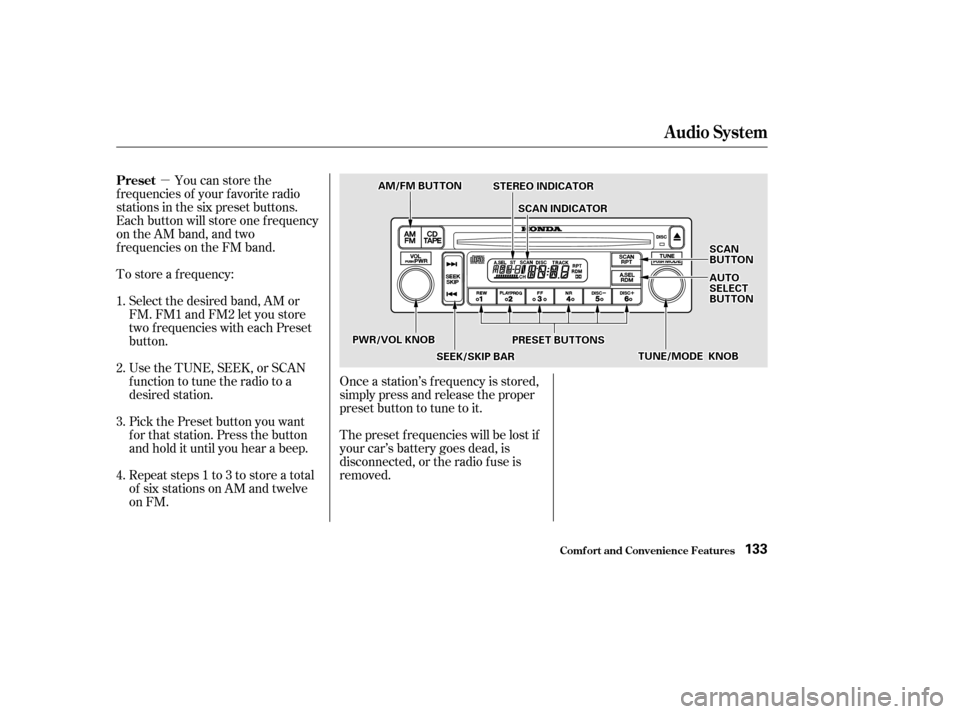

AAMM//FFMMBBUUTTTTOONNSSTTEERREEOOIINNDDIICCAATTOORR
SSCCAANNIINNDDIICCAATTOORR
PPRREESSEETTBBUUTTTTOONNSS
AAUUTTOOSSEELLEECCTTBBUUTTTTOONN
SSCCAANNBBUUTTTTOONN
PPWWRR//VVOOLLKKNNOOBB
TTUUNNEE//MMOODDEEKKNNOOBBSSEEEEKK//SSKKIIPPBBAARR
Page 42 of 158
µIf you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press any preset
button that does not have a station
stored.
To activate Auto Select, press the
A. SEL button. A. SEL will f lash in
the display, and the system will go
into scan mode f or several seconds.
It automatically scans both bands,
looking f or stations with strong
signals. It stores the f requencies of
six AM stations and twelve FM
stations in the preset buttons. You
can then use the preset buttons to
select those stations.
If you do not like the stations Auto
Select has stored, you can store
other f requencies in the preset
buttons. Use the TUNE, SEEK, or
SCAN f unction to f ind the desired
f requencies, then store them in the
selected preset buttons as described
previously.Auto Select does not erase the
f requencies that you preset pre-
viously. When you return home, turn
of f Auto Select by pressing the
A. SEL button. The preset buttons
will then select the f requencies you
originally set.
Audio System
Comf ort and Convenience Feat ures
AUTO SELECT
134
SSCCAANNBBUUTTTTOONN
TTUUNNEEKKNNOOBB
SSEEEEKKBBAARRAA..SSEELLBBUUTTTTOONN
AAUUTTOOSSEELLEECCTTIINNDDIICCAATTOORR
Page 43 of 158
You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks.
To move rapidly within a track, press
andholdtheSEEK/SKIPbar.Press
the side to move f orward. You
will see CUE in the display. Press theside to move backward. You
will see REW displayed. Release the
bar when the system reaches the
point you want.
Press the eject button to remove the
disc f rom the drive.
If you eject the disc, but do not
remove it from the slot, the system
will automatically reload the disc
af ter 15 seconds and put the CD
player in pause mode. To begin
playing the disc, press the CD button.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
You can switch to the radio while a
CD is playing by pressing the AM/
FM button. Press the CD button to
return to playing the CD. The CD
will begin playing where it lef t of f .
When the system reaches the end of
the disc, it will return to the begin-
ning and play that disc again.
Each time you press and release theside of the SEEK/SKIP bar,
the system skips forward to the
beginning of the next track. Press
and release the side to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
Comf ort and Convenience Feat ures
Audio System
137
Page 44 of 158
When you switch back to CD mode,
the system selects the same unit (in-
dash or changer) that was playing
when you switched out of CD mode.
To use the SKIP, REPEAT, and
RANDOM f unctions, ref er to the in-
dash player operating instructions.
If you load a CD in the in-dash player
while the changer is playing a CD,
the system will stop the changer and
begin playing the in-dash CD. To
select the changer again, press the
CD button. Play will begin where it
left off. Use the CD button to switch
between the player and the changer.
For inf ormation on how to handle
and protect compact discs, see page.
If you eject the in-dash CD while it is
playing, the system will automatically
switch to the CD changer and begin
play where it lef t of f . If there are no
CDs in the changer, the display will
flash. You will have to select another
mode (AM or FM) with the button.
175
Audio System
Comf ort and Convenience Feat ures
Protecting Compact Discs
139
Page 45 of 158
Û
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PLAY/
PROG button. Dolby noise reduction turns on when
you insert a cassette. The indi-
cator will light in the display. If the
tape was not recorded with Dolby
noise reduction, turn it of f by
pressing the NR button.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button on the cassette player.
Noise reduction remains of f until you
turn it on by pressing the button
again. If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the cassette player will be in
pause mode. To begin playing, press
the PLAY/PROG button.
To switch to the radio or CD player
while a tape is playing, press the
AM/FM, or CD/TAPE button. To
change back to the cassette player,
push the CD/TAPE button.
Audio System
Comf ort and Convenience Feat ures143
Page 46 of 158
µµThe SCAN f unction
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. When the system is
in the SCAN mode, SCAN shows in
the display. The system will scan up
the band for a station with a strong
signal. When it f inds one, it will stop
and play that station for
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again. You can store the
f requencies of your f avorite radio
stations in the six preset buttons.
Each button will store one f requency
on the AM band, and two
f requencies on the FM band.
To store a f requency: Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM. Once a station’s frequency is stored,
simply press and release the proper
preset button to tune to it.
The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
1. 2. 3.4.
SCA N Preset
Audio System
Comf ort and Convenience Feat ures148
Page 47 of 158
µIf you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
To activate Auto Select, press the
A. SEL button. A. SEL will f lash in
the display, and the system will go
into scan mode f or several seconds.
It automatically scans both bands,
looking f or stations with strong
signals. It stores the f requencies of
six AM stations and twelve FM
stations in the preset buttons. You
can then use the preset buttons to
select those stations.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press any preset
button that does not have a station
stored.
CONT INUED
Audio System
Comf ort and Convenience Feat ures
AUTO SELECT
149

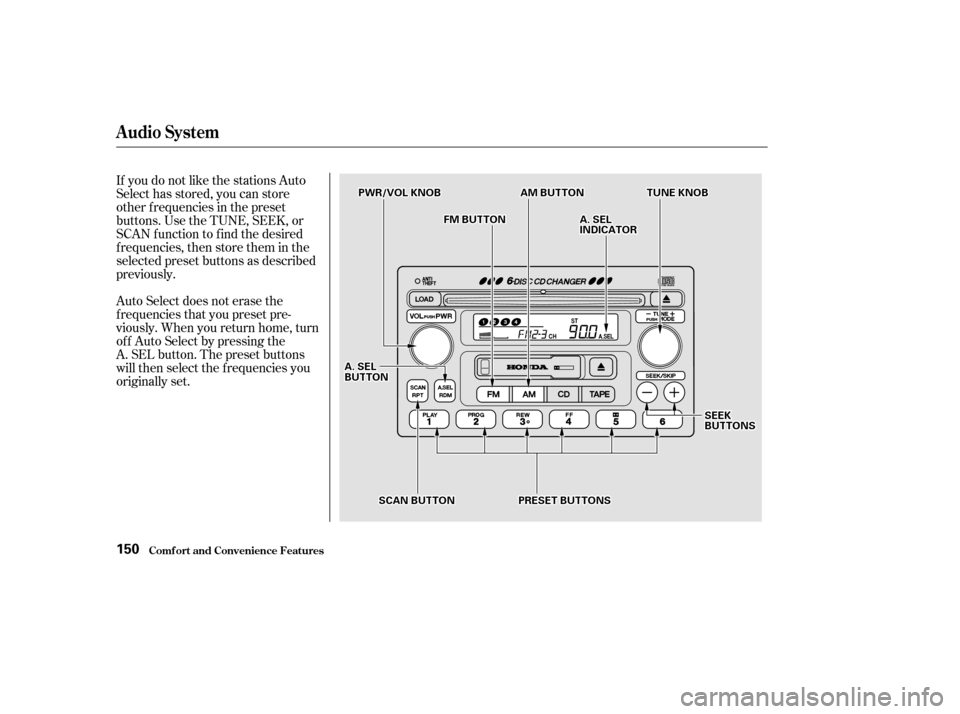

TTUUNNEEKKNNOOBB
SSEEEEKKBBUUTTTTOONNSS
PPWWRR//VVOOLLKKNNOOBB
AA..SSEELLBBUUTTTTOONN
AA..SSEELLIINNDDIICCAATTOORR
AAMMBBUUTTTTOONN
PPRREESSEETTBBUUTTTTOONNSSSSCCAANNBBUUTTTTOONN
FFMMBBUUTTTTOONN
Page 48 of 158
If you do not like the stations Auto
Select has stored, you can store
other f requencies in the preset
buttons. Use the TUNE, SEEK, or
SCAN f unction to f ind the desired
f requencies, then store them in the
selected preset buttons as described
previously.
Auto Select does not erase the
f requencies that you preset pre-
viously. When you return home, turn
of f Auto Select by pressing the
A. SEL button. The preset buttons
will then select the f requencies you
originally set.
Audio System
Comf ort and Convenience Feat ures150

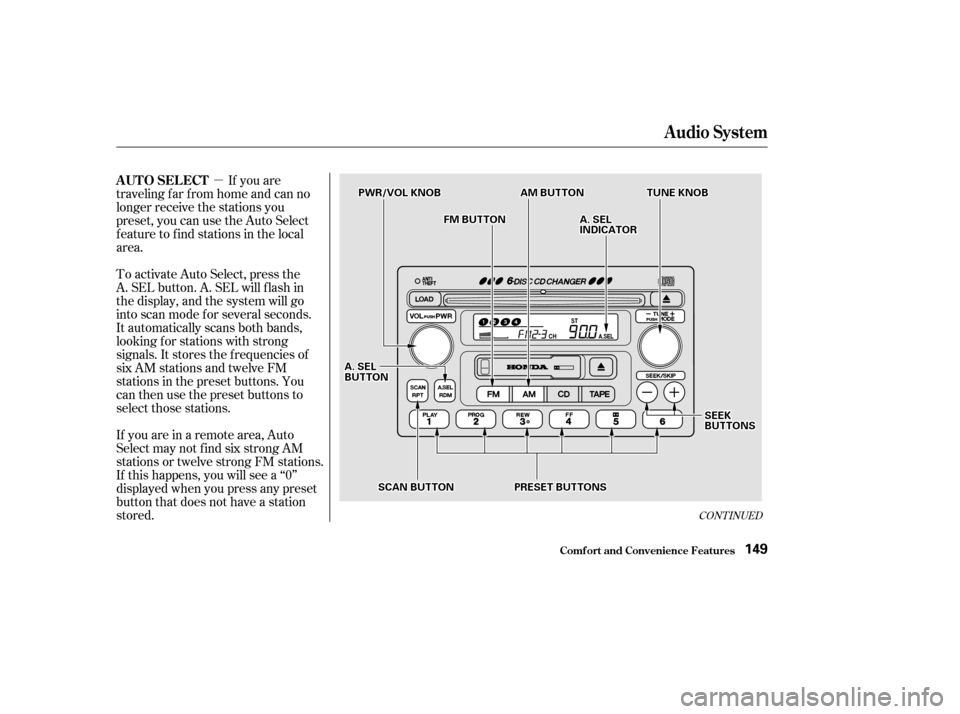

TTUUNNEEKKNNOOBB
SSEEEEKKBBUUTTTTOONNSS
PPWWRR//VVOOLLKKNNOOBB
AA..SSEELLBBUUTTTTOONN
AA..SSEELLIINNDDIICCAATTOORR
AAMMBBUUTTTTOONN
PPRREESSEETTBBUUTTTTOONNSS
FFMMBBUUTTTTOONN
SSCCAANNBBUUTTTTOONN
Page 49 of 158
µÓ
Ó
ÓÓ
µ
´
µ´
The SKIP f unction allows
you to f ind the beginning of a song
or passage. To skip to the beginning
of a song or passage currently
playing, push the button. You will
see REW flashing in the display as
thetaperewinds.Toskiptothe
beginning of the next song, push the button. You will see FF f lashing in
the display as the tape fast forwards.
When the system f inds the begin-
ning of a song or passage, it goes
back to PLAY.
To stop the SKIP f unction bef ore it
f inds the beginning of a song or
passage, press either of the SKIP
buttons ( or ).
Audio System
Comf ort and Convenience Feat ures
SK IP
154

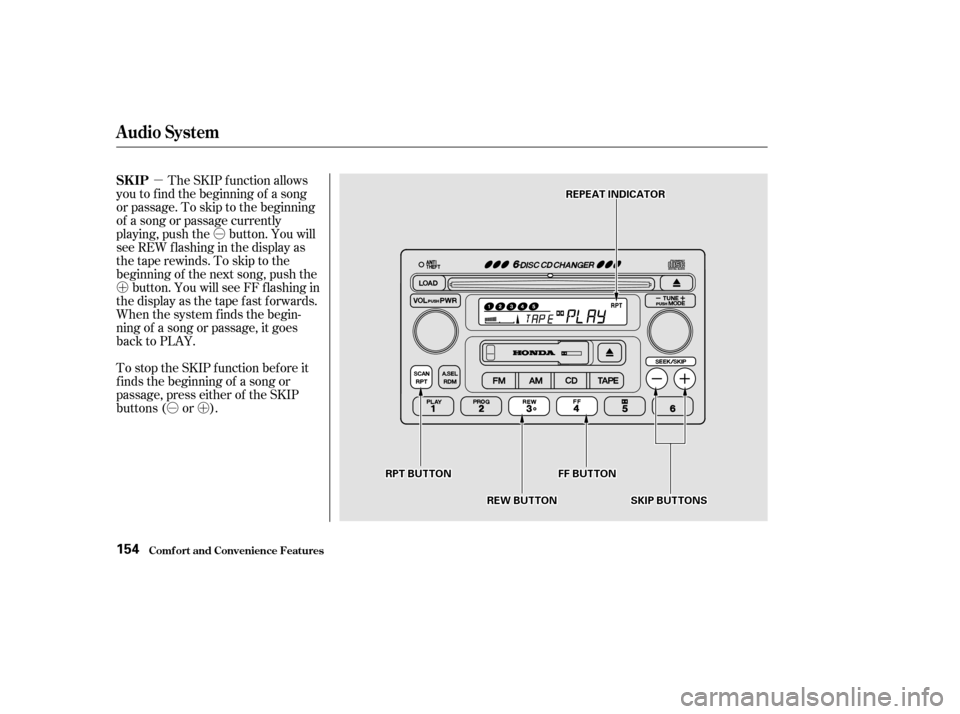

RREEPPEEAATTIINNDDIICCAATTOORR
SSKKIIPPBBUUTTTTOONNSS
FFFFBBUUTTTTOONN
RREEWWBBUUTTTTOONN
RRPPTTBBUUTTTTOONN
Page 50 of 158
To load multiple CDs in one
operation:Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
If you are not loading CDs into all six
positions, press the Load button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
If you stop loading CDs bef ore all six
positions are f illed, and you do not
press the Load button, the system
will wait f or ten seconds, then stop
the load operation and begin playing
the last CD loaded. To load a single CD:
Press and release the Load button.
Press and hold the Load button
until you hear a beep and see
‘‘LOAd’’ in the display, then
release the button.
Ontheupperleftsideof the
display, the disc number f or an
empty position will begin blinking
and the green CD Loaded
indicator will come on. When the disc number f or an
empty position starts to blink and
the green CD Loaded indicator
comeson,youwillseeLOAdin
the display, then insert the disc
into the CD slot. Insert it only
about half way, the drive will pull it
in the rest of the way.
When LOAd appears again in the
display, insert the next disc into
the CD slot.
Insert the disc into the CD slot.
Insert it only about halfway, the
drive will pull it in the rest of the
way.YouwillseeBUSYinthe
display. The CD loaded indicator
turns red and blinks as the CD is
loaded.
The system will load the CD, and
begin playing it.
1. 2. 3. 4. 5.
1. 2. 3.
CONT INUED
L oading CDs in t he Changer
Audio System
Comf ort and Convenience Feat ures157
