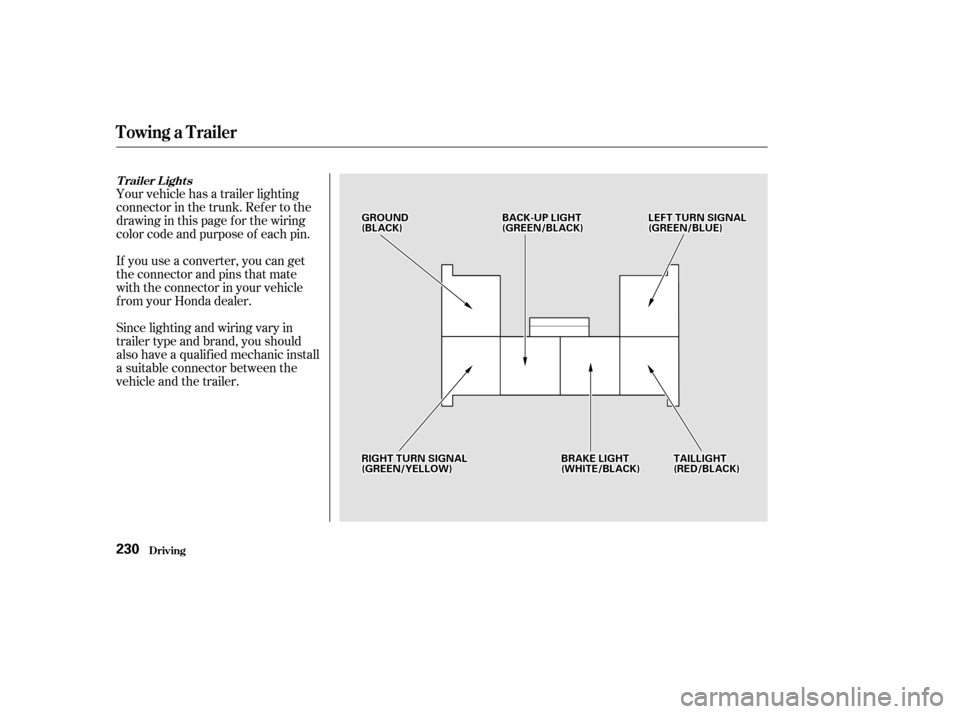

Your vehicle has a trailer lighting
connector in the trunk. Ref er to the
drawing in this page f or the wiring
color code and purpose of each pin.
If you use a converter, you can get
the connector and pins that mate
with the connector in your vehicle
f rom your Honda dealer.
Since lighting and wiring vary in
trailer type and brand, you should
also have a qualif ied mechanic install
a suitable connector between the
vehicleandthetrailer.
T railer L ights
Towing a Trailer
Driving230
GGRROOUUNNDD((BBLLAACCKK))BBAACCKK--UUPPLLIIGGHHTT((GGRREEEENN//BBLLAACCKK))LLEEFFTTTTUURRNNSSIIGGNNAALL((GGRREEEENN//BBLLUUEE))
RRIIGGHHTTTTUURRNNSSIIGGNNAALL((GGRREEEENN//YYEELLLLOOWW))TTAAIILLLLIIGGHHTT((RREEDD//BBLLAACCKK))BBRRAAKKEELLIIGGHHTT((WWHHIITTEE//BBLLAACCKK))

Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Askyourtrailersalesorrental
agency if any other items are
recommended or required f or your
towing situation.When preparing to tow, and bef ore
driving away, be sure to check the
f ollowing:
Your vehicle tires and spare are
properly inf lated (see page ),
and the trailer tires and spare are
inflated as recommended by the
trailer maker.
The vehicle has been properly
serviced, and the tires, brakes,
suspension, and cooling system
are in good operating condition.
All weights and loads are within
limits (see pages and ).
Thehitch,safetychains,andany
other attachments are secure.
Allitemsonandinthetrailerare
properly secured and cannot shif t
while you drive.
The lights and brakes on your
vehicle and the trailer are working
properly. 227 228
285
Additional Trailer EquipmentPre-T ow Checklist
Towing a Trailer
Driving231

The added weight, length, and
height of a trailer will af f ect your
vehicle’s handling and perf ormance,
so driving with a trailer requires
some special driving skills and
techniques.
Foryoursafetyandthesafetyof
others,taketimetopracticedriving
maneuvers bef ore heading f or the
open road, and f ollow the guidelines
discussed below.Make turns more slowly and wider
than normal. The trailer tracks a
smaller arc than your vehicle, and it
canhitorrunoversomethingthe
vehicle misses. Allow more time and
distance f or braking. Do not brake or
turn suddenly as this could cause the
trailer to jackknif e or turn over.
If youmuststopwhenfacinguphill,
use the f oot brake or parking brake.
Do not try to hold the vehicle in
placebypressingontheaccelerator,
as this can cause the automatic
transmission to overheat.
When driving down hills, reduce
your speed and shif t down to 2nd
gear. Do not ‘‘ride’’ the brakes, and
remember it will take longer to slow
downandstopwhentowingatrailer.
Drive slower than normal in all
driving situations, and obey posted
speed limits f or vehicles with trailers.
If you have an automatic
transmission, use D position when
towing a trailer on level roads. D is
the proper shif t lever position to use
when towing a trailer in hilly terrain.
(See ‘‘ ’’ in the next
column f or additional gear
inf ormation.) When climbing hills, closely watch
your temperature gauge. If it nears
the red (Hot) mark, turn the air
conditioning of f , reduce speed and, if
necessary, pull to the side of the
road to let the engine cool.
If the automatic transmission shif ts
f requently between 3rd and 4th
gears while going up a hill, shif t toD.
4
33
Driving Saf ely With a T railer
T owing Speeds and Gears Making T urns and Braking
Driving on Hills
Driving on Hills
Towing a Trailer
Driving232

Crosswinds and air turbulence
caused by passing trucks can disrupt
your steering and cause trailer
swaying. When being passed by a
large vehicle, keep a constant speed
and steer straight ahead. Do not try
to make quick steering or braking
corrections.
Always drive slowly and have
someone guide you when backing up.
Grip the of the steering
wheel; then turn the wheel to the lef t
to get the trailer to move to the lef t,
andturnthewheelrighttomovethe
trailer to the right.Follow all normal precautions when
parking, including f irmly setting the
parking brake and putting the
transmission in Park (automatic) or
in 1st or Reverse (manual). Also,
place wheel chocks at each of the
trailer’s tires.
bottom
Handling Crosswinds and Buf f et ing
Backing Up Parking
Towing a Trailer
Driving233

234

Ì
We recommend the use of genuine
Honda parts and f luids whenever you
have maintenance done. These are
manuf actured to the same high-
quality standards as the original
components, so you can be conf ident
of their perf ormance and durability.
U.S. Vehicles: According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, Honda
recommends that all maintenance
services be perf ormed at the
recommended time or mileage
period to ensure long-term reliability.
Your authorized Honda dealer
knows your car best and can provide
competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Keep all the
receipts as proof of completion, and
have the person who does the work
f ill out the Maintenance Record.
Check your warranty booklet f or
more inf ormation.
Maintenance Schedule
Maint enance
Maintenance, replacement or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.
239

µ
Ì
Î Î ÌÌ ÎÎ
Î
NOTE: If you only
drive under a
‘‘severe’’ condition, you should
f ollow the Normal Conditions
Maintenance Schedule.
Follow the Normal Conditions
Maintenance Schedule if the
severe driving conditions
specif ied in the Severe
Conditions Maintenance
Schedule do not apply.
Follow the Maintenance
Schedule f or Severe Conditions.
OCCASIONALLY
Maint enance
U.S. Owners
Canadian Owners
240
Visually inspect the following items:
Service at the indicated
distance or time whichever
comes first.
miles x 1,000
km x 1,000
months
Replace every 7,500 miles (12,000 km) or 1 year
Check oil and coolant at each fuel stop
Balancer belt applies to 4-cylinder models only.
See timing belt on page to determine need for replacement.
See information on maintenance and emissions warranty, last column, page .
Tie rod ends, steering gear box, and boots
Suspension components, driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Cooling system hoses and connections
Exhaust system, fuel lines and connections 152412
304824
457236609648
75
120
60 90
144 72 105168
84 120192
96
Every 120,000 miles (192,000 km) or 6 years
120,000 miles (192,000 km) or 6 years, then every
90,000 miles (144,000 km) or 5 years
Every 3 years (independent of mileage)
Rotate tires every 7,500 miles (12,000 km)
120,000 miles (192,000 km) or 10 years, then every
60,000 miles (96,000 km) or 5 years
Replace engine oil
Replace engine oil filter
Check engine oil and coolant
Replace air cleaner element
Inspect valve clearance
Replace spark plugs
Replace timing belt , balancer belt , and
inspect water pump
Inspect and adjust drive belts
Inspect idle speed
Replace engine coolant
Replace transmission fluid
Inspect front and rear brakes
Replace brake fluid
Check parking brake adjustment
Replace dust and pollen filter
Rotate tires (Check tire inflation and condition
at least once per month) Adjust only if noisy
:
1:2: MTAT
239
283
11
,2
Maintenance Schedule for Normal Conditions

µµ
Ø ØØØØØØØØØ Ø ØØØØØØ
Ø ØØ Ø ØØ Ø
Ì Ì
Î
Ì Î
Maint enance241
A, B, C, D
U.S. Owners
Canadian Owners
A B C D
Balancer belt applies to 4-cylinder models only.
See information on maintenance and emissions warranty, last
column, page .
Check engine oil and coolant at each fuel stop.
Check and adjust valve clearance, cold engine, only if noisy. :
1:
240
239
Service at the indicated distance or time, whichever comes first. Do the items in as required for each distance/time interval.Refer to page to determine which schedule to use.
Use the Maintenance Schedule for Severe Conditions.
Replace engine oil.
Rotate tires (follow pattern on page ).
Replace engine oil filter.
Inspect front and rear brakes.
Check parking brake adjustment.
Inspect tie rod ends, steering gear box and boots.
Inspect suspension components.
Inspect driveshaft boots.
Inspect brake hoses and lines (including ABS).
Check all fluid levels, condition of fluids, and check
for leaks.
Inspect cooling system hoses and connections.Inspect exhaust system.
Inspect fuel lines and connections.
Replace air cleaner element.
Inspect and adjust drive belts.
Replace dust and pollen filter.
Replace brake fluid every 3 years.
(independent of mileage)
7,500 mi/12,000 km
15,000 mi/24,000 km/1 yr
22,500 mi/36,000 km
30,000 mi/48,000 km/2 yrs
37,500 mi/60,000 km
3 yrs (independent of mileage)
45,000 mi/72,000 km/3 yrs
52,500 mi/84,000 km
60,000 mi/96,000 km/4 yrs
67,500 mi/108,000 km
75,000 mi/120,000 km/5 yrs
82,500 mi/132,000 km
6 yrs (independent of mileage)
90,000 mi/144,000 km/6 yrs
97,500 mi/156,000 km
105,000 mi/168,000 km/7 yrs
112,500 mi/180,000 km
120,000 mi/192,000 km/8 yrs
120,000 mi/192,000 km/10 yrs,
then replace every 60,000 mi/
96,000 km/5yrs
Every 120,000 mi/192,000 km/6yrs
120,000 mi/192,000 km/6yrs
then replace every 90,000 mi/
144,000 km/5yrs Do items in A.
Do items in A, B.
Do items in A.
DoitemsinA,B,C.
Do items in A, B.
Do item in D.
Do items in A, B.
Do items in A.
DoitemsinA,B,C.
Do items in A.
Do items in A, B.
Do items in A.
Do item in D.
DoitemsinA,B,C.
Do items in A.
Replace timing belt, balancer belt , inspect
water pump.
Inspect valve clearance. Check idle speed.
Replace spark plugs. Do items in A, B.
Do items in A.
DoitemsinA,B,C. Replace engine coolant
Replace manual transmission fluid
Replace automatic transmission fluid 287
NOTE:
1
Maintenance Schedule for Normal Conditions (listed by distance/time)

µ
Ì
Î ÎÎ ÌÎÎ
Î
Î
ÌÌ
Follow the Maintenance
Schedule f or Severe Conditions.
Follow the Severe Conditions
Maintenance Schedule if you
drive your vehicle
under one or more of the
f ollowing conditions:
Driving less than 5 miles (8
km) per trip or, in f reezing
temperatures, driving less
than 10 miles (16 km) per trip.
Driving in extremely hot
[over 90°F (32°C)] conditions.
Extensive idling or long
periods of stop-and-go driving.
Trailer towing, driving with a
car top carrier, or driving in
mountainous conditions.
Driving on muddy, dusty, or
de-iced roads.
MAINLY
Maint enance
U.S. Owners
Canadian Owners
242
Visually inspect the following items: Replace every 3,750 miles (6,000 km) or 6 months
Check oil and coolant at each fuel stop
Service at the indicated
distance or time whichever
comes first.
miles x 1,000
km x 1,000
months
Balancer belt applies to 4-cylinder models only.
See timing belt on page to determine need for replacement. See information on maintenance and
emissions warranty, last column, page .
Every 60,000 miles (96,000 km) or 3 years
120,000 miles (192,000 km) or 10 years, then every
60,000 miles (96,000 km) or 5 years
See Dust and Pollen Filter on page for replacement information under special driving conditions.
Replace engine oil and oil filter
Check engine oil and coolant
Clean ( ) or replace ( ) air cleaner element
Use normal schedule except in dusty conditons
Inspect valve clearance
Replace spark plugs
Replace timing belt , balancer belt , and
inspect water pump
Inspect and adjust drive belts
Inspect idle speed
Replace engine coolant
Replace transmission fluid
Inspect front and rear brakes
Replace brake fluid
Check parking brake adjustment
Replace dust and pollen filter
Lubricate all hinges, locks and latches
Rotate tires (Check tire inflation and condition
at least once per month) Every 3 years (independent of mileage)
Tie rod ends, steering gear box, and boots
Suspension components, driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and conditions of fluids
Cooling system hoses and connections Exhaust system, fuel lines and connections
Lights and controls, vehicle underbody 152412
304824457236609648
75
120
60 90
144 72 105168
84 120192
96
Rotate tires every 7,500 miles (12,000 km)
Every 7,500 miles (12,000 km) or 6 months Adjust only if noisy
Every 7,500 miles (12,000 km) or 6 months
:
1:2:3: 239
283 MTAT
282
60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years
11 ,2
3
Maintenance Schedule for Severe Conditions

µµ
Ø ØØØØØØØ Ø Ø Ø ØØØØØØØØ
Ø Ø Ø Ø Ø
Ì
Ì Ì
Î
ÌÎÎ Î
Î ÎÎ
CONT INUED
Maint enance243
A, B, C, D, E
U.S. Owners
Canadian Owners
AB C D E
Service at the indicated distance or time, whichever comes first. Do the items in as required for each distance/time.
Refer to page to determine which schedule to use.
Use the Maintenance Schedule for Severe Conditions. Replace engine oil and filter.
Inspect front and rear brakes.
Rotate tires (follow pattern on page ).
Inspect tie rod ends, steering gear box and boots.
Inspect suspension components.
Inspect driveshaft boots.
Check parking brake adjustment.
Lubricate all hinges, locks and latches with
multipurpose grease.
Inspect brake hoses and lines (including ABS)
Check all fluid leves, condition of fluids, and check
for leaks.
Inspect cooling system hoses and connections.Inspect exhaust system.
Inspect fuel lines and connections
Check all lights.
Inspect the underbody.
Replace air cleaner element.
Inspect and adjust drive belts.
Replace dust and pollen filter .
Replace brake fluid every 3 years
(independent of mileage).
Do items in A.
Do items in A, B.
Do items in A.
Clean air cleaner element.
DoitemsinA,B,C.
Do items in A.
Do items in A, B.
Do items in A.
DoitemsinA,B,C,D.
Do items in A.
Do items in A, B.
Do items in A.
Do item in E.
Clean air cleaner element. Do items in A, B, C.
Do items in A.
Do items in A, B.
Do items in A.
Replace MT fluid.
Replace AT fluid.
Replace timing belt , balancer belt , inspect
water pump.
DoitemsinA,B,C,D.
Do items in A.
3,750 mi/6,000 km
7,500 mi/12,000 km
11,250 mi/18,000 km
15,000 mi/24,000 km/1 yr
18,750 mi/30,000 km
22,500 mi/36,000 km
26,250 mi/42,000 km
30,000 mi/48,000 km/2 yrs
33,750 mi/54,000 km
37,500 mi/60,000 km
41,250 mi/66,000 km
3 yrs (independent ofmileage)
45,000 mi/72,000 km/3 yrs
48,750 mi/78,000 km
52,500 mi/84,000 km
56,250 mi/90,000 km
60,000 mi/96,000 km/3 yrs
60,000 mi/96,000 km/3 yrs,
then replace every 30,000 mi/
48,000 km/2 yrs.
60,000 mi/96,000 km/4 yrs
63,750 mi/102,000 km
287
:
242
Check engine oil and coolant at each fuel stop.
Check and adjust valve clearance, cold engine, only if noisy.
See information on maintenance and emissions warranty, last
column, page .
See timing belt on page to determine need for replacement.
Balancer belt applies to 4-cylinder models only.
See Dust and Pollen Filter on page for replacement
information under special driving conditions. NOTE:
283
282 239
1:2:3:
3
11 ,2
Maintenance Schedule for Severe Conditions (listed by distance/time)
