When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Pourthecoolantslowlyand
caref ully so you do not spill. Clean
up any spill immediately; it could
damage components in the engine
compartment.
Put the radiator cap back on and
tighten it.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components. Check the f luid level in the
windshield washer reservoir at least
monthly during normal use.
The low washer
level indicator will light when the
level is low.
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition them.
2. 3. 4. 5.
1.
On Canadian models:
Engine Coolant, Windshield Washers
Maint enance Windshield Washers
142 NOTICE:
RADIATOR CAP
Do not use engine antif reeze
or a vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
——y
y
()y
y

Check the f luid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground. Remove the
transmission f iller bolt, and caref ully
f eel inside the bolt hole with your
f inger. The f luid level should be up
to the edge of the bolt hole. If it is
not, add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Reinstall
the f iller bolt, and tighten it securely.If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to add f luid,
contact your Honda dealer.
T ransmission Fluid
Maint enance
143
Correct level
FILLER BOLT
——y
y
()y
y

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for the
brake system.
Low f luid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.
Brake f luid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement. Using any non-Honda
brake fluid can cause corrosion and
decrease the lif e of the system. Have
the brake system f lushed and ref illed
with Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Replace it according to the time
recommendation in the maintenance
schedule.
Check the brake f luid level in the
reservoirs monthly.
The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.Clutch System
Brake System
Maint enance
Brake Fluid, Clutch Fluid
144 MAX
MIN
MAX
MIN
——y

y
()y
y

Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts (as shown),
including the pivot. Follow the time
and distance recommendations in
the Maintenance Schedule. If you
are not sure how to clean and grease
the latch, contact your Honda dealer.Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustments should be
perf ormed by a Honda dealer or
other qualif ied mechanic.
Your vehicle has halogen headlight
bulb. Handle it by its plastic case and
protect the glass f rom contact with
your skin or hard objects. If you
touch the glass, clean it with
denaturedalcoholandacleancloth.
Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
When you replace the bulb on the
driver’s side, if necessary, loosen
the bolt on the battery plate, then
slide the battery.
1. 2.
CONT INUED
Halogen headlight bulbs get
very hot when lit. Oil, perspiration, or a scratch on the glass can cause the bulbto overheat and shatter.
Hood Latch, Lights
Hood L atch Headlight A iming
Replacing a Headlight Bulb
Maint enanceReplacement
145
NOTE:
LATCH ASSEMBLY
TAB
——y
y
()y
y

If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.Use a f lat-tipped screwdriver to
remove the holding clip f rom the
inner f ender.
Pull the inner f ender cover back.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb.
If you loosened the bolt on the
battery plate, tighten it securely.
3. 4. 5.
1.
3.
2.
6. 7.
Lights
Maint enance Replacing a Front T urn Signal Bulb
146 HOLDING CLIP
——y
y
()y
y

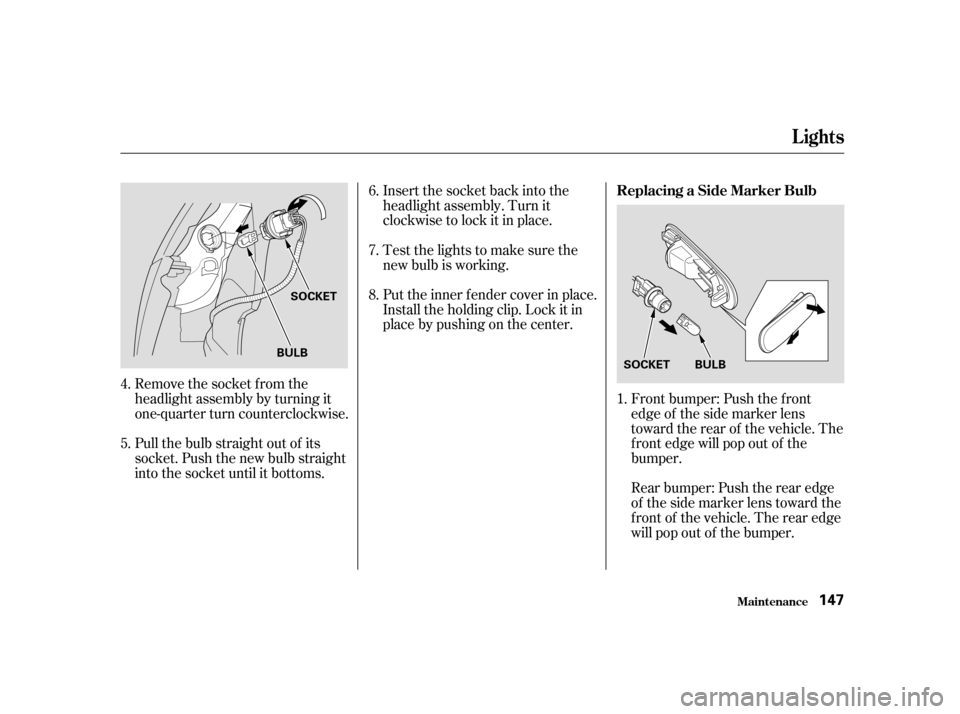

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.Front bumper: Push the f ront
edge of the side marker lens
toward the rear of the vehicle. The
f ront edge will pop out of the
bumper.
Rear bumper: Push the rear edge
of thesidemarkerlenstowardthe
f ront of the vehicle. The rear edge
will pop out of the bumper.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms. Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Put the inner f ender cover in place.
Install the holding clip. Lock it in
placebypushingonthecenter.
4. 5. 6.7. 8.
1.
Lights
Maint enance
Replacing a Side Marker Bulb
147
SOCKET
BULB
SOCKET
BULB
——y
y
()y
y

Turn the socket one-quarter turn
counterclockwise to remove it
from the lens.
Pull the bulb straight out of its
socket. Push the new bulb straight

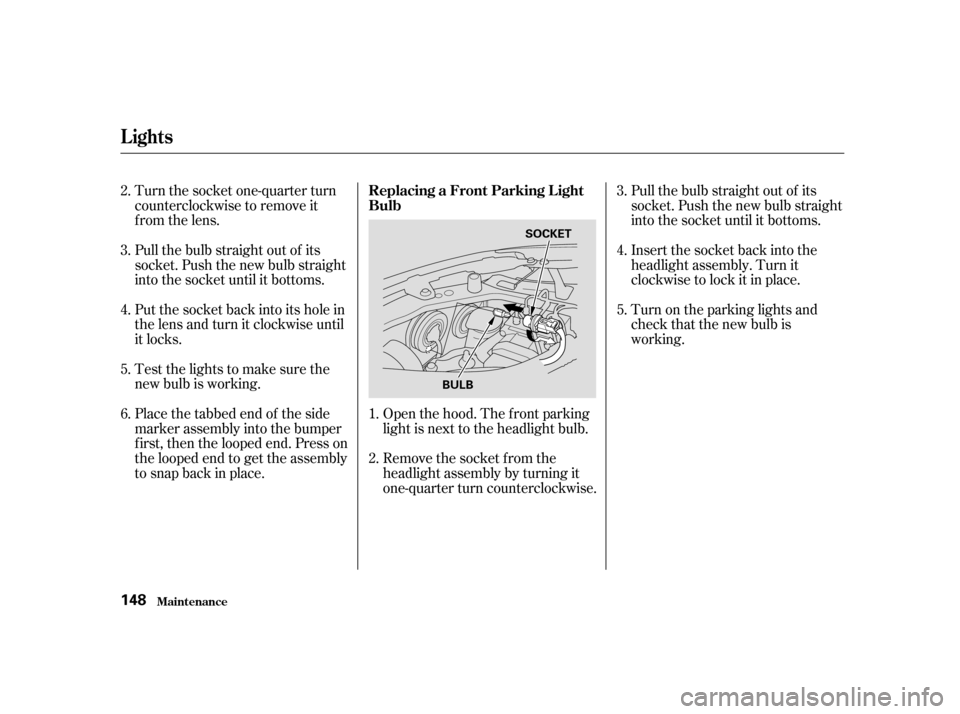

into the socket until it bottoms.Open the hood. The f ront parking
light is next to the headlight bulb.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Put the socket back into its hole in
the lens and turn it clockwise until
it locks.
Testthelightstomakesurethe
new bulb is working.
Place the tabbed end of the side
marker assembly into the bumper
f irst, then the looped end. Press on
the looped end to get the assembly
to snap back in place. Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the parking lights and
check that the new bulb is
working.
1. 2. 3. 4.5.
3.4.5. 6.
2.
Replacing a Front Parking L ight Bulb
Lights
Maint enance
148 SOCKET
BULB
——y
y
()y

y

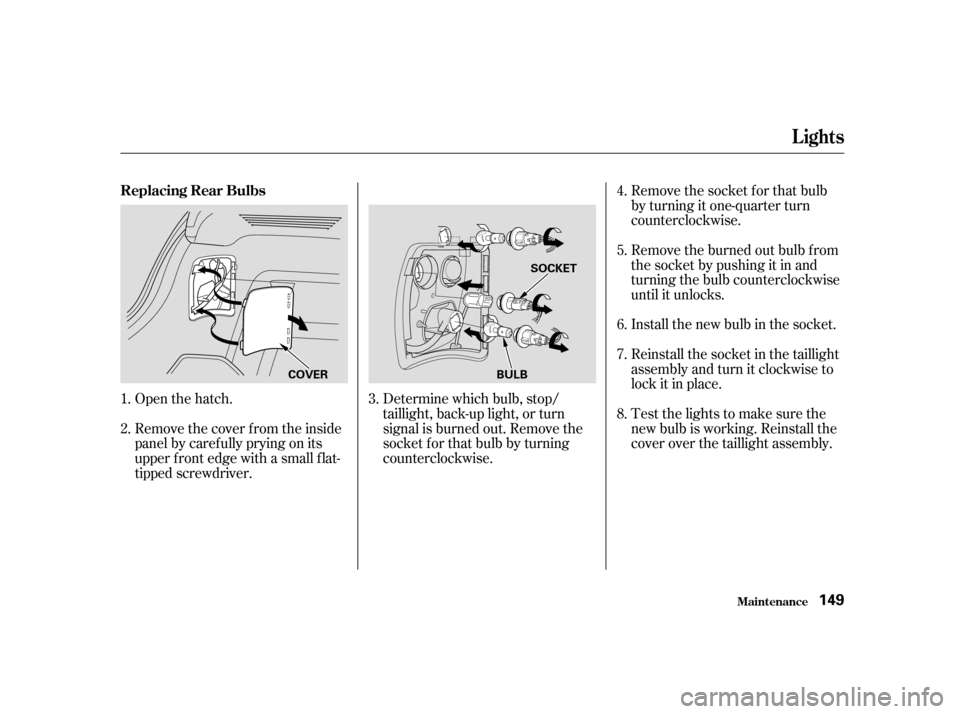

Open the hatch.
Remove the cover f rom the inside
panel by caref ully prying on its
upper f ront edge with a small f lat-
tipped screwdriver.Determine which bulb, stop/
taillight, back-up light, or turn
signal is burned out. Remove the
socket f or that bulb by turning
counterclockwise.Remove the socket f or that bulb
by turning it one-quarter turn
counterclockwise.
Remove the burned out bulb f rom
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Install the new bulb in the socket.
Reinstall the socket in the taillight
assembly and turn it clockwise to
lock it in place.
Testthelightstomakesurethe
new bulb is working. Reinstall the
cover over the taillight assembly.
1.
3.
2. 4. 5. 6. 7. 8.
Lights
Replacing Rear Bulbs
Maint enance149
COVER BULB
SOCKET
——y

y
()y
y

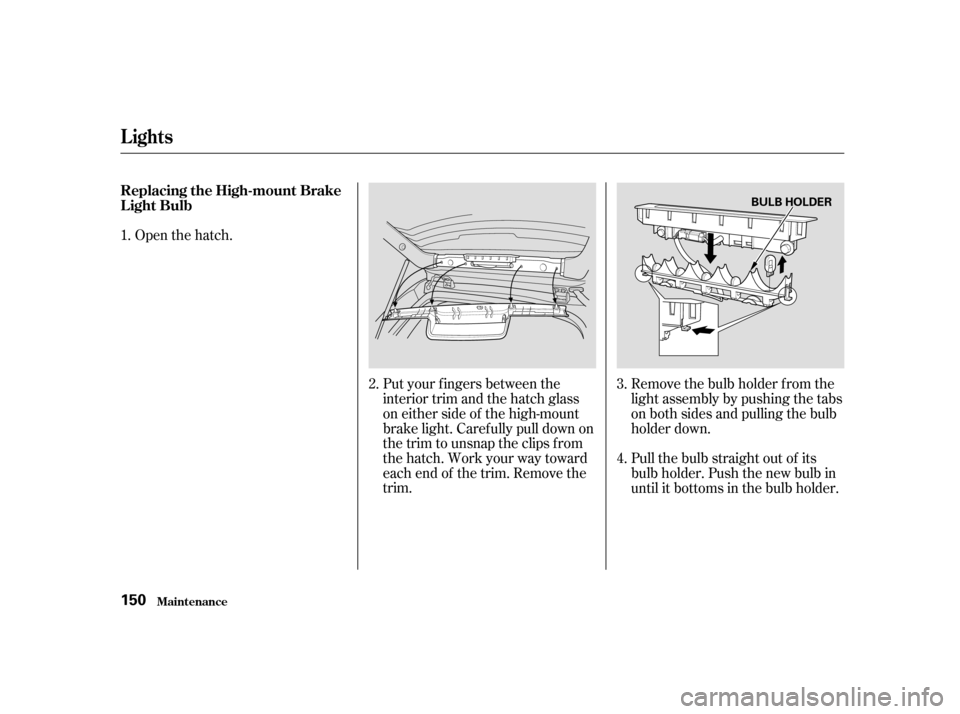

Open the hatch.Put your fingers between the
interior trim and the hatch glass
on either side of the high-mount
brake light. Caref ully pull down on
the trim to unsnap the clips f rom
the hatch. Work your way toward
each end of the trim. Remove the
trim.Remove the bulb holder f rom the
light assembly by pushing the tabs
on both sides and pulling the bulb
holder down.
Pull the bulb straight out of its
bulb holder. Push the new bulb in
until it bottoms in the bulb holder.
1.
3.
2.
4.
Lights
Maint enance
Replacing the High-mount Brake
Light Bulb 150
BULB HOLDER
——y
y
()y
y

Push the bulb holder into the light
assembly until it locks in place.
Testthelightstomakesurethe
new bulb is working.
Line up the clips on the interior
trim with the corresponding holes
in the hatch.Push on the trim to

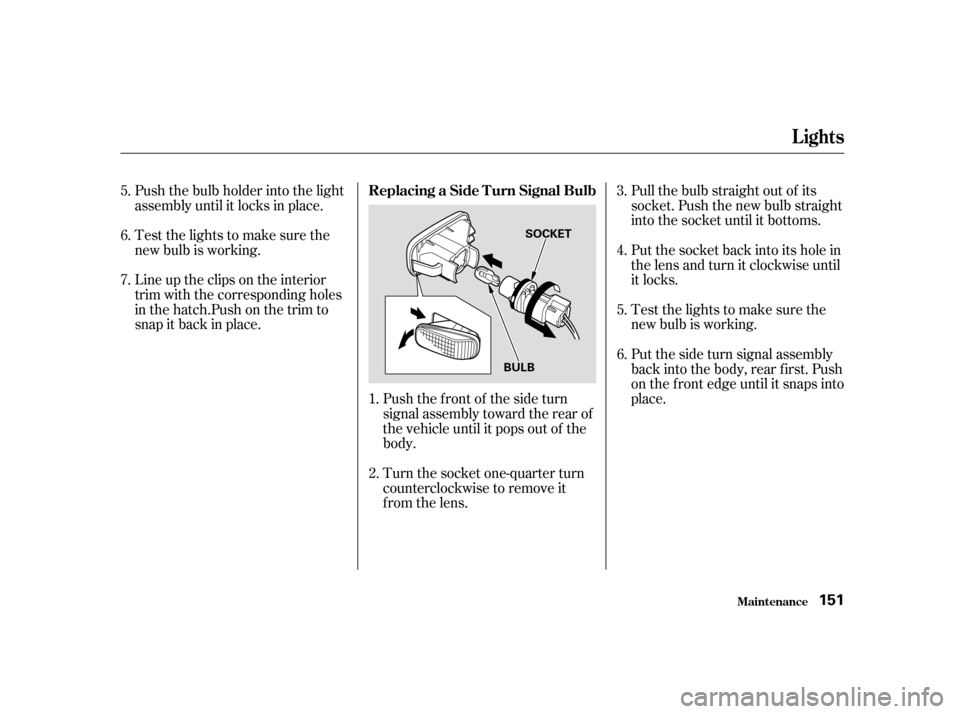

snap it back in place.Pushthefrontof thesideturn
signal assembly toward the rear of
the vehicle until it pops out of the
body.
Turn the socket one-quarter turn
counterclockwise to remove it
from the lens.Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Put the socket back into its hole in
the lens and turn it clockwise until
it locks.
Testthelightstomakesurethe
new bulb is working.
Put the side turn signal assembly
back into the body, rear first. Push
on the f ront edge until it snaps into
place.
1.
2. 3. 5. 6.
4.
6.7.
5.
Lights
Replacing a Side T urn Signal Bulb
Maint enance151
BULB
SOCKET
