HONDA CIVIC HATCHBACK 2004 7.G Owners Manual

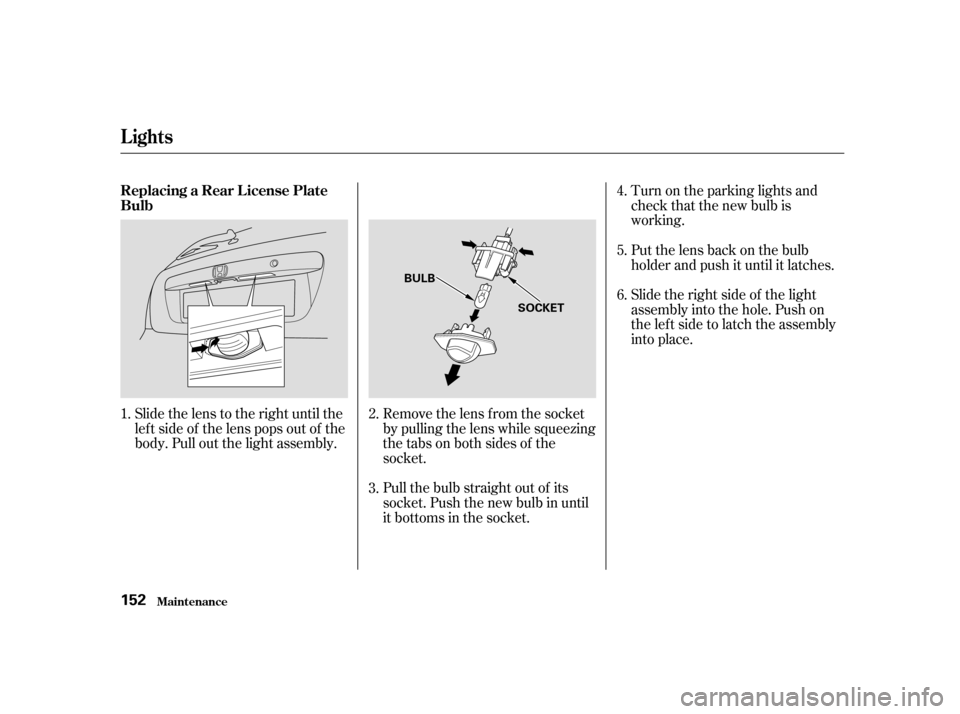

Slide the lens to the right until the
lef t side of the lens pops out of the
body. Pull out the light assembly.Remove the lens f rom the socket
by pulling the lens while squeezing
the tabs on both sides of the
socket.
Pull the bulb straight out of its
socket. Push the new bulb in until
it bottoms in the socket.Turn on the parking lights and
check that the new bulb is
working.
Put the lens back on the bulb
holder and push it until it latches.
Slide the right side of the light
assembly into the hole. Push on
theleftsidetolatchtheassembly
into place.
1. 3.
2. 6.
4. 5.
Lights
Replacing a Rear License Plate Bulb
Maint enance
152 BULB
SOCKET
——y
y
()y
y

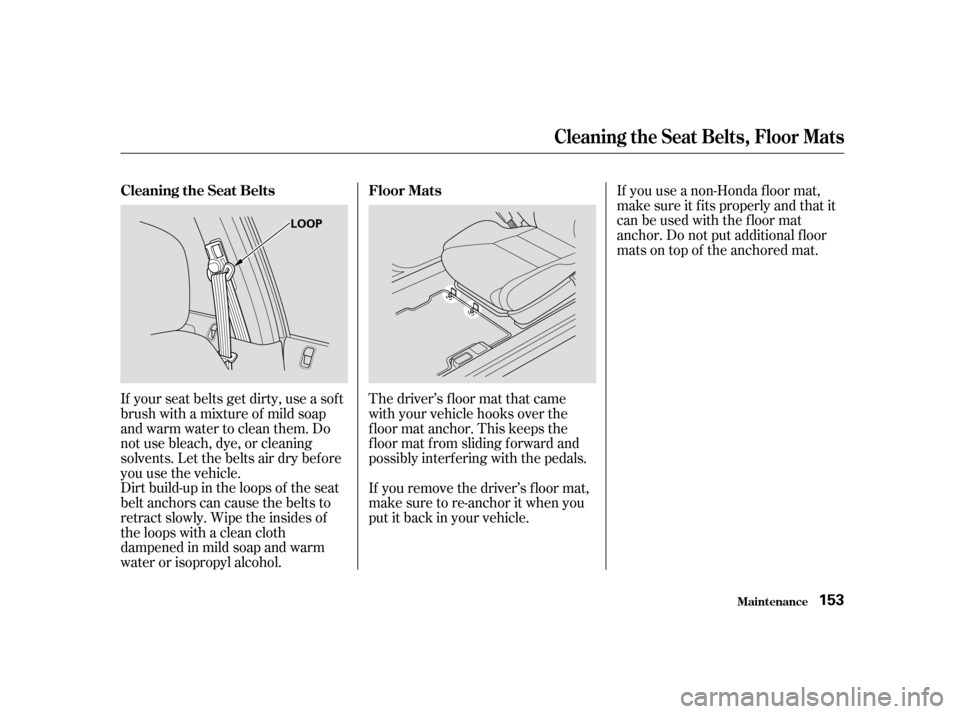

Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.If you use a non-Honda f loor mat,
make sure it f its properly and that it
canbeusedwiththefloormat
anchor. Do not put additional f loor
mats on top of the anchored mat.
If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air dry bef ore
you use the vehicle. The driver’s f loor mat that came
with your vehicle hooks over the
f loor mat anchor. This keeps the
f loor mat f rom sliding f orward and
possibly interf ering with the pedals.
If you remove the driver’s f loor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
Maint enance
Floor Mats
Cleaning the Seat Belts
Cleaning the Seat Belts, Floor Mats
153
LOOP
——y
y
()y
y

Check the condition of the wiper
blades at least every six months.
Look f or signs of cracking in the
rubber, or areas that are getting
hard. Replace the blades if you f ind
these signs, or if they leave streaks

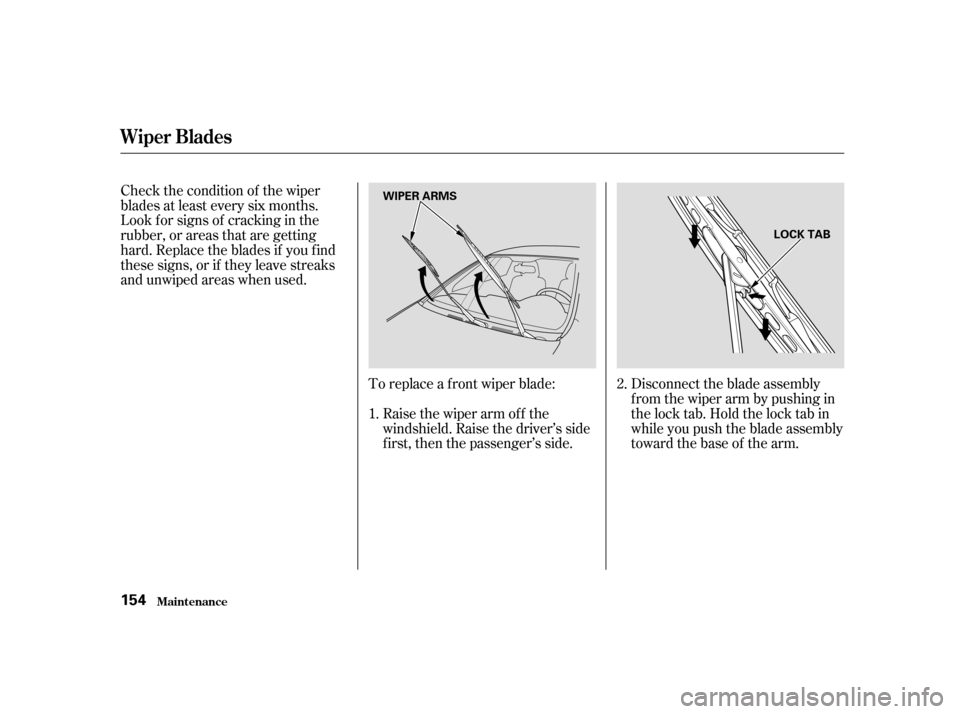

and unwiped areas when used.To replace a f ront wiper blade:Raise the wiper arm of f the
windshield. Raise the driver’s side
first, then the passenger’s side. Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
2.
1.
Wiper Blades
Maint enance
154 WIPER ARMS
LOCK TAB
——y
y
()y
y

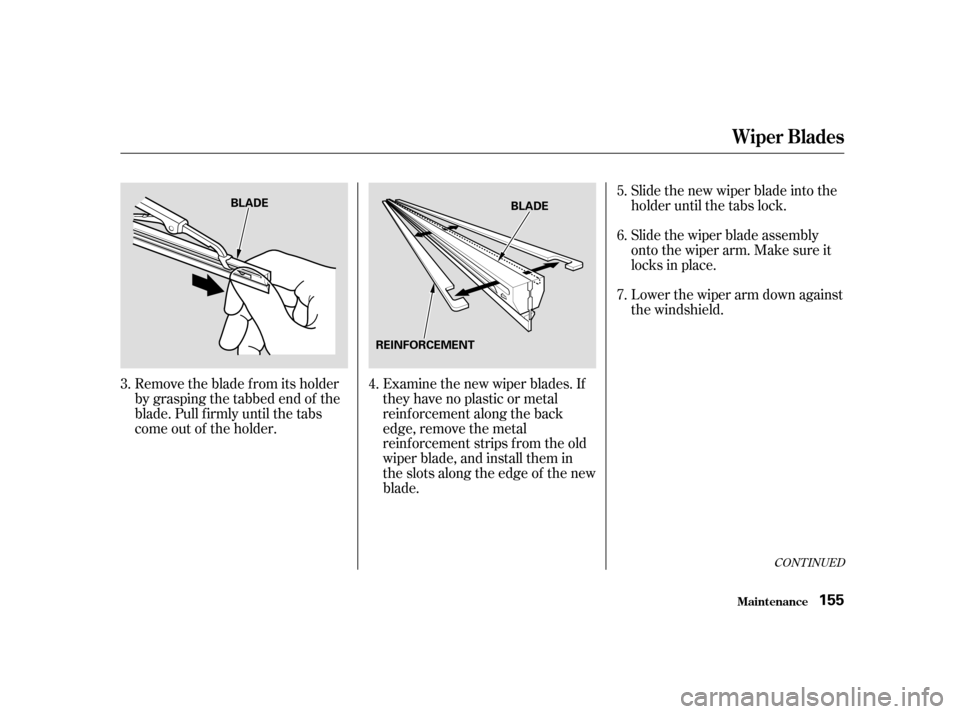

Remove the blade f rom its holder
by grasping the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield.
3. 4. 5. 6. 7.
CONT INUED
Wiper Blades
Maint enance
155
BLADE
BLADE
REINFORCEMENT
——y

y
()y
y

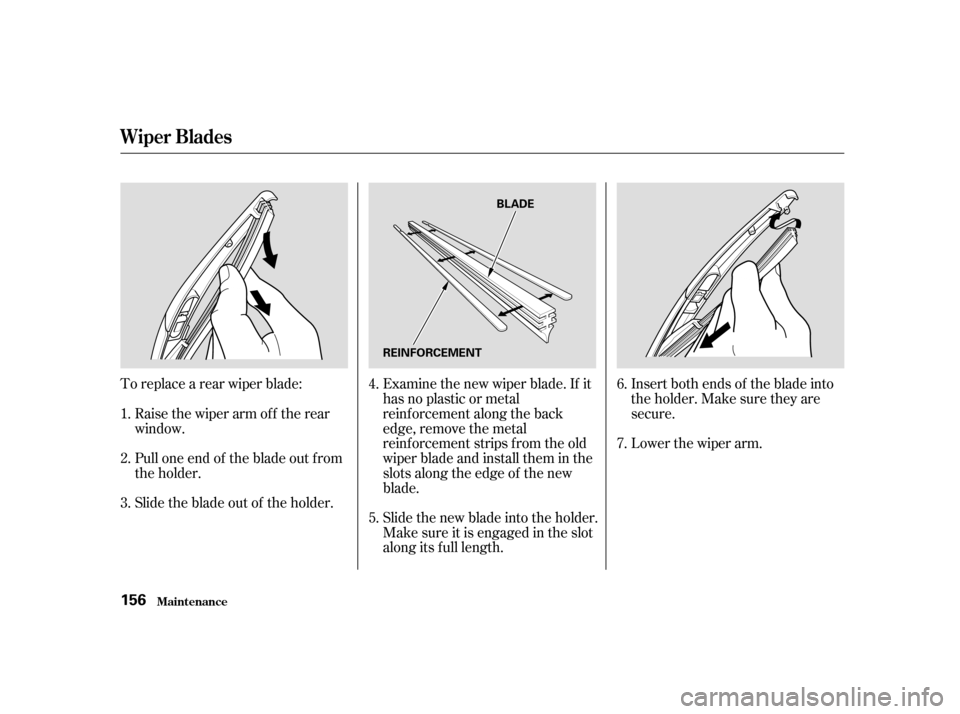

To replace a rear wiper blade:Pull one end of the blade out f rom
the holder.
Slide the blade out of the holder. Insert both ends of the blade into
the holder. Make sure they are
secure.
Lower the wiper arm.
Raise the wiper arm of f the rear
window. Examine the new wiper blade. If it
has no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade and install them in the
slots along the edge of the new
blade.
Slide the new blade into the holder.
Make sure it is engaged in the slot
along its f ull length.
3. 4. 5.6. 7.
1. 2.
Wiper Blades
Maint enance
156 BLADE
REINFORCEMENT
——y
y
()y
y

The following chart shows the
recommended cold tire pressures f or
most normal driving conditions and
speed.
Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.
Underinf lated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced.
Thecompactsparetirepressureis:Tire Size Cold Tire Pressure
for Normal Driving
Tires
Recommended T ire Pressures f or
Normal DrivingInf lation
Tires
Maint enance157
P205/55R16 89V 30 psi (210 kPa ,
2.1 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
——y
y
()y
y

Check the pressure in the tires when
they are cold. This means the vehicle
has been parked f or at least three
hours, or driven less than 1 mile (1.6
km).
Add or release air, if needed, to
match the recommended cold tire
pressures on page .
If you check the pressure when the
tires are hot (driven f or several
miles), you will see readings 4 to 6
psi (30 to 40 kPa, 0.3 to 0.4 kgf /cm )
higher than the cold reading. This is
normal; do not release air to match
the cold pressure.
Tubeless tires have some ability to
self -seal if they are punctured. You
should look closely f or punctures if a
tire starts losing pressure.
Tire pressure f or high speed
driving is the same as f or normal
driving.
For convenience, the recommended
tire sizes and cold air pressures are
on a label on the driver’s doorjamb.
For additional technical inf ormation,
see page .
Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf /cm ) per month.
Remember to check the spare tire at
thesametime.192
157
Tires
Maint enance
158
——y
y
()y

y

In addition to proper inf lation,
correct wheel alignment helps to
decrease tire wear. If you f ind a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you f eel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed f rom the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comf ort and tire lif e. For best results,
have the installer perform a dynamic
balance.

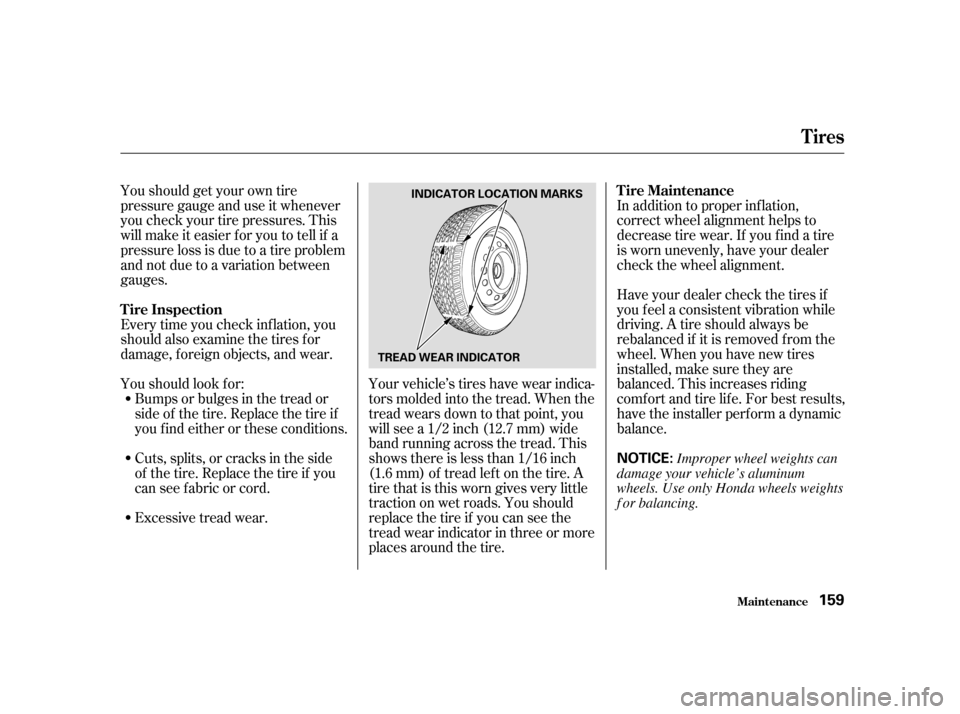

Your vehicle’s tires have wear indica-
tors molded into the tread. When the
tread wears down to that point, you
will see a 1/2 inch (12.7 mm) wide
band running across the tread. This
shows there is less than 1/16 inch
(1.6 mm) of tread lef t on the tire. A
tire that is this worn gives very little
traction on wet roads. You should
replace the tire if you can see the
tread wear indicator in three or more
places around the tire.
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier f or you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
Every time you check inf lation, you
should also examine the tires f or
damage, f oreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherortheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see f abric or cord.
Excessive tread wear. T ire Maintenance
Tire Inspection
Tires
Maint enance 159
NOTICE:
INDICATOR LOCATION MARKS
TREAD WEAR INDICATOR Improper wheel weights can
damage your vehicle’s aluminum
wheels. Use only Honda wheels weights
f or balancing.
——y

y
()y
y

Wheels:
Tires:
To help increase tire lif e and
distribute wear more evenly, rotate
the tires every 10,000 miles (16,000
km). Move the tires to the positions
showninthecharteachtimethey
are rotated. If you purchase
directional tires, rotate only f ront-to-
back. It is best to replace all f our tires at
thesametime.If thatisnotpossible
or necessary, replace the two f ront
tires or two rear tires as a pair.
Replacing just one tire can seriously
af f ect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specif ications
match those of the original wheels.
Replace your tires with radial tires of
the same size, load range, speed
rating and maximum cold tire
pressure rating (as shown on the
tire’s side wall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a dif f erent
size or construction can cause the
ABS to work inconsistently.
Wheel and T ire Specif ications
Replacing T ires
Tire Rotation
Tires
Maint enance
160 Front Front
(Front Non-directional
Tires and Wheels) (Front Directional
Tires and Wheels)
16x61/2J
P205/55R16 89V
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
——y


y
()y
y

´Because your Honda has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners on the f ront
tires. Use traction devices only when
required by driving condition or local
laws. Make sure they are the correct
size f or your tires. Metal link-type
‘‘chains’’ should not be used.
When installing cables, f ollow the
manuf acturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
See page f or DOT tire quality
grading inf ormation, and page
f or tire size explanation.
Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best perf ormance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
Honda, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all f our wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer f or
maximum speed recommendations. 196
197 Tire Chains
Winter Driving
Snow T ires
Tires
Maint enance 161
NOTICE:
Traction devices that are the
wrong size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
——y

y
()y
y
