HONDA CIVIC HATCHBACK 2017 10.G Owners Manual

610

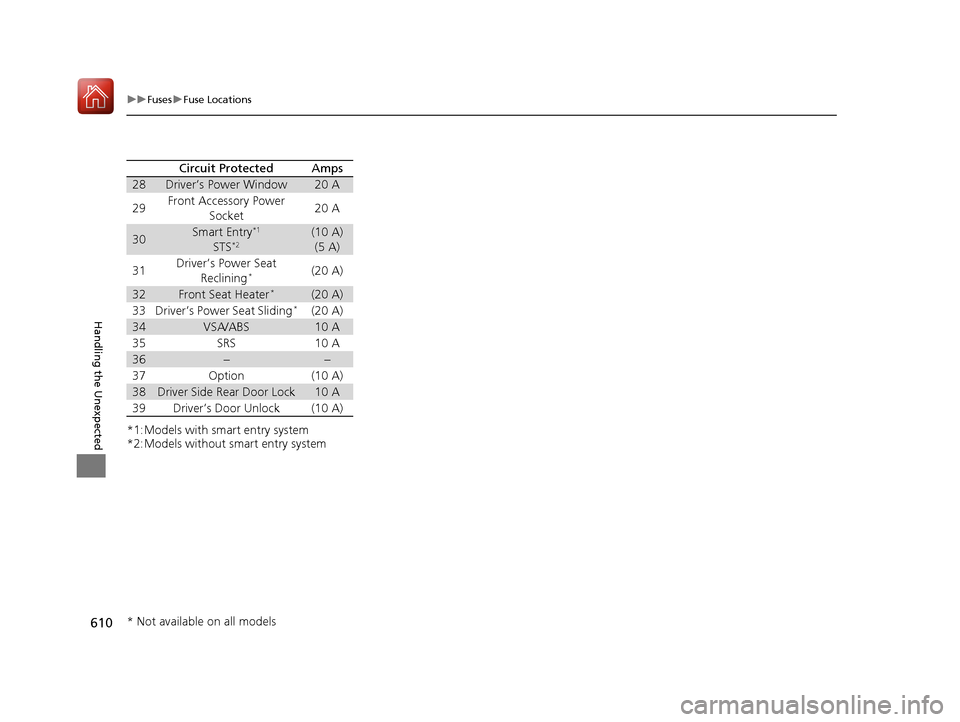

uuFuses uFuse Locations
Handling the Unexpected
*1:Models with smart entry system
*2:Models without smart entry system
Circuit ProtectedAmps
28Driver’s Power Window20 A
29Front Accessory Power
Socket20 A
30Smart Entry*1
STS*2(10 A)(5 A)
31Driver’s Power Seat
Reclining*(20 A)
32Front Seat Heater*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34VSA/ABS10 A
35SRS10 A
36−−
37Option(10 A)
38Driver Side Rear Door Lock10 A
39Driver’s Door Unlock(10 A)
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 610 ページ ２０１６年６月８日　水曜日　午 後２時８分

611
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

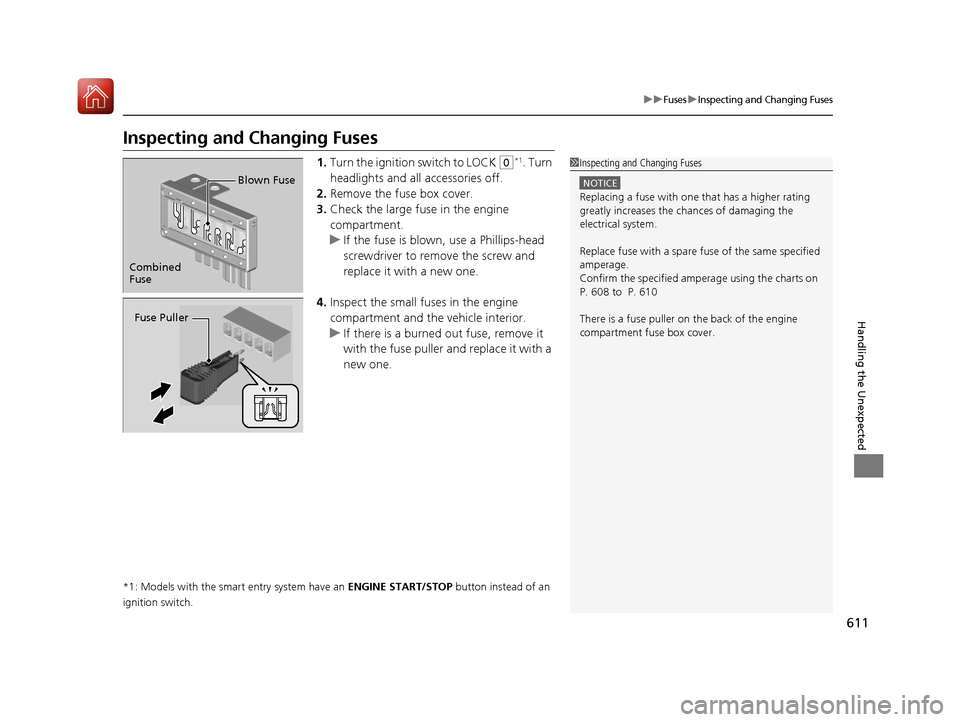

Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 608 to P. 610
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
17 CIVIC 5D (KA KC KL)-31TGG6000.book 611 ページ ２０１６年６月８日　水曜日　午
後２時８分

612
Handling the Unexpected

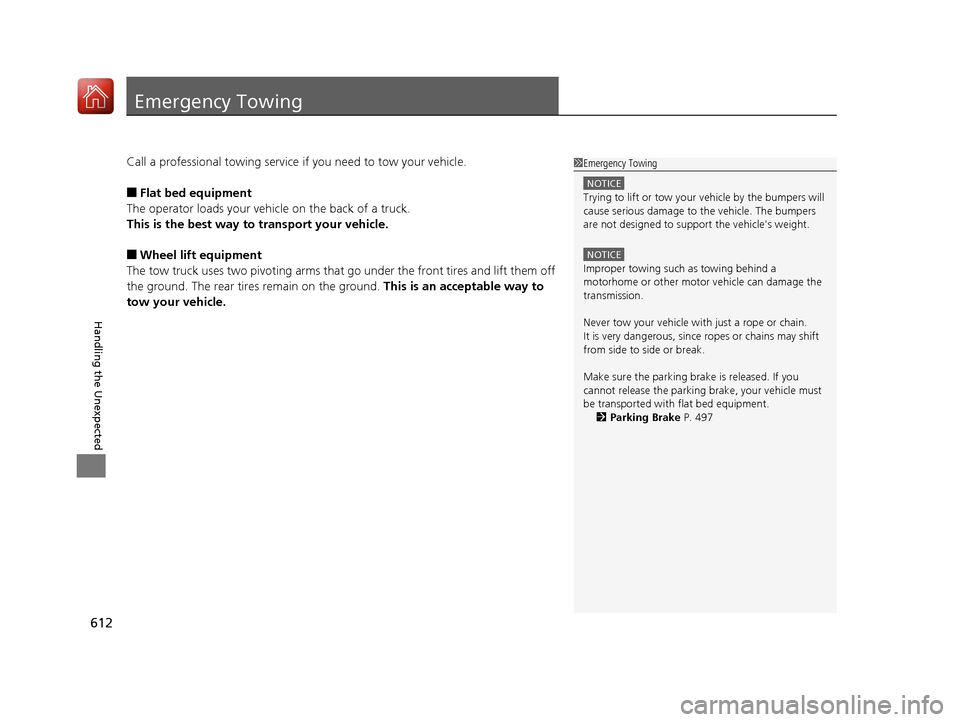

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage to the vehicle. The bumpers
are not designed to suppor t the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported with flat bed equipment.
2 Parking Brake P. 497
17 CIVIC 5D (KA KC KL)-31TGG6000.book 612 ページ ２０１６年６月８日　水曜日　午 後２時８分

613
Handling the Unexpected

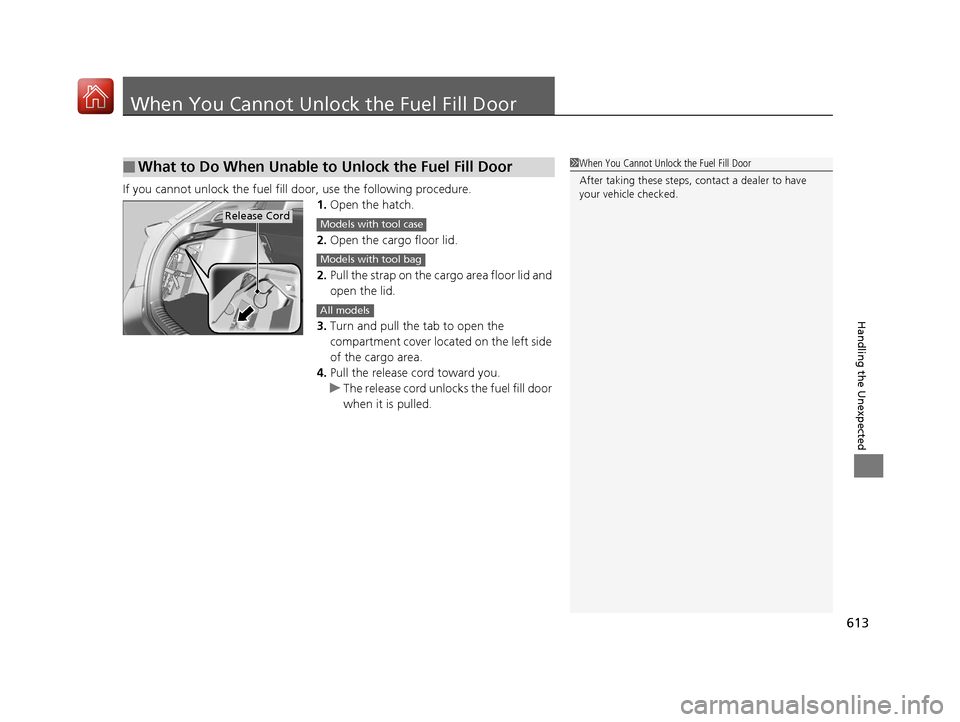

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the hatch.
2. Open the cargo floor lid.
2. Pull the strap on the cargo area floor lid and
open the lid.
3. Turn and pull the tab to open the
compartment cover located on the left side
of the cargo area.
4. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release CordModels with tool case
Models with tool bag
All models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 613 ページ ２０１６年６月８日　水曜日　午 後２時８分

614
Handling the Unexpected

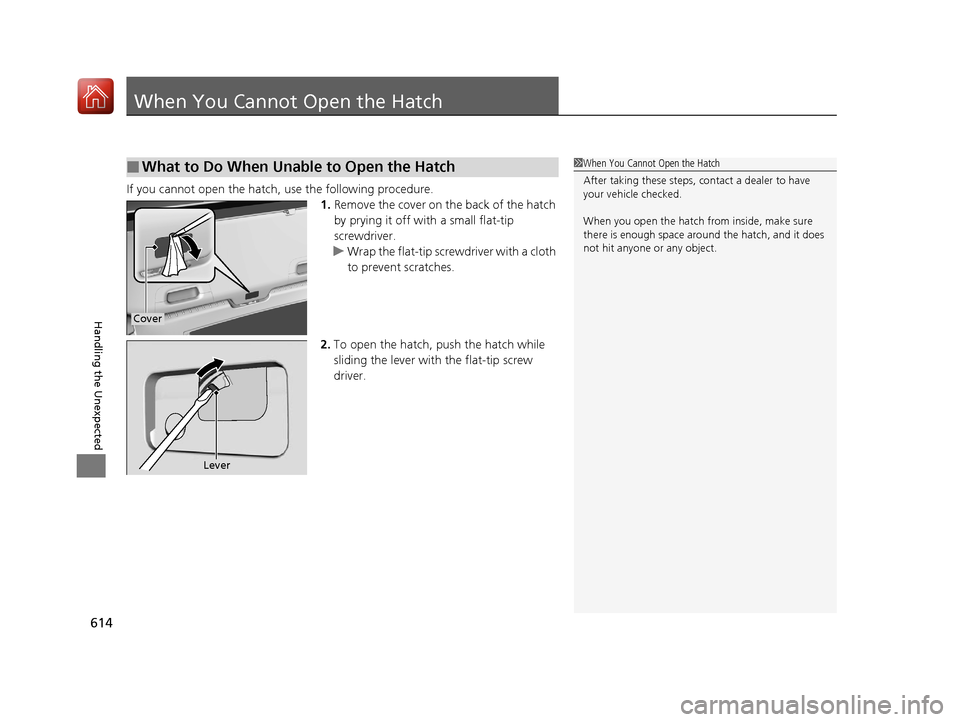

When You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.1.Remove the cover on the back of the hatch
by prying it off with a small flat-tip
screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the hatch, push the hatch while
sliding the lever with the flat-tip screw
driver.
■What to Do When Unable to Open the Hatch1When You Cannot Open the Hatch
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the hatch fr om inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.
Cover
Lever
17 CIVIC 5D (KA KC KL)-31TGG6000.book 614 ページ ２０１６年６月８日　水曜日　午 後２時８分

615
Handling the Unexpected

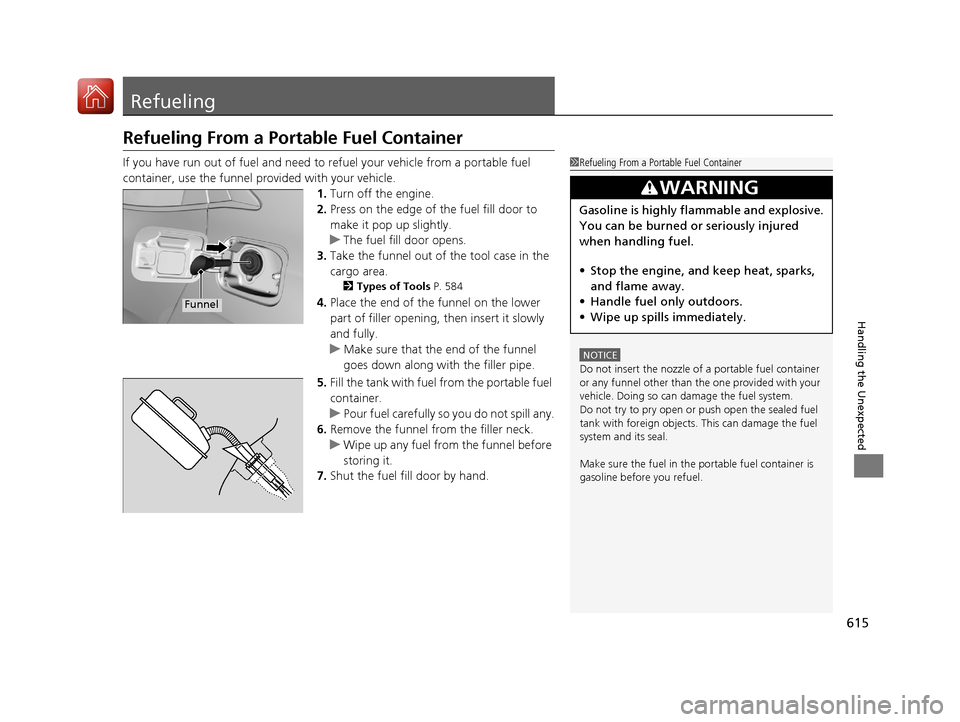

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
cargo area.
2 Types of Tools P. 584
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
17 CIVIC 5D (KA KC KL)-31TGG6000.book 615 ページ ２０１６年６月８日　水曜日　午 後２時８分

616
17 CIVIC 5D (KA KC KL)-31TGG6000.book 616 ページ ２０１６年６月８日　水曜日　午後２時８分

617
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 618
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 620
Devices that Emit Radio Waves ....... 621
Reporting Safety Defects ................. 622Emissions Testing
Testing of Readiness Codes.............. 623
Warranty Coverages ........................ 625
Authorized Manuals ......................... 627
Customer Service Information ......... 628
17 CIVIC 5D (KA KC KL)-31TGG6000.book 617 ページ ２０１６年６月８日　水曜日　午 後２時８分

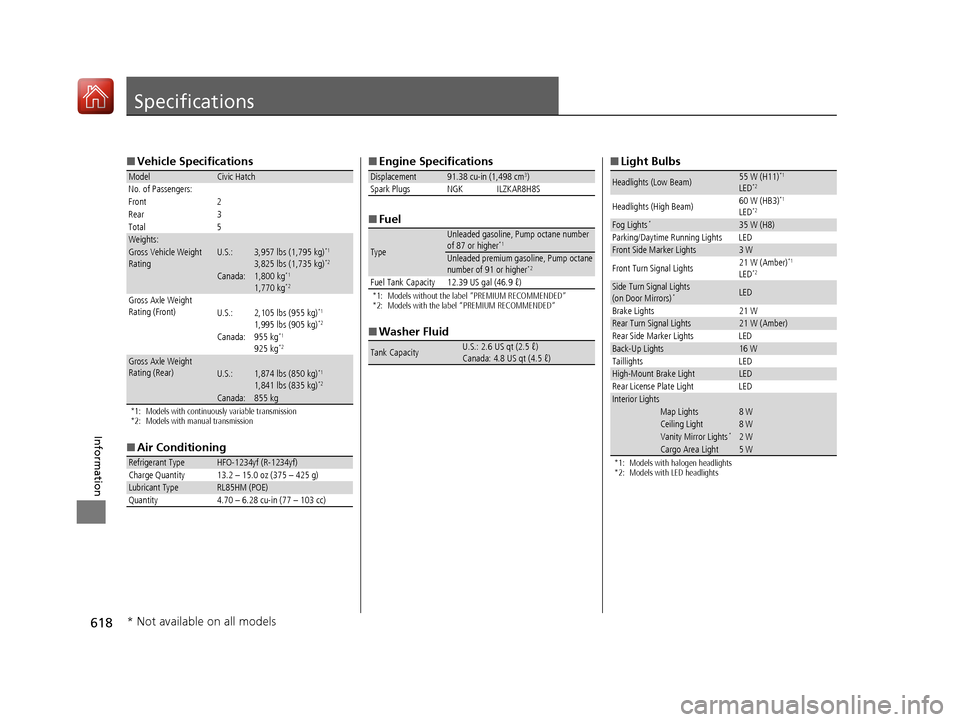

618
Information
Specifications
■Vehicle Specifications
*1: Models with continuously variable transmission
*2: Models with manual transmission
■Air Conditioning
ModelCivic Hatch
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.:3,957 lbs (1,795 kg)*1
3,825 lbs (1,735 kg)*2
Canada:1,800 kg*1
1,770 kg*2
Gross Axle Weight
Rating (Front)U.S.:2,105 lbs (955 kg)*1
1,995 lbs (905 kg)*2
Canada:955 kg*1
925 kg*2
Gross Axle Weight
Rating (Rear)U.S.:1,874 lbs (850 kg)*1
1,841 lbs (835 kg)*2
Canada:855 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.70 – 6.28 cu-in (77 – 103 cc)
■ Engine Specifications
■ Fuel
*1: Models without the label “PREMIUM RECOMMENDED”
*2: Models with the label “PREMIUM RECOMMENDED”
■Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK ILZKAR8H8S
Type
Unleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights*35 W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WCargo Area Light5 W
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 618 ページ ２０１６年６月８日　水曜日　午 後２時８分

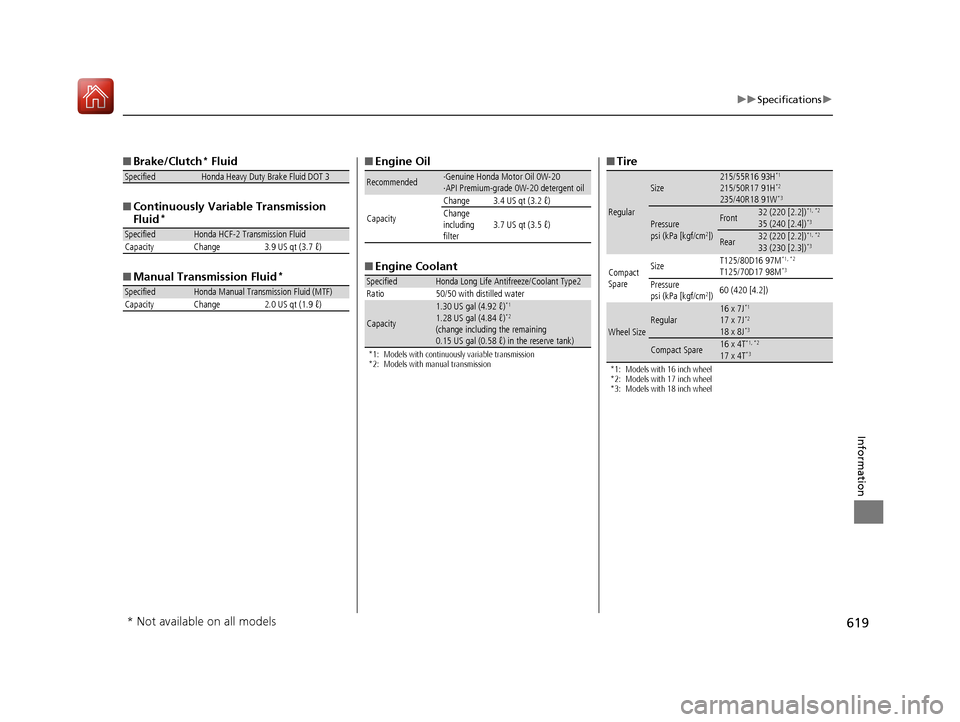

619
uuSpecifications u
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 ℓ)
SpecifiedHonda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Models with continuously variable transmission
*2: Models with manual transmission
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.4 US qt (3.2 ℓ)
Change
including
filter
3.7 US qt (3.5 ℓ)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.30 US gal (4.92 ℓ)*1
1.28 US gal (4.84 ℓ)*2
(change including the remaining
0.15 US gal (0.58 ℓ) in the reserve tank)
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Models with 18 inch wheel
Regular
Size215/55R16 93H*1
215/50R17 91H*2
235/40R18 91W*3
Pressure
psi (kPa [kgf/cm2])
Front32 (220 [2.2])*1, *2
35 (240 [2.4])*3
Rear32 (220 [2.2])*1, *2
33 (230 [2.3])*3
Compact
Spare Size
T125/80D16 97M
*1, *2
T125/70D17 98M*3
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular16 x 7J*1
17 x 7J*2
18 x 8J*3
Compact Spare16 x 4T*1, *2
17 x 4T*3
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 619 ページ ２０１６年６月８日　水曜日　午
後２時８分
