Quick Reference GuideHow to Enter Information
You can enter information (e.g., city names, street names, numbers, and symbols) when prompted on the input screen.
Using Voice Commands
When you see in this manual, voice commands are available for
that feature.
The system recognizes only certain commands.Available navigation
voice commands (P136)
Press the (Talk) button, and say the letter, number, or symbol
(e.g., say “1”).
If a voice command is not recognized, a list is displayed with
possible options.
On list screens:
Say the number of the list item (e.g., say “Three” to select
item 3).
Say “Main menu” to return to the voice command menu
screen.
Say “Back” to return to the previous screen.
Say “Page Up” to scroll up one page.
Say “Page Down” to scroll down one page.
Say “Exit” to end the voice command function.
Using the Touchscreen
Select a character or icon on the screen to select it.
Select to remove the last entered character.
Select to remove all entered characters.
Select to display upper/lower case characters.
Select to enter a space character.
Select to display other types of characters.
Select to change the keypad language.
On input search screens, the suggested search terms are
displayed. Select to display a list of possible entries.

7
Quick Reference GuideDuring Route Guidance
During route guidance, route information is displayed on the map screen.
You can see the detailed information on the turn information screen.
Map Screen
Guidance Screen
Dashboards (P77) Next guidance indicator (P77)
Distance to the next guidance point and street name of
next guidance point.
Where To? (P54)
Waypoint
Calculated route
Speed limitCancel route
Street name of next
guidance point
Distance to next guidance point Estimated time to
next guidance point Scrolls key
Select this key to scroll
the display.
Day or Night Mode
Press the (Display Mode) button
to manually switch between Day and
Night modes.
Turn-by-Turn Directions
The next guidance point appears on
the Driver Information Interface (DII).
Day ModeNight Mode
Remaining
distanceStreet name of next
guidance point
Next driving maneuver is
approaching.

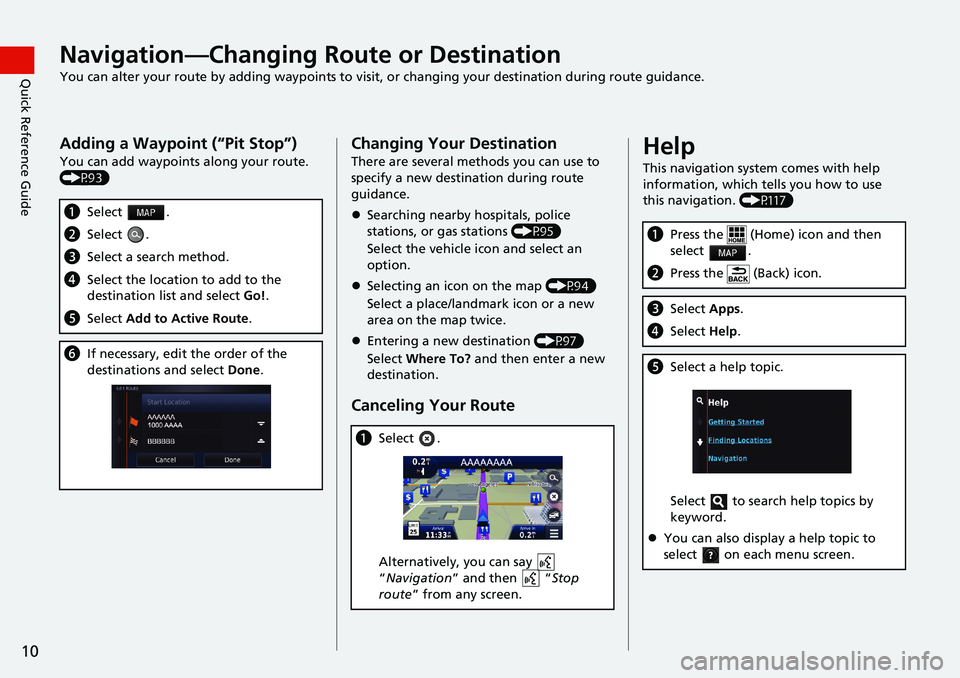

10
Quick Reference GuideNavigation—Changing Route or Destination
You can alter your route by adding waypoints to visit, or changing your destination during route guidance.
Adding a Waypoint (“Pit Stop”)
You can add waypoints along your route.
(P93)
aSelect .
bSelect .
cSelect a search method.
dSelect the location to add to the
destination list and select Go!.
eSelect Add to Active Route.
fIf necessary, edit the order of the
destinations and select Done.
Changing Your Destination
There are several methods you can use to
specify a new destination during route
guidance.
Searching nearby hospitals, police
stations, or gas stations (P95)
Select the vehicle icon and select an
option.
Selecting an icon on the map (P94)
Select a place/landmark icon or a new
area on the map twice.
Entering a new destination (P97)
Select Where To? and then enter a new
destination.
Canceling Your Route
aSelect .
Alternatively, you can say
“Navigation” and then “Stop
route” from any screen.
Help
This navigation system comes with help
information, which tells you how to use
this navigation. (P117)
aPress the (Home) icon and then
select .
bPress the (Back) icon.
cSelect Apps.
dSelect Help.
eSelect a help topic.
Select to search help topics by
keyword.
You can also display a help topic to
select on each menu screen.

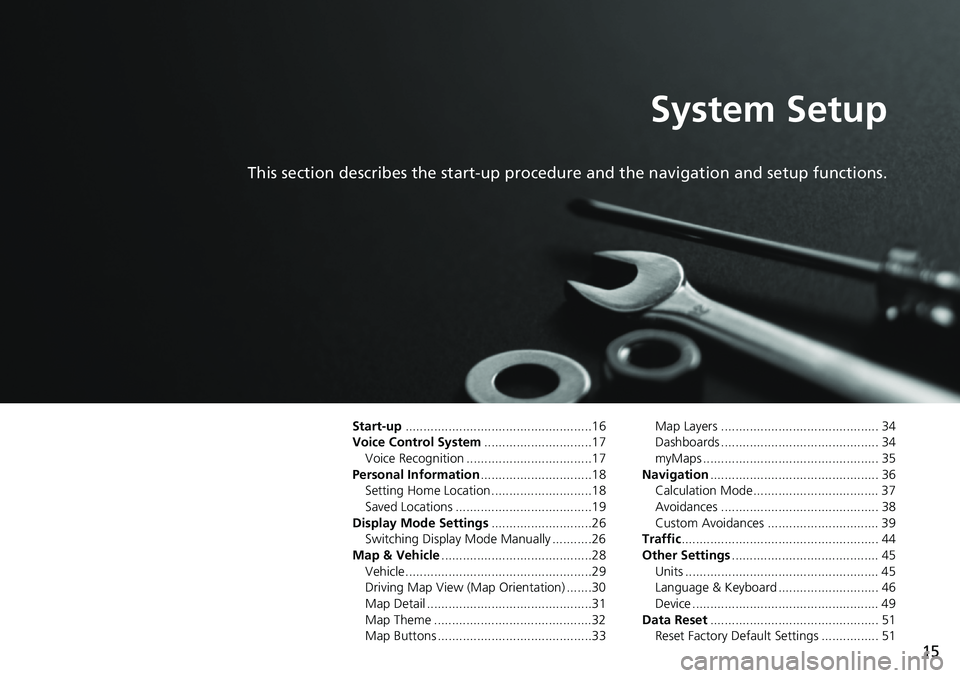

15
System Setup
This section describes the start-up procedure and the navigation and setup functions.
Start-up....................................................16
Voice Control System..............................17
Voice Recognition ...................................17
Personal Information...............................18
Setting Home Location ............................18
Saved Locations ......................................19
Display Mode Settings............................26
Switching Display Mode Manually ...........26
Map & Vehicle..........................................28
Vehicle....................................................29
Driving Map View (Map Orientation) .......30
Map Detail ..............................................31
Map Theme ............................................32
Map Buttons ...........................................33Map Layers ............................................ 34
Dashboards ............................................ 34
myMaps ................................................. 35
Navigation............................................... 36
Calculation Mode................................... 37
Avoidances ............................................ 38
Custom Avoidances ............................... 39
Traffic....................................................... 44
Other Settings......................................... 45
Units ...................................................... 45
Language & Keyboard ............................ 46
Device .................................................... 49
Data Reset............................................... 51
Reset Factory Default Settings ................ 51

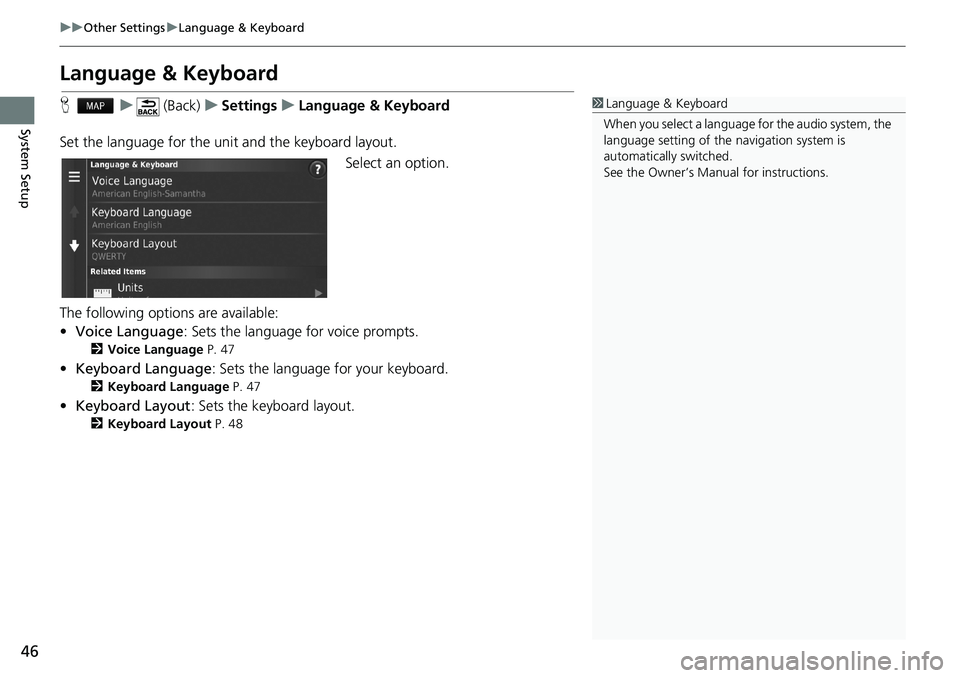

46
uuOther SettingsuLanguage & Keyboard
System Setup
Language & Keyboard
Hu (Back)uSettingsuLanguage & Keyboard
Set the language for the unit and the keyboard layout.
Select an option.
The following options are available:
•Voice Language: Sets the language for voice prompts.
2Voice Language P. 47
•Keyboard Language: Sets the language for your keyboard.
2Keyboard Language P. 47
•Keyboard Layout: Sets the keyboard layout.
2Keyboard Layout P. 48
1Language & Keyboard
When you select a language for the audio system, the
language setting of the navigation system is
automatically switched.
See the Owner’s Manual for instructions.

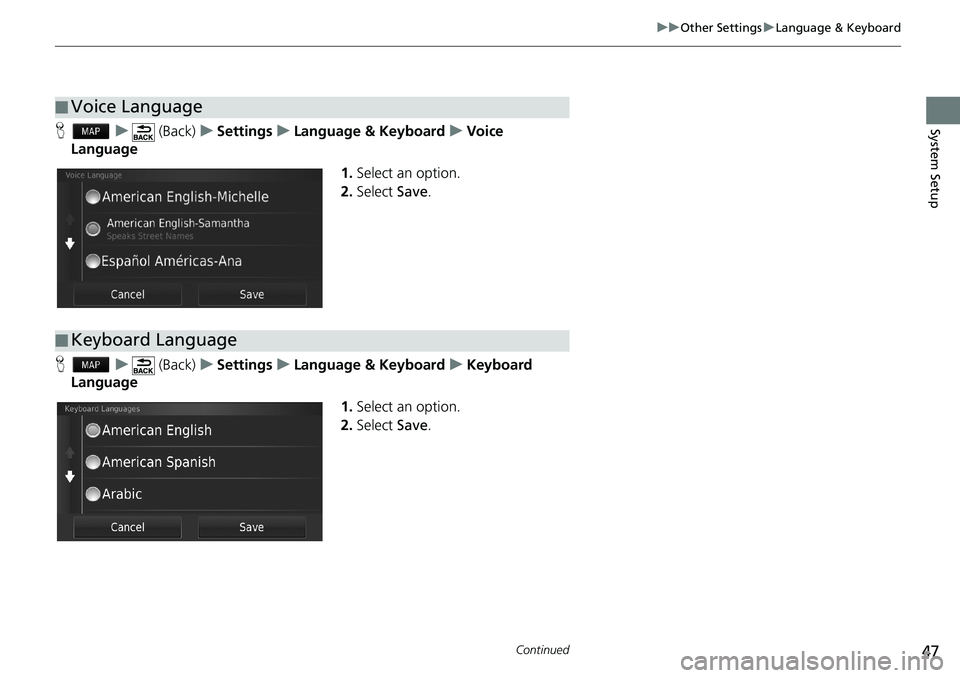

47
uuOther SettingsuLanguage & Keyboard
Continued
System SetupHu (Back)uSettingsuLanguage & KeyboarduVoice
Language
1.Select an option.
2.Select Save.
Hu (Back)uSettingsuLanguage & KeyboarduKeyboard
Language
1.Select an option.
2.Select Save.
■Voice Language
■Keyboard Language

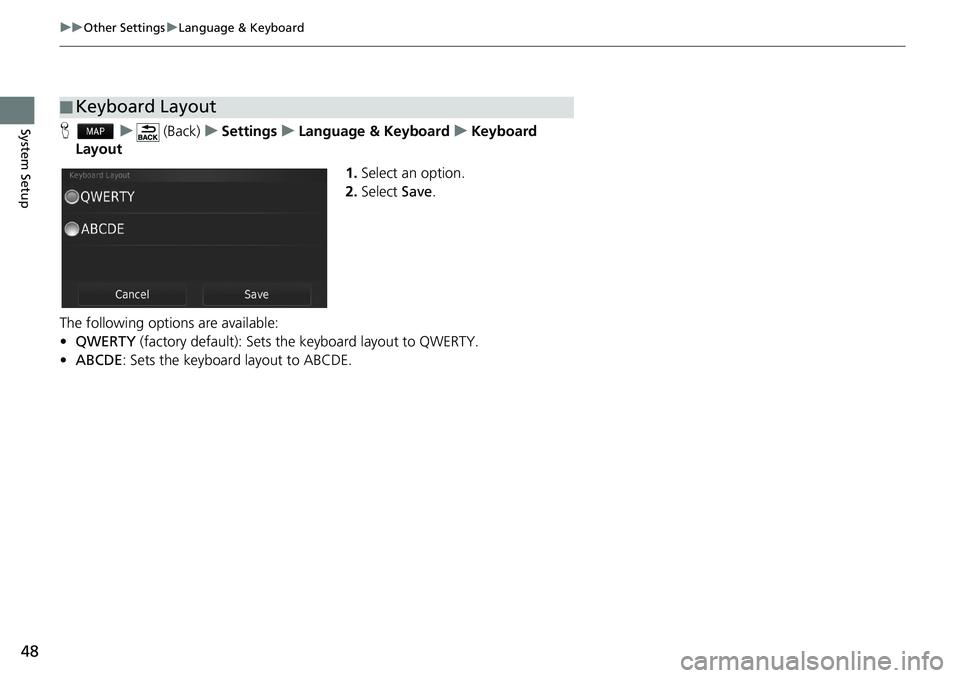

48
uuOther SettingsuLanguage & Keyboard
System SetupHu (Back)uSettingsuLanguage & KeyboarduKeyboard
Layout
1.Select an option.
2.Select Save.
The following options are available:
•QWERTY (factory default): Sets the keyboard layout to QWERTY.
•ABCDE: Sets the keyboard layout to ABCDE.
■Keyboard Layout

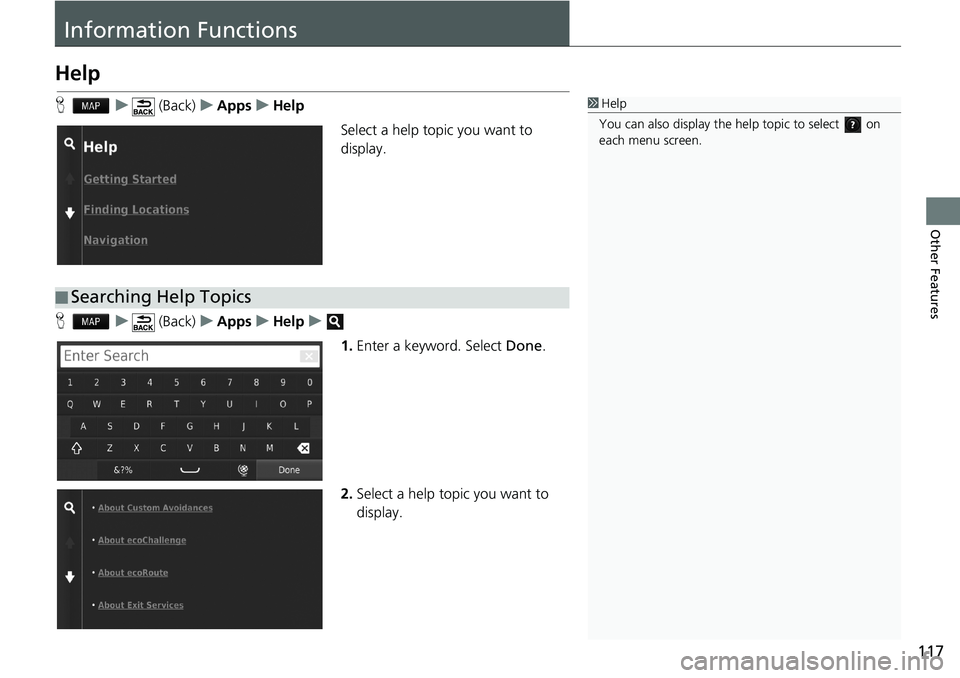

117
Other Features
Information Functions
Help
Hu (Back)uAppsuHelp
Select a help topic you want to
display.
Hu (Back)uAppsuHelpu
1.Enter a keyword. Select Done.
2.Select a help topic you want to
display.1Help
You can also display the help topic to select on
each menu screen.
■Searching Help Topics

Index

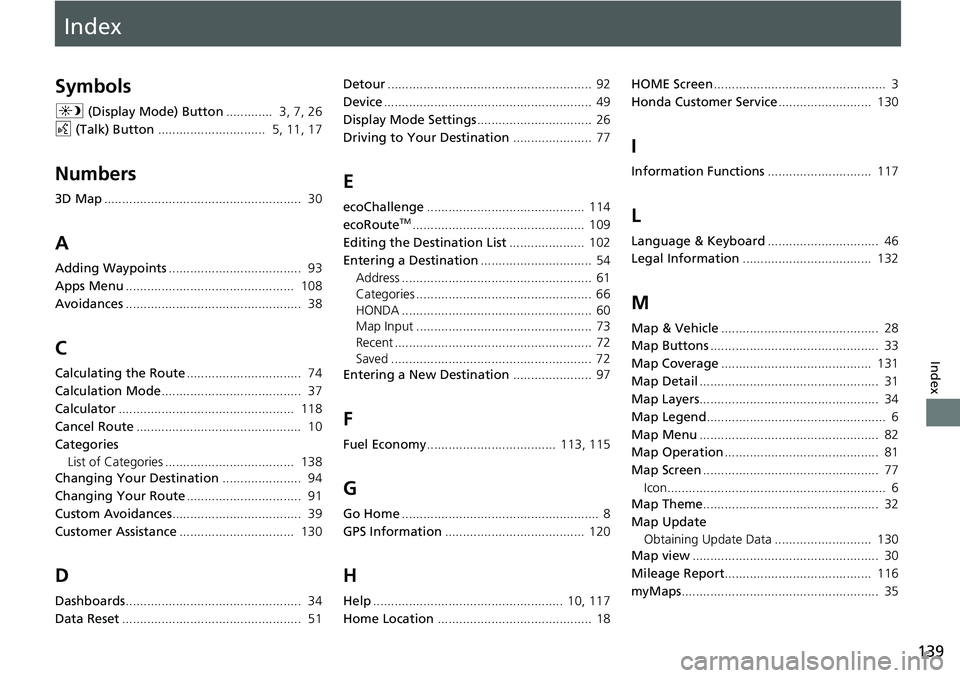

139
Index
Index
Symbols
a (Display Mode) Button............. 3, 7, 26
d (Talk) Button.............................. 5, 11, 17
Numbers
3D Map....................................................... 30
A
Adding Waypoints..................................... 93
Apps Menu............................................... 108
Avoidances................................................. 38
C
Calculating the Route................................ 74
Calculation Mode....................................... 37
Calculator................................................. 118
Cancel Route.............................................. 10
Categories
List of Categories .................................... 138
Changing Your Destination...................... 94
Changing Your Route................................ 91
Custom Avoidances.................................... 39
Customer Assistance................................ 130
D
Dashboards................................................. 34
Data Reset.................................................. 51Detour......................................................... 92
Device.......................................................... 49
Display Mode Settings................................ 26
Driving to Your Destination...................... 77
E
ecoChallenge............................................ 114
ecoRouteTM................................................ 109
Editing the Destination List..................... 102
Entering a Destination............................... 54
Address ..................................................... 61
Categories ................................................. 66
HONDA ..................................................... 60
Map Input ................................................. 73
Recent ....................................................... 72
Saved ........................................................ 72
Entering a New Destination...................... 97
F
Fuel Economy.................................... 113, 115
G
Go Home....................................................... 8
GPS Information....................................... 120
H
Help..................................................... 10, 117
Home Location........................................... 18HOME Screen................................................ 3
Honda Customer Service.......................... 130
I
Information Functions............................. 117
L
Language & Keyboard............................... 46
Legal Information.................................... 132
M
Map & Vehicle............................................ 28
Map Buttons............................................... 33
Map Coverage.......................................... 131
Map Detail.................................................. 31
Map Layers.................................................. 34
Map Legend.................................................. 6
Map Menu.................................................. 82
Map Operation........................................... 81
Map Screen................................................. 77
Icon............................................................. 6
Map Theme................................................. 32
Map Update
Obtaining Update Data ........................... 130
Map view.................................................... 30
Mileage Report......................................... 116
myMaps....................................................... 35

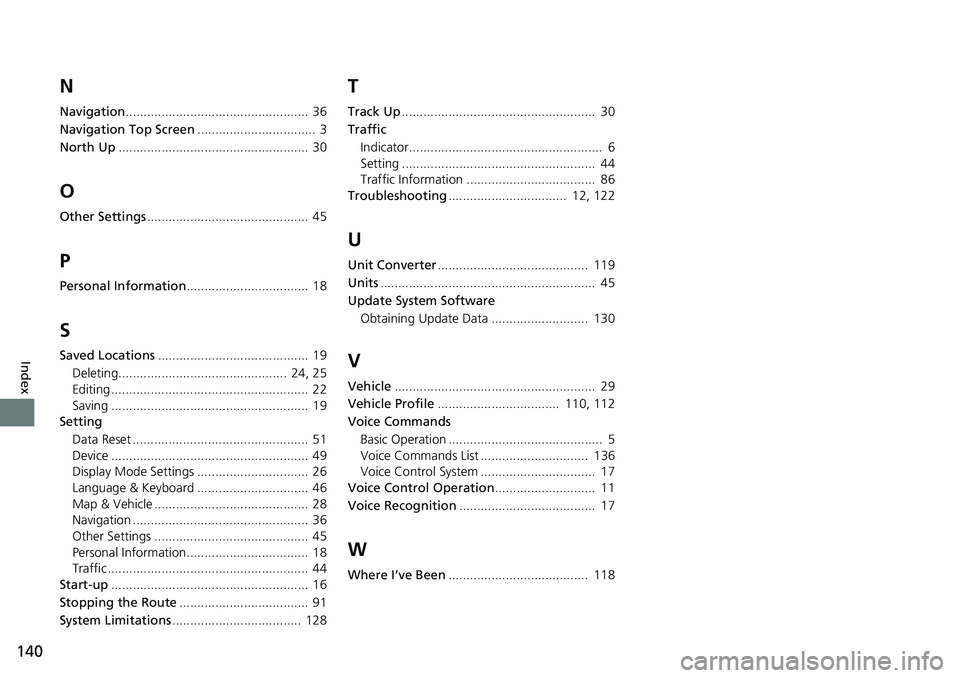

140
Index
N
Navigation................................................... 36
Navigation Top Screen................................. 3
North Up..................................................... 30
O
Other Settings............................................. 45
P
Personal Information.................................. 18
S
Saved Locations.......................................... 19
Deleting............................................... 24, 25
Editing ....................................................... 22
Saving ....................................................... 19
Setting
Data Reset ................................................. 51
Device ....................................................... 49
Display Mode Settings ............................... 26
Language & Keyboard ............................... 46
Map & Vehicle ........................................... 28
Navigation ................................................. 36
Other Settings ........................................... 45
Personal Information.................................. 18
Traffic ........................................................ 44
Start-up....................................................... 16
Stopping the Route.................................... 91
System Limitations.................................... 128
T
Track Up...................................................... 30
Traffic
Indicator...................................................... 6
Setting ...................................................... 44
Traffic Information .................................... 86
Troubleshooting................................. 12, 122
U
Unit Converter.......................................... 119
Units............................................................ 45
Update System Software
Obtaining Update Data ........................... 130
V
Vehicle........................................................ 29
Vehicle Profile.................................. 110, 112
Voice Commands
Basic Operation ........................................... 5
Voice Commands List .............................. 136
Voice Control System ................................ 17
Voice Control Operation............................ 11
Voice Recognition...................................... 17
W
Where I’ve Been....................................... 118
