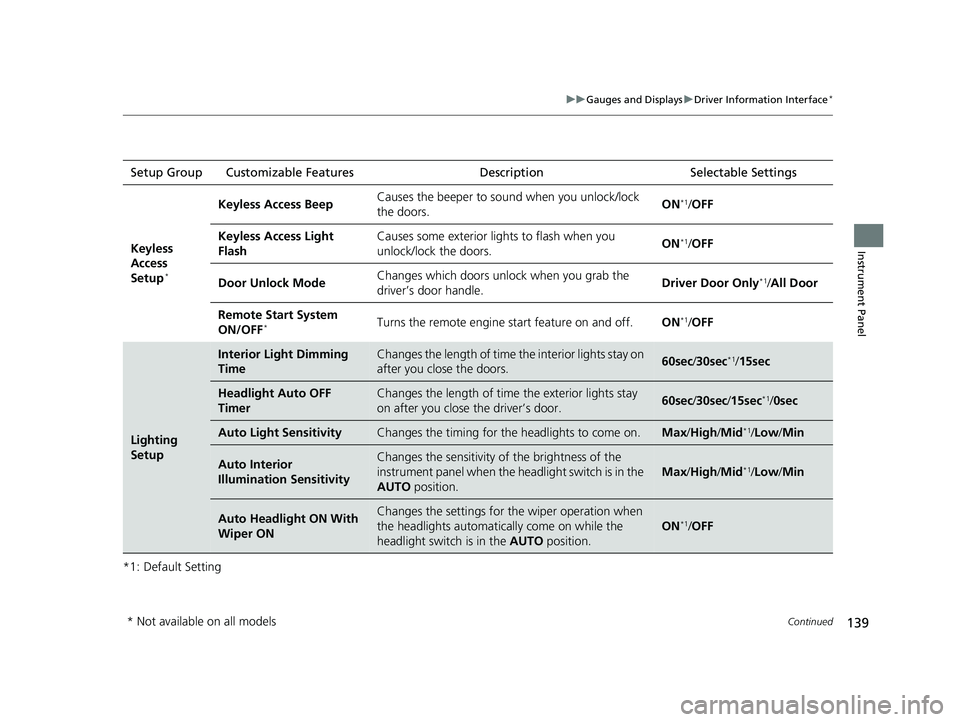

HONDA CIVIC HATCHBACK 2018 Owner's Manual (in English)

139
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
*
Keyless Access Beep Causes the beeper to sound when you unlock/lock
the doors. ON*1/
OFF
Keyless Access Light
Flash Causes some exterior li
ghts to flash when you
unlock/lock the doors. ON
*1/
OFF
Door Unlock Mode Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only
*1/
All Door
Remote Start System
ON/OFF
*Turns the remote engine start feature on and off. ON*1/OFF
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low /Min
Auto Headlight ON With
Wiper ONChanges the settings for th e wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position.
ON*1/OFF
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 139 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

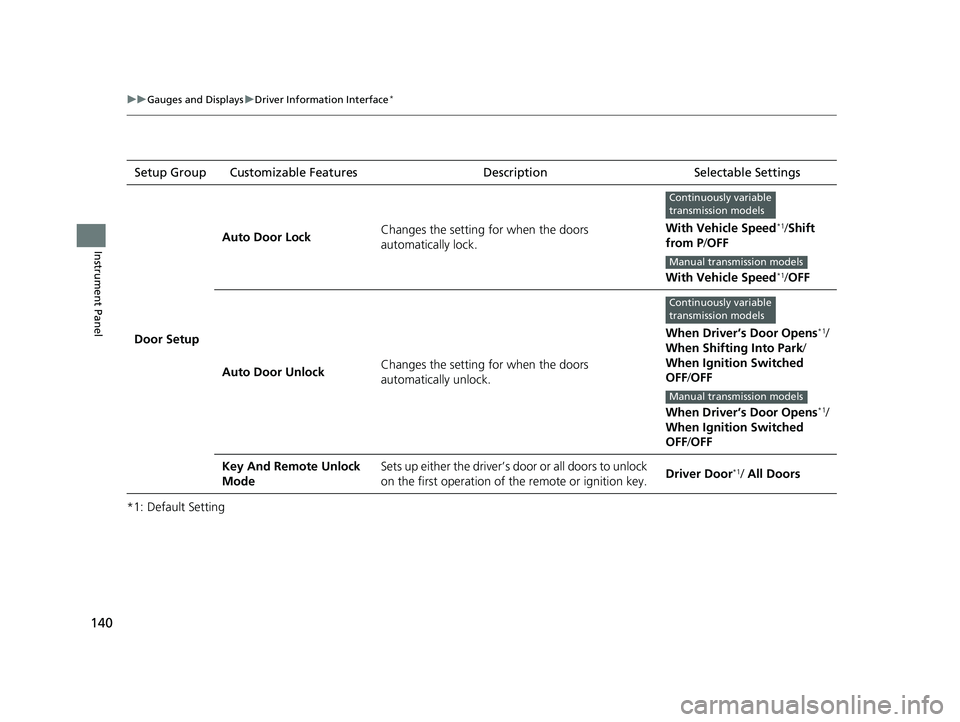

140
uuGauges and Displays uDriver Information Interface*
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup Auto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle Speed
*1/
Shift
from P /OFF
With Vehicle Speed
*1/ OFF
Auto Door Unlock Changes the setting for when the doors
automatically unlock. When Driver’s Door Opens
*1/
When Shifting Into Park/
When Ignition Switched
OFF /OFF
When Driver’s Door Opens
*1/
When Ignition Switched
OFF /OFF
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or ignition key.
Driver Door
*1/ All Doors
Continuously variable
transmission models
Manual transmission models
Continuously variable
transmission models
Manual transmission models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 140 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

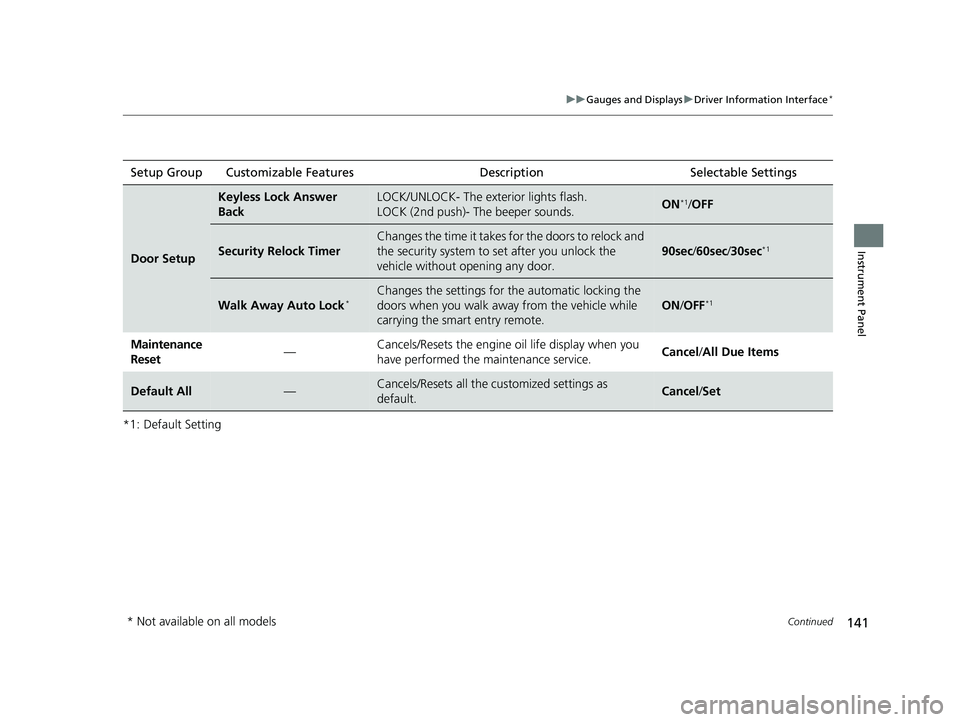

141
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Door Setup
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Walk Away Auto Lock*Changes the settings for th e automatic locking the
doors when you walk away from the vehicle while
carrying the smart entry remote.
ON /OFF*1
Maintenance
Reset —Cancels/Resets the engine oil life display when you
have performed the maintenance service.
Cancel
/All Due Items
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 141 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

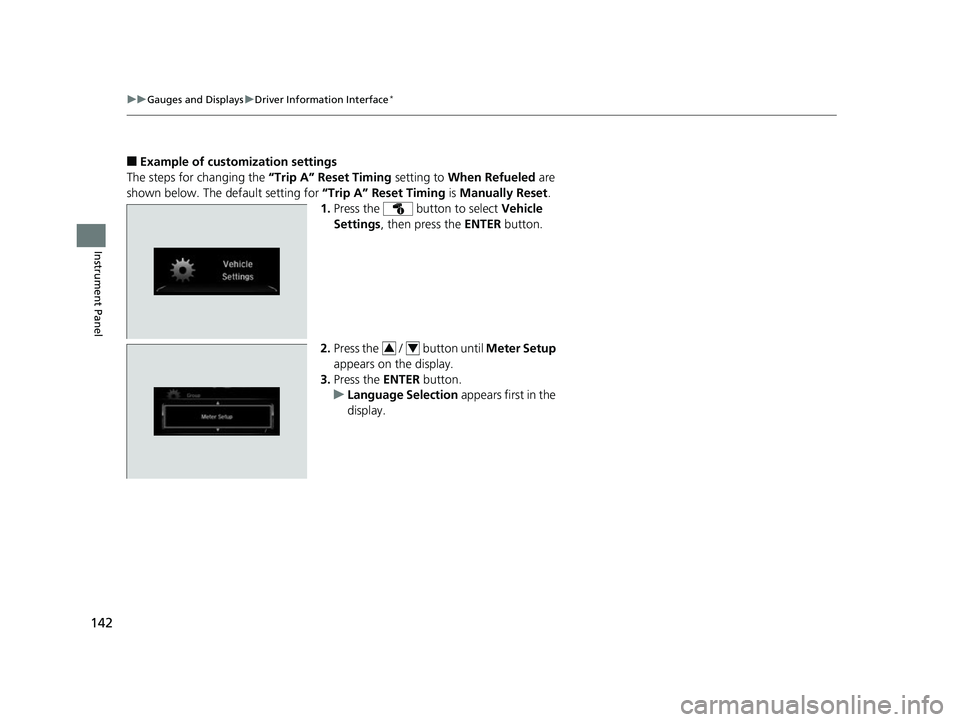

142
uuGauges and Displays uDriver Information Interface*
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button to select Vehicle
Settings , then press the ENTER button.
2. Press the / button until Meter Setup
appears on the display.
3. Press the ENTER button.
u Language Selection appears first in the
display.
34
18 CIVIC 5D (KA KC KL)-31TGG6100.book 142 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

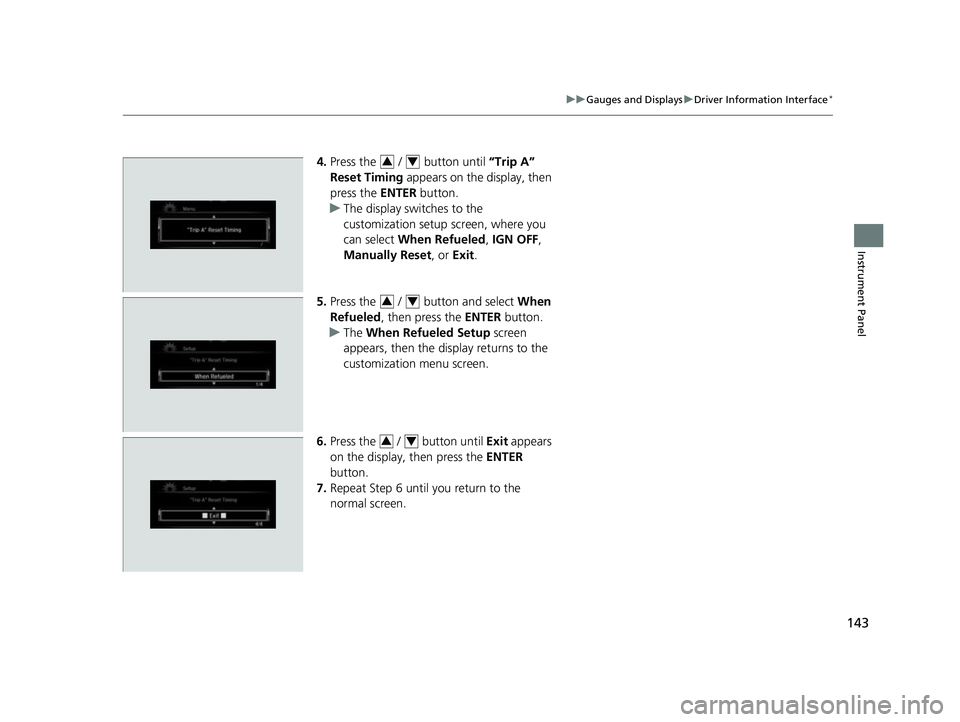

143
uuGauges and Displays uDriver Information Interface*
Instrument Panel
4. Press the / button until “Trip A”
Reset Timing appears on the display, then
press the ENTER button.
u The display swit ches to the
customization setup screen, where you
can select When Refueled , IGN OFF ,
Manually Reset , or Exit .
5. Press the / button and select When
Refueled , then press the ENTER button.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
normal screen.34
34
34
18 CIVIC 5D (KA KC KL)-31TGG6100.book 143 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

144
18 CIVIC 5D (KA KC KL)-31TGG6100.book 144 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

145
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 146
Locking and Unlocking the Doors
Key Types and Functions .................. 147
Low Smart Entry Remote Signal Strength*.. 148Locking/Unlocking the Doors from the Outside .......................................... 149
Locking/Unlocking the Doors from the Inside ............................................. 158
Childproof Door Locks ..................... 160
Auto Door Locking/Unlocking .......... 161
Opening and Closing the Hatch....... 165
Security System
Immobilizer System .......................... 168
Security System Alarm ...................... 169 Opening and Closing the Windows
... 172
Opening and Closing the Moonroof*.. 175Operating the Switches Around the
Steering Wheel Ignition Switch
*............................... 176
ENGINE START/STOP Button*........... 177
Ignition Switch and Power Mode Comparison ................................... 180
Turn Signals ..................................... 181
Light Switches.................................. 181
Fog Lights
*...................................... 184
Daytime Running Lights ................... 184
Auto High-Beam
*............................ 185
Wipers and Washers ........................ 188 Brightness Control ........................... 191
Rear Defogger/Heated Door Mirror
*
Button ........................................... 192
Adjusting the Steering Wheel .......... 193
Adjusting the Mirrors
Interior Rearview Mirror ................... 194
Power Door Mirrors ......................... 195
Adjusting the Seats .......................... 196
Interior Lights/Interior Convenience Items ................................................ 204
Climate Control System
Using Automatic Climate Control .... 220
Automatic Climate Control Sensors......227
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 145 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

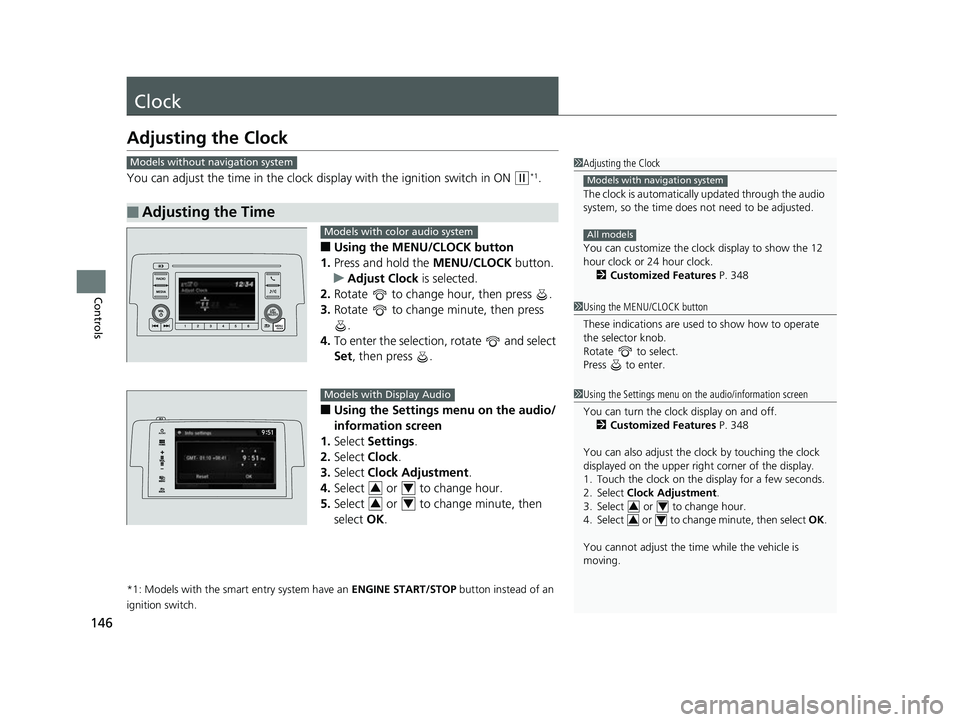

146
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 348
Models with navigation system
All models
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
1 Using the Settings menu on the audio/information screen
You can turn the clock display on and off.
2 Customized Features P. 348
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK.
You cannot adjust the time while the vehicle is
moving.
3434
Models with color audio system
Models with Display Audio
34
34
18 CIVIC 5D (KA KC KL)-31TGG6100.book 146 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

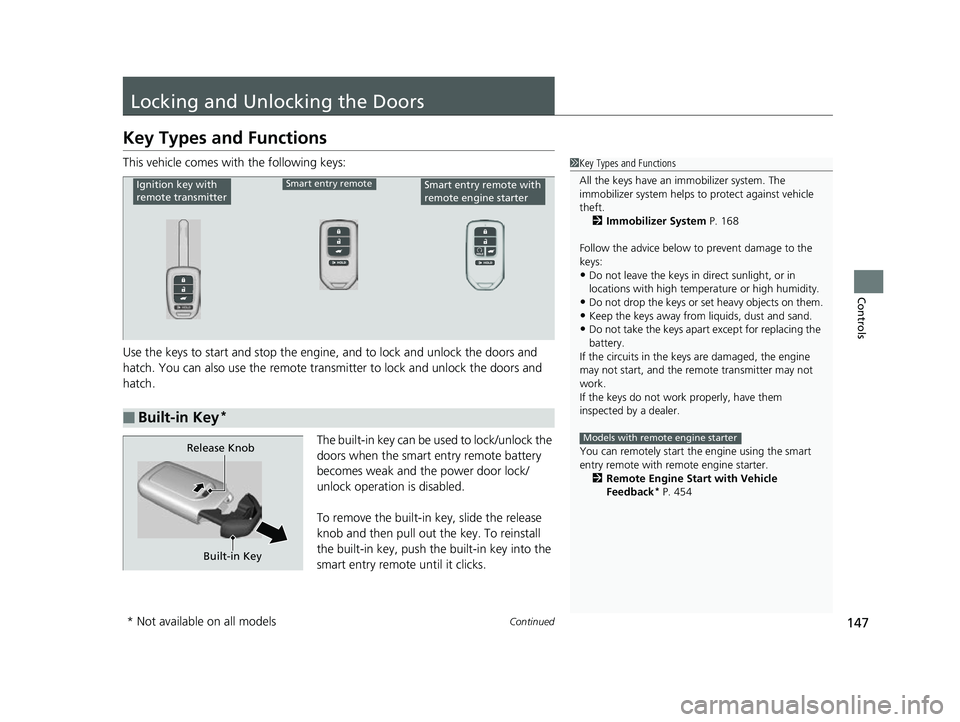

147Continued
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the keys to start and stop the engine, and to lock and unlock the doors and
hatch. You can also use the remote transmitter to lock and unlock the doors and
hatch.
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
smart entry remote until it clicks.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 168
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start th e engine using the smart
entry remote with remote engine starter. 2 Remote Engine Start with Vehicle
Feedback
* P. 454
Models with remote engine starter
■Built-in Key*
Ignition key with
remote transmitterSmart entry remoteSmart entry remote with
remote engine starter
Built-in Key
Release Knob
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 147 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

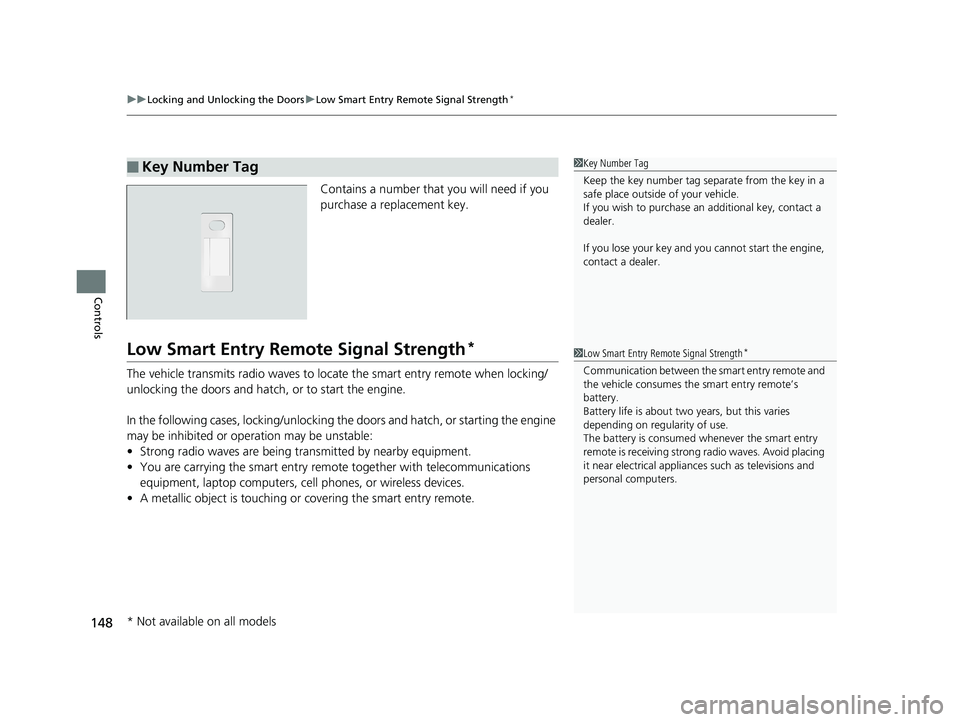

uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
148
Controls
Contains a number that you will need if you
purchase a replacement key.
Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors and hatch, or to start the engine.
In the following cases, locking/unlocking the doors and hatch, or starting the engine
may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
1 Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 148 ページ ２０１７年１２月２７日　水曜日　午前１１時２分
