HONDA CIVIC HATCHBACK 2018 Owner's Manual (in English)

389
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features

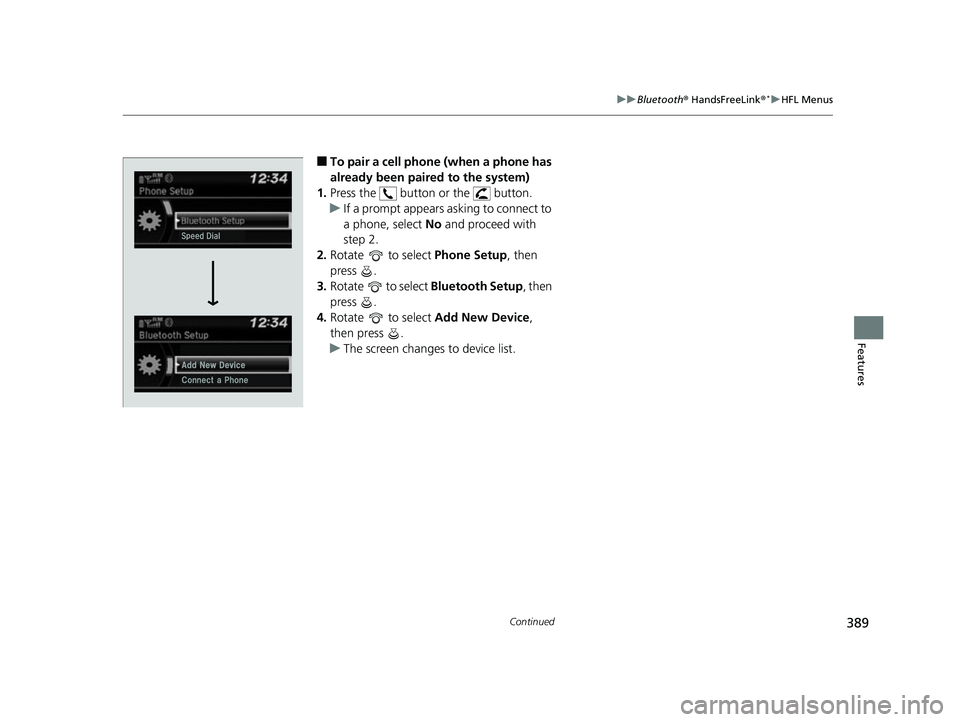

■To pair a cell phone (when a phone has
already been paired to the system)
1. Press the button or the button.
u If a prompt appears asking to connect to
a phone, select No and proceed with
step 2.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup , then
press .
4. Rotate to select Add New Device,
then press .
u The screen changes to device list.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 389 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

390
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

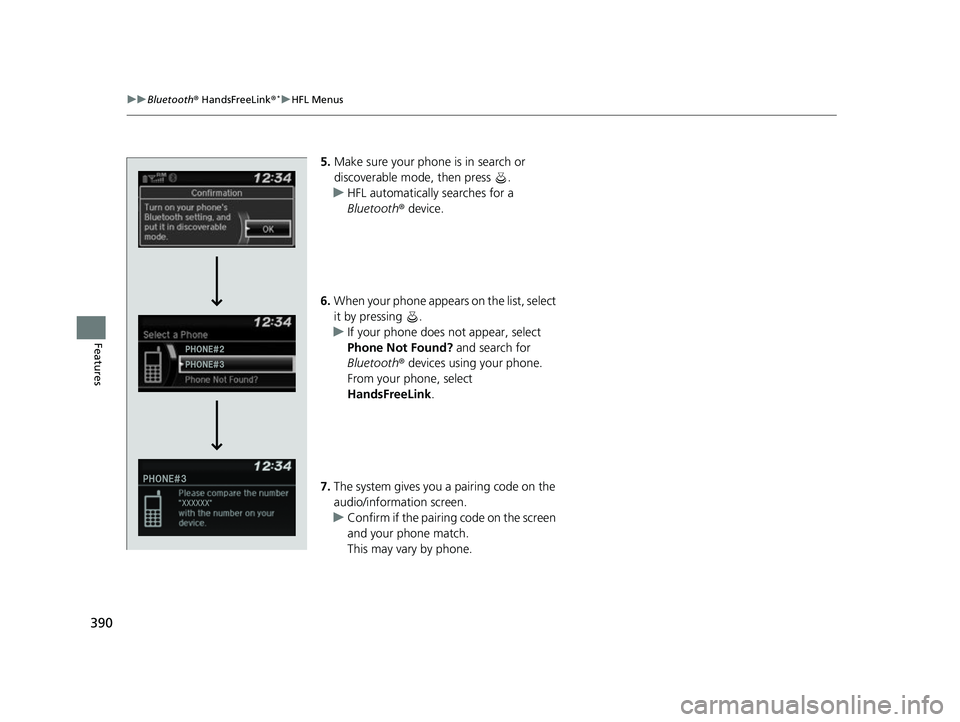

5. Make sure your phone is in search or
discoverable mode, then press .
u HFL automatically searches for a
Bluetooth ® device.
6. When your phone appears on the list, select
it by pressing .
u If your phone does not appear, select
Phone Not Found? and search for
Bluetooth ® devices using your phone.
From your phone, select
HandsFreeLink .
7. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 390 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

391
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features
■To Change the currently paired phone
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup , then
press .
4. Rotate to select Connect a Phone,
then press .
u The screen changes to a device list.
5. Rotate to select a desired device name,
then press .
u HFL disconnects the connected phone
and starts searching for another paired
phone.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 391 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

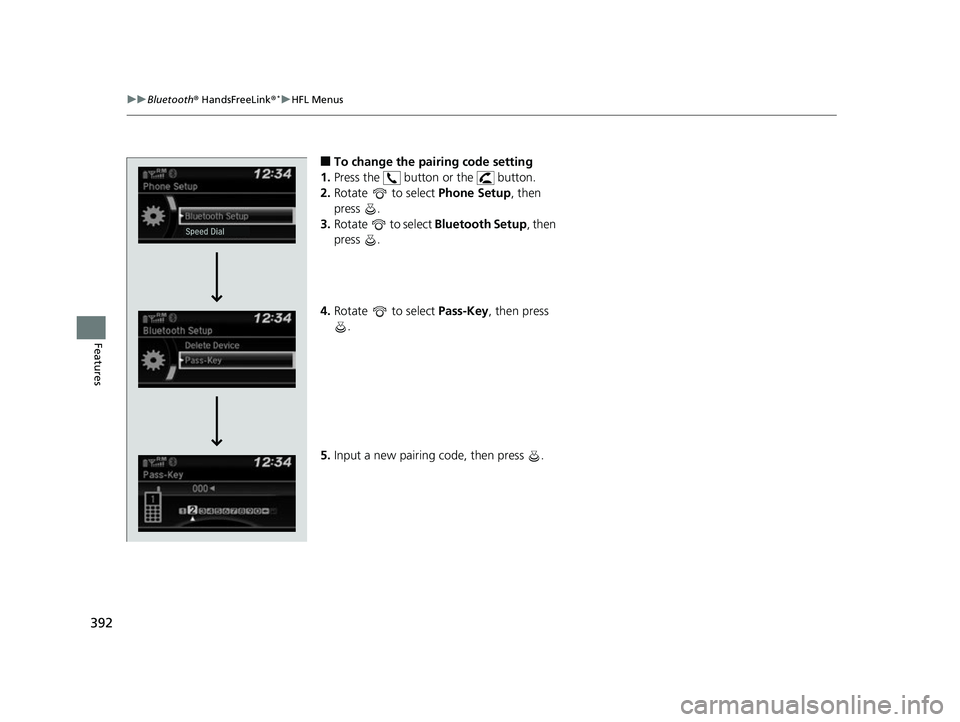

392
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■To change the pairing code setting
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup, then
press .
4. Rotate to select Pass-Key, then press
.
5. Input a new pairing code, then press .
18 CIVIC 5D (KA KC KL)-31TGG6100.book 392 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

393
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features

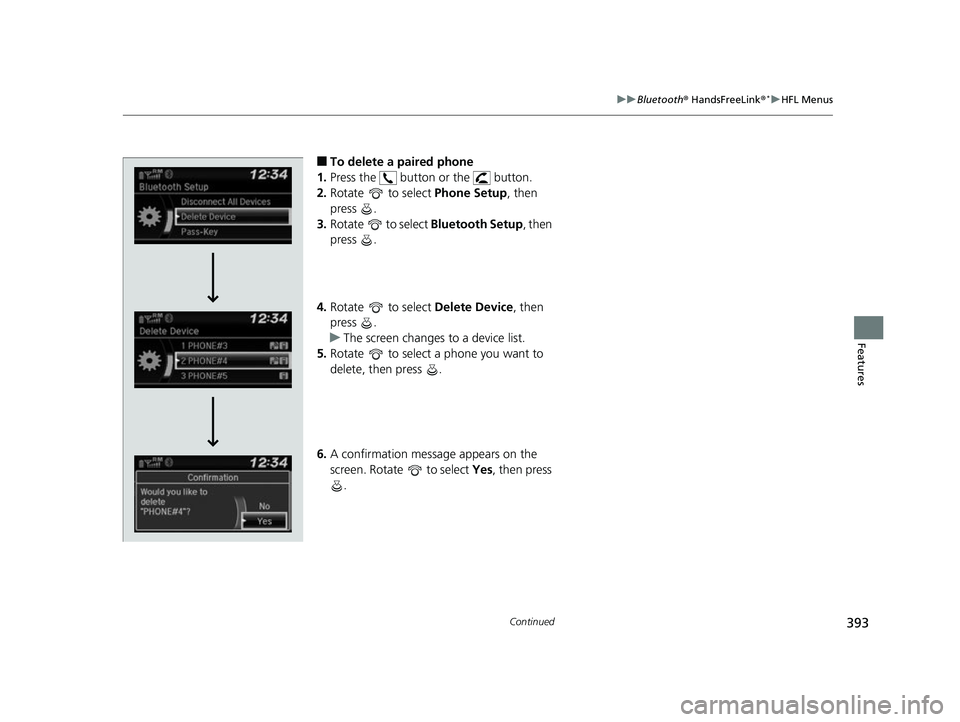

■To delete a paired phone
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup , then
press .
4. Rotate to select Delete Device, then
press .
u The screen changes to a device list.
5. Rotate to select a phone you want to
delete, then press .
6. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 393 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuBluetooth ® HandsFreeLink ®*uHFL Menus
394
Features

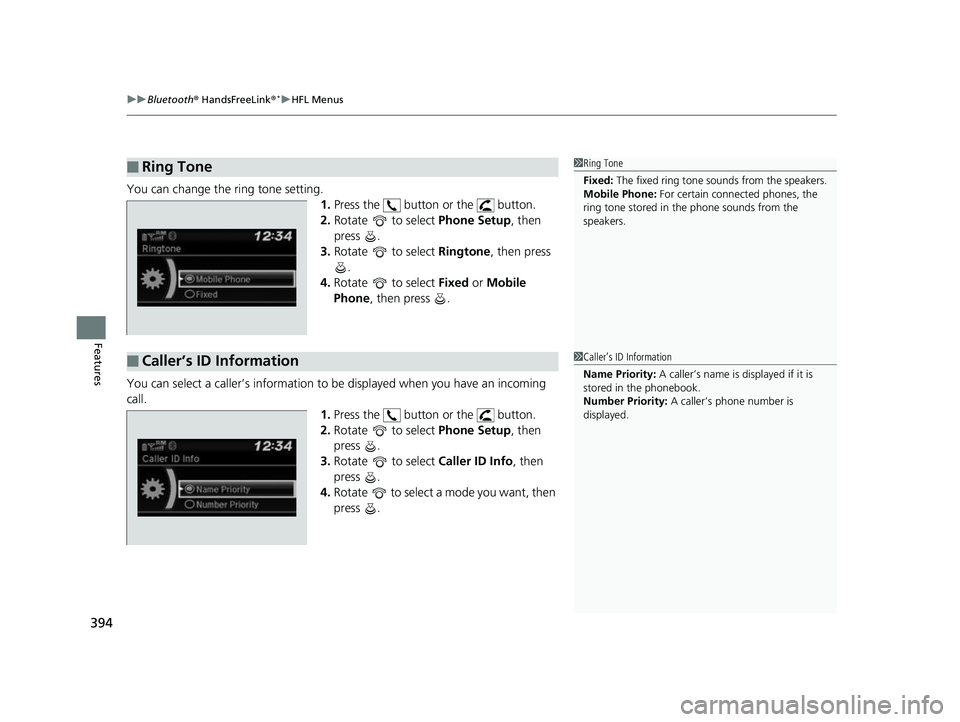

You can change the ring tone setting.
1.Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Ringtone, then press
.
4. Rotate to select Fixed or Mobile
Phone , then press .
You can select a caller’s information to be displayed when you have an incoming
call. 1.Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Caller ID Info, then
press .
4. Rotate to select a mode you want, then
press .
■Ring Tone1Ring Tone
Fixed: The fixed ring tone sounds from the speakers.
Mobile Phone: For certain connect ed phones, the
ring tone stored in the phone sounds from the
speakers.
■Caller’s ID Information1 Caller’s ID Information
Name Priority: A caller’s name is displayed if it is
stored in the phonebook.
Number Priority: A caller’s phone number is
displayed.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 394 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

395
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features

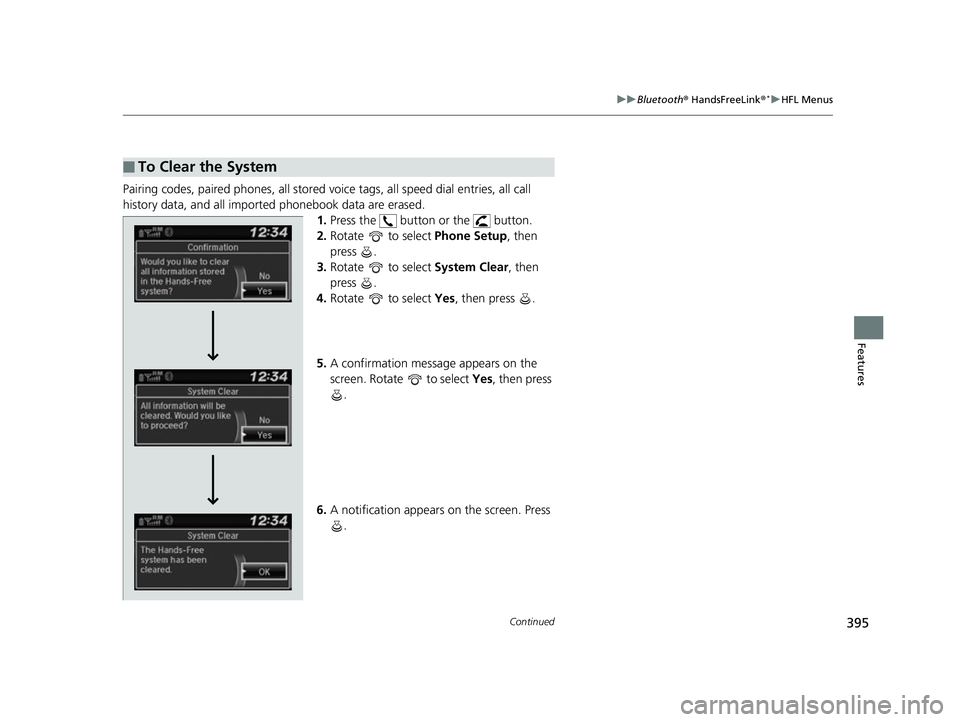

Pairing codes, paired phones, all stored vo ice tags, all speed dial entries, all call
history data, and all imported phonebook data are erased. 1.Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select System Clear, then
press .
4. Rotate to select Yes, then press .
5. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
6. A notification appears on the screen. Press
.
■To Clear the System
18 CIVIC 5D (KA KC KL)-31TGG6100.book 395 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuBluetooth ® HandsFreeLink ®*uHFL Menus
396
Features

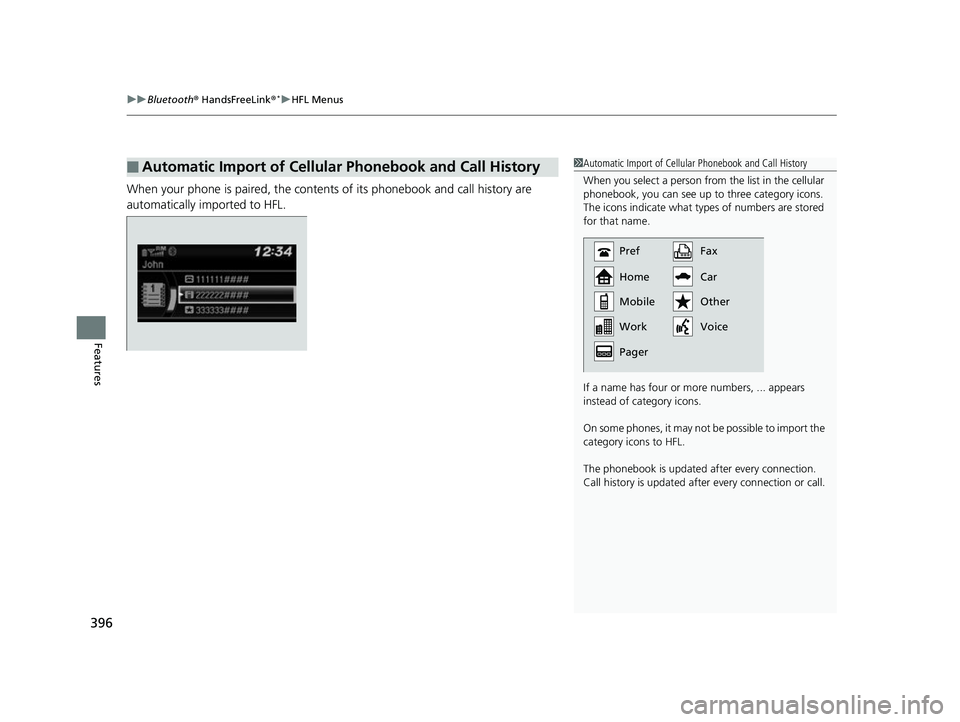

When your phone is paired, the contents of its phonebook and call history are
automatically imported to HFL.
■Automatic Import of Cellular Phonebook and Call History1Automatic Import of Cellular Phonebook and Call History
When you select a person from the list in the cellular
phonebook, you can see up to three category icons.
The icons indicate what types of numbers are stored
for that name.
If a name has four or more numbers, ... appears
instead of category icons.
On some phones, it may not be possible to import the
category icons to HFL.
The phonebook is updated af ter every connection.
Call history is updated after every connection or call.
Pref
Home
Mobile
Pager WorkFax
Car
Voice Other
18 CIVIC 5D (KA KC KL)-31TGG6100.book 396 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

Continued397
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

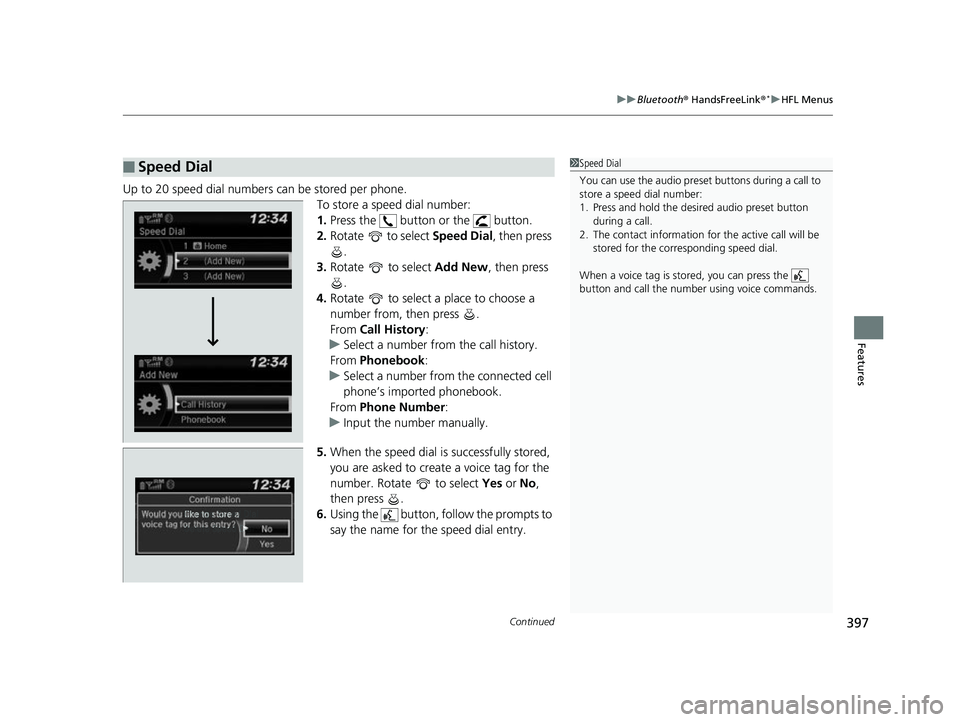

Up to 20 speed dial numbers can be stored per phone.
To store a speed dial number:
1.Press the button or the button.
2. Rotate to select Speed Dial, then press
.
3. Rotate to select Add New, then press
.
4. Rotate to select a place to choose a
number from, then press .
From Call History :
u Select a number from the call history.
From Phonebook :
u Select a number from the connected cell
phone’s imported phonebook.
From Phone Number:
u Input the number manually.
5. When the speed dial is successfully stored,
you are asked to create a voice tag for the
number. Rotate to select Yes or No,
then press .
6. Using the button, follow the prompts to
say the name for the speed dial entry.
■Speed Dial1Speed Dial
You can use the audio preset buttons during a call to
store a speed dial number:
1. Press and hold the desired audio preset button
during a call.
2. The contact information for the active call will be
stored for the corresponding speed dial.
When a voice tag is stored, you can press the
button and call the numbe r using voice commands.
Change Speed Dial
Delete Speed DialChaChaChaChahaChangengengengegenge Sp SpSpSpSpSpeedeedeedeedeedeed Dial
DelDelDelDleteeteetet SpSpSpSeedeedeedd DiDiDiDiDiDiDiDiDiDiiDiDiiDiilalaaaaalaa
18 CIVIC 5D (KA KC KL)-31TGG6100.book 397 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

398
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

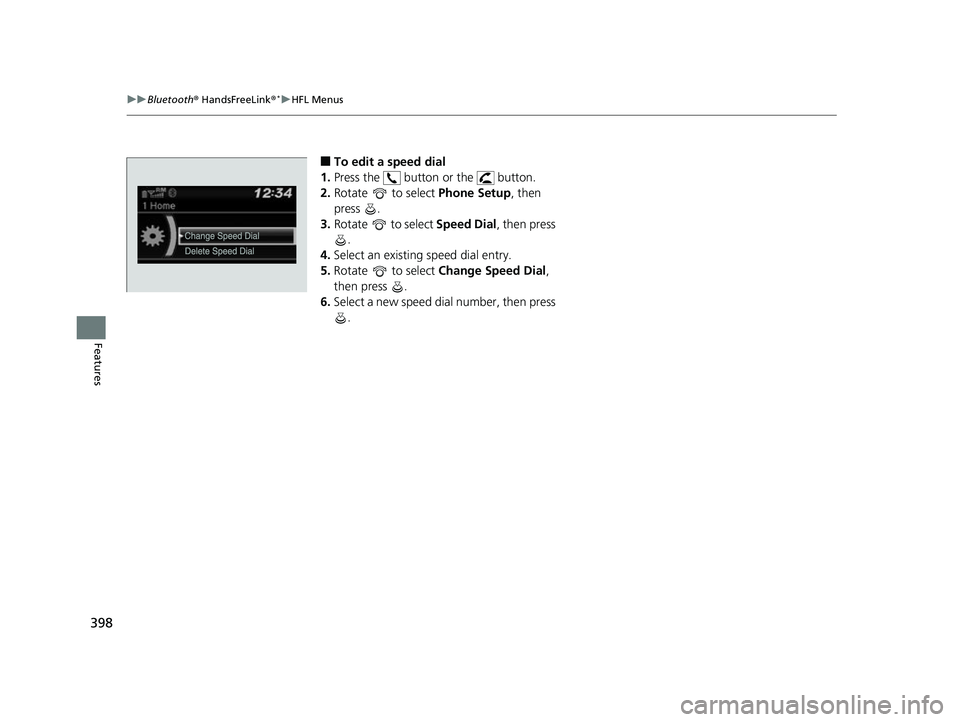

■To edit a speed dial
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Speed Dial, then press
.
4. Select an existing speed dial entry.
5. Rotate to select Change Speed Dial ,
then press .
6. Select a new speed dial number, then press
.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 398 ページ ２０１７年１２月２７日　水曜日　午前１１時２分
