HONDA CIVIC HATCHBACK 2018 Owner's Manual (in English)

469
uuWhen Driving uShifting
Driving
The manual transmission has a lockout mech anism that stops you from accidentally
shifting into
(R from a forward gear while the ve hicle is moving above a certain
speed.
If you cannot shift to
(R when the vehicle is stopped, do the following:
1.Depress the clutch pedal, move the shift
lever all the way to the left, and shift to
(R.
2. If you still cannot shift into
(R, apply the
parking brake, and turn the ignition switch
to ACCESSORY
(q or LOCK (0*1.
3. Depress the clutch pedal and shift into
(R.
4. Keep depressing the clutch pedal and start
the engine.
Have the vehicle checked by a dealer if you
have to go through this procedure repeatedly.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Reverse Lockout
18 CIVIC 5D (KA KC KL)-31TGG6100.book 469 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

470
uuWhen Driving uECON Button*
Driving

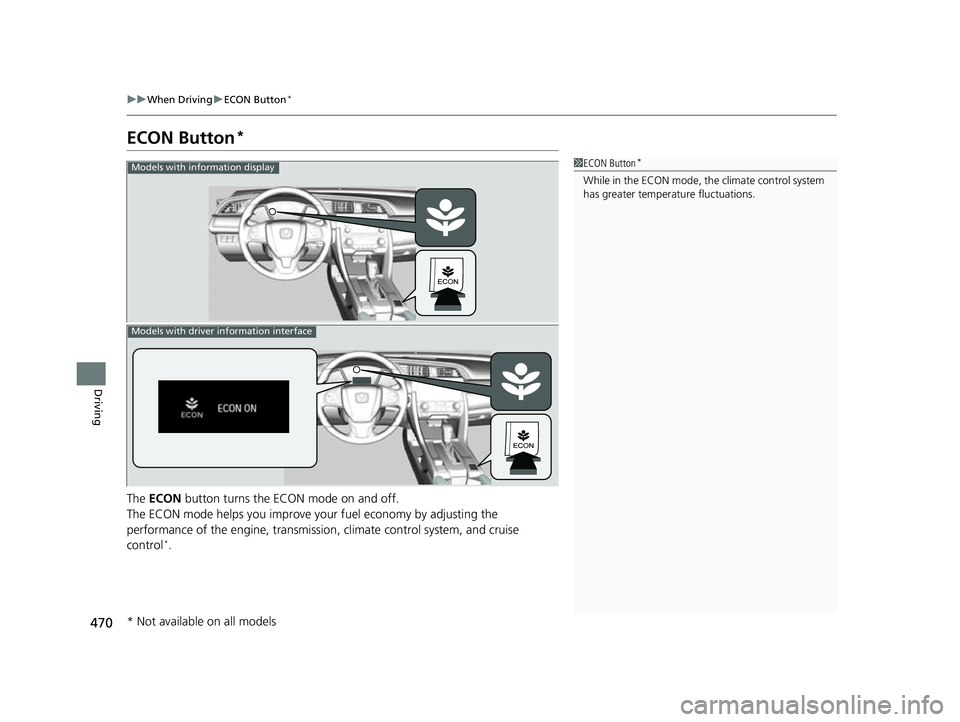

ECON Button*
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your fuel economy by adjusting the
performance of the engine, transmission, climate control system, and cruise
control
*.
1 ECON Button*
While in the ECON mode, the climate control system
has greater temperat ure fluctuations.
Models with information display
Models with driver information interface
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 470 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

471
uuWhen Driving uDrive Mode Switch
Continued
Driving
Drive Mode Switch
Constantly controls your vehicle’s engi ne, transmission, EPS, dampers, brakes and
VSA ® according to the mode you select.
You can choose between three modes, +R mode, SPORT mode and COMFORT
mode by moving the drive mode switch forward or back.
The current mode is displayed on the driv er information interface, and each mode
will appear differently.
2.0 L engine models
1 Drive Mode Switch
SPORT mode is selected every time you set the
power mode to ON.
The mode may not be able to be changed under
some driving conditions. If mode change is necessary,
reduce speed or cornering speed.
This message will also appear if you try to change
modes when there is a vehicle system failure.
Drive Mode Switch
+R Mode
SPORT
Mode
COMFORT
Mode
18 CIVIC 5D (KA KC KL)-31TGG6100.book 471 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

472
uuWhen Driving uDrive Mode Switch
Driving
2 Vehicle Stability Assist (VSA ®), aka Electronic Stability Control (ESC), System P. 520
2 Rev Match System P. 467
Category COMFORT SPORT +R
Chassis
Control
SteeringLight feedback for easy
driving.Increased feedback for sport
driving.Increased feedback for high
performance driving.
Suspension
DampingMinimized to provide a
soft ride.Increased to provide improved
handling for sport driving.Maximized to provide responsive
handling for high performance
driving.
VSA® and TCSBalanced calibration for VSA® and Traction control in all
environments.Track oriented control allowing
increased freedom for the driver.
Powertrain
Control Acceleration
Feeling
Relaxed Aggressive Aggressive
Rev Match
System Seamless
Seamless Responsive
18 CIVIC 5D (KA KC KL)-31TGG6100.book 472 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

473
uuWhen Driving uCruise Control*
Continued
Driving

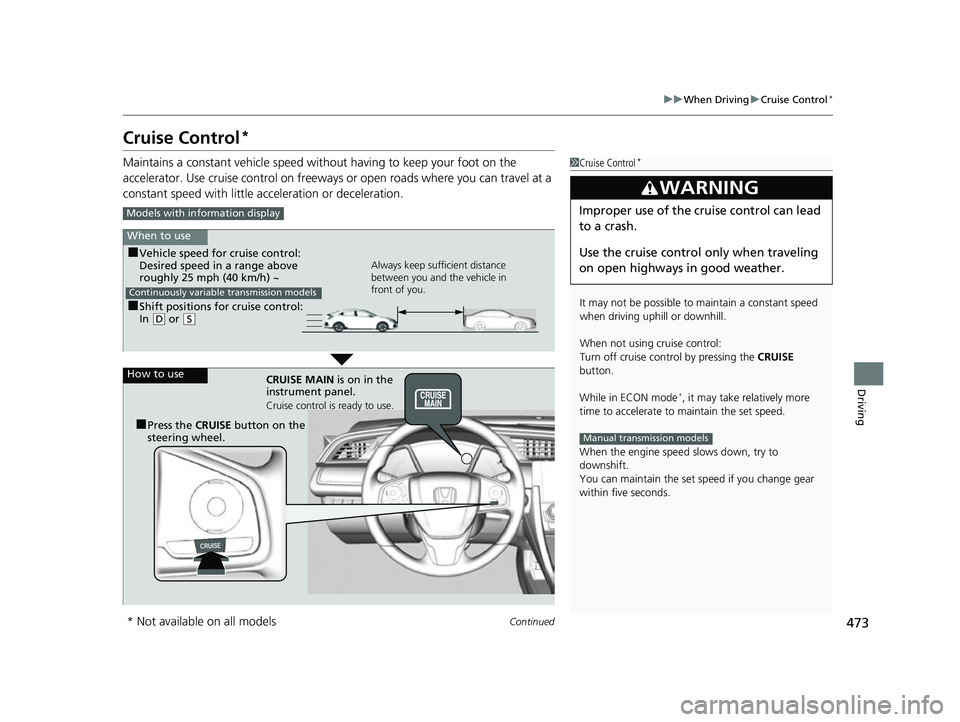

Cruise Control*
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise con trol on freeways or open roads where you can travel at a
constant speed with little ac celeration or deceleration.1Cruise Control*
It may not be possible to maintain a constant speed
when driving uphill or downhill.
When not using cruise control:
Turn off cruise control by pressing the CRUISE
button.
While in ECON mode
*, it may take relatively more
time to accelerate to maintain the set speed.
When the engine speed slows down, try to
downshift.
You can maintain the set sp eed if you change gear
within five seconds.
3WARNING
Improper use of the cruise control can lead
to a crash.
Use the cruise control only when traveling
on open highways in good weather.
Manual transmission models
Models with info rmation display
When to use
■Shift positions for cruise control:
In (D or (S Always keep sufficient distance
between you and the vehicle in
front of you.
Continuously variable transmission models
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
How to use CRUISE MAIN is on in the
instrument panel.
Cruise control is ready to use.
■Press the CRUISE button on the
steering wheel.
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 473 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

474
uuWhen Driving uCruise Control*
Driving

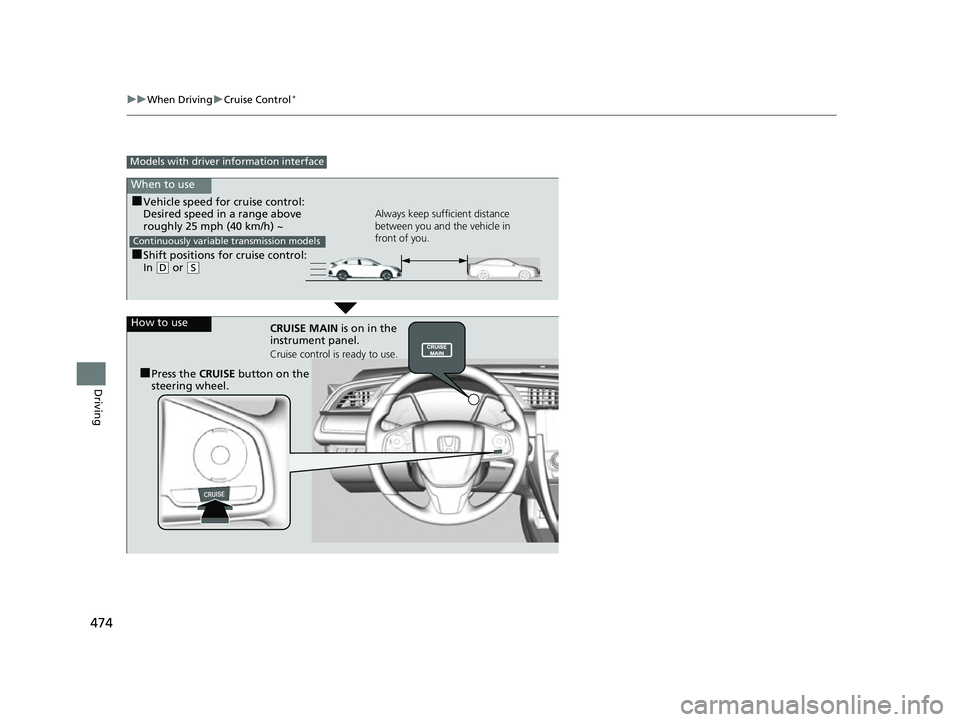

Models with driver information interface
When to use
■Shift positions for cruise control:
In (D or (S Always keep sufficient distance
between you and the vehicle in
front of you.
Continuously variable transmission models
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
How to use CRUISE MAIN is on in the
instrument panel.
Cruise control is ready to use.
■Press the CRUISE button on the
steering wheel.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 474 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

475
uuWhen Driving uCruise Control*
Continued
Driving
Take your foot off the pedal and press the –/SET button when you reach the desired speed.
The moment you release the –/SET button, the set speed is fixed, and cruise control begins. The CRUISE CONTROL indicator comes on.
When you use cruise control, Straight Driving Assist (a feature of the Electric Power Steering system) is activated.
By enabling the steering system to automati cally compensate for natural steering pull, Straight Driving Assist makes it easier for you to keep
your vehicle in a straight line.
■To Set the Vehicle Speed
–/SET Button
On when cruise control begins Press and release
Models with information display
Models with driver information interface
On when cruise control begins
Press and release–/SET Button
18 CIVIC 5D (KA KC KL)-31TGG6100.book 475 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuWhen Driving uCruise Control*
476
Driving

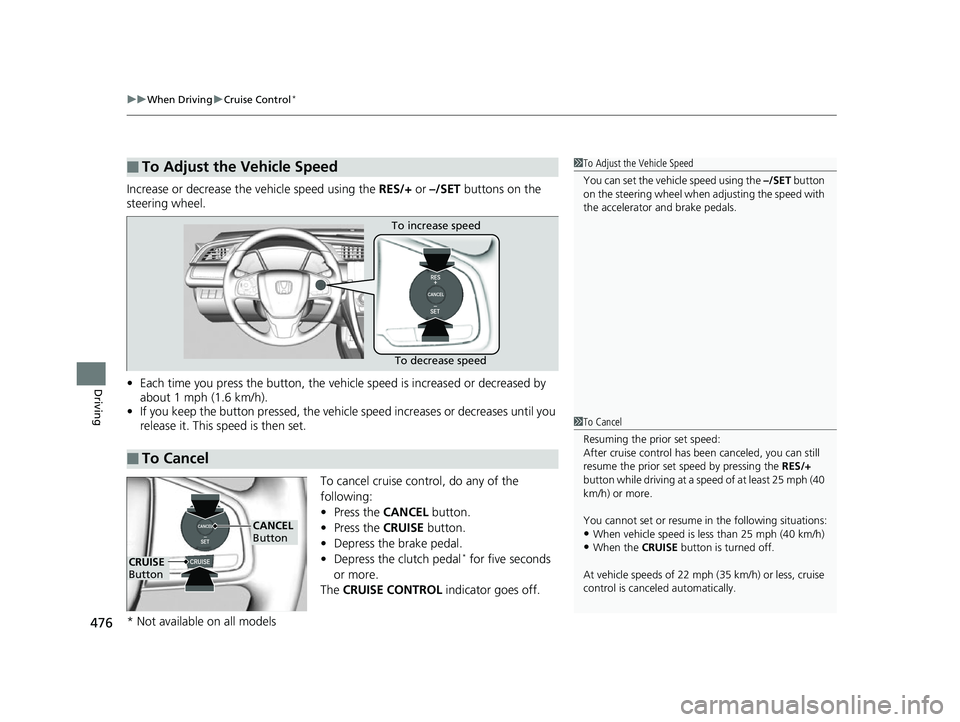

Increase or decrease the vehicle speed using the RES/+ or –/SET buttons on the
steering wheel.
• Each time you press the button, the vehicl e speed is increased or decreased by
about 1 mph (1.6 km/h).
• If you keep the button pressed, the vehicl e speed increases or decreases until you
release it. This speed is then set.
To cancel cruise control, do any of the
following:
•Press the CANCEL button.
• Press the CRUISE button.
• Depress the brake pedal.
• Depress the clutch pedal
* for five seconds
or more.
The CRUISE CONTROL indicator goes off.
■To Adjust the Vehicle Speed1To Adjust the Vehicle Speed
You can set the vehicle speed using the –/SET button
on the steering wheel when adjusting the speed with
the accelerator and brake pedals.
■To Cancel
To decrease speed
To increase speed
1
To Cancel
Resuming the prior set speed:
After cruise control has be en canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h)•When the CRUISE button is turned off.
At vehicle speeds of 22 m ph (35 km/h) or less, cruise
control is canceled automatically.
CRUISE
Button
CANCEL
Button
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 476 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

477
uuWhen Driving uFront Sensor Camera*
Continued
Driving
Front Sensor Camera*
The camera, used in systems such as LKAS, RDM, ACC*, ACC with LSF*, CMBSTM
and auto high-beam, is designed to detect an object that triggers any of the systems
to operate its functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1Front Sensor Camera*
Never apply a film or attach any objects to the
windshield, hood, or front grill that could obstruct
the camera’s field of vision and cause the system to
operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Honda replacem ent windshield. Making
even minor repairs within th e camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Sensor
Camera
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 477 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuWhen Driving uFront Sensor Camera*
478
Driving
1Front Sensor Camera*
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.
* Not available on all models
