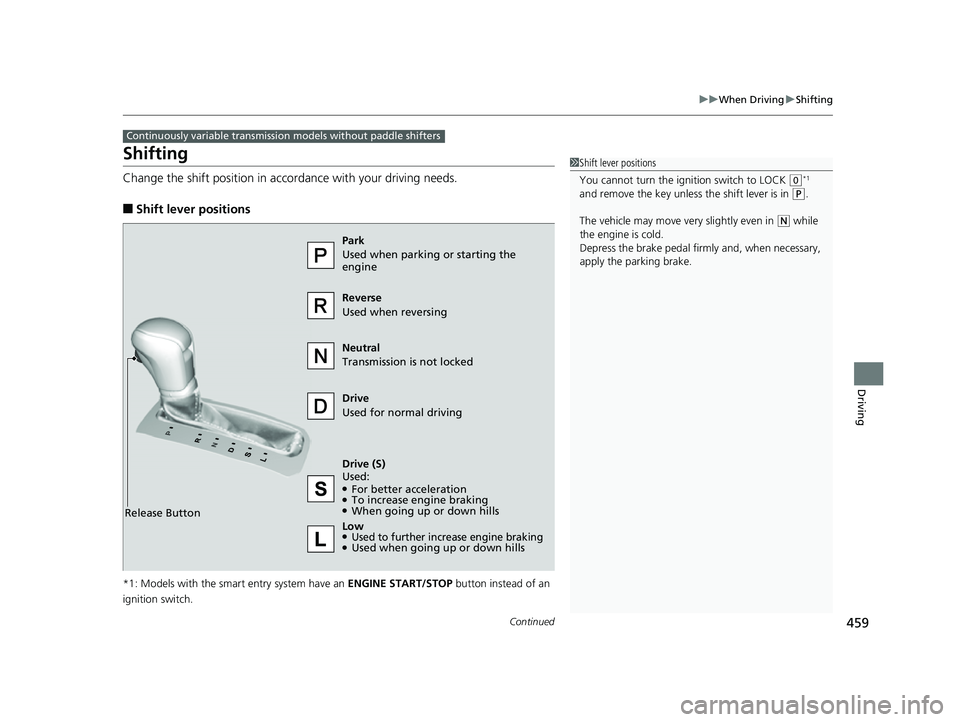

HONDA CIVIC HATCHBACK 2018 Owner's Manual (in English)

459
uuWhen Driving uShifting
Continued
Driving
Shifting
Change the shift position in accordance with your driving needs.
■Shift lever positions
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Continuously variable transmission models without paddle shifters
1 Shift lever positions
You cannot turn the ignition switch to LOCK
(0*1
and remove the key unless the shift lever is in
( P.
The vehicle may move ve ry slightly even in
(N while
the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.
Reverse
Used when reversing
Drive
Used for normal driving
Park
Used when parking or starting the
engine
Neutral
Transmission is not locked
Release Button
Drive (S)
Used:
●For better acceleration●To increase engine braking●When going up or down hills
Low
●Used to further increase engine braking●Used when going up or down hills
18 CIVIC 5D (KA KC KL)-31TGG6100.book 459 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuWhen Driving uShifting
460
Driving
■Shift Lever Operation1Shift Lever Operation
NOTICE
When you change the shift lever from (D to (R and
vice versa, come to a complete stop and keep the
brake pedal depressed.
Operating the shift lever be fore the vehicle has come
to a complete standstill can damage the transmission.
Use the shift lever position indicator to check the
lever position befo re pulling away.
Whichever position the shift lever is in when driving,
blinking transmission syst em indicator indicates a
transmission problem.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.
The fuel supply may be cut of f if you drive at engine
speeds in or over the tac hometer’s red zone (engine
speed limit). If this happe ns, you may experience a
slight jolt.
It may not be possible to operate the shift lever if the
brake pedal is applied while the shift lever release
button is held down.
Depress the brake pedal first.
Shift Lever Position
Indicator
Depress the brake pedal and press the shift lever release
button to shift.
Shift without pressing the shift lever release button.
Press the shift lever re lease button and shift.Tachometer’s
red zone
Models with information display
Shift Lever Position
Indicator
Tachometer’s
red zone
Models with driver information interface
18 CIVIC 5D (KA KC KL)-31TGG6100.book 460 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

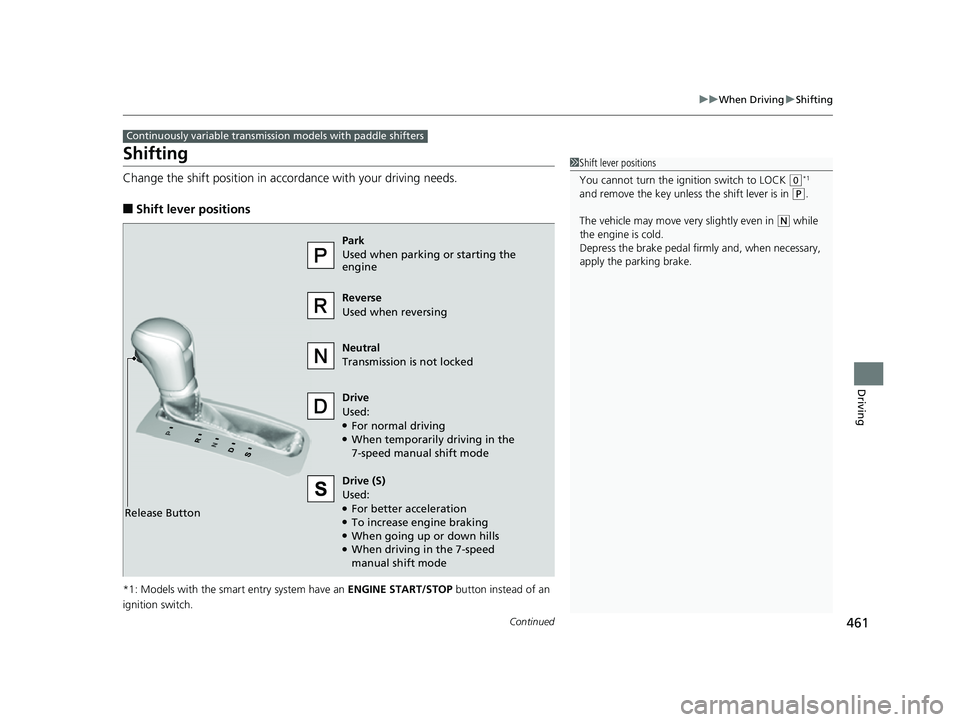

461
uuWhen Driving uShifting
Continued
Driving
Shifting
Change the shift position in accordance with your driving needs.
■Shift lever positions
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Continuously variable transmission models with paddle shifters
1 Shift lever positions
You cannot turn the ignition switch to LOCK
(0*1
and remove the key unless the shift lever is in
( P.
The vehicle may move ve ry slightly even in
(N while
the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.
Reverse
Used when reversing
Drive
Used:
●For normal driving●When temporarily driving in the
7-speed manual shift mode
Park
Used when parking or starting the
engine
Neutral
Transmission is not locked
Release Button
Drive (S)
Used:
●For better acceleration●To increase engine braking●When going up or down hills●When driving in the 7-speed
manual shift mode
18 CIVIC 5D (KA KC KL)-31TGG6100.book 461 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuWhen Driving uShifting
462
Driving
■Shift Lever Operation1Shift Lever Operation
NOTICE
When you change the shift lever from (D to (R and
vice versa, come to a complete stop and keep the
brake pedal depressed.
Operating the shift lever be fore the vehicle has come
to a complete standstill can damage the transmission.
Use the shift lever position indicator to check the
lever position befo re pulling away.
Whichever position the shift lever is in when driving,
blinking transmission syst em indicator indicates a
transmission problem.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.
The fuel supply may be cut of f if you drive at engine
speeds in or over the tac hometer’s red zone (engine
speed limit). If this happe ns, you may experience a
slight jolt.
It may not be possible to operate the shift lever if the
brake pedal is applied while the shift lever release
button is held down.
Depress the brake pedal first.
Shift Lever Position
Indicator
Depress the brake pedal and press the shift lever release
button to shift.
Shift without pressing the shift lever release button.
Press the shift lever re lease button and shift.Tachometer’s
red zone
Models with information display
Shift Lever Position
Indicator
Tachometer’s
red zone
Models with driver information interface
M (7-Speed Manual
Shift Mode) Indicator/
Shift Indicator
M (7-Speed Manual
Shift Mode) Indicator/
Shift Indicator
18 CIVIC 5D (KA KC KL)-31TGG6100.book 462 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

Continued463
uuWhen Driving uShifting
Driving
Use the paddle shifters to change between 1st and 7th speeds without releasing
your hands from the steering wheel. The transmission switches to the 7-speed
manual shift mode when you pull a paddle shifter while driving. This mode is useful
when engine braking is needed.
■When the shift lever is in (D:
The shift mode goes into the 7-speed ma nual shift mode temporarily, and the
number is displayed in the shift indicator.
The 7-speed manual shift mode is canceled automatically if you drive at constant
speed or accelerate, and the number in the shift indicator goes off.
You can cancel this mode by pulling the
(+ paddle shifter for a few seconds.
The 7-speed manual shift mode is especial ly useful when reducing the vehicle speed
temporarily before making a turn.
■When the shift lever is in (S:
The shift mode goes into the 7-speed manual shift mode. The M indicator and the
speed number are displayed in the shift indicator. As the vehicle speed slows down,
the transmission automatically shifts down accordingly. When the vehicle comes to
a stop, it automatically shifts down into 1st.
If the vehicle speed increases and the engi ne speed reaches near the tachometer’s
red zone, the transmission automatically shifts up.
You can only pull away in 1st speed.
When canceling the 7-speed manual shift mode, move the shift lever from
(S to
(D. When the 7-speed manual sh ift mode is canceled, the M indicator and shift
indicator will turn off.
■7-Speed Manual Shift Mode1 7-Speed Manual Shift Mode
To improve fuel economy, the transmission may shift
up to a higher speed than the seventh under certain
circumstances. In this case, the number in the shift
indicator remains as 7.
In the 7-speed manual shif t mode, the transmission
shifts up or down by opera ting either paddle shifter
under the following conditions:
Shift Up: The engine sp eed reaches the lowest
threshold of the higher speed position.
Shift Down: The engine sp eed reaches the highest
threshold of the lower speed position.
When the engine speed reaches near the
tachometer’s red zone, the transmission shifts up
automatically.
When the engine speed reaches the lowest threshold
of the selected speed positi on, the transmission shifts
down automatically.
Operating the paddle shifte rs on slippery surfaces
may cause the tires to lock up. In this case, the 7-
speed manual shift mode is canceled and goes back
to the normal D driving mode.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 463 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuWhen Driving uShifting
464
Driving

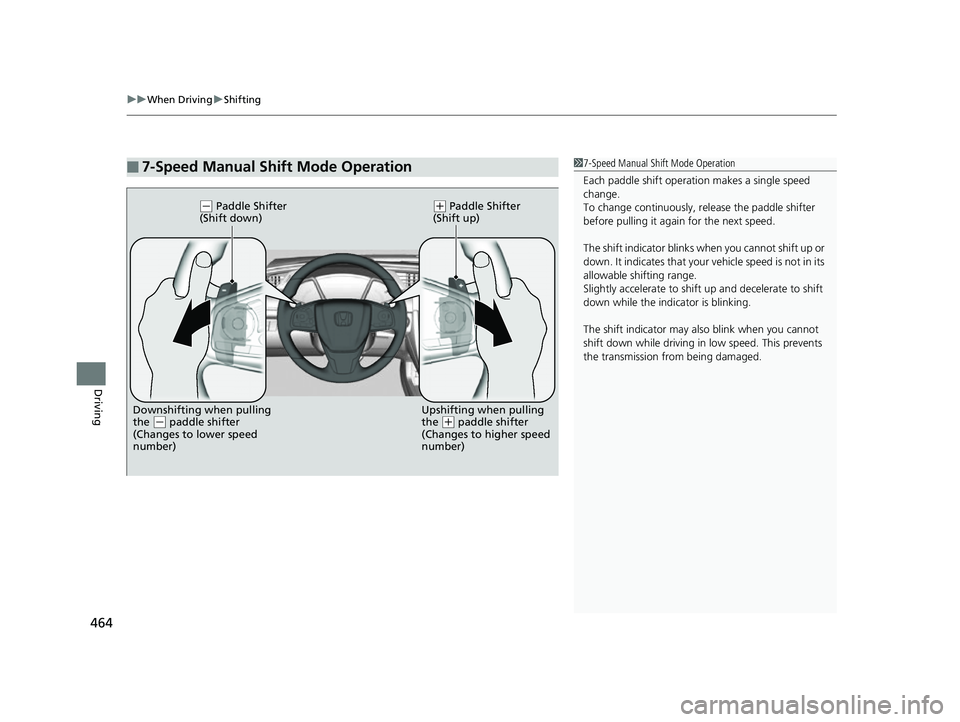

■7-Speed Manual Shift Mode Operation17-Speed Manual Shift Mode Operation
Each paddle shift operati on makes a single speed
change.
To change continuously, re lease the paddle shifter
before pulling it agai n for the next speed.
The shift indicator blinks when you cannot shift up or
down. It indicates that your vehicle speed is not in its
allowable shifting range.
Slightly accelerate to shift up and decelerate to shift
down while the indi cator is blinking.
The shift indicator may also blink when you cannot
shift down while driving in low speed. This prevents
the transmission from being damaged.
( - Paddle Shifter
(Shift down)( + Paddle Shifter
(Shift up)
Downshifting when pulling
the
( - paddle shifter
(Changes to lower speed
number) Upshifting when pulling
the (
+ paddle shifter
(Changes to higher speed
number)
18 CIVIC 5D (KA KC KL)-31TGG6100.book 464 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

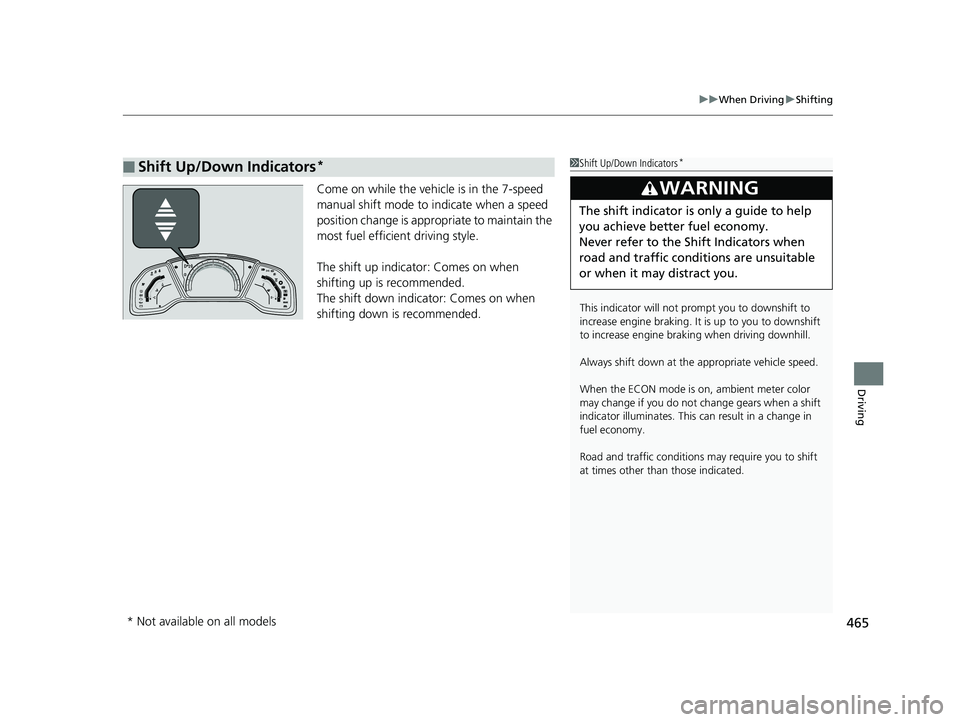

465
uuWhen Driving uShifting
Driving
Come on while the vehicle is in the 7-speed
manual shift mode to indicate when a speed
position change is appropriate to maintain the
most fuel efficient driving style.
The shift up indicato r: Comes on when
shifting up is recommended.
The shift down indicator: Comes on when
shifting down is recommended.
■Shift Up/Down Indicators*1 Shift Up/Down Indicators*
This indicator will not prom pt you to downshift to
increase engine br aking. It is up to you to downshift
to increase engine brak ing when driving downhill.
Always shift down at the appropriate vehicle speed.
When the ECON mode is on, ambient meter color
may change if you do not change gears when a shift
indicator illuminates. This can result in a change in
fuel economy.
Road and traffic c onditions may require you to shift
at times other than those indicated.
3WARNING
The shift indicator is only a guide to help
you achieve better fuel economy.
Never refer to the Shift Indicators when
road and traffic conditions are unsuitable
or when it may distract you.
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 465 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

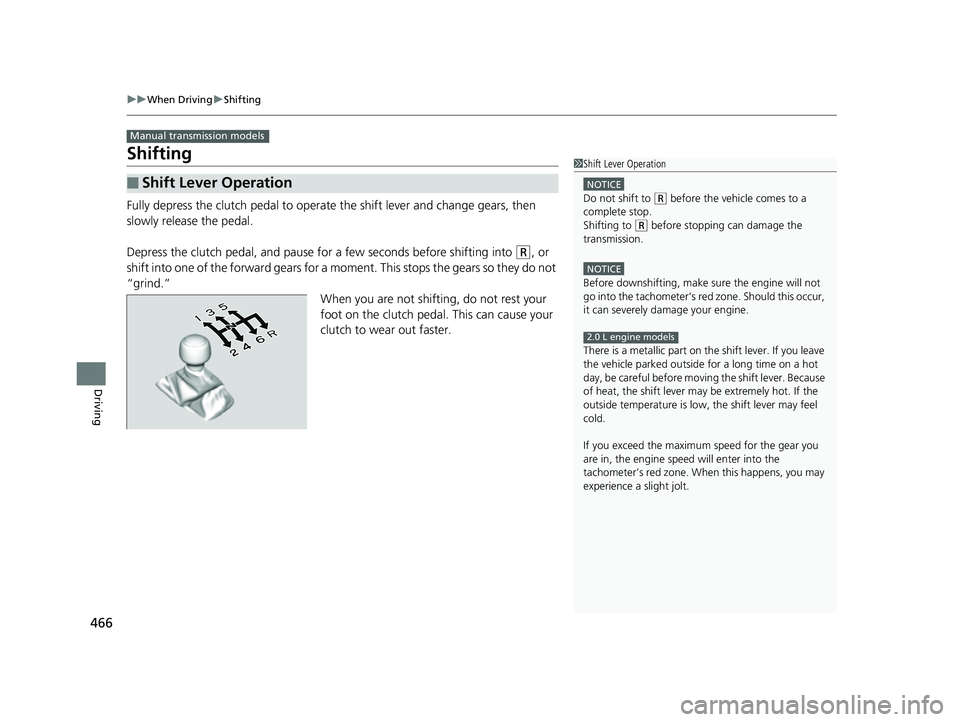

466
uuWhen Driving uShifting
Driving
Shifting
Fully depress the clutch pedal to operate the shift lever and change gears, then
slowly release the pedal.
Depress the clutch pedal, and pause for a few seconds before shifting into
(R, or
shift into one of the forward gears for a moment. This stops the gears so they do not
“grind.” When you are not shifting, do not rest your
foot on the clutch pedal. This can cause your
clutch to wear out faster.
■Shift Lever Operation
Manual transmission models
1Shift Lever Operation
NOTICE
Do not shift to (R before the vehicle comes to a
complete stop.
Shifting to
( R before stopping can damage the
transmission.
NOTICE
Before downshifting, make sure the engine will not
go into the tachometer's red zone. Should this occur,
it can severely da mage your engine.
There is a metallic part on the shift lever. If you leave
the vehicle parked outside for a long time on a hot
day, be careful before moving the shift lever. Because
of heat, the shift lever may be extremely hot. If the
outside temperature is low, the shift lever may feel
cold.
If you exceed the maximum speed for the gear you
are in, the engine speed will enter into the
tachometer’s red zone. When this happens, you may
experience a slight jolt.
2.0 L engine models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 466 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

Continued467
uuWhen Driving uShifting
Driving

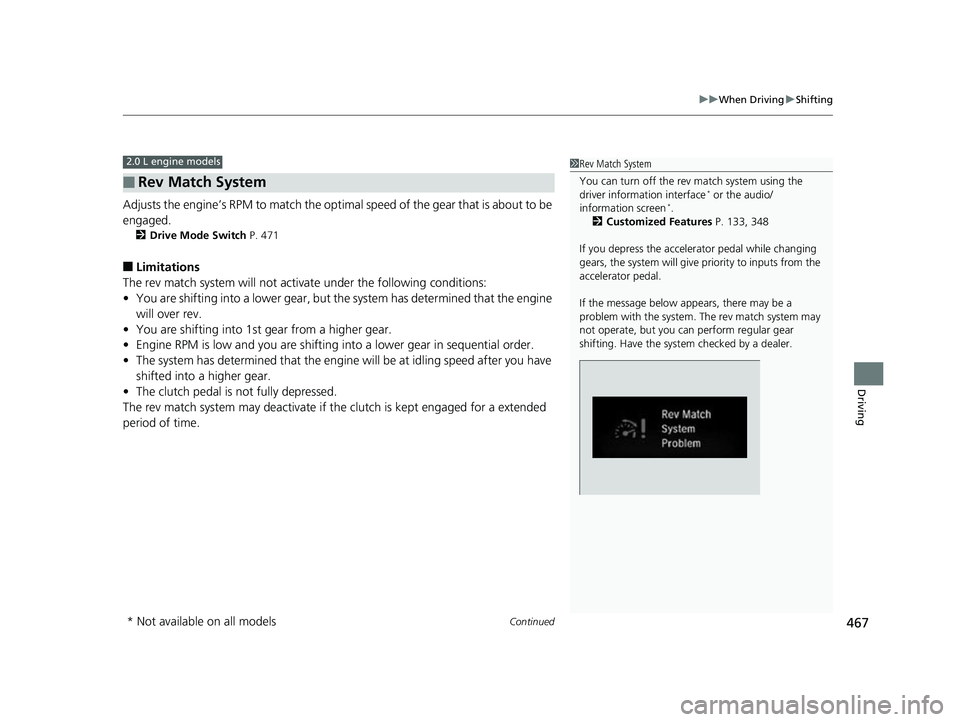

Adjusts the engine’s RPM to match the optimal speed of the gear that is about to be
engaged.
2 Drive Mode Switch P. 471
■Limitations
The rev match system will not activate under the following conditions:
• You are shifting into a lower gear, but th e system has determined that the engine
will over rev.
• You are shifting into 1st gear from a higher gear.
• Engine RPM is low and you are shifting into a lower gear in sequential order.
• The system has determined that the engine will be at idling speed after you have
shifted into a higher gear.
• The clutch pedal is not fully depressed.
The rev match system may d eactivate if the clutch is kept engaged for a extended
period of time.
■Rev Match System
2.0 L engine models1 Rev Match System
You can turn off the rev match system using the
driver information interface
* or the audio/
information screen*.
2 Customized Features P. 133, 348
If you depress the accele rator pedal while changing
gears, the system will give priority to inputs from the
accelerator pedal.
If the message below appears, there may be a
problem with the system. The rev match system may
not operate, but you ca n perform regular gear
shifting. Have the system checked by a dealer.
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 467 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

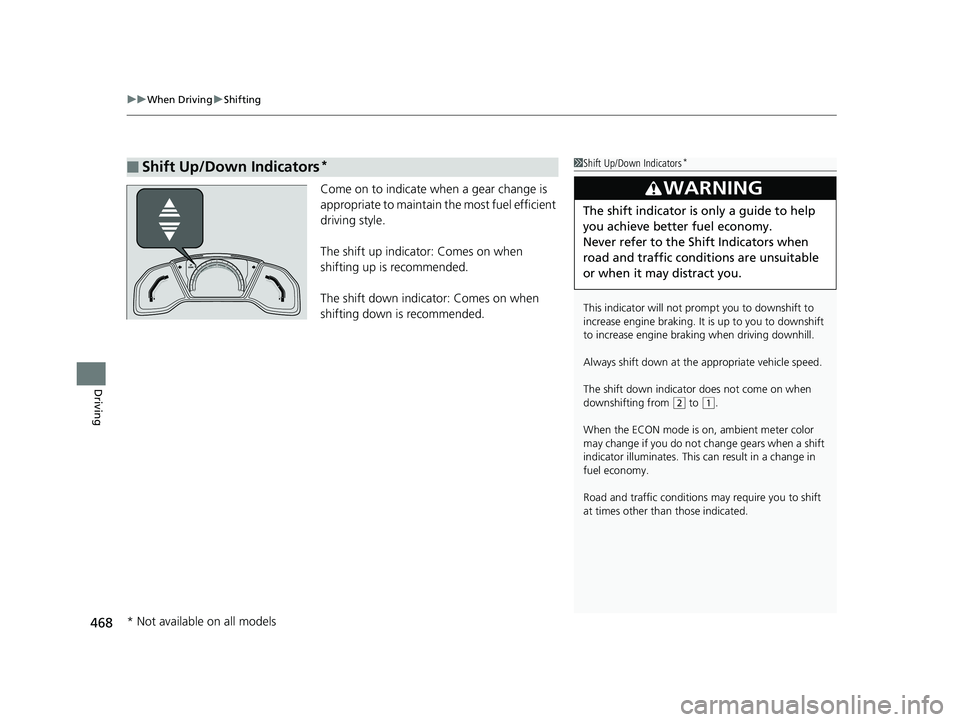

uuWhen Driving uShifting
468
Driving
Come on to indicate when a gear change is
appropriate to maintain the most fuel efficient
driving style.
The shift up indicator: Comes on when
shifting up is recommended.
The shift down indicator: Comes on when
shifting down is recommended.
■Shift Up/Down Indicators*1Shift Up/Down Indicators*
This indicator will not prom pt you to downshift to
increase engine br aking. It is up to you to downshift
to increase engine brak ing when driving downhill.
Always shift down at the appropriate vehicle speed.
The shift down indicator does not come on when
downshifting from
( 2 to (1.
When the ECON mode is on, ambient meter color
may change if you do not change gears when a shift
indicator illuminates. This can result in a change in
fuel economy.
Road and traffic c onditions may require you to shift
at times other than those indicated.
3WARNING
The shift indicator is only a guide to help
you achieve better fuel economy.
Never refer to the Shift Indicators when
road and traffic conditions are unsuitable
or when it may distract you.
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 468 ページ ２０１７年１２月２７日　水曜日　午前１１時２分
