HONDA CIVIC HATCHBACK 2019 Owner's Manual (in English)

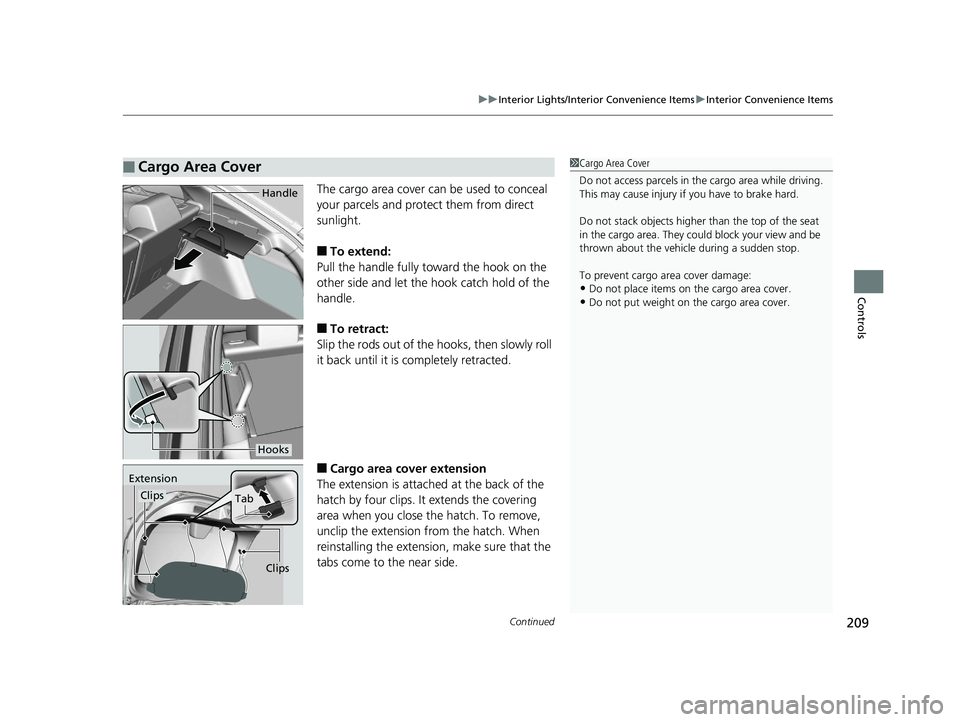

Continued209
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The cargo area cover can be used to conceal
your parcels and protect them from direct
sunlight.
■To extend:
Pull the handle fully toward the hook on the
other side and let the hook catch hold of the
handle.
■To retract:
Slip the rods out of the hooks, then slowly roll
it back until it is completely retracted.
■Cargo area cover extension
The extension is attached at the back of the
hatch by four clips. It extends the covering
area when you close th e hatch. To remove,
unclip the extension from the hatch. When
reinstalling the extension, make sure that the
tabs come to the near side.
■Cargo Area Cover1 Cargo Area Cover
Do not access parcels in the cargo area while driving.
This may cause injury if you have to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent cargo area cover damage:
•Do not place items on the cargo area cover.
•Do not put weight on the cargo area cover.
Handle
Hooks
Extension
Clips
Tab
Clips
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 209 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

210
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■To remove:
Push and hold the lever in the direction of the
arrow mark on the housing and lift the
housing out of its position.
The housing can be installed on either side of
the cargo area.Mark
Lever
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 210 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued211
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

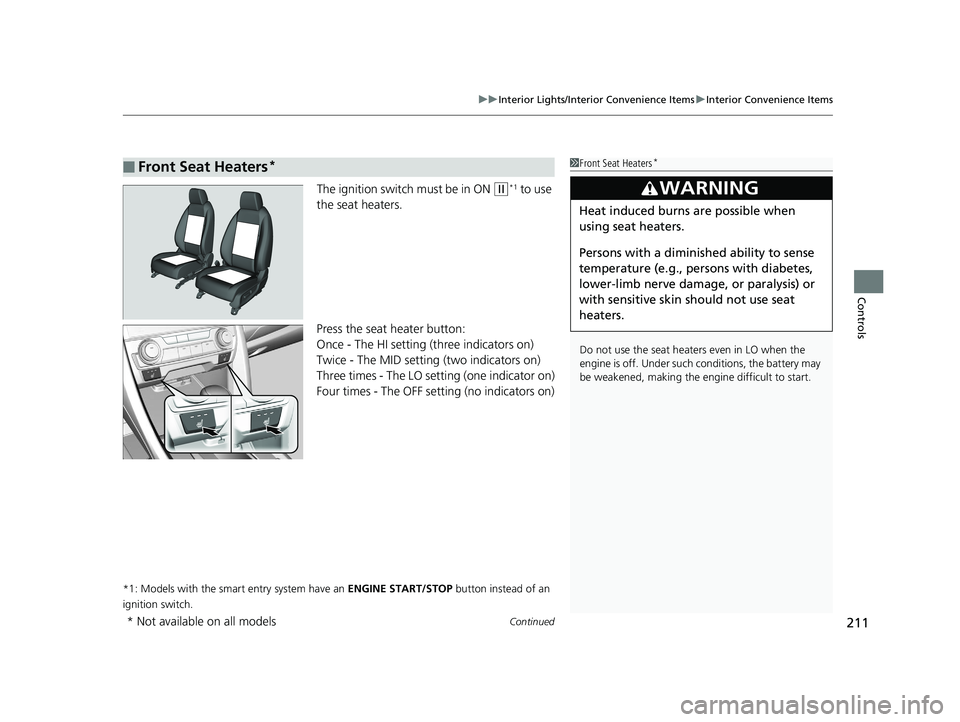

The ignition switch must be in ON (w*1 to use
the seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Front Seat Heaters*1 Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 211 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
212
Controls

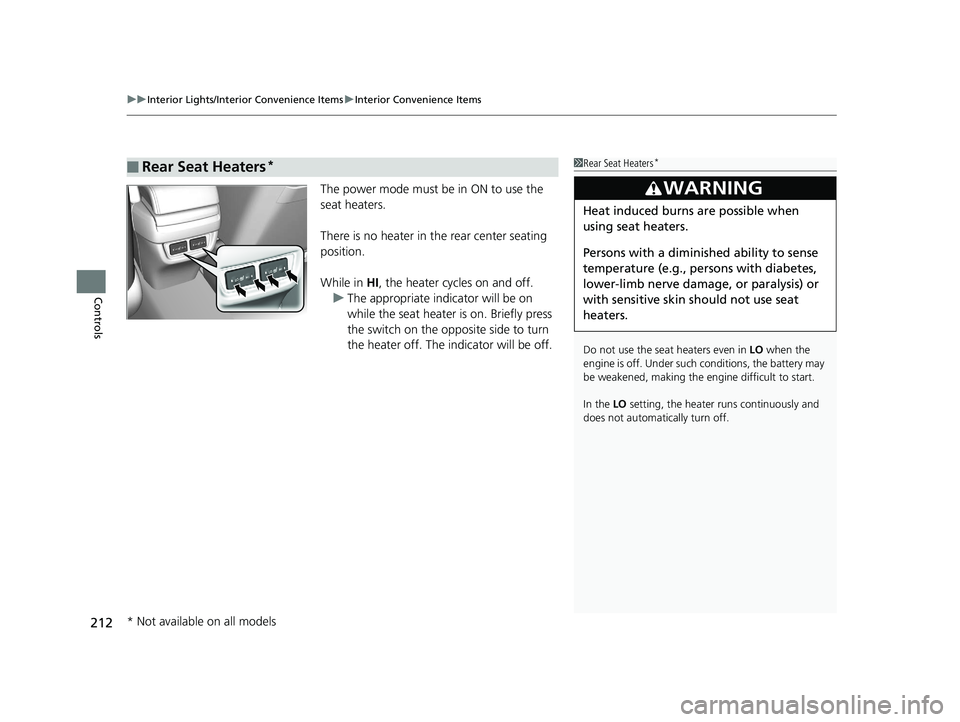

The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
While in HI, the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly press
the switch on the opposite side to turn
the heater off. The indicator will be off.
■Rear Seat Heaters*1Rear Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 212 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

213Continued
Controls

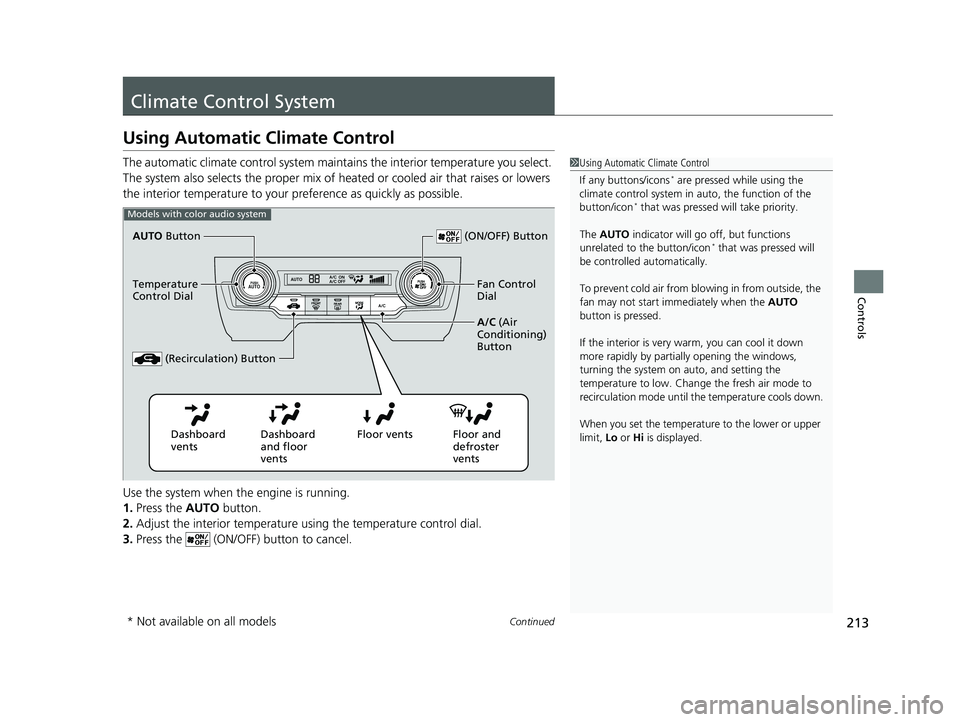

Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
If any buttons/icons
* are pressed while using the
climate control system in auto, the function of the
button/icon
* that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button/icon
* that was pressed will
be controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Models with color audio system
AUTO Button
Temperature
Control Dial
(Recirculation) Button (ON/OFF) Button
Fan Control
Dial
A/C (Air
Conditioning)
Button
Dashboard
vents Dashboard
and floor
vents Floor vents Floor and
defroster
vents
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 213 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuClimate Control System uUsing Automatic Climate Control
214
Controls

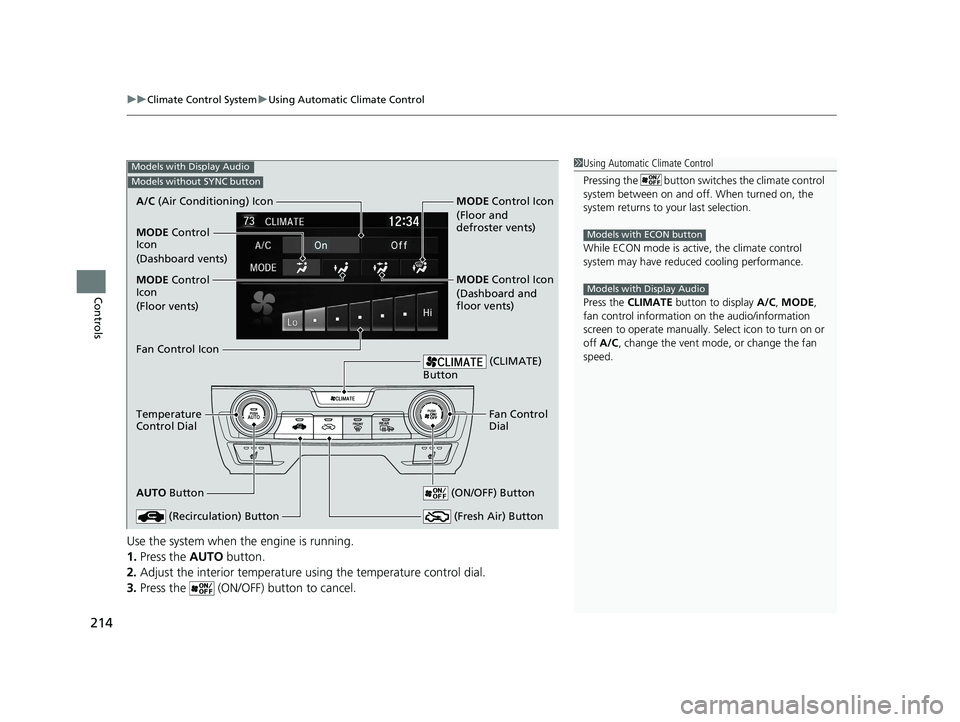

Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (ON/OFF) button to cancel.
1Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Press the CLIMATE button to display A/C, MODE,
fan control information on the audio/information
screen to operate manually. Select ic on to turn on or
off A/C , change the vent mode , or change the fan
speed.
Models with ECON button
Models with Display Audio
Models with Display Audio
Models without SYNC button
A/C (Air Conditioning) Icon
Fan Control Icon
Temperature
Control Dial
AUTO Button
(Recirculation) Button
(CLIMATE)
Button
Fan Control
Dial
(ON/OFF) Button
(Fresh Air) Button
MODE Control
Icon
(Floor vents)
MODE Control
Icon
(Dashboard vents) MODE Control Icon
(Floor and
defroster vents)
MODE Control Icon
(Dashboard and
floor vents)
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 214 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

215
uuClimate Control System uUsing Automatic Climate Control
Continued
Controls

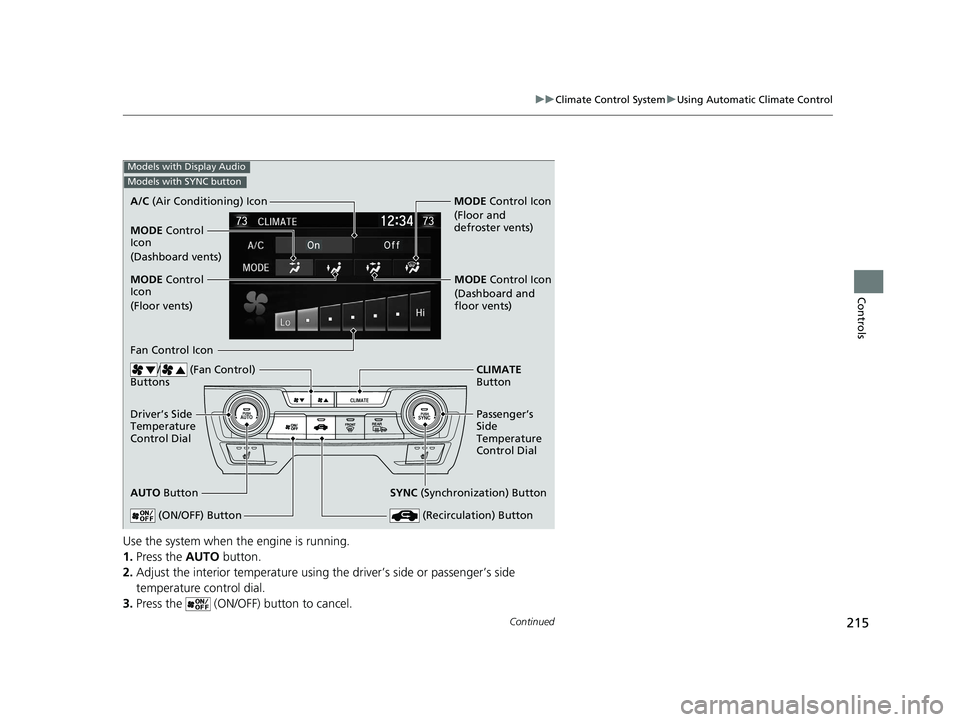

Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control dial.
3. Press the (ON/OFF) button to cancel.
Models with Display Audio
Models with SYNC button
A/C (Air Conditioning) Icon
MODE Control
Icon
(Floor vents)
Fan Control Icon
Driver’s Side
Temperature
Control Dial
AUTO Button
(Recirculation) Button
CLIMATE
Button
Passenger’s
Side
Temperature
Control Dial
(ON/OFF) Button
SYNC (Synchronization) Button
MODE Control
Icon
(Dashboard vents) MODE
Control Icon
(Floor and
defroster vents)
MODE Control Icon
(Dashboard and
floor vents)
/ (Fan Control)
Buttons
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 215 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

216
uuClimate Control System uUsing Automatic Climate Control
Controls

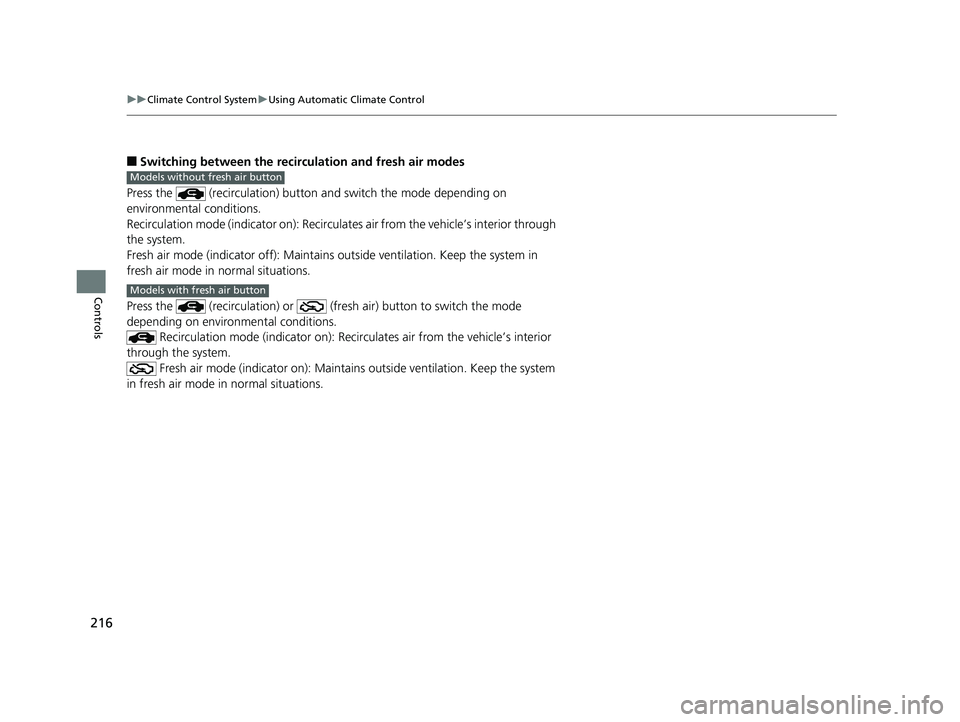

■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains out side ventilation. Keep the system in
fresh air mode in normal situations.
Press the (recirculation) or (fresh air) button to switch the mode
depending on environmental conditions. Recirculation mode (indicator on): Recirc ulates air from the vehicle’s interior
through the system. Fresh air mode (indicator on): Maintain s outside ventilation. Keep the system
in fresh air mode in normal situations.
Models without fresh air button
Models with fresh air button
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 216 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued217
uuClimate Control System uUsing Automatic Climate Control
Controls

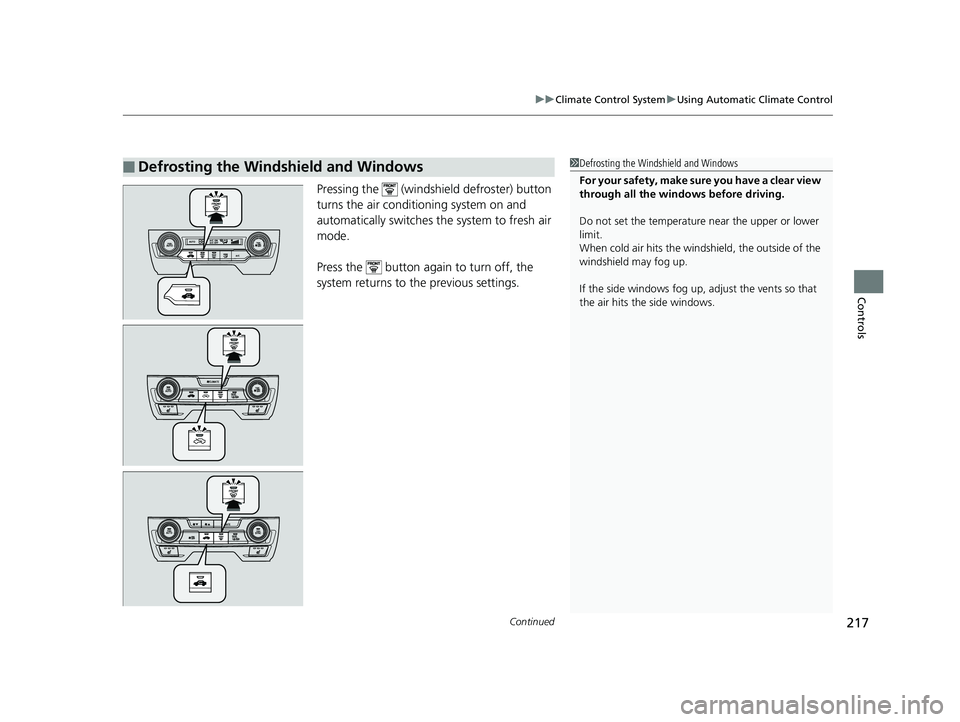

Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches th e system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 217 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuClimate Control System uUsing Automatic Climate Control
218
Controls

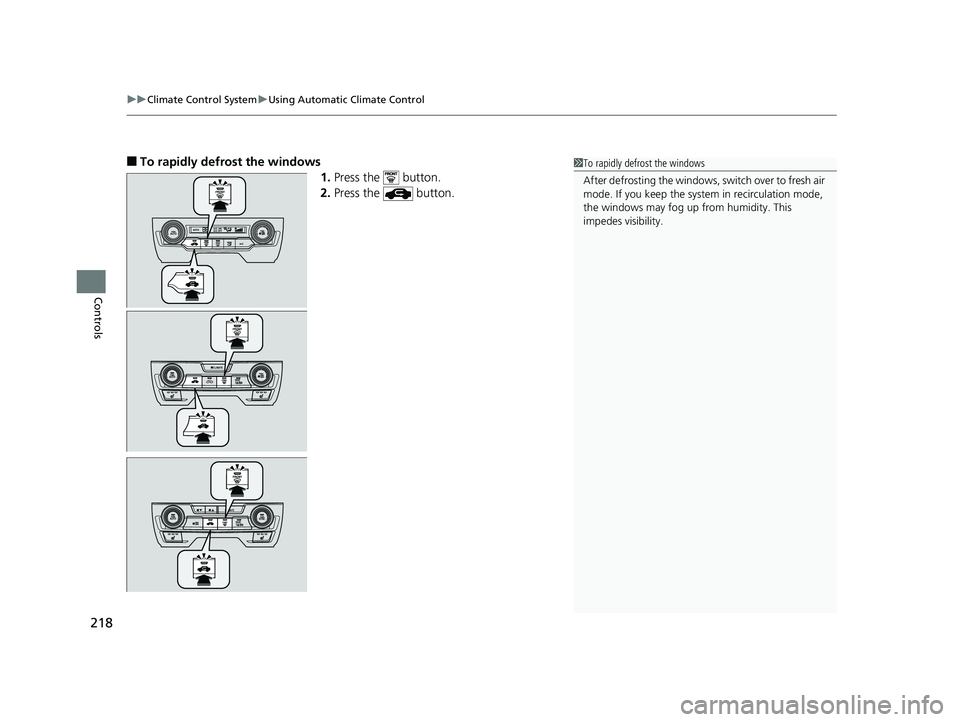

■To rapidly defrost the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 218 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
