HONDA CIVIC HATCHBACK 2019 Owner's Manual (in English)

Continued249
uuAudio System Basic Operation uAudio/Information Screen
Features

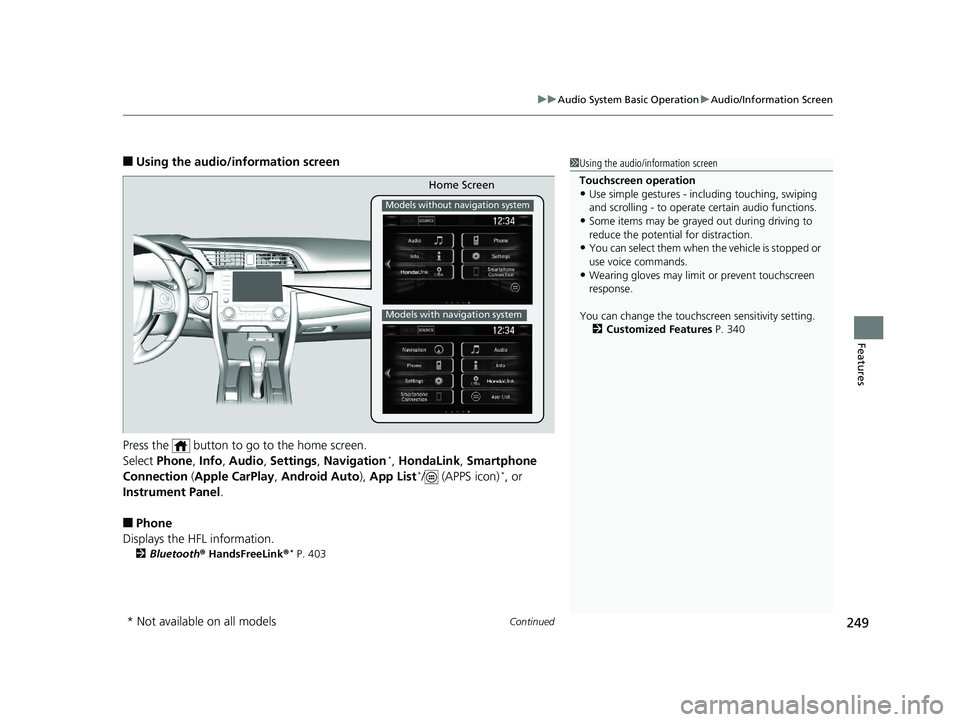

■Using the audio/in formation screen
Press the button to go to the home screen.
Select Phone , Info , Audio , Settings , Navigation
*, HondaLink , Smartphone
Connection (Apple CarPlay, Android Auto), App List*/ (APPS icon)*, or
Instrument Panel .
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ®* P. 403
1Using the audio/in formation screen
Touchscreen operation
•Use simple gestures - in cluding touching, swiping
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped or
use voice commands.
•Wearing gloves may limit or prevent touchscreen
response.
You can change the touchs creen sensitivity setting.
2 Customized Features P. 340
Home Screen
Models without navigation system
Models with navigation system
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 249 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

250
uuAudio System Basic Operation uAudio/Information Screen
Features

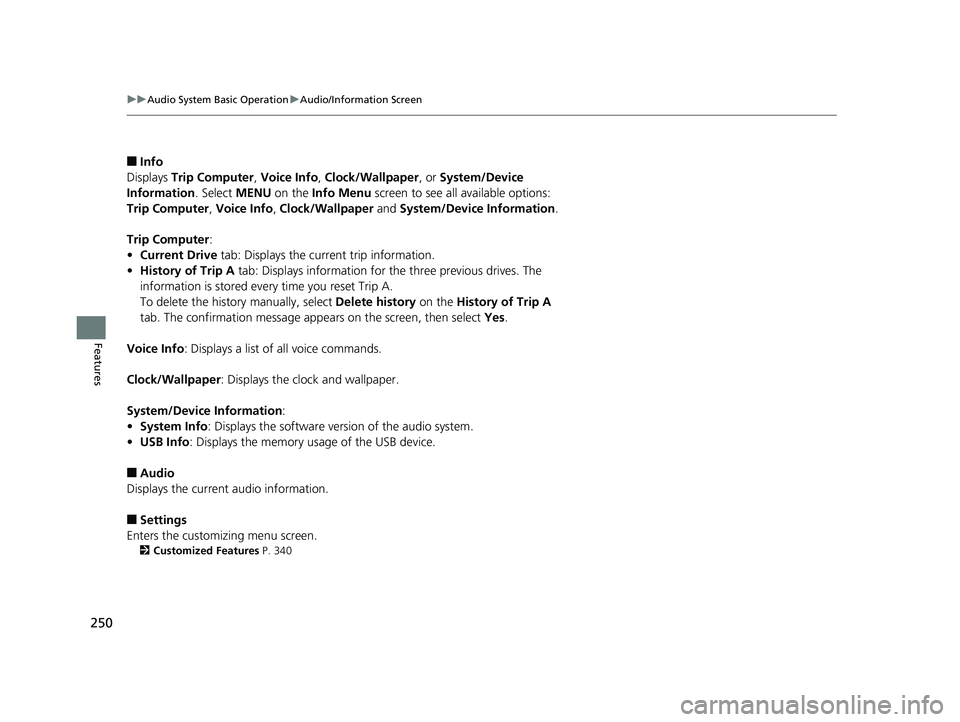

■Info
Displays Trip Computer , Voice Info , Clock/Wallpaper , or System/Device
Information . Select MENU on the Info Menu screen to see al l available options:
Trip Computer , Voice Info , Clock/Wallpaper and System/Device Information .
Trip Computer :
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete history on the History of Trip A
tab. The confirmation message ap pears on the screen, then select Yes.
Voice Info : Displays a list of all voice commands.
Clock/Wallpaper : Displays the clock and wallpaper.
System/Device Information :
• System Info: Displays the software version of the audio system.
• USB Info : Displays the memory usage of the USB device.
■Audio
Displays the current audio information.
■Settings
Enters the customiz ing menu screen.
2Customized Features P. 340
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 250 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

251
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

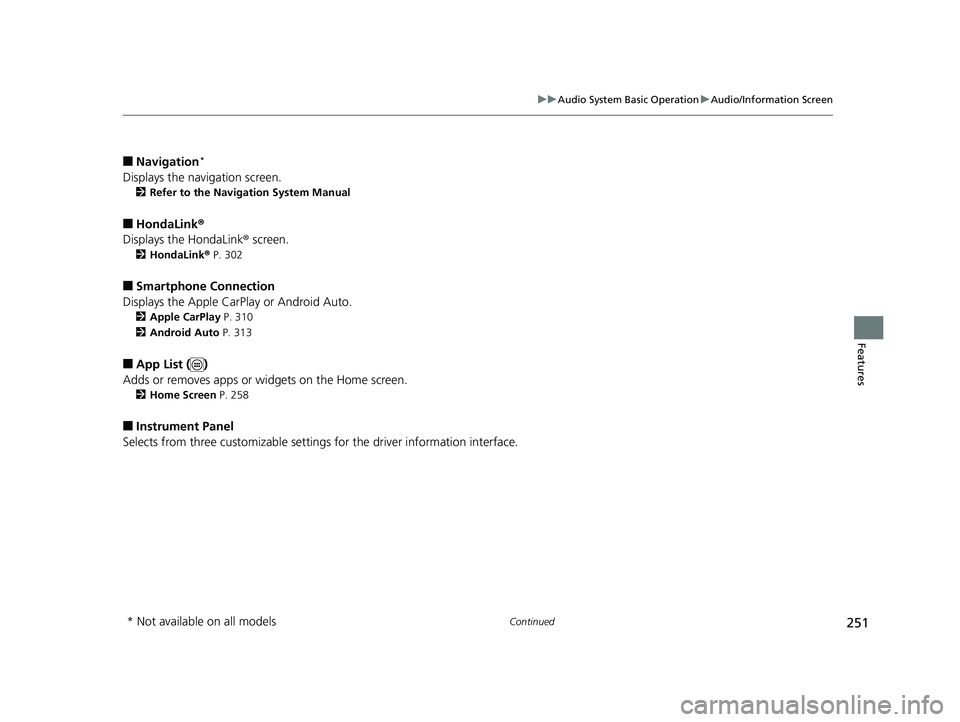

■Navigation*
Displays the navigation screen.
2 Refer to the Navigation System Manual
■HondaLink ®
Displays the HondaLink ® screen.
2HondaLink ® P. 302
■Smartphone Connection
Displays the Apple CarPlay or Android Auto.
2 Apple CarPlay P. 310
2 Android Auto P. 313
■App List ( )
Adds or removes apps or widgets on the Home screen.
2 Home Screen P. 258
■Instrument Panel
Selects from three customizable settings for the driver information interface.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 251 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuAudio System Basic Operation uAudio/Information Screen
252
Features
1. Press the button.
2. Select and hold an icon.
u The screen switches to the customization
screen.
3. Drag and drop the icon to where you want
it to be.
4. Select OK.
u The screen will return to the home
screen.
You can edit, add, or delete the meter co ntents on the driver information interface.
1. button
2. Settings
3. System
4. Configuration of Instrument Panel

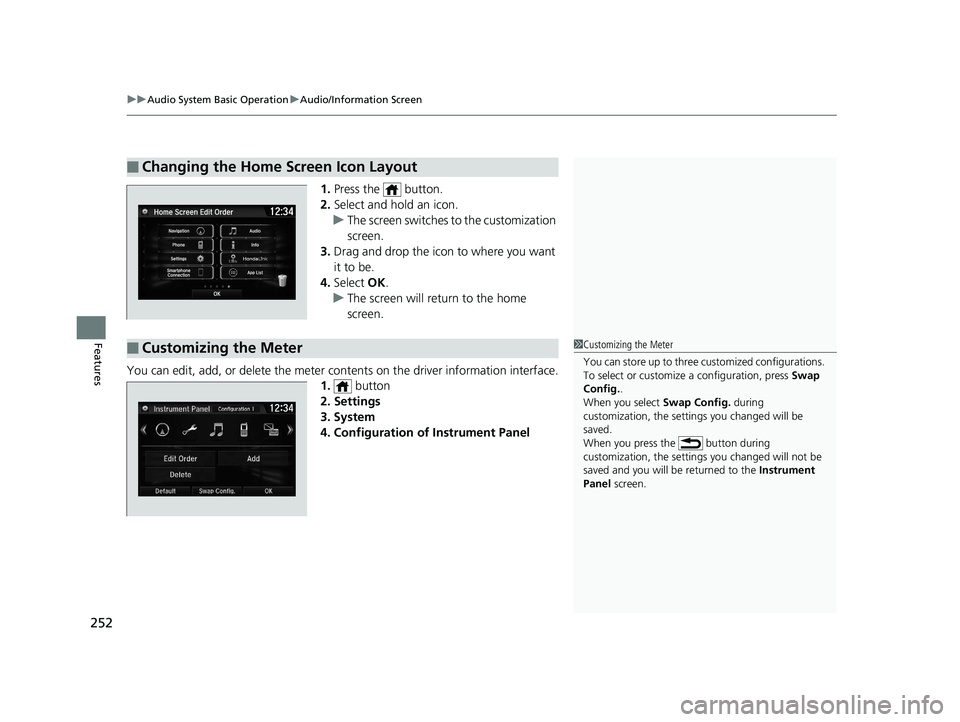

■Changing the Home Screen Icon Layout
■Customizing the Meter1 Customizing the Meter
You can store up to three cu stomized configurations.
To select or customize a configuration, press Swap
Config. .
When you select Swap Config. during
customization, the settings you changed will be
saved.
When you press the button during
customization, the settings you changed will not be
saved and you will be returned to the Instrument
Panel screen.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 252 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued253
uuAudio System Basic Operation uAudio/Information Screen
Features

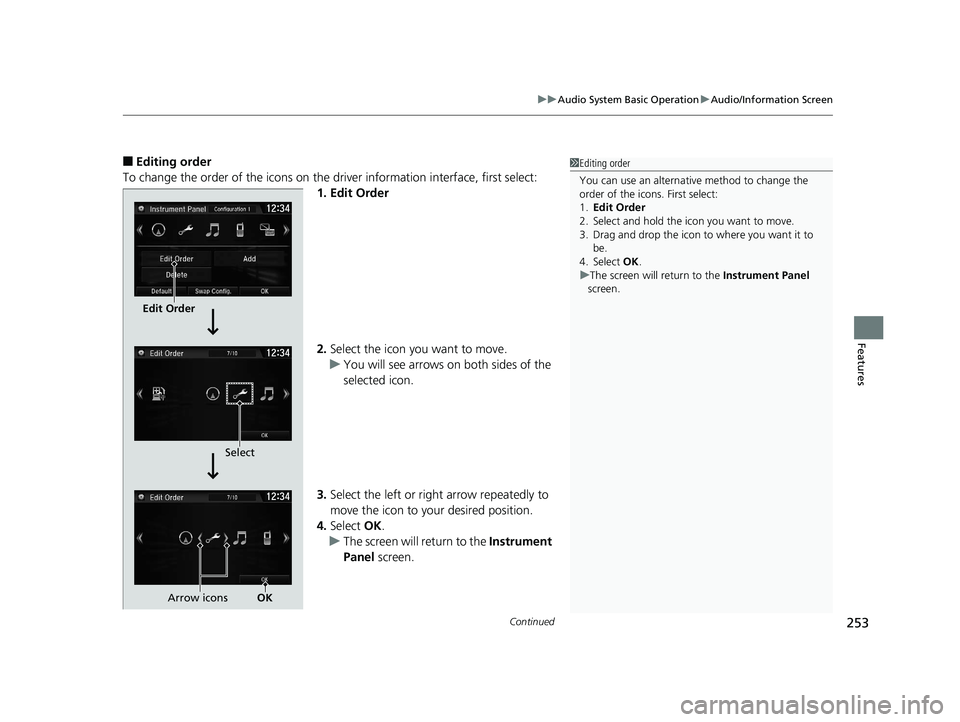

■Editing order
To change the order of the icons on the driver information interface, first select: 1. Edit Order
2.Select the icon you want to move.
u You will see arrows on both sides of the
selected icon.
3. Select the left or right arrow repeatedly to
move the icon to your desired position.
4. Select OK.
u The screen will return to the Instrument
Panel screen.1Editing order
You can use an alternative method to change the
order of the icons. First select:
1. Edit Order
2. Select and hold the icon you want to move.
3. Drag and drop the icon to where you want it to be.
4. Select OK .
u The screen will return to the Instrument Panel
screen.
Edit Order
Select
Arrow icons OK
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 253 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuAudio System Basic Operation uAudio/Information Screen
254
Features
■Adding contents
You can add icons to the driver informati on interface. To add icons, first select:
1. Add
2. Select an icon you want to add.
u You will see a plus mark on the upper
right hand corner of the selected icon.
3. Select OK.
u The screen will return to the Instrument
Panel screen.1Adding contents
Icons that are grayed out cannot be selected.
If an icon has a plus mark in the upper-right corner, it
means that the icon ha s already been added.
12‰34
12 ‰34
12 ‰34
Range Í
Fuel Maintenance
Minder TM Speed unit &
Disp OffTurbo M eter
PhoneSMS & MailNavigation &
Compass
Add
Add
Add
Select
OK
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 254 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued255
uuAudio System Basic Operation uAudio/Information Screen
Features

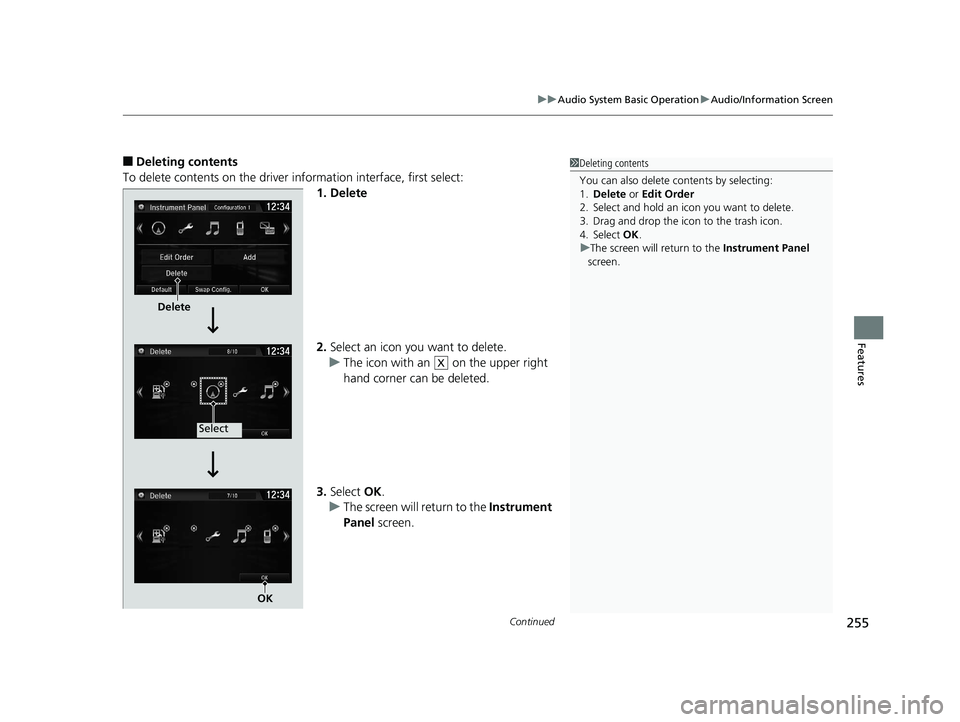

■Deleting contents
To delete contents on the driver information interface, first select:
1. Delete
2.Select an icon you want to delete.
u The icon with an on the upper right
hand corner can be deleted.
3. Select OK.
u The screen will return to the Instrument
Panel screen.1Deleting contents
You can also delete c ontents by selecting:
1. Delete or Edit Order
2. Select and hold an icon you want to delete.
3. Drag and drop the icon to the trash icon.
4. Select OK .
u The screen will return to the Instrument Panel
screen.
Delete
Select
OK
X
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 255 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuAudio System Basic Operation uAudio/Information Screen
256
Features
You can change, store, and delete the wallpaper on the audio/information screen.
■Import wallpaper
You can import up to five images, one at a time, for wallpaper from a USB flash
drive.
1.Connect the USB flash drive to the USB
port.
2 USB Port(s) P. 223
2.Select Settings .
3. Select Clock.
4. Select Clock/Wallpaper Type , then open
the Wallpaper tab.
5. Select Add New .
u The picture name is displayed on the list.
6. Select a desired picture.
u The preview is displayed on the left side
on the screen.
7. Select Start Import to save the data.
u The display will return to the wallpaper
list.
■Wallpaper Setup1Wallpaper Setup
The wallpaper you set up on Clock/Wallpaper Type
cannot be displayed on th e driver information
interface.
•When importing wallpaper files, the image must be
in the USB flash driv e’s root directory.
Images in a folder cannot be imported.
•The file name must be fewer than 64 characters.•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 5 MB.•The maximum image size is 4,096 × 4,096 pixels. If
the image size is less than 800 × 480 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•If the USB flash drive doe s not have any pictures,
the No files detected message appears.
After changing the screen interface design, you can
change the wallpaper by following procedure.
1. Press the button.
2. Select and hold empty space on the home screen. The pop-up menu appears on the screen.
3. Select Change wallpaper .
4. Select Gallery, Live wallpapers , or Wallpapers.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 256 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued257
uuAudio System Basic Operation uAudio/Information Screen
Features

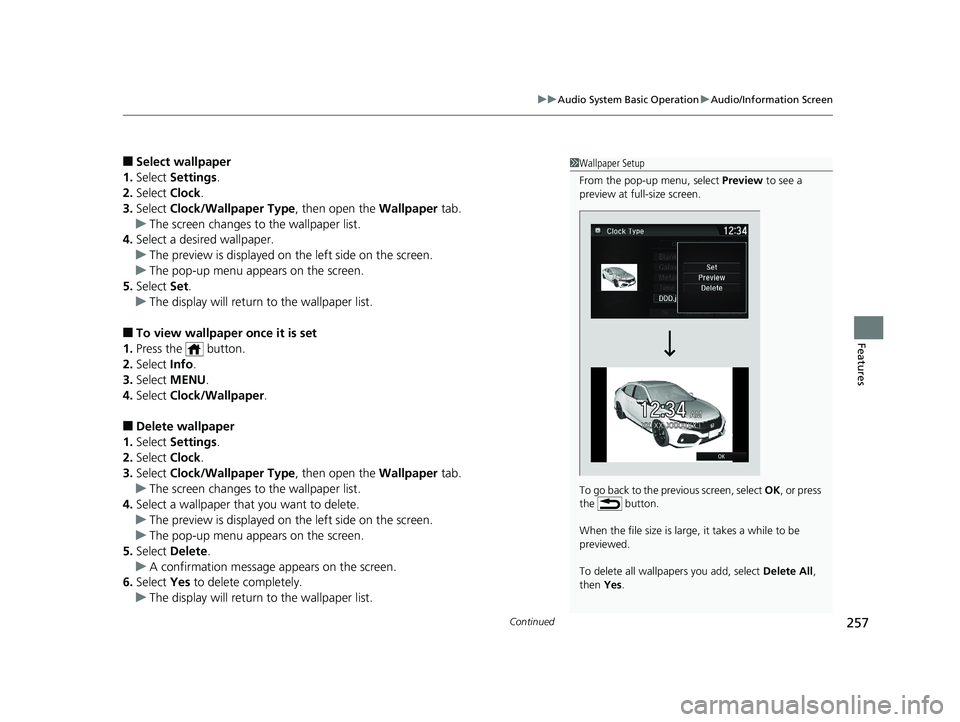

■Select wallpaper
1. Select Settings .
2. Select Clock.
3. Select Clock/Wallpaper Type , then open the Wallpaper tab.
u The screen changes to the wallpaper list.
4. Select a desired wallpaper.
u The preview is displayed on the left side on the screen.
u The pop-up menu appears on the screen.
5. Select Set.
u The display will return to the wallpaper list.
■To view wallpaper once it is set
1. Press the button.
2. Select Info.
3. Select MENU .
4. Select Clock/Wallpaper .
■Delete wallpaper
1. Select Settings .
2. Select Clock.
3. Select Clock/Wallpaper Type , then open the Wallpaper tab.
u The screen changes to the wallpaper list.
4. Select a wallpaper that you want to delete.
u The preview is displayed on the left side on the screen.
u The pop-up menu appears on the screen.
5. Select Delete .
u A confirmation message appears on the screen.
6. Select Yes to delete completely.
u The display will return to the wallpaper list.
1Wallpaper Setup
From the pop-up menu, select Preview to see a
preview at full-size screen.
To go back to the previous screen, select OK, or press
the button.
When the file size is large, it takes a while to be
previewed.
To delete all wallpapers you add, select Delete All,
then Yes.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 257 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuAudio System Basic Operation uAudio/Information Screen
258
Features

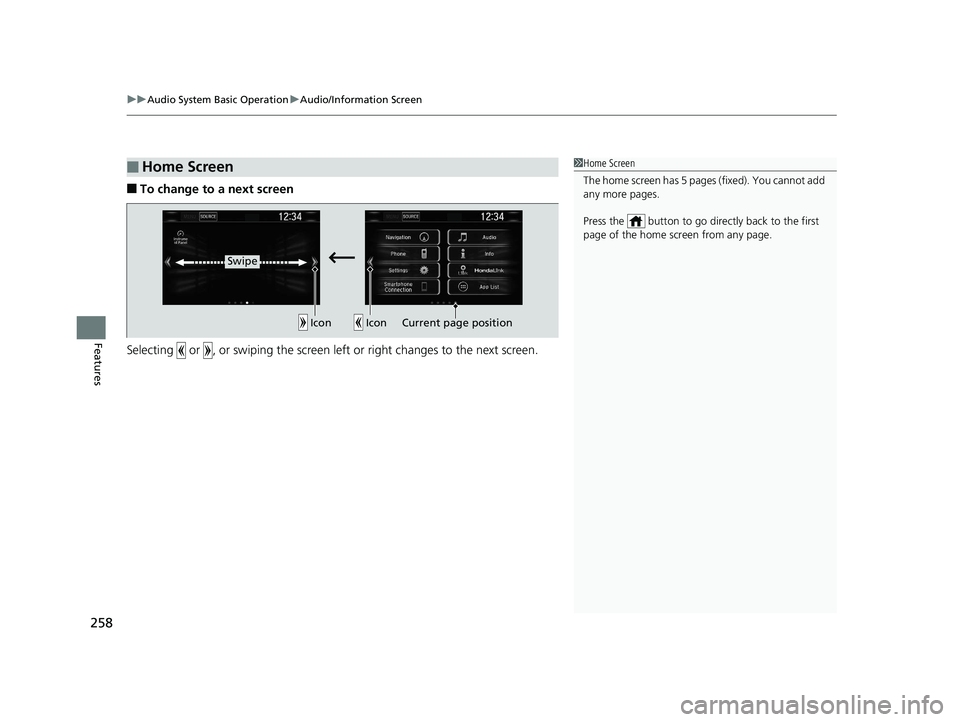

■To change to a next screen
Selecting or , or swiping the screen le ft or right changes to the next screen.
■Home Screen1Home Screen
The home screen has 5 pa ges (fixed). You cannot add
any more pages.
Press the button to go dire ctly back to the first
page of the home screen from any page.
Swipe
Icon
IconCurrent page position
