HONDA CIVIC HATCHBACK 2019 Owner's Manual (in English)

339
uuGeneral Information on the Audio System uLicense information*
Features

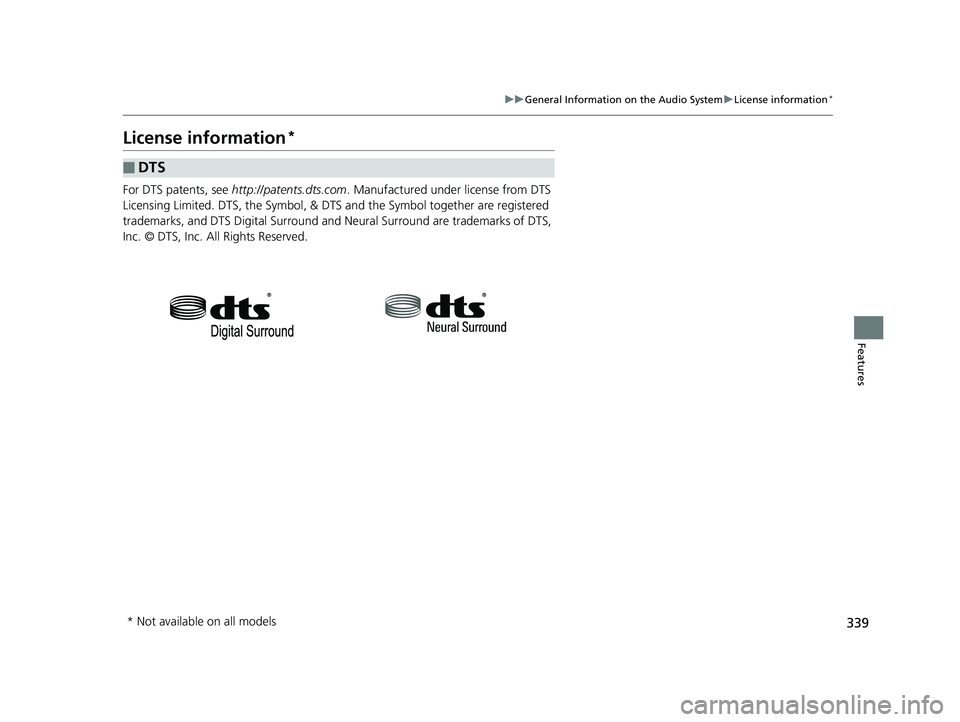

License information*
For DTS patents, see http://patents.dts.com . Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Digital Surround and Neural Surround are trademarks of DTS,
Inc. © DTS, Inc. All Rights Reserved.
■DTS
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 339 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

340
Features
Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete st op with the ignition switch in ON
(w*1, press the
MENU/CLOCK button, then select Settings. To customize the phone settings,
press the button, then select Phone Setup.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
Continuously variable transmission models
Manual transmission models
1 How to customize
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To customize other features, select Settings, rotate
, then press .
2 List of customizable options P. 344
Models with color audio system
Audio/Information Screen
MENU/CLOCK Button
Selector Knob
(Phone) Button
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 340 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

341
uuCustomized Features u
Continued
Features

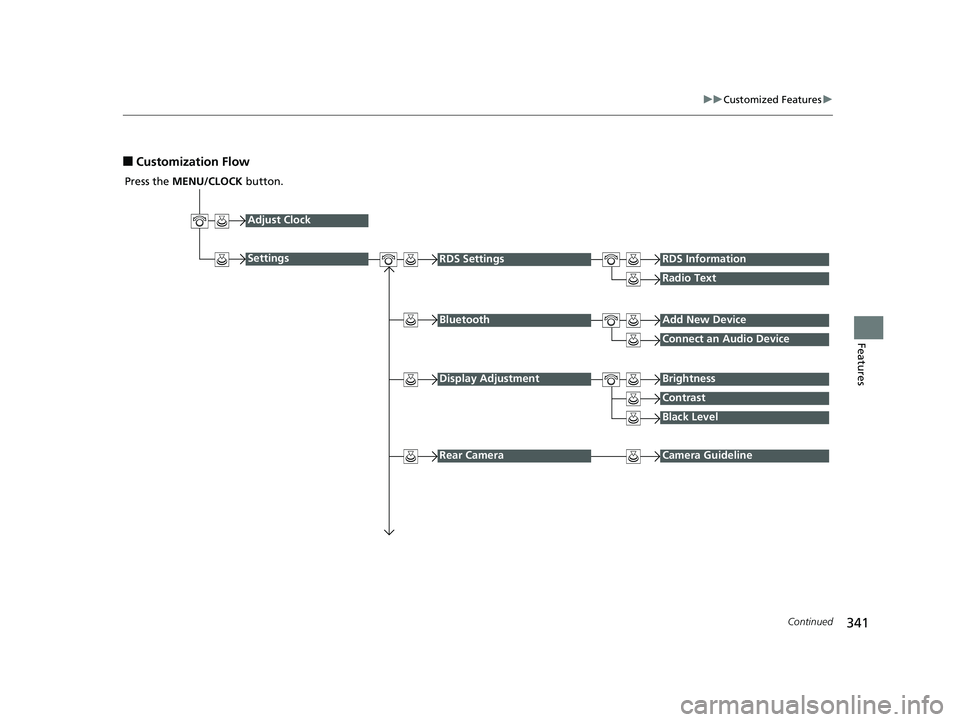

■Customization Flow
Press the MENU/CLOCK button.
Adjust Clock
SettingsRDS SettingsRDS Information
Radio Text
Display AdjustmentBrightness
Contrast
Black Level
Rear CameraCamera Guideline
BluetoothAdd New Device
Connect an Audio Device
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 341 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

342
uuCustomized Features u
Features

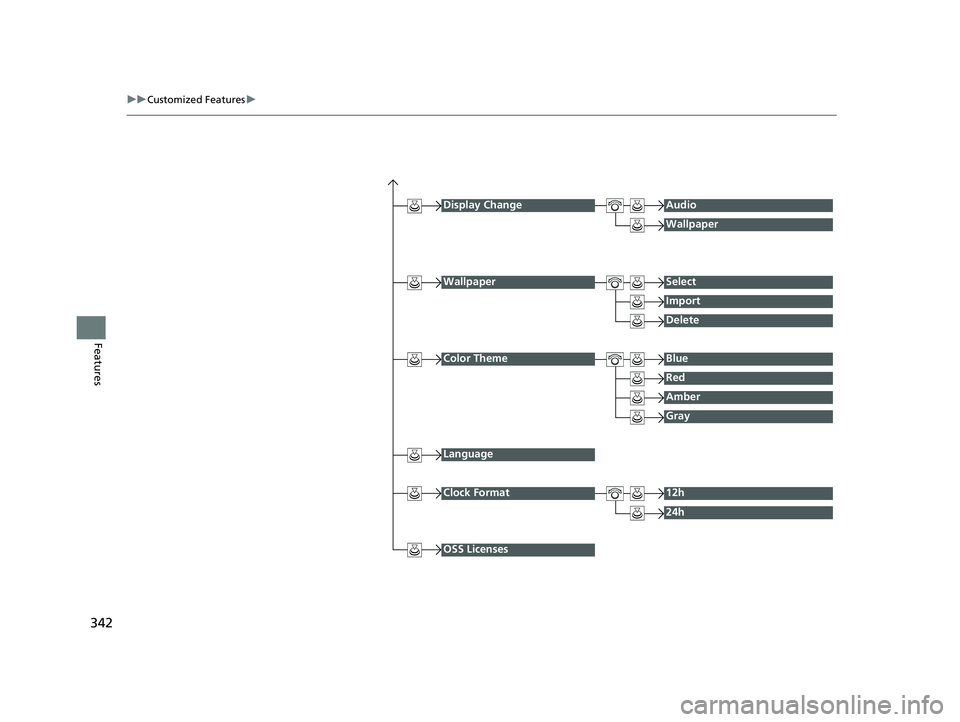

Display ChangeAudio
Wallpaper
WallpaperSelect
Import
Delete
Color ThemeBlue
Red
Amber
Gray
Language
Clock Format12h
24h
OSS Licenses
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 342 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

343
uuCustomized Features u
Continued
Features

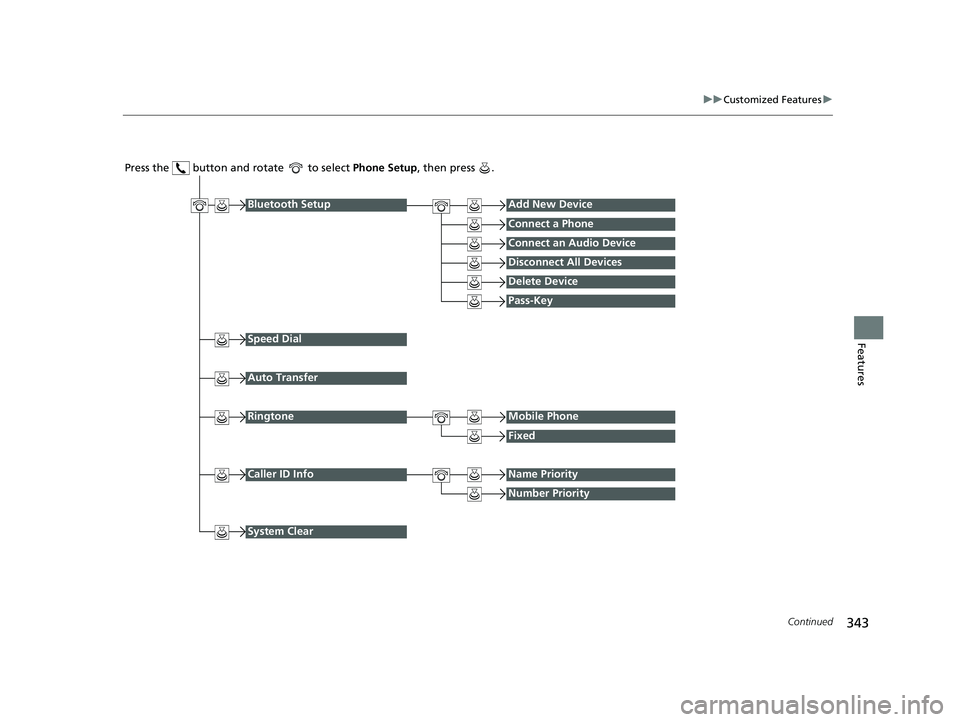

Press the button and rotate to select Phone Setup, then press .
Ringtone
Fixed
Mobile Phone
Bluetooth SetupAdd New Device
Connect a Phone
Connect an Audio Device
Disconnect All Devices
Delete Device
Pass-Key
Speed Dial
Caller ID InfoName Priority
Number Priority
System Clear
Auto Transfer
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 343 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

344
uuCustomized Features u
Features

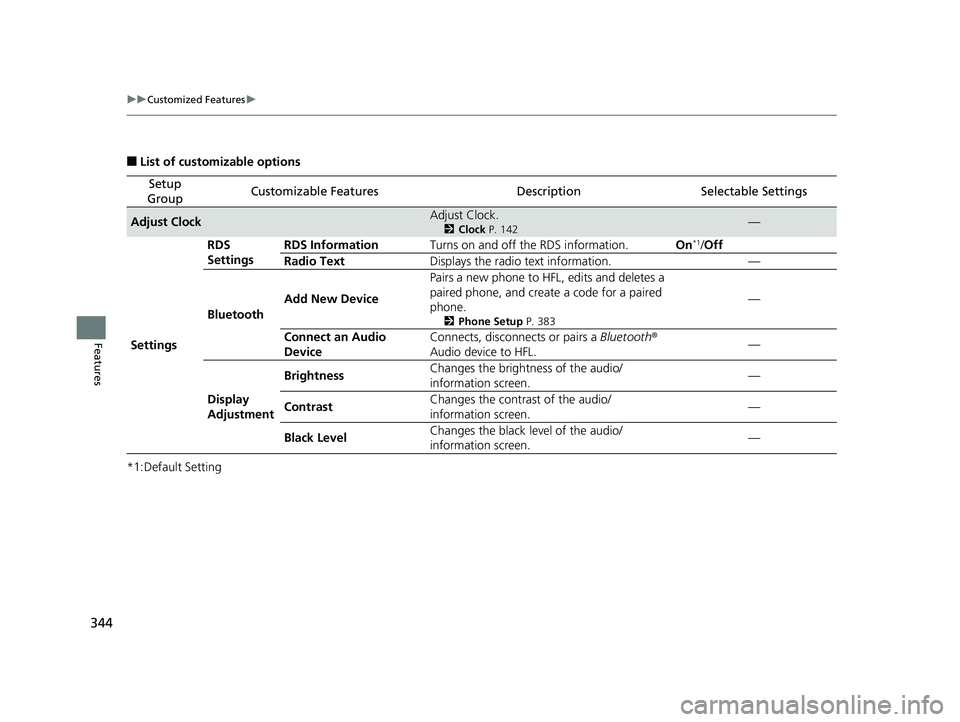

■List of customizable options
*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Adjust ClockAdjust Clock.
2 Clock P. 142—
Settings RDS
Settings
RDS Information
Turns on and off the RDS information. On
*1/Off
Radio Text Displays the radio text information. —
Bluetooth Add New Device Pairs a new phone to HFL, edits and deletes a
paired phone, and create a code for a paired
phone.
2
Phone Setup P. 383
—
Connect an Audio
Device Connects, disconnects or pairs a
Bluetooth®
Audio device to HFL. —
Display
Adjustment Brightness
Changes the brightness of the audio/
information screen.
—
Contrast Changes the contrast of the audio/
information screen. —
Black Level Changes the black level of the audio/
information screen. —
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 344 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

345
uuCustomized Features u
Continued
Features

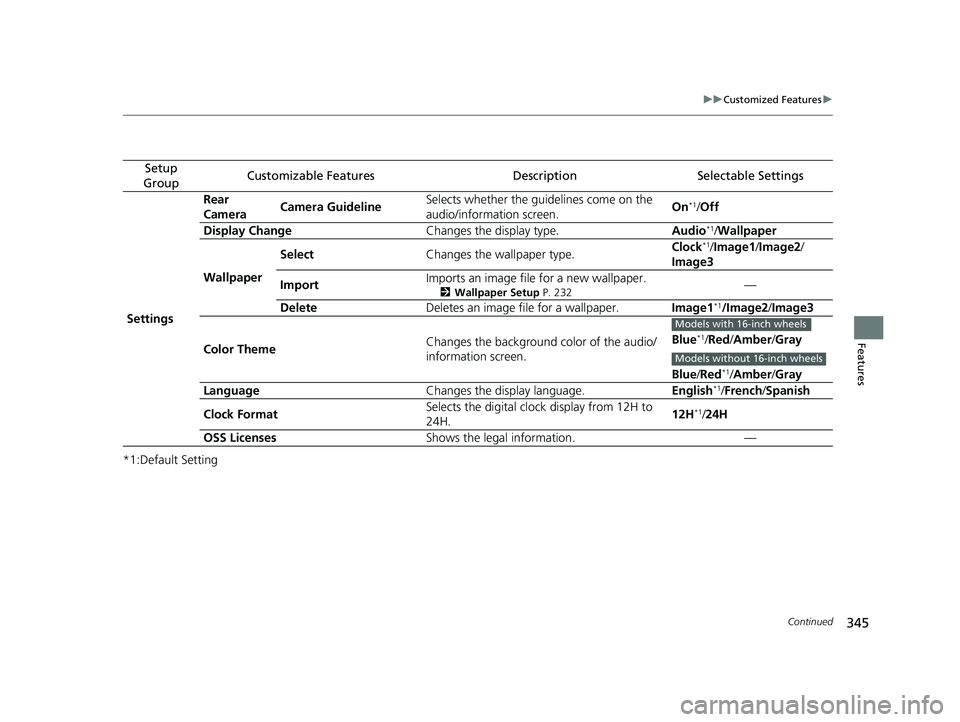

*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Settings Rear
Camera
Camera Guideline Selects whether the guidelines come on the
audio/information screen.
On
*1/
Off
Display Change Changes the display type. Audio
*1/Wallpaper
Wallpaper Select
Changes the wallpaper type. Clock*1/
Image1/ Image2/
Import Imports an image file for a new wallpaper.
2
Wallpaper Setup P. 232—
Delete Deletes an image file for a wallpaper. Image1
*1/Image2/Image3
Color Theme Changes the background color of the audio/
information screen. Blue
*1/
Red /Amber /Gray
Blue /Red
*1/Amber /Gray
Language Changes the display language. English*1/French /Spanish
Clock Format Selects the digital clock display from 12H to
24H.
12H
*1/
24H
OSS Licenses Shows the legal information. —
Models with 16-inch wheels
Models without 16-inch wheels
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 345 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

346
uuCustomized Features u
Features

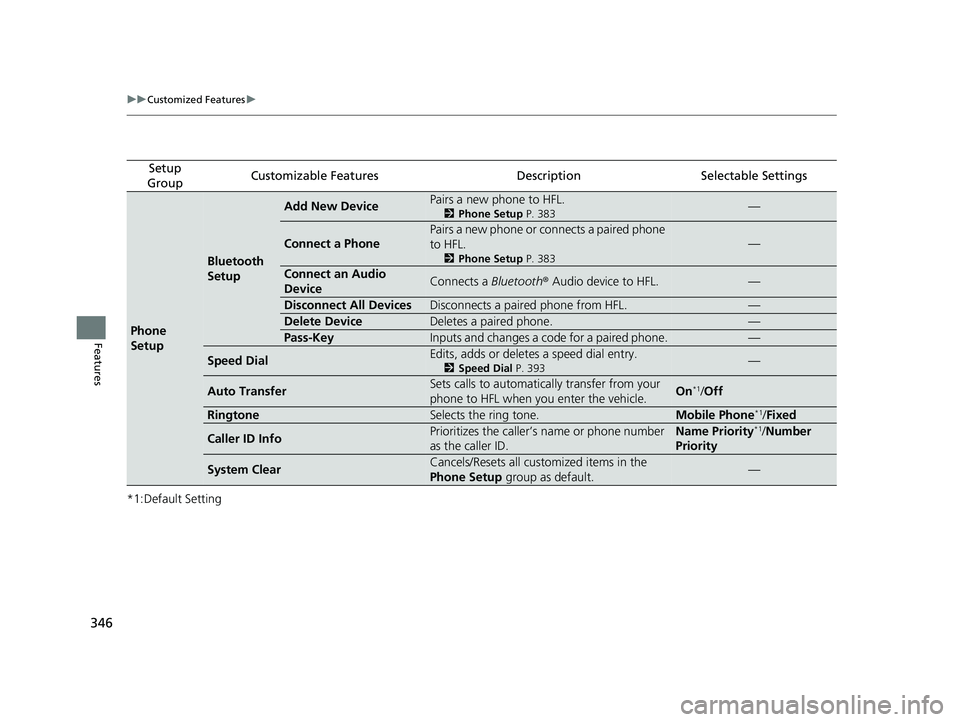

*1:Default Setting
Setup
GroupCustomizable FeaturesDescriptionSelectable Settings
Phone
Setup
Bluetooth
Setup
Add New DevicePairs a new phone to HFL.
2 Phone Setup P. 383—
Connect a Phone
Pairs a new phone or connects a paired phone
to HFL.
2Phone Setup P. 383
—
Connect an Audio
DeviceConnects a Bluetooth® Audio device to HFL.—
Disconnect All DevicesDisconnects a paired phone from HFL.—
Delete DeviceDeletes a paired phone.—
Pass-KeyInputs and changes a code for a paired phone.—
Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 393—
Auto TransferSets calls to automatically transfer from your
phone to HFL when you enter the vehicle.On*1/Off
RingtoneSelects the ring tone.Mobile Phone*1/Fixed
Caller ID InfoPrioritizes the caller’s name or phone number
as the caller ID.Name Priority*1/Number
Priority
System ClearCancels/Resets all customized items in the
Phone Setup group as default.—
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 346 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued347
uuCustomized Features u
Features
■How to customize
While the vehicle is at a complete st op with the ignition switch in ON
(w*1, press the
button, and select Settings, then select a setting item.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with Display Audio1 Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
To customize other features, select Settings.
2 List of customizable options P. 356
Continuously variable transmission models
Manual transmission models
Audio/Information
Screen
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 347 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

348
uuCustomized Features u
Features

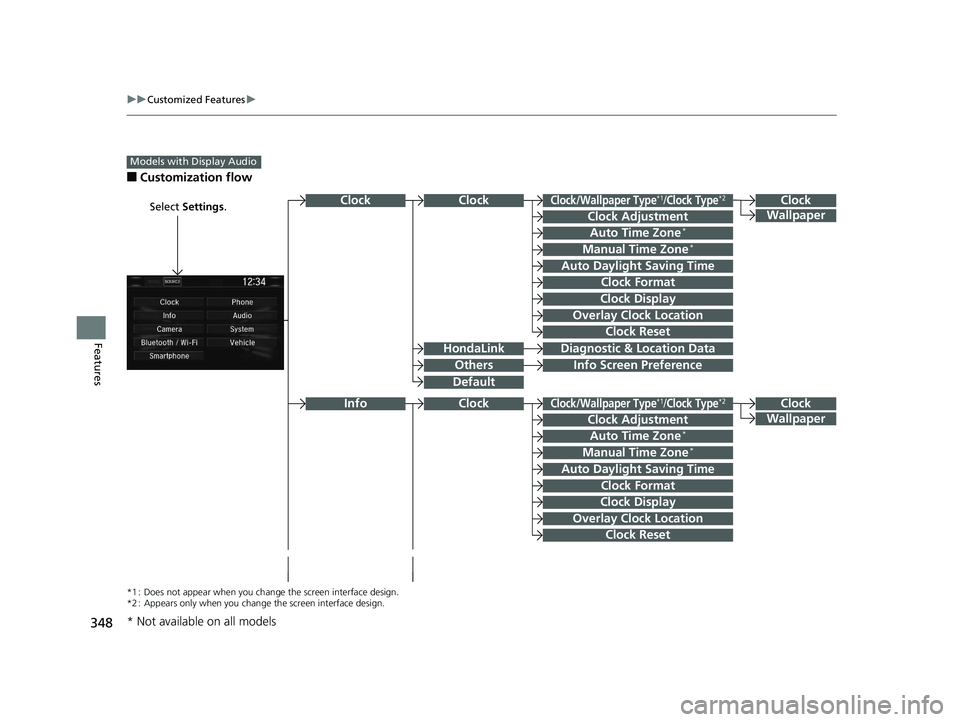

■Customization flow
Models with Display Audio
Select Settings.Clock
Wallpaper
Others
Clock/Wallpaper Type*1/Clock Type*2
Clock Adjustment
Clock Format
ClockClock
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info Screen Preference
Clock
Wallpaper
Clock/Wallpaper Type*1/Clock Type*2
Clock Adjustment
Clock Format
Clock
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Display
Overlay Clock Location
Clock Reset
Info
HondaLinkDiagnostic & Location Data
*1 : Does not appear when you chang e the screen interface design.
*2 : Appears only when you change the screen interface design.
Default
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 348 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
