HONDA CIVIC HATCHBACK 2019 Owner's Manual (in English)

379
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features
HFL Menus
The ignition switch mu st be in ACCESSORY (q or ON (w*1 to use HFL.1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
or
Display the last 20 outgoing calls.
Display the last 20 incoming calls.
Display the last 20 missed calls.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2 : Appears only when a phone is connected to HFL.
PhoneSpeed Dial*2Add New
Select a phone number from the call history to
store as a speed dial number.
Call History
PhonebookSelect a phone number from the phonebook to
store as a speed dial number.
Phone Number
Enter a phone number to store as a speed dial
number.
Dialed Calls
Received Calls
Missed Calls
Phonebook*2
Call History*2
Display the paired phones’s phonebook. (Existing entry list)
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 379 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

380
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
*1 : Appears only when a phone is connected to HFL.
Redial the last number dialed in the phone’s history.
Add New Device
Connect a Phone
Connect an Audio Device
Bluetooth SetupPhone Setup
Redial*1
Pair a phone to the system.
Connect a phone to the system.
Create a code for a paired phone.
Disconnect All Devices
Delete Device
Pass-key
Disconnect a paired phone from the system.
Delete a previously paired phone. Connect a Bluetooth® Audio device to the
system.
Dial
*1Enter a phone number to dial.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 380 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

381
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features
*1 : Appears only when a phone is connected to HFL.
Call History
Phonebook
Phone Number
Speed Dial*1
Select a phone number from the phonebook
to store as a speed dial number. Select a phone number from the call history
to store as a speed dial number.
Create a voice tag for a speed dial number.
Change Speed Dial
Delete Speed Dial
Store Voice Tag
Enter a phone number to store as a speed dial
number.
Delete a previously stored speed dial number.
Change Voice Tag
Delete Voice Tag
Change a previously stored speed dial
number.
Change a voice tag for a speed dial number.
Delete a voice tag for a speed dial number.
Add New
Existing entry list
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 381 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

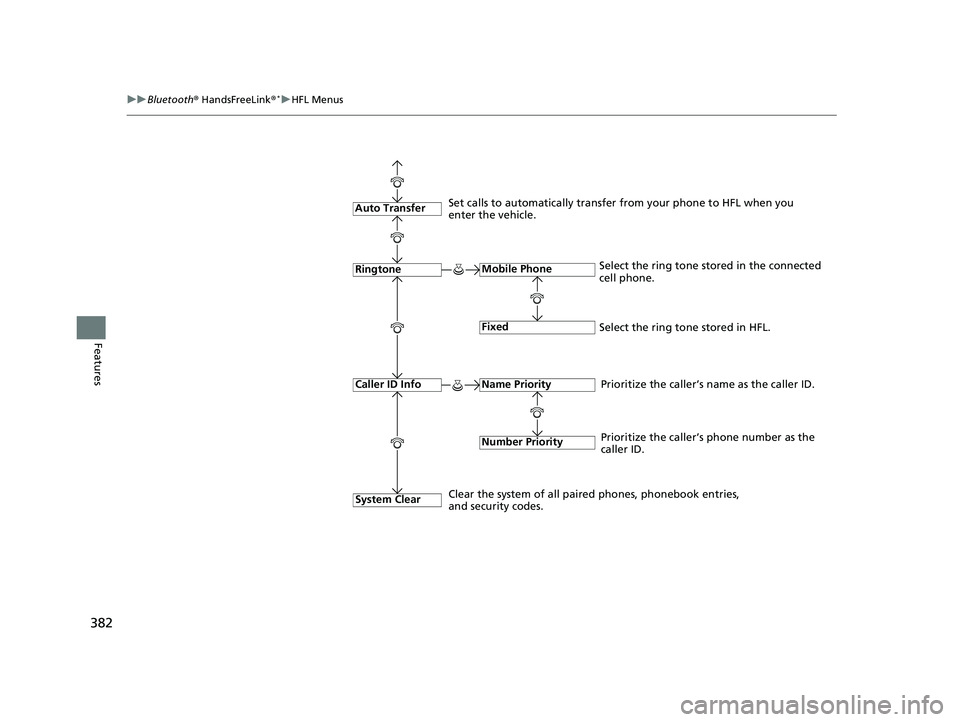

382
uuBluetooth ® HandsFreeLink ®*uHFL Menus
FeaturesFixed
Mobile Phone
System Clear
RingtoneSelect the ring tone stored in the connected
cell phone.
Name Priority
Number Priority
Caller ID InfoPrioritize the caller’s name as the caller ID.
Clear the system of all paired phones, phonebook entries,
and security codes. Prioritize the caller’s phone number as the
caller ID.
Select the ring tone stored in HFL.
Auto Transfer
Set calls to automatically transfer
from your phone to HFL when you
enter the vehicle.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 382 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

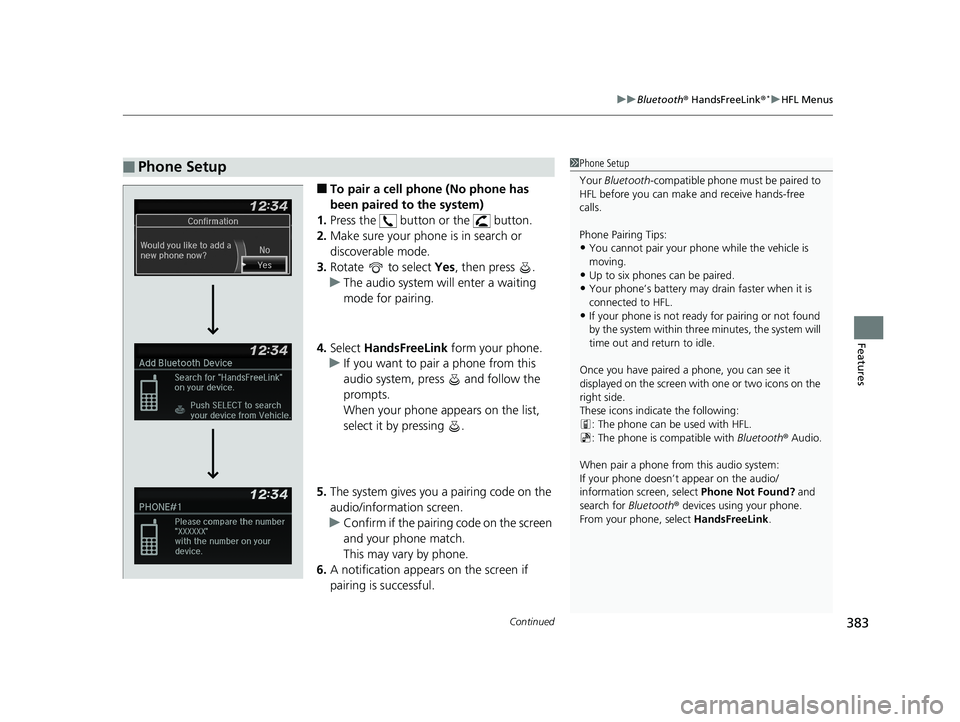

Continued383
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■To pair a cell phone (No phone has
been paired to the system)
1. Press the button or the button.
2. Make sure your phone is in search or
discoverable mode.
3. Rotate to select Yes, then press .
u The audio system will enter a waiting
mode for pairing.
4. Select HandsFreeLink form your phone.
u If you want to pair a phone from this
audio system, press and follow the
prompts.
When your phone appears on the list,
select it by pressing .
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.
6. A notification appears on the screen if
pairing is successful.
■Phone Setup1Phone Setup
Your Bluetooth -compatible phone must be paired to
HFL before you can make and receive hands-free
calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone’s battery may dr ain faster when it is
connected to HFL.
•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following: : The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.
When pair a phone from this audio system:
If your phone doesn’t appear on the audio/
information screen, select Phone Not Found? and
search for Bluetooth® devices using your phone.
From your phone, select HandsFreeLink .
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 383 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

384
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■To pair a cell phone (when a phone has
already been paired to the system)
1. Press the button or the button.
u If a prompt appears asking to connect to
a phone, select No and proceed with
step 2.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup, then
press .
4. Rotate to select Add New Device,
then press .
u The screen changes to device list.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 384 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

385
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features
5. Make sure your phone is in search or
discoverable mode, then press .
u HFL automatically searches for a
Bluetooth ® device.
6. When your phone appears on the list, select
it by pressing .
u If your phone does not appear, select
Phone Not Found? and search for
Bluetooth ® devices using your phone.
From your phone, select
HandsFreeLink .
7. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 385 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

386
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■To Change the currently paired phone
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup, then
press .
4. Rotate to select Connect a Phone,
then press .
u The screen changes to a device list.
5. Rotate to select a desired device name,
then press .
u HFL disconnects the connected phone
and starts searching for another paired
phone.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 386 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

387
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features
■To change the pairing code setting
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup , then
press .
4. Rotate to select Pass-Key, then press
.
5. Input a new pairing code, then press .
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 387 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

388
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■To delete a paired phone
1. Press the button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Bluetooth Setup, then
press .
4. Rotate to select Delete Device, then
press .
u The screen changes to a device list.
5. Rotate to select a phone you want to
delete, then press .
6. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 388 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
