navigation system HONDA CIVIC HATCHBACK 2020 Navigation Manual (in English)

65
uu Entering a Destination u Address
Navigation
H u u Address u Enter Postal Code
1.Enter
the postal code. Select
Done .
2. Select your
destination postal code
from the list.
3. Enter
the house number. Select
Done .
4. Enter the
street name. Select
Done .
5. Select your
destination street from
the list.
2 Calculating the Route P. 74
■Selecting the Postal Code1
Selecting the Postal Code
The order of the steps may change depending on the
map data loaded on your system.

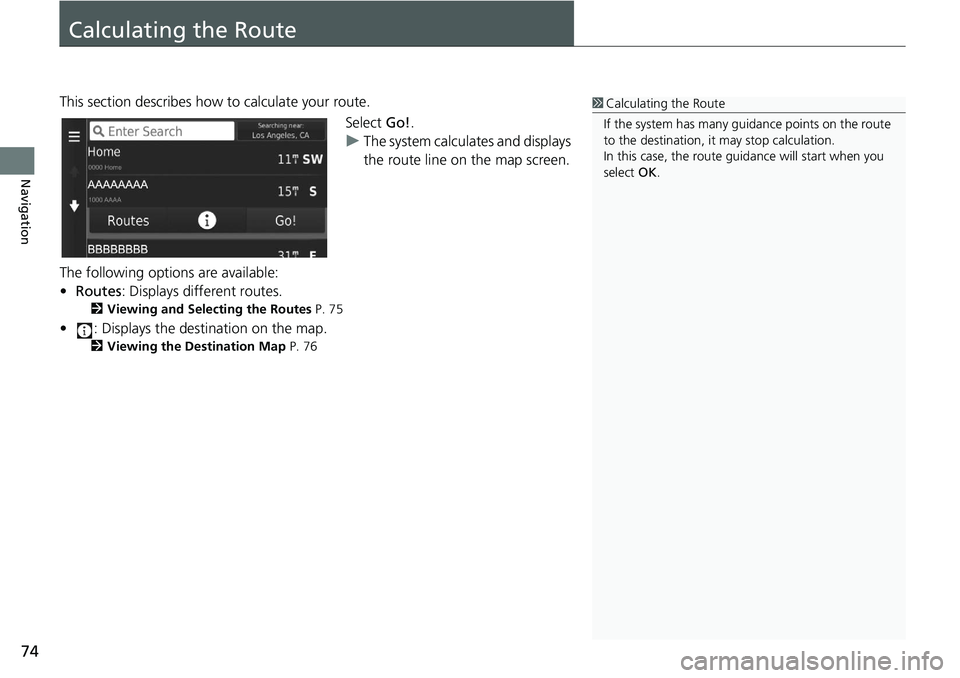

74
Navigation
Calculating the Route
This section describes how to calculate your route.Select Go!.
u The system
calculates and displays
the route line on the map screen.
The following options are available:
• Ro
utes : Displays different routes.
2 Viewing and Selecting the Routes P. 75
• : Displays the destination on the map.
2 Viewing the Destination Map P. 76
1 Calculating the Route
If the system has many guidance points on the route
to the destination, it may stop calculation.
In this case, the route guidance will start when you
select OK.

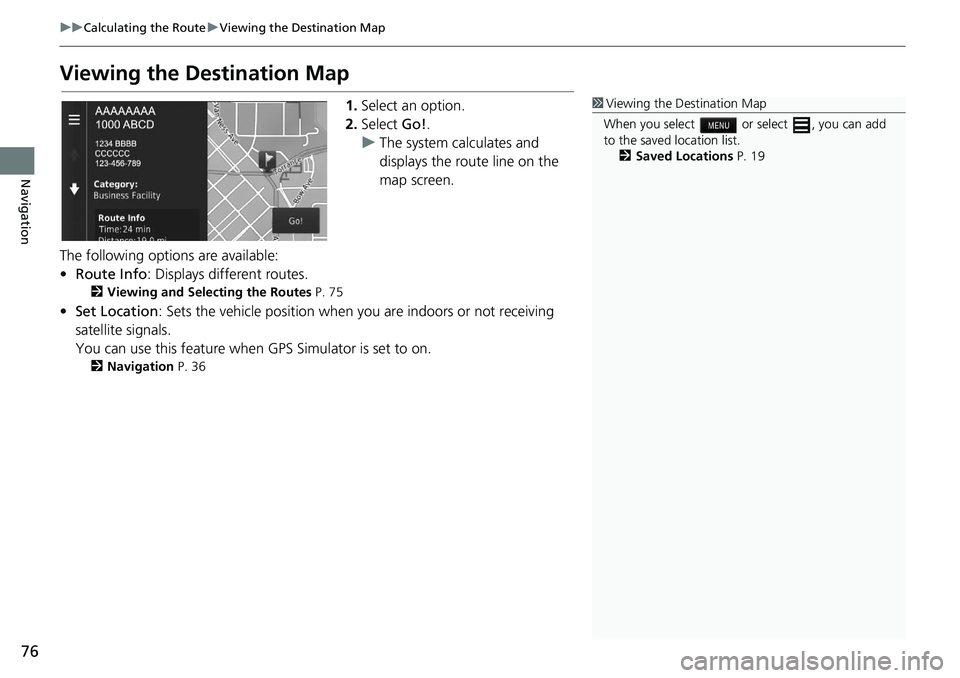

76
uu Calculating the Route u Viewing the Destination Map
Navigation
Viewing the Destination Map
1. Select an option.
2. Select Go!.
u The
system calculates and
displays the route line on the
map screen.
The following options are available:
• Ro
ute Info : Displays different routes.
2 Viewing and Selecting the Routes P. 75
• Set Location : Sets the vehicle position when you are indoors or not receiving
sa
tellite signals.
You can use this feature when GPS Sim
ulator is set to on.
2Navigation P. 36
1 Viewing the Destination Map
When you select or select , you can add
to the saved location list. 2 Saved Locations P. 19

77Continued
Navigation
Driving to Your Destination
Viewing the Route
This section describes how to follow the route guidance to your destination.After calculating the route to your
destination,
the route is displayed on
the map screen.
2 During Route Guidance P. 7
As you drive, the system tracks your
position on the map in real time and
provides guidance as you approach
each guidance point on the route.
The following options are available:
• Select the text bar on the top of the map to display
the turn list screen.
2Turn List P. 78
• Select the next guidance indicator to display the turn information screen or
intersection view screen.
2 Turn Information P. 79
• Select to cancel the route guidance and remove your current route.
2Canceling Your Route P. 10
• Select to display the map menu.
2Map Menu P. 82
• Select to display the parking informat ion screen of nearby parking.
■Map Screen
1
Viewing the Route
When your phone is connected to Bluetooth®
HandsFreeLink ®, the navigation screen will switch to
the incoming call screen when receiving a call.
Speed limit icon
The speed limit shown on th e map may be different
from the actual speed limit.
The speed limit icon is not displayed on all roads.
Select the vehicle icon to view the Where Am I?
screen.
2 Viewing the Current Location Information
P. 84
You can stop your vehicle en route (e.g., to rest, stop
for gas, etc.), and then continue on your route.
If you did not complete y our route, the navigation
restarts when you re start your vehicle.
When LaneWatch
* is activated, the navigation screen
will switch to the LaneWatch screen.
Next guidance indicator
Speed limit icon Dashboards
* Not available on all models

uu Driving to Your Destination u Viewing the Route
78
Navigation
• Select the map dashboards when you want to change the information that is
displayed. Select the following options:
Arrival Time , Distance , Time to Destination , Via Arrival , Distance to Via ,
Time to Via , Direction of Travel , Elevation.
The turn list screen displays turn-by-turn instr
uctions and the distance between
turns.
Select the text bar on the top of the
ma
p.
u Select a
turn to display the
detailed information.
2Turn Information P. 79
u Select or select to
display the entire route on the
ma
p.
2Entire Route P. 79
■Turn List
1
Viewing the Route
The next guidance indicator does not appear in the
following cases.
•The vehicle speed is 3 mph (4.8 km/h) or less
•The GPS signal is weak•The vehicle position on the map and current vehicle
position do not match
The system displays a roundabout to the next
guidance indicator in the following cases.
•Its diameter is 82 ft (25 m) or more•There is no road inside it
•There is no stop sign
Turn-by-Turn Directions
The next guidance point appears on the Driver
Information Interface (DII).
The Turn-by-Turn directions may not be displayed if
the information cannot be received correctly.

uu Driving to Your Destination u Viewing the Route

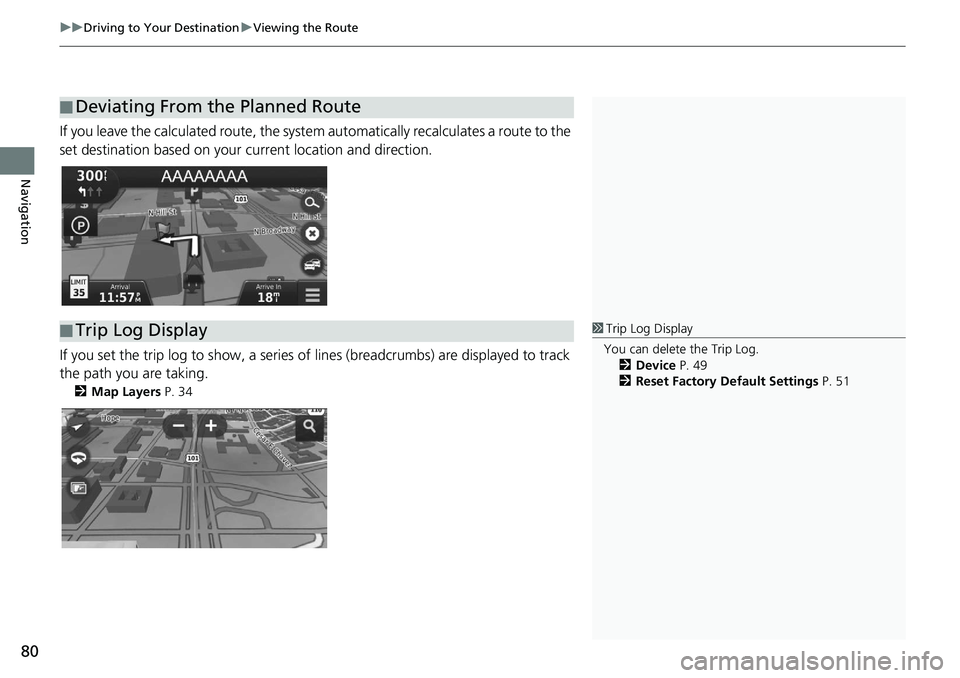

80
Navigation
If you leave the calculated route, the system automatically recalculates a route to the
set destination based on your current location and direction.
If you set the trip log to show, a series of lines (breadcrumbs) are displayed to track
the path you are taking.
2 Map Layers P. 34
■Deviating From the Planned Route
■Trip Log Display1
Trip Log Display
You can delete the Trip Log. 2 Device P. 49
2 Reset Factory Default Settings P. 51

82
uu Map Operation u Map Menu
Navigation
Map Menu
H u
Select an option.
The following options are available:
• Where To? : Enters a new destination.
2 Entering a Destination P. 54
• Traffic : Displays the traffic information screen.
2 Traffic Information P. 86
• Mute : Turns the voice prompts on or off.
• Stop : Cancels the route guidance an d
removes your current route.
• De
tour : Calculates a detour route.
2Taking a Detour P. 92
• Exit Services : Displays a list of the exit services for the route.
2 Viewing Exit Services P. 83
• Where Am I? : Displays the information ab out yo ur current location.
2Viewing the Current Lo cation Information P. 84
• Map Layers : Sets the data that appears on the map.
2 Map Layers P. 34
• ecoRouteTM: Uses the ecoRouteTM features.
2 ecoRouteTM P. 109
• Settings : Changes settings for navigation functions.
2 System Setup P. 15
1 Map Menu
You can also display the map menu by selecting
on the map screen.

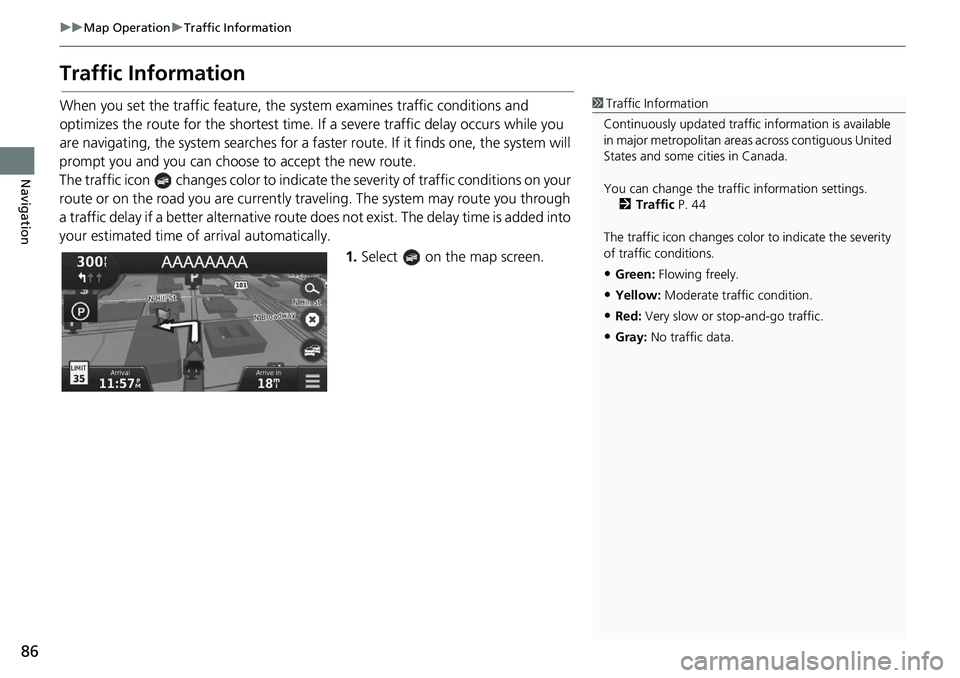

86
uu Map Operation u Traffic Information
Navigation
Traffic Information
When you set the traffic feature, the system examines traffic conditions and
optimizes the route for the shortest time. If a severe traffic delay occurs while you
are navigating, the system searches for a faster route. If it finds one, the system will
prompt you and you can choose to accept the new route.
The traffic icon changes color to indicate the seve rity of traffic conditions on your
route or on the road you are currently tra veling. The system may route you through
a t
raffic delay if a better alternative route do es not exist. The delay time is added into
your estimated time of arrival automatically.
1.Select on the map screen.
1Traffic Information
Continuously updated traffic information is available
in major metropolitan area s across contiguous United
States and some ci ties in Canada.
You can change the traffic information settings. 2 Traffic P. 44
The traffic icon changes color to indicate the severity
of traffic conditions.
•Green: Flowing freely.
•Yellow: Moderate traf fic condition.
•Red: Very slow or st op-and-go traffic.
•Gray: No traffic data.

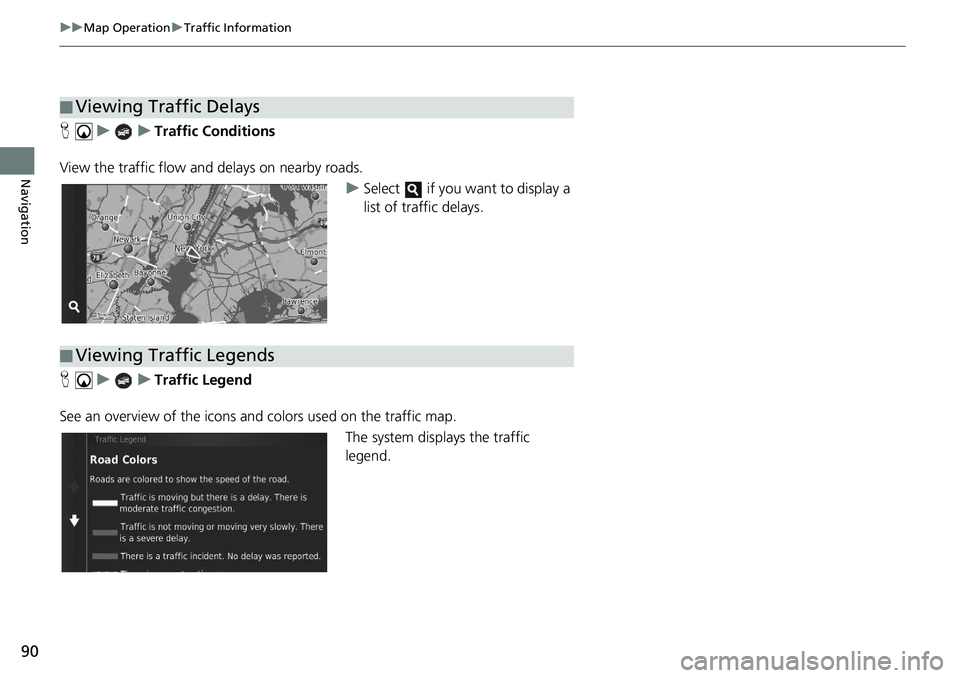

90
uu Map Operation u Traffic Information
Navigation
H u u Traffic Conditions
View the traffic flow a nd del
ays on nearby roads.
uSelect if you want to display a
list of traffic delays.
H u u Traffic Legend
See an overview of the icons
and colors used on the traffic map.
The system displays the traffic
legend
.
■Viewing Traffic Delays
■Viewing Traffic Legends

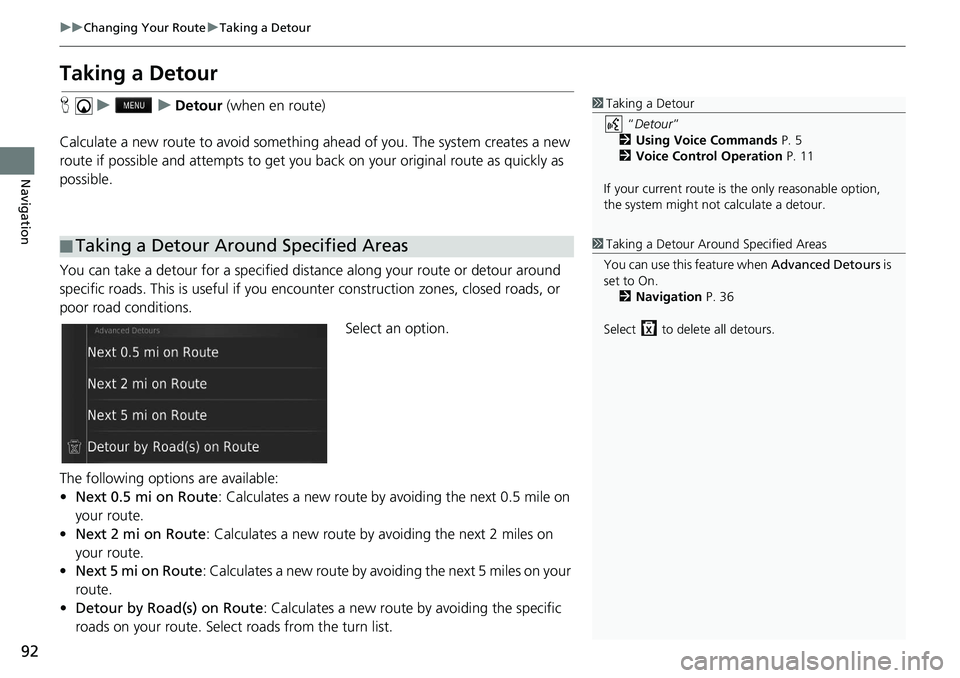

92
uu Changing Your Route u Taking a Detour
Navigation
Taking a Detour
H u u Detour (when en route)
Calculate a new route to avoid something ahead
of you. The system creates a new
route if possible and attempts to get you back on your original route as quickly as
possible.
You can take a detour for a specified distan ce
along your route or detour around
specific roads. This is useful if you enco unter construction zones, closed roads, or
poor road conditions.
Select an option.
The following options are available:
• Ne
xt 0.5 mi on Route : Calculates a new route by avoiding the next 0.5 mile on
y
our route.
• Ne
xt 2 mi on Route : Calculates a new route by avoiding the next 2 miles on
y
our route.
• Ne
xt 5 mi on Route : Calculates a new route by avoiding the next 5 miles on your
route.
• Detour by
Road(s) on Route : Calculates a new route by avoiding the specific
roads on your route. Select roads from the turn list.
■Taking a Detour Around Specified Areas
1
Taking a Detour
“Detour ”
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
If your current route is the only reasonable option,
the system might not calculate a detour.
1 Taking a Detour Ar ound Specified Areas
You can use this feature when Advanced Detours is
set to On. 2 Navigation P. 36
Select to delete all detours.
