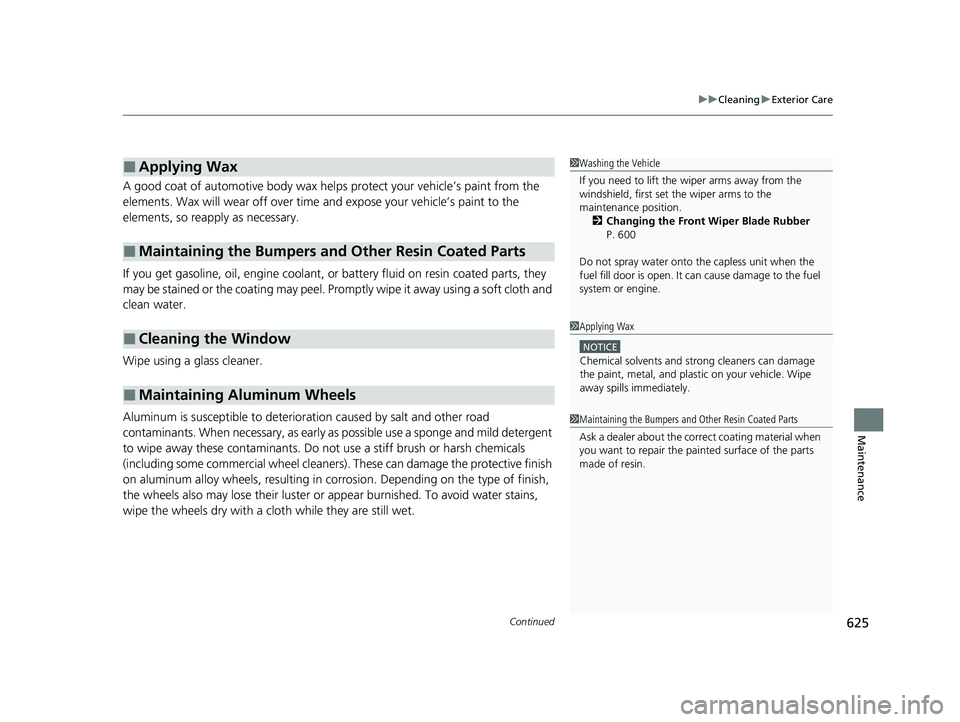

Continued625
uuCleaning uExterior Care
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Washing the Vehicle
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position.
2 Changing the Front Wiper Blade Rubber
P. 600
Do not spray water onto the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
1 Applying Wax
NOTICE
Chemical solvents and strong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the pa inted surface of the parts
made of resin.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 625 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

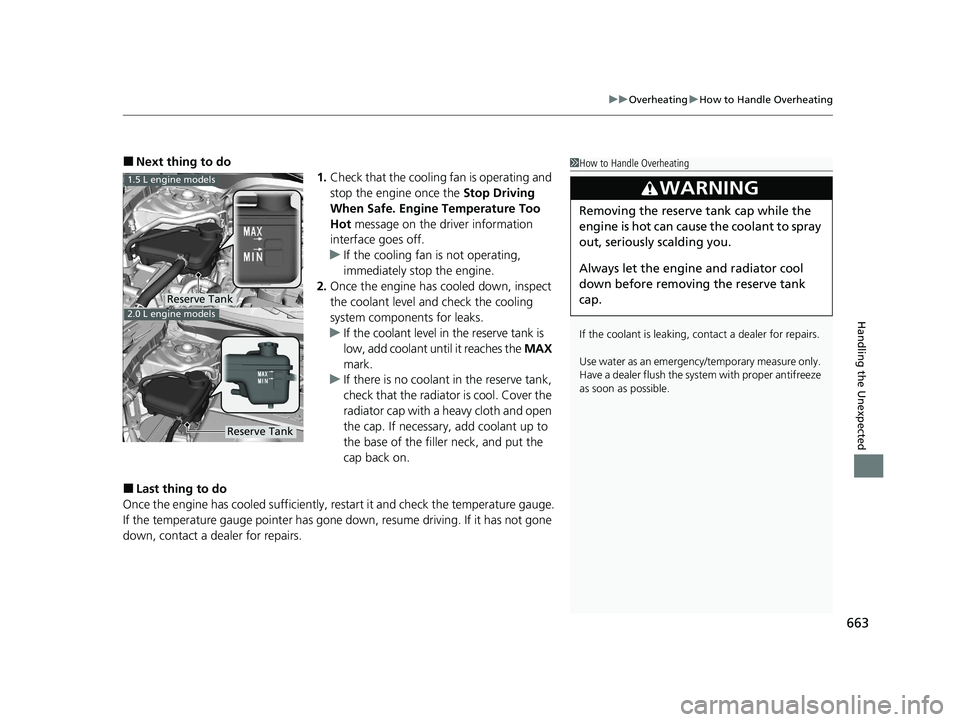

663
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the Stop Driving
When Safe. Engine Temperature Too
Hot message on the driver information
interface goes off.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the MAX
mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge pointer has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergen cy/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the reserve tank
cap.
Reserve Tank
1.5 L engine models
2.0 L engine models
Reserve Tank
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 663 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

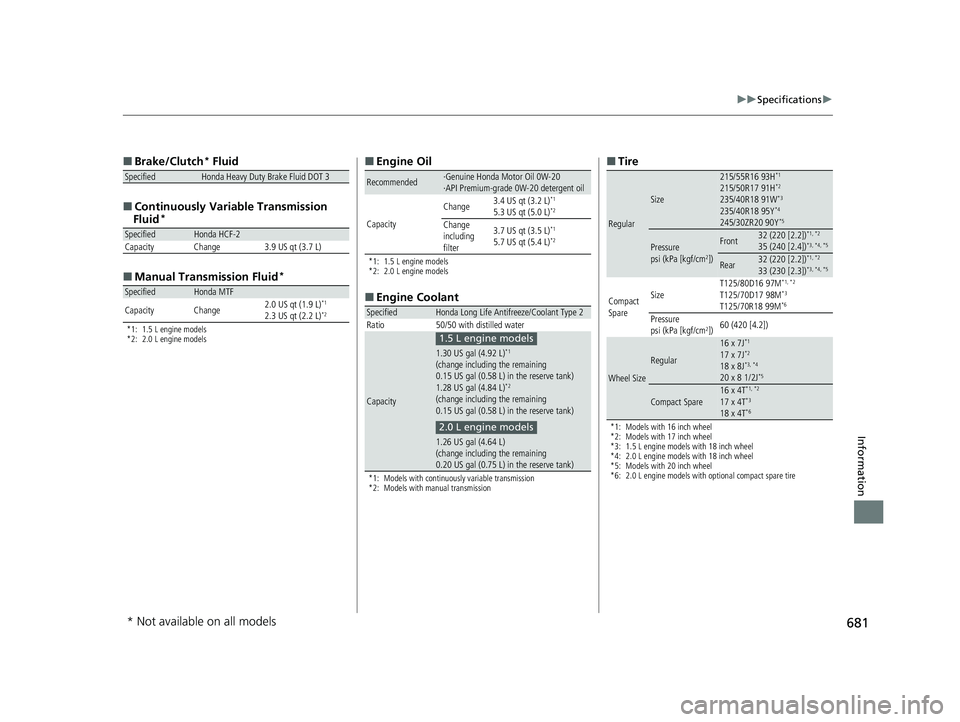

681
uuSpecifications u
Information
■
Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■ Manual Transmi ssion Fluid*
*1: 1.5 L engine models
*2: 2.0 L engine models
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.9 US qt (3.7 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)*1
2.3 US qt (2.2 L)*2
■
Engine Oil
*1: 1.5 L engine models
*2: 2.0 L engine models
■Engine Coolant
*1: Models with continuously variable transmission
*2: Models with manual transmission
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change
3.4 US qt (3.2 L)
*1
5.3 US qt (5.0 L)*2
Change
including
filter3.7 US qt (3.5 L)*1
5.7 US qt (5.4 L)*2
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity
1.30 US gal (4.92 L)*1
(change including the remaining
0.15 US gal (0.58 L) in the reserve tank)
1.28 US gal (4.84 L)
*2
(change including the remaining
0.15 US gal (0.58 L) in the reserve tank)
1.26 US gal (4.64 L)
(change including the remaining
0.20 US gal (0.75 L) in the reserve tank)
1.5 L engine models
2.0 L engine models
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: 1.5 L engine models with 18 inch wheel
*4: 2.0 L engine models with 18 inch wheel
*5: Models with 20 inch wheel
*6: 2.0 L engine models with optional compact spare tire
Regular
Size
215/55R16 93H*1
215/50R17 91H*2
235/40R18 91W*3
235/40R18 95Y*4
245/30ZR20 90Y*5
Pressure
psi (kPa [kgf/cm2])
Front32 (220 [2.2])*1, *2
35 (240 [2.4])*3, *4, *5
Rear32 (220 [2.2])*1, *2
33 (230 [2.3])*3, *4, *5
Compact
Spare Size
T125/80D16 97M
*1, *2
T125/70D17 98M*3
T125/70R18 99M*6
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel Size
Regular
16 x 7J*1
17 x 7J*2
18 x 8J*3, *4
20 x 8 1/2J*5
Compact Spare16 x 4T*1, *2
17 x 4T*3
18 x 4T*6
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 681 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

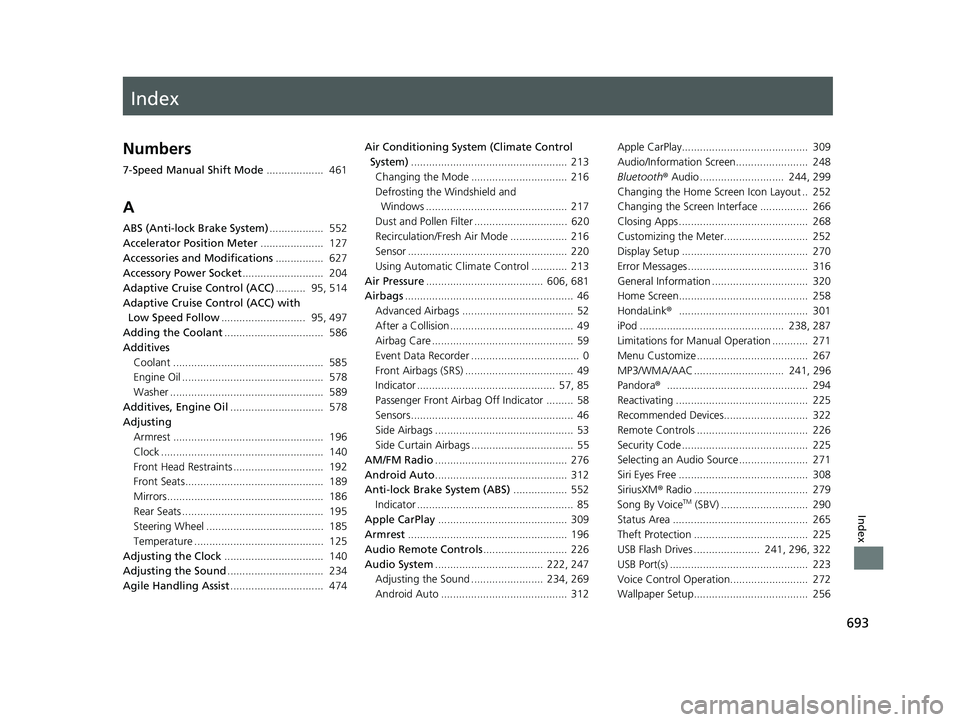

Index
693
Index
Index
Numbers
7-Speed Manual Shift Mode................... 461
A
ABS (Anti-lock Brake System) .................. 552
Accelerator Position Meter ..................... 127
Accessories and Modifications ................ 627
Accessory Power Socket ........................... 204
Adaptive Cruise Control (ACC) .......... 95, 514
Adaptive Cruise Control (ACC) with Low Speed Follow ............................ 95, 497
Adding the Coolant ................................. 586
Additives Coolant .................................................. 585
Engine Oil ............................................... 578
Washer ................................................... 589
Additives, Engine Oil ............................... 578
Adjusting Armrest .................................................. 196
Clock ...................................................... 140
Front Head Restraints .............................. 192
Front Seats.............................................. 189
Mirrors.................................................... 186
Rear Seats ............................................... 195
Steering Wheel ....................................... 185
Temperature ........................................... 125
Adjusting the Clock ................................. 140
Adjusting the Sound ................................ 234
Agile Handling Assist ............................... 474 Air Conditioning System (Climate Control
System) .................................................... 213
Changing the Mode ................................ 216
Defrosting the Windshield and Windows ............................................... 217
Dust and Pollen Filter ............................... 620
Recirculation/Fresh Air Mode ................... 216
Sensor ..................................................... 220
Using Automatic Climate Control ............ 213
Air Pressure ....................................... 606, 681
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 85
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio ............................................ 276
Android Auto ............................................ 312
Anti-lock Brake System (ABS) .................. 552
Indicator .................................................... 85
Apple CarPlay ........................................... 309
Armrest ..................................................... 196
Audio Remote Controls ............................ 226
Audio System .................................... 222, 247
Adjusting the Sound ........................ 234, 269
Android Auto .......................................... 312 Apple CarPlay.......................................... 309
Audio/Information Screen........................ 248
Bluetooth
® Audio ............................ 244, 299
Changing the Home Screen Icon Layout .. 252
Changing the Screen Interface ................ 266
Closing Apps ........................................... 268
Customizing the Meter............................ 252
Display Setup .......................................... 270
Error Messages ........................................ 316
General Information ................................ 320
Home Screen........................................... 258
HondaLink ®........................................... 301
iPod ................................................ 238, 287
Limitations for Manual Operation ............ 271
Menu Customize ..................................... 267
MP3/WMA/AAC .............................. 241, 296
Pandora ®............................................... 294
Reactivating ............................................ 225
Recommended Devices............................ 322
Remote Controls ..................................... 226
Security Code .......................................... 225
Selecting an Audio Source ....................... 271
Siri Eyes Free ........................................... 308
SiriusXM ® Radio ...................................... 279
Song By Voice
TM (SBV) ............................. 290
Status Area ............................................. 265
Theft Protection ...................................... 225
USB Flash Drives ...................... 241, 296, 322
USB Port(s) .............................................. 223
Voice Control Operation.......................... 272
Wallpaper Setup...................................... 256
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 693 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

695
Index
Continuously Variable TransmissionCreeping................................................. 456
Fluid ....................................................... 587
Kickdown ............................................... 456
Operating the Shift Lever .................. 22, 458
Shift Lever Does Not Move ...................... 661
Shifting ................................................... 457
Controls .................................................... 139
Coolant (Engine) ...................................... 585
Adding the Coolant ................................ 586
Overheating ............................................ 662
Creeping (Continuously Variable Transmission) .......................................... 456
Cup Holders .............................................. 201
Customer Service Information ................ 691
Customized Features ....................... 130, 346
D
Daytime Running Lights .......................... 176
Dead Battery ............................................ 658
Defaulting All the Settings ...................... 375
Defrosting the Windshield and Windows ................................................. 217
Devices that Emit Radio Waves ............... 683
Dimming Headlights .............................................. 173
Rearview Mirror ...................................... 186
Dipstick (Engine Oil) ................................ 579
Directional Signals (Turn Signal) ............. 172
Display Button .......................................... 248 Display Setup
............................................ 235
Display/Information Button ..................... 121
Door Mirrors ............................................. 188
Doors ......................................................... 141
Auto Door Locking .................................. 155
Auto Door Unlocking ............................... 155
Keys ........................................................ 141
Locking/Unlocking the Doors from the
Inside..................................................... 152
Locking/Unlocking the Doors from the Outside.................................................. 143
DOT Tire Quality Grading ........................ 608
Drive Mode Switch ................................... 469
Driver Information Interface ................... 120
Driving ....................................................... 439
Braking .................................................... 545
Continuously Variable Transmission ......... 456
Shifting Gear ........................................... 464
Shifting Position ...................................... 457
Starting the Engine .......................... 447, 450
Dust and Pollen Filter ............................... 620
E
Eco Assist System.......................................... 9
ECON Mode .............................................. 468
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System ........ 85
Indicator ............................................ 85, 668
Electronic Stability Control (ESC) ............. 471
Emergency ................................................ 675 Emergency Engine Stop
........................... 657
Emissions Testing (Readiness Codes) ....... 685
Engine Coolant ................................................... 585
Jump Starting .......................................... 658
Oil ........................................................... 578
Starting ........................................... 447, 450
Switch Buzzer.......................................... 167
Engine Coolant ......................................... 585
Adding the Coolant................................. 586
Overheating ............................................ 662
Temperature Gauge ................................ 118
Engine Oil ................................................. 578
Adding .................................................... 581
Checking................................................. 579
Displaying Oil Life .................................... 570
Low Oil Pressure Indicator ................. 80, 664
Recommended Engine Oil ....................... 578
ENGINE START/STOP Button .................... 168
EPS (Electric Power Steering) System ...... 668
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 624
Exterior Mirrors ........................................ 188F
Features.................................................... 221
Filters Dust and Pollen ....................................... 620
Oil ........................................................... 582
Flat Tire ..................................................... 631
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 695 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

696
Index
Floor Mats................................................. 622
Fluids
Brake/Clutch ............................................ 588
Continuously Variable Transmission ......... 587
Engine Coolant ........................................ 585
Manual Transmission ............................... 587
Windshield Washer .................................. 589
FM/AM Radio .................................... 236, 276
Fog Light Indicator ..................................... 89
Folding Down the Rear Seats ................... 195
Foot Brake ................................................. 548
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 192
Front Seat Heaters .................................... 211
Front Seats ................................................ 189
Adjusting ................................................. 189
Front Sensor Camera ................................ 542
Fuel ...................................................... 24, 558
Fuel Economy and CO
2 Emissions............. 562
Gauge ..................................................... 118
Instant Fuel Economy ............................... 125
Low Fuel Indicator ..................................... 84
Range ...................................................... 124
Recommendation .................................... 558
Refueling ................................................. 558
Fuel Economy and CO
2 Emissions ............ 562
Fuel Fill Door ....................................... 24, 560
Unable to Unlock ..................................... 676
Fuses .......................................................... 670
Inspecting and Changing ......................... 674
Locations ......................................... 670, 672
G
Gasoline (Fuel)
Economy ................................................. 562
Gauge ..................................................... 118
Information ............................................. 558
Instant Fuel Economy .............................. 125
Low Fuel Indicator ..................................... 84
Refueling................................................. 558
Gauges ...................................................... 118
Gear Shift Lever Positions Continuously Variable Transmission ......... 457
Manual Transmission ............................... 464
Glass (care) ........................................ 622, 625
Glove Box .................................................. 199
G-Meter ..................................................... 127
H
Halogen Bulbs .................................. 590, 593
Handling the Unexpected ........................ 629
HandsFreeLink ® (HFL) ....................... 379, 406
Automatic Import of Cellular Phonebook
and Call History ..................................... 419
Displaying Messages................................ 433
HFL Buttons..................................... 379, 406
HFL Menus ...................................... 382, 409
HFL Status Display ........................... 381, 408
In Case of Emergency .............................. 437
Limitations for Manual Operation .... 381, 408
Making a Call .................................. 400, 427
Options During a Call ...................... 405, 430 Phone Setup ................................... 386, 414
Phonebook Phonetic M
odification........... 423
Receiving a Call............................... 404, 430
Receiving a Text Message/E-mail ............. 431
Ring Tone ............................................... 418
Selecting a Text/E-mail Message Account ................................................ 432
Speed Dial ...................................... 396, 420
To Set Up Text Message/E-mail Options .. 417
Hatch ........................................................ 156
Light Bulb ............................................... 680
Release Lever .......................................... 677
Unable to Open ...................................... 677
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 276
Headlights ................................................ 173
Aiming.................................................... 590
Auto High-Beam System ......................... 177
Automatic Operation .............................. 174
Dimming......................................... 173, 176
Operating ............................................... 173
Heaters (Front Seat) ................................. 211
Heaters (Rear Seat) .................................. 212
HFL (HandsFreeLink ®) ...................... 379, 406
High Beam Indicator .................................. 88
Hill Start Assist System ..................... 449, 454
HomeLink ® Universal Transceiver ........... 376
Honda App License Agreement .............. 323
Honda Sensing ®................................ 25, 484
HondaLink ®............................................ 301
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 696 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

698
Index
Load Limits................................................ 443
Locking/Unlocking .................................... 141
Auto Door Locking/Unlocking .................. 155
Childproof Door Locks ............................. 154
From Inside .............................................. 152
From Outside ........................................... 143
Keys ........................................................ 141
Using a Key ............................................. 150
Low Battery Charge .................................. 664
Low Fuel Indicator ...................................... 84
Low Oil Pressure Indicator ................. 80, 664
Low Smart Entry Remote Signal Strength ................................................... 142
Lower Anchors ............................................ 65
Luggage (Maximum Load Limit) .............. 443
M
Maintenance............................................. 565
Adding the Coolant ................................. 586
Battery..................................................... 616
Brake/Clutch Fluid.................................... 588
Cleaning .................................................. 621
Climate Control System ........................... 620
Coolant ................................................... 585
Maintenance Minder
TM............................ 569
Oil ........................................................... 579
Precautions .............................................. 566
Remote Transmitter ................................. 618
Replacing Light Bulbs ............................... 590
Safety ...................................................... 567 Service Items ........................................... 572
Tires ........................................................ 605
Transmission Fluid ................................... 587
Under the Hood ...................................... 575
Malfunction Indicator Lamp .............. 81, 665
Manual Transmission ............................... 464
Map Lights ................................................ 198
Maximum Load Limit ............................... 443
Meters, Gauges ......................................... 118
Mirrors ...................................................... 186
Adjusting ................................................ 186
Door ....................................................... 188
Exterior ................................................... 188
Interior Rearview ..................................... 186
Modifications (and Accessories) .............. 627
Moonroof ................................................. 166
MP3 ................................................... 241, 296
Multi-View Rear Camera .......................... 556
N
Numbers (Identification).......................... 682
O
Odometer................................................. 123
Oil (Engine) ............................................... 578
Adding .................................................... 581
Checking................................................. 579
Displaying Oil Life .................................... 570
Low Oil Pressure Indicator ................. 80, 664 Recommended Engine Oil ....................... 578
Viscosity.................................................. 578
Open Source Licences .............................. 337
Opening Hatch...................................................... 677
Opening/Closing Hatch...................................................... 156
Hood ...................................................... 577
Moonroof ............................................... 166
Power Windows...................................... 163
Outside Temperature Display ................. 125
Overheating ............................................. 662
P
Paddle Shifters (7-Speed Manual
Shift Mode) ............................... 23, 461, 462
Pandora® ................................................. 294
Panic Mode ............................................... 162
Parking ..................................................... 554
Parking Brake ........................................... 545
Parking Brake and Brake System Indicator (Amber) ..................................... 79
Parking Brake and Brake System
Indicator (Red) .......................... 78, 666, 667
Passenger Front Airbag Off Indicator ....... 58
Passing Indicators ..................................... 173
Playing Bluetooth ® Audio ............... 244, 299
Power Windows ....................................... 163
Precautions While Driving ....................... 455
Rain ........................................................ 455
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 698 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
