Page 201 of 704
199
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

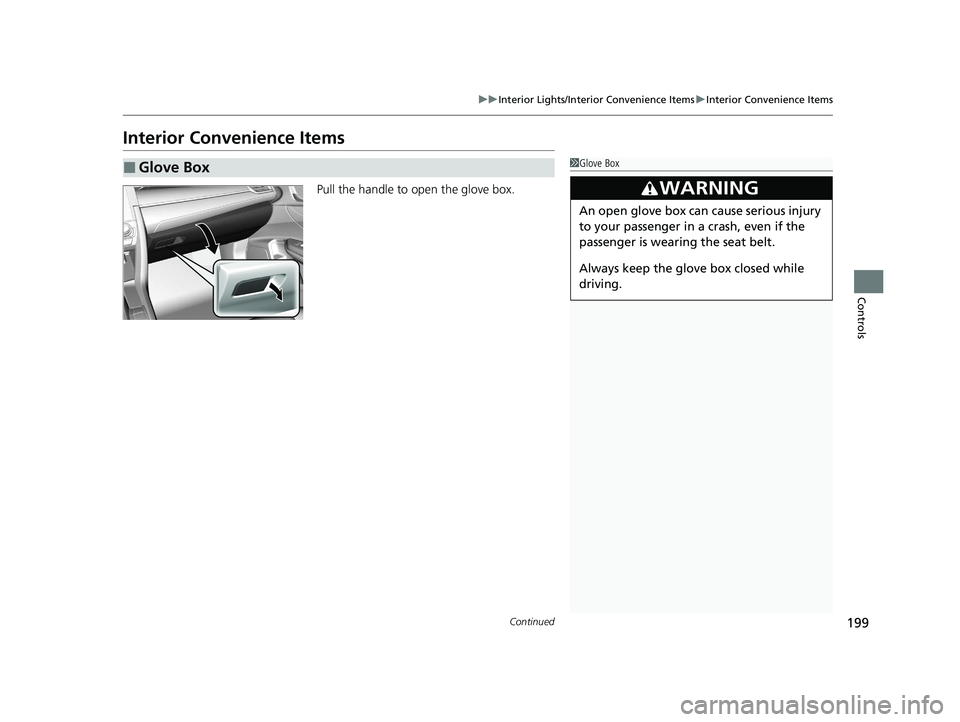

Interior Convenience Items
Pull the handle to open the glove box.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 199 ページ 2019年11月11日 月曜日 午後2時50分
Page 202 of 704
200
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

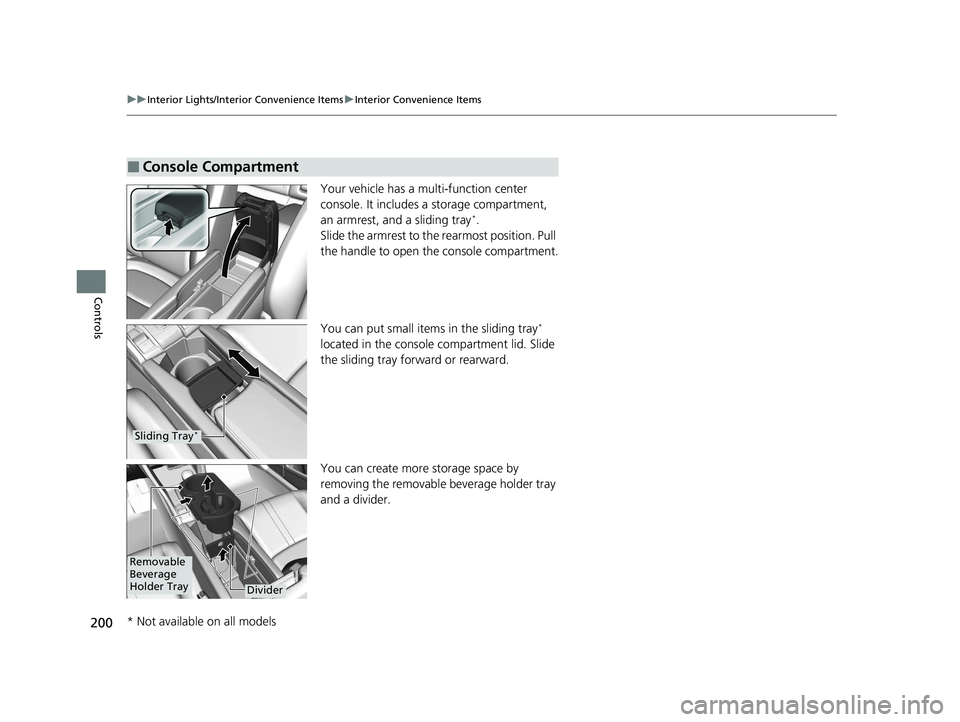

Your vehicle has a multi-function center
console. It includes a storage compartment,
an armrest, and a sliding tray
*.
Slide the armrest to the rearmost position. Pull
the handle to open th e console compartment.
You can put small items in the sliding tray
*
located in the console compartment lid. Slide
the sliding tray forward or rearward.
You can create more storage space by
removing the removable beverage holder tray
and a divider.
■Console Compartment
Sliding Tray*
Removable
Beverage
Holder Tray
Divider
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 200 ページ 2019年11月11日 月曜日 午後2時50分
Page 203 of 704
Continued201
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

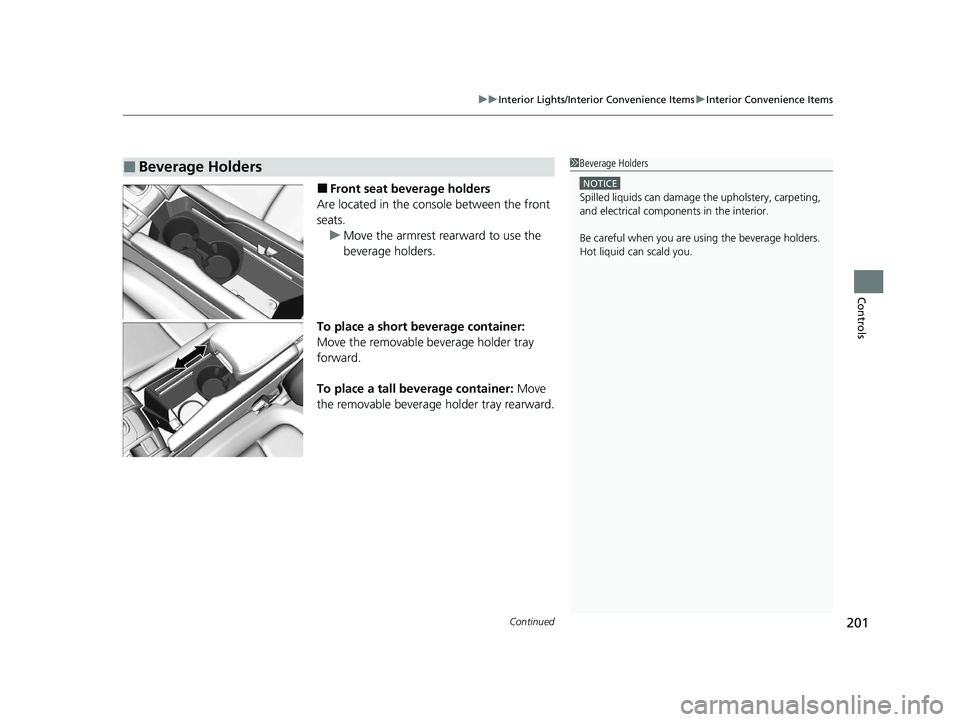

■Front seat beverage holders
Are located in the console between the front
seats. u Move the armrest rearward to use the
beverage holders.
To place a short beverage container:
Move the removable beverage holder tray
forward.
To place a tall beverage container: Move
the removable beverage holder tray rearward.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 201 ページ 2019年11月11日 月曜日 午後2時50分
Page 204 of 704
202
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

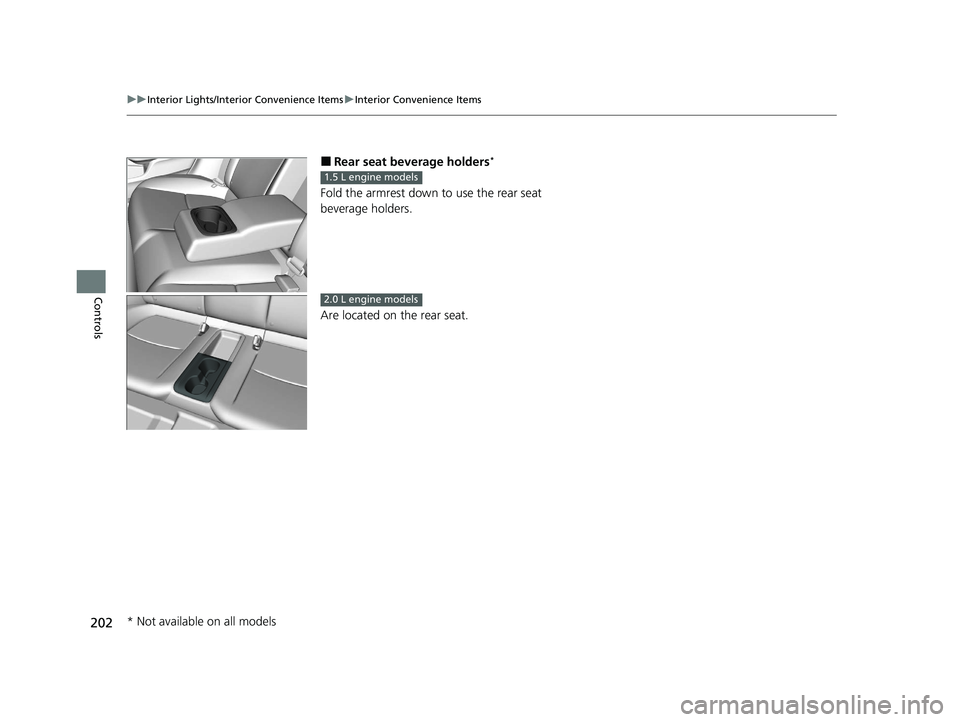

■Rear seat beverage holders*
Fold the armrest down to use the rear seat
beverage holders.
Are located on the rear seat.
1.5 L engine models
2.0 L engine models
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 202 ページ 2019年11月11日 月曜日 午後2時50分
Page 205 of 704
203
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

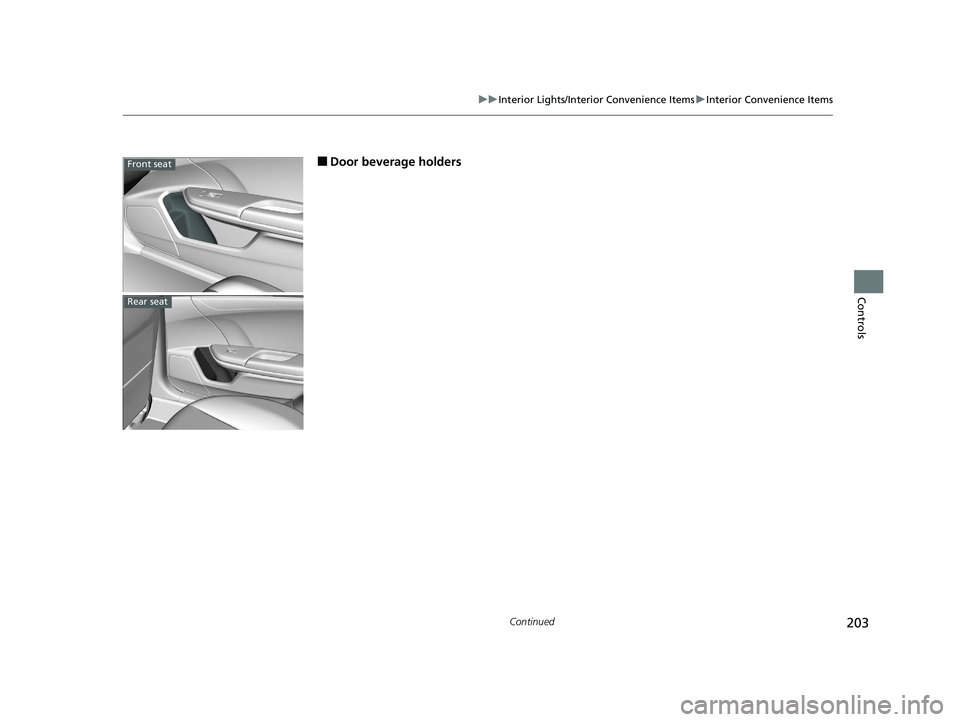

■Door beverage holdersFront seat
Rear seat
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 203 ページ 2019年11月11日 月曜日 午後2時50分
Page 206 of 704
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
204
Controls

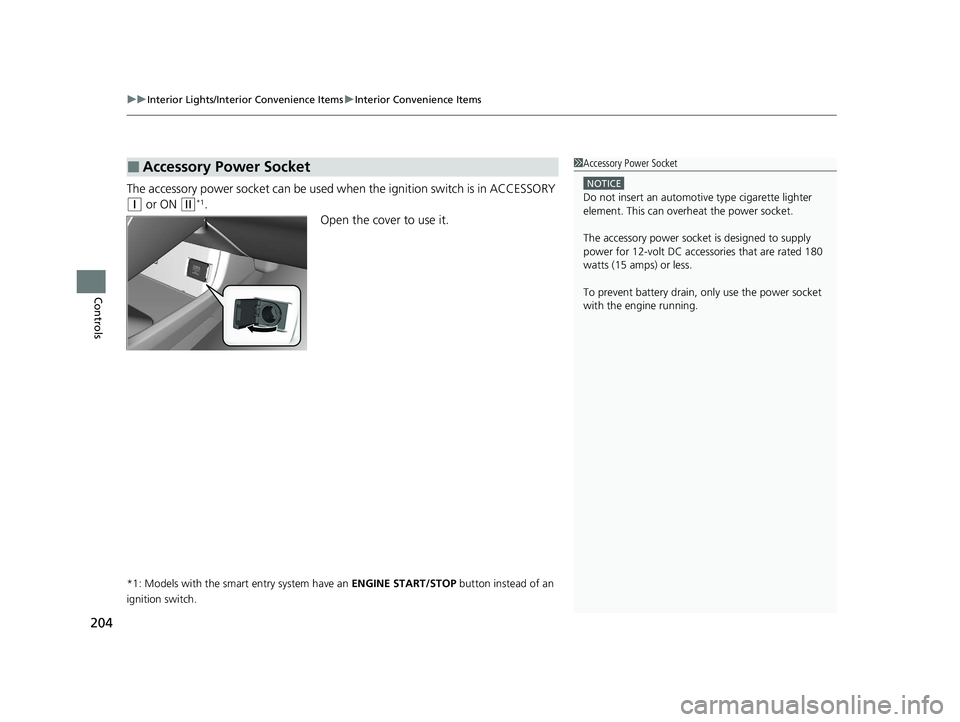

The accessory power socket can be used wh en the ignition switch is in ACCESSORY
(q or ON (w*1.
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 204 ページ 2019年11月11日 月曜日 午後2時50分
Page 207 of 704

Continued205
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To use the wireless charger, the powe r mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. To turn the system on and off, press and
hold the (power) button.
u When the system is activated, the green
indicator light comes on.
2. Place the device you want to charge on the
charging area.
u The system will au tomatically start
charging the device, and the amber
indicator light will come on.
u Make sure that the device is compatible
with the system, and placed with the
chargeable side in the center of the
charging area.
3. When charging is co mpleted, the green
indicator light will come on.
u Depending on the device, the amber
indicator light will stay on.
■Wireless Charger*
Canadian models
1Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s
manual that came with th e compatible device you
want to charge.
3CAUTION
Metal objects between the charge pad and
the device to be charged will get hot and
can burn you.
• Always remove foreign objects from the
charge pad before charging the device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol, benzine
or thinner for cleaning the charge pad.
• Do not cover the system with towels,
clothing, or other objects while charging
etc.
• Avoid spraying aerosols which may come
in contact with the charge pad surface.
Green Indicator
Amber Indicator
Charging Area (Power) Button
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 205 ページ 2019年11月11日
月曜日 午後2時50分
Page 208 of 704
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
206
Controls

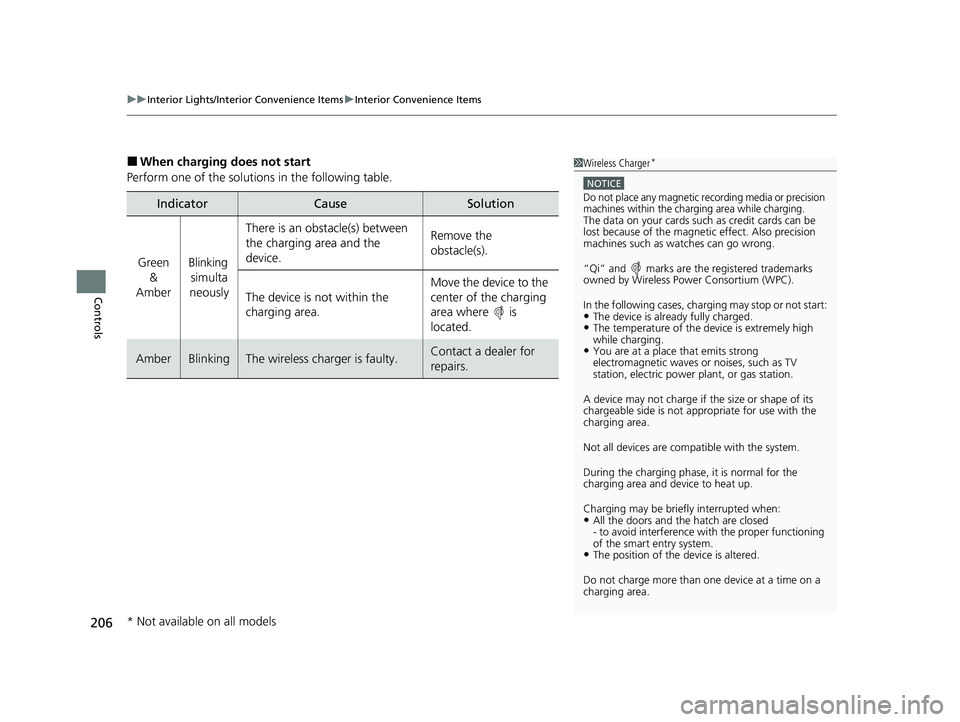

■When charging does not start
Perform one of the solution s in the following table.
IndicatorCauseSolution
Green
&
AmberBlinking simulta
neously
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where is
located.
AmberBlinkingThe wireless charger is faulty.Contact a dealer for
repairs.
1
Wireless Charger*
NOTICE
Do not place any magnetic recording media or precision
machines within the charging area while charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watches can go wrong.
Page 209 of 704
Continued207
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

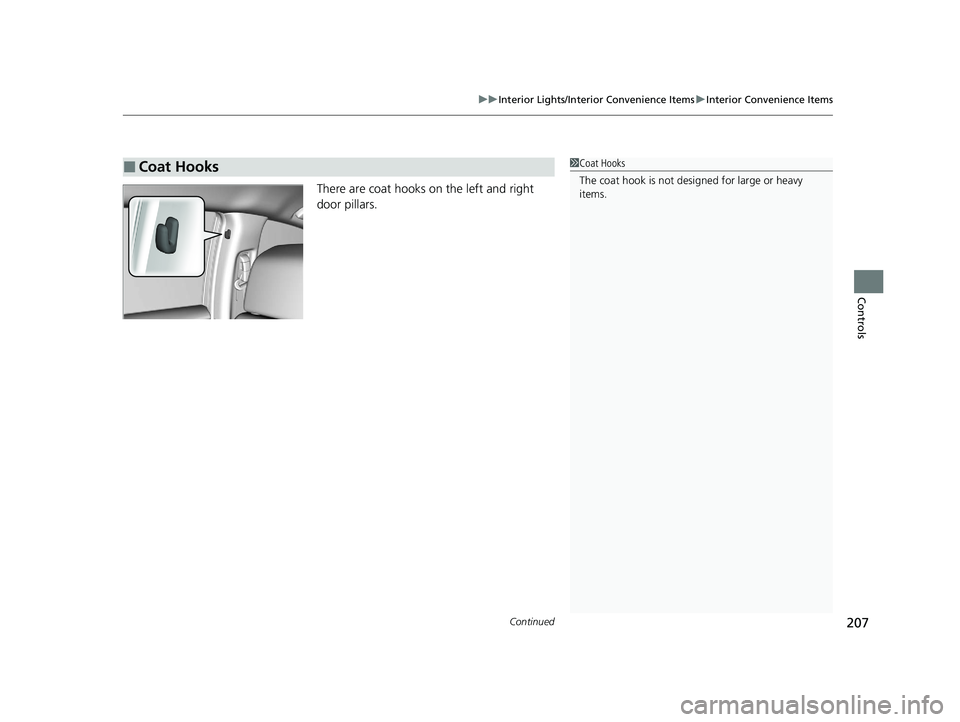

There are coat hooks on the left and right
door pillars.
■Coat Hooks1Coat Hooks
The coat hook is not desi gned for large or heavy
items.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 207 ページ 2019年11月11日 月曜日 午後2時50分
Page 210 of 704
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
208
Controls

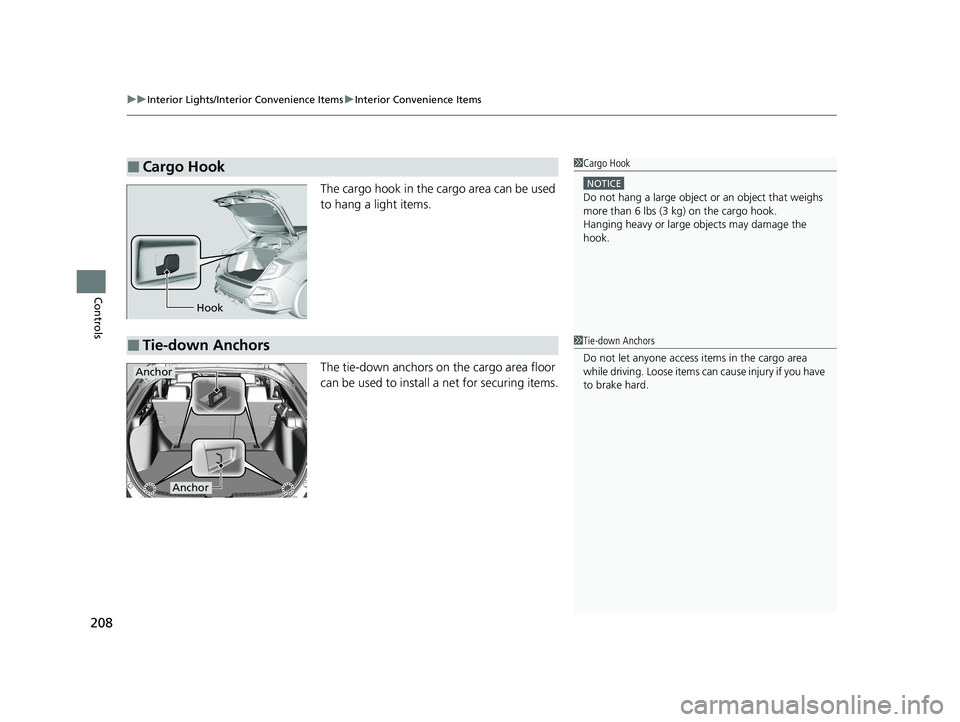

The cargo hook in the cargo area can be used
to hang a light items.
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Cargo Hook1Cargo Hook
NOTICE
Do not hang a large object or an object that weighs
more than 6 lbs (3 kg) on the cargo hook.
Hanging heavy or large objects may damage the
hook.
Hook
■Tie-down Anchors1 Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.
Anchor
Anchor
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 208 ページ 2019年11月11日 月曜日 午後2時50分
