sensor HONDA CIVIC HATCHBACK 2020 (in English) Workshop Manual

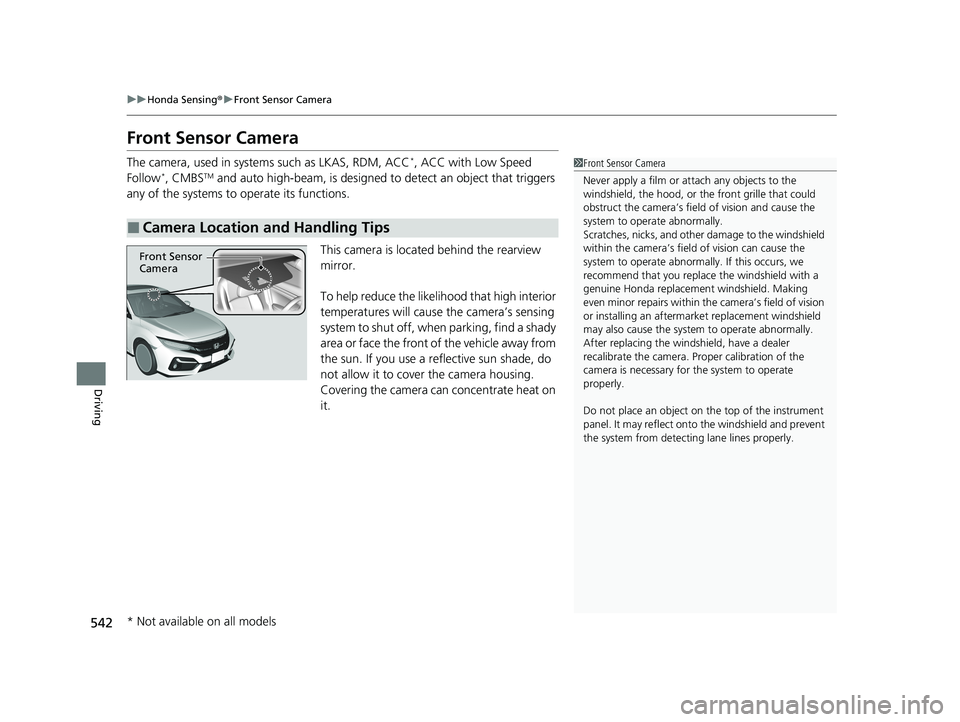

542
uuHonda Sensing ®u Front Sensor Camera
Driving
Front Sensor Camera
The camera, used in system s such as LKAS, RDM, ACC*, ACC with Low Speed
Follow*, CMBSTM and auto high-beam, is designed to detect an object that triggers
any of the systems to operate its functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1 Front Sensor Camera
Never apply a film or attach any objects to the
windshield, the hood, or th e front grille that could
obstruct the camera’s fiel d of vision and cause the
system to operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Honda replacem ent windshield. Making
even minor repairs within th e camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Sensor
Camera
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 542 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

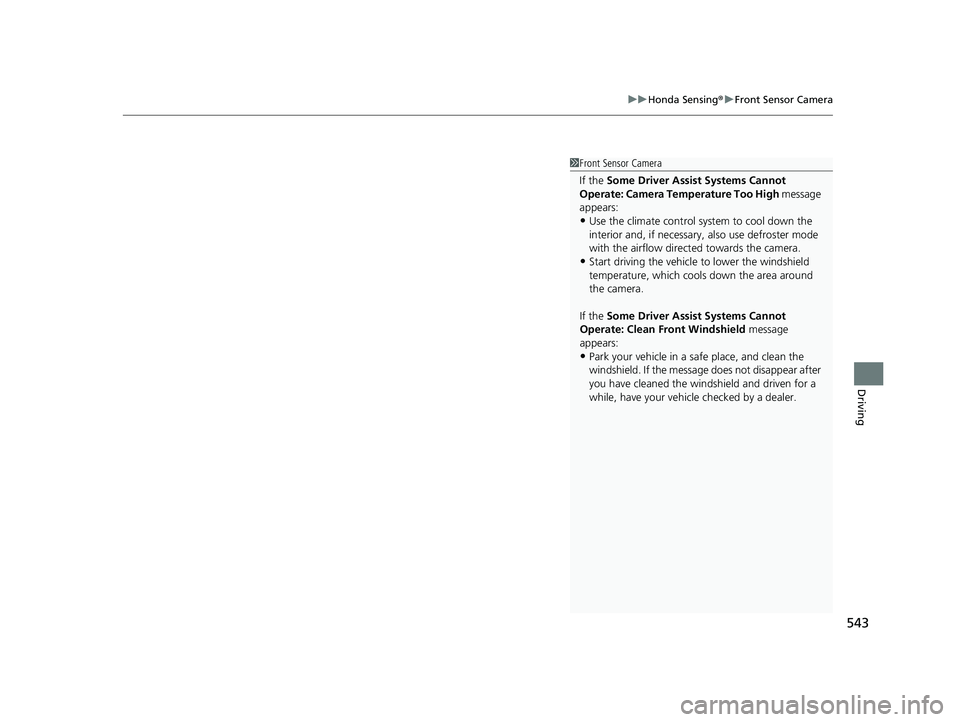

543
uuHonda Sensing ®u Front Sensor Camera
Driving
1Front Sensor Camera
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 543 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

544
uuHonda Sensing ®u Radar Sensor
Driving
Radar Sensor
The radar sensor is at the lower part of the
front bumper.1Radar Sensor
Avoid strong impacts to the radar sensor cover.
For the CMBS
TM to work properly:
•Always keep the radar sensor cover clean.•Never use chemical solvents or polishing powder
for cleaning the sensor cove r. Clean it with water
or a mild detergent.
•Do not put a sticker on th e radar sensor cover or
replace the radar sensor cover.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the syst em by using the safety
support switch and take y our vehicle to a dealer.
2 CMBS
TM On and Off P. 491
If the vehicle is involved in any of the following
situations, the radar sensor may not work properly.
Have your vehicle checked by a dealer:
•Your vehicle is involved in a frontal collision•Your vehicle drives th rough deep water or is
submerged in deep water
•Your vehicle strongly strikes a bump, curb, chock,
or embankment that co uld jar the radar sensor
Radar
Sensor
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 544 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

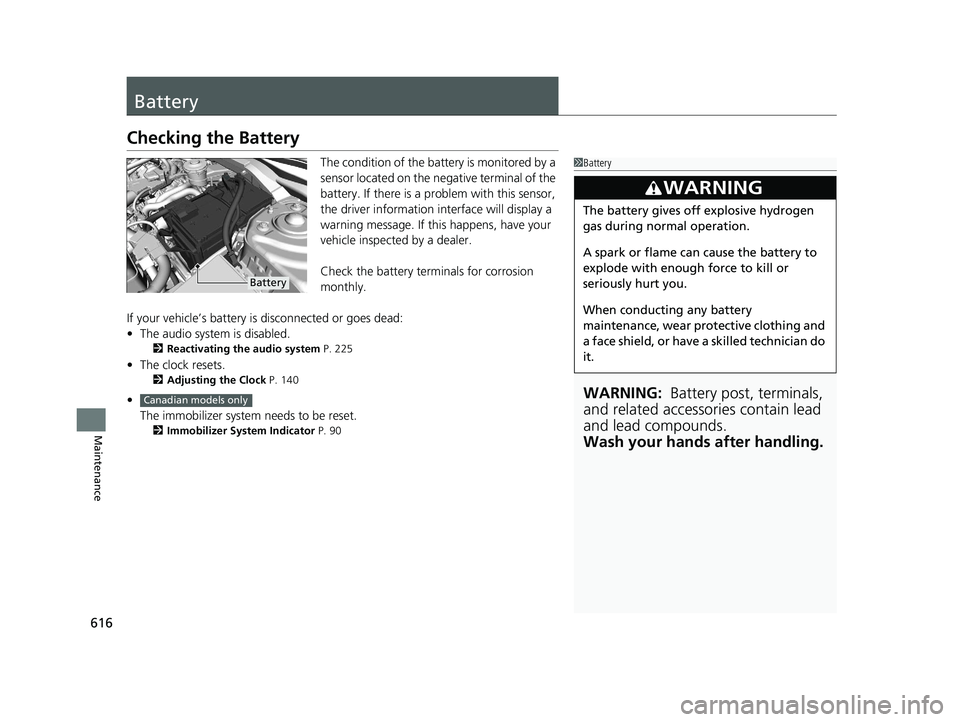

616
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information in terface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 225
•The clock resets.
2 Adjusting the Clock P. 140
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 90
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Battery
Canadian models only
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 616 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

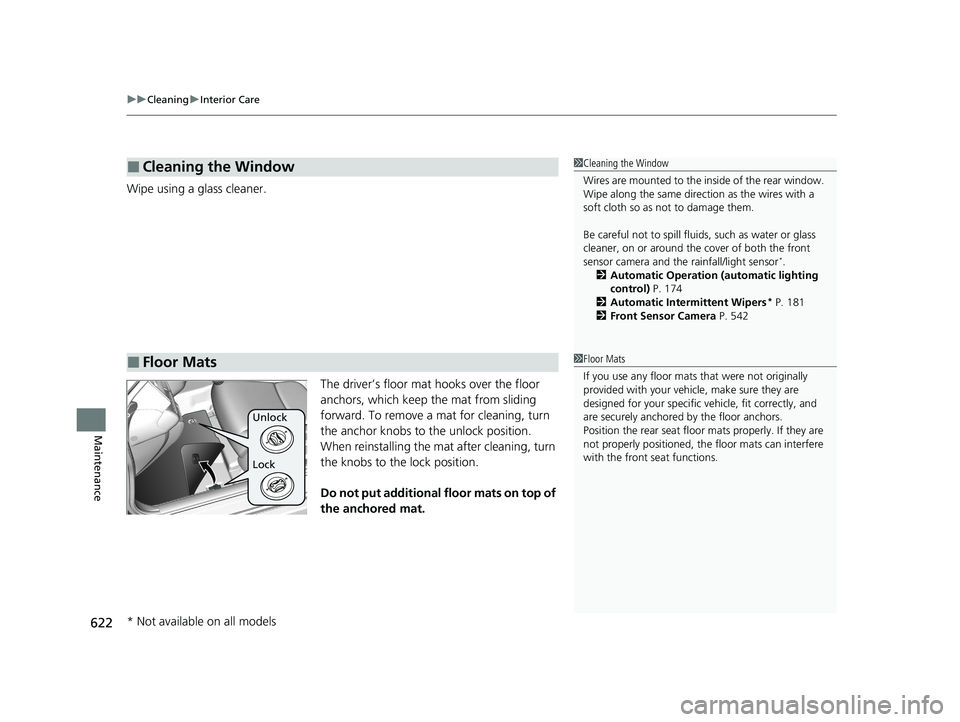

uuCleaning uInterior Care
622
Maintenance
Wipe using a glass cleaner.
The driver’s floor mat hooks over the floor
anchors, which keep the mat from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.
■Cleaning the Window
■Floor Mats
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
2 Automatic Operation (automatic lighting
control) P. 174
2 Automatic Intermittent Wipers
* P. 181
2 Front Sensor Camera P. 542
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
Lock Unlock
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 622 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

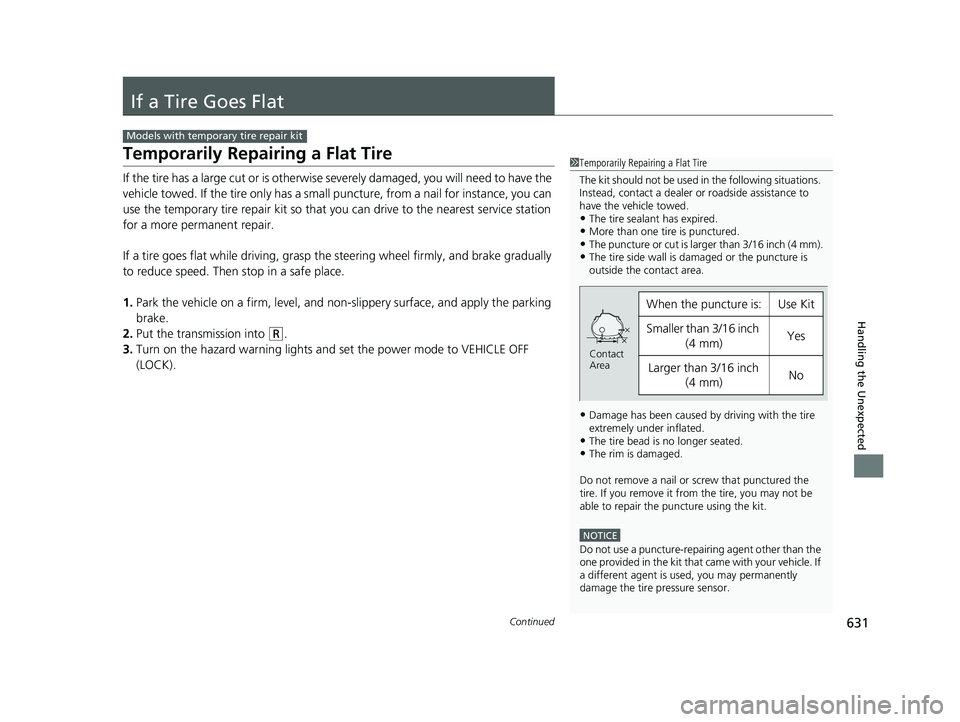

631Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface, and apply the parking
brake.
2. Put the transmission into
(R.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Models with temporary tire repair kit
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Use Kit
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 631 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

673
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor(10 A)
4Front Sensor Camera*1, *
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A*4
20 A*5
9AIRCON10 A
10−−
11Engine Control*45A
12Passenger’s Side Door Lock10 A
13Driver’s Side Rear Door Unlock10 A
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2, *(10 A)(5 A)
18−−
19Moonroof(20 A)
20−−
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
29Front Accessory Power
Socket20 A
30 Smart Entry
*1(10 A)
STS*2(5 A)
31Driver’s Power Seat Reclining*(20 A)
32 Front Seat Heater
*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35SRS10 A
36 − −
37Option(10 A)
38 Driver’s Side Rear Door
Lock 10 A
39Driver’s Door Unlock(10 A)
Circuit ProtectedAmps
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 673 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

Index
693
Index
Index
Numbers
7-Speed Manual Shift Mode................... 461
A
ABS (Anti-lock Brake System) .................. 552
Accelerator Position Meter ..................... 127
Accessories and Modifications ................ 627
Accessory Power Socket ........................... 204
Adaptive Cruise Control (ACC) .......... 95, 514
Adaptive Cruise Control (ACC) with Low Speed Follow ............................ 95, 497
Adding the Coolant ................................. 586
Additives Coolant .................................................. 585
Engine Oil ............................................... 578
Washer ................................................... 589
Additives, Engine Oil ............................... 578
Adjusting Armrest .................................................. 196
Clock ...................................................... 140
Front Head Restraints .............................. 192
Front Seats.............................................. 189
Mirrors.................................................... 186
Rear Seats ............................................... 195
Steering Wheel ....................................... 185
Temperature ........................................... 125
Adjusting the Clock ................................. 140
Adjusting the Sound ................................ 234
Agile Handling Assist ............................... 474 Air Conditioning System (Climate Control
System) .................................................... 213
Changing the Mode ................................ 216
Defrosting the Windshield and Windows ............................................... 217
Dust and Pollen Filter ............................... 620
Recirculation/Fresh Air Mode ................... 216
Sensor ..................................................... 220
Using Automatic Climate Control ............ 213
Air Pressure ....................................... 606, 681
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 85
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio ............................................ 276
Android Auto ............................................ 312
Anti-lock Brake System (ABS) .................. 552
Indicator .................................................... 85
Apple CarPlay ........................................... 309
Armrest ..................................................... 196
Audio Remote Controls ............................ 226
Audio System .................................... 222, 247
Adjusting the Sound ........................ 234, 269
Android Auto .......................................... 312 Apple CarPlay.......................................... 309
Audio/Information Screen........................ 248
Bluetooth
® Audio ............................ 244, 299
Changing the Home Screen Icon Layout .. 252
Changing the Screen Interface ................ 266
Closing Apps ........................................... 268
Customizing the Meter............................ 252
Display Setup .......................................... 270
Error Messages ........................................ 316
General Information ................................ 320
Home Screen........................................... 258
HondaLink ®........................................... 301
iPod ................................................ 238, 287
Limitations for Manual Operation ............ 271
Menu Customize ..................................... 267
MP3/WMA/AAC .............................. 241, 296
Pandora ®............................................... 294
Reactivating ............................................ 225
Recommended Devices............................ 322
Remote Controls ..................................... 226
Security Code .......................................... 225
Selecting an Audio Source ....................... 271
Siri Eyes Free ........................................... 308
SiriusXM ® Radio ...................................... 279
Song By Voice
TM (SBV) ............................. 290
Status Area ............................................. 265
Theft Protection ...................................... 225
USB Flash Drives ...................... 241, 296, 322
USB Port(s) .............................................. 223
Voice Control Operation.......................... 272
Wallpaper Setup...................................... 256
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 693 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

694
Index
Wi-Fi Connection ..................................... 306
Audio/Information Screen ................ 230, 248
Authorized Manuals ................................. 690
Auto Door Locking/Unlocking ................. 155
Customize ............................................... 136
Auto High-Beam ....................................... 177
Automatic Brake Hold .............................. 549
Indicator ............................................ 80, 549
Automatic Brake Hold System Indicator ............................................ 80, 549
Automatic Lighting .................................. 174
Average Fuel Economy ............................. 124
Average Speed .......................................... 124
B
Battery....................................................... 616
Charging System Indicator ................. 81, 664
Jump Starting .......................................... 658
Maintenance (Checking the Battery) ........ 616
Maintenance (Replacing).......................... 618
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 201
Bluetooth ® Audio ..................................... 299
Bluetooth ® HandsFreeLink ®........... 379, 406
Booster Seats (For Children) ....................... 73
Brake System ............................................. 545
Anti-lock Brake System (ABS) ................... 552
Automatic Brake Hold.............................. 549
Brake Assist System ................................. 553
Fluid ........................................................ 588 Foot Brake............................................... 548
Indicator (Red) ........................... 78, 666, 667
Parking Brake .......................................... 545
Braking Pressure Meter ............................ 127
Brightness Control (Instrument Panel).... 183
Bulb Replacement .................................... 590
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 598
Fog Lights ............................................... 592
Front Side Marker Lights.......................... 595
Front Turn Signal Lights ........................... 594
Headlights ............................................... 590
High-Mount Brake Light .......................... 599
Parking/Daytime Running Lights .............. 597
Rear License Plate Light ........................... 599
Side Turn Signal/Emergency Indicator Lights .................................................... 597
Taillights.................................................. 599
Taillights/Rear Side Marker Lights ............ 599
Bulb Specifications ................................... 680
C
Carbon Monoxide Gas ............................... 74
Cargo Area Cover ..................................... 209
Cargo Hook ............................................... 208
Carrying Cargo ................................. 441, 443
Certification Label .................................... 682
Changing Bulbs ........................................ 590
Charging System Indicator ................. 81, 664Child Safety
................................................ 60
Childproof Door Locks ............................ 154
Child Seat ................................................... 60
Booster Seats ............................................ 73
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 69
Childproof Door Locks ............................. 154
Cleaning the Exterior ............................... 624
Cleaning the Interior ............................... 621
Climate Control System ........................... 213
Changing the Mode................................ 213
Defrosting the Windshield and Windows .............................................. 217
Dust and Pollen Filter .............................. 620
Recirculation/Fresh Air Mode................... 216
Sensors ................................................... 220
Using Automatic Climate Control............ 213
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 487
Coat Hooks ............................................... 207
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 487
Compact Spare Tire .......................... 644, 681
Console Compartment ............................. 200
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 694 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

696
Index
Floor Mats................................................. 622
Fluids
Brake/Clutch ............................................ 588
Continuously Variable Transmission ......... 587
Engine Coolant ........................................ 585
Manual Transmission ............................... 587
Windshield Washer .................................. 589
FM/AM Radio .................................... 236, 276
Fog Light Indicator ..................................... 89
Folding Down the Rear Seats ................... 195
Foot Brake ................................................. 548
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 192
Front Seat Heaters .................................... 211
Front Seats ................................................ 189
Adjusting ................................................. 189
Front Sensor Camera ................................ 542
Fuel ...................................................... 24, 558
Fuel Economy and CO
2 Emissions............. 562
Gauge ..................................................... 118
Instant Fuel Economy ............................... 125
Low Fuel Indicator ..................................... 84
Range ...................................................... 124
Recommendation .................................... 558
Refueling ................................................. 558
Fuel Economy and CO
2 Emissions ............ 562
Fuel Fill Door ....................................... 24, 560
Unable to Unlock ..................................... 676
Fuses .......................................................... 670
Inspecting and Changing ......................... 674
Locations ......................................... 670, 672
G
Gasoline (Fuel)
Economy ................................................. 562
Gauge ..................................................... 118
Information ............................................. 558
Instant Fuel Economy .............................. 125
Low Fuel Indicator ..................................... 84
Refueling................................................. 558
Gauges ...................................................... 118
Gear Shift Lever Positions Continuously Variable Transmission ......... 457
Manual Transmission ............................... 464
Glass (care) ........................................ 622, 625
Glove Box .................................................. 199
G-Meter ..................................................... 127
H
Halogen Bulbs .................................. 590, 593
Handling the Unexpected ........................ 629
HandsFreeLink ® (HFL) ....................... 379, 406
Automatic Import of Cellular Phonebook
and Call History ..................................... 419
Displaying Messages................................ 433
HFL Buttons..................................... 379, 406
HFL Menus ...................................... 382, 409
HFL Status Display ........................... 381, 408
In Case of Emergency .............................. 437
Limitations for Manual Operation .... 381, 408
Making a Call .................................. 400, 427
Options During a Call ...................... 405, 430 Phone Setup ................................... 386, 414
Phonebook Phonetic M
odification........... 423
Receiving a Call............................... 404, 430
Receiving a Text Message/E-mail ............. 431
Ring Tone ............................................... 418
Selecting a Text/E-mail Message Account ................................................ 432
Speed Dial ...................................... 396, 420
To Set Up Text Message/E-mail Options .. 417
Hatch ........................................................ 156
Light Bulb ............................................... 680
Release Lever .......................................... 677
Unable to Open ...................................... 677
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 276
Headlights ................................................ 173
Aiming.................................................... 590
Auto High-Beam System ......................... 177
Automatic Operation .............................. 174
Dimming......................................... 173, 176
Operating ............................................... 173
Heaters (Front Seat) ................................. 211
Heaters (Rear Seat) .................................. 212
HFL (HandsFreeLink ®) ...................... 379, 406
High Beam Indicator .................................. 88
Hill Start Assist System ..................... 449, 454
HomeLink ® Universal Transceiver ........... 376
Honda App License Agreement .............. 323
Honda Sensing ®................................ 25, 484
HondaLink ®............................................ 301
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 696 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
