heater HONDA CIVIC HATCHBACK 2020 Owner's Manual (in English)

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Ignition Switch* (P167)
❚ENGINE START/STOP Button*1 (P168)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Pre-instal led on U.S. models only.
❚System Indicators (P78)
❚Gauges (P118)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P491)
❚ (Vehicle Stability Assist ® (VSA ®)
System OFF) Button
(P472)
❚Road Departure Mitigation (RDM)
Button
(P539)
❚Navigation System*
() See the Navigation System Manual
❚Audio System (P229, 247)
❚Hazard Warning Button
❚Rear Defogger (P184)
❚Heated Door Mirror Button* (P184)
❚Climate Control System (P213)
❚Front Seat Heater Buttons* (P211)
❚Steering Wheel Adjustments (P185)
❚Driver Information Interface (P120)
❚USB Extension Cable*2 (P223)
❚USB Port (P223)
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 4 ページ ２０１９年１１月１１日　月曜日　午後２時５０分

Continued211
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The ignition switch must be in ON (w*1 to use
the seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Front Seat Heaters*1 Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 211 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

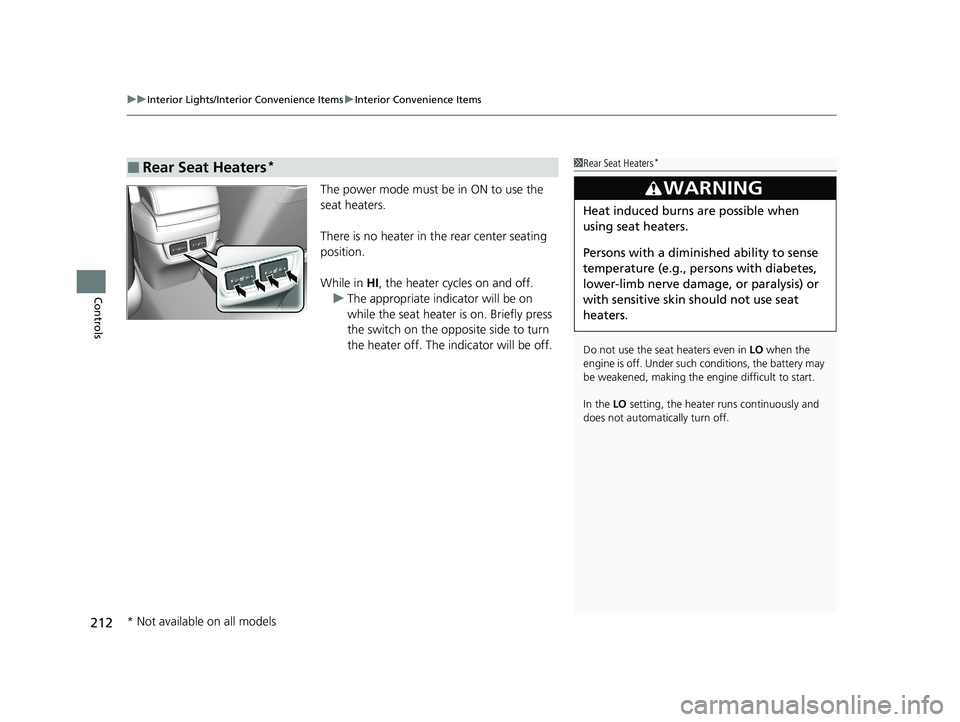

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
212
Controls
The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
While in HI, the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly press
the switch on the opposite side to turn
the heater off. The indicator will be off.
■Rear Seat Heaters*1Rear Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 212 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

447Continued
Driving
When Driving
Starting the Engine
1.Make sure the parkin g brake is applied.
u The parking brake and brake system
indicator (red) comes on for 15 seconds
when you pull up the electric parking
brake switch.
2. Check that the transmission is in
(P, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N, it is safer to start it in (P.
2. Check that the shift lever is in
(N. Then
depress the brake pedal with your right
foot, and the clutch pedal with your left
foot.
u The clutch pedal must be fully depressed
to start the engine.
Models without smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altit udes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Electric Parking Brake Switch
Brake PedalContinuously variable transmission models
Brake Pedal
Clutch Pedal
Manual transmission models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 447 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

450
uuWhen Driving uStarting the Engine
Driving
Starting the Engine
1. Make sure the parking brake is applied.
u The parking brake and brake system
indicator (red) comes on for 15 seconds
when you pull up the electric parking
brake switch.
2. Check that the tr ansmission is in
(P, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N, it is safer to start it in (P.
2. Check that the shift lever is in
(N. Then
depress the brake pedal with your right
foot, and the clutch pedal with your left
foot.
u The clutch pedal must be fully depressed
to start the engine.
Models with smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altit udes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
The immobilizer system pr otects your vehicle from
theft.
If an improperly c oded device is used, the engine’s
fuel system is disabled. 2 Immobilizer System P. 159
Electric Parking Brake Switch
Brake PedalContinuously variable transmission models
Brake Pedal
Clutch Pedal
Manual transmission models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 450 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

Continued453
uuWhen Driving uStarting the Engine
Driving
■To stop the engine1Remote Engine Start*
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The security system alarm is not set.
While the engine is running, the vehicle will
automatically activate climate control with a preset
temperature of 72°F (22°C).
When it is warm outside:
•The climate control system is activated in
recirculation mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters* are
activated.
•The seat heaters are activated*.
2 Front Seat Heaters* P. 211
Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the engine stops successfully.
The exterior lights will not flash when the remote is out of
the smart entry system range.
The engine will not stop.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 453 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

673
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor(10 A)
4Front Sensor Camera*1, *
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A*4
20 A*5
9AIRCON10 A
10−−
11Engine Control*45A
12Passenger’s Side Door Lock10 A
13Driver’s Side Rear Door Unlock10 A
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2, *(10 A)(5 A)
18−−
19Moonroof(20 A)
20−−
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
29Front Accessory Power
Socket20 A
30 Smart Entry
*1(10 A)
STS*2(5 A)
31Driver’s Power Seat Reclining*(20 A)
32 Front Seat Heater
*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35SRS10 A
36 − −
37Option(10 A)
38 Driver’s Side Rear Door
Lock 10 A
39Driver’s Door Unlock(10 A)
Circuit ProtectedAmps
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 673 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

696
Index
Floor Mats................................................. 622
Fluids
Brake/Clutch ............................................ 588
Continuously Variable Transmission ......... 587
Engine Coolant ........................................ 585
Manual Transmission ............................... 587
Windshield Washer .................................. 589
FM/AM Radio .................................... 236, 276
Fog Light Indicator ..................................... 89
Folding Down the Rear Seats ................... 195
Foot Brake ................................................. 548
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 192
Front Seat Heaters .................................... 211
Front Seats ................................................ 189
Adjusting ................................................. 189
Front Sensor Camera ................................ 542
Fuel ...................................................... 24, 558
Fuel Economy and CO
2 Emissions............. 562
Gauge ..................................................... 118
Instant Fuel Economy ............................... 125
Low Fuel Indicator ..................................... 84
Range ...................................................... 124
Recommendation .................................... 558
Refueling ................................................. 558
Fuel Economy and CO
2 Emissions ............ 562
Fuel Fill Door ....................................... 24, 560
Unable to Unlock ..................................... 676
Fuses .......................................................... 670
Inspecting and Changing ......................... 674
Locations ......................................... 670, 672
G
Gasoline (Fuel)
Economy ................................................. 562
Gauge ..................................................... 118
Information ............................................. 558
Instant Fuel Economy .............................. 125
Low Fuel Indicator ..................................... 84
Refueling................................................. 558
Gauges ...................................................... 118
Gear Shift Lever Positions Continuously Variable Transmission ......... 457
Manual Transmission ............................... 464
Glass (care) ........................................ 622, 625
Glove Box .................................................. 199
G-Meter ..................................................... 127
H
Halogen Bulbs .................................. 590, 593
Handling the Unexpected ........................ 629
HandsFreeLink ® (HFL) ....................... 379, 406
Automatic Import of Cellular Phonebook
and Call History ..................................... 419
Displaying Messages................................ 433
HFL Buttons..................................... 379, 406
HFL Menus ...................................... 382, 409
HFL Status Display ........................... 381, 408
In Case of Emergency .............................. 437
Limitations for Manual Operation .... 381, 408
Making a Call .................................. 400, 427
Options During a Call ...................... 405, 430 Phone Setup ................................... 386, 414
Phonebook Phonetic M
odification........... 423
Receiving a Call............................... 404, 430
Receiving a Text Message/E-mail ............. 431
Ring Tone ............................................... 418
Selecting a Text/E-mail Message Account ................................................ 432
Speed Dial ...................................... 396, 420
To Set Up Text Message/E-mail Options .. 417
Hatch ........................................................ 156
Light Bulb ............................................... 680
Release Lever .......................................... 677
Unable to Open ...................................... 677
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 276
Headlights ................................................ 173
Aiming.................................................... 590
Auto High-Beam System ......................... 177
Automatic Operation .............................. 174
Dimming......................................... 173, 176
Operating ............................................... 173
Heaters (Front Seat) ................................. 211
Heaters (Rear Seat) .................................. 212
HFL (HandsFreeLink ®) ...................... 379, 406
High Beam Indicator .................................. 88
Hill Start Assist System ..................... 449, 454
HomeLink ® Universal Transceiver ........... 376
Honda App License Agreement .............. 323
Honda Sensing ®................................ 25, 484
HondaLink ®............................................ 301
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 696 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

699
Index
Pregnant Women....................................... 44
Puncture (Tire) ......................................... 631
R
Radar Sensor............................................ 544
Radio (FM/AM) ................................. 236, 276
Radio (SiriusXM ®)..................................... 279
Radio Data System (RDS) ................. 237, 278
Range ........................................................ 124
RDS (Radio Data System) ................. 237, 278
Readiness Codes (Emissions Testing) ...... 685
Rear Defogger/Heated Door Mirror
Button ..................................................... 184
Rear Seat Heaters ..................................... 212
Rear Seats (Folding Down) ...................... 195
Rearview Mirror ....................................... 186
Refueling .................................................. 558
Fuel Gauge ............................................. 118
Gasoline ......................................... 558, 680
Low Fuel Indicator..................................... 84
Regulations .............................. 482, 608, 683
Remote Engine Start ................................ 452
Remote Transmitter ................................. 149
Replacement Battery .................................................... 618
Bulbs ...................................................... 590
Fuses .............................................. 670, 672
Tires........................................................ 611
Wiper Blade Rubber ........................ 600, 603
Reporting Safety Defects ......................... 684Resetting a Trip Meter
............................. 123
Rev Indicators ........................................... 127
Rev Match System ..................................... 465
Road Departure Mitigation (RDM) .......... 537
On and Off .............................................. 539
S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 75
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 45
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 67
Pregnant Women ...................................... 44
Reminder ................................................... 40
Warning Indicator ................................ 40, 84
Seat Heaters ...................................... 211, 212
Seats .......................................................... 189
Adjusting ................................................. 189
Front Seat Heaters ................................... 211
Front Seats .............................................. 189
Rear Seats ............................................... 195
Seat Heaters .................................... 211, 212
Security System ......................................... 159
Security System Alarm Indicator ................. 91 Select Lever
................................. 22, 457, 464
Operation.................................. 22, 458, 464
Releasing................................................. 661
Won’t Move ............................................ 661
Select/Reset Knob ..................................... 123
Selecting a Child Seat ................................. 64
Selector Knob (Audio) .............................. 229
Setting the Clock ...................................... 140
Shift Lever ................................... 22, 457, 464
Shift Lever Position Indicator .................... 82
Shift Position Indicator ............................ 458
Shifting (Transmission) ..................... 457, 464
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 53
Side Curtain Airbags .................................. 55
Siri Eyes Free ............................................. 308
SiriusXM ® Radio ........................................ 279
Smart Entry with Push Button Start System ..................................................... 143
Snow Tires ................................................. 613
Song By Voice
TM (SBV) .............................. 290
Spare Tire .......................................... 644, 681
Spark Plugs ............................................... 680
Specifications ............................................ 680
Specified Fuel ................................... 558, 680
Speedometer ............................................ 118
SRS Airbags (Airbags) ................................. 49
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 699 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
