stop start HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

675
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Option Block 1*(60 A)
−−
Cooling Fan50 A*4
30 A*5
Audio AMP*(30 A)
IG Main 2*1(30 A)
Headlight High Beam Main30 A
Battery125 A
2
EPS70 A
IG Main 1 30 A*1
50 A*2
Fuse Box Option*(40 A)
Fuse Box 1 60 A
Front Wiper Motor30 A
Headlight Low Beam Main 30 A
3
Rear Defroster40 A
Starter Motor(30 A)
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
4 −−
−−
−−
−−
5Cooling Fan*4(5 A)
6Washer 15A
7FI Main15 A*4
20 A*5
8 Stop Lights 10 A
9FI Sub15 A
10 Injector*4(15 A)
Sub Fan Motor*520 A
11LAF5A
12 FI ECU 10 A
13Hazard15 A
14 Rear Heated Seat*(15 A)
15IG Coil15 A
16 Transmission*3(15 A)
17Daytime Running Lights(10 A)
18 Back Up 10 A
19Audio(15 A)
20 Parking Lights 10 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor10 A
24 Horn 10 A
25−−
26 Left Headlight Low Beam 10 A
27Right Headlight Low Beam10 A
28 − −
29Left Headlight High Beam10 A
30 Right Headlight High Beam 10 A
31Passenger’s Power Seat Sliding*(20 A)
32 Passenger’s Power Seat
Reclining
*(20 A)
Adaptive Damper System
*5(15 A)
33VB ACT(5 A)
Circuit ProtectedAmps
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 675 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

678
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 674
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
21 CIVIC 5D HUM-31TGG6400_01.book 678 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

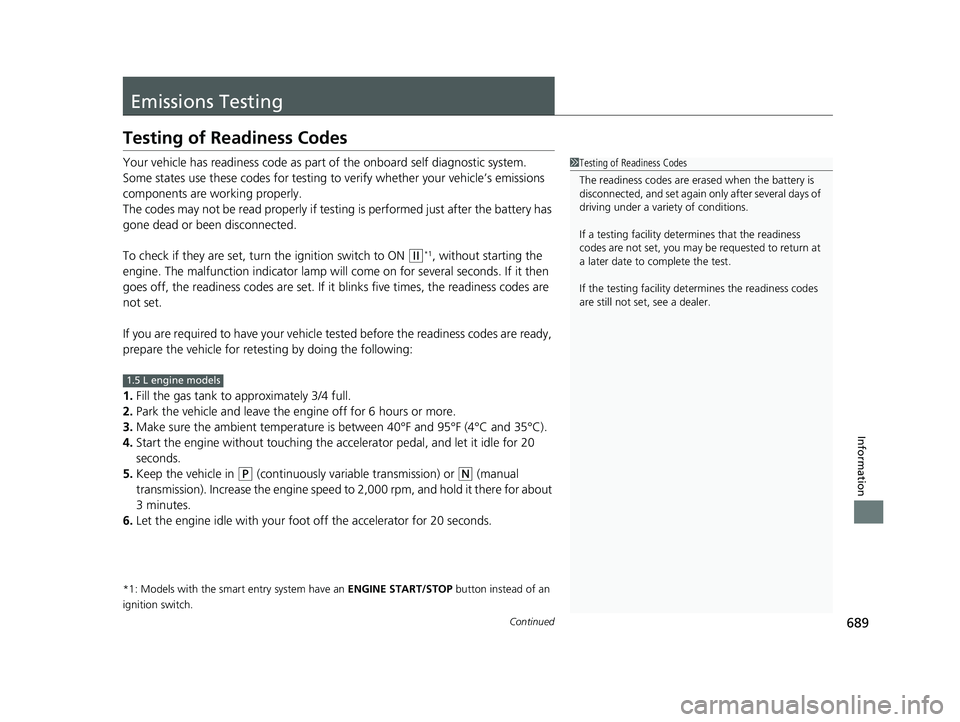

689Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
1.5 L engine models
21 CIVIC 5D HUM-31TGG6400_01.book 689 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

700
Index
Continuously Variable TransmissionCreeping ................................................. 460
Fluid ........................................................ 591
Kickdown ................................................ 460
Operating the Shift Lever ................... 24, 462
Shift Lever Does Not Move....................... 665
Shifting.................................................... 461
Controls ..................................................... 143
Coolant (Engine) ....................................... 589
Adding the Coolant ................................. 590
Overheating............................................. 666
Creeping (Continuously Variable Transmission) ........................................... 460
Cup Holders ............................................... 205
Customer Service Information ................. 696
Customized Features ........................ 134, 350
D
Daytime Running Lights ........................... 180
Dead Battery ............................................. 662
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows .................................................. 221
Devices that Emit Radio Waves ................ 687
Dimming Headlights ............................................... 177
Rearview Mirror ....................................... 190
Dipstick (Engine Oil) ................................. 583
Directional Signals (Turn Signal) .............. 176
Display Button .......................................... 252 Display Setup
............................................ 239
Display/Information Button ..................... 125
Door Mirrors ............................................. 192
Doors ......................................................... 145
Auto Door Locking .................................. 159
Auto Door Unlocking .............................. 159
Keys ........................................................ 145
Locking/Unlocking the Doors from the
Inside .................................................... 156
Locking/Unlocking the Doors from the Outside ................................................. 147
DOT Tire Quality Grading ........................ 612
Drive Mode Switch ................................... 473
Driver Information Interface ................... 124
Driving ...................................................... 443
Braking ................................................... 549
Continuously Variable Transmission ......... 460
Shifting Gear ........................................... 468
Shifting Position ...................................... 461
Starting the Engine.......................... 451, 454
Dust and Pollen Filter ............................... 624
E
Eco Assist System........................................ 11
ECON Mode .............................................. 472
Elapsed Time ............................................. 128
Electric Power Steering (EPS) System ........ 89
Indicator............................................ 89, 672
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 679 Emergency Engine Stop
........................... 661
Emissions Testing (Readiness Codes) ...... 689
Engine Coolant .................................................. 589
If the Battery Is Dead............................... 662
Oil .......................................................... 582
Starting........................................... 451, 454
Switch Buzzer ......................................... 171
Engine Coolant ........................................ 589
Adding the Coolant ................................ 590
Overheating ............................................ 666
Temperature Gauge ................................ 122
Engine Oil ................................................. 582
Adding ................................................... 585
Checking ................................................ 583
Displaying Oil Life ................................... 574
Low Oil Pressure Indicator ................. 84, 668
Recommended Engine Oil ....................... 582
ENGINE START/STOP Button .................... 172
EPS (Electric Power Steering) System ...... 672
Exhaust Gas Hazard (Carbon Monoxide) .. 79
Exterior Care (Cleaning) .......................... 628
Exterior Mirrors ........................................ 192F
Features.................................................... 225
Filters Dust and Pollen....................................... 624
Oil .......................................................... 586
Flat Tire ..................................................... 635
21 CIVIC 5D HUM-31TGG6400_01.book 700 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

705
Index
Remote Engine Start ............................... 456
Steering Wheel
Adjusting ................................................ 189
Stopping ................................................... 558
Stopwatch ................................................ 132
Summer Tires ............................................ 617
Supplemental Restraint System (SRS) ....... 51
Switches (Around the Steering
Wheel) ............................................ 6, 7, 171
System Message Indicator ......................... 92
T
Tachometer.............................................. 122
Temperature Outside Temperature Display .................. 129
Temperature Sensor ................................ 129
Temporary Tire Repair Kit ....................... 636
Tie-down Anchors .................................... 212
Time (Setting) ........................................... 144
Tire Pressure Monitoring System
(TPMS) ..................................................... 482
Indicator ........................................... 91, 673
Tires .......................................................... 609
Air Pressure..................................... 610, 685
Checking and Maintaining ...................... 609
Inspection ............................................... 609
Labeling .................................................. 610
Puncture (Flat Tire) .................................. 635
Regulations ............................................. 612
Rotation.................................................. 616 Spare Tire ........................................ 648, 685
Summer .................................................. 617
Temporary Tire Repair Kit ........................ 636
Tire Chains .............................................. 617
Wear Indicators ....................................... 614
Winter ..................................................... 617
Tools .......................................................... 634
Towing Your Vehicle
Emergency .............................................. 679
TPMS (Tire Pressure Monitoring System) .................................................... 482
Indicator ............................................ 91, 673
Transmission ..................................... 461, 468
Continuously Variable Transmission ......... 461
Fluid ........................................................ 591
Manual .................................................... 468
Shift Lever Position Indicator ...... 86, 462, 464
Trip Meter ................................................. 127
Troubleshooting ....................................... 633
Blown Fuse ...................................... 674, 676
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door .......... 31
Emergency Towing .................................. 679
Engine Won’t Start .................................. 659
Noise When Braking .................................. 32
Overheating ............................................ 666
Premium Gasoline ................................... 684
Puncture/Flat Tire ..................................... 635
Rear Door Won’t Open ...................... 31, 158
Select Lever Won’t Move ......................... 665
Warning Indicators .................................... 82 Turbo Engine Vehicle
............................... 567
Turbo Meter ............................................. 129
Turn Signals .............................................. 176
Indicators (Instrument Panel) ..................... 92
Turn-by-Turn Directions ........................... 130
U
Unlocking the Doors................................ 147
Unlocking the Fron t Doors from the
Inside ....................................................... 156
USB Adapter Cable ................................... 226
USB Flash Drives ............................... 300, 326
USB Port(s) ................................................ 227
Using the Smart Entr y with Push Button
Start System ............................................ 147
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 686
Vehicle Stability Assist
TM (VSA ®) .............. 475
Off Button............................................... 476
Off Indicator.............................................. 90
System Indicator ........................................ 90
Viscosity (Oil) .................................... 582, 685
21 CIVIC 5D HUM-31TGG6400_01.book 705 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
