HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)
Manufacturer: HONDA, Model Year: 2021, Model line: CIVIC HATCHBACK, Model: HONDA CIVIC HATCHBACK 2021Pages: 711, PDF Size: 37.1 MB
Page 1 of 711
2021 CIVIC
Hatchback
Owner’s Manual
Page 2 of 711

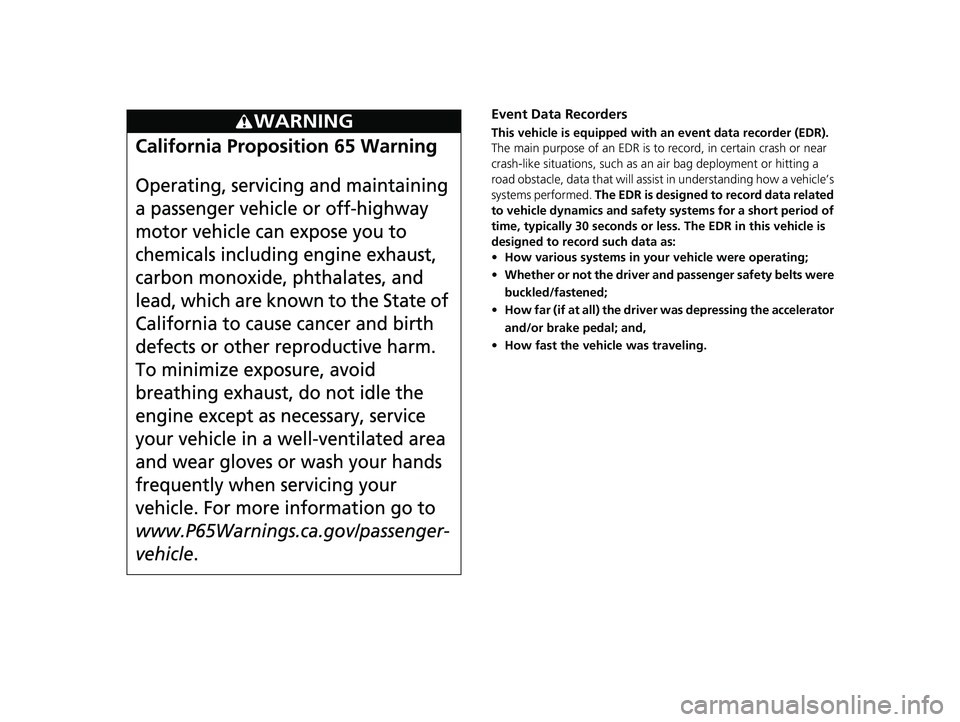

Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assi st in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
21 CIVIC 5D HUM-31TGG6400_01.book 0 ページ 2020年8月28日 金曜日 午後1時48分
Page 3 of 711

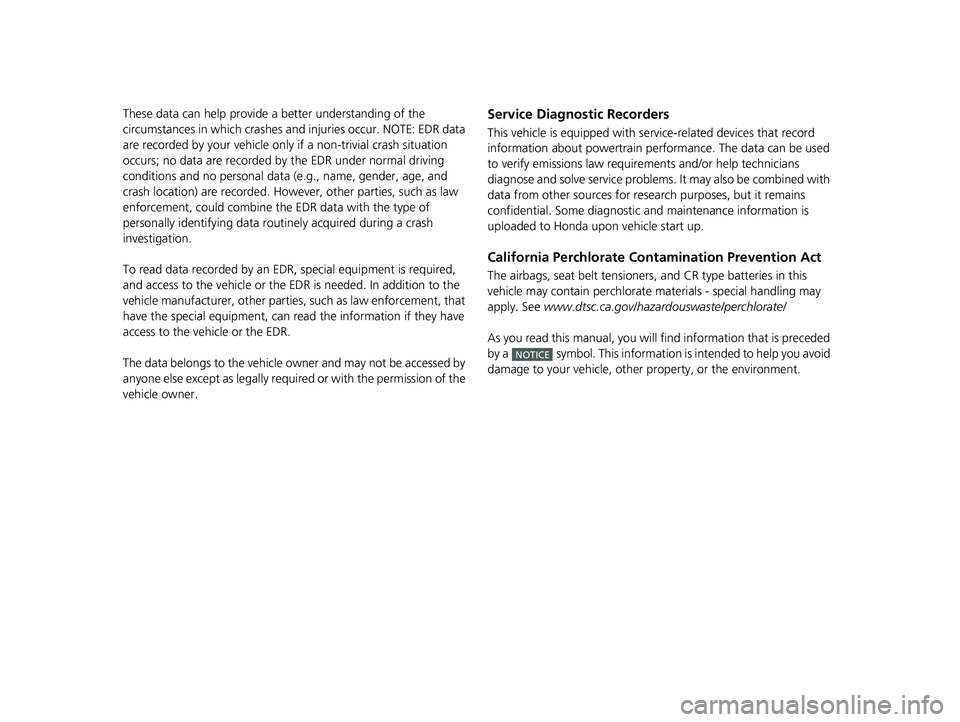

These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the ED R is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can r ead the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.Service Diagnostic Recorders
This vehicle is equipped with serv ice-related devices that record
information about powertrain performance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardo uswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, other property, or the environment.
NOTICE
21 CIVIC 5D HUM-31TGG6400_01.book 1 ページ 2020年8月28日 金曜日 午後1時48分
Page 4 of 711

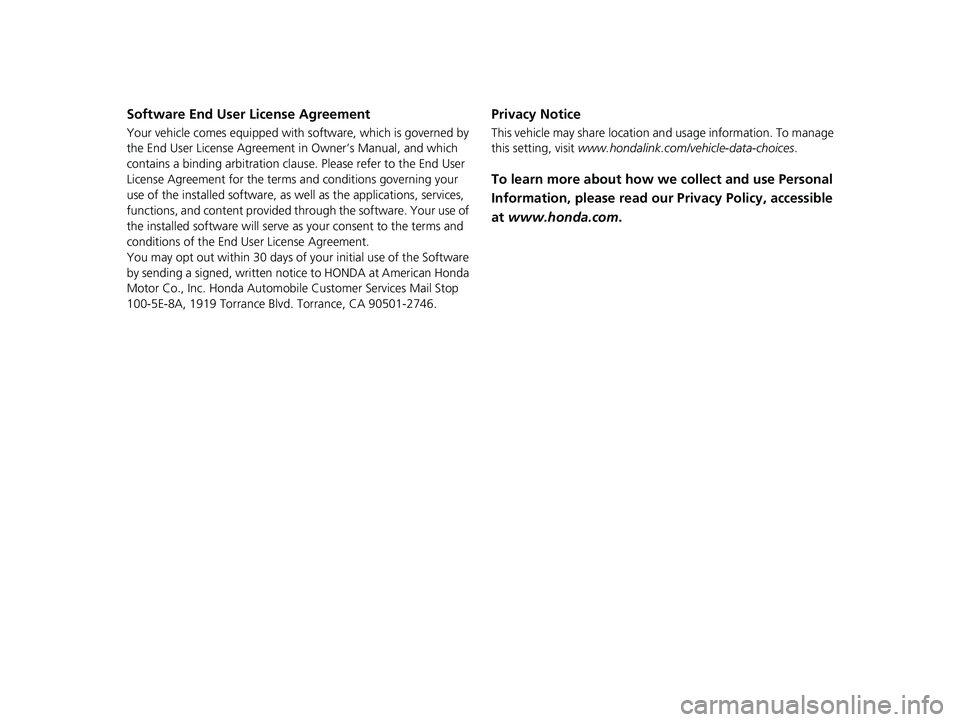

Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as well as the applications, services,
functions, and content provided through the software. Your use of
the installed software will serve as your consent to the terms and
conditions of the End Us er License Agreement.
You may opt out within 30 days of your initial use of the Software
by sending a signed, written notice to HONDA at American Honda
Motor Co., Inc. Honda Automobile Customer Services Mail Stop
100-5E-8A, 1919 Torrance Blvd. Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location an d usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices .
To learn more about how we collect and use Personal
Information, please read our Privacy Policy, accessible
at www.honda.com .
21 CIVIC 5D HUM-31TGG6400_01.book 2 ページ 2020年8月28日 金曜日 午後1時48分
Page 5 of 711
A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
21 CIVIC 5D HUM-31TGG6400_01.book 3 ページ 2020年8月28日 金曜日 午後1時48分
Page 6 of 711
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 35
For Safe Driving P. 36 Seat Belts P. 40 Airbags P. 48
2Instrument Panel P. 81
Indicators P. 82 Gauges and Driver Information Interface P. 122
2Controls P. 143
Clock P. 144 Locking and Unlocking the Doors P. 145
Moonroof* P. 170
Adjusting the Seats P. 193
2 Features P. 225
Audio System P. 226 Audio System Basic Operation P. 233, 251
Customized Features P. 343, 350 HomeLink ® Universal Transceiver*P. 380
2 Driving P. 443
Before Driving P. 444 Towing a Trailer P. 450
Parking Your Vehicle P. 558 Multi-View Rear Camera P. 560
2Maintenance P. 569
Before Performing Maintenance P. 570 Maintenance MinderTM P. 573
Checking and Maintaining Wiper Blades P. 604
Climate Control System Maintenance P. 624
2Handling the Unexpected P. 633
Tools P. 634 If a Tire Goes Flat P. 635
Shift Lever Does Not Move P. 665 Overheating P. 666
If You Cannot Unlock the Fuel Fill Door P. 680
2 Information P. 683
Specifications P. 684 Identification Numbers P. 686
Emissions Testing P. 689 Warranty Coverages P. 692
21 CIVIC 5D HUM-31TGG6400_01.book 4 ページ 2020年8月28日 金曜日 午後1時48分
Page 7 of 711
Contents
Child Safety P. 64Exhaust Gas Hazard P. 79Safety Labels P. 80
Hatch P. 160 Security System P. 163 Opening and Closing the Windows P. 167
Operating the Switches Around the Steering Wheel P. 171 Adjusting the Mirrors P. 190
Interior Lights/Interior Convenience It ems P. 201 Climate Control System P. 217
Audio Error Messages P. 320General Information on the Audio System P. 324
Bluetooth ® HandsFreeLink ® P. 383, 410
When Driving P. 451 Honda Sensing®P. 488 Braking P. 549
Refueling P. 562 Fuel Economy and CO
2 Emissions P. 566 Turbo Engine Vehicle P. 567
Maintenance Under the Hood P. 579 Replacing Light Bulbs P. 594
Checking and Maintaining Tires P. 609 Battery P. 620 Remote Transmitter Care P. 622
Cleaning P. 625 Accessories and Modifications P. 631
Handling of the Jack* P. 656Engine Does Not Start P. 659If the Battery Is Dead P. 662
Indicator, Coming On/Blinking P. 668 Fuses P. 674 Emergency Towing P. 679
If You Cannot Open the Hatch P. 681 Refueling P. 682
Devices that Emit Radio Waves P. 687 Reporting Safety Defects P. 688
Authorized Manuals P. 695 Customer Service Information P. 696
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 81
ControlsP. 143
FeaturesP. 225
DrivingP. 443
MaintenanceP. 569
Handling the UnexpectedP. 633
InformationP. 683
IndexP. 698
21 CIVIC 5D HUM-31TGG6400_01.book 5 ページ 2020年8月28日 金曜日 午後1時48分
Page 8 of 711
6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Ignition Switch* (P171)
❚ENGINE START/STOP Button*1 (P172)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Pre-instal led on U.S. models only.
❚System Indicators (P82)
❚Gauges (P122)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P495)
❚ (Vehicle Stability AssistTM (VSA ®)
System OFF) Button
(P476)
❚Road Departure Mitigation (RDM)
Button
(P543)
❚Navigation System*
() See the Navigation System Manual
❚Audio System (P233, 251)
❚Hazard Warning Button
❚Rear Defogger (P188)
❚Heated Door Mirror Button* (P188)
❚Climate Control System (P217)
❚Front Seat Heater Buttons* (P215)
❚Steering Wheel Adjustments (P189)
❚Driver Information Interface (P124)
❚USB Extension Cable*2 (P227)
❚USB Port (P227)
21 CIVIC 5D HUM-31TGG6400_01.book 6 ページ 2020年8月28日 金曜日 午後1時48分
Page 9 of 711
7
Quick Reference Guide❚Headlights/Turn Signals (P176)
❚ (TRIP) Knob (P127)
❚Brightness Control (P187)
❚LaneWatchTM * (P480)
❚Fog Lights* (P180)
❚ (Display/Information) Button (P125)
❚Navigation System Voice Control Buttons*
(P276) () See the Navigation System Manual
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P383, 410)
❚ENTER Button (P134, 230)
❚ / / / Buttons (P134, 230)34
❚Lane Keeping Assist System (LKAS) Button
(P533)
❚Paddle Shifter (Shift down)* (P466)
❚Paddle Shifter (Shift up)* (P466)
❚Wipers/Washers (P184)
❚Horn (Press an area around .)
❚Adaptive Cruise Control (ACC) Buttons*
(P518)
❚Interval Button (P512)
❚MAIN Button (P489, 502, 519, 535)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P501)
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 7 ページ 2020年8月28日 金曜日 午後1時48分
Page 10 of 711
Visual Index
8
Quick Reference Guide
❚Door Mirror Controls (P192)
❚Glove Box (P203)
❚Rearview Mirror (P190)
❚Hood Release Handle (P581)
❚Master Door Lock Switch (P158)
❚Power Window Switches (P167)
❚Interior Fuse Box (P676)
❚Driver’s Front Airbag (P51)
❚Shift Lever
Continuously Variable
Transmission
(P461, 463)
Manual Transmission (P468)
❚Electric Parking Brake Switch (P549)
❚USB Port* (P227)
❚Wireless Charger* (P209)
❚Automatic Brake Hold
Button
(P553)
❚ECON Button* (P472)
❚Drive Mode Switch* (P473)
❚Passenger’s Front Airbag
(P51)
❚HomeLink® Buttons* (P381)
