TPMS HONDA CIVIC HATCHBACK 2021 (in English) Owner's Guide

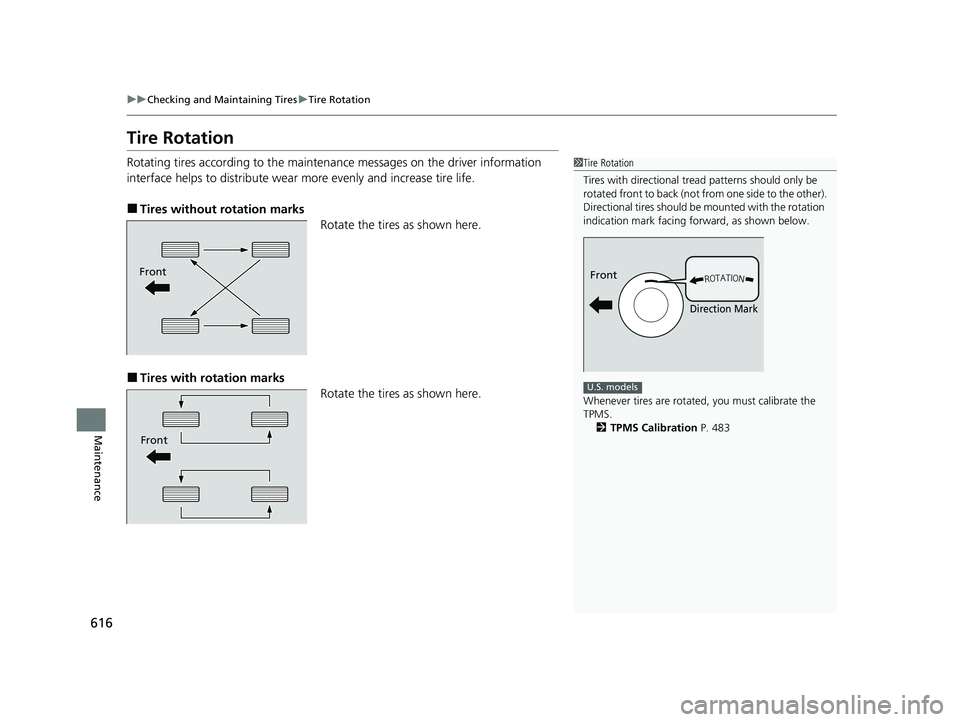

616
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 TPMS Calibration P. 483
Front
Direction Mark
U.S. models
Front
Front
21 CIVIC 5D HUM-31TGG6400_01.book 616 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

621
uuBattery uCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The indicators for the Adaptive Cruise Control
(ACC)
*, Adaptive Cruise Control (ACC) with Low
Speed Follow*, Road Departure Mitigation (RDM),
Vehicle Stability AssistTM (VSA ®) System, Vehicle
Stability AssistTM (VSA ®) OFF, low tire Pressure/TPMS*
and Collision Mitiga tion Braking SystemTM (CMBSTM)
may come on when you turn the ignition switch to
ON
( w*1 after reconnecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If none of them do,
have your vehicle ch ecked by a dealer.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 621 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

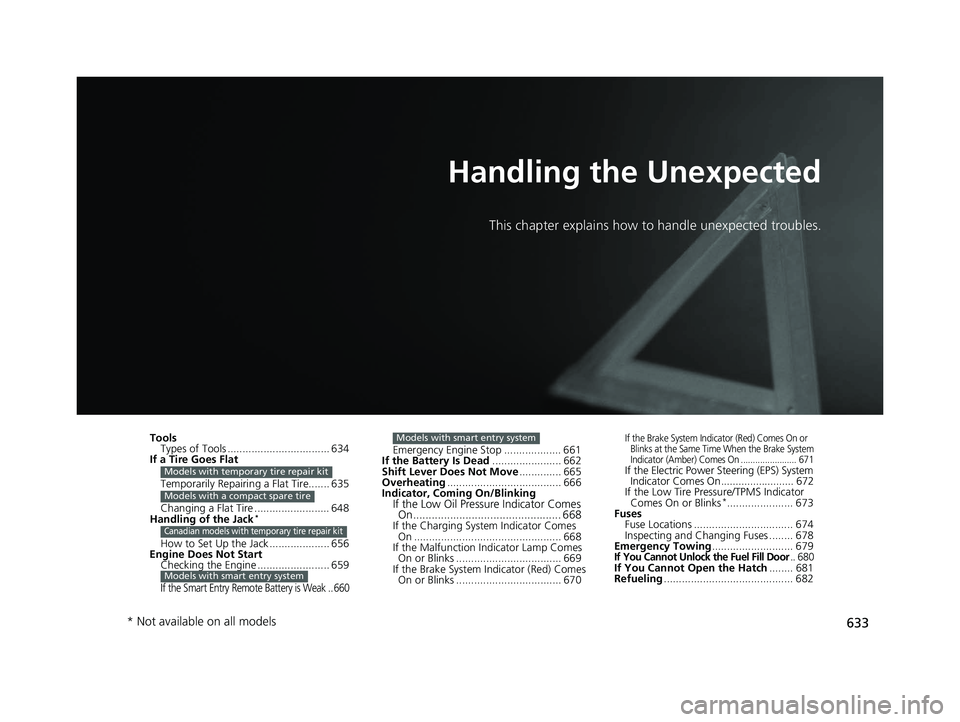

633
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 634
If a Tire Goes Flat
Temporarily Repairi ng a Flat Tire....... 635
Changing a Flat Tire ......................... 648
Handling of the Jack
*
How to Set Up the Jack .................... 656
Engine Does Not Start Checking the Engine ........................ 659
If the Smart Entry Remote Battery is Weak .. 660
Models with temporary tire repair kit
Models with a compact spare tire
Canadian models with temporary tire repair kit
Models with smart entry system
Emergency Engine Stop ................... 661
If the Battery Is Dead ....................... 662
Shift Lever Does Not Move .............. 665
Overheating ...................................... 666
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On................................................ 668
If the Charging System Indicator Comes
On ................................................. 668
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 669
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 670
Models with smart entry systemIf the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On ....................... 671
If the Electric Power Steering (EPS) System Indicator Comes On......................... 672
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks
*...................... 673
Fuses Fuse Locations ................................. 674
Inspecting and Changing Fuses ........ 678
Emergency Towing ........................... 679
If You Cannot Unlock the Fuel Fill Door.. 680If You Cannot Open the Hatch ........ 681
Refueling ........................................... 682
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 633 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

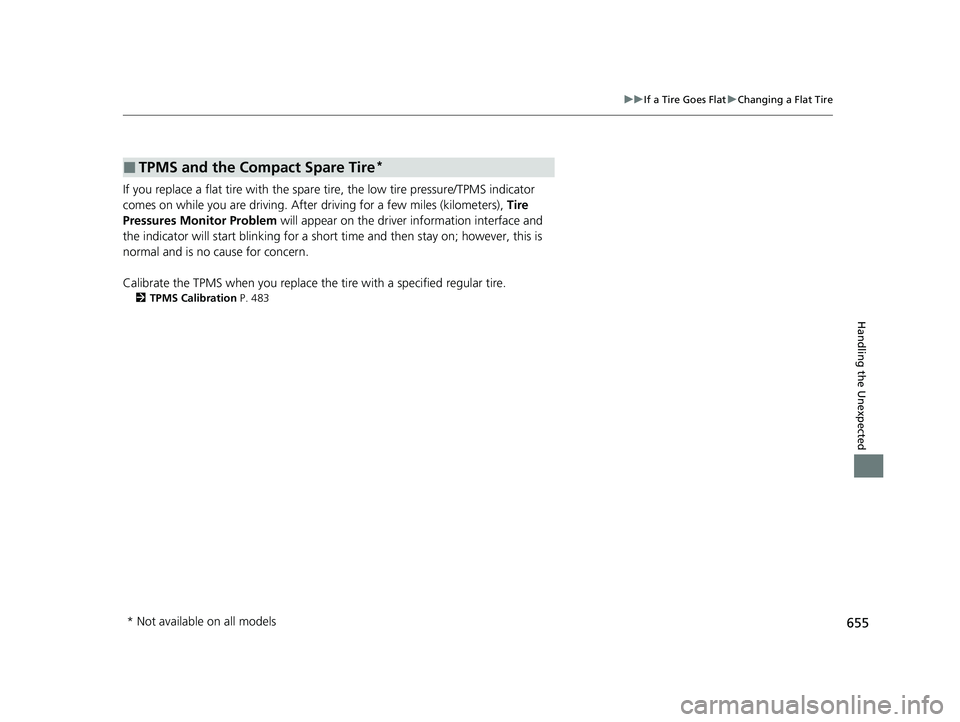

655
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), Tire
Pressures Monitor Problem will appear on the driver information interface and
the indicator will start blinking for a shor t time and then stay on; however, this is
normal and is no cause for concern.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 483
■TPMS and the Compact Spare Tire*
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 655 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

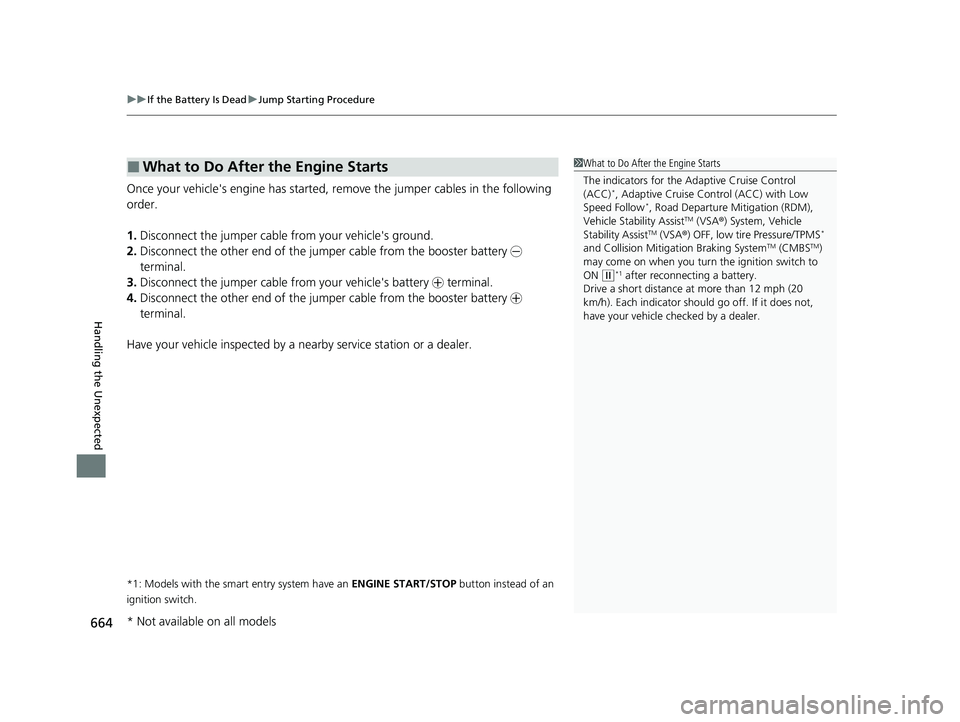

uuIf the Battery Is Dead uJump Starting Procedure
664
Handling the Unexpected
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■What to Do After the Engine Starts1 What to Do After the Engine Starts
The indicators for the Adaptive Cruise Control
(ACC)
*, Adaptive Cruise Control (ACC) with Low
Speed Follow*, Road Departure Mitigation (RDM),
Vehicle Stability AssistTM (VSA ®) System, Vehicle
Stability AssistTM (VSA ®) OFF, low tire Pressure/TPMS*
and Collision Mitiga tion Braking SystemTM (CMBSTM)
may come on when you turn the ignition switch to
ON
( w*1 after reconnecting a battery.
Drive a short distance at more than 12 mph (20
km/h). Each indicator should go off. If it does not,
have your vehicle ch ecked by a dealer.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 664 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

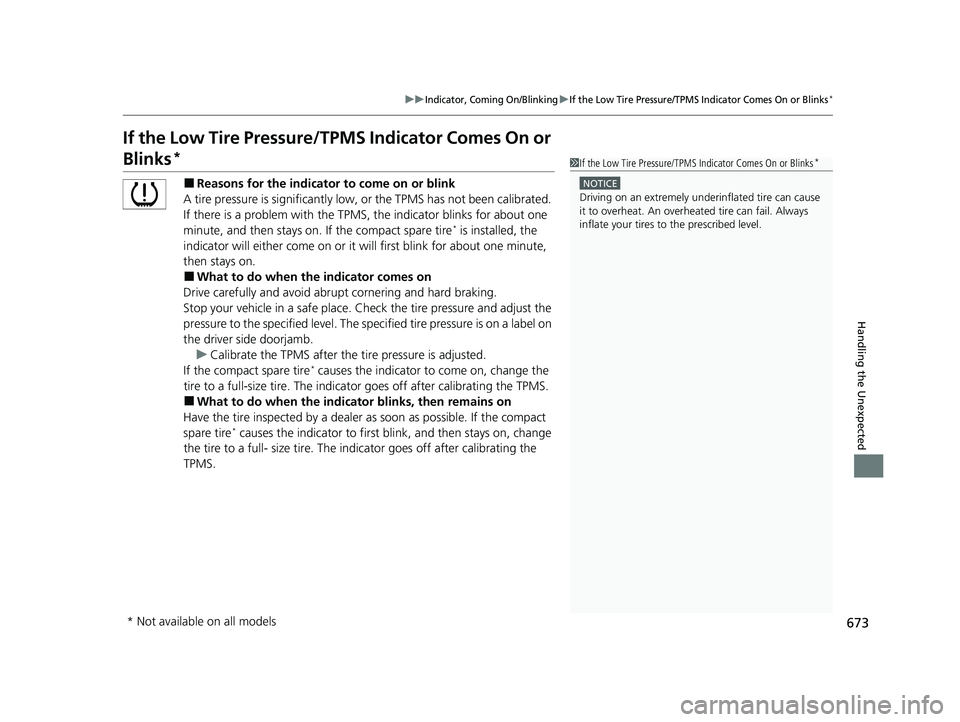

673
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks*
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks*
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on. If the compact spare tire
* is installed, the
indicator will either come on or it will first blink for about one minute,
then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
If the compact spare tire
* causes the indicator to come on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stays on, change
the tire to a full- size tire. The i ndicator goes off after calibrating the
TPMS.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks*
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 673 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

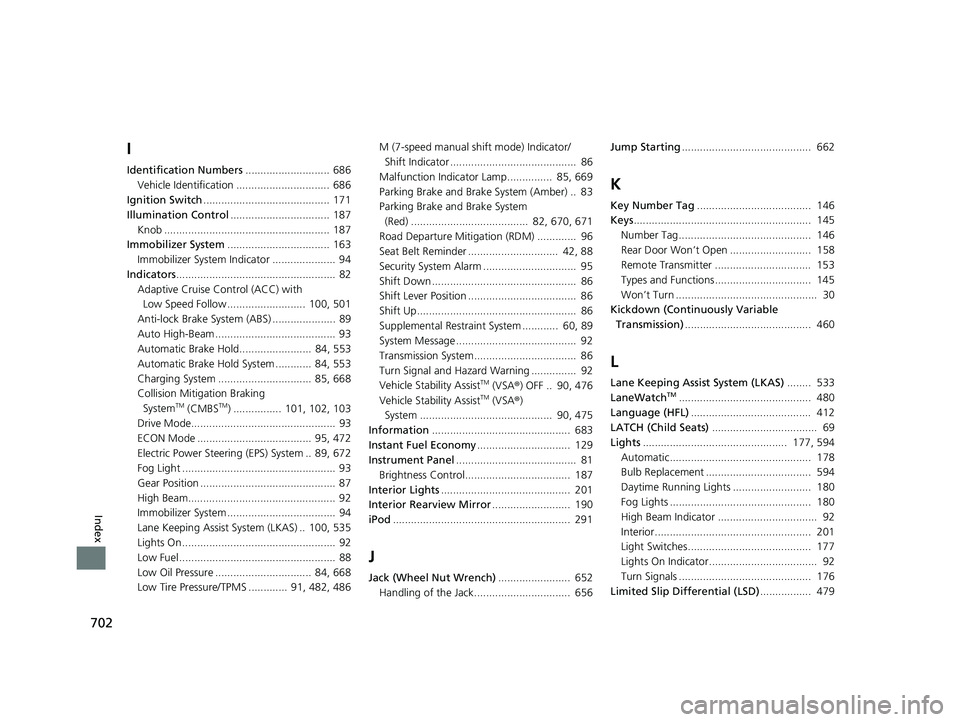

702
Index
I
Identification Numbers............................ 686
Vehicle Identification ............................... 686
Ignition Switch .......................................... 171
Illumination Control ................................. 187
Knob ....................................................... 187
Immobilizer System .................................. 163
Immobilizer System Indicator ..................... 94
Indicators ..................................................... 82
Adaptive Cruise Control (ACC) with Low Speed Follow .......................... 100, 501
Anti-lock Brake System (ABS) ..................... 89
Auto High-Beam ........................................ 93
Automatic Brake Hold........................ 84, 553
Automatic Brake Hold System ............ 84, 553
Charging System ............................... 85, 668
Collision Mitigation Braking System
TM (CMBSTM) ................ 101, 102, 103
Drive Mode................................................ 93
ECON Mode ...................................... 95, 472
Electric Power Steering (EPS) System .. 89, 672
Fog Light ................................................... 93
Gear Position ............................................. 87
High Beam................................................. 92
Immobilizer System .................................... 94
Lane Keeping Assist System (LKAS) .. 100, 535
Lights On ................................................... 92
Low Fuel .................................................... 88
Low Oil Pressure ................................ 84, 668
Low Tire Pressure/TPMS ............. 91, 482, 486 M (7-speed manual shift mode) Indicator/
Shift Indicator .......................................... 86
Malfunction Indicator Lamp............... 85, 669
Parking Brake and Brake System (Amber) .. 83
Parking Brake a nd Brake System
(Red) ....................................... 82, 670, 671
Road Departure Mitigation (RDM) ............. 96
Seat Belt Reminder .............................. 42, 88
Security System Alarm ............................... 95
Shift Down ................................................ 86
Shift Lever Position .................................... 86
Shift Up..................................................... 86
Supplemental Restraint System ............ 60, 89
System Message ........................................ 92
Transmission System.................................. 86
Turn Signal and Hazard Warning ............... 92
Vehicle Stability Assist
TM (VSA ®) OFF .. 90, 476
Vehicle Stability AssistTM (VSA ®)
System ............................................ 90, 475
Information .............................................. 683
Instant Fuel Economy ............................... 129
Instrument Panel ........................................ 81
Brightness Control................................... 187
Interior Lights ........................................... 201
Interior Rearview Mirror .......................... 190
iPod ........................................................... 291
J
Jack (Wheel Nut Wrench) ........................ 652
Handling of the Jack................................ 656 Jump Starting
........................................... 662
K
Key Number Tag ...................................... 146
Keys ........................................................... 145
Number Tag............................................ 146
Rear Door Won’t Open ........................... 158
Remote Transmitter ................................ 153
Types and Functions................................ 145
Won’t Turn ............................................... 30
Kickdown (Continuously Variable Transmission) .......................................... 460
L
Lane Keeping Assist System (LKAS) ........ 533
LaneWatchTM............................................ 480
Language (HFL) ........................................ 412
LATCH (Child Seats) ................................... 69
Lights ................................................ 177, 594
Automatic............................................... 178
Bulb Replacement ................................... 594
Daytime Running Lights .......................... 180
Fog Lights ............................................... 180
High Beam Indicator ................................. 92
Interior.................................................... 201
Light Switches......................................... 177
Lights On Indicator .................................... 92
Turn Signals ............................................ 176
Limited Slip Differential (LSD) ................. 479
21 CIVIC 5D HUM-31TGG6400_01.book 702 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

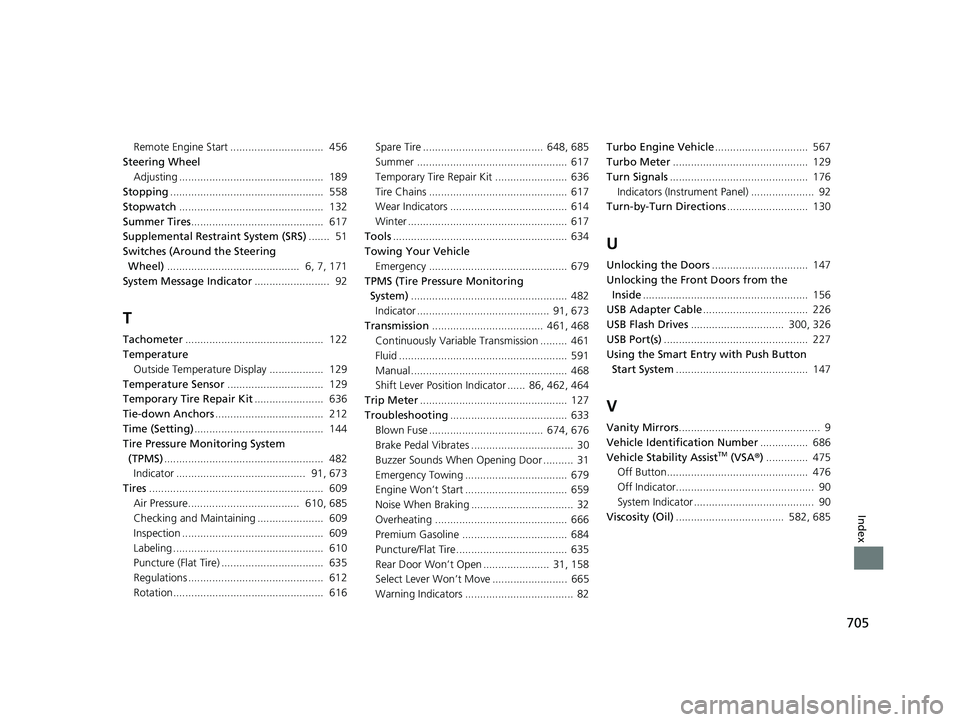

705
Index
Remote Engine Start ............................... 456
Steering Wheel
Adjusting ................................................ 189
Stopping ................................................... 558
Stopwatch ................................................ 132
Summer Tires ............................................ 617
Supplemental Restraint System (SRS) ....... 51
Switches (Around the Steering
Wheel) ............................................ 6, 7, 171
System Message Indicator ......................... 92
T
Tachometer.............................................. 122
Temperature Outside Temperature Display .................. 129
Temperature Sensor ................................ 129
Temporary Tire Repair Kit ....................... 636
Tie-down Anchors .................................... 212
Time (Setting) ........................................... 144
Tire Pressure Monitoring System
(TPMS) ..................................................... 482
Indicator ........................................... 91, 673
Tires .......................................................... 609
Air Pressure..................................... 610, 685
Checking and Maintaining ...................... 609
Inspection ............................................... 609
Labeling .................................................. 610
Puncture (Flat Tire) .................................. 635
Regulations ............................................. 612
Rotation.................................................. 616 Spare Tire ........................................ 648, 685
Summer .................................................. 617
Temporary Tire Repair Kit ........................ 636
Tire Chains .............................................. 617
Wear Indicators ....................................... 614
Winter ..................................................... 617
Tools .......................................................... 634
Towing Your Vehicle
Emergency .............................................. 679
TPMS (Tire Pressure Monitoring System) .................................................... 482
Indicator ............................................ 91, 673
Transmission ..................................... 461, 468
Continuously Variable Transmission ......... 461
Fluid ........................................................ 591
Manual .................................................... 468
Shift Lever Position Indicator ...... 86, 462, 464
Trip Meter ................................................. 127
Troubleshooting ....................................... 633
Blown Fuse ...................................... 674, 676
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door .......... 31
Emergency Towing .................................. 679
Engine Won’t Start .................................. 659
Noise When Braking .................................. 32
Overheating ............................................ 666
Premium Gasoline ................................... 684
Puncture/Flat Tire ..................................... 635
Rear Door Won’t Open ...................... 31, 158
Select Lever Won’t Move ......................... 665
Warning Indicators .................................... 82 Turbo Engine Vehicle
............................... 567
Turbo Meter ............................................. 129
Turn Signals .............................................. 176
Indicators (Instrument Panel) ..................... 92
Turn-by-Turn Directions ........................... 130
U
Unlocking the Doors................................ 147
Unlocking the Fron t Doors from the
Inside ....................................................... 156
USB Adapter Cable ................................... 226
USB Flash Drives ............................... 300, 326
USB Port(s) ................................................ 227
Using the Smart Entr y with Push Button
Start System ............................................ 147
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 686
Vehicle Stability Assist
TM (VSA ®) .............. 475
Off Button............................................... 476
Off Indicator.............................................. 90
System Indicator ........................................ 90
Viscosity (Oil) .................................... 582, 685
21 CIVIC 5D HUM-31TGG6400_01.book 705 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
