headlight bulb HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.●While the indicator is on, press the
(display/information ) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 598, 602
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch
in a position other than OFF or
when the switch is set to AUTO
and the exterior lights come on.●If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver's door is
opened.—
21 CIVIC 5D HUM-31TGG6400_01.book 92 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

594
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
High beam headlight:60 W (HB3 for halogen bulb type)*
High beam headlight:LED type*
Low beam headlight:55 W (H11 for halogen bulb type)*
Low beam headlight:LED type*
■High Beam Headlights
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with LED headlights
Models with halogen headlights
Tab Coupler
Bulb
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 594 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

595
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.

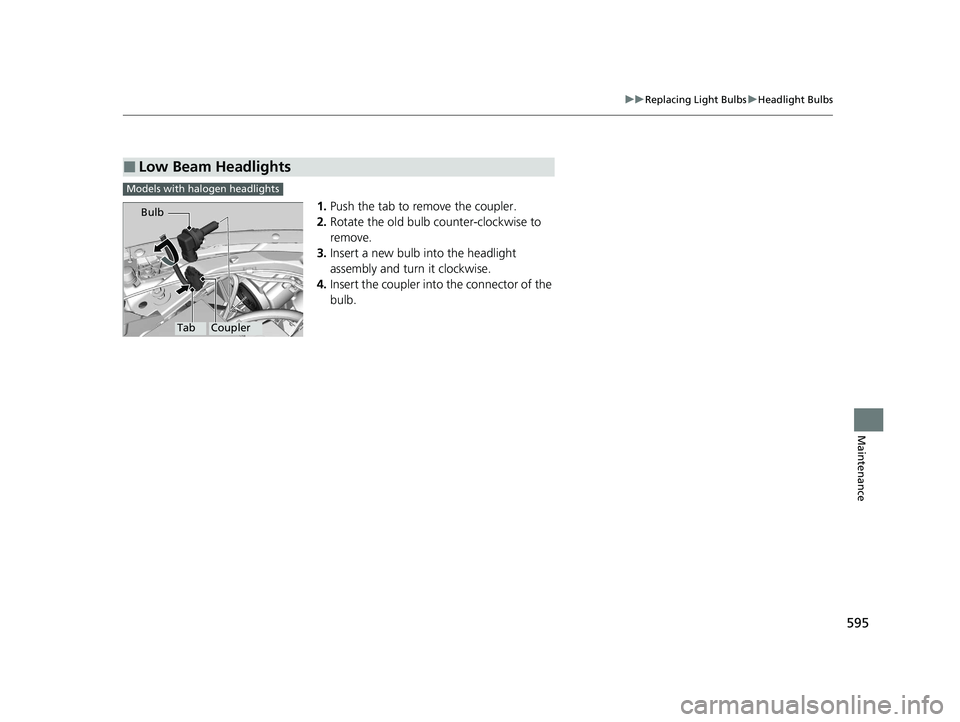

■Low Beam Headlights
Models with halogen headlights
TabCoupler
Bulb
21 CIVIC 5D HUM-31TGG6400_01.book 595 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

598
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance

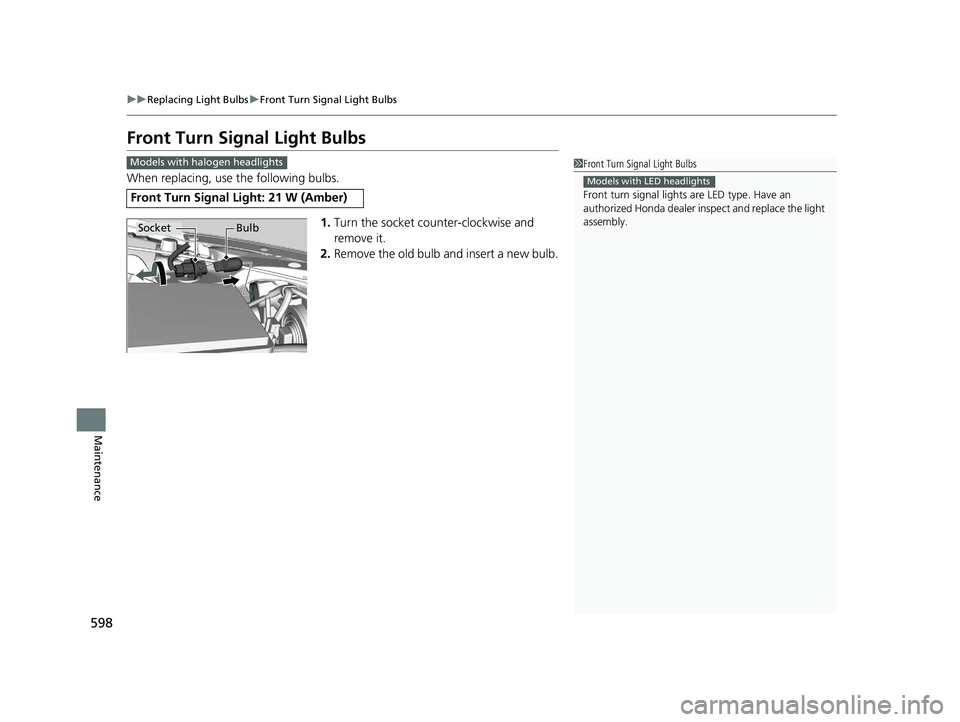

Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Light: 21 W (Amber)
1Front Turn Signal Light Bulbs
Front turn signal lights are LED type. Have an
authorized Honda d ealer inspect and replace the light
assembly.
Models with LED headlights
Models with halogen headlights
Socket Bulb
21 CIVIC 5D HUM-31TGG6400_01.book 598 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

684
Information
Specifications
■Vehicle Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
ModelCivic*1
Civic TYPE R*2
No. of Passengers:
Front 2
Rear 3
*1
2*2
Total 5*1
4*2
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■
Air Conditioning
■ Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Fuel
*1: Models without 18 or 20 inch wheels
*2: Models with 18 or 20 inch wheels
■Washer Fluid
*1: 1.5 L engine models
*2: 2.0 L engine models
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.70 – 6.28 cu-in (77 – 103 ml)
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2
Spark Plugs NGK ILZKAR8H8S
Type
Unleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.:2.6 US qt (2.5 L)*1
3.2 US qt (3.0 L)*2
Canada:4.8 US qt (4.5 L)*1
3.2 US qt (3.0 L)*2
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with halogen fog lights
*4: Models with LED fog lights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights*35 W (H8)*3
LED*4
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Taillights/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WCenter Pocket Lights* LEDGlove Box Light3.4 WCargo Area Light5 W
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 684 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

699
Index
Wi-Fi Connection .................................... 310
Audio/Information Screen ............... 234, 252
Authorized Manuals ................................ 695
Auto Door Locking/Unlocking ................ 159
Customize .............................................. 140
Auto High-Beam ...................................... 181
Automatic Brake Hold ............................. 553
Indicator ........................................... 84, 553
Automatic Brake Hold System Indicator ........................................... 84, 553
Automatic Lighting .................................. 178
Average Fuel Economy ............................ 128
Average Speed ......................................... 128
B
Battery...................................................... 620
Charging System Indicator ................ 85, 668
If the Battery Is Dead............................... 662
Maintenance (Checking the Battery) ....... 620
Maintenance (Replacing) ......................... 622
Belts (Seat) .................................................. 40
Beverage Holders ..................................... 205
Bluetooth ® Audio ..................................... 303
Bluetooth ® HandsFreeLink ®........... 383, 410
Booster Seats (For Children) ...................... 78
Brake System ............................................ 549
Anti-lock Brake System (ABS) .................. 556
Automatic Brake Hold ............................. 553
Brake Assist System................................. 557
Fluid ....................................................... 592 Foot Brake ............................................... 552
Indicator (Red) ........................... 82, 670, 671
Parking Brake .......................................... 549
Braking Pressure Meter ............................ 131
Brightness Control (Instrument Panel) .... 187
Bulb Replacement .................................... 594
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 602
Fog Lights ................................................ 596
Front Side Marker Lights .......................... 599
Front Turn Signal Lights ........................... 598
Headlights ............................................... 594
High-Mount Brake Light .......................... 603
Parking/Daytime Running Lights .............. 601
Rear License Plate Light ........................... 603
Side Turn Signal/Em ergency Indicator
Lights .................................................... 601
Taillights .................................................. 603
Taillights/Rear Side Marker Lights ............. 603
Bulb Specifications ................................... 684
C
Carbon Monoxide Gas ................................ 79
Cargo Area Cover ..................................... 213
Cargo Hook ............................................... 212
Carrying Cargo .................................. 445, 447
Certification Label .................................... 686
Changing Bulbs ......................................... 594
Charging System Indicator ................. 85, 668Child Safety
................................................. 64
Childproof Door Locks............................. 158
Child Seat .................................................... 64
Booster Seats ............................................ 78
Child Seat for Infants................................. 66
Child Seat for Small Children ..................... 67
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 72
Larger Children ......................................... 77
Rear-facing Child Seat ............................... 66
Selecting a Child Seat ................................ 68
Using a Tether ........................................... 74
Childproof Door Locks ............................. 158
Cleaning the Exterior ............................... 628
Cleaning the Interior ................................ 625
Climate Control System ............................ 217
Changing the Mode ................................ 217
Defrosting the Windshield and Windows ............................................... 221
Dust and Pollen Filter............................... 624
Recirculation/Fresh Air Mode ................... 220
Sensors ................................................... 224
Using Automatic Climate Control ............ 217
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 491
Coat Hooks ............................................... 211
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 491
Compact Spare Tire .......................... 648, 685
Console Compartment ............................. 204
21 CIVIC 5D HUM-31TGG6400_01.book 699 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

701
Index
Floor Mats................................................ 626
Fluids
Brake/Clutch ........................................... 592
Continuously Variable Transmission ........ 591
Engine Coolant ....................................... 589
Manual Transmission .............................. 591
Windshield Washer ................................. 593
FM/AM Radio ................................... 240, 280
Fog Light Indicator .................................... 93
Folding Down the Rear Seats .................. 199
Foot Brake ................................................ 552
Front Airbags (SRS) .................................... 51
Front Head Restraints .............................. 196
Front Seat Heaters ................................... 215
Front Seats ................................................ 193
Adjusting ................................................ 193
Front Sensor Camera ............................... 546
Fuel ..................................................... 26, 562
Fuel Economy and CO
2 Emissions ............ 566
Gauge .................................................... 122
Instant Fuel Economy .............................. 129
Low Fuel Indicator..................................... 88
Range ..................................................... 128
Recommendation.................................... 562
Refueling ................................................ 562
Fuel Economy and CO
2 Emissions ............ 566
Fuel Fill Door ...................................... 26, 564
Unable to Unlock .................................... 680
Fuses ......................................................... 674
Inspecting and Changing ........................ 678
Locations ........................................ 674, 676
G
Gasoline (Fuel)
Economy ................................................. 566
Gauge ..................................................... 122
Information ............................................. 562
Instant Fuel Economy ............................... 129
Low Fuel Indicator ..................................... 88
Refueling ................................................. 562
Gauges ...................................................... 122
Gear Shift Lever Positions Continuously Variable Transmission ......... 461
Manual Transmission ............................... 468
Glass (care) ........................................ 626, 629
Glove Box .................................................. 203
G-Meter ..................................................... 131
H
Halogen Bulbs ................................... 594, 597
Handling the Unexpected ........................ 633
HandsFreeLink ® (HFL) ....................... 383, 410
Automatic Import of Cellular Phonebook
and Call History ..................................... 423
Displaying Messages ................................ 437
HFL Buttons ..................................... 383, 410
HFL Menus ...................................... 386, 413
HFL Status Display ........................... 385, 412
In Case of Emergency .............................. 441
Limitations for Manual Operation .... 385, 412
Making a Call .................................. 404, 431
Options During a Call ...................... 409, 434 Phone Setup.................................... 390, 418
Phonebook Phonetic Modification ........... 427
Receiving a Call ............................... 408, 434
Receiving a Text Message/E-mail.............. 435
Ring Tone................................................ 422
Selecting a Text/E-mail Message
Account ................................................ 436
Speed Dial ....................................... 400, 424
To Set Up Text Messa ge/E-mail Options ... 421
Hatch ......................................................... 160
Light Bulb................................................ 684
Release Lever........................................... 681
Unable to Open....................................... 681
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 280
Headlights ................................................. 177
Aiming .................................................... 594
Auto High-Beam System.......................... 181
Automatic Operation............................... 178
Dimming ......................................... 177, 180
Operating................................................ 177
Heaters (Front Seat) ................................. 215
Heaters (Rear Seat) ................................... 216
HFL (HandsFreeLink ®)....................... 383, 410
High Beam Indicator .................................. 92
Hill Start Assist System ..................... 453, 458
HomeLink ® Universal Transceiver ............ 380
Honda App License Agreement .............. 327
Honda Sensing ®................................ 27, 488
HondaLink ®............................................. 305
21 CIVIC 5D HUM-31TGG6400_01.book 701 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
