mirror controls HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

Contents
Child Safety P. 64Exhaust Gas Hazard P. 79Safety Labels P. 80
Hatch P. 160 Security System P. 163 Opening and Closing the Windows P. 167
Operating the Switches Around the Steering Wheel P. 171 Adjusting the Mirrors P. 190
Interior Lights/Interior Convenience It ems P. 201 Climate Control System P. 217
Audio Error Messages P. 320General Information on the Audio System P. 324
Bluetooth ® HandsFreeLink ® P. 383, 410
When Driving P. 451 Honda Sensing®P. 488 Braking P. 549
Refueling P. 562 Fuel Economy and CO
2 Emissions P. 566 Turbo Engine Vehicle P. 567
Maintenance Under the Hood P. 579 Replacing Light Bulbs P. 594
Checking and Maintaining Tires P. 609 Battery P. 620 Remote Transmitter Care P. 622
Cleaning P. 625 Accessories and Modifications P. 631
Handling of the Jack* P. 656Engine Does Not Start P. 659If the Battery Is Dead P. 662
Indicator, Coming On/Blinking P. 668 Fuses P. 674 Emergency Towing P. 679
If You Cannot Open the Hatch P. 681 Refueling P. 682
Devices that Emit Radio Waves P. 687 Reporting Safety Defects P. 688
Authorized Manuals P. 695 Customer Service Information P. 696
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 81
ControlsP. 143
FeaturesP. 225
DrivingP. 443
MaintenanceP. 569
Handling the UnexpectedP. 633
InformationP. 683
IndexP. 698
21 CIVIC 5D HUM-31TGG6400_01.book 5 ページ ２０２０年８月２８日　金曜日　午後１時４８分

Visual Index
8
Quick Reference Guide
❚Door Mirror Controls (P192)
❚Glove Box (P203)
❚Rearview Mirror (P190)
❚Hood Release Handle (P581)
❚Master Door Lock Switch (P158)
❚Power Window Switches (P167)
❚Interior Fuse Box (P676)
❚Driver’s Front Airbag (P51)
❚Shift Lever
Continuously Variable
Transmission
(P461, 463)
Manual Transmission (P468)
❚Electric Parking Brake Switch (P549)
❚USB Port* (P227)
❚Wireless Charger* (P209)
❚Automatic Brake Hold
Button
(P553)
❚ECON Button* (P472)
❚Drive Mode Switch* (P473)
❚Passenger’s Front Airbag
(P51)
❚HomeLink® Buttons* (P381)
21 CIVIC 5D HUM-31TGG6400_01.book 8 ページ ２０２０年８月２８日　金曜日　午後１時４８分

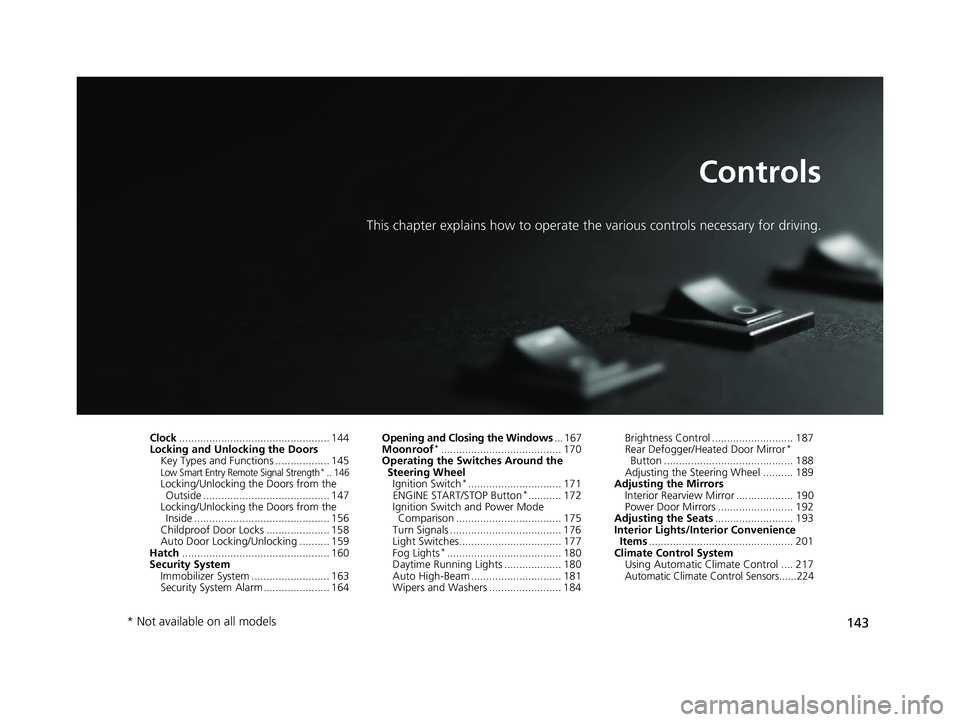

143
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 144
Locking and Unlocking the Doors
Key Types and Functions .................. 145
Low Smart Entry Remote Signal Strength*.. 146Locking/Unlocking the Doors from the Outside .......................................... 147
Locking/Unlocking the Doors from the Inside ............................................. 156
Childproof Door Locks ..................... 158
Auto Door Locking/Unlocking .......... 159
Hatch ................................................. 160
Security System Immobilizer System .......................... 163
Security System Alarm ...................... 164 Opening and Closing the Windows
... 167
Moonroof
*........................................ 170
Operating the Switches Around the Steering Wheel Ignition Switch
*............................... 171
ENGINE START/STOP Button*........... 172
Ignition Switch and Power Mode Comparison ................................... 175
Turn Signals ..................................... 176
Light Switches.................................. 177
Fog Lights
*...................................... 180
Daytime Running Lights ................... 180
Auto High-Beam .............................. 181
Wipers and Washers ........................ 184 Brightness Control ........................... 187
Rear Defogger/Heated Door Mirror
*
Button ........................................... 188
Adjusting the Steering Wheel .......... 189
Adjusting the Mirrors
Interior Rearview Mirror ................... 190
Power Door Mirrors ......................... 192
Adjusting the Seats .......................... 193
Interior Lights/Interior Convenience Items ................................................ 201
Climate Control System
Using Automatic Climate Control .... 217
Automatic Climate Control Sensors......224
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 143 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

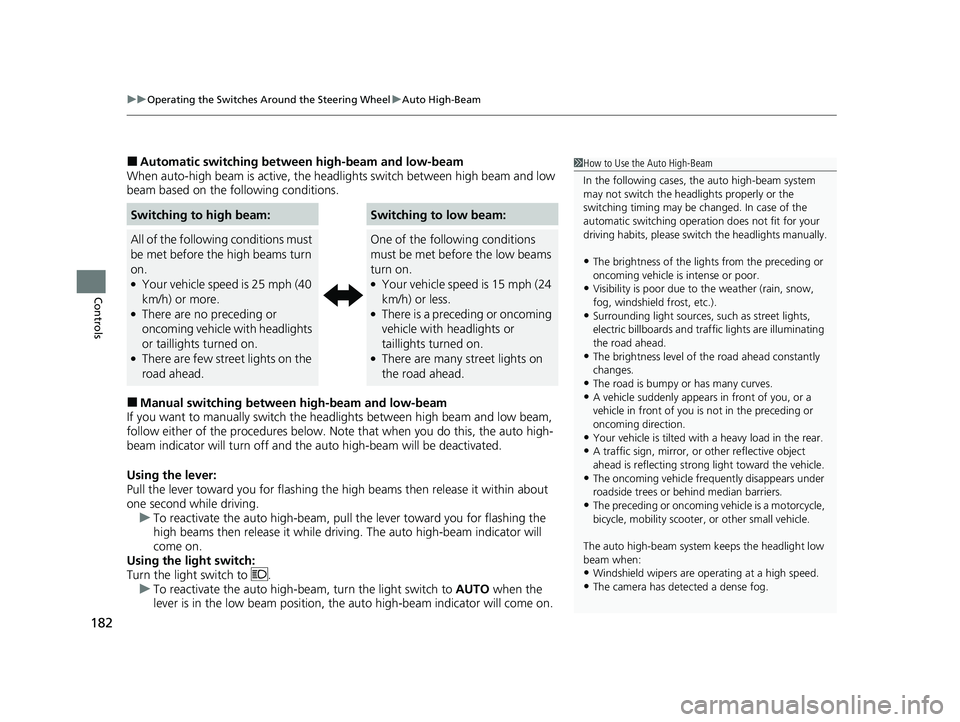

uuOperating the Switches Around the Steering Wheel uAuto High-Beam
182
Controls
■Automatic switching between high-beam and low-beam
When auto-high beam is active, the headlights switch between high beam and low
beam based on the following conditions.
■Manual switching between high-beam and low-beam
If you want to manually switch the headlights between high beam and low beam,
follow either of the proced ures below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever toward you fo r flashing the high beams th en release it within about
one second while driving. u To reactivate the auto high-beam, pull the lever toward you for flashing the
high beams then release it while driving. The auto high-beam indicator will
come on.
Using the light switch:
Turn the light switch to . u To reactivate the auto high-be am, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
Switching to high beam:Switching to low beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 25 mph (40
km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 15 mph (24
km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
1How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operation does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are op erating at a high speed.
•The camera has detected a dense fog.
21 CIVIC 5D HUM-31TGG6400_01.book 182 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

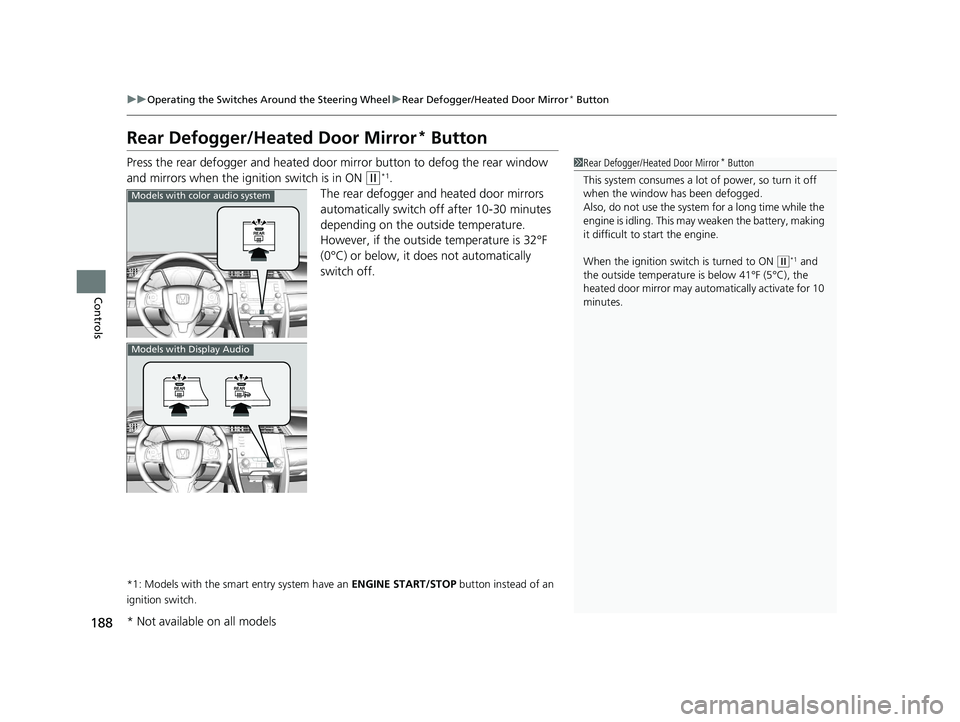

188
uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror* Button
Controls
Rear Defogger/Heated Door Mirror* Button
Press the rear defogger and heated door mirror button to defog the rear window
and mirrors when the ignition switch is in ON
(w*1.
The rear defogger and heated door mirrors
automatically switch off after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, it does not automatically
switch off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Rear Defogger/Heated Door Mirror* Button
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long time while the
engine is idling. This may weaken the battery, making
it difficult to start the engine.
When the ignition switch is turned to ON
( w*1 and
the outside temperature is below 41°F (5°C), the
heated door mirror may automatically activate for 10
minutes.
Models with color audio system
Models with Display Audio
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 188 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

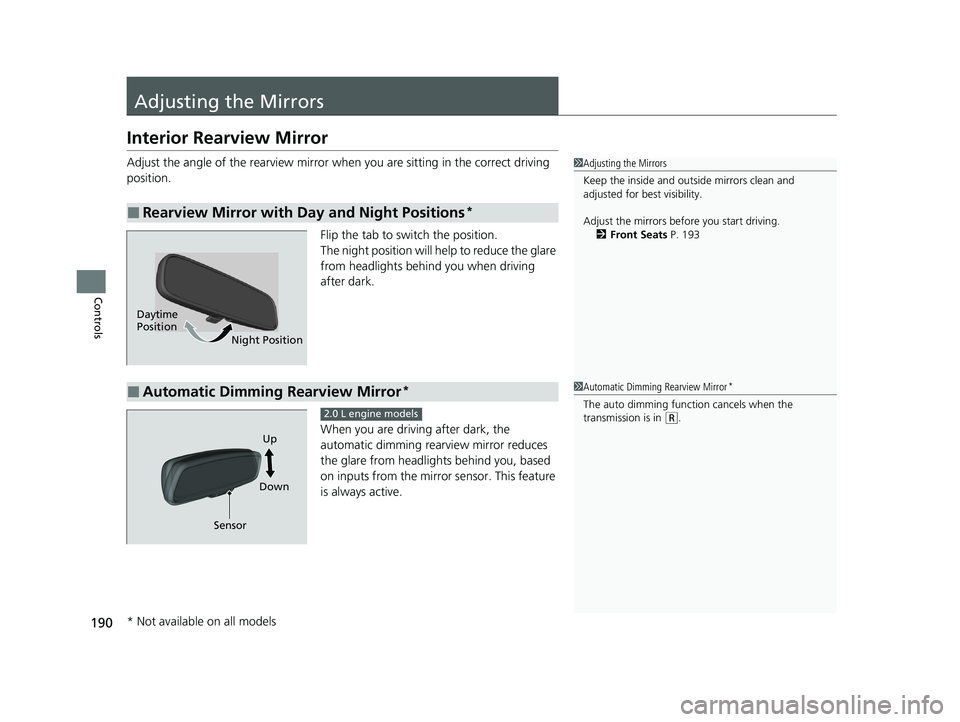

190
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you, based
on inputs from the mirror sensor. This feature
is always active.
■Rearview Mirror with Day and Night Positions*
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Front Seats P. 193
Daytime
Position
Night Position
■Automatic Dimming Rearview Mirror*1Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the
transmission is in (R.
Sensor DownUp
2.0 L engine models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 190 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

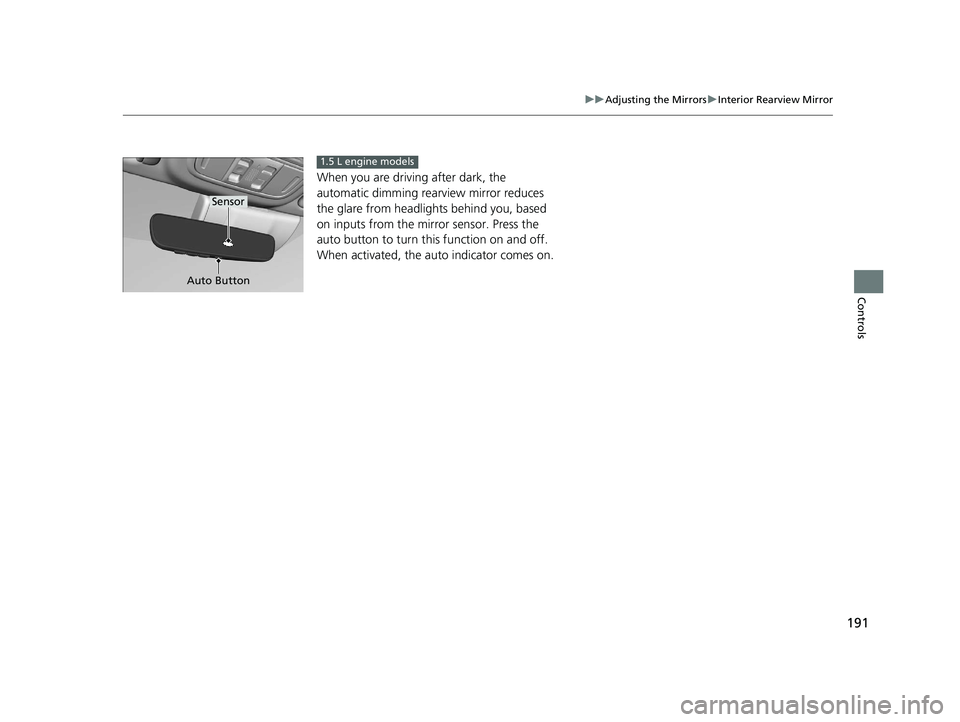

191
uuAdjusting the Mirrors uInterior Rearview Mirror
Controls
When you are driving after dark, the
automatic dimming rear view mirror reduces
the glare from headlights behind you, based
on inputs from the mirror sensor. Press the
auto button to turn this function on and off.
When activated, the au to indicator comes on.
Auto Button
Sensor
1.5 L engine models
21 CIVIC 5D HUM-31TGG6400_01.book 191 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

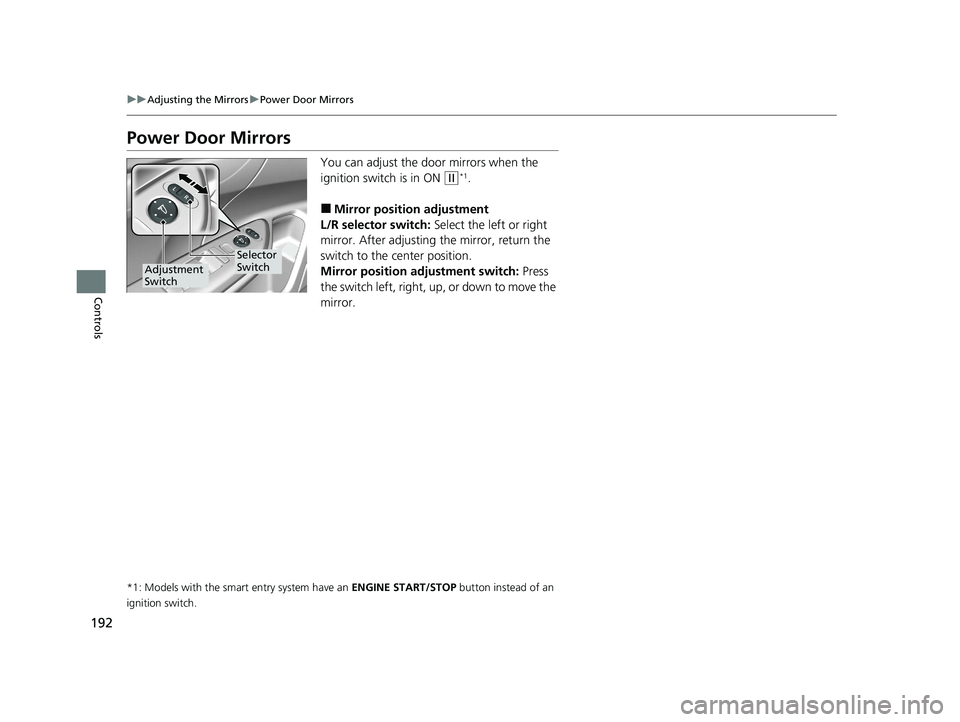

192
uuAdjusting the Mirrors uPower Door Mirrors
Controls
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Selector
Switch
Adjustment
Switch
21 CIVIC 5D HUM-31TGG6400_01.book 192 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

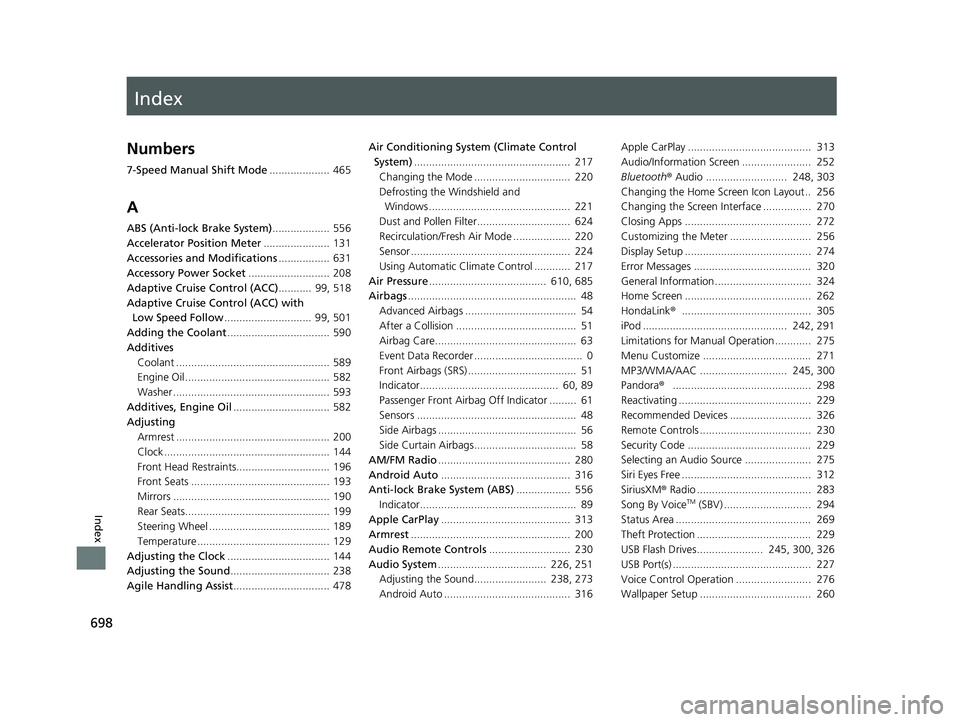

Index
698
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 465
A
ABS (Anti-lock Brake System) ................... 556
Accelerator Position Meter ...................... 131
Accessories and Modifications ................. 631
Accessory Power Socket ........................... 208
Adaptive Cruise Control (ACC) ........... 99, 518
Adaptive Cruise Control (ACC) with Low Speed Follow ............................. 99, 501
Adding the Coolant .................................. 590
Additives Coolant ................................................... 589
Engine Oil ................................................ 582
Washer .................................................... 593
Additives, Engine Oil ................................ 582
Adjusting Armrest ................................................... 200
Clock ....................................................... 144
Front Head Restraints............................... 196
Front Seats .............................................. 193
Mirrors .................................................... 190
Rear Seats................................................ 199
Steering Wheel ........................................ 189
Temperature ............................................ 129
Adjusting the Clock .................................. 144
Adjusting the Sound ................................. 238
Agile Handling Assist ................................ 478 Air Conditioning System (Climate Control
System) .................................................... 217
Changing the Mode ................................ 220
Defrosting the Windshield and Windows ............................................... 221
Dust and Pollen Filter............................... 624
Recirculation/Fresh Air Mode ................... 220
Sensor ..................................................... 224
Using Automatic Climate Control ............ 217
Air Pressure ....................................... 610, 685
Airbags ........................................................ 48
Advanced Airbags ..................................... 54
After a Collision ........................................ 51
Airbag Care............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 51
Indicator.............................................. 60, 89
Passenger Front Airbag Off Indicator ......... 61
Sensors ..................................................... 48
Side Airbags .............................................. 56
Side Curtain Airbags.................................. 58
AM/FM Radio ............................................ 280
Android Auto ........................................... 316
Anti-lock Brake System (ABS) .................. 556
Indicator.................................................... 89
Apple CarPlay ........................................... 313
Armrest ..................................................... 200
Audio Remote Controls ........................... 230
Audio System .................................... 226, 251
Adjusting the Sound........................ 238, 273
Android Auto .......................................... 316 Apple CarPlay ......................................... 313
Audio/Information Screen ....................... 252
Bluetooth
® Audio ........................... 248, 303
Changing the Home Screen Icon Layout.. 256
Changing the Screen Interface ................ 270
Closing Apps .......................................... 272
Customizing the Meter ........................... 256
Display Setup .......................................... 274
Error Messages ....................................... 320
General Information................................ 324
Home Screen .......................................... 262
HondaLink ®........................................... 305
iPod ................................................ 242, 291
Limitations for Manual Operation ............ 275
Menu Customize .................................... 271
MP3/WMA/AAC ............................. 245, 300
Pandora ®.............................................. 298
Reactivating ............................................ 229
Recommended Devices ........................... 326
Remote Controls ..................................... 230
Security Code ......................................... 229
Selecting an Audio Source ...................... 275
Siri Eyes Free ........................................... 312
SiriusXM ® Radio ...................................... 283
Song By Voice
TM (SBV) ............................. 294
Status Area ............................................. 269
Theft Protection ...................................... 229
USB Flash Drives...................... 245, 300, 326
USB Port(s) .............................................. 227
Voice Control Operation ......................... 276
Wallpaper Setup ..................................... 260
21 CIVIC 5D HUM-31TGG6400_01.book 698 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

700
Index
Continuously Variable TransmissionCreeping ................................................. 460
Fluid ........................................................ 591
Kickdown ................................................ 460
Operating the Shift Lever ................... 24, 462
Shift Lever Does Not Move....................... 665
Shifting.................................................... 461
Controls ..................................................... 143
Coolant (Engine) ....................................... 589
Adding the Coolant ................................. 590
Overheating............................................. 666
Creeping (Continuously Variable Transmission) ........................................... 460
Cup Holders ............................................... 205
Customer Service Information ................. 696
Customized Features ........................ 134, 350
D
Daytime Running Lights ........................... 180
Dead Battery ............................................. 662
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows .................................................. 221
Devices that Emit Radio Waves ................ 687
Dimming Headlights ............................................... 177
Rearview Mirror ....................................... 190
Dipstick (Engine Oil) ................................. 583
Directional Signals (Turn Signal) .............. 176
Display Button .......................................... 252 Display Setup
............................................ 239
Display/Information Button ..................... 125
Door Mirrors ............................................. 192
Doors ......................................................... 145
Auto Door Locking .................................. 159
Auto Door Unlocking .............................. 159
Keys ........................................................ 145
Locking/Unlocking the Doors from the
Inside .................................................... 156
Locking/Unlocking the Doors from the Outside ................................................. 147
DOT Tire Quality Grading ........................ 612
Drive Mode Switch ................................... 473
Driver Information Interface ................... 124
Driving ...................................................... 443
Braking ................................................... 549
Continuously Variable Transmission ......... 460
Shifting Gear ........................................... 468
Shifting Position ...................................... 461
Starting the Engine.......................... 451, 454
Dust and Pollen Filter ............................... 624
E
Eco Assist System........................................ 11
ECON Mode .............................................. 472
Elapsed Time ............................................. 128
Electric Power Steering (EPS) System ........ 89
Indicator............................................ 89, 672
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 679 Emergency Engine Stop
........................... 661
Emissions Testing (Readiness Codes) ...... 689
Engine Coolant .................................................. 589
If the Battery Is Dead............................... 662
Oil .......................................................... 582
Starting........................................... 451, 454
Switch Buzzer ......................................... 171
Engine Coolant ........................................ 589
Adding the Coolant ................................ 590
Overheating ............................................ 666
Temperature Gauge ................................ 122
Engine Oil ................................................. 582
Adding ................................................... 585
Checking ................................................ 583
Displaying Oil Life ................................... 574
Low Oil Pressure Indicator ................. 84, 668
Recommended Engine Oil ....................... 582
ENGINE START/STOP Button .................... 172
EPS (Electric Power Steering) System ...... 672
Exhaust Gas Hazard (Carbon Monoxide) .. 79
Exterior Care (Cleaning) .......................... 628
Exterior Mirrors ........................................ 192F
Features.................................................... 225
Filters Dust and Pollen....................................... 624
Oil .......................................................... 586
Flat Tire ..................................................... 635
21 CIVIC 5D HUM-31TGG6400_01.book 700 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
