service indicator HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

Contents
Child Safety P. 64Exhaust Gas Hazard P. 79Safety Labels P. 80
Hatch P. 160 Security System P. 163 Opening and Closing the Windows P. 167
Operating the Switches Around the Steering Wheel P. 171 Adjusting the Mirrors P. 190
Interior Lights/Interior Convenience It ems P. 201 Climate Control System P. 217
Audio Error Messages P. 320General Information on the Audio System P. 324
Bluetooth ® HandsFreeLink ® P. 383, 410
When Driving P. 451 Honda Sensing®P. 488 Braking P. 549
Refueling P. 562 Fuel Economy and CO
2 Emissions P. 566 Turbo Engine Vehicle P. 567
Maintenance Under the Hood P. 579 Replacing Light Bulbs P. 594
Checking and Maintaining Tires P. 609 Battery P. 620 Remote Transmitter Care P. 622
Cleaning P. 625 Accessories and Modifications P. 631
Handling of the Jack* P. 656Engine Does Not Start P. 659If the Battery Is Dead P. 662
Indicator, Coming On/Blinking P. 668 Fuses P. 674 Emergency Towing P. 679
If You Cannot Open the Hatch P. 681 Refueling P. 682
Devices that Emit Radio Waves P. 687 Reporting Safety Defects P. 688
Authorized Manuals P. 695 Customer Service Information P. 696
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 81
ControlsP. 143
FeaturesP. 225
DrivingP. 443
MaintenanceP. 569
Handling the UnexpectedP. 633
InformationP. 683
IndexP. 698
21 CIVIC 5D HUM-31TGG6400_01.book 5 ページ ２０２０年８月２８日　金曜日　午後１時４８分

Quick Reference Guide
29
Handling the Unexpected (P 633)
Flat Tire (P 635)
●Park in a safe location and repair the flat
tire using the temporary tire repair kit.
●Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P 668)
●Identify the indicator and consult the
owner's manual.
Models with temporary tire repair kit
Models with a compact spare tire
Engine Won’t Start
(P 659)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 674)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 666)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 679)
●Call a professional towing service if you
need to tow your vehicle.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 29 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

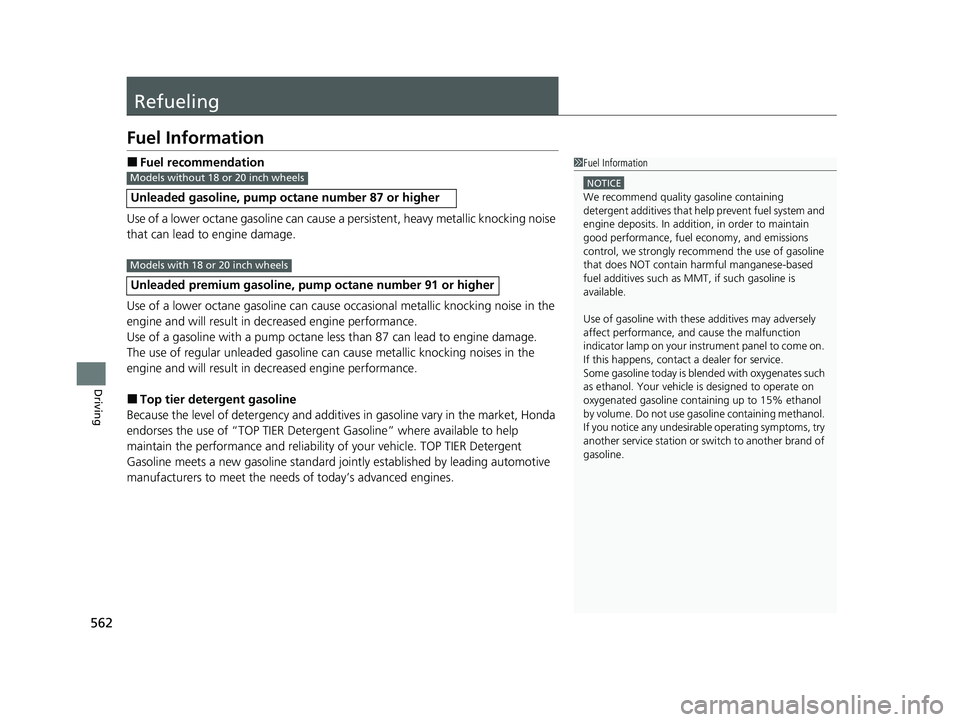

562
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
Use of a lower octane gasoline can cause occasional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of a gasoline with a pump octane less than 87 can lead to engine damage.
The use of regular unleaded gasoline can cause metallic knocking noises in the
engine and will result in decreased engine performance.
■Top tier detergent gasoline
Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Deterg ent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard join tly established by leading automotive
manufacturers to meet the need s of today’s advanced engines.
Unleaded gasoline, pump octane number 87 or higher
Unleaded premium gasoline, pump octane number 91 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
Models without 18 or 20 inch wheels
Models with 18 or 20 inch wheels
21 CIVIC 5D HUM-31TGG6400_01.book 562 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

569
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 570
Safety When Performing Maintenance .... 571Parts and Fluids Used in Maintenance Service ........................................... 572
Maintenance Minder
TM..................... 573
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 579Opening the Hood ........................... 581
Recommended Engine Oil ................ 582
Oil Check ......................................... 583
Adding Engine Oil ............................ 585
Changing the Engine Oil and Oil Filter..... 586
Engine Coolant ................................ 589
Transmission Fluid ............................ 591
Brake/Clutch
* Fluid .......................... 592
Refilling Window Washer Fluid......... 593
Replacing Light Bulbs ....................... 594
Checking and Maintaining Wiper
Blades .......................................... 604
Checking and Maintaining Tires
Checking Tires ................................. 609
Tire and Loading Information Label ..... 610Tire Labeling .................................... 610DOT Tire Quality Grading (U.S. Vehicles) ...... 612Wear Indicators................................ 614 Tire Service Life ................................ 614
Tire and Wheel Replacement ........... 615
Tire Rotation .................................... 616
Winter Tires ..................................... 617
Cold Weather Driving ...................... 619
Battery ............................................... 620
Remote Transmitter Care Replacing the Button Battery ........... 622
Climate Control System Maintenance .. 624Cleaning
Interior Care .................................... 625
Exterior Care.................................... 628
Accessories and Modifications ........ 631
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 569 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

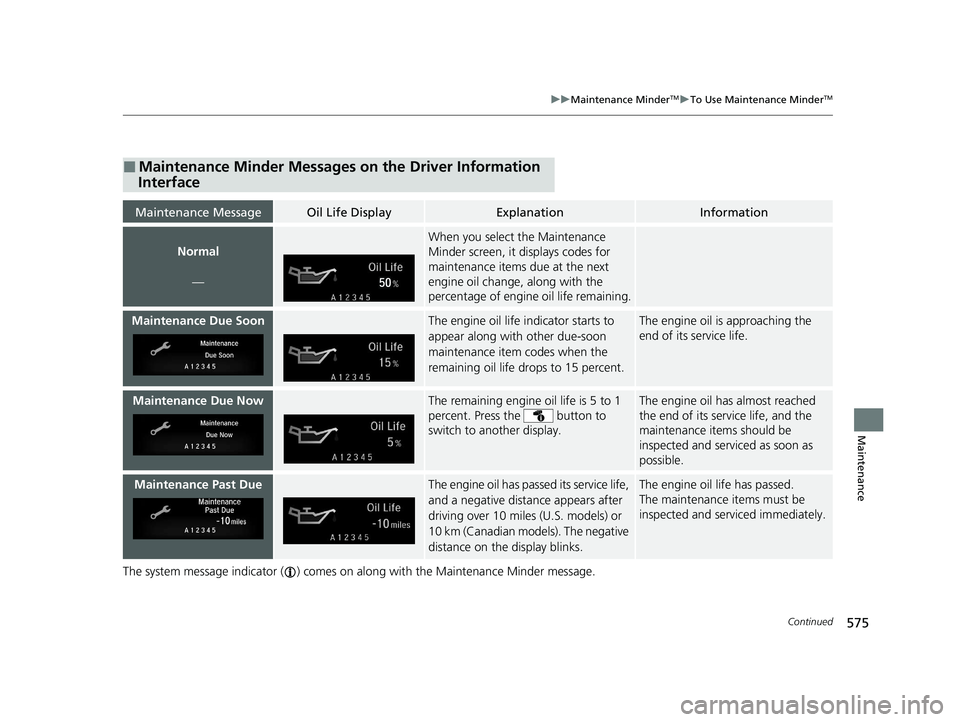

575
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Driver Information
Interface
Maintenance MessageOil Life DisplayExplanationInformation
Normal
—
When you select the Maintenance
Minder screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life remaining.
Maintenance Due SoonThe engine oil life indicator starts to
appear along with other due-soon
maintenance item codes when the
remaining oil life drops to 15 percent.The engine oil is approaching the
end of its service life.
Maintenance Due NowThe remaining engine oil life is 5 to 1
percent. Press the button to
switch to another display.The engine oil has almost reached
the end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.
Maintenance Past DueThe engine oil has passed its service life,
and a negative distance appears after
driving over 10 miles (U.S. models) or
10 km (Canadian models). The negative
distance on the display blinks.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
21 CIVIC 5D HUM-31TGG6400_01.book 575 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

576
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair kit
bottle (If equipped)
●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes
more frequently than recommended by the Maintenance Minder. If you regularly drive your vehicle
under these conditions, have the transmission fluid changed every 25,000 miles.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
Continuously variable transmission models
21 CIVIC 5D HUM-31TGG6400_01.book 576 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

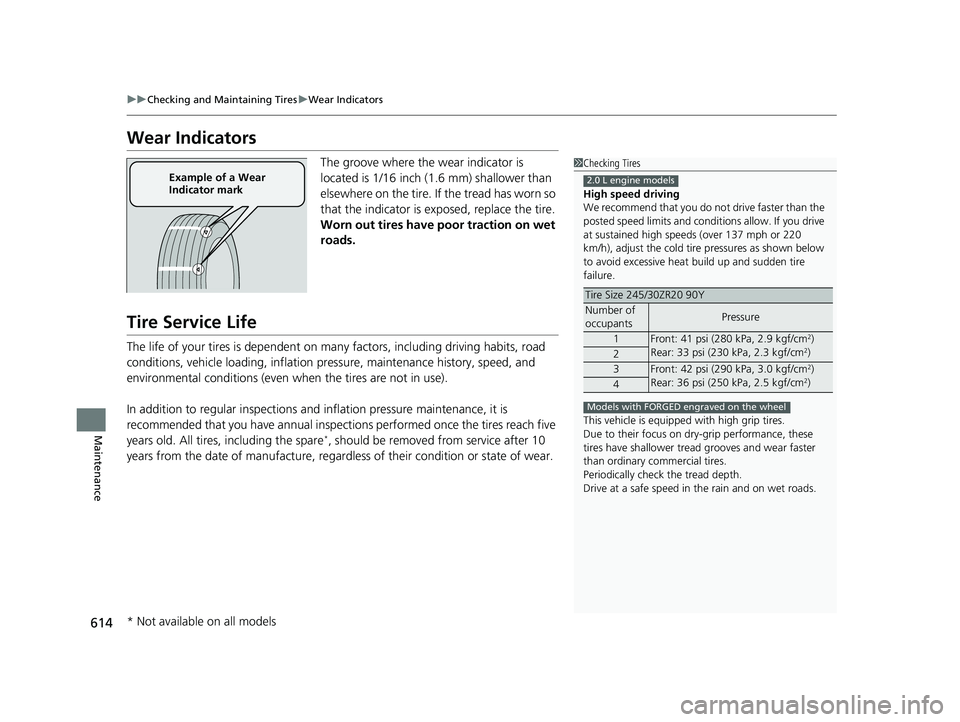

614
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have poor traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pre ssure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular in spections and inflation pres sure maintenance, it is
recommended that you have annual inspecti ons performed once the tires reach five
years old. All tires, including the spare
*, should be removed from service after 10
years from the date of manufacture, regard less of their condition or state of wear.
1Checking Tires
High speed driving
We recommend that you do not drive faster than the
posted speed limits and conditions allow. If you drive
at sustained high speeds (over 137 mph or 220
km/h), adjust the cold tire pressures as shown below
to avoid excessive heat build up and sudden tire
failure.
This vehicle is equippe d with high grip tires.
Due to their focus on dry- grip performance, these
tires have shallower tread grooves and wear faster
than ordinary commercial tires.
Periodically check the tread depth.
Drive at a safe speed in the rain and on wet roads.
Tire Size 245/30ZR20 90Y
Number of
occupantsPressure
1Front: 41 psi (280 kPa, 2.9 kgf/cm2)
Rear: 33 psi (230 kPa, 2.3 kgf/cm2)2
3Front: 42 psi (290 kPa, 3.0 kgf/cm2)
Rear: 36 psi (250 kPa, 2.5 kgf/cm2)4
2.0 L engine models
Models with FORGED engraved on the wheel
Example of a Wear
Indicator mark
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 614 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

uuIf the Battery Is Dead uJump Starting Procedure
664
Handling the Unexpected
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■What to Do After the Engine Starts1 What to Do After the Engine Starts
The indicators for the Adaptive Cruise Control
(ACC)
*, Adaptive Cruise Control (ACC) with Low
Speed Follow*, Road Departure Mitigation (RDM),
Vehicle Stability AssistTM (VSA ®) System, Vehicle
Stability AssistTM (VSA ®) OFF, low tire Pressure/TPMS*
and Collision Mitiga tion Braking SystemTM (CMBSTM)
may come on when you turn the ignition switch to
ON
( w*1 after reconnecting a battery.
Drive a short distance at more than 12 mph (20
km/h). Each indicator should go off. If it does not,
have your vehicle ch ecked by a dealer.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 664 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

700
Index
Continuously Variable TransmissionCreeping ................................................. 460
Fluid ........................................................ 591
Kickdown ................................................ 460
Operating the Shift Lever ................... 24, 462
Shift Lever Does Not Move....................... 665
Shifting.................................................... 461
Controls ..................................................... 143
Coolant (Engine) ....................................... 589
Adding the Coolant ................................. 590
Overheating............................................. 666
Creeping (Continuously Variable Transmission) ........................................... 460
Cup Holders ............................................... 205
Customer Service Information ................. 696
Customized Features ........................ 134, 350
D
Daytime Running Lights ........................... 180
Dead Battery ............................................. 662
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows .................................................. 221
Devices that Emit Radio Waves ................ 687
Dimming Headlights ............................................... 177
Rearview Mirror ....................................... 190
Dipstick (Engine Oil) ................................. 583
Directional Signals (Turn Signal) .............. 176
Display Button .......................................... 252 Display Setup
............................................ 239
Display/Information Button ..................... 125
Door Mirrors ............................................. 192
Doors ......................................................... 145
Auto Door Locking .................................. 159
Auto Door Unlocking .............................. 159
Keys ........................................................ 145
Locking/Unlocking the Doors from the
Inside .................................................... 156
Locking/Unlocking the Doors from the Outside ................................................. 147
DOT Tire Quality Grading ........................ 612
Drive Mode Switch ................................... 473
Driver Information Interface ................... 124
Driving ...................................................... 443
Braking ................................................... 549
Continuously Variable Transmission ......... 460
Shifting Gear ........................................... 468
Shifting Position ...................................... 461
Starting the Engine.......................... 451, 454
Dust and Pollen Filter ............................... 624
E
Eco Assist System........................................ 11
ECON Mode .............................................. 472
Elapsed Time ............................................. 128
Electric Power Steering (EPS) System ........ 89
Indicator............................................ 89, 672
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 679 Emergency Engine Stop
........................... 661
Emissions Testing (Readiness Codes) ...... 689
Engine Coolant .................................................. 589
If the Battery Is Dead............................... 662
Oil .......................................................... 582
Starting........................................... 451, 454
Switch Buzzer ......................................... 171
Engine Coolant ........................................ 589
Adding the Coolant ................................ 590
Overheating ............................................ 666
Temperature Gauge ................................ 122
Engine Oil ................................................. 582
Adding ................................................... 585
Checking ................................................ 583
Displaying Oil Life ................................... 574
Low Oil Pressure Indicator ................. 84, 668
Recommended Engine Oil ....................... 582
ENGINE START/STOP Button .................... 172
EPS (Electric Power Steering) System ...... 672
Exhaust Gas Hazard (Carbon Monoxide) .. 79
Exterior Care (Cleaning) .......................... 628
Exterior Mirrors ........................................ 192F
Features.................................................... 225
Filters Dust and Pollen....................................... 624
Oil .......................................................... 586
Flat Tire ..................................................... 635
21 CIVIC 5D HUM-31TGG6400_01.book 700 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

703
Index
Load Limits............................................... 447
Locking/Unlocking ................................... 145
Auto Door Locking/Unlocking ................. 159
Childproof Door Locks ............................ 158
From Inside ............................................. 156
From Outside .......................................... 147
Keys........................................................ 145
Using a Key............................................. 154
Low Battery Charge ................................. 668
Low Fuel Indicator ..................................... 88
Low Oil Pressure Indicator ................. 84, 668
Low Smart Entry Remote Signal Strength .................................................. 146
Lower Anchors ........................................... 69
Luggage (Maximum Load Limit) ............. 447
M
Maintenance............................................ 569
Adding the Coolant ................................ 590
Battery .................................................... 620
Brake/Clutch Fluid ................................... 592
Cleaning ................................................. 625
Climate Control System .......................... 624
Coolant .................................................. 589
Maintenance Minder
TM............................ 573
Oil .......................................................... 583
Precautions ............................................. 570
Remote Transmitter ................................ 622
Replacing Light Bulbs .............................. 594
Safety ..................................................... 571 Service Items ........................................... 576
Tires ........................................................ 609
Transmission Fluid ................................... 591
Under the Hood ...................................... 579
Malfunction Indicator Lamp .............. 85, 669
Manual Transmission ................................ 468
Map Lights ................................................ 202
Maximum Load Limit ............................... 447
Meters, Gauges ......................................... 122
Mirrors ....................................................... 190
Adjusting ................................................. 190
Door ........................................................ 192
Exterior .................................................... 192
Interior Rearview ..................................... 190
Modifications (and Accessories) .............. 631
Moonroof .................................................. 170
MP3 ................................................... 245, 300
Multi-View Rear Camera .......................... 560
N
Numbers (Identification).......................... 686
O
Odometer.................................................. 127
Oil (Engine) ............................................... 582
Adding .................................................... 585
Checking ................................................. 583
Displaying Oil Life .................................... 574
Low Oil Pressure Indicator .................. 84, 668 Recommended Engine Oil ....................... 582
Viscosity .................................................. 582
Open Source Licenses ............................... 341
Opening Hatch ...................................................... 681
Opening/Closing Hatch ...................................................... 160
Hood....................................................... 581
Moonroof ............................................... 170
Power Windows ...................................... 167
Outside Temperature Display .................. 129
Overheating .............................................. 666
P
Paddle Shifters (7-Speed Manual
Shift Mode) ............................... 25, 465, 466
Pandora ®................................................. 298
Panic Mode ............................................... 166
Parking ...................................................... 558
Parking Brake ........................................... 549
Parking Brake and Brake System Indicator (Amber) ..................................... 83
Parking Brake and Brake System
Indicator (Red) .......................... 82, 670, 671
Passenger Front Airb ag Off Indicator....... 61
Passing Indicators ..................................... 177
Playing Bluetooth ® Audio ................ 248, 303
Power Windows ....................................... 167
Precautions While Driving ....................... 459
Rain ........................................................ 459
21 CIVIC 5D HUM-31TGG6400_01.book 703 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
