Gauges
Inst rument s and Cont rols
59

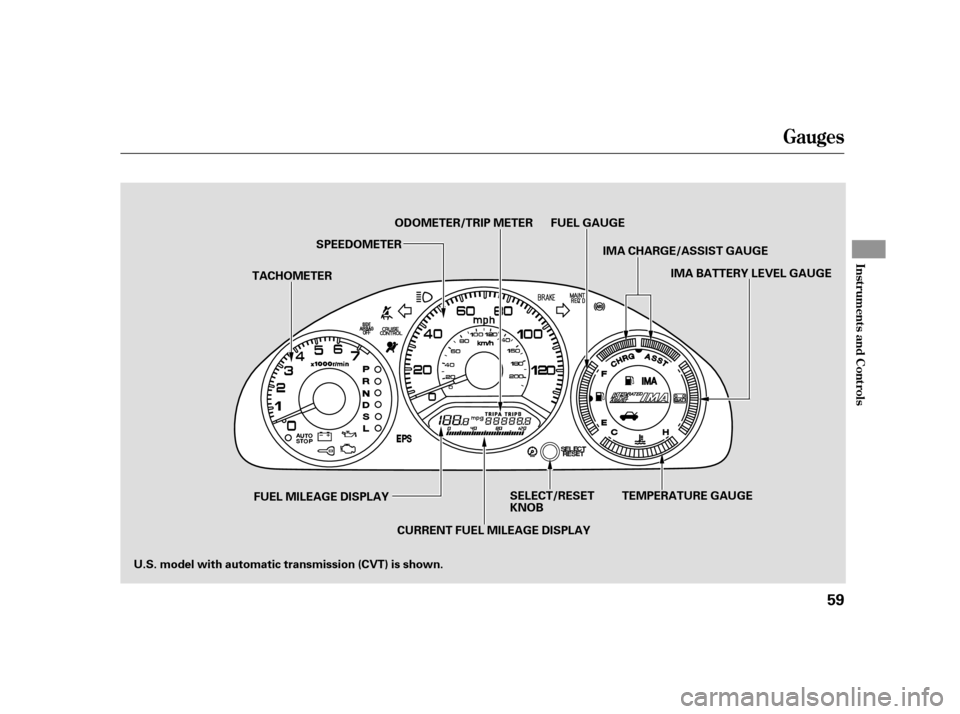

TACHOMETERSPEEDOMETER
ODOMETER/TRIP METER FUEL GAUGE
IMA CHARGE/ASSIST GAUGE
FUEL MILEAGE DISPLAY CURRENT FUEL MILEAGE DISPLAY TEMPERATURE GAUGEIMA BATTERY LEVEL GAUGE
SELECT/RESET
KNOB
U.S. model with automatic transmission (CVT) is shown.

There are two trip meters: Trip A
and Trip B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
This display shows the current, or
instantaneous fuel mileage you are
getting.When a trip meter is displayed, the
average fuel mileage you have been
getting during that trip is shown in
the Fuel Mileage display. This
number is updated once per ten
seconds.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
It shows the number of miles per
hour and mpg (U.S.) or kilometers
per hour and l/100 km (Canada).
You can turn off this display at any
time. See page .
The odometer and the trip meters
use the same display. Switch these
displays by pressing the Select/
Reset knob. The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
61
Current Fuel Mileage
Trip Mileage
Odometer
Trip Meter
Gauges
60

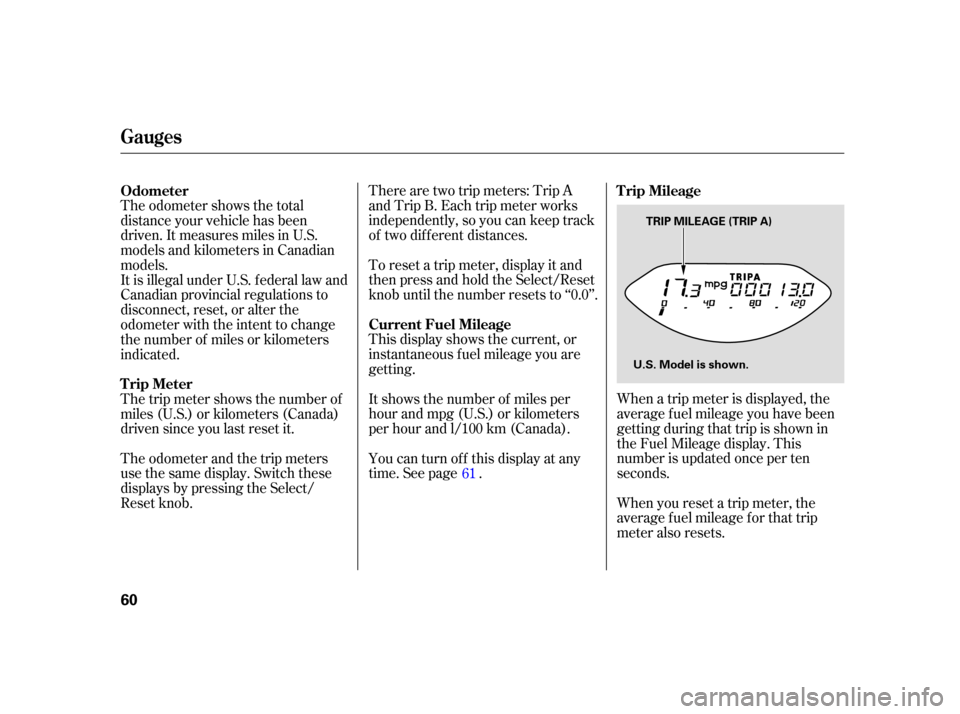

U.S. Model is shown. TRIP MILEAGE (TRIP A)

You can temporarily turn of f the
Current Fuel Mileage display.This shows how much f uel you have.
It may show slightly more or less
than the actual amount.
Turn the ignition switch to ON (II)
and make sure the transmission is
in Neutral (manual) or Park
(automatic) and the parking brake
is set.
The display will turn back on when
you repeat the same procedure in
step 3. Use the Select/Reset knob to
select the odometer display.
Press and hold the Select/Reset
knob f or about 10 to 15 seconds,
then release it. The Current Fuel
Mileage display will turn of f .
1.
3. 2.
Gauges
T urning Of f the Mileage Display Fuel Gauge
Inst rument s and Cont rols
61
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

This gauge shows you the state of
charge of the battery for the
Integrated Motor Assist (IMA). This
battery is recharged by the engine,
anddischargedbytheIMAwhenit
is assisting the engine with powering
the vehicle.
The gauge reading may drop near
the bottom under driving conditions
that require assist f or a long time,
such as prolonged acceleration orclimbing a long hill. The engine will
recharge the battery as you continue
driving.
If the battery is mostly discharged,
the Auto Idle Stop f unction is
disabled (see pages and ).
The battery level gauge does not
read the battery level directly. It
calculates the level by continuously
measuring the current f low, voltage,
and temperature.
Since the level is not read directly,
small sensing errors can, over time,
cause the gauge to read higher than
the actual battery level. The system
will then perf orm a correction, and
the battery level gauge reading will
drop suddenly. When this happens,
IMA assist and Auto Idle Stop are
disabled until the IMA battery is
suf f iciently recharged by normal
driving. This should take only a f ew
minutes.This correction of the battery level
gauge is normal and does not
indicate a problem. If the IMA
battery develops a problem or
becomes deteriorated, the IMA
system indicator will come on. If this
happens, have the vehicle checked
by your dealer as soon as possible.
129 135
IMA Battery Level Gauge
Gauges
62

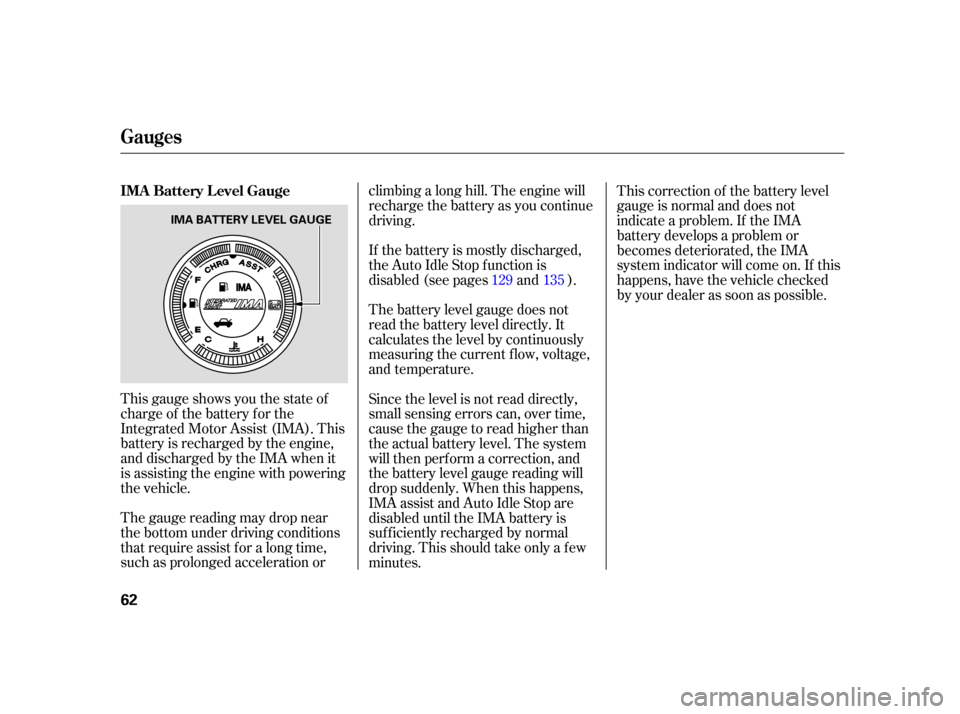

IMA BATTERY LEVEL GAUGE

If the IMA battery is too hot or too
cold, the IMA system shuts down to
protect the battery. This disables the
IMA assist and Auto Idle Stop, even
though the Battery Level Gauge may
show that the battery is well-charged.
Theref ore, those f unctions may not
operate when you f irst start driving
in very hot or cold weather.
The battery temperature will
normalize af ter a f ew minutes of
driving, and the IMA system will
work normally.

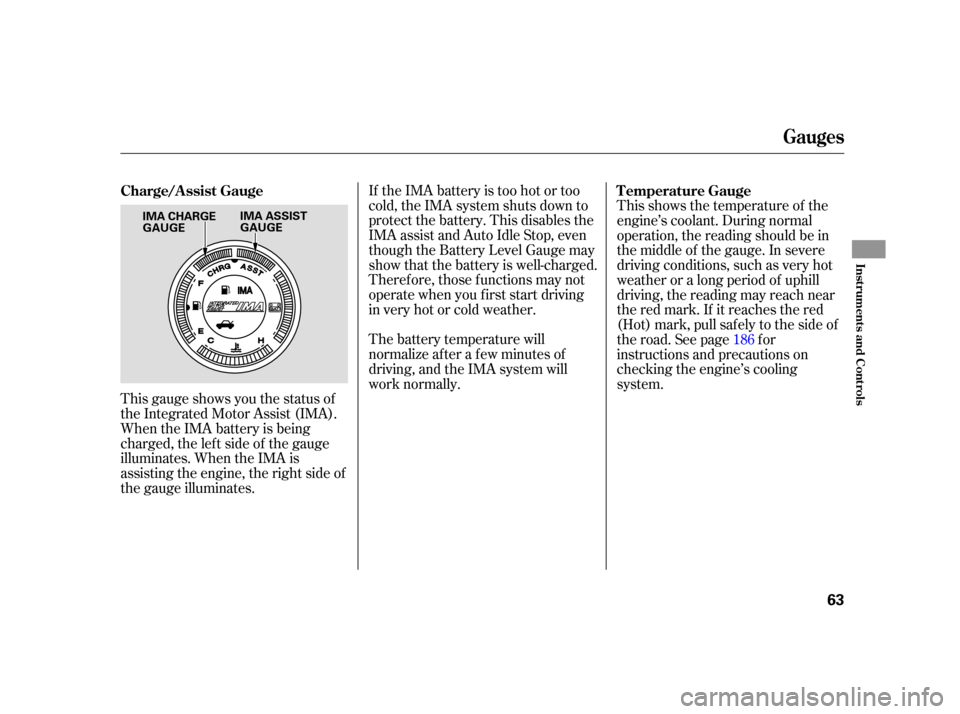

This gauge shows you the status of
the Integrated Motor Assist (IMA).
When the IMA battery is being
charged, the lef t side of the gauge
illuminates. When the IMA is
assisting the engine, the right side of
the gauge illuminates. This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may reach near
the red mark. If it reaches the red
(Hot) mark, pull saf ely to the side of
theroad.Seepage for
instructions and precautions on
checking the engine’s cooling
system.
186
Charge/Assist Gauge
Temperature Gauge
Gauges
Inst rument s and Cont rols
63
IMA CHARGE
GAUGEIMA ASSIST
GAUGE

Î
ÎTo use the horn, press the center pad of the steering wheel.

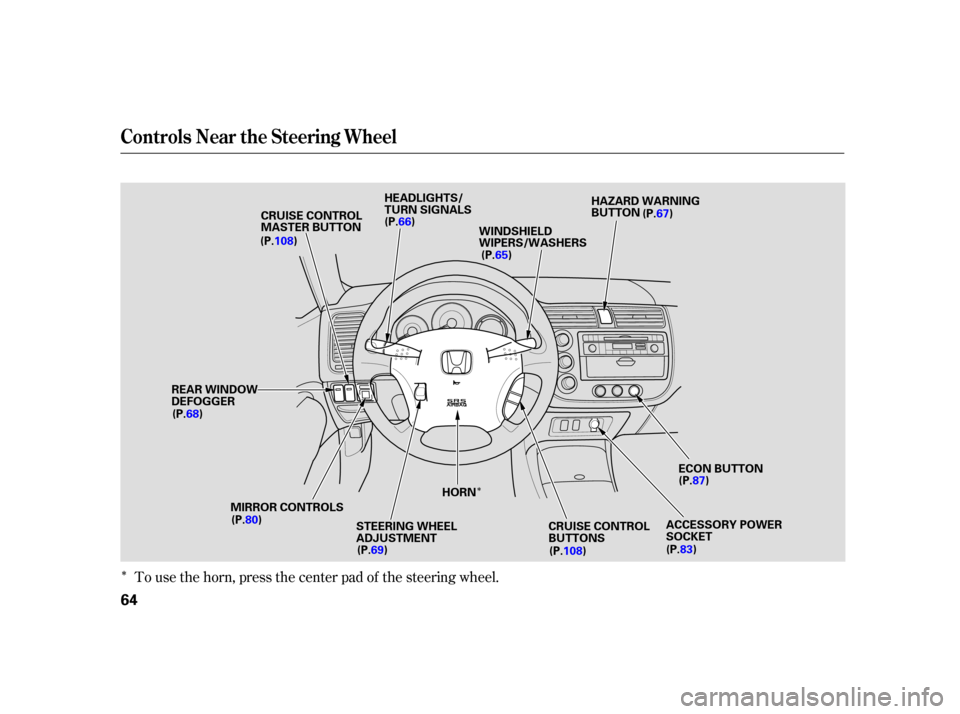

Controls Near the Steering Wheel
64
MIRROR CONTROLSHEADLIGHTS/
TURN SIGNALS
WINDSHIELD
WIPERS/WASHERS
REAR WINDOW
DEFOGGER ECON BUTTON
STEERING WHEEL
ADJUSTMENT HAZARD WARNING
BUTTON
(P.108) CRUISE CONTROL
MASTER BUTTON
(P.108)
(P.66)
(P.65) (P.67)
(P.68) (P.80) (P.69)HORN
CRUISE CONTROL
BUTTONS (P.
87)
(P. 83)
ACCESSORY POWER
SOCKET

µ
µ
µ µ
µ
µ
µ
µ µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed

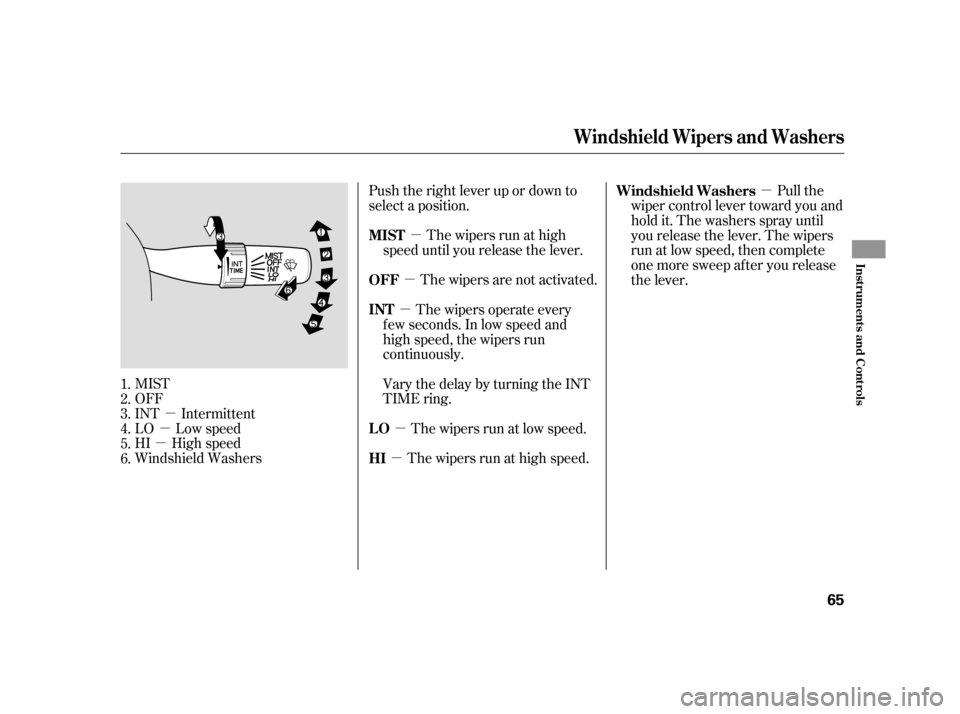

Windshield Washers Push the right lever up or down to
select a position.
The wipers are not activated.The wipers run at high
speed until you release the lever.
The wipers operate every
f ew seconds. In low speed and
high speed, the wipers run
continuously.
Vary the delay by turning the INT
TIME ring.
The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you and
hold it. The washers spray until
you release the lever. The wipers
run at low speed, then complete
one more sweep af ter you release
the lever.
1.
2.
3.
4.
5.
6. OFF MIST
INT
LO
HIWindshield Washers
Windshield Wipers and Washers
Inst rument s and Cont rols
65

µµ

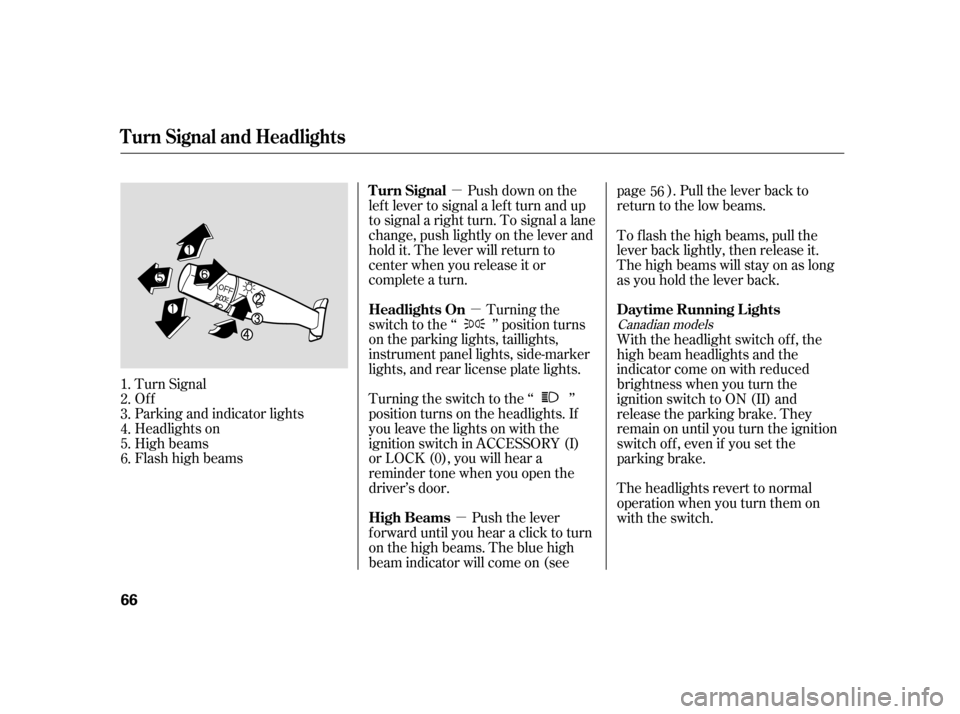

µ Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
Turn Signal
Of f
Parking and indicator lights
Headlights on
High beams
Flashhighbeams Turning the
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the
ignition switch in ACCESSORY (I)
or LOCK (0), you will hear a
reminder tone when you open the
driver’s door.
Push the lever
f orward until you hear a click to turn
on the high beams. The blue high
beam indicator will come on (see page ). Pull the lever back to
return to the low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
With the headlight switch off, the
high beam headlights and the
indicator come on with reduced
brightness when you turn the
ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
switch of f , even if you set the
parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
1.
2.
3.
4.
5.
6. 56
Canadian models
Turn Signal
Headlights On
High Beams
Daytime Running L ights
Turn Signal and Headlights
66

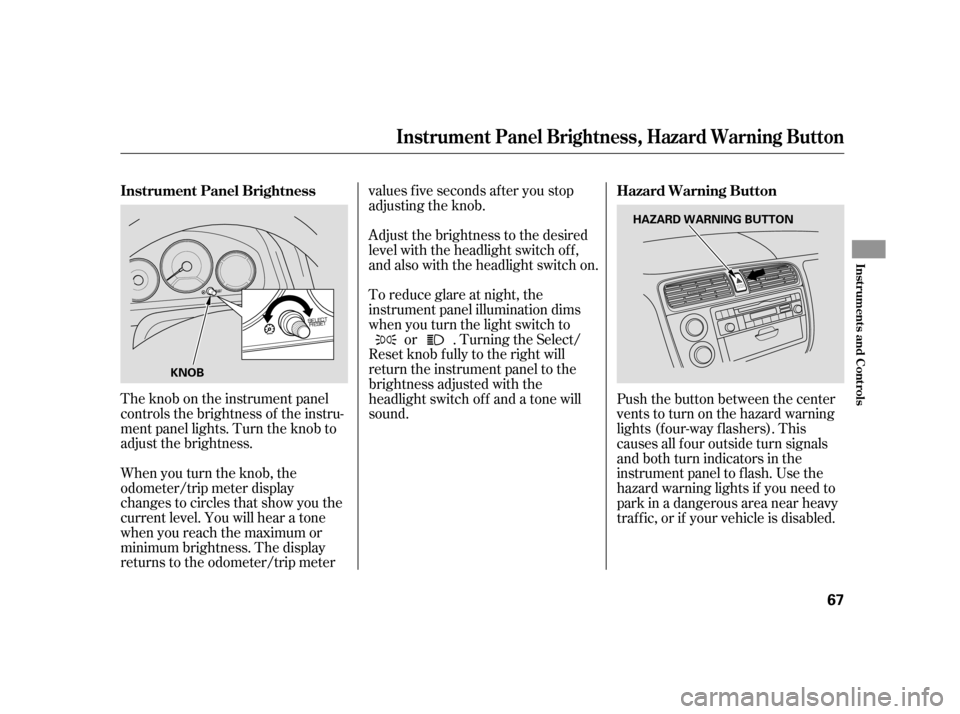

The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
When you turn the knob, the
odometer/trip meter display
changes to circles that show you the
current level. You will hear a tone
when you reach the maximum or
minimum brightness. The display
returns to the odometer/trip metervalues f ive seconds af ter you stop
adjusting the knob.
Adjust the brightness to the desired
level with the headlight switch of f ,
and also with the headlight switch on.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . Turning the Select/
Reset knob f ully to the right will
return the instrument panel to the
brightness adjusted with the
headlight switch of f and a tone will
sound. Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both turn indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
Instrument Panel Brightness
Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button
Inst rument s and Cont rols
67
KNOB HAZARD WARNING BUTTON

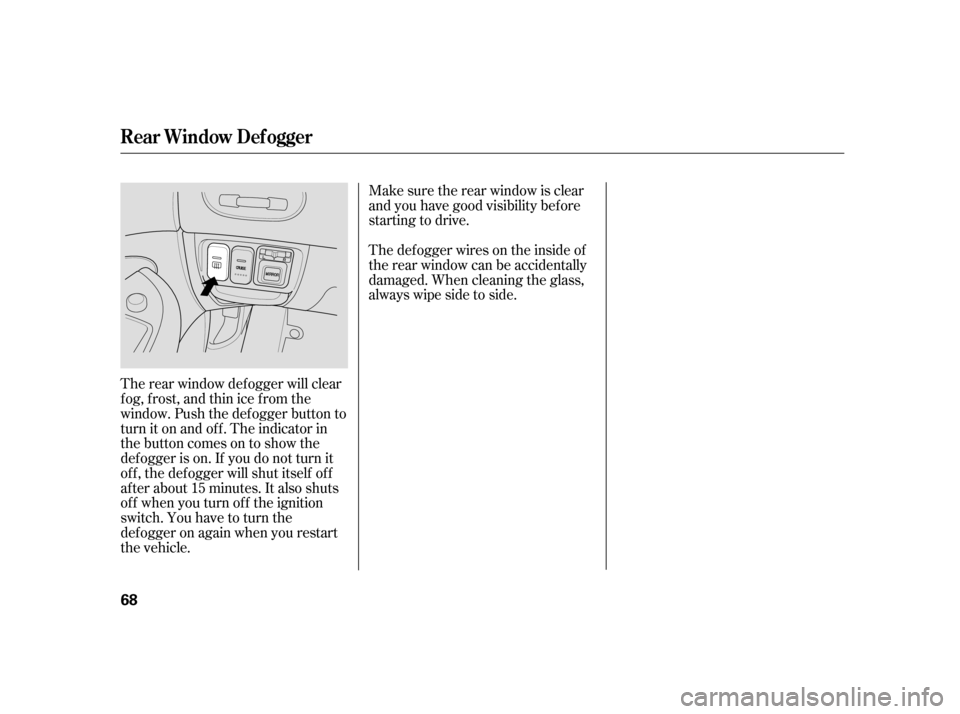

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle. Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Rear Window Def ogger
