HONDA CIVIC HYBRID 2005 7.G Manual PDF

Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
Make any steering wheel adjustment
bef ore you start driving.
Push the lever under the steering
column all the way down.
Move the steering wheel so it
points toward your chest, not
toward your f ace. Make sure you
can see the instrument panel
gauges and indicators.Push the lever up to lock the
steering wheel in position.
1. 4.
2. 3.
Steering Wheel A djustment
Inst rument s and Cont rols
69
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.

Youshouldhavereceivedakey
number tag with your set of keys.
You will need this key number if you
ever have to get a key replaced. Use
only Honda-approved key blanks.These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The keys do not contain batteries.
Do not try to take them apart.

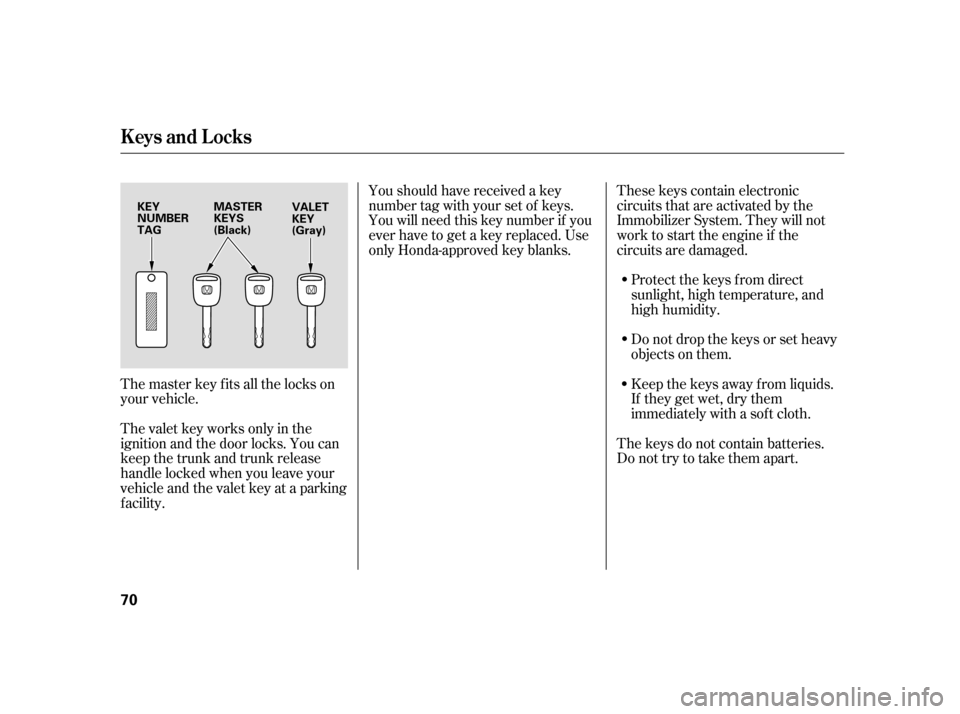

The master key fits all the locks on
your vehicle.
The valet key works only in the
ignition and the door locks. You can
keep the trunk and trunk release
handle locked when you leave your
vehicle and the valet key at a parking
f acility.
Keys and Locks
70
MASTER
KEYS
(Black)
VALET
KEY
(Gray)
KEY
NUMBER
TAG

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and cannot
start your engine, contact your
dealer.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on f or a f ew
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
f ob) is near the ignition switch when
you insert the key. The Immobilizer System protects
your vehicle f rom thef t. If an
improperly-coded key (or other
device) is used, the engine’s f uel
system is disabled.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer Syst em
Inst rument s and Cont rols
71

µ
µ
µ µ
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III). If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
If your vehicle has an automatic
transmission, the shif t lever must be
in Park bef ore you can remove the
key f rom the ignition switch.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom ACCESSORY
(I) to ON (II).
You can insert or
remove the key only in this position.
To turn the key, push it in slightly. If
your vehicle has an automatic
transmission, the shif t lever must
also be in park. You can
operate the audio system and the
accessory power socket in this
position.
ST A RT (III) ON (II)
LOCK (0) A CCESSORY (I)
Ignition Switch
72
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only when
parked.

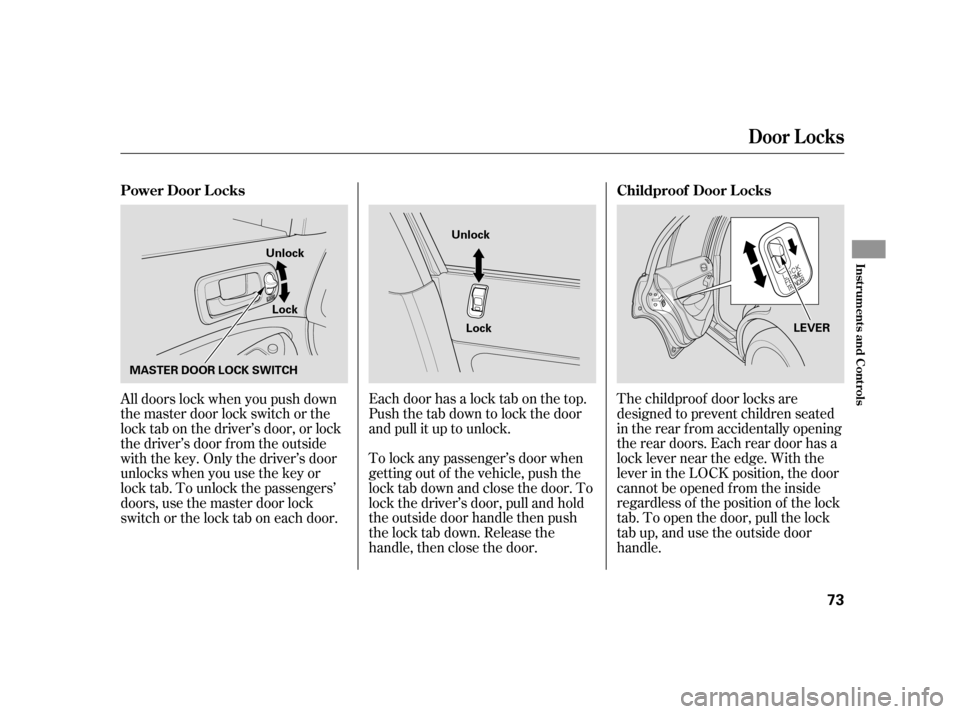

The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened f rom the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up, and use the outside door
handle.
Each door has a lock tab on the top.
Push the tab down to lock the door
and pull it up to unlock.
To lock any passenger’s door when
getting out of the vehicle, push the
lock tab down and close the door. To
lock the driver’s door, pull and hold
the outside door handle then push
the lock tab down. Release the
handle, then close the door.
All doors lock when you push down
the master door lock switch or the
lock tab on the driver’s door, or lock
the driver’s door f rom the outside
with the key. Only the driver’s door
unlocks when you use the key or
lock tab. To unlock the passengers’
doors, use the master door lock
switch or the lock tab on each door. Childproof Door L ocks
Power Door L ocks
Door L ocks
Inst rument s and Cont rols
73
Unlock
Lock
Unlock
Lock
MASTER DOOR LOCK SWITCH LEVER

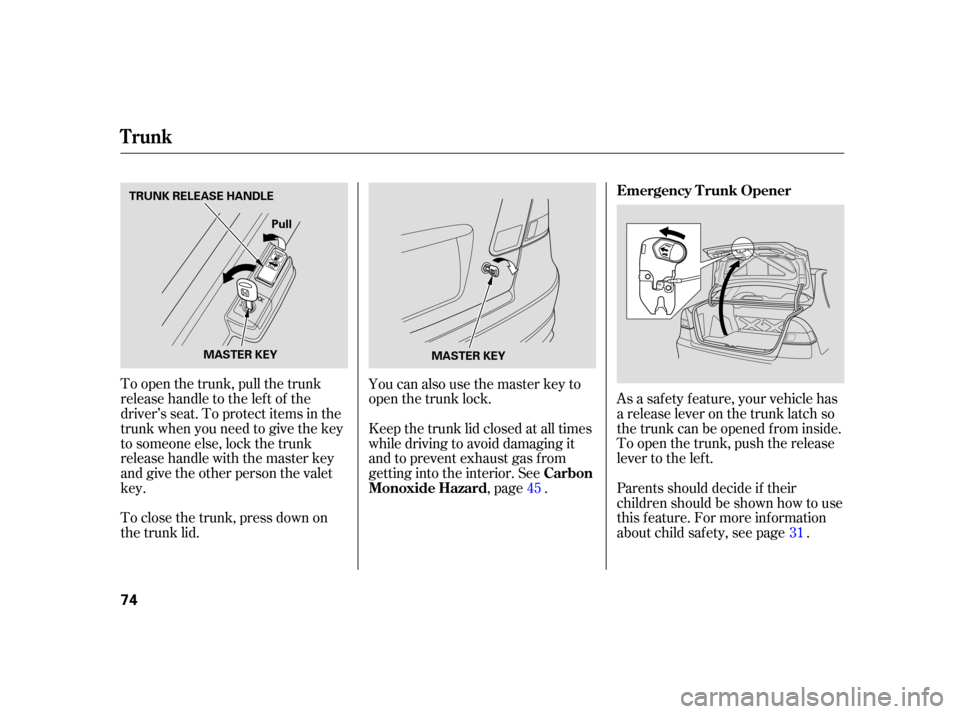

As a saf ety f eature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened f rom inside.
To open the trunk, push the release
lever to the lef t.
To open the trunk, pull the trunk
releasehandletotheleftof the
driver’s seat. To protect items in the
trunk when you need to give the key
to someone else, lock the trunk
releasehandlewiththemasterkey
and give the other person the valet
key.
To close the trunk, press down on
the trunk lid. You can also use the master key to
open the trunk lock.
Keep the trunk lid closed at all times
while driving to avoid damaging it
and to prevent exhaust gas from
getting into the interior. See
, page . Parents should decide if their children should be shown how to use
this f eature. For more inf ormation
about child saf ety, see page .
45
31
Emergency T runk Opener
Carbon
Monoxide Hazard
Trunk
74
TRUNK RELEASE HANDLE
Pull
MASTER KEY
MASTER KEY

µµµ
Press this button once to
lock all doors. Some exterior lights
will f lash. When you push LOCK
twice within 5 seconds, you will hear
a beep to verify that the doors are
locked. You cannot lock the doors if
any door is not f ully closed or if the
key is in the ignition switch. Press this button once
to unlock the driver’s door. Push it
twice to unlock the other doors.
Some exterior lights will f lash twice
each time you press the button. Pressthisbuttonfor
about 1 second to attract attention;
the horn will sound and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to ON (II).
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
any door within 30 seconds, the light
f ades out. If you relock the doors
with the remote transmitter before
30 seconds have elapsed, the light
will go of f immediately.
If you do not open any door within 30
seconds, the doors automatically
relock.

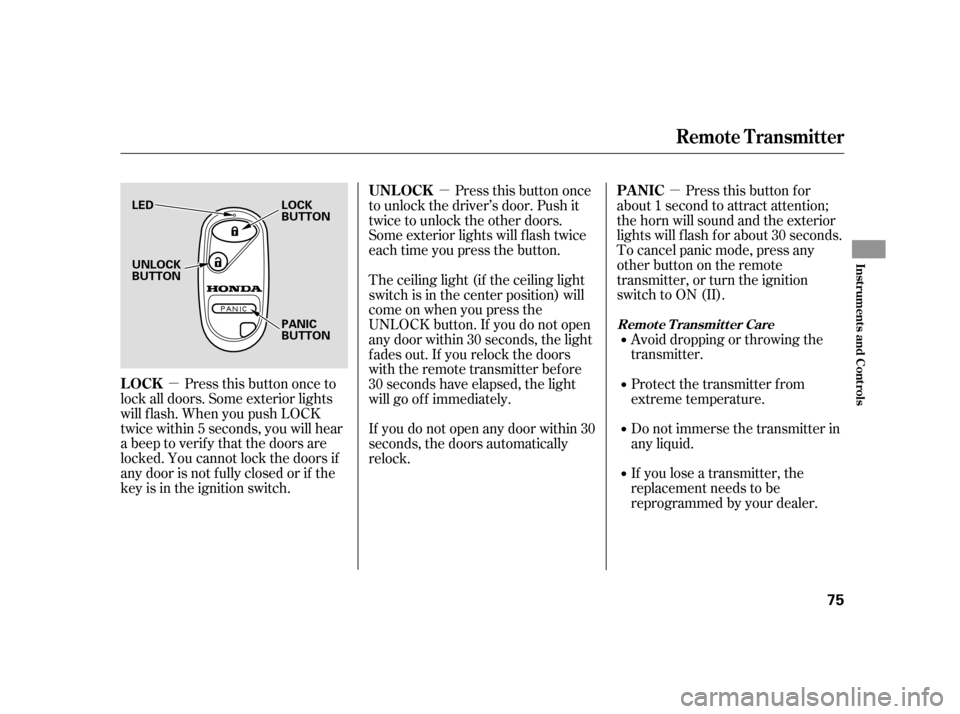

Remote Transmitter
LOCK
UNL OCK
PA NIC
Remote Transmitter Care
Inst rument s and Cont rols
75
UNLOCK
BUTTON LEDLOCK
BUTTON
PANIC
BUTTON

´
Ü Õ
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.

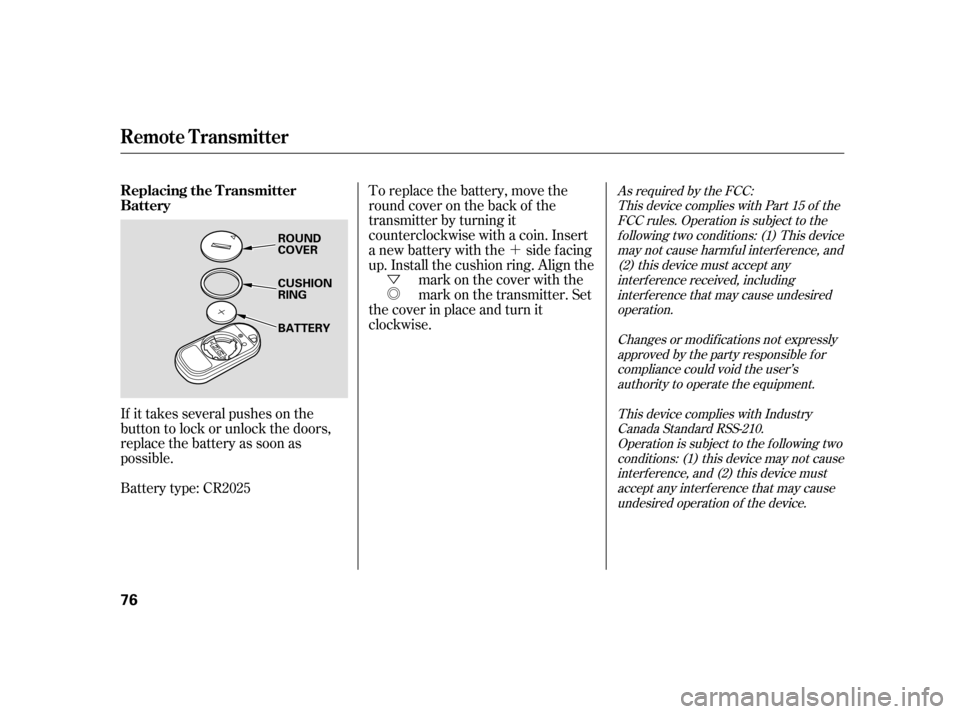

Battery type: CR2025 To replace the battery, move the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Install the cushion ring. Align the
mark on the cover with the
mark on the transmitter. Set
the cover in place and turn it
clockwise.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.Replacing the Transmitter
Battery
Remote Transmitter
76
ROUND
COVER
CUSHION
RING
BATTERY

µ

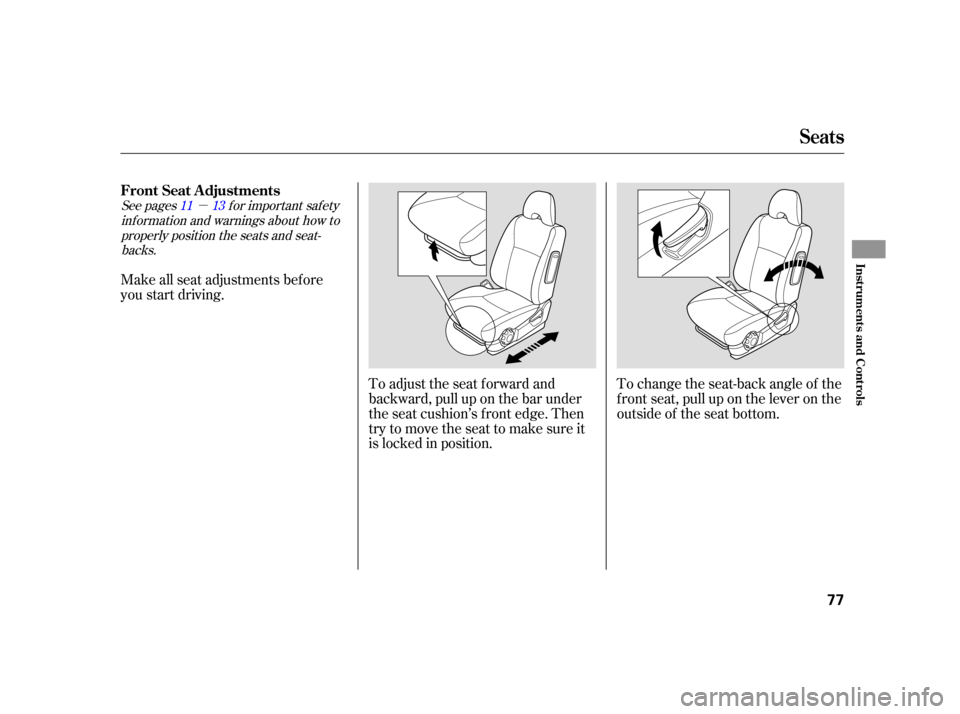

To adjust the seat forward and
backward, pull up on the bar under
the seat cushion’s f ront edge. Then
trytomovetheseattomakesureit
is locked in position.To change the seat-back angle of the
f ront seat, pull up on the lever on the
outside of the seat bottom.
Make all seat adjustments bef ore
you start driving.
See pages f or important saf ety
inf ormation and warnings about how toproperly position the seats and seat-backs. 11 13
FrontSeatAdjustments
Seats
Inst rument s and Cont rols
77

See page f or important saf etyinf ormation and a warning about how toproperly position the head restraints. 13

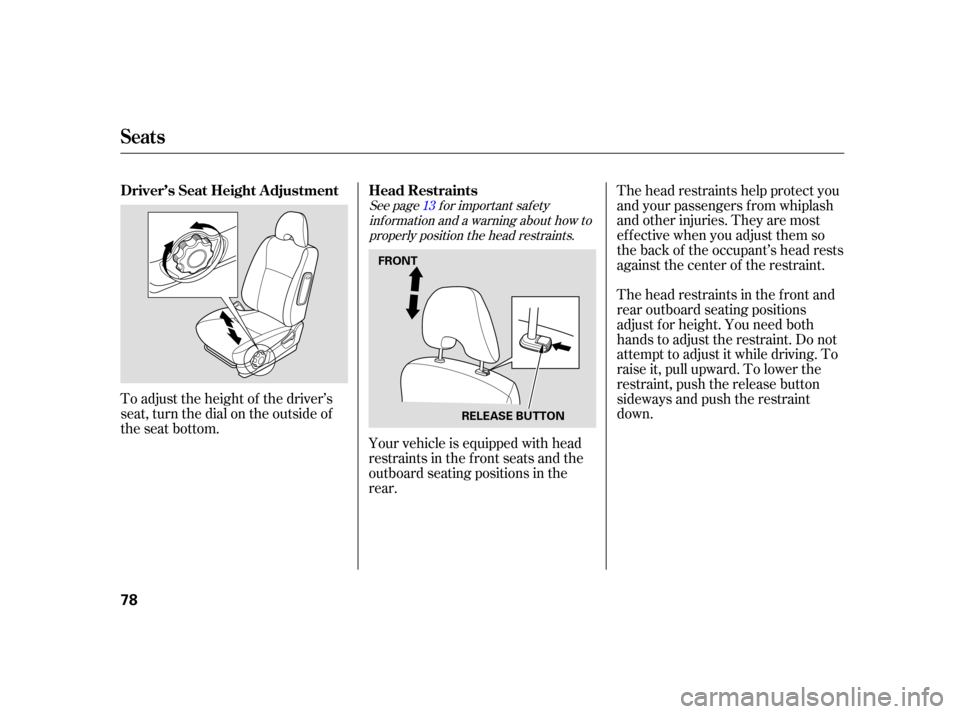

The head restraints help protect you
and your passengers from whiplash
and other injuries. They are most
effective when you adjust them so
the back of the occupant’s head rests
against the center of the restraint.
Your vehicle is equipped with head
restraints in the f ront seats and the
outboard seating positions in the
rear.
To adjust the height of the driver’s
seat, turn the dial on the outside of
the seat bottom. The head restraints in the f ront and
rear outboard seating positions
adjust f or height. You need both
hands to adjust the restraint. Do not
attempt to adjust it while driving. To
raise it, pull upward. To lower the
restraint, push the release button
sideways and push the restraint
down.
Driver’s Seat Height Adjustment Head Restraints
Seats
78
FRONT
RELEASE BUTTON
