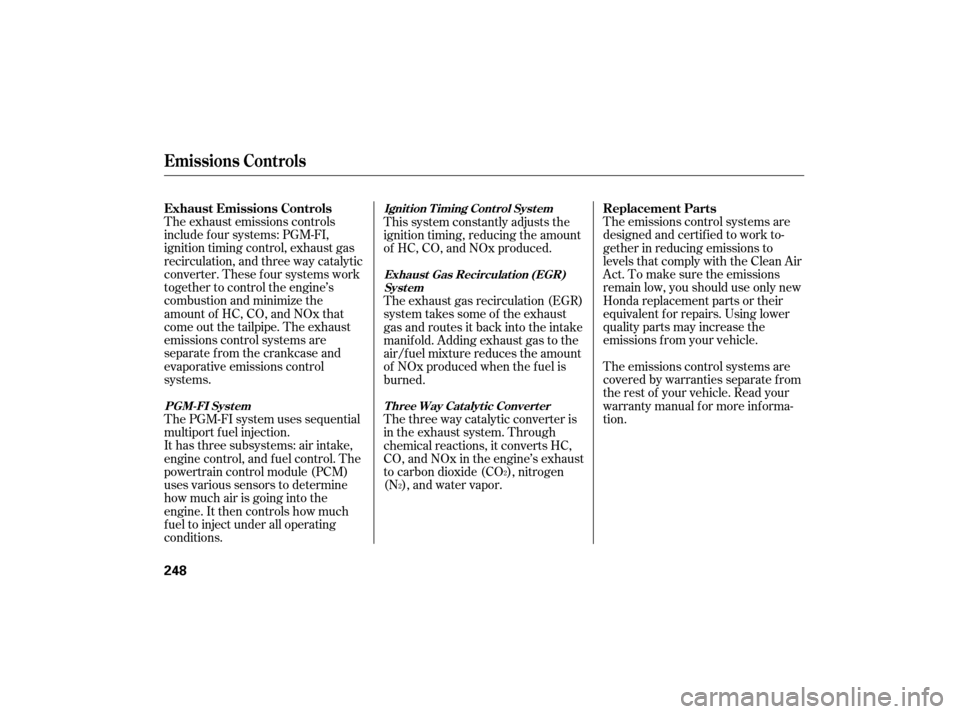

The exhaust emissions controls
include f our systems: PGM-FI,
ignition timing control, exhaust gas
recirculation, and three way catalytic
converter. These f our systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
come out the tailpipe. The exhaust
emissions control systems are
separate f rom the crankcase and
evaporative emissions control
systems.The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
quality parts may increase the
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The PGM-FI system uses sequential
multiport f uel injection.
It has three subsystems: air intake,
engine control, and f uel control. The
powertrain control module (PCM)
uses various sensors to determine
how much air is going into the
engine. It then controls how much
f uel to inject under all operating
conditions. This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manif old. Adding exhaust gas to the
air/f uel mixture reduces the amount
of NOx produced when the f uel is
burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI SystemIgnit ion T iming Cont rol Syst em
Exhaust Gas Recirculat ion (EGR)Syst em
Three Way Catalytic Converter
Emissions Cont rols
248

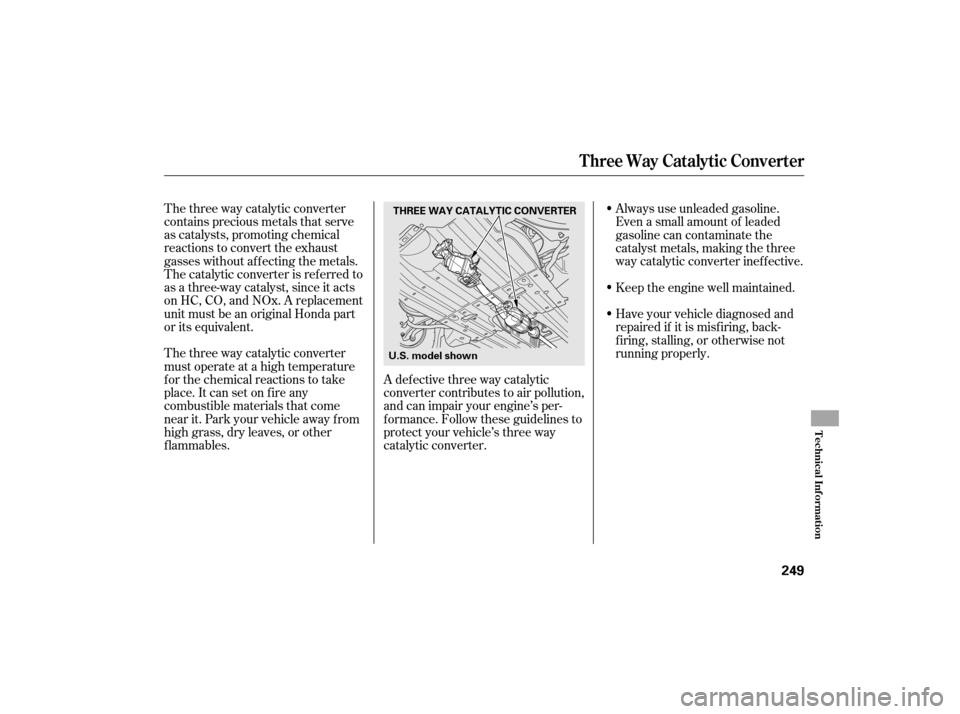

The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without af f ecting the metals.
The catalytic converter is ref erred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on f ire any
combustible materials that come
near it. Park your vehicle away from
high grass, dry leaves, or other
f lammables.A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
f ormance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter. Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter inef f ective.
Keep the engine well maintained.
Have your vehicle diagnosed and
repaired if it is misf iring, back-
f iring, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Inf ormation
249
THREE WAY CATALYTIC CONVERTER
U.S. model shown

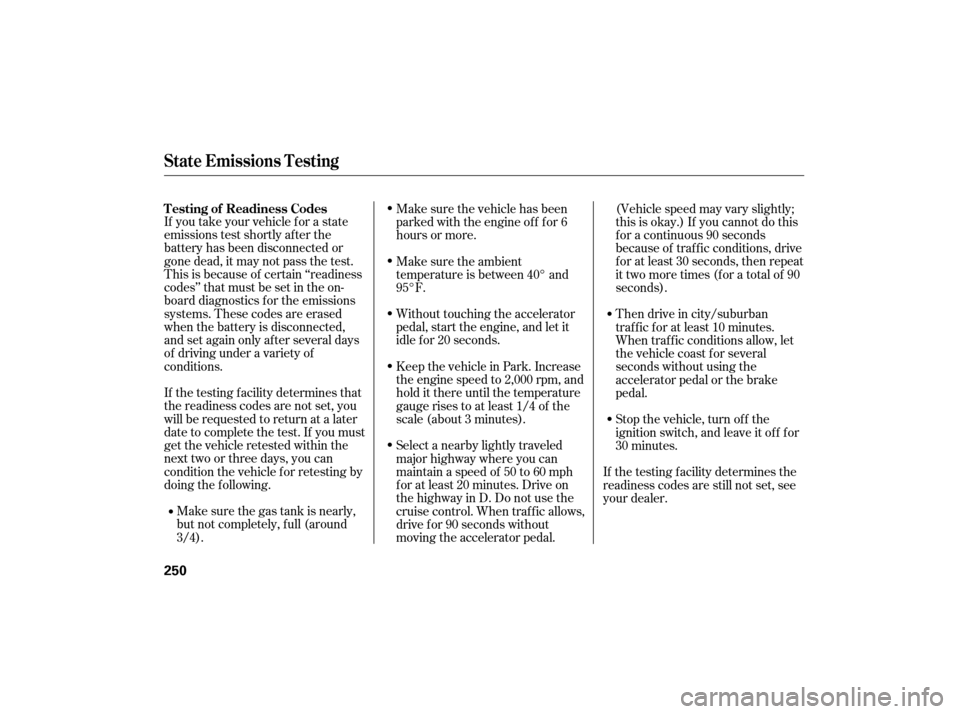

If you take your vehicle f or a state
emissions test shortly af ter the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics f or the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing f acility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle f or retesting by
doing the f ollowing.Make sure the gas tank is nearly,
but not completely, f ull (around
3/4). Without touching the accelerator
pedal, start the engine, and let it
idle f or 20 seconds.
Keep the vehicle in Park. Increase
the engine speed to 2,000 rpm, and
hold it there until the temperature
gauge rises to at least 1/4 of the
scale (about 3 minutes).
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
f or at least 20 minutes. Drive on
the highway in D. Do not use the
cruise control. When traf f ic allows,
drive f or 90 seconds without
moving the accelerator pedal.(Vehicle speed may vary slightly;
this is okay.) If you cannot do this
f or a continuous 90 seconds
because of traf f ic conditions, drive
f or at least 30 seconds, then repeat
it two more times (f or a total of 90
seconds).
Make sure the vehicle has been
parked with the engine of f f or 6
hours or more.
Make sure the ambient
temperature is between 40° and
95°F.
Then drive in city/suburban
traffic for at least 10 minutes.
When traf f ic conditions allow, let
the vehicle coast f or several
seconds without using the
accelerator pedal or the brake
pedal.
Stop the vehicle, turn of f the
ignition switch, and leave it of f f or
30 minutes.
If the testing facility determines the
readiness codes are still not set, see
your dealer.
T esting of Readiness Codes
State Emissions T esting
250

....
Customer Service Information . 252
....................
Warranty Coverages . 253
Reporting Saf ety Def ects ..........................
(U.S. Vehicles) .254
.....................
Authorized Manuals .255
Warranty and Customer Relations
Warrant y and Cust omer Relat ions
251

Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
deal ership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
U.S. Owners: Canadian
Owners:
In Puerto Rico and the U.S. Virgin
Islands: When
you call or write, please give
us this inf ormation:
Vehicle Identif ication Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you 240
Customer Service Inf ormation
252
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÈLE
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009 Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546

µ
µ µ
µ
µ µ
µ µ
µ

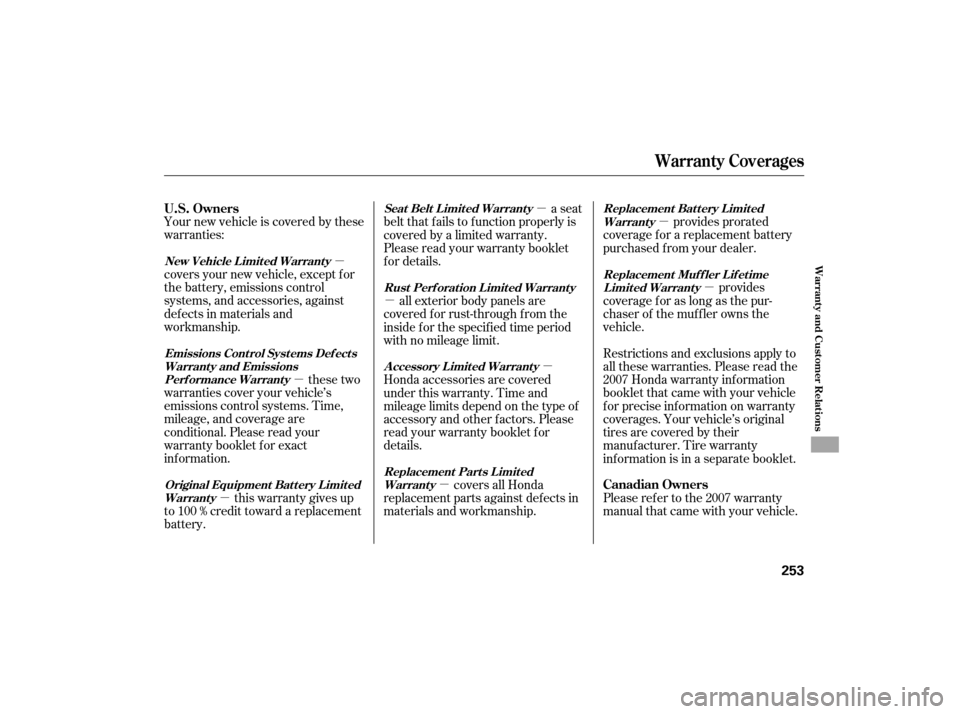

Your new vehicle is covered by these
warranties:
covers your new vehicle, except f or
the battery, emissions control
systems, and accessories, against
def ects in materials and
workmanship.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty booklet f or exact
inf ormation. provides
coverageforaslongasthepur-
chaser of the muf f ler owns the
vehicle. provides prorated
coverage f or a replacement battery
purchased f rom your dealer.
this warranty gives up
to 100 % credit toward a replacement
battery. a seat
belt that f ails to f unction properly is
covered by a limited warranty.
Please read your warranty booklet
f or details.
Restrictions and exclusions apply to
all these warranties. Please read the
2007 Honda warranty inf ormation
booklet that came with your vehicle
f or precise inf ormation on warranty
coverages. Your vehicle’s original
tires are covered by their
manuf acturer. Tire warranty
inf ormation is in a separate booklet.
Please ref er to the 2007 warranty
manual that came with your vehicle.
covers all Honda
replacement parts against defects in
materials and workmanship. Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty booklet f or
details. all exterior body panels are
covered f or rust-through f rom the
inside f or the specif ied time period
with no mileage limit.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle L imit ed Warrant yEmissions Cont rol Syst ems Def ect sWarrant y and EmissionsPerf ormance Warranty Replacement Muf f ler L if et ime
Limited Warranty
Replacement Bat t ery L imit ed
Warranty
Original Equipment Bat t ery L imit ed Warranty Seat Belt Limited Warranty
Replacement Part s L imit edWarranty
Accessory Limited Warranty
Rust Perf orat ion L imit ed Warrant yWarrant y and Cust omer Relat ions
253

If NHTSA receives similar com-
plaints, it may open an investigation,
and if it f inds that a saf ety def ect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
If you believe that your vehicle has a
def ect which could cause a crash or
could cause injury or death, you
should immediately inf orm the
National Highway Traf f ic Saf ety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
To contact NHTSA, you may call the
VehicleSafetyHotlinetoll-freeat
1-888-327-4236
(TTY: 1-800-424-9153); go to
; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, DC 20590.
You can also obtain other
inf ormation about motor vehicle
safety from .
Reporting Saf ety Def ects (U.S. Vehicles)
254
http://www.saf ercar.gov
http://www.saf ercar.gov

µ
Î
Î
Î
Î




$
#
Valid only f or sales within the United States. Canadian owners should contact their authorized Honda dealer.
T he publications shown below can be purchased f rom Helm
Incorporated. You can order in any of three ways:
Detach and mail the order f orm on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
(credit card orders only)
Purchasing Factory Authorized Manuals (U.S. only)
Authorized Manuals
Authorized Manuals
255
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Price
Each
$75.00
$50.00
$44.00
$35.00
$29.00
$12.00
$12.00
FREE
Form Description
2006-2007 Honda Civic Hybrid
Electrical Troubleshooting Manual
2006 Model Series Honda Civic 2/4 Door Body Repair Manual
2007 Honda Civic Hybrid
Navigation System Owner’s Manual 2007 Honda Civic HybridHonda Service History
2007 Honda Civic Hybrid Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired
Publication
Form Number 61SNC01
61SNC01EL
61SNA30
31SNC610
31SNC800
31SNCM10 31SNCQ10 HON-R
2006-2007 Honda Civic Hybrid Service Manual
2007 Honda Civic Hybrid Owner’s Manual
PUBLICATION NUMBER VEHICLE MODEL
Name Year Qty
Price
Each Total
Price
GRAND TOTAL HANDLING CHARGE Mich. Purchases
Add 6% Sales Tax TOTAL MATERIAL
$6.95
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
Prices are subject to change without notice and without incurring obligation.
www. helminc. com

µµ
µ
(


%
)
$
%

.
"

#
) This manual covers maintenance and recommended
procedures f or repair to engine and chassis components.
It is written f or the journeyman mechanic, but is simple
enough f or most mechanically-inclined owners to under-
stand.
This manual describes the procedures involved in the
replacement of damaged body parts. This manual complements the service manual by
providing in-depth troubleshooting inf ormation f or each
electrical circuit in your vehicle.
Authorized Manuals
Service Manual:
Electrical T roubleshooting Manual:
Body Repair Manual:
256
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card VISA Check here if your billing address is different
from the shipping address shown above.
Account Number Expiration: Mo. Yr.
CUSTOMER SIGNATURE DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.

CONT INUED
....................................
Accessories .156
ACCESSORY (Ignition Key
.......................................
Position) .79
...............
Accessory Power Socket .96
....................
Additives, Engine Oil .190
...............................
Airbag (SRS) . 9, 21
...
Airbags, Additional Information .21
...
Additional Safety Precautions .32
..........
AdvancedAirbagSystem .26
.............................
Airbag Service .32
How the Passenger Airbag Of f
......................
Indicator Works .31
How the Side Airbag Of f ......................
Indicator Works .30
..
How the SRS Indicator Works .30
How Your Front Airbags
.........................................
Work .24
...
How Your Side Airbags Work .28
How Your Side Curtain Airbags
.........................................
Work .29
........................
SRS Components .21
..............
Air Conditioning System .100
.......................
Air Pressure, Tires .208
......................................
Antif reeze .192 Anti-lock Brakes (ABS)
...............................
Indicator . 59, 174
...................................
Operation .174
..............
Anti-thef t, Audio System . 142
Anti-thef t Steering Column ..............................................
Lock .79
........................................
Armrest .91
................................
Audio System .106
.....
Auto Door Locking/Unlocking . 81
.........................
Auto Door Locking .81
.....................
Auto Door Unlocking .83
........................
Auto Idle Stop . 170, 171
...
Automatic Seat Belt Tensioners . 19
.............
Automatic Speed Control . 145
.
Automatic Transmission (CVT) . 166
..........................
Capacity,Fluid .242
...............
Checking Fluid Level . 195
.......................................
Shif ting .167
Shif t Lever Position ...............................
Indicators .166
................
Shif t Lever Positions . 167
....................
Shif t Lock Release . 169Battery
Charging System ...........................
Indicator . 62, 228
............................
Jump Starting .223
..............................
Maintenance .212
............................
Specif ications .243
..............................
Bef ore Driving .149
....................................
Belts,Seat .8,18
.............................
Beverage Holder .96
Brakes ...........
Anti-lock System (ABS) . 174
.............
Break-in, New Linings . 150
....................
Bulb Replacement .200
...........................................
Fluid .196
...................
Pad Wear Indicator . 174
.........................................
Parking .94
...........
System Indicator . 58, 63, 230
.............................
Braking System .173
.................
Break-in, New Vehicle . 150
..
Brightness Control, Instruments . 74
........................
Brights, Headlights .73
Index
A B
INDEX
I
