In artist mode, the artist name is also
displayed on the right side of each
selectable icon. Select the desired
f ile.To select a desired icon with the
joystick, move it in the appropriate
direction, then press ENT.
PresstheAUDIObuttontogoback
to the normal audio playing display.
Pressing the CANCEL button goes
back to the previous screen, and
pressing the MAP button cancels the
audio control display on the screen.
In album mode, the album name is
also displayed on the right side of
each selectable icon. Select the
desired f ile.
Playing a PC Card (Models with navigation system)
178

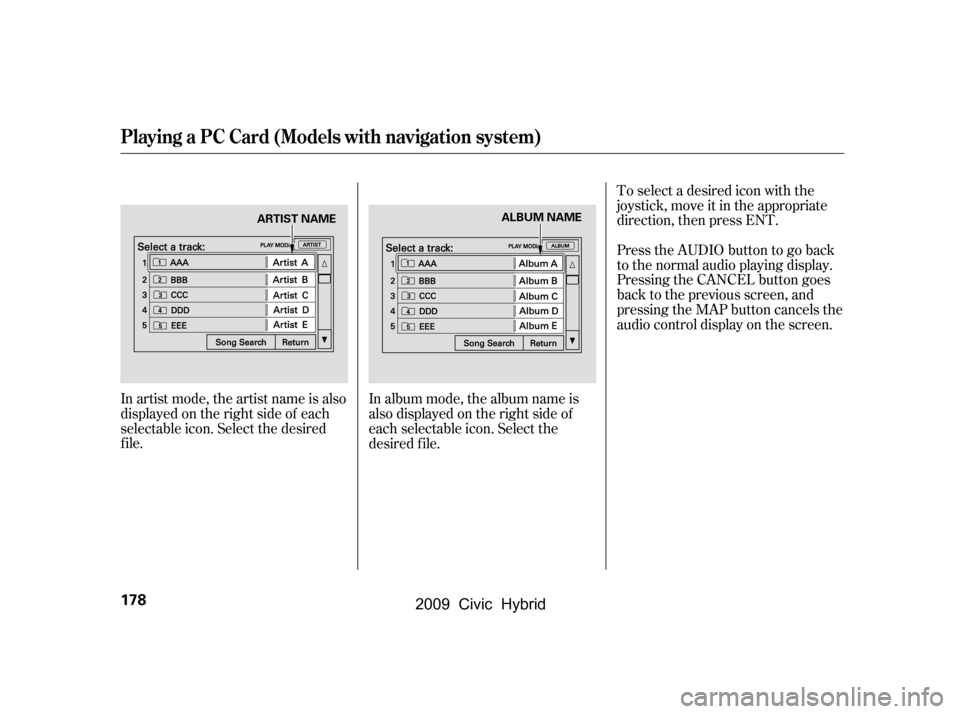

ARTIST NAME ALBUM NAME
\f—\f—
y\fy
(#\fy\f
y
2009 Civic Hybrid

CONT INUED
When you select ‘‘Song Search’’ f rom
the track list display, the song search
menu appears.You can then select any of three
modes to search a f ile: Title by
Keyword, Artist, and Album.In Title by Keyword mode, enter the
title name, or any keyword, by
touching the letter icons on the
screen. Touch the List icon to begin
the song search. If you press the
CANCELbuttononthescreen,the
display returns to the mode menu
without doing a search.
Searching f or a Song Title by Keyword
Song Search Funct ion
Playing a PC Card (Models with navigation system)
Features
179

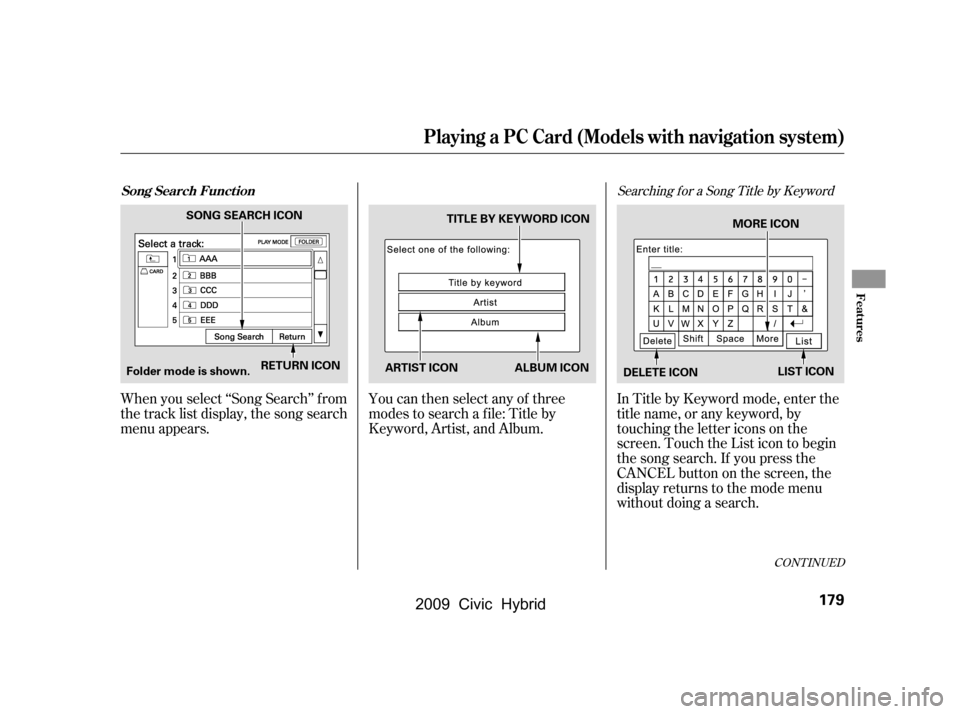

ARTIST ICON TITLE BY KEYWORD ICON
RETURN ICON
SONG SEARCH ICON
ALBUM ICON
Folder mode is shown. MORE ICON
DELETE ICON LIST ICON
\f—\f—
y\f\f\fy
(#\fy\f
y
2009 Civic Hybrid

ÛÝ
To cancel the selected letter, select
the letter and touch the Delete icon.
To select more characters, touch the
More icon. The other character list
will be shown.
Af ter the system searches f or a song,
a f ile list is displayed. To scroll
through the list, touch the or
icon on the side of the screen. Select
the desired f ile by touching the
appropriate icon, or moving the
joystick and pressing the ENT.
Select the Artist icon, and the artist
list appears. Select the desired artist,
and the artist’s f ile list is displayed.
Select the Album icon, and the
album list appears. Select the desired
album, and its song list is displayed.
You can then select the desired song
from the list.
Searching f or a Song by Artist Name Searching f or a Song by Album Name
Playing a PC Card (Models with navigation system)
180

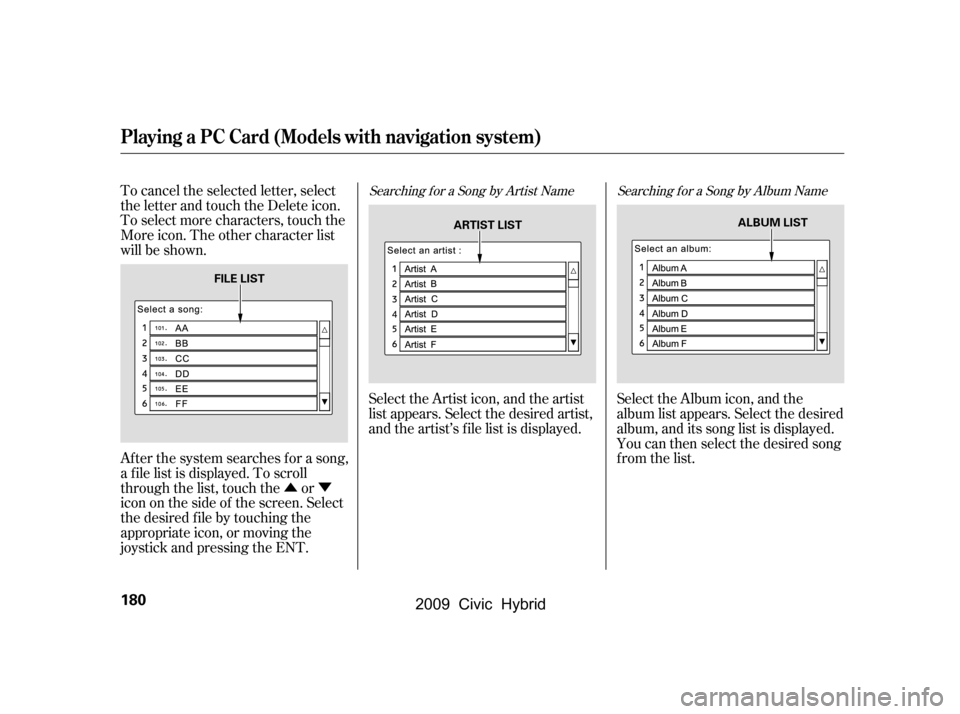

FILE LIST ARTIST LIST
ALBUM LIST
\f—\f—
y\f\f

y
(#\fy\f
y
2009 Civic Hybrid

Î
Î
Î
To play the radio when a PC card is
playing, press the AM/FM button or
touch the FM1, FM2, AM, XM1 , or
XM2 icon. If a disc is in the audio
unit, press the CD button or touch
theCDicontoplaythedisc.Touch
the CARD icon to switch back to the
PC card player.
To play an audio unit connected to
the auxiliary input jack or the USB
adapter cable when a PC card is
playing, touch the AUX or USB icon.
If you turn the system of f while a PC
card is playing, either with the
power/volume knob or by turning
of f the ignition switch, the card will
stay in the drive. When you turn the
system back on, the card will begin
playing where it lef t of f . When you leave the vehicle, always
remove the PC card from the audio
unit.
To remove a PC card from the audio
unit, f old back the screen by
pressing the OPEN button (see page
). Press the eject button ( )
to remove the card. If you do not
remove it f rom the slot, you cannot
return the screen to the upright
position.
To return the screen to the upright
position, press the CLOSE button.
You can also eject a card when the
ignition switch is of f . If there is a problem with the PC
card player, see your dealer.
U.S. models only
: 162
Playing a PC Card (Models with navigation system)
T o Stop Playing a PC Card
PC Card Player Malf unction
Removing a PC Card
Features
181
\f—\f—
y\f\f\fy
(#\fy\f
y
2009 Civic Hybrid

If you see an error message in the
display while playing a PC card, f ind
thesolutioninthecharttotheright.
If you cannot clear the error
message, take your vehicle to your
dealer.Solution
Indication
The system cannot read the file(s). Check the files in the disc. There
is a possibility that the files have been damaged.
It appears when the PC card is empty or there are no MP3 or WMA
filesinthePCcard.SavetheMP3orWMAfilesinthePCcard.
It appears when the unsupported PC card is inserted. The system
supports CF card, Flash ATA card, and SanDisk 6-in-1 Card Adapter.
PC Card Error Messages (Models with navigation system)
182
FILE ERROR
NO MUSIC
MEDIA ERROR
\f—\f—
y\f\fy
(#\fy\f
y
2009 Civic Hybrid

µ´
Playing an iPod(Models with navigation system)
Features
183

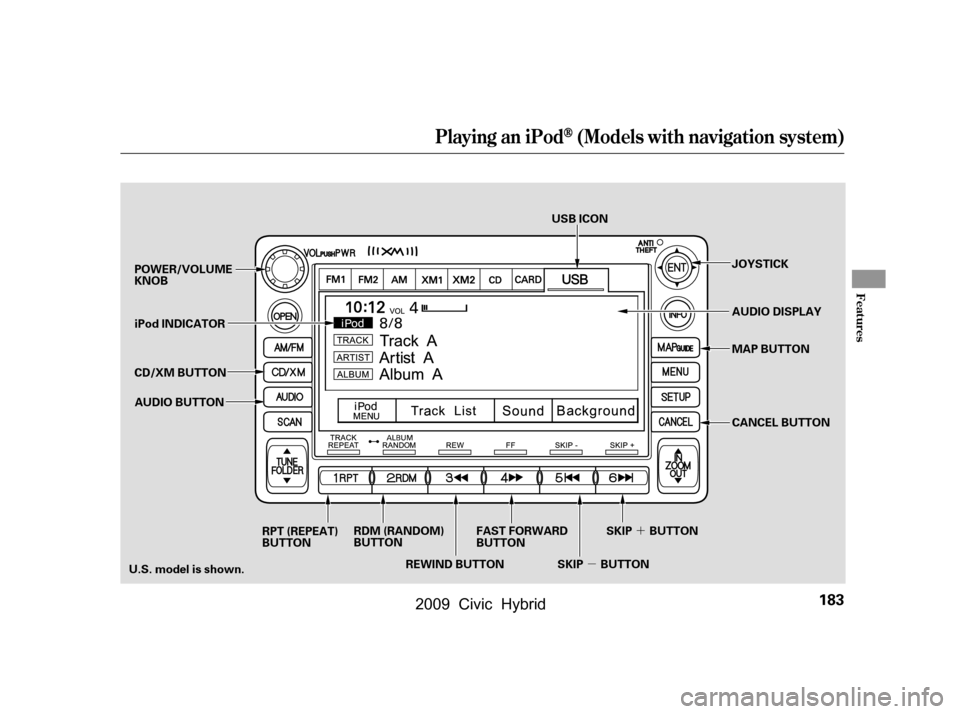

POWER/VOLUME
KNOB
MAP BUTTON
iPod INDICATOR
CD/XM BUTTON AUDIO BUTTON USB ICON
AUDIO DISPLAY
RPT (REPEAT)
BUTTON RDM (RANDOM)
BUTTON
FAST FORWARD
BUTTON
SKIP BUTTONSKIP BUTTON CANCEL BUTTON
U.S. model is shown. JOYSTICK
REWIND BUTTON
\f—\f—
y\f\fy
(#\fy\f
y
2009 Civic Hybrid

Î
Î
iPods that are compatible with your
audio system are listed below.Use the latest f irmware.
This audio system can select and
play the audio f iles on the iPod
with
the same controls used f or the in-
dash disc player. To play an iPod,
connect it to the USB adapter cable
in the console compartment by using
your dock connector. Press the
AUDIO button beside the screen to
show the audio display and touch the
AUX icon. The ignition switch must
be in the ACCESSORY (I) or ON (II)
position. The iPod will also be
recharged with the ignition switch in
these positions.
You can also select an icon by
moving the joystick. Move it to lef t,
right, up, or down to change the
highlighting and scroll through lists,
then press ENT on the top of the
joystick to set your selection. To select the USB mode without
using the icon, press the CD/XM
button repeatedly. The status bar
appears on the bottom of the screen.
The audio system reads and plays
sound f iles to be playable on the iPod.
The system cannot operate an iPod
as a mass storage device. The
system will only play songs stored on
the iPod with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
You can select the AUX mode by
using the navigation system voice
control buttons, but cannot operate
theplaymodefunctions.
Use only compatible iPods with the
latest f irmware. iPods that are not
compatible will not work in this audio
unit.:Firmware
Ver. 1.2 or more
Ver. 1.0 or more
Ver. 1.2 or more
Ver. 1.1.2 or more
Ver. 1.0 or more
Ver. 1.1.1 or more
Ver. 1.1.1 or more
Model
iPod 5G
iPod classic
iPod nano
iPod nano
2nd generation
iPod nano
3rd generation
iPod touch
iPhone
To Play an iPod
Playing an iPod(Models with navigation system)
Voice Cont rol Syst em
184
\f—\f—
y\f\fy
(#\fy\f
y
2009 Civic Hybrid

Do not connect your iPod using a
hub.
DonotkeeptheiPodinthe
vehicle. Direct sunlight and high
heat will damage it.
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
We recommend backing up your
data bef ore playing it.
In AAC f ormat, DRM (digital rights
management) f iles cannot be played.
If the system finds a DRM file, the
audio unit displays UNPLAYABLE,
andthenskipstothenextfile. Install the dock connector to the
USB adapter cable securely.
Connect your dock connector to
the iPod correctly and securely.
Pull out the USB connector f rom
the holder and remove the cable
f rom the clip in the console
compartment.
1.
2.
3.
CONT INUED
NOT E:Connect ing an iPod
Playing an iPod(Models with navigation system)
Features
185

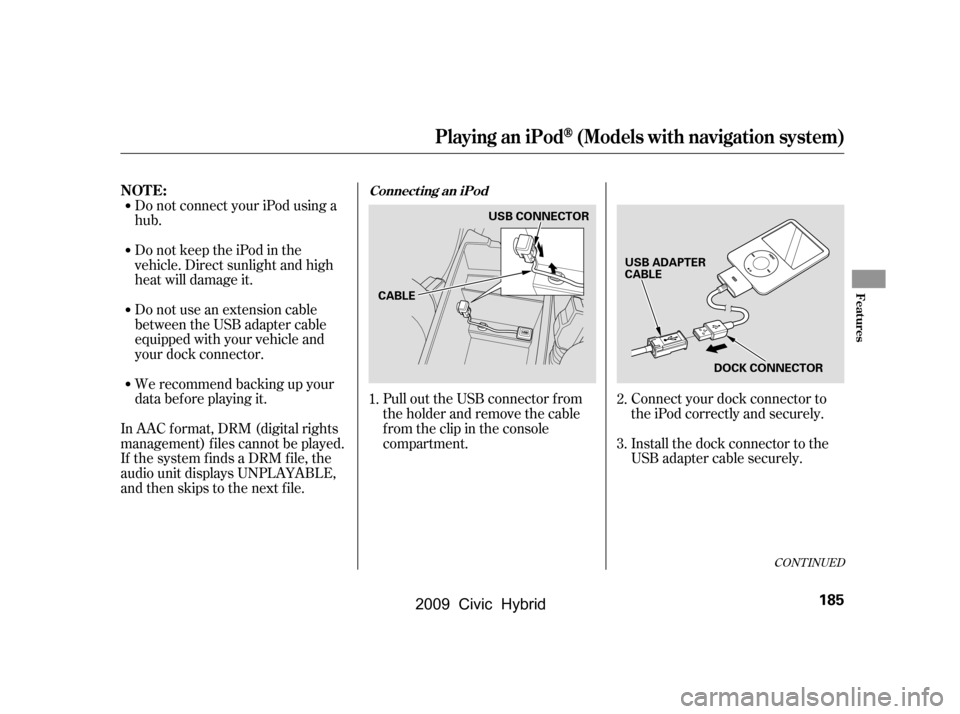

DOCK CONNECTOR
USB ADAPTER
CABLE
CABLE USB CONNECTOR
\f—\f—
y\f\fy
(#\fy\f
\fy
2009 Civic Hybrid

Î
Î
When the iPod is connected and the
USB mode is selected on the audio
display, ‘‘LOAD’’ is shown f or a f ew
seconds, then the iPod indicator is
shownonthedisplay.Onthe
navigation map display, the ‘‘USB
CONNECTED’’ message will be
displayed f or a f ew seconds in the
lower part of the screen. Af ter
loading, you will see Honda mark
on the iPod. That means you can
only operate your iPod with the vehicle’s audio unit.
If the audio system still does not
recognize the iPod, the iPod may
need to be reset. Follow the
instructions that came with your
iPod, or you can f ind reset
instructions online at
If the iPod indicator does not appear
in the audio display, check the
connections, and try to reconnect the
iPod a f ew times.
Itmaytakeafewminutesfor
the Honda mark to display on
the iPod. If the display does not
change, this f unction is not
supported on your iPod model
or f irmware.
When the iPod is connected and the
audio display is selected on the
screen by pressing the AUDIO
button, the AUX icon switches to the USB icon. The display also shows
the current f ile number and total of
the selected playable files, the artist,
album and track (file) names on the
navigation screen.
On the map screen, you can see the
audio inf ormation whenever you
touch the AUDIO INFO icon on the
lower part of the screen.
:
www.apple.com/
ipod.
Playing an iPod(Models with navigation system)
186

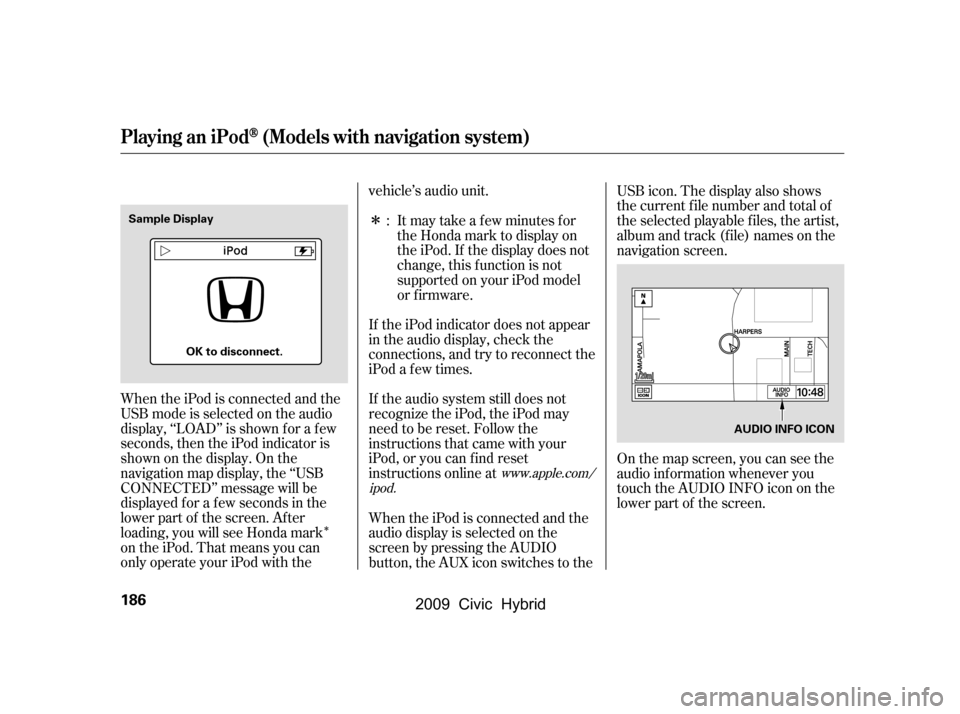

Sample Display
OK to disconnect. AUDIO INFO ICON
\f—\f—
y\f\fy
(#\fy\f

y
2009 Civic Hybrid

µµ
CONT INUED
Use the preset buttons while an iPod
is playing to select passages and
change f iles. Each preset button’s
f unction is shown on the bottom of
the screen. Each time you press and
release (preset 6), the player
skips forward to the beginning of the
next f ile. Press and release (preset 5), to skip backward to
the beginning of the current f ile.
Press it again to skip to the
beginning of the previous f ile.
To move rapidly within
a f ile, press and hold (preset 4)
or (preset 3).
You can also select a file directly
f rom a track list on the audio display.
Press the AUDIO button to show the
audio display, then touch the Track
List icon. The track list menu
appears on the display.
Playing an iPod(Models with navigation system)
T o Change or Select Files Using a T rack L istSK IP
FF/REW
Features
187

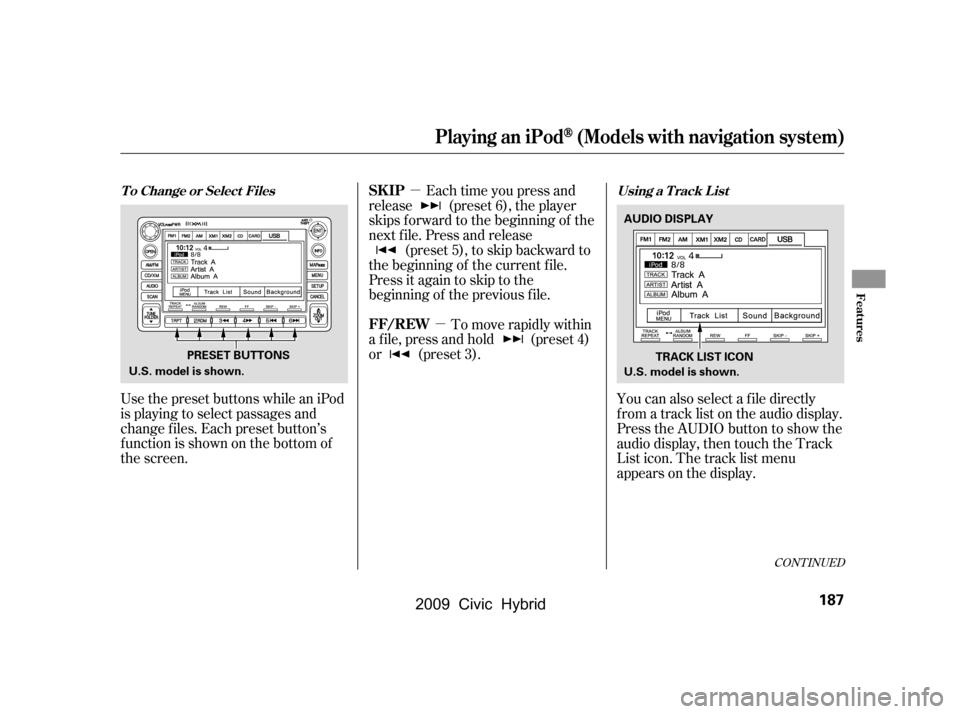

PRESET BUTTONSAUDIO DISPLAY
TRACK LIST ICON
U.S. model is shown. U.S. model is shown.
