ÛÝYou can also select a f ile f rom the
iPod menu: playlists, artists, albums
and songs. Press the AUDIO button
to display the audio display on the
navigation screen. Touch the iPod
MENU icon to display the iPod menu.
To scroll through the display, touch
the or icononthesideof the
screen.Togobacktotheprevious
display, touch the Return icon.
To select a desired icon with the
joystick, move it in the appropriate
direction, then press ENT.
Select a desired list by touching the
appropriate icon.
Playing an iPod(Models with navigation system)
T o Select a File f rom iPod Menu
188
U.S. model is shown.iPod MENU ICON
\f—\f—
y\f

\fy
(#\fy\f
y
2009 Civic Hybrid

ÛÝ
CONT INUED
The display shows the items on that
list. Touch a desired f ile.
To scroll through the display, touch
the or icononthesideof the
screen.Togobacktotheprevious
display, touch the Return icon.To select a desired icon with the
joystick, move it in the appropriate
direction, then press ENT.
If you select ‘‘ALL’’ on either the
artists or albums list, all available
f iles on the selected list are played.
You can select any type of repeat and
random modes with the RPT and
RDM buttons. To confirm the
selected mode, press the AUDIO
button to show the audio display on
the navigation screen.
PresstheAUDIObuttontogoback
to the normal audio playing display.
Pressing the CANCEL button goes
back to the previous screen, and
pressing the MAP button cancels the
audio display on the screen.
Playing an iPod(Models with navigation system)
T o Select Repeat or Random Mode:
Features
189
\f—\f—
y\f

y
(#\fy\f
y
2009 Civic Hybrid

µµµ

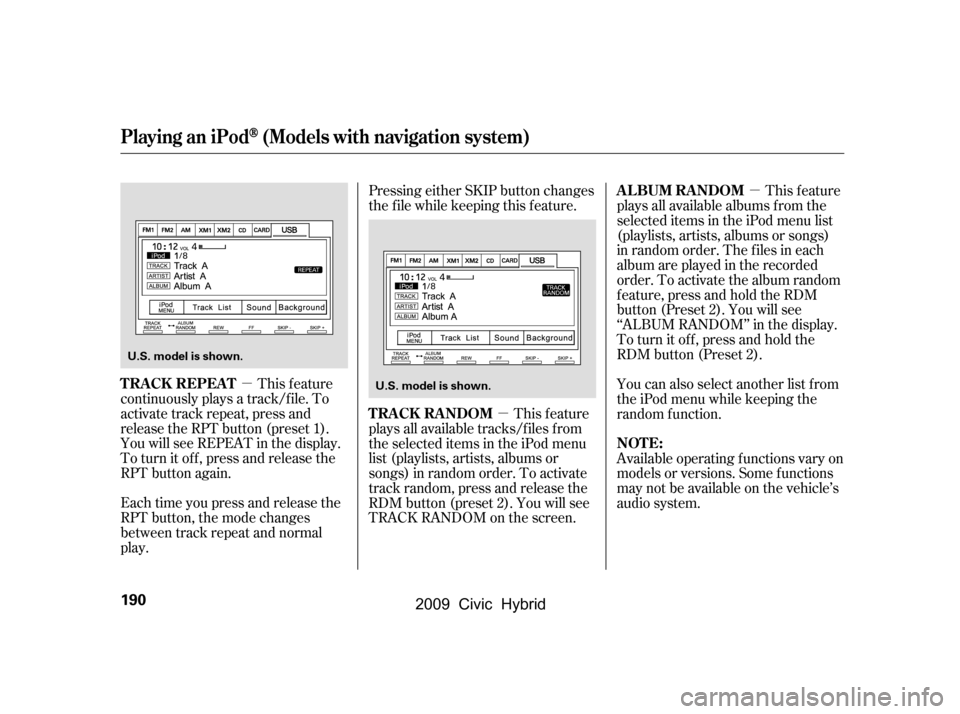

This feature
continuously plays a track/f ile. To
activate track repeat, press and
release the RPT button (preset 1).
You will see REPEAT in the display.
To turn it of f , press and release the
RPT button again.
Each time you press and release the
RPT button, the mode changes
between track repeat and normal
play. Pressing either SKIP button changes
the f ile while keeping this f eature.
This feature
plays all available tracks/f iles f rom
the selected items in the iPod menu
list (playlists, artists, albums or
songs) in random order. To activate
track random, press and release the
RDM button (preset 2). You will see
TRACK RANDOM on the screen. This feature
plays all available albums from the
selected items in the iPod menu list
(playlists, artists, albums or songs)
in random order. The f iles in each
album are played in the recorded
order. To activate the album random
f eature, press and hold the RDM
button (Preset 2). You will see
‘‘ALBUM RANDOM’’ in the display.
To turn it of f , press and hold the
RDM button (Preset 2).
You can also select another list from
theiPodmenuwhilekeepingthe
random f unction.
Available operating f unctions vary on
models or versions. Some f unctions
may not be available on the vehicle’s
audio system.
Playing an iPod(Models with navigation system)
T RA CK REPEA T
TRACK RANDOMALBUM RANDOM
NOT E:
190
U.S. model is shown.
U.S. model is shown.
\f—\f—
y\f
y
(#\fy\f
y
2009 Civic Hybrid

ÎÎÎ Î
Î
Î
To play the radio, press the AM/FM
button or touch the FM1, FM2, AM,
XM1 , or XM2 icon. Press the CD
icon to switch to the disc mode (if a
disc is loaded). Each time you press
the CD/XM button, the audio mode
switches between iPod, disc and
XM
radio .
U.S. models only
If a PC card is in the audio unit,
touch the CARD icon to play the PC
card. You can disconnect the iPod at any
time when you see the ‘‘OK to
disconnect’’ message in the iPod
display. Always make sure you see
the ‘‘OK to disconnect’’ message in
the iPod display bef ore you
disconnect it. Make sure to f ollow
the iPod’s instructions on how to
disconnect the dock connector f rom
the USB adapter cable.
The displayed message may
vary on models or versions. On
some models, there is no
message to disconnect.
When you disconnect the iPod while
it is playing, the audio screen (if
selected) shows NO DATA.
If you reconnect the same iPod, the
system may begin playing where it
lef t of f , depending on what mode the
iPod is in when it is reconnected. If you see an error message in the
screen, see page .
:
: 192
Playing an iPod(Models with navigation system)
T o Stop Playing Your iPod
iPodError MessagesDisconnect ing an iPod
Features
191
\f—\f—
y\f
y
(#\fy\f
y
2009 Civic Hybrid

If you see an error message on the
screen while playing an iPod, f ind
thesolutioninthecharttotheright.
If you cannot clear the error
message, take your vehicle to your
dealer.Error Message
Solution
Appears when an unsupported iPod is inserted.
There is no music information.
iPodError Messages (Models with navigation system)
192
UNSUPPORTED
NO SONG
\f—\f—
y\f
\fy
(#\fy\f
y
2009 Civic Hybrid

µ´

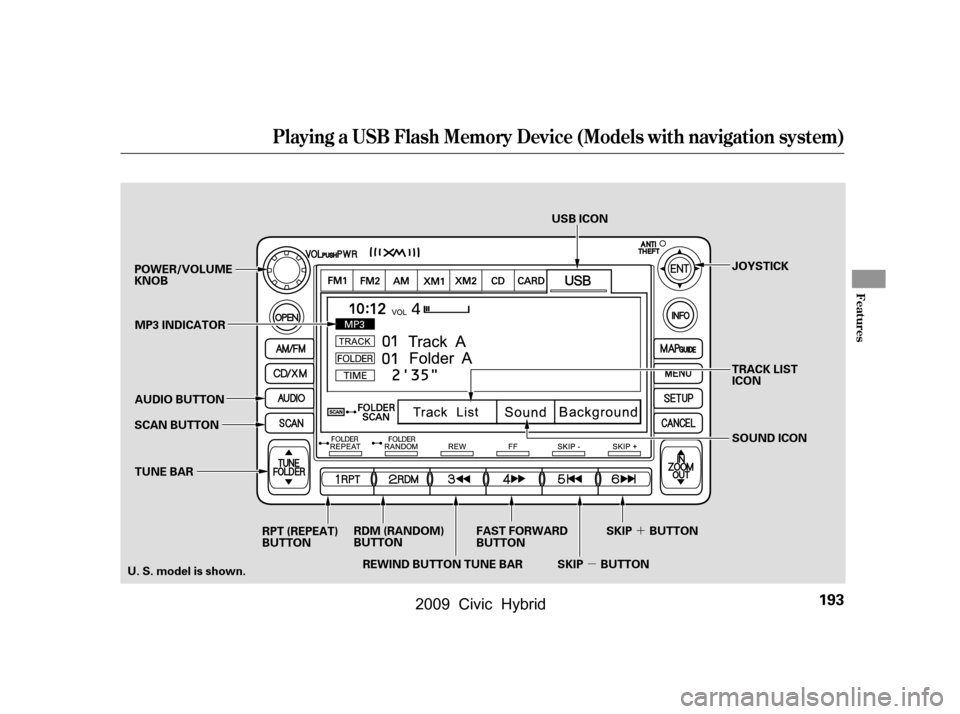

Playing a USB Flash Memory Device (Models with navigation system)
Features
193
POWER/VOLUME
KNOB
AUDIO BUTTON USB ICON
RPT (REPEAT)
BUTTON RDM (RANDOM)
BUTTON
FAST FORWARD
BUTTON
SKIP BUTTONSKIP BUTTON
MP3 INDICATOR
SCAN BUTTON TRACK LIST
ICON
SOUND ICON
REWIND BUTTON TUNE BAR JOYSTICK
TUNE BAR
U. S. model is shown.
\f—\f—
y\f
y
(#\fy\f
y
2009 Civic Hybrid

Î
Î
You can also select an icon by
moving the joystick. Move it to lef t,
right, up, or down to change the
highlighting and scroll through lists,
then press ENT on the top of the
joystick to set your selection. The recommended USB f lash
memory devices are 256 Mbyte or
higher. Some digital audio players
maybecompatibleaswell.
Some USB f lash memory devices
(such as devices with security lock-
out f eatures, etc.) will not work in
this audio unit.
The audio system reads and plays
the audio f iles on the USB f lash
memory device in MP3, WMA or
AAC f ormats. Depending on the
f ormat, the display shows MP3,
WMA or AAC when a USB flash
memory device is playing. The USB
f lash memory device limit is up to
700 f olders or up to 65535 f iles.
To select the USB mode without
using the icon, press the CD/XM
button repeatedly. The status bar
appears on the bottom of the screen.
Only AAC f ormat f iles recorded
with iTunes are playable on this
audio unit.
This audio system can select and
play the audio f iles f rom a USB f lash
memory device with the same
controls used f or the in-dash disc
player. To play a USB f lash memory
device, connect it to the USB adapter
cable in the console compartment.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Press the AUDIO button beside the
screen to show the audio display and
touch the AUX icon.
:
Playing a USB Flash Memory Device (Models with navigation system)
To Play a USB Flash Memory
Device
194
\f—\f—
y\f
y
(#\fy\f
y
2009 Civic Hybrid

µ
µ
µ
µ
µ
CONT INUED
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320/VBR kbps
(MPEG1)
Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2)
Do not use a device such as a card
reader or hard drive as the device
or your f iles may be damaged.
Do not connect your USB f lash
memory device using a hub.
Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.
Do not keep a USB f lash memory
device in the vehicle. Direct
sunlight and high heat will damage
it.
We recommend backing up your
data bef ore playing a USB f lash
memory device. Depending on the type and
number of f iles, it may take some
time before they begin to play.
Depending on the sof tware the
f iles were made with, it may not be
possibletoplaysomefiles,or
displaysometextdata.
The specif ications f or compatible
MP3 f iles are:
You can select the AUX mode by
using the navigation system voice
control buttons, but cannot operate
theplaymodefunctions. Maximumlayers:8
Partition: Top partition only
Supported standards:
MPEG1 Audio Layer3
MPEG2 Audio Layer3
Playing a USB Flash Memory Device (Models with navigation system)
NOT E:
Voice Cont rol Syst em
Features
195
\f—\f—
y\f\fy
(#\fy\f\f\fy
2009 Civic Hybrid

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ

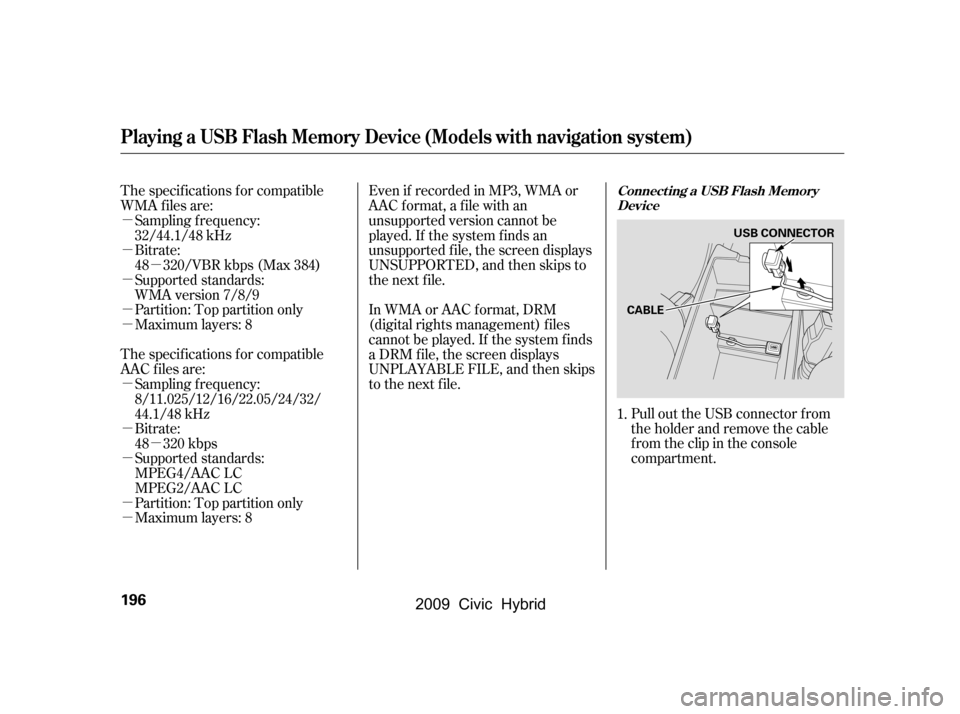

Pull out the USB connector f rom
the holder and remove the cable
f rom the clip in the console
compartment.
Bitrate:
48 320/VBR kbps (Max 384)
Partition: Top partition only
Maximum layers: 8
Bitrate:
48 320 kbps
Supported standards:
MPEG4/AAC LC
MPEG2/AAC LC
Partition: Top partition only
Maximum layers: 8
The specif ications f or compatible
WMA f iles are:
The specif ications f or compatible
AAC files are:
Even if recorded in MP3, WMA or
AAC format, a file with an
unsupported version cannot be
played. If the system f inds an
unsupported f ile, the screen displays
UNSUPPORTED, and then skips to
the next f ile.
In WMA or AAC format, DRM
(digital rights management) f iles
cannot be played. If the system f inds
a DRM f ile, the screen displays
UNPLAYABLE FILE, and then skips
to the next file.
Sampling f requency:
32/44.1/48 kHz
Supported standards:
WMA version 7/8/9
Sampling f requency:
8/11.025/12/16/22.05/24/32/
44.1/48 kHz
1.
Playing a USB Flash Memory Device (Models with navigation system)
Connect ing a USB Flash Memory
Device
196
CABLE USB CONNECTOR
\f—\f—
y\f
y
(#\fy\f\f
y
2009 Civic Hybrid

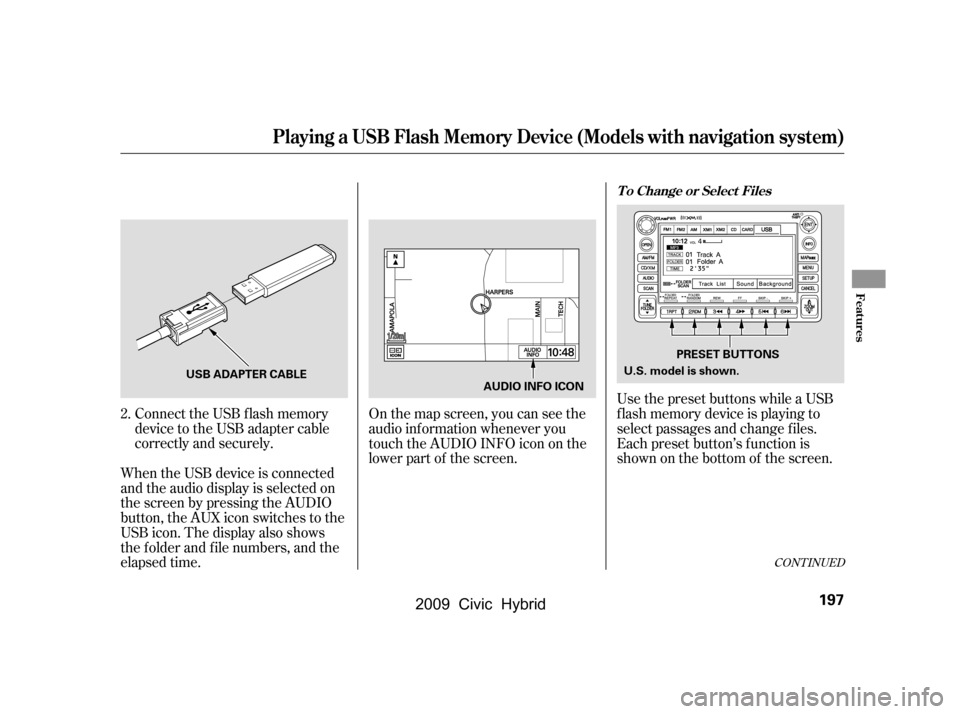

Connect the USB f lash memory
device to the USB adapter cable
correctly and securely.
When the USB device is connected
and the audio display is selected on
the screen by pressing the AUDIO
button, the AUX icon switches to the
USB icon. The display also shows
the f older and f ile numbers, and the
elapsed time. On the map screen, you can see the
audio inf ormation whenever you
touch the AUDIO INFO icon on the
lower part of the screen.
Use the preset buttons while a USB
f lash memory device is playing to
select passages and change f iles.
Each preset button’s f unction is
shownonthebottomof thescreen.
2.
CONT INUED
Playing a USB Flash Memory Device (Models with navigation system)
T o Change or Select Files
Features
197
USB ADAPTER CABLE
AUDIO INFO ICONPRESET BUTTONS
U.S. model is shown.
