Page 11 of 313
10Quick Reference Guide

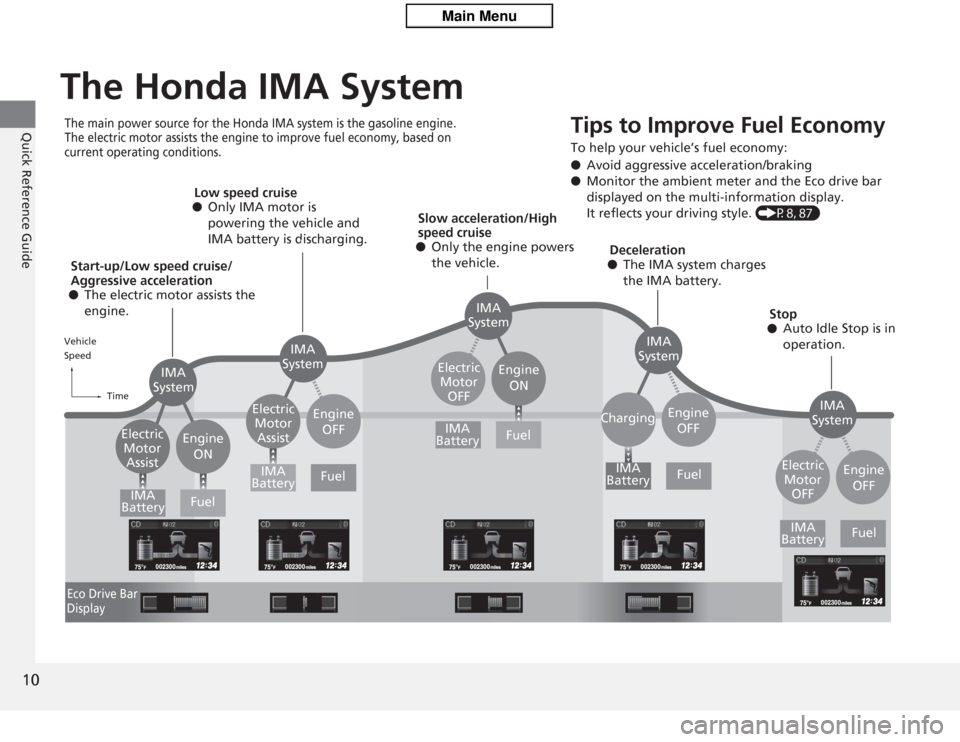

The Honda IMA SystemThe main power source for the Honda IMA system is the gasoline engine.
The electric motor assists the engine to improve fuel economy, based on
current operating conditions.
Tips to Improve Fue
l Economy
To help your vehicle’s fuel economy:
●Avoid aggressive acceleration/braking
● Monitor the ambient meter and the Eco drive bar
displayed on the multi-information display.
It reflects your driving style. (P8, 87)
Start-up/Low speed cruise/
Aggressive acceleration
● The electric motor assists the
engine. Low speed cruise
● Only IMA motor is
powering the vehicle and
IMA battery is discharging.
Slow acceleration/High
speed cruise
● Only the engine powers
the vehicle. Deceleration
● The IMA system charges
the IMA battery.
Stop
● Auto Idle Stop is in
operation.
Vehicle
Speed
TimeEco Drive Bar
Display
IMA
System IMA
System
IMA
System
IMA
System
IMA
System
Electric
Motor Assist Engine
ON Electric
Motor Assist Electric
Motor OFF
Charging
Engine
OFF Engine
ON
Engine OFF
Engine OFF
IMA
Battery IMA
Battery IMA
Battery
IMA
Battery
IMA
Battery
Fuel
Fuel Fuel
Fuel
Fuel
Electric Motor OFF
Page 12 of 313
11Quick Reference Guide
To Keep the IMA Battery in Good Condition Drive your vehicle at least once a month for more than 30 minutes. Parking your vehicle for an extended period can
cause the IMA battery to weaken or decrease the IMA battery life.Safety Precautions Do not cover the air intake.
Air Intake
If the air intake is obstructed during
vehicle operation, the IMA battery can
become too hot. To protect the battery,
the system may start limiting IMA battery
output power and cause the IMA system
and 12 volt battery charging system
indicators to come on.
IMA System Indicator (P87)
12 Volt Battery Charging
System Indicator (P71)
Do not touch the Honda IMA SystemA high voltage current runs through Honda IMA System. Consult your authorized dealer
when maintenance or repair is needed.
IMA Battery
IMA Power Cable
If a crash occurs● Be careful of electric shock hazard.
u If a crash severely damaged your vehicle, there is a possibility of electrical shock. Do
not touch the IMA system components or their wiring (orange).
● Avoid contact with IMA battery fluid.
u The battery fluid may leak as a result of a crash. Avoid any skin or eye contact with
the fluid. The battery fluid is corrosive. If you accid entally touched it, flush the
affected area(s) with a large quantity of water for at least five minutes, and seek
medical attention immediately.
● Use a fire extinguisher for an electrical fire.
u Attempting to extinguish an electrical fire with a small quantity of water can be
dangerous.When the vehicle is disposed● The IMA battery is a Lithium ion battery. Honda collects and recycles used IMA
batteries – consult with your dealer for proper battery disposal in the event your
vehicle is not repairable.
Page 13 of 313
12Quick Reference Guide

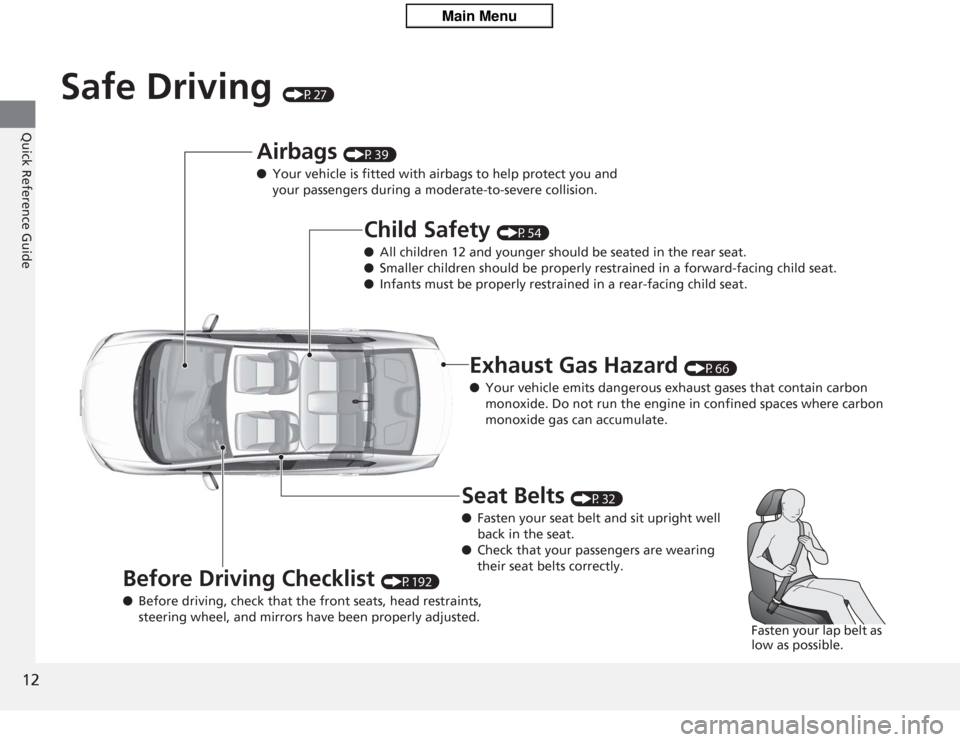

Safe Driving
(P27)
Airbags
(P39)
● Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety
(P54)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restrained in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard
(P66)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the eng ine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist
(P192)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts
(P32)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
Page 14 of 313
13Quick Reference Guide
Instrument Panel
(P69)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA
®) System
Indicator VSA
® OFF Indicator
Electric Power
Steering (EPS)
Indicator
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
Lights Reminders
Cruise Main
Indicator
System Message
Indicator
Brake System
Indicator (Amber) Supplemental
Restraint System
Indicator
Side Airbag Off
Indicator
Door Open Indicator
TachometerInstant Fuel
Economy Gauge
Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator
Low Fuel Indicator
Gauges
(P82)
/Multi-Information Display
(P83)
/System Indicators
(P70)
Trunk Open Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator
Low Temperature
Indicator Ambient Meter
System Indicators
System Indicators
Low Tire Pressure/
TPMS IndicatorU.S. models only
Parking Brake
and Brake System
Indicator (Red)
IMA System
Indicator
Cruise Control
Indicator
System Indicators
12 Volt Battery
Charging System
IndicatorAuto Idle Stop
Indicator
U.S.CanadaU.S.Canada
U.S.Canada
Page 15 of 313
14Quick Reference Guide

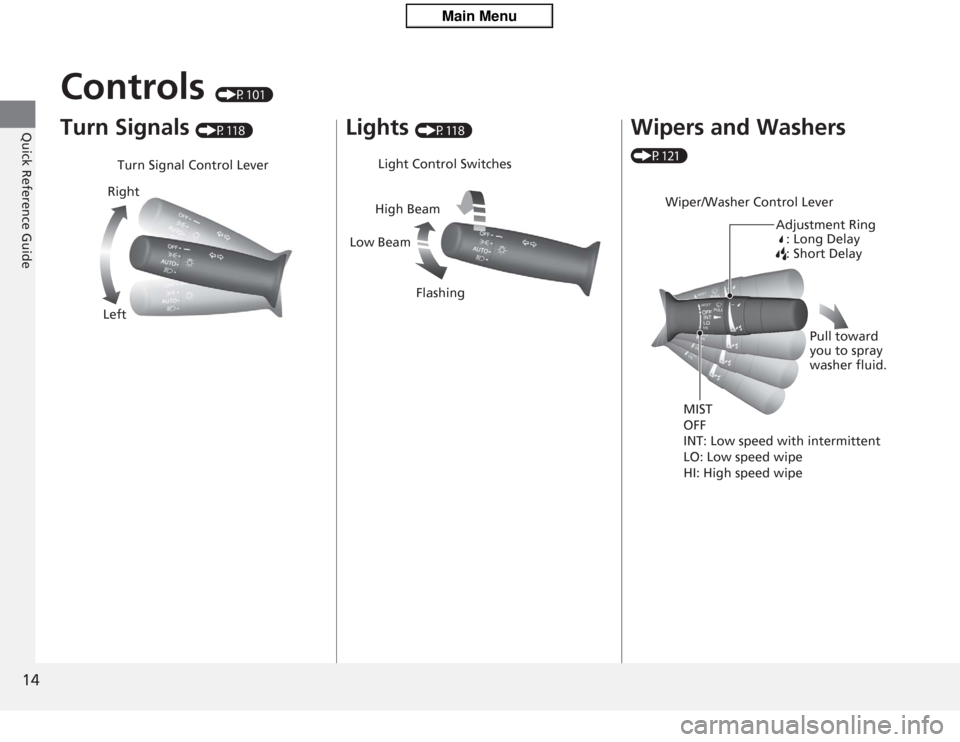

Controls
(P101)
Turn Signals
(P118)
Turn Signal Control Lever
Right
Left
Lights
(P118)
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers (P121)
Wiper/Washer Control Lever Adjustment Ring: Long Delay
: Short Delay
MIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
Page 16 of 313
15Quick Reference Guide

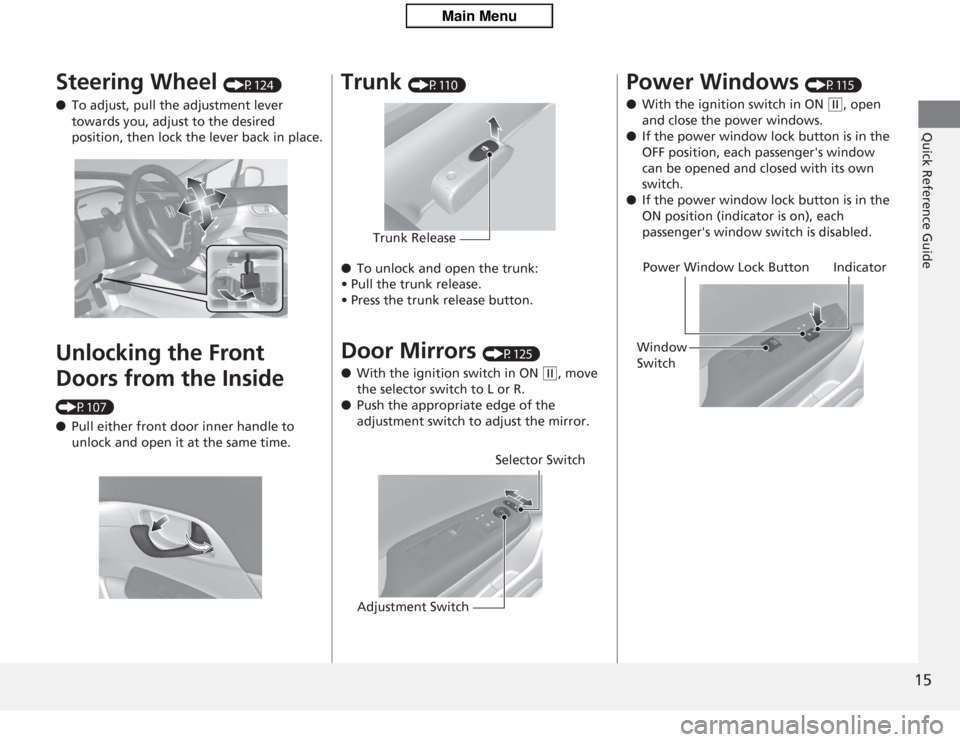

Steering Wheel
(P124)
● To adjust, pull th e adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside (P107)
● Pull either front door inner handle to
unlock and open it at the same time.
Trunk
(P110)
● To unlock and open the trunk:
• Pull the trunk release.
• Press the trunk release button.
Door Mirrors
(P125)
● With the ignition switch in ON
(w
, move
the selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
Power Windows
(P115)
● With the ignition switch in ON
(w
, open
and close the power windows.
● If the power window lock button is in the
OFF position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
ON position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
Page 17 of 313
16Quick Reference Guide

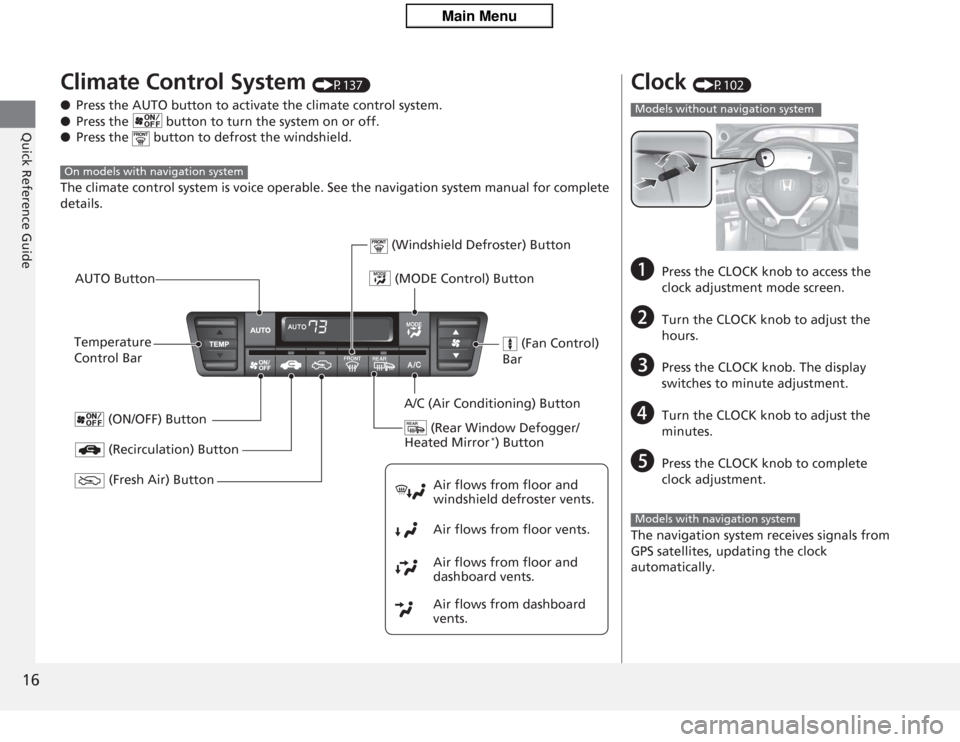

Climate Control System
(P137)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See the navigation system manual for complete
details.
On models with navigation system
(MODE Control) Button
(Rear Window Defogger/
Heated Mirror
*) Button
(Windshield Defroster) Button
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
Temperature
Control BarAUTO Button
(ON/OFF) Button
(Fresh Air) Button
(Fan Control)
Bar
Clock
(P102)
a
Press the CLOCK knob to access the
clock adjustment mode screen.
b
Turn the CLOCK knob to adjust the
hours.
c
Press the CLOCK knob. The display
switches to minute adjustment.
d
Turn the CLOCK knob to adjust the
minutes.
e
Press the CLOCK knob to complete
clock adjustment.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation systemModels with navigation system
Page 18 of 313
17Quick Reference Guide

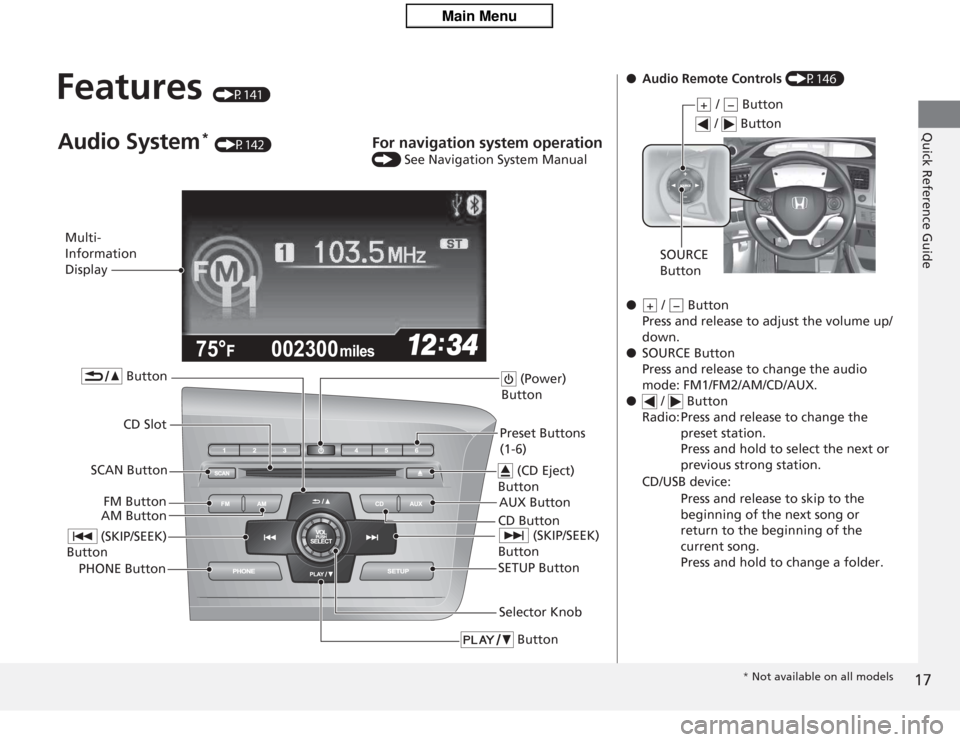

Features
(P141)
002300
75°
F miles
Multi-
Information
Display
AM ButtonFM Button
SCAN Button
(SKIP/SEEK)
Button
Selector Knob
Button
(Power)
Button
CD Button AUX Button (CD Eject)
ButtonPreset Buttons
(1-6)
ButtonSETUP Button (SKIP/SEEK)
Button
PHONE Button
Audio System
* (P142)
For navigation system operation () See Navigation System Manual
CD Slot
●Audio Remote Controls (P146)
● / Button
Press and release to adjust the volume up/
down.
● SOURCE Button
Press and release to ch ange the audio
mode: FM1/FM2/AM/CD/AUX.
● / Button
Radio: Press and release to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device: Press and release to skip to the
beginning of the next song or
return to the beginning of the
current song.
Press and hold to change a folder.
/ Button+
−
SOURCE
Button / Button
+
−
*
Not available on all models
Page 19 of 313
18Quick Reference Guide

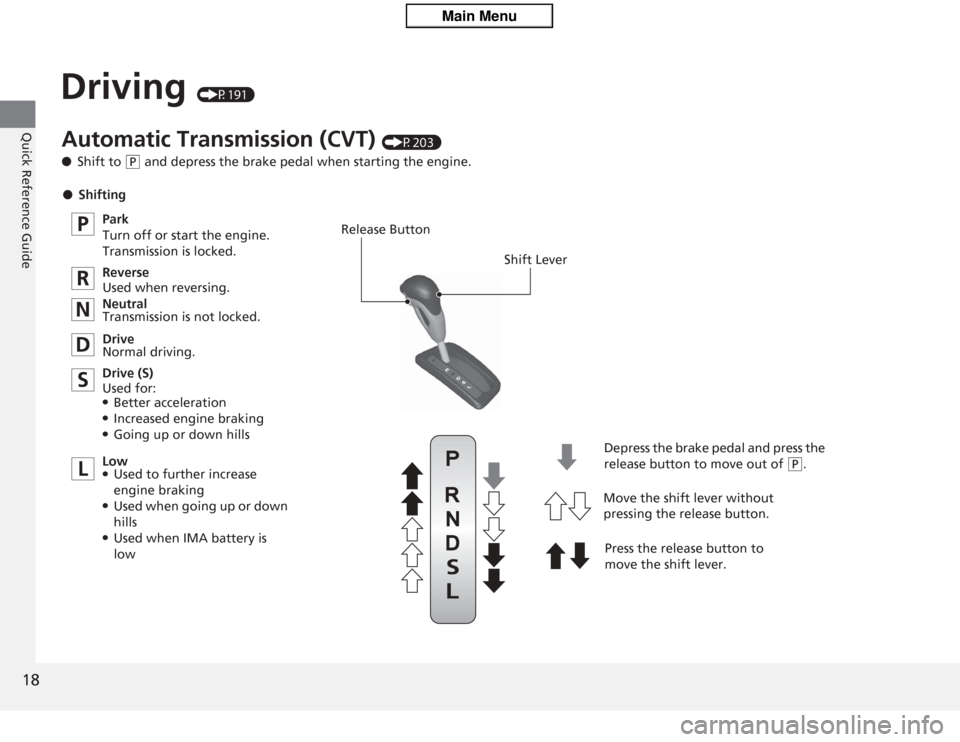

Driving
(P191)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P
.
Move the shift lever without
pressing the release button.
Press the release button to
move the shift lever.
Automatic Transmission (CVT)
(P203)
● Shift to
(P
and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
Used for:
●Better acceleration●Increased engine braking●Going up or down hills
Low●Used to further increase
engine braking●Used when going up or down
hills●Used when IMA battery is
low
Page 20 of 313
19Quick Reference Guide
VSA
® OFF Button
(P209)
● The vehicle stability assist (VSA
®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA
® comes on automatically every time
you start the engine.
● To turn VSA
® on or off, press and hold
the button until you hear a beep.
Cruise Control
(P205)
● Cruise control allows you to maintain a
set speed without keep ing your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press once you have
received the desired speed (above 25 mph
or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P210)
● TPMS monitors tire pressure.
● TPMS is turned on automatically every
time you start the engine.
−/SET
U.S. models only
Refueling
(P222)
a
Push the fuel fill door
release handle.
b
Turn the fuel fill cap
slowly to remove the
cap.
c
Place the cap in the
holder on the fuel fill
door.
d
After refueling, screw
the cap back on until it
clicks at least once.
Fuel recommendation: Unle aded gasoline with a pump octane number 87 or
higher
Fuel tank capacity: 13.2 US gal (50 L)
