HONDA CIVIC HYBRID 2012 9.G Technology Reference Guide

V O I C E R E C O G N I T I O N ( i f e q u i p p e d )
To keep your eyes on the road and hands on the wheel\b use voice commands for
handsfree calling\b navigation\b audio\b and climate control. For a full list of commands\b say
“Information ” and “Voice Info.”
A U D I Op. 23
C L I M A T E p. 23
N A V I G A T I O Np. 24
B L U E T O O T H®H A N D S F R E E L I N K®p. 28
Playing BluetoothAudio Files
BLUETOOTH®AUDIO
Play stored or streaming audio from your compatible phone through your vehicle’s audio
system. Visit handsfreelink.honda.com to check if this feature is available on your phone.
1. Make sure your phone is on and
paired to HandsFreeLink (see
page 13 ).
3. Press “play” on your phone; sound is
redirected to the audio system.
model with navigation shown
*not supported on all phones
Notes:
• Make sure the volume on your phone is properly adjusted.
• You may need to enable additional Bluetooth settings on your phone for
playback.
4. Press the() or() buttons to
change tracks\b or use the () or ()buttons on the steering wheel*.
2. Press SOURCE or AUX (or CD/XM)
until Bluetooth Audio mode appears.
1819
12 Civic TRG_Hybrid\fATG_NEW STYLE 1/2\b/2011 2\f41 PM Page11
*

Key Functions by Voice CommandCommonly Used Voice Commands
Voice Command Tips
• Press and releasethe Talk button\b wait for a beep\b then give a command.
• For a list of available commands\b press and releasethe Talk button and say
“Help” at any time.
• Speak in a clear\b natural voice.
• Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
• The system also uses a touch screen display. You can select options or icons by touching them on the screen.
PickUp button: Answer an incoming
call\b or go directly to the Phone screen.
HangUp\bBack button: End a call\b
decline an incoming call\b or cancel a
selection.
Talk button: Give navigation\b HFL\b audio\b
and climate control commands.
Control four different systems with the steering wheel buttons and the ceiling
microphone.
To prevent driver distraction, certain manual and touch screen functions
may be inoperable or grayed out while the vehicle is moving. Voice
commands are always available. Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
Press and release the Talk button before you give a command.
Locate Points of Interest
Say
a command like “Display
restaurant” to see restaurant
icons appear on the map.
Make HandsFree Phone Calls
Say a command like “Dial by
number” to make a call without
handling your cell phone (when a
phone is paired to HFL\b see
Make Audio Selections
Say a command like “Radio 97.1
FM” to select that station.
Adjust the Vehicle’s
Climate Setting
Saya command like “Air
conditioner on” to start the
air conditioning system.
2021
12 Civic TRG_Hybrid\fATG_NEW STYLE 1/2\b/2011 2\f41 PM Page12
page 28 ).

2223
Commonly Used Voice Commands (continued)
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
Press and release the Talk button before you give a command.
G e n e r a l C o m m a n d s(Accepted on most screens to change displays)
• Display map
• Display menu
• Display information
• Display audio screen
• What time is it?
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest: ATM Honda dealer
gas station airport
Mexican hospitalrestaurant bank
post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long/far to destination?
• Display destination
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display/Hide: ATM
gas station
restaurant
post office
• Display north up/heading up
• Zoom in/out
• Go home
• Display current location
Press and release the Talk button before you give a command.
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM/AM
• Radio preset 1/2/3/4/5/6
• CD play
• CD play track #
• CD skip forward/back
• Auxiliary (AUX) play
H e l p C o m m a n d s(Accepted on most screens)
• Help (list of available commands for current screen)
• Voice info from INFO screen (list of all
available commands by category)
P h o n e C o m m a n d s(Accepted on Phone screen)
• Dial
• Call (voice tag)
• Redial
• Phonebook
• Phone setup
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on/off
• Rear defrost on/off
• Climate control recirculate/ fresh air
• Fan speed up/down
• Temperature # degrees (# = 57–87)
• Temperature max hot/cold
12 Civic TRG_Hybrid\fATG_NEW STYLE 1/2\b/2011 2\f41 PM Page13

2425
N A V I G A T I O N ( i f e q u i p p e d )Realtime navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination.
Entering a DestinationUsing Voice Control
Press and release the Talk button before you give a command.
Using the Find Nearest Command
Try these simple steps to find a nearby point of interest\b such as a gas station\b
movie theater\b restaurant\b etc.
Press and release the Talk button before you give a command.1. Say “Display menu ” and “Address.”
2. Say “Street,” then say the street
name on the next screen. Do
not include the direction (N\b S\b E\b
W) or type (St.\b Ave.\b Blvd.\b etc.).
3. A list of street names appears. Say the number next to the
street you want to select.
NOTE: If menu options are grayed out\b they are only available using
voice commands. However\b they may be hard to see on screen. It is
recommended that you enter your destination before driving or
when the vehicle is stopped. 5. If the street address is in more
than one city\b a list of city names
appears. Saythe number next to
the city you want to select.
6. The system calculates the route and displays the “Calculate route
to” screen. Say“Set as
destination” to set the route. 1.
Say “Find nearest ATM.”
2. A list of the nearest ATMs in
your area is displayed by
shortest distance to destination.
3. Say the number next to the
destination you want to select.
4. The system calculates the route and displays the “Calculate
route to” screen. Say “Set as
destination” to set the route.
Calculated route
Time to go Direction of destination
Distance to go
Current vehicle
location
Map Screen
Legend
4. Saythe entire street address
number\b followed by “OK” if
necessary. For example\b “12
3\f OK.”
12 Civic TRG_Hybrid\fATG_NEW STYLE 1/2\b/2011 2\f41 PM Page14

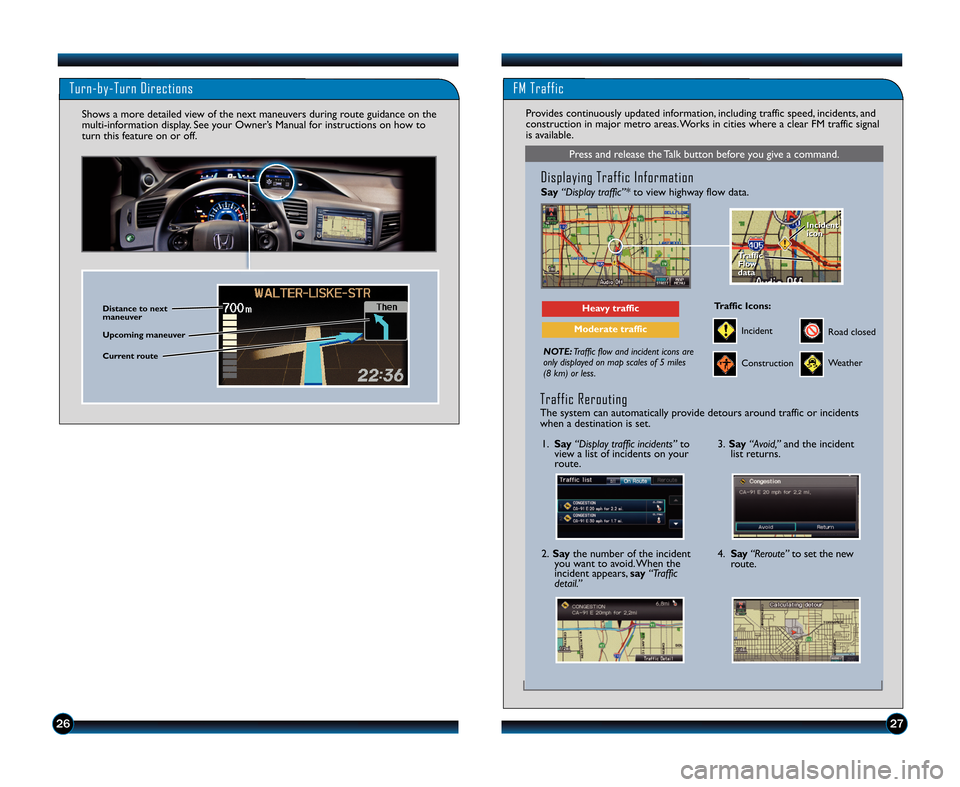

TurnbyTurn Directions
Shows a more detailed view of the next maneuvers during route guidance on the
multiinformation display. See your Owner’s Manual for instructions on how to
turn this feature on or off.
2\b27
Distance to next
maneuver
Upcoming maneuver
Current route
FM Traffic
Press and release the Talk button before you give a command.
Displaying Traffic Information
Say“Display traffic”* to view highway flow data.
NOTE:Traffic flow and incident icons are
only displayed on map scales of 5 miles
(8 km) or less.
Heavy traffic
Moderate traffic
Traffic
Flow
data
Traffic
Flow
data Incident
icon
Incident
icon
Incident
Traffic Icons:
Construction
Road closed
Weather
Provides continuously updated information\b including traffic speed\b incidents\b and
construction in major metro areas. Works in cities where a clear FM traffic signal
is available.
1. Say “Display traffic incidents” to
view a list of incidents on your
route.
2. Say the number of the incident
you want to avoid. When the
incident appears\b say “Traffic
detail.”
3. Say “Avoid,” and the incident
list returns.
4. Say “Reroute” to set the new
route.
Traffic Rerouting
The system can automatically provide detours around traffic or incidents
when a destination is set.
12 Civic TRG_Hybrid\fATG_NEW STYLE 11/8/2011 10\f47 AM Page15

Press and release the Talk button before you give a command.
Press and release the Talk button before you give a command.

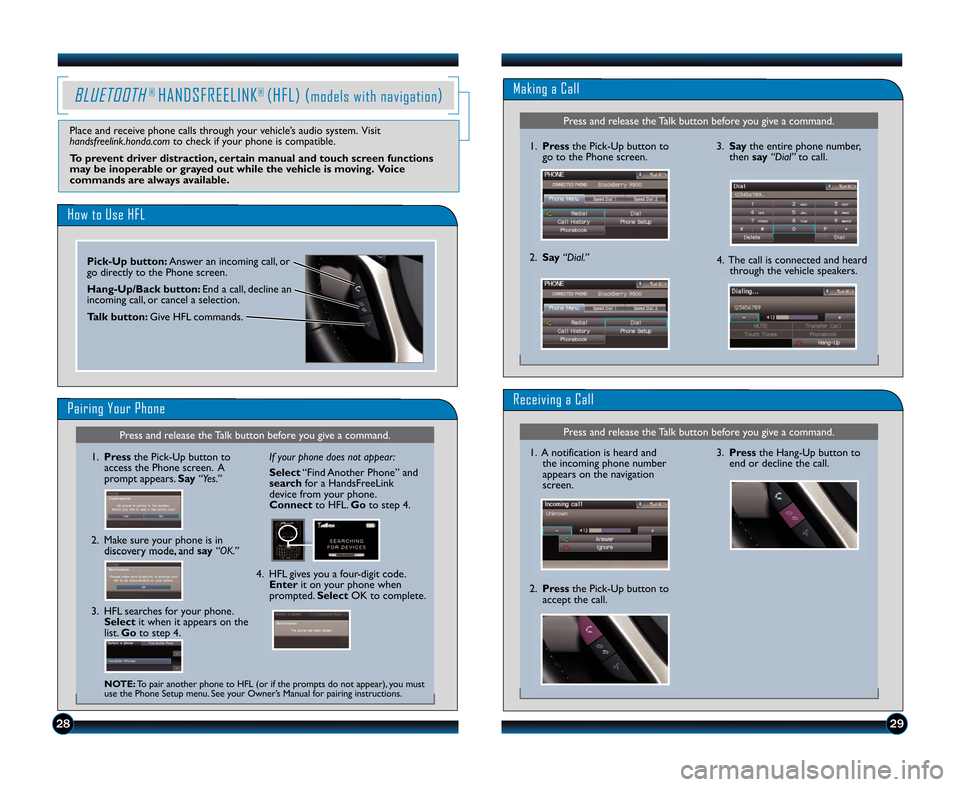

BLUETOOTH® HANDSFREELINK® (HFL) (models with navigation)Making a Call
Receiving a Call
3. Pressthe HangUp button to
end or decline the call.
1. Press the PickUp button to
go to the Phone screen.
2. Say “Dial.”
1. A notification is heard and
the incoming phone number
appears on the navigation
screen.
2. Press the PickUp button to
accept the call.
3. Say the entire phone number\b
then say “Dial”to call.
4. The call is connected and heard through the vehicle speakers.
2829
How to Use HFL
Pairing Your Phone
PickUp button: Answer an incoming call\b or
go directly to the Phone screen.
HangUp\bBack button: End a call\b decline an
incoming call\b or cancel a selection.
Talk button: Give HFL commands.
Press and release the Talk button before you give a command.
1. Press the PickUp button to
access the Phone screen. A
prompt appears. Say“Yes.”
2. Make sure your phone is in discovery mode\b and say“OK.” If your phone does not appear:
Select
“Find Another Phone” and
search for a HandsFreeLink
device from your phone.
Connect to HFL. Go to step 4.
4. HFL gives you a fourdigit code. Enter it on your phone when
prompted. Select OK to complete.
3. HFL searches for your phone.
Select it when it appears on the
list. Go to step 4.
NOTE: To pair another phone to HFL (or if the prompts do not appear)\b you must
use the Phone Setup menu. See your Owner’s Manual for pairing instructions.
Place and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if your phone is compatible.
To prevent driver distraction, certain manual and touch screen functions
may be inoperable or grayed out while the vehicle is moving. Voice
commands are always available.
12 Civic TRG_Hybrid\fATG_NEW STYLE 11/8/2011 10\f47 AM Page1\b

Press and release the Talk button before you give a command.
3031

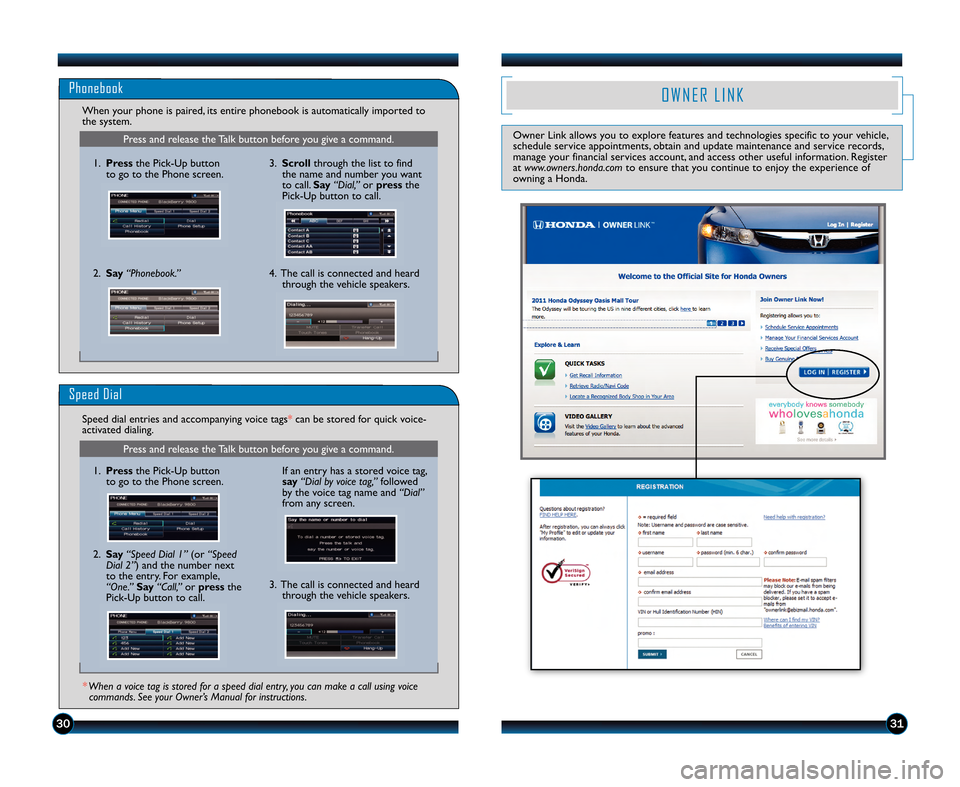

Phonebook
When your phone is paired\b its entire phonebook is automatically imported to
the system.4. The call is connected and heardthrough the vehicle speakers.
2. Say
“Phonebook.”
1. Press
the PickUp button
to go to the Phone screen.
Speed Dial
Speed dial entries and accompanying voice tags * can be stored for quick voice
activated dialing.
* When a voice tag is stored for a speed dial entry, you can make a call using voice commands. See your Owner’s Manual for instructions. 3. Scroll
through the list to find
the name and number you want
to call. Say “Dial,”or press the
PickUp button to call.
O W N E R L I N K
Owner Link allows you to explore features and technologies specific to your vehicle\b
schedule service appointments\b obtain and update maintenance and service records\b
manage your financial services account\b and access other useful information. Register
at www.owners.honda.com to ensure that you continue to enjoy the experience of
owning a Honda.
Press and release the Talk button before you give a command.
3. The call is connected and heard through the vehicle speakers.
1. Press
the PickUp button
to go to the Phone screen. If an entry has a stored voice tag\b
say
“Dial by voice tag,” followed
by the voice tag name and “Dial”
from any screen.
2. Say “Speed Dial 1” (or “Speed
Dial 2”) and the number next
to the entry. For example\b
“One.” Say“Call,” or press the
PickUp button to call.
12 Civic TRG_Hybrid\fATG_NEW STYLE 11/8/2011 10\f47 AM Page17

3233

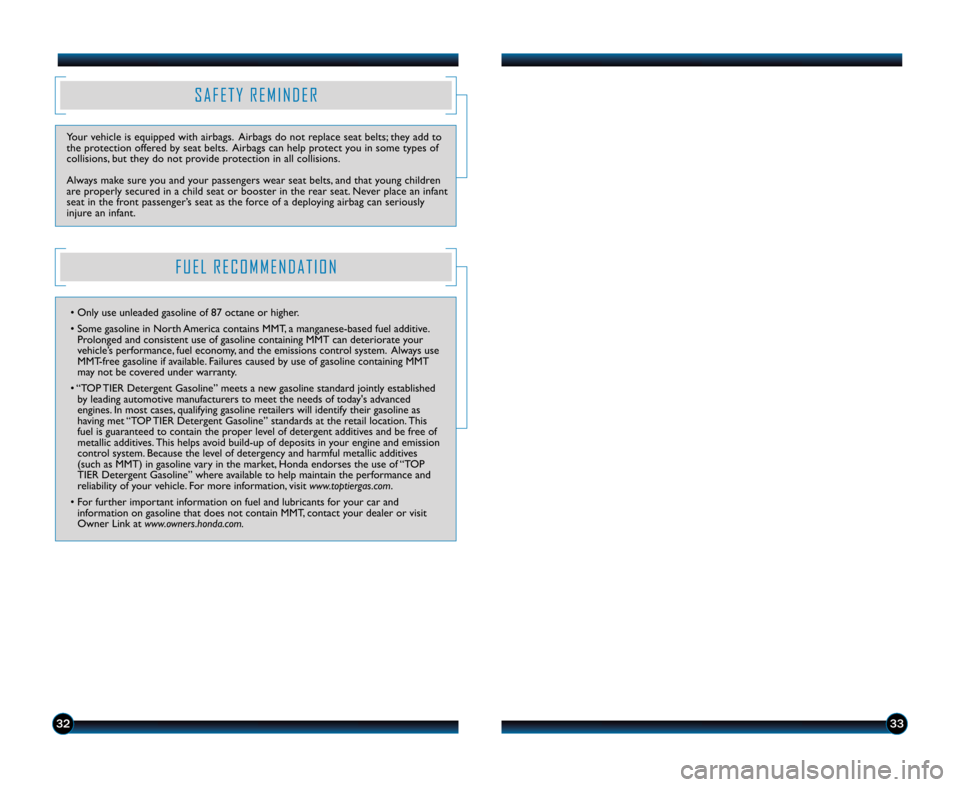

S A F E T Y R E M I N D E R
Your vehicle is equipped with airbags. Airbags do not replace seat belts; they add to
the protection offered by seat belts. Airbags can help protect you in some types of
collisions\b but they do not provide protection in all collisions.
Always make sure you and your passengers wear seat belts\b and that young children
are properly secured in a child seat or booster in the rear seat. Never place an infant
seat in the front passenger’s seat as the force of a deploying airbag can seriously
injure an infant.
F U E L R E C O M M E N D A T I O N
• Only use unleaded gasoline of 87 octane or higher.
• Some gasoline in North America contains MMT\b a manganesebased fuel additive.Prolonged and consistent use of gasoline containing MMT can deteriorate your
vehicle’s performance\b fuel economy\b and the emissions control system. Always use
MMTfree gasoline if available. Failures caused by use of gasoline containing MMT
may not be covered under warranty.
• “TOP TIER Detergent Gasoline” meets a new gasoline standard jointly established by leading automotive manufacturers to meet the needs of today's advanced
engines. In most cases\b qualifying gasoline retailers will identify their gasoline as
having met “TOP TIER Detergent Gasoline” standards at the retail location. This
fuel is guaranteed to contain the proper level of detergent additives and be free of
metallic additives. This helps avoid buildup of deposits in your engine and emission
control system. Because the level of detergency and harmful metallic additives
(such as MMT) in gasoline vary in the market\b Honda endorses the use of “TOP
TIER Detergent Gasoline” where available to help maintain the performance and
reliability of your vehicle. For more information\b visit www.toptiergas.com.
• For further important information on fuel and lubricants for your car and information on gasoline that does not contain MMT\b contact your dealer or visit
Owner Link at www.owners.honda.com.
12 Civic TRG_Hybrid\fATG_NEW STYLE 1/2\b/2011 2\f42 PM Page18
