HONDA CIVIC HYBRID 2015 9.G Owners Manual

360
Information

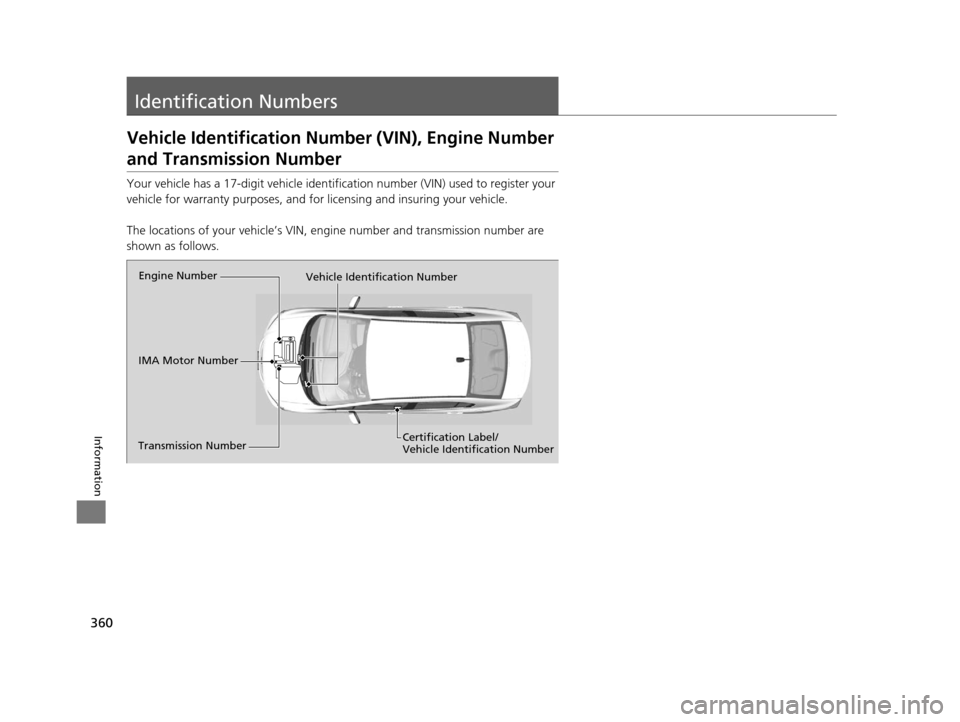

Identification Numbers
Vehicle Identification Number (VIN), Engine Number
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Transmission Number IMA Motor Number
15 CIVIC IMA-31TR26300.book 360 ページ ２０１４年９月９日　火曜日　午後１２時２０分

361
Information

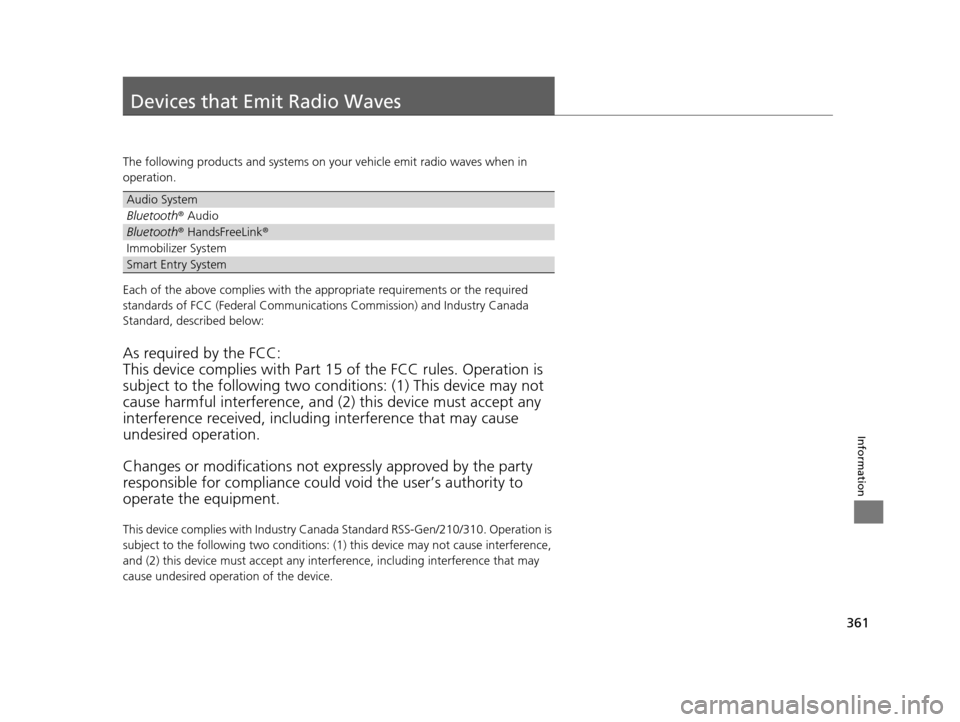

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any inte rference, including interference that may
cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Smart Entry System
15 CIVIC IMA-31TR26300.book 361 ページ ２０１４年９月９日　火曜日　午後１２時２０分

362
Information

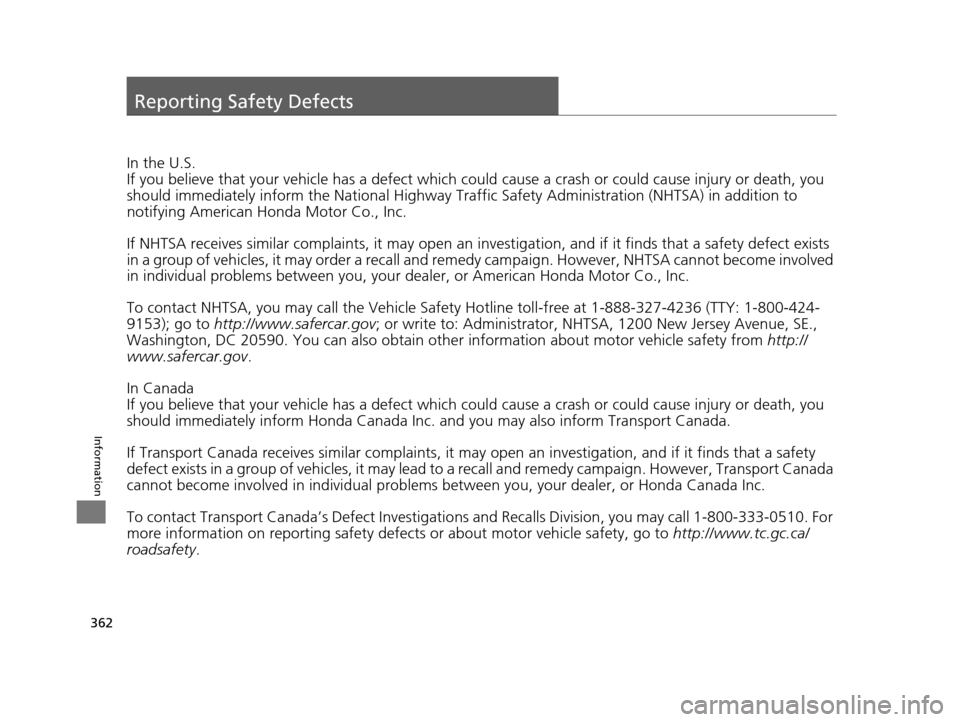

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
15 CIVIC IMA-31TR26300.book 362 ページ ２０１４年９月９日　火曜日　午後１２時２０分

363Continued
Information

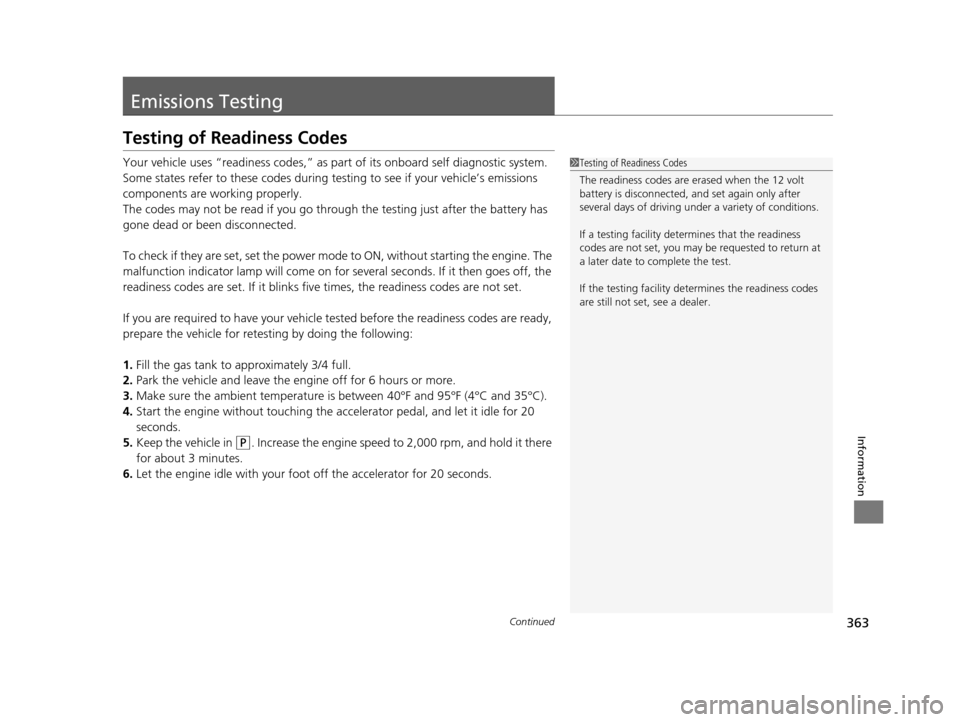

Emissions Testing
Testing of Readiness Codes
Your vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during te sting to see if your vehicle’s emissions
components are working properly.
The codes may not be read if you go thro ugh the testing just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the 12 volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
15 CIVIC IMA-31TR26300.book 363 ページ ２０１４年９月９日　火曜日　午後１２時２０分

364
uuEmissions Testing uTesting of Readiness Codes
Information

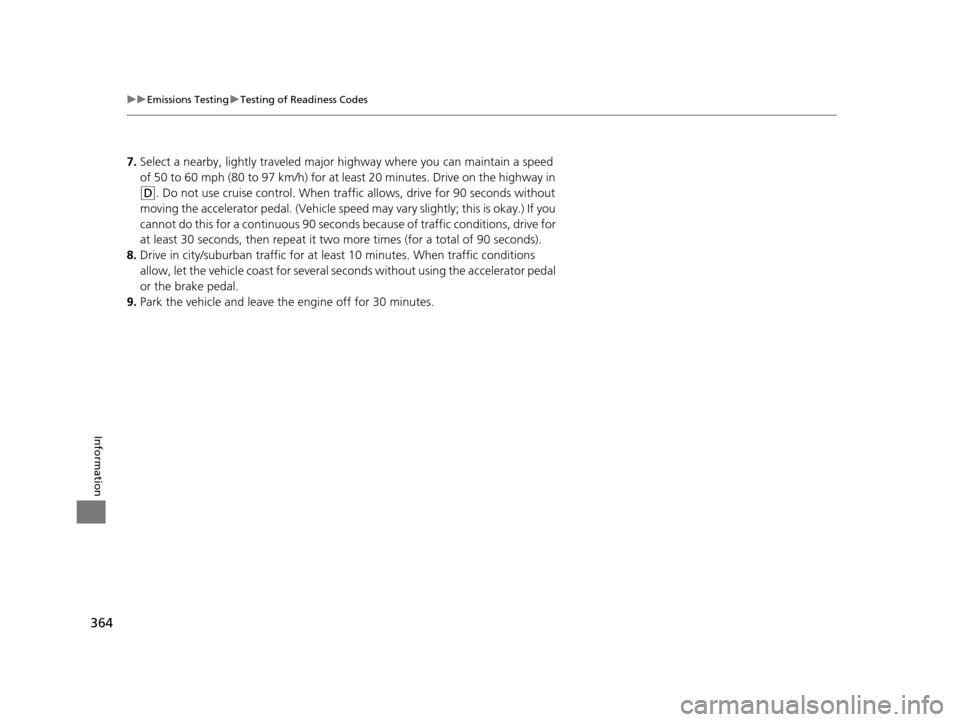

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
15 CIVIC IMA-31TR26300.book 364 ページ ２０１４年９月９日　火曜日　午後１２時２０分

365Continued
Information

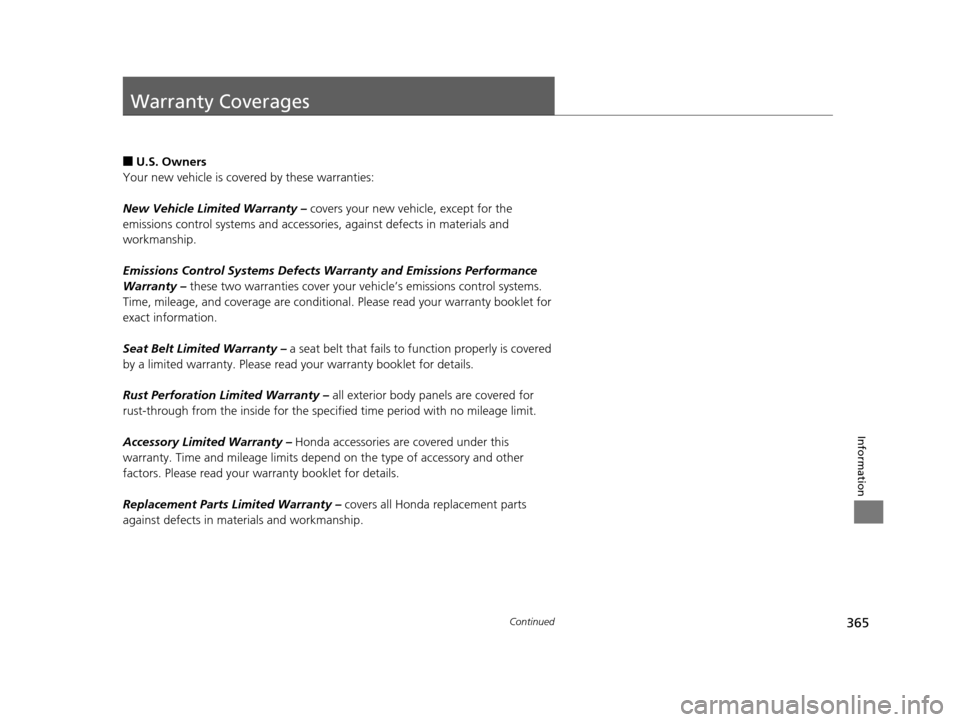

Warranty Coverages
■U.S. Owners
Your new vehicle is cove red by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limite d Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
15 CIVIC IMA-31TR26300.book 365 ページ ２０１４年９月９日　火曜日　午後１２時２０分

366
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
15 CIVIC IMA-31TR26300.book 366 ページ ２０１４年９月９日　火曜日　午後１２時２０分

367
Information

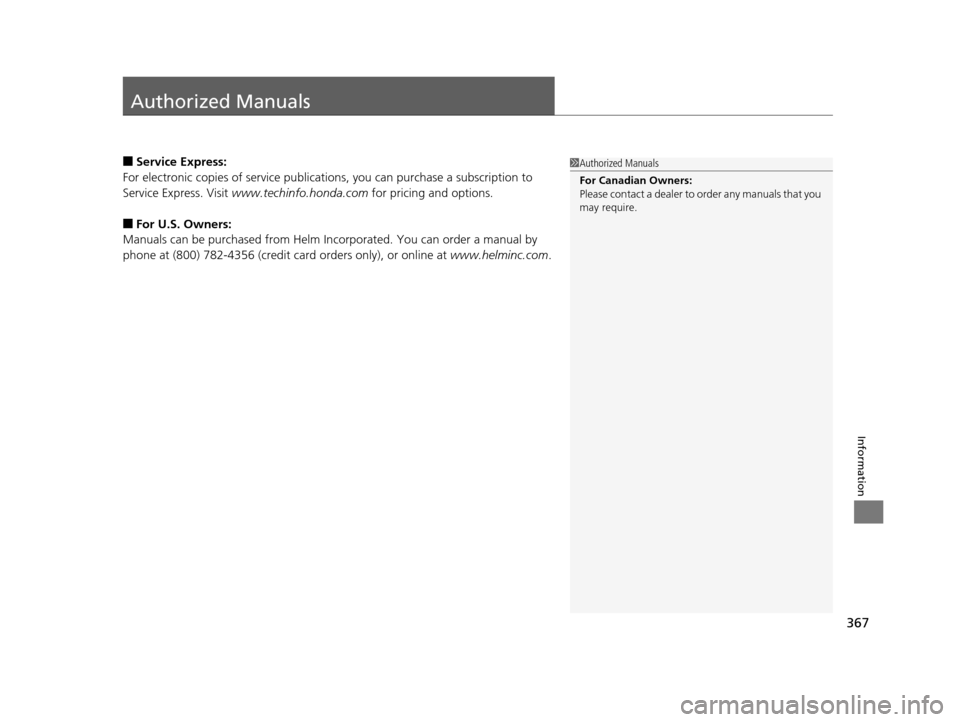

Authorized Manuals
■Service Express:
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners:
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
1Authorized Manuals
For Canadian Owners:
Please contact a dealer to order any manuals that you
may require.
15 CIVIC IMA-31TR26300.book 367 ページ ２０１４年９月９日　火曜日　午後１２時２０分

368
Information

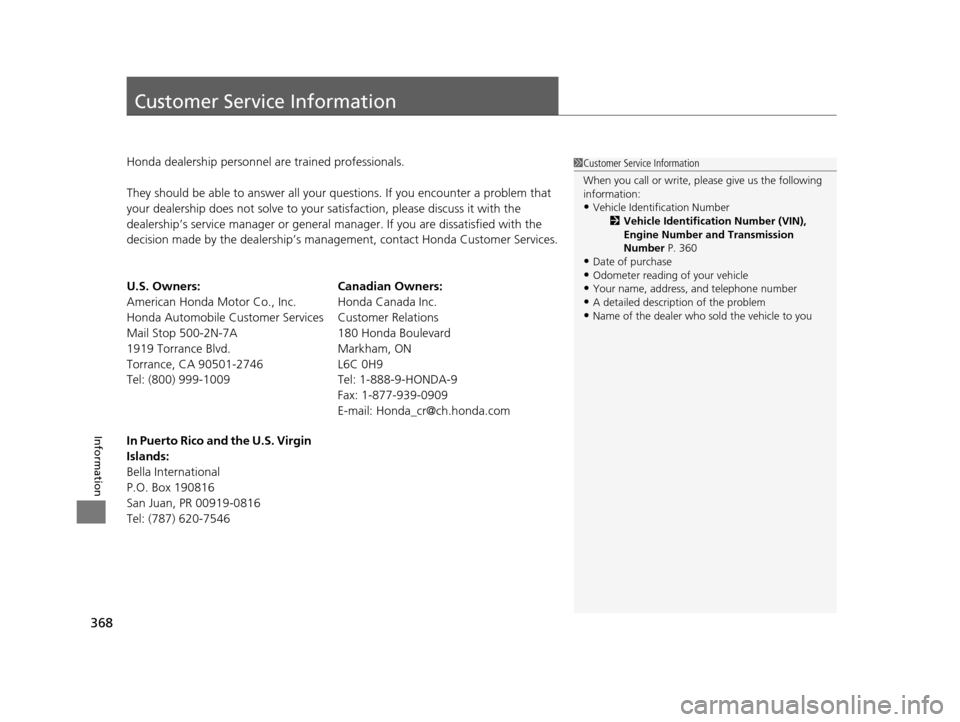

Customer Service Information
Honda dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership’s service manager or general manager. If you are dissatisfied with the
decision made by the dealership’s mana gement, contact Honda Customer Services.
U.S. Owners:
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009 Canadian Owners:
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 360
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
15 CIVIC IMA-31TR26300.book 368 ページ ２０１４年９月９日　火曜日　午後１２時２０分

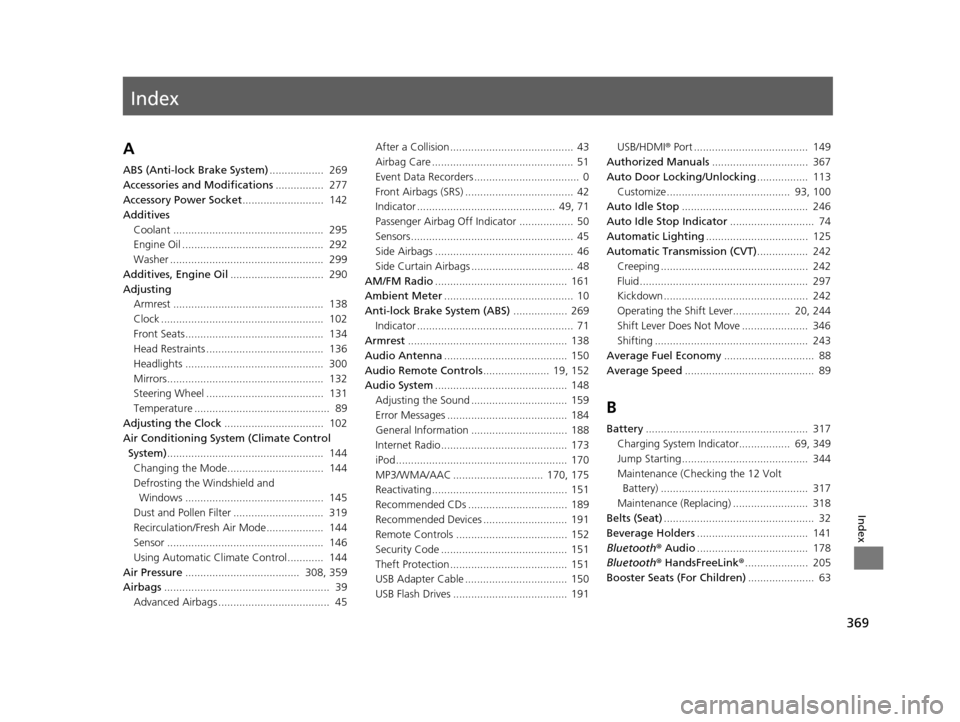

Index
369
Index
Index
A
ABS (Anti-lock Brake System).................. 269
Accessories and Modifications ................ 277
Accessory Power Socket ........................... 142
Additives
Coolant .................................................. 295
Engine Oil ............................................... 292
Washer ................................................... 299
Additives, Engine Oil ............................... 290
Adjusting Armrest .................................................. 138
Clock ...................................................... 102
Front Seats.............................................. 134
Head Restraints ....................................... 136
Headlights .............................................. 300
Mirrors.................................................... 132
Steering Wheel ....................................... 131
Temperature ............................................. 89
Adjusting the Clock ................................. 102
Air Conditioning System (Climate Control System) .................................................... 144
Changing the Mode................................ 144
Defrosting the Windshield and Windows .............................................. 145
Dust and Pollen Filter .............................. 319
Recirculation/Fresh Air Mode................... 144
Sensor .................................................... 146
Using Automatic Climate Control............ 144
Air Pressure ...................................... 308, 359
Airbags ....................................................... 39
Advanced Airbags ..................................... 45 After a Collision ......................................... 43
Airbag Care ............................................... 51
Event Data Recorders ................................... 0
Front Airbags (SRS) .................................... 42
Indicator .............................................. 49, 71
Passenger Airbag Off Indicator .................. 50
Sensors ...................................................... 45
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 48
AM/FM Radio ............................................ 161
Ambient Meter ........................................... 10
Anti-lock Brake System (ABS) .................. 269
Indicator .................................................... 71
Armrest ..................................................... 138
Audio Antenna ......................................... 150
Audio Remote Controls ...................... 19, 152
Audio System ............................................ 148
Adjusting the Sound ................................ 159
Error Messages ........................................ 184
General Information ................................ 188
Internet Radio .......................................... 173
iPod ......................................................... 170
MP3/WMA/AAC .............................. 170, 175
Reactivating ............................................. 151
Recommended CDs ................................. 189
Recommended Devices ............................ 191
Remote Controls ..................................... 152
Security Code .......................................... 151
Theft Protection ....................................... 151
USB Adapter Cable .................................. 150
USB Flash Drives ...................................... 191 USB/HDMI
® Port ...................................... 149
Authorized Manuals ................................ 367
Auto Door Locking/Unlocking ................. 113
Customize ......................................... 93, 100
Auto Idle Stop .......................................... 246
Auto Idle Stop Indicator ............................ 74
Automatic Lighting .................................. 125
Automatic Transmission (CVT) ................. 242
Creeping ................................................. 242
Fluid ........................................................ 297
Kickdown ................................................ 242
Operating the Shift Lever................... 20, 244
Shift Lever Does Not Move ...................... 346
Shifting ................................................... 243
Average Fuel Economy .............................. 88
Average Speed ........................................... 89
B
Battery...................................................... 317
Charging System Indicator................. 69, 349
Jump Starting .......................................... 344
Maintenance (Checking the 12 Volt Battery) ................................................. 317
Maintenance (Replacing) ......................... 318
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 141
Bluetooth ® Audio ..................................... 178
Bluetooth ® HandsFreeLink ®..................... 205
Booster Seats (For Children) ...................... 63
15 CIVIC IMA-31TR26300.book 369 ページ ２０１４年９月９日　火曜日　午後１２時２０分
