uuIndicators uintelligent Multi-Informat ion Display (i-MID) Warning and Information Messages
Instrument Panel

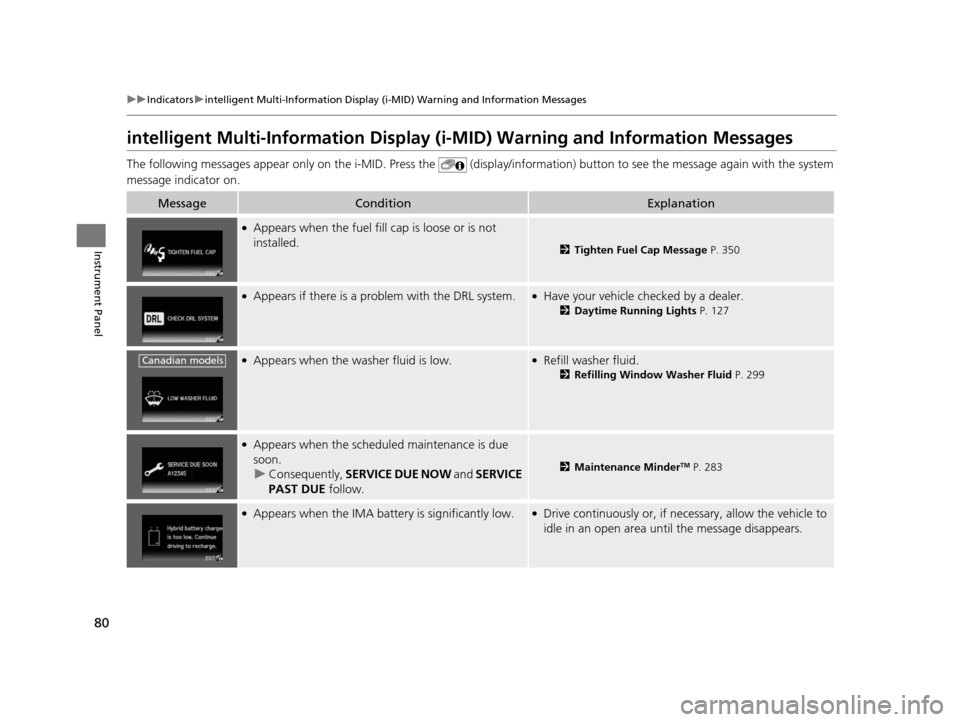

intelligent Multi-Information Display (i-M ID) Warning and Information Messages
The following messages appear only on the i-MID. Press the (display/information) button to see the message again with the syst em
message indicator on.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2 Tighten Fuel Cap Message P. 350
●Appears if there is a problem with the DRL system.●Have your vehicle checked by a dealer.
2Daytime Running Lights P. 127
●Appears when the washer fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 299
●Appears when the scheduled maintenance is due
soon. u Consequently, SERVICE DUE NOW and SERVICE
PAST DUE follow.
2Maintenance MinderTM P. 283
●Appears when the IMA batte ry is significantly low.●Drive continuously or, if necessary, allow the vehicle to
idle in an open area un til the message disappears.
Canadian models
15 CIVIC IMA-31TR26300.book 80 ページ ２０１４年９月９日　火曜日　午後１２時２０分

81
uuIndicators uintelligent Multi-Information Display (i-MID) Warning and Information Messages
Continued
Instrument Panel

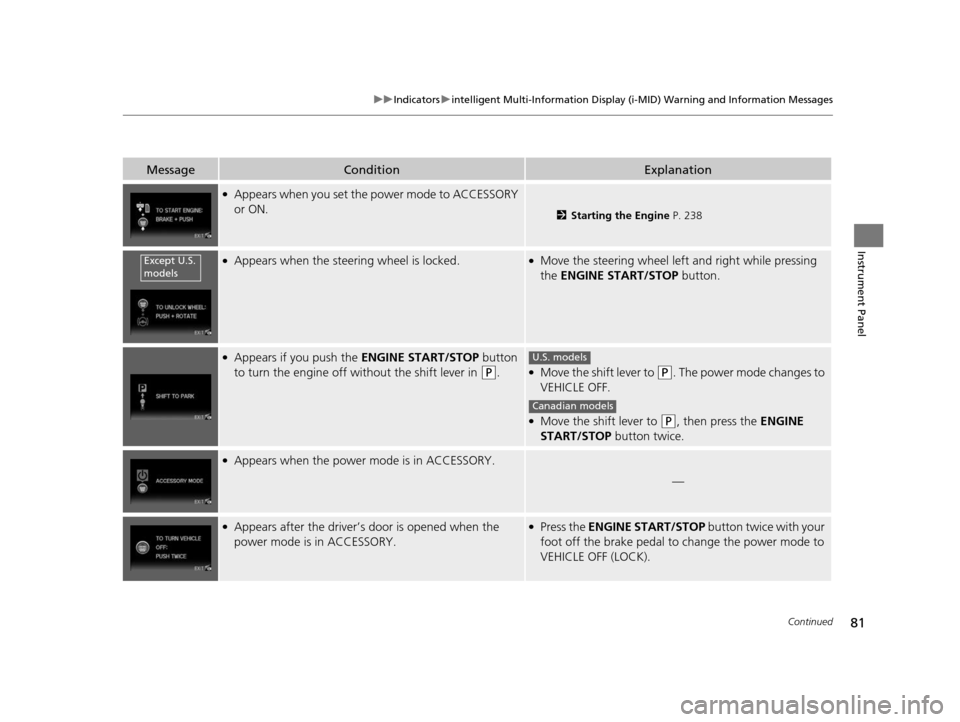

MessageConditionExplanation
●Appears when you set the power mode to ACCESSORY
or ON.
2 Starting the Engine P. 238
●Appears when the steering wheel is locked.●Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
●Appears if you push the ENGINE START/STOP button
to turn the engine off wi thout the shift lever in
(P.●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF (LOCK).
Except U.S.
models
U.S. models
Canadian models
15 CIVIC IMA-31TR26300.book 81 ページ ２０１４年９月９日　火曜日　午後１２時２０分

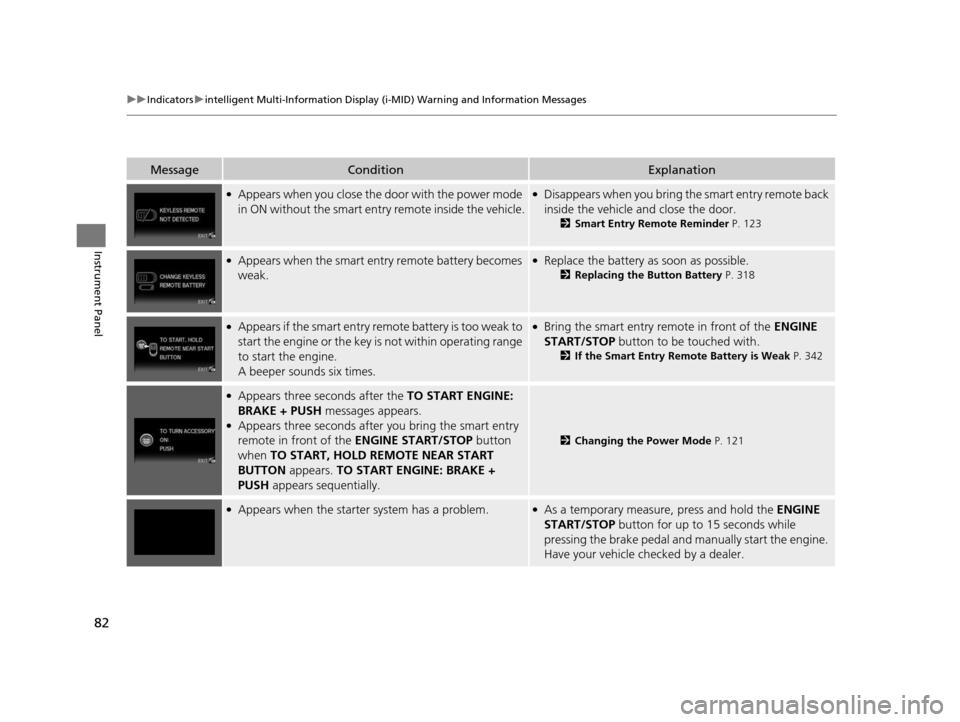

82
uuIndicators uintelligent Multi-Informat ion Display (i-MID) Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the smart entry remote inside the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 123
●Appears when the smart entry remote battery becomes
weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 318
●Appears if the smart entry remote battery is too weak to
start the engine or the key is not within operating range
to start the engine.
A beeper sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Smart Entry Remote Battery is Weak P. 342
●Appears three seconds after the TO START ENGINE:
BRAKE + PUSH messages appears.
●Appears three seconds after you bring the smart entry
remote in front of the ENGINE START/STOP button
when TO START, HOLD REMOTE NEAR START
BUTTON appears. TO START ENGINE: BRAKE +
PUSH appears sequentially.
2Changing the Power Mode P. 121
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal and manually start the engine.
Have your vehicle ch ecked by a dealer.
15 CIVIC IMA-31TR26300.book 82 ページ ２０１４年９月９日　火曜日　午後１２時２０分

83
uuIndicators uintelligent Multi-Information Display (i-MID) Warning and Information Messages
Instrument Panel
MessageConditionExplanation

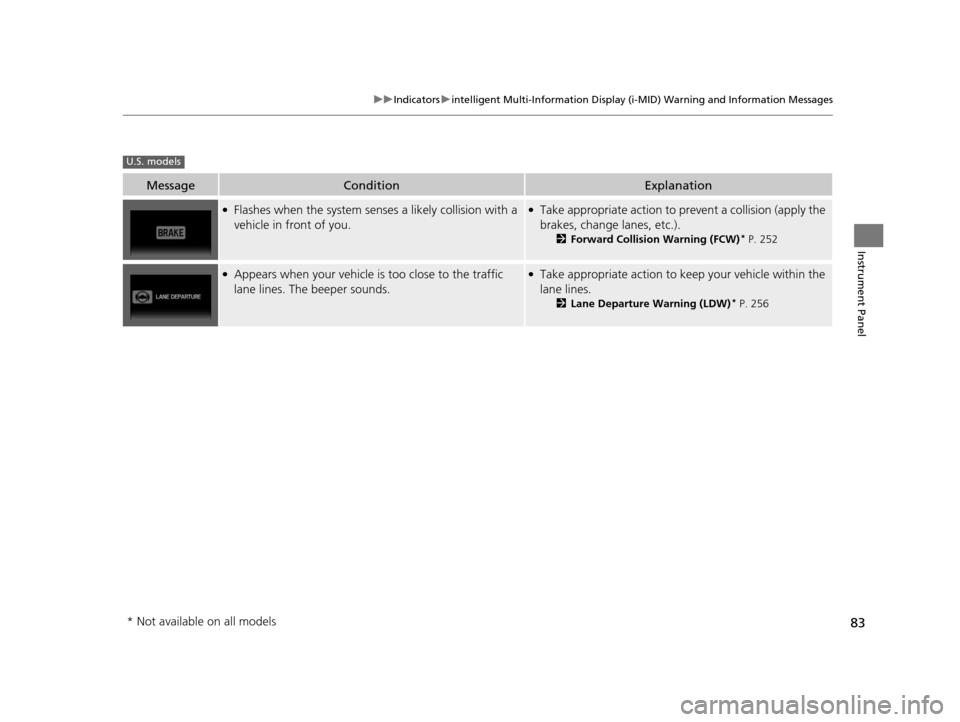

●Flashes when the system sens es a likely collision with a
vehicle in front of you.●Take appropriate action to prev ent a collision (apply the
brakes, change lanes, etc.).
2 Forward Collision Warning (FCW)* P. 252
●Appears when your vehicle is too close to the traffic
lane lines. The beeper sounds.●Take appropriate action to keep your vehicle within the
lane lines.
2 Lane Departure Warning (LDW)* P. 256
U.S. models
* Not available on all models
15 CIVIC IMA-31TR26300.book 83 ページ ２０１４年９月９日　火曜日　午後１２時２０分

84
Instrument Panel

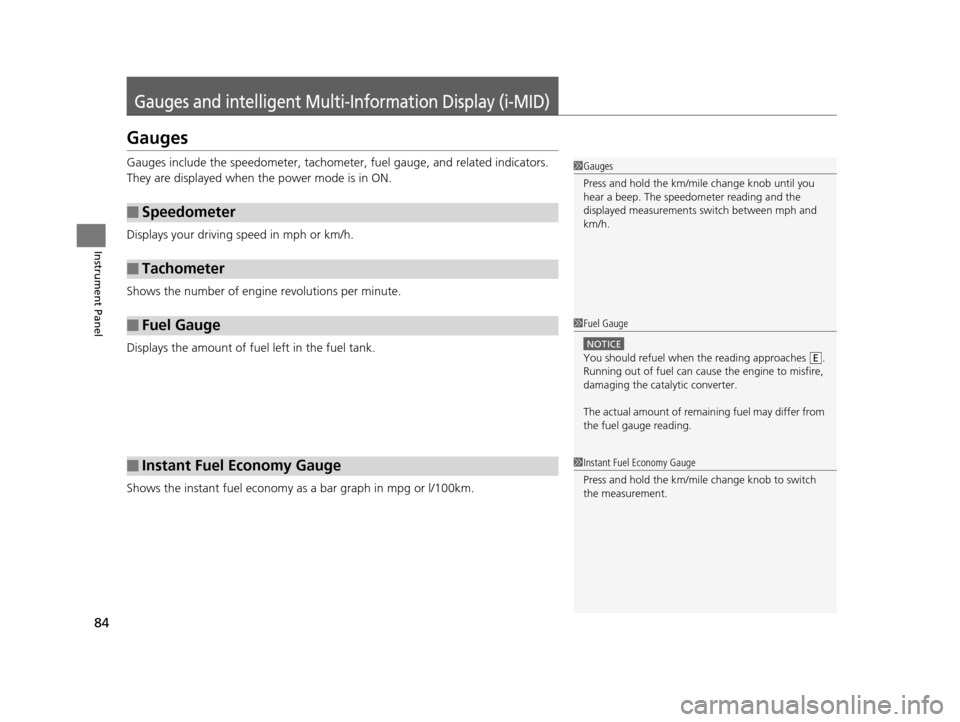

Gauges and intelligent Multi-Information Display (i-MID)
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Shows the instant fuel economy as a bar graph in mpg or l/100km.
■Speedometer
■Tachometer
■Fuel Gauge
■Instant Fuel Economy Gauge
1Gauges
Press and hold the km/mil e change knob until you
hear a beep. The speedometer reading and the
displayed measurements switch between mph and
km/h.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Instant Fuel Economy Gauge
Press and hold the km/mile change knob to switch
the measurement.
15 CIVIC IMA-31TR26300.book 84 ページ ２０１４年９月９日　火曜日　午後１２時２０分

85
uuGauges and intelligent Multi- Information Display (i-MID)uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
intelligent Multi-Information Display (i-MID)
The i-MID shows the odometer, trip meter, outside temperature indicator, and other
gauges.
It also displays important messages such as warnings and other helpful information.
■Main display
Press the (display/information ) button to change the display.
■Switching the Display

(Display/
Information
Button)
Fuel Consumption
Power Flow Monitor
Full Size Analogue Clock
Audio/HFL Display
Blank Screen
Ecological Drive
Display
15 CIVIC IMA-31TR26300.book 85 ページ ２０１４年９月９日　火曜日　午後１２時２０分

86
uuGauges and intelligent Multi- Information Display (i-MID)uintelligent Multi-Information Display (i-MID)
Instrument Panel

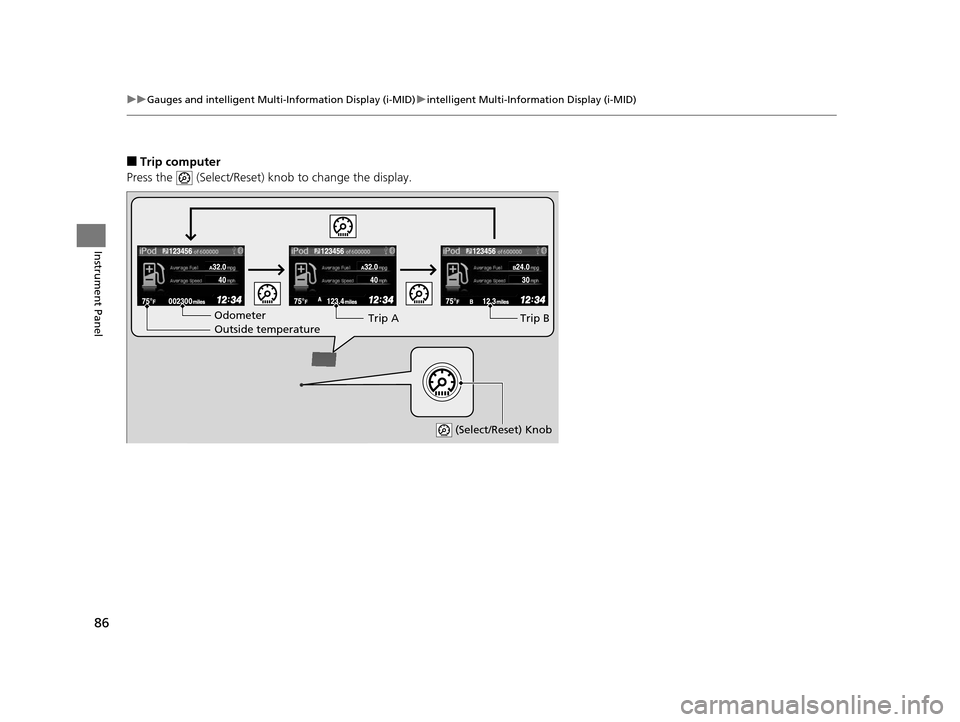

■Trip computer
Press the (Select/Reset) knob to change the display.
Odometer Outside temperature Trip ATrip B
(Select/Reset) Knob
15 CIVIC IMA-31TR26300.book 86 ページ ２０１４年９月９日　火曜日　午後１２時２０分

Continued87
uuGauges and intelligent Multi- Information Display (i-MID)uintelligent Multi-Information Display (i-MID)
Instrument Panel

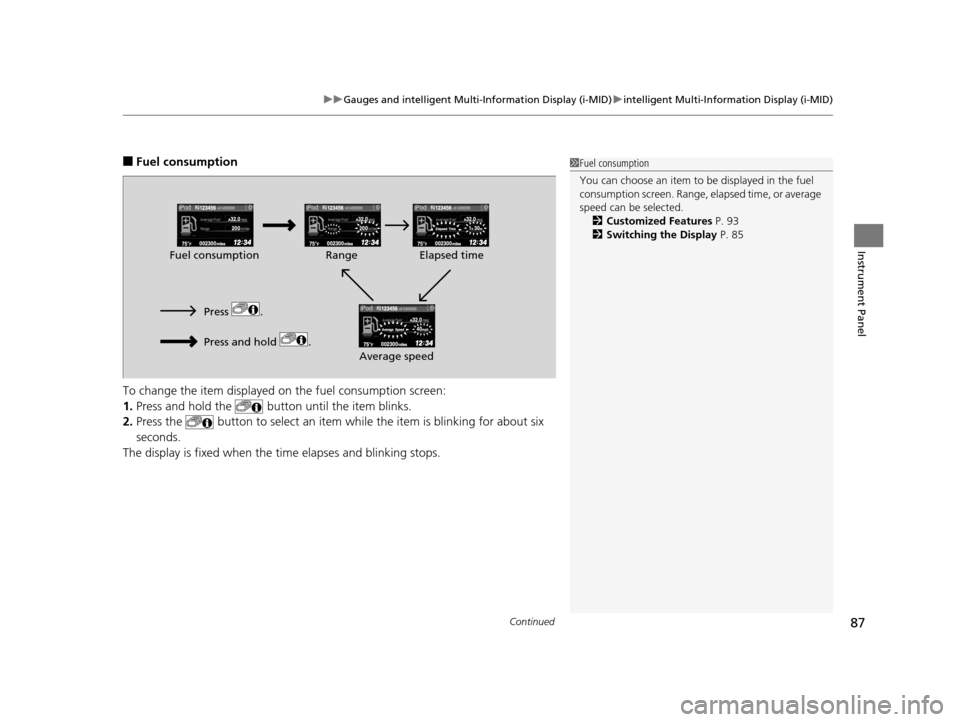

■Fuel consumption
To change the item displayed on the fuel consumption screen:
1. Press and hold the button until the item blinks.
2. Press the button to select an item wh ile the item is blinking for about six
seconds.
The display is fixed when the ti me elapses and blinking stops.1Fuel consumption
You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected. 2 Customized Features P. 93
2 Switching the Display P. 85
Press .
Press and hold .
Average speedElapsed time
Range
Fuel consumption
15 CIVIC IMA-31TR26300.book 87 ページ ２０１４年９月９日　火曜日　午後１２時２０分

uuGauges and intelligent Multi- Information Display (i-MID)uintelligent Multi-Information Display (i-MID)
88
Instrument Panel

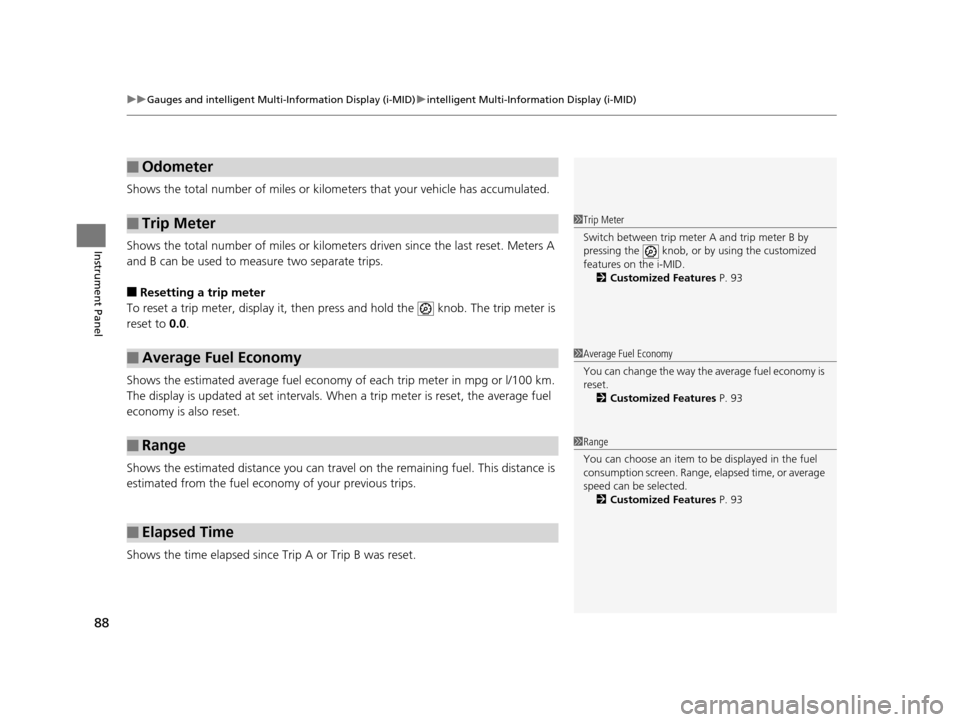

Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
■Odometer
■Trip Meter
■Average Fuel Economy
■Range
■Elapsed Time
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob, or by using the customized
features on the i-MID. 2 Customized Features P. 93
1Average Fuel Economy
You can change the way the average fuel economy is
reset.
2 Customized Features P. 93
1Range
You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected.
2 Customized Features P. 93
15 CIVIC IMA-31TR26300.book 88 ページ ２０１４年９月９日　火曜日　午後１２時２０分

Continued89
uuGauges and intelligent Multi- Information Display (i-MID)uintelligent Multi-Information Display (i-MID)
Instrument Panel

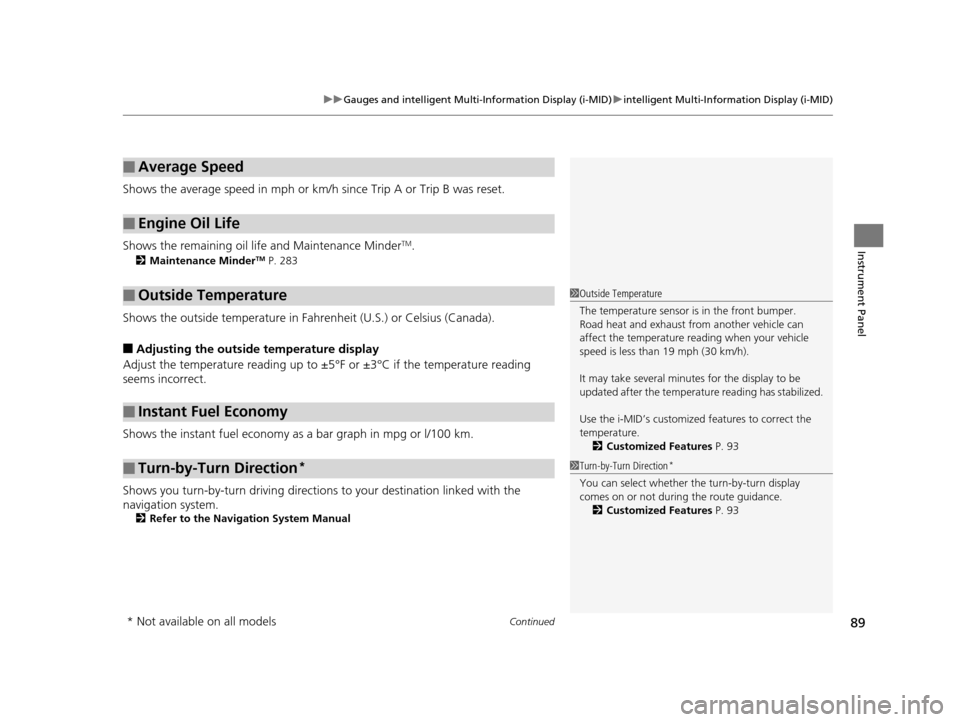

Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 283
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5 °F or ±3°C if the temperature reading
seems incorrect.
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Average Speed
■Engine Oil Life
■Outside Temperature
■Instant Fuel Economy
■Turn-by-Turn Direction*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the i-MID’s customized features to correct the
temperature.
2 Customized Features P. 93
1Turn-by-Turn Direction*
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 93
* Not available on all models
