HONDA CIVIC HYBRID 2015 9.G Manual PDF

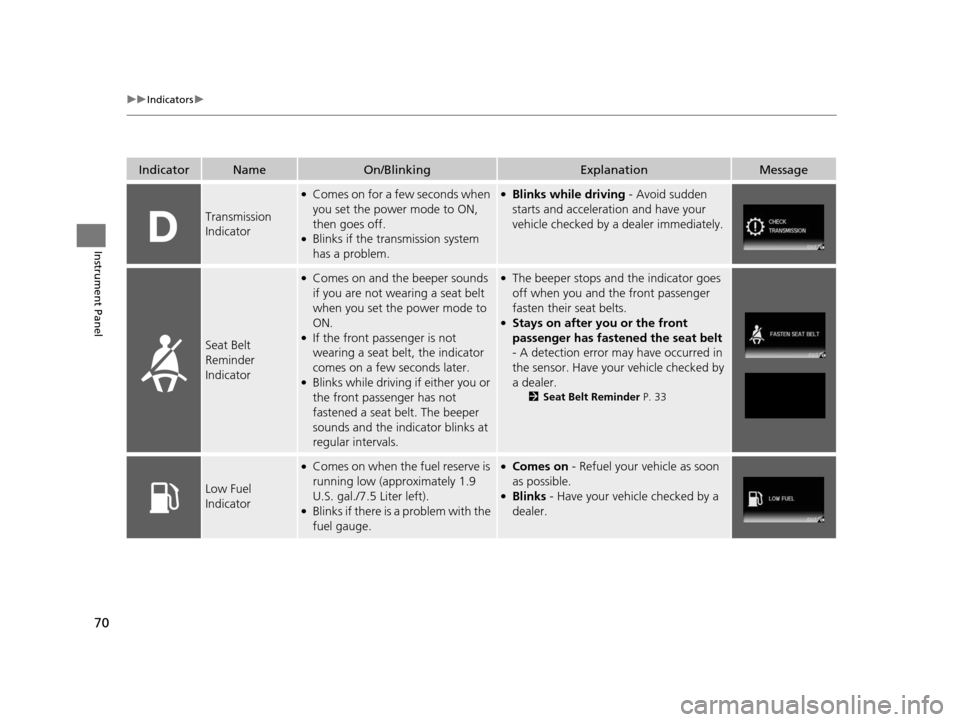

70
uuIndicators u
Instrument Panel
Transmission
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you or the front
passenger has fastened the seat belt
- A detection error may have occurred in
the sensor. Have your vehicle checked by
a dealer.
2 Seat Belt Reminder P. 33
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 1.9
U.S. gal./7.5 Liter left).
●Blinks if there is a problem with the
fuel gauge.
●Comes on - Refuel your vehicle as soon
as possible.
●Blinks - Have your vehicle checked by a
dealer.
IndicatorNameOn/BlinkingExplanationMessage
15 CIVIC IMA-31TR26300.book 70 ページ ２０１４年９月９日　火曜日　午後１２時２０分

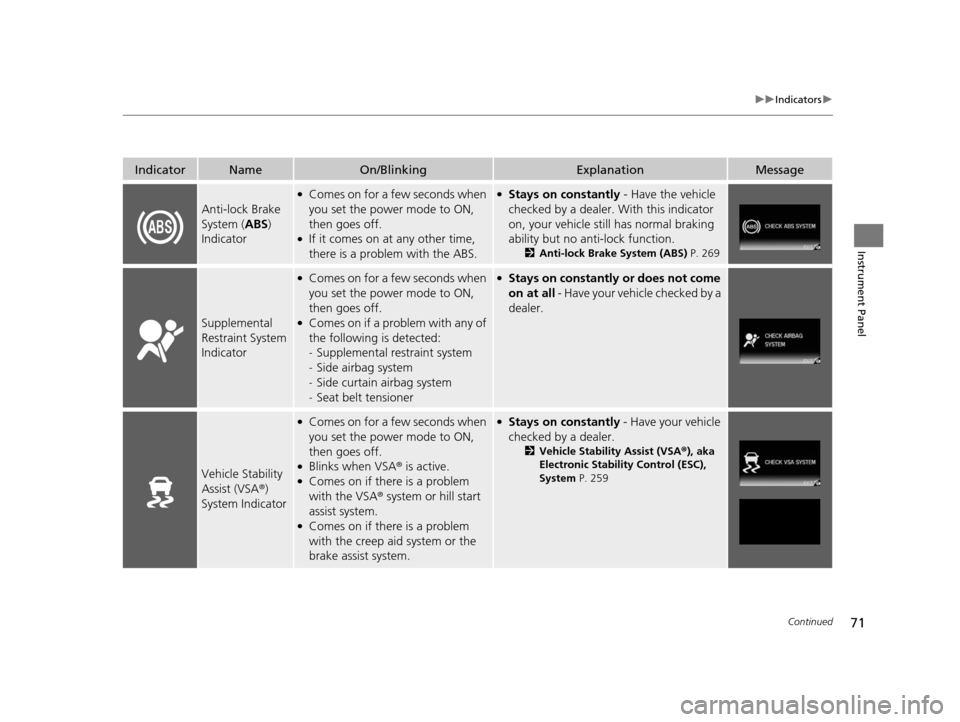

71
uuIndicators u
Continued
Instrument Panel
Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have the vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 269
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not come
on at all - Have your vehicle checked by a
dealer.
Vehicle Stability
Assist (VSA ®)
System Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Blinks when VSA ® is active.●Comes on if there is a problem
with the VSA® system or hill start
assist system.
●Comes on if there is a problem
with the creep aid system or the
brake assist system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability Assist (VSA ®), aka
Electronic Stability Control (ESC),
System P. 259
IndicatorNameOn/BlinkingExplanationMessage
15 CIVIC IMA-31TR26300.book 71 ページ ２０１４年９月９日　火曜日　午後１２時２０分

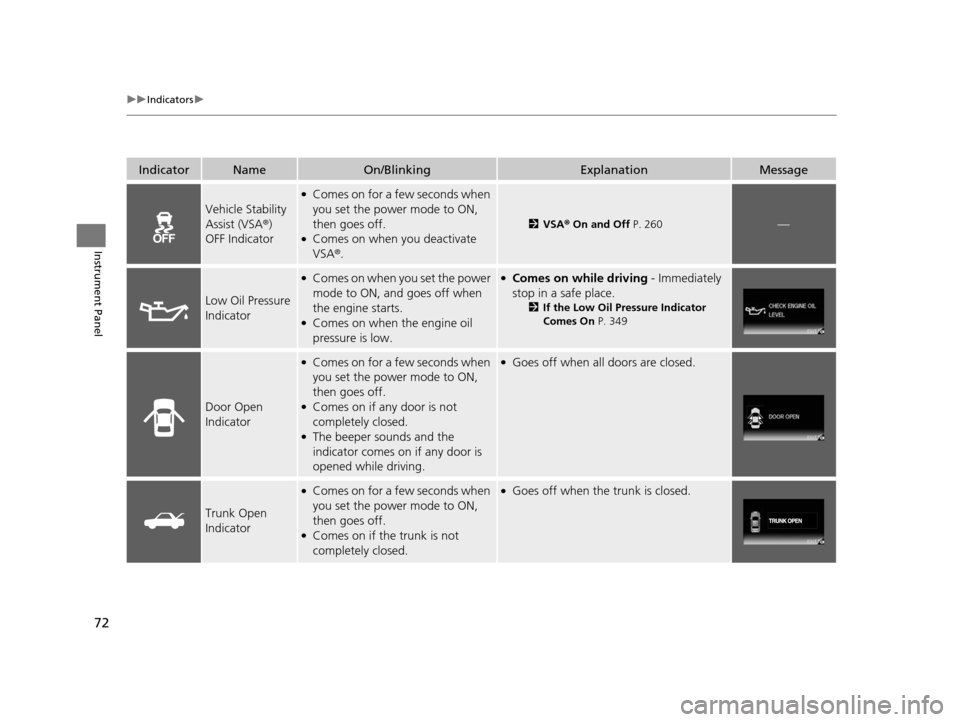

72
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
Assist (VSA ®)
OFF Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when you deactivate
VSA ®.
2VSA ® On and Off P. 260—
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when
the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 349
Door Open
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if any door is not
completely closed.
●The beeper sounds and the
indicator comes on if any door is
opened while driving.
●Goes off when all doors are closed.
Trunk Open
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if the trunk is not
completely closed.
●Goes off when the trunk is closed.
15 CIVIC IMA-31TR26300.book 72 ページ ２０１４年９月９日　火曜日　午後１２時２０分

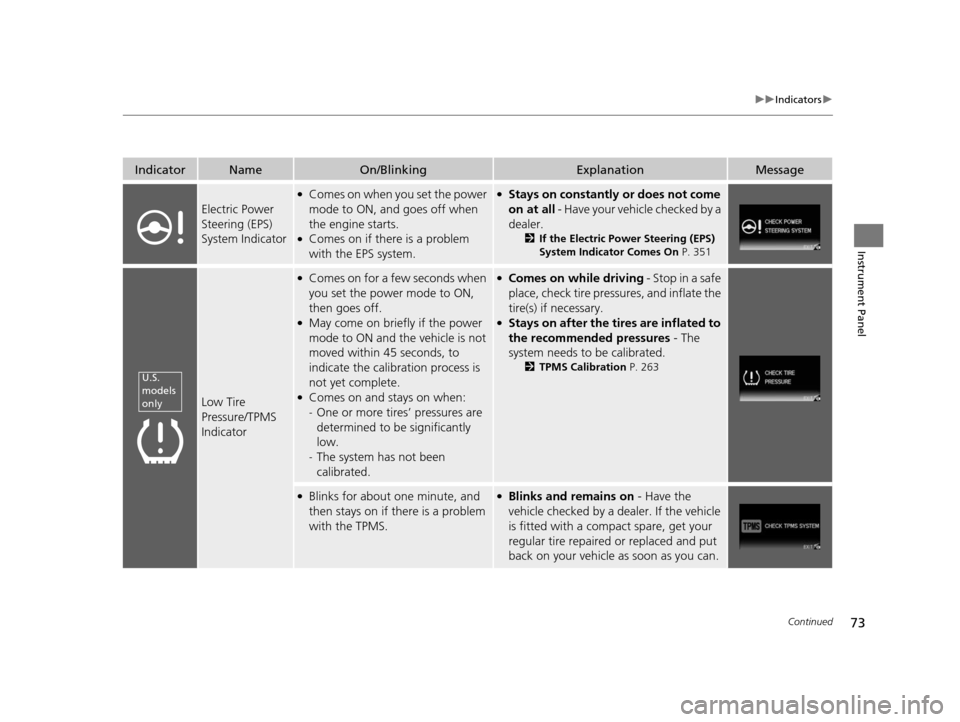

73
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Power
Steering (EPS)
System Indicator
●Comes on when you set the power
mode to ON, and goes off when
the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by a
dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 351
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●May come on briefly if the power
mode to ON and the vehicle is not
moved within 45 seconds, to
indicate the calibration process is
not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly
low.
- The system has not been
calibrated.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.
2 TPMS Calibration P. 263
●Blinks for about one minute, and
then stays on if th ere is a problem
with the TPMS.●Blinks and remains on - Have the
vehicle checked by a de aler. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
U.S.
models
only
15 CIVIC IMA-31TR26300.book 73 ページ ２０１４年９月９日　火曜日　午後１２時２０分

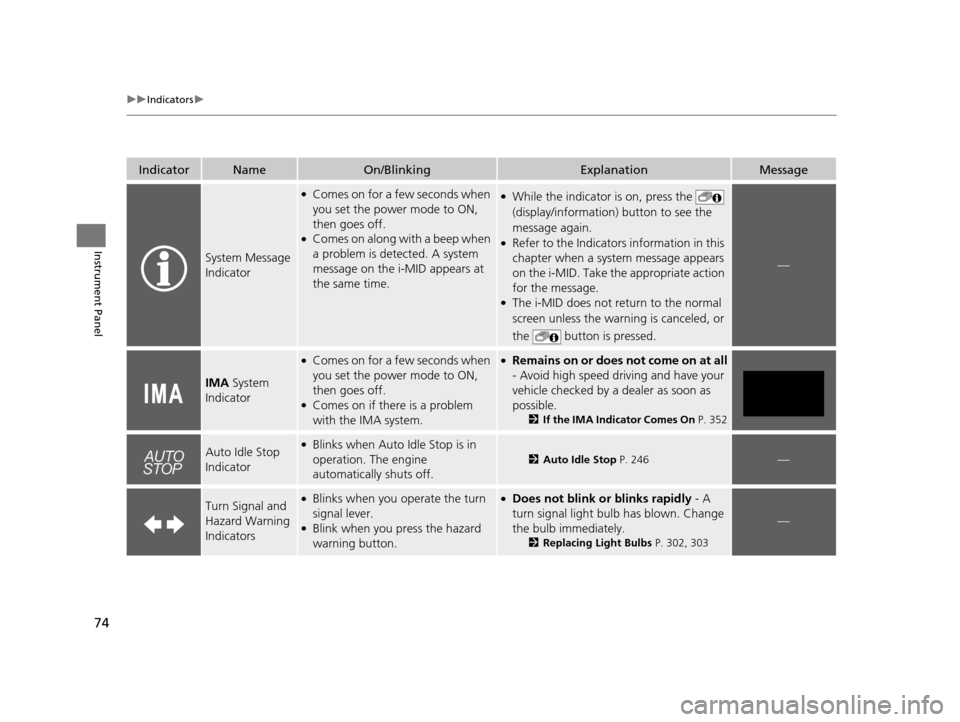

74
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on along wi th a beep when
a problem is detected. A system
message on the i-MID appears at
the same time.
●While the indicator is on, press the
(display/information ) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the i-MID. Take the appropriate action
for the message.
●The i-MID does not return to the normal
screen unless the warn ing is canceled, or
the button is pressed.
—
IMA System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the IMA system.
●Remains on or does not come on at all
- Avoid high speed driving and have your
vehicle checked by a dealer as soon as
possible.
2 If the IMA Indicator Comes On P. 352
Auto Idle Stop
Indicator●Blinks when Auto Idle Stop is in
operation. The engine
automatically shuts off.
2Auto Idle Stop P. 246—
Turn Signal and
Hazard Warning
Indicators●Blinks when you operate the turn
signal lever.
●Blink when you press the hazard
warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs P. 302, 303
—
15 CIVIC IMA-31TR26300.book 74 ページ ２０１４年９月９日　火曜日　午後１２時２０分

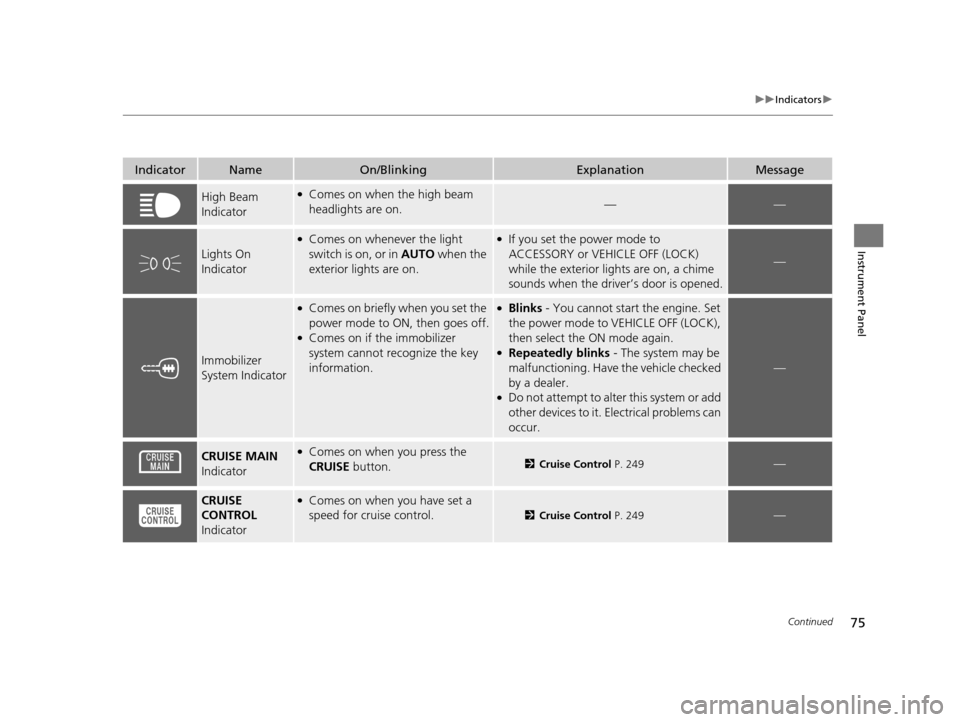

75
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on.●If you set the power mode to
ACCESSORY or VEHICLE OFF (LOCK)
while the exterior lights are on, a chime
sounds when the driver ’s door is opened.
—
Immobilizer
System Indicator
●Comes on briefly when you set the
power mode to ON, then goes off.
●Comes on if the immobilizer
system cannot recognize the key
information.
●Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF (LOCK),
then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have the vehicle checked
by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
CRUISE MAIN
Indicator●Comes on when you press the
CRUISE button.2Cruise Control P. 249—
CRUISE
CONTROL
Indicator●Comes on when you have set a
speed for cruise control.
2 Cruise Control P. 249—
15 CIVIC IMA-31TR26300.book 75 ページ ２０１４年９月９日　火曜日　午後１２時２０分

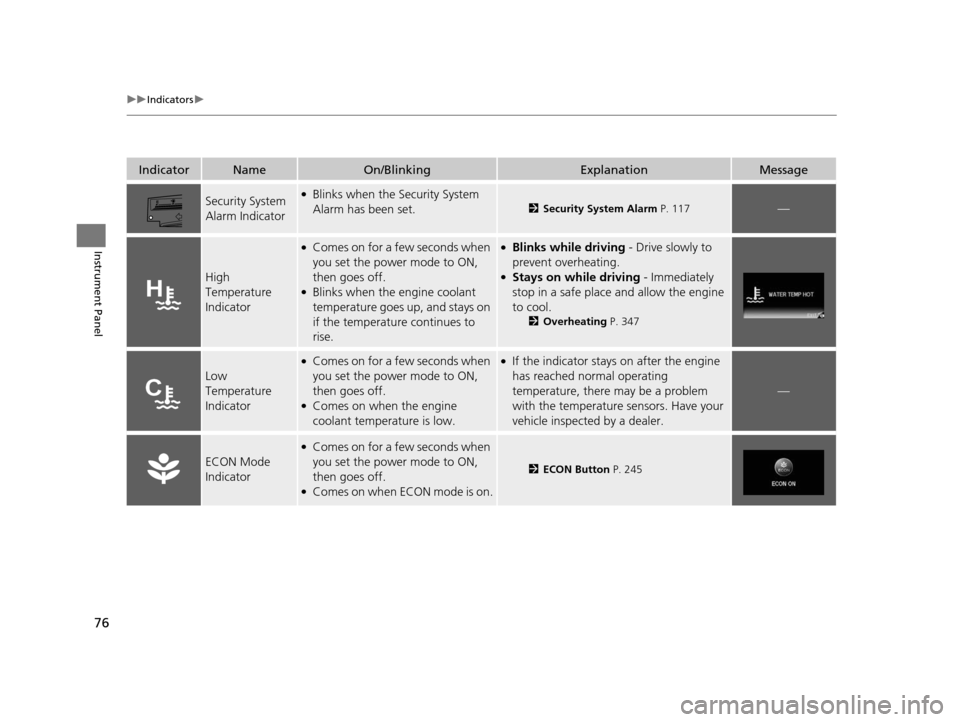

76
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator●Blinks when the Security System
Alarm has been set.
2Security System Alarm P. 117—
High
Temperature
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Blinks when the engine coolant
temperature goes up, and stays on
if the temperature continues to
rise.
●Blinks while driving - Drive slowly to
prevent overheating.
●Stays on while driving - Immediately
stop in a safe place and allow the engine
to cool.
2 Overheating P. 347
Low
Temperature
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the engine
coolant temperature is low.
●If the indicator stays on after the engine
has reached normal operating
temperature, there may be a problem
with the temperature sensors. Have your
vehicle inspected by a dealer.
—
ECON Mode
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when ECON mode is on.
2ECON Button P. 245
15 CIVIC IMA-31TR26300.book 76 ページ ２０１４年９月９日　火曜日　午後１２時２０分

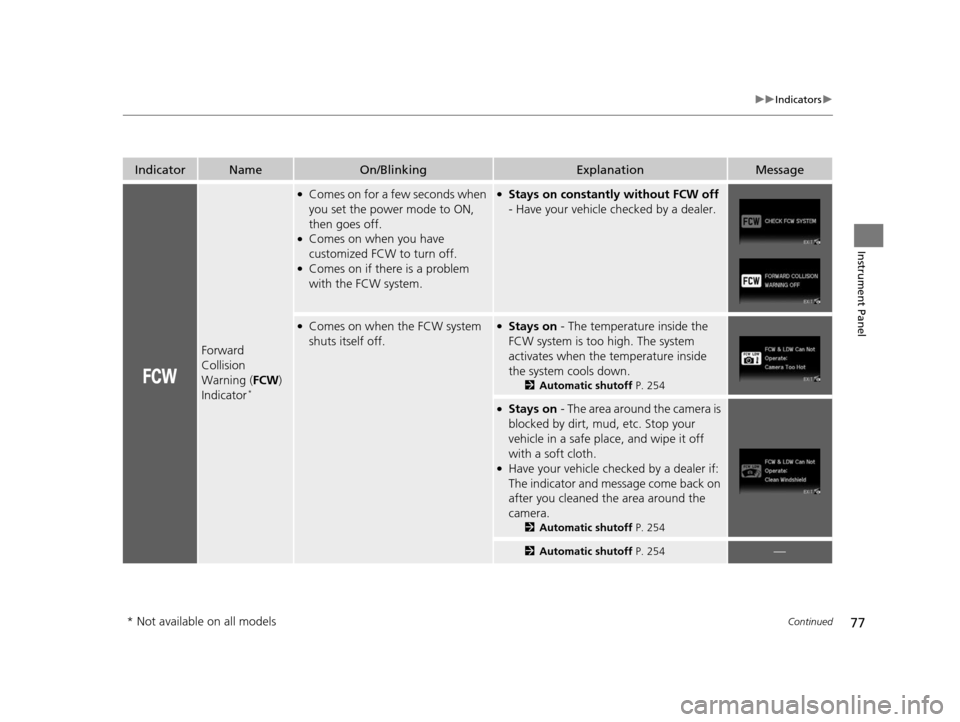

77
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Forward
Collision
Warning (FCW)
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when you have
customized FCW to turn off.
●Comes on if there is a problem
with the FCW system.
●Stays on constantly without FCW off
- Have your vehicle checked by a dealer.
●Comes on when the FCW system
shuts itself off.●Stays on - The temperature inside the
FCW system is too high. The system
activates when the temperature inside
the system cools down.
2 Automatic shutoff P. 254
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
●Have your vehicle checked by a dealer if:
The indicator and message come back on
after you cleaned the area around the
camera.
2 Automatic shutoff P. 254
2Automatic shutoff P. 254—
* Not available on all models
15 CIVIC IMA-31TR26300.book 77 ページ ２０１４年９月９日　火曜日　午後１２時２０分

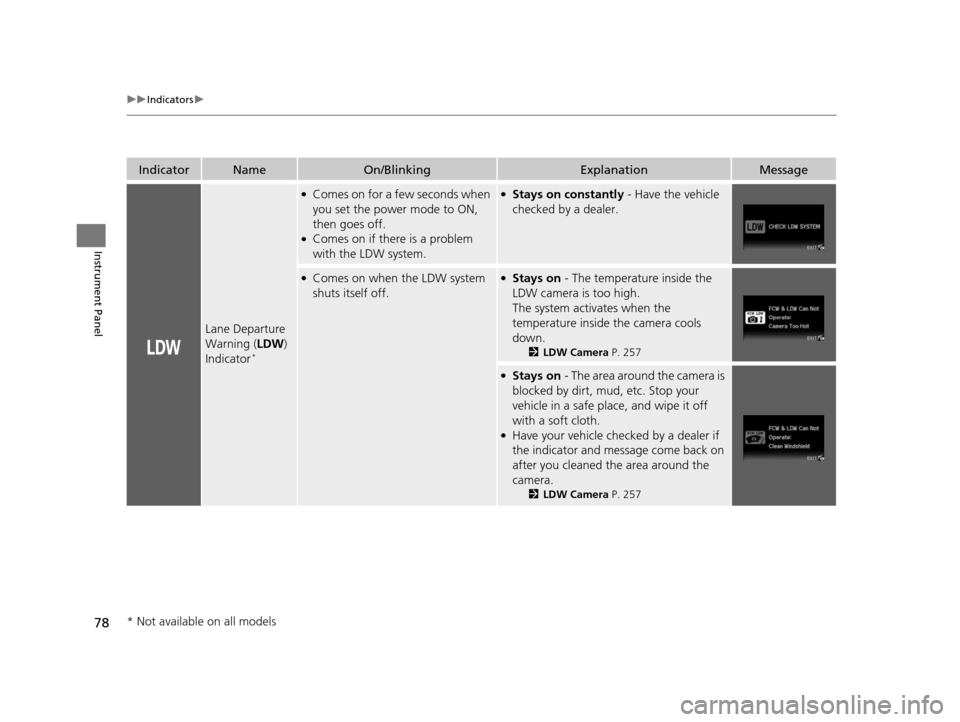

78
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lane Departure
Warning (LDW)
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the LDW system.
●Stays on constantly - Have the vehicle
checked by a dealer.
●Comes on when the LDW system
shuts itself off.●Stays on - The temperature inside the
LDW camera is too high.
The system activates when the
temperature inside the camera cools
down.
2 LDW Camera P. 257
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
●Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2 LDW Camera P. 257
* Not available on all models
15 CIVIC IMA-31TR26300.book 78 ページ ２０１４年９月９日　火曜日　午後１２時２０分

79
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Smart Entry
System Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on as soon as a problem is
detected in the smart entry system
or push button starting system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
15 CIVIC IMA-31TR26300.book 79 ページ ２０１４年９月９日　火曜日　午後１２時２０分
