CD player HONDA CIVIC HYBRID 2015 9.G Owners Manual

184
Features

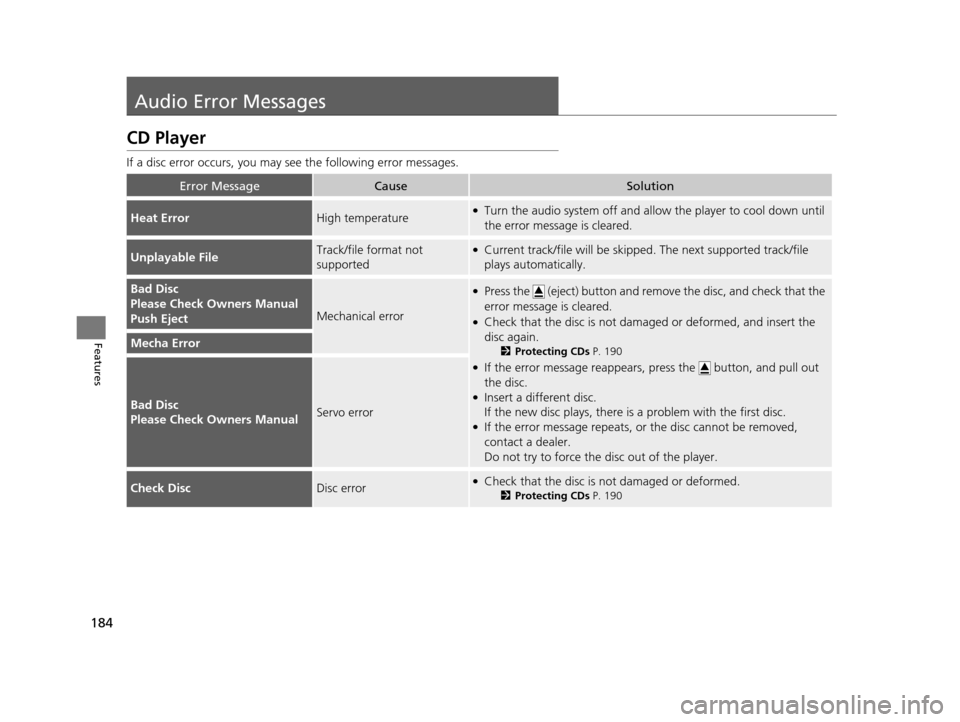

Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
Error MessageCauseSolution
Heat ErrorHigh temperature●Turn the audio system off and allow the player to cool down until
the error message is cleared.
Unplayable FileTrack/file format not
supported●Current track/file will be skipped. The next supported track/file
plays automatically.
Bad Disc
Please Check Owners Manual
Push Eject
Mechanical error
●Press the (eject) button and remo ve the disc, and check that the
error message is cleared.
●Check that the disc is not dama ged or deformed, and insert the
disc again.
2 Protecting CDs P. 190
●If the error message reappears, press the button, and pull out
the disc.
●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
Mecha Error
Bad Disc
Please Check Owners ManualServo error
Check DiscDisc error●Check that the disc is not damaged or deformed.
2Protecting CDs P. 190
15 CIVIC IMA-31TR26300.book 184 ページ ２０１４年９月９日　火曜日　午後１２時２０分

uuGeneral Information on the Audio System uRecommended CDs
190
Features

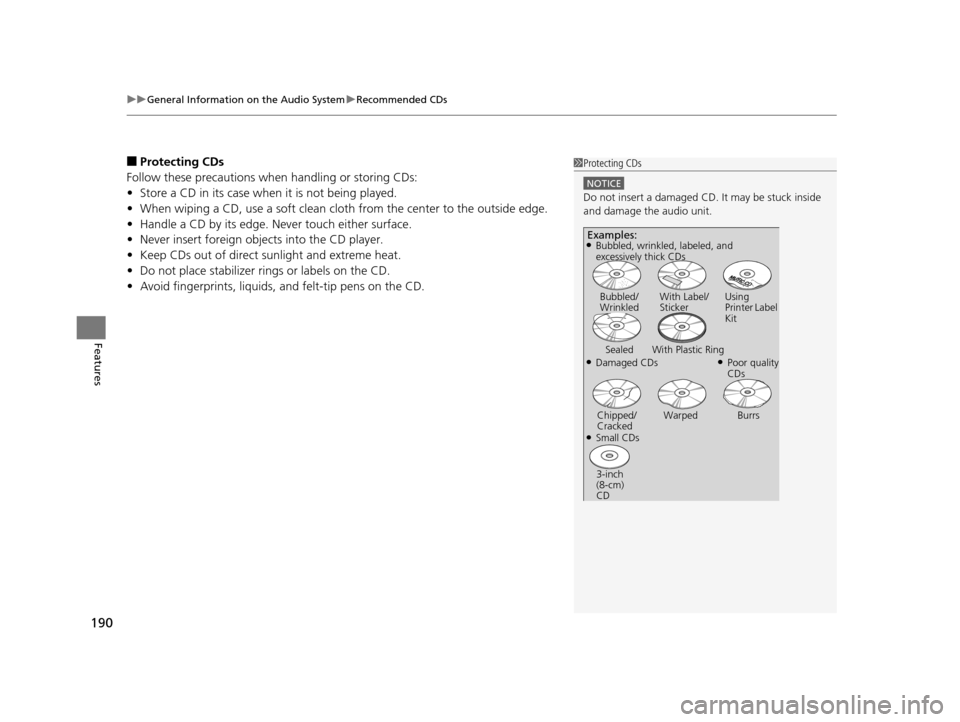

■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean clot h from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign objects into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer ri ngs or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.1Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
●Damaged CDs Bubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch
(8-cm)
CD
●Bubbled, wrinkled, labeled, and
excessively thick CDs
15 CIVIC IMA-31TR26300.book 190 ページ ２０１４年９月９日　火曜日　午後１２時２０分

191
uuGeneral Information on the Audio System uCompatible iPod and USB Flash Drives
Features

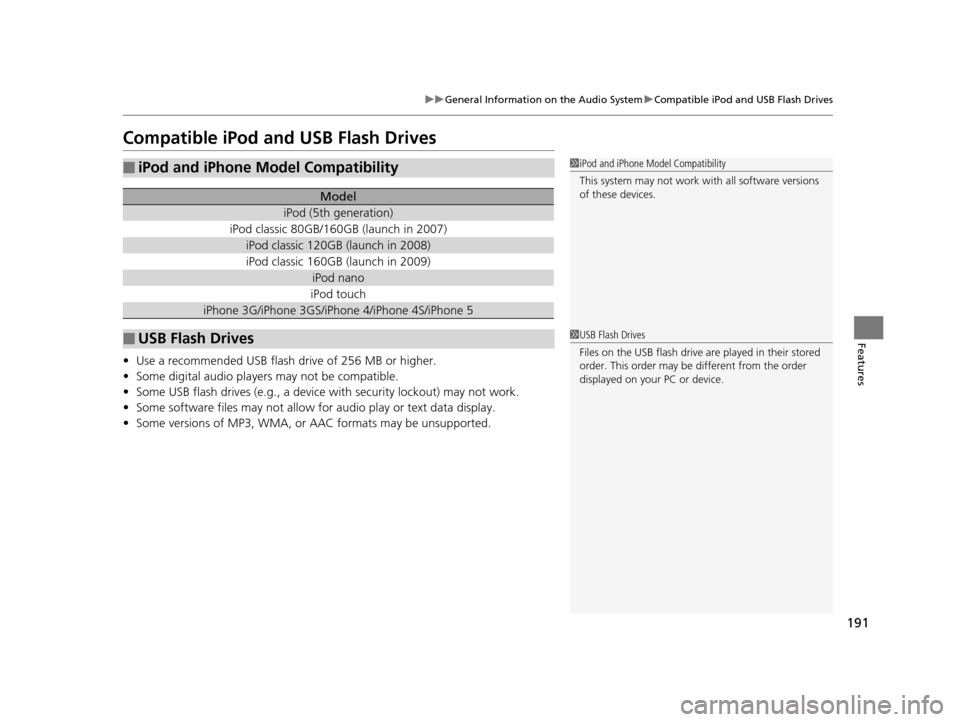

Compatible iPod and USB Flash Drives
• Use a recommended USB flash drive of 256 MB or higher.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano
iPod touch
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S/iPhone 5
■USB Flash Drives
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
15 CIVIC IMA-31TR26300.book 191 ページ ２０１４年９月９日　火曜日　午後１２時２０分

370

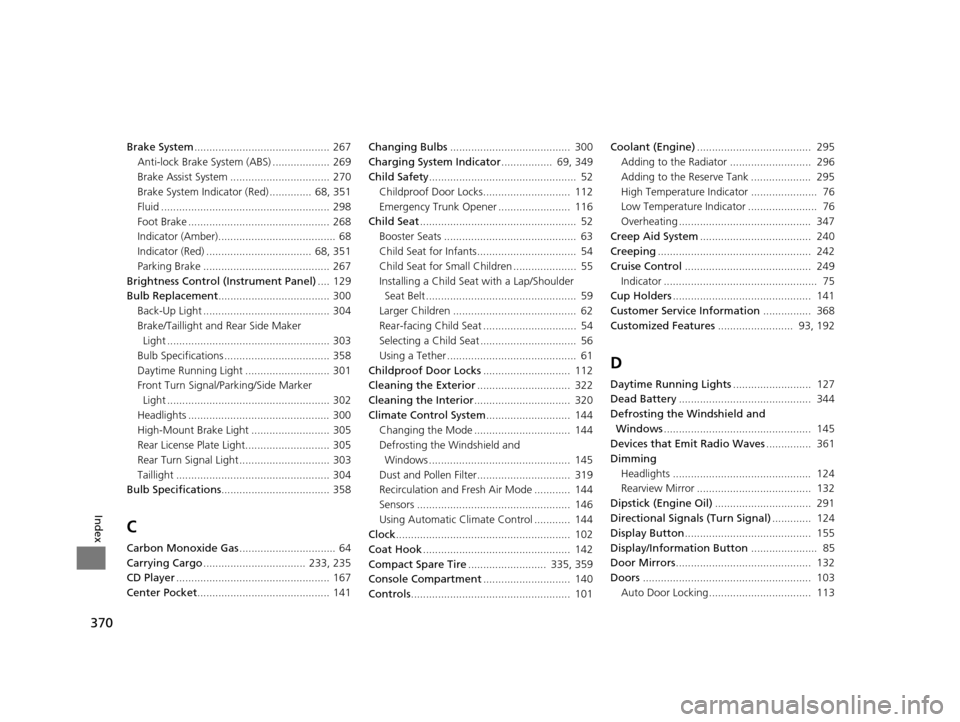

Index
Brake System............................................. 267
Anti-lock Brake System (ABS) ................... 269
Brake Assist System ................................. 270
Brake System Indicator (Red) .............. 68, 351
Fluid ........................................................ 298
Foot Brake ............................................... 268
Indicator (Amber)....................................... 68
Indicator (Red) ................................... 68, 351
Parking Brake .......................................... 267
Brightness Control (Instrument Panel) .... 129
Bulb Replacement ..................................... 300
Back-Up Light .......................................... 304
Brake/Taillight and Rear Side Maker
Light ...................................................... 303
Bulb Specifications ................................... 358
Daytime Running Light ............................ 301
Front Turn Signal/Par king/Side Marker
Light ...................................................... 302
Headlights ............................................... 300
High-Mount Brake Light .......................... 305
Rear License Plate Light............................ 305
Rear Turn Signal Light .............................. 303
Taillight ................................................... 304
Bulb Specifications .................................... 358
C
Carbon Monoxide Gas ................................ 64
Carrying Cargo .................................. 233, 235
CD Player ................................................... 167
Center Pocket ............................................ 141 Changing Bulbs
........................................ 300
Charging System Indicator ................. 69, 349
Child Safety ................................................. 52
Childproof Door Locks............................. 112
Emergency Trunk Opener ........................ 116
Child Seat .................................................... 52
Booster Seats ............................................ 63
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 59
Larger Children ......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 112
Cleaning the Exterior ............................... 322
Cleaning the Interior ................................ 320
Climate Control System ............................ 144
Changing the Mode ................................ 144
Defrosting the Windshield and Windows ............................................... 145
Dust and Pollen Filter............................... 319
Recirculation and Fresh Air Mode ............ 144
Sensors ................................................... 146
Using Automatic Climate Control ............ 144
Clock .......................................................... 102
Coat Hook ................................................. 142
Compact Spare Tire .......................... 335, 359
Console Compartment ............................. 140
Controls ..................................................... 101 Coolant (Engine)
...................................... 295
Adding to the Radiator ........................... 296
Adding to the Reserve Tank .................... 295
High Temperature Indicator ...................... 76
Low Temperature Indicator ....................... 76
Overheating ............................................ 347
Creep Aid System ..................................... 240
Creeping ................................................... 242
Cruise Control .......................................... 249
Indicator ................................................... 75
Cup Holders .............................................. 141
Customer Service Information ................ 368
Customized Features ......................... 93, 192
D
Daytime Running Lights .......................... 127
Dead Battery ............................................ 344
Defrosting the Windshield and Windows ................................................. 145
Devices that Emit Radio Waves ............... 361
Dimming Headlights .............................................. 124
Rearview Mirror ...................................... 132
Dipstick (Engine Oil) ................................ 291
Directional Signals (Turn Signal) ............. 124
Display Button .......................................... 155
Display/Information Button ...................... 85
Door Mirrors ............................................. 132
Doors ........................................................ 103
Auto Door Locking.................................. 113
