HONDA CIVIC SEDAN 2001 Owner's Manual (in English)

This section covers how to set up the
system controls f or ventilation,
heating, cooling, dehumidif ying, and
def rosting.
The engine must be running f or the
heater and air conditioning to
generate hot and cold air. The heater
uses engine coolant to warm the air.
If the engine is cold, it will be several
minutes bef ore you f eel warm air
coming from the system.

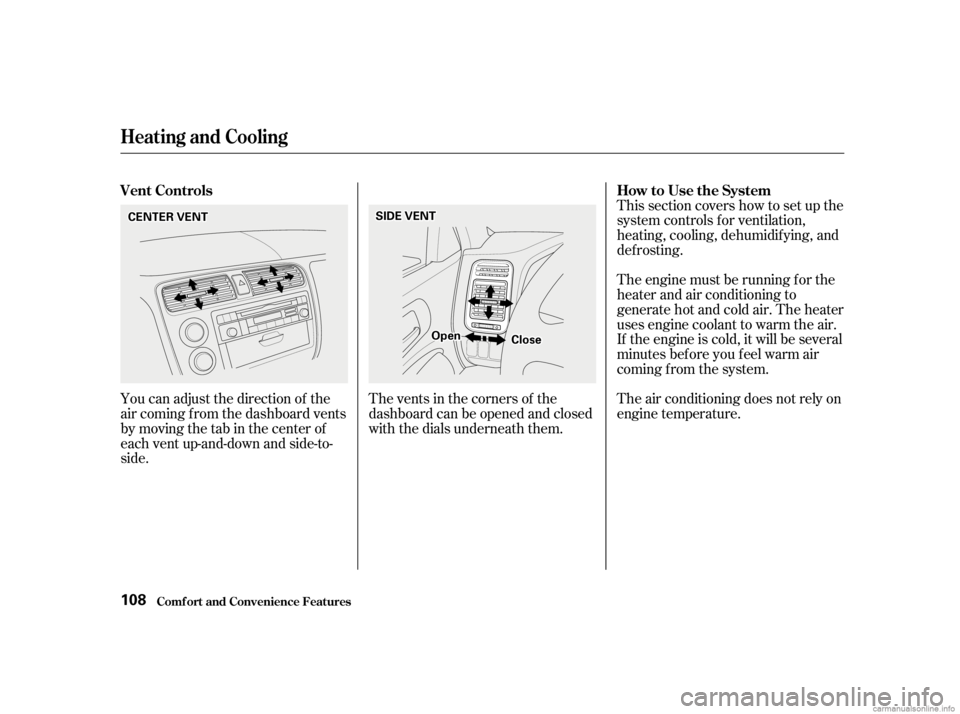

You can adjust the direction of the
air coming f rom the dashboard vents
by moving the tab in the center of
each vent up-and-down and side-to-
side. The air conditioning does not rely on
engine temperature.
The vents in the corners of the
dashboard can be opened and closed
with the dials underneath them.
Heating and Cooling
Comf ort and Convenience Feat ures
Vent Controls
How to Use the System
108
C CEEN
NT TE
ER
R V
VE
EN
NT T S
SI
IDD E
E V
VE
EN
NT T
O
Op pe
enn
C
Clloo s
see

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other
debris.The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
It is best to leave the system in Fresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
you are driving through smoky or
dusty conditions, then switch back to
Fresh Air mode when the condition
clears.

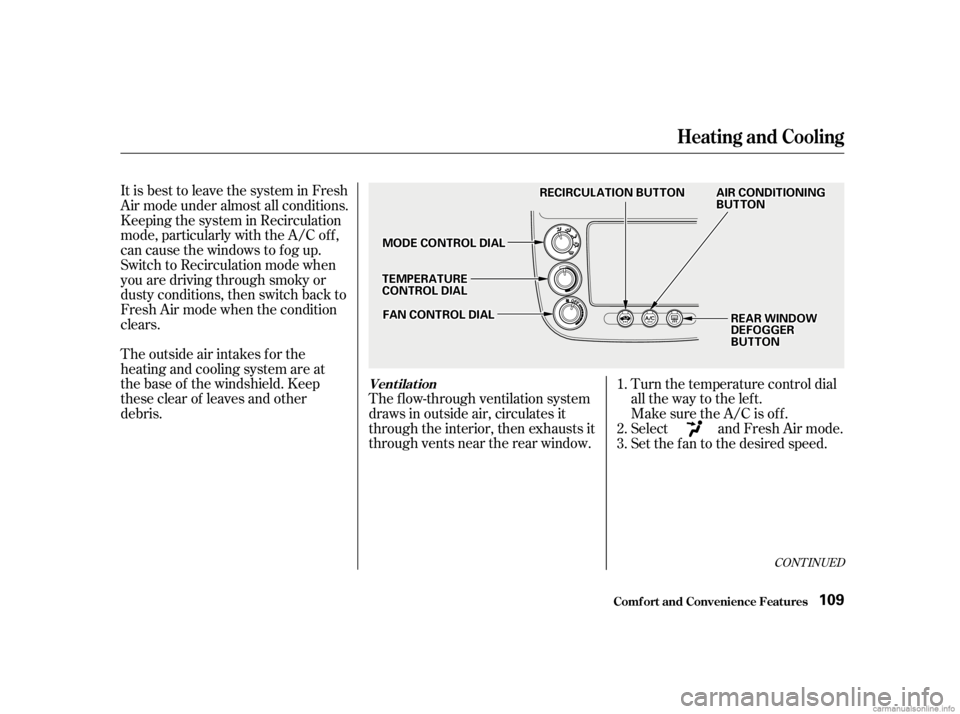

Turn the temperature control dial
all the way to the lef t.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed.
1.
2.
3.
CONT INUED
Heating and Cooling
Comf ort and Convenience Feat ures
Vent ilat ion
109
A A
I
IRR C
COON NDDI
ITT I
IOON NIINNG G
B
BU UT TT
TO
ON N
M
M O
ODDE
E C
COON NTTR
RO OL L D
DI
IAA L
L
T
T E
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L
F
FA A N
N C
COON NTTR
RO OL L D
DI
IAA L
L R
RE
EC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N
R
REEA
A R
R W
WI INND DO
OW W
D
D E
EF
FOOG GGGEER
R
B
BU UT TT
TO
ON N

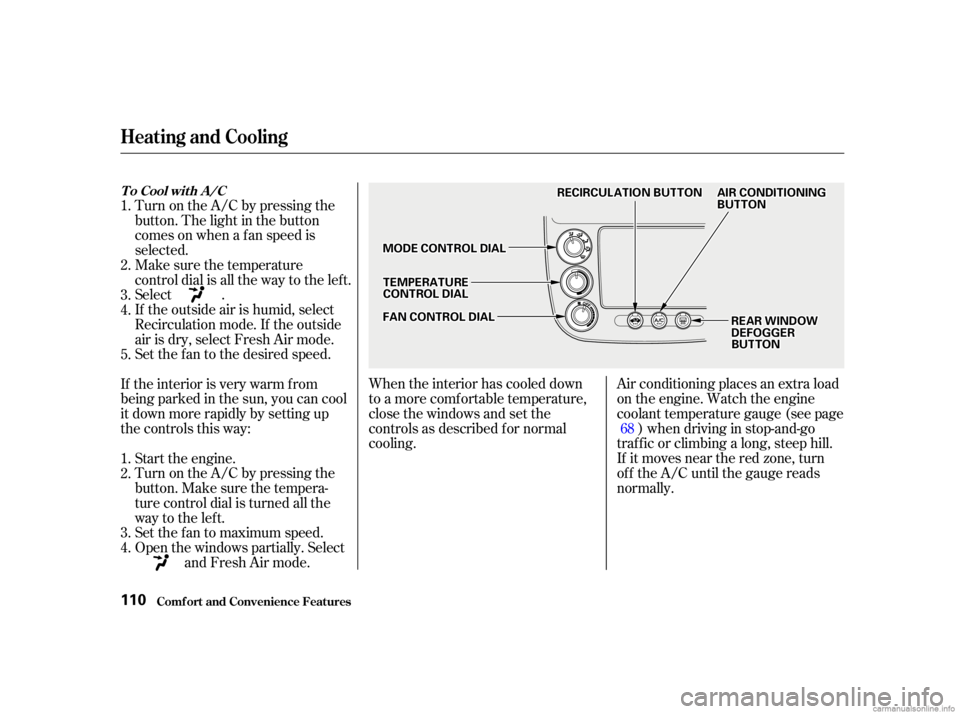

When the interior has cooled down
to a more comf ortable temperature,
close the windows and set the
controls as described f or normal
cooling.Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
) when driving in stop-and-go
traf f ic or climbing a long, steep hill.
If it moves near the red zone, turn
of f the A/C until the gauge reads
normally.
If the interior is very warm f rom
beingparkedinthesun,youcancool
it down more rapidly by setting up
the controls this way: Turn on the A/C by pressing the
button. The light in the button
comesonwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
Start the engine.
Turn on the A/C by pressing the
button. Make sure the tempera-
ture control dial is turned all the
way to the left.
Set the f an to maximum speed.
Open the windows partially. Select
and Fresh Air mode.
1.
2.
3.
4. 1.
2.
3.
4.
5.
68
Comf ort and Convenience Feat ures
Heating and Cooling
T o Cool wit h A /C
110
A AI
IRR C
COON NDDI
ITT I
IOON NIINNG G
B
BU UT TT
TO
ON N
M
M O
ODDE
E C
COON NTTR
RO OL L D
DI
IAA L
L
T
T E
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L
F
FA A N
N C
COON NTTR
RO OL L D
DI
IAA L
L R
RE
EC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N
R
REEA
A R
R W
WI INND DO
OW W
D
D E
EF
FOOG GGGEER
R
B
BU UT TT
TO
ON N

To warm the interior:Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.To remove f og f rom the inside of the
windows:
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Start the engine.
Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial so the mixture of heated and
cooled air f eels comf ortable. Switch the f an on.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
Adjust the temperature control
dial so the air flow from the
def roster vents f eels warm.
Turn on the rear window def ogger
to help clear the rear window.
When you switch to another mode
f rom , the A/C stays on.
PresstheA/Cbuttontoturnitoff.
1.
2.
3.
4.
1.
2.
3.
4.1.
2.
3.
4.
CONT INUED
Heating and Cooling
Comf ort and Convenience Feat ures
T o Heat
T o Heat and Dehumidif y wit h A ir
Condit ioning T o Def og and Def rost
111

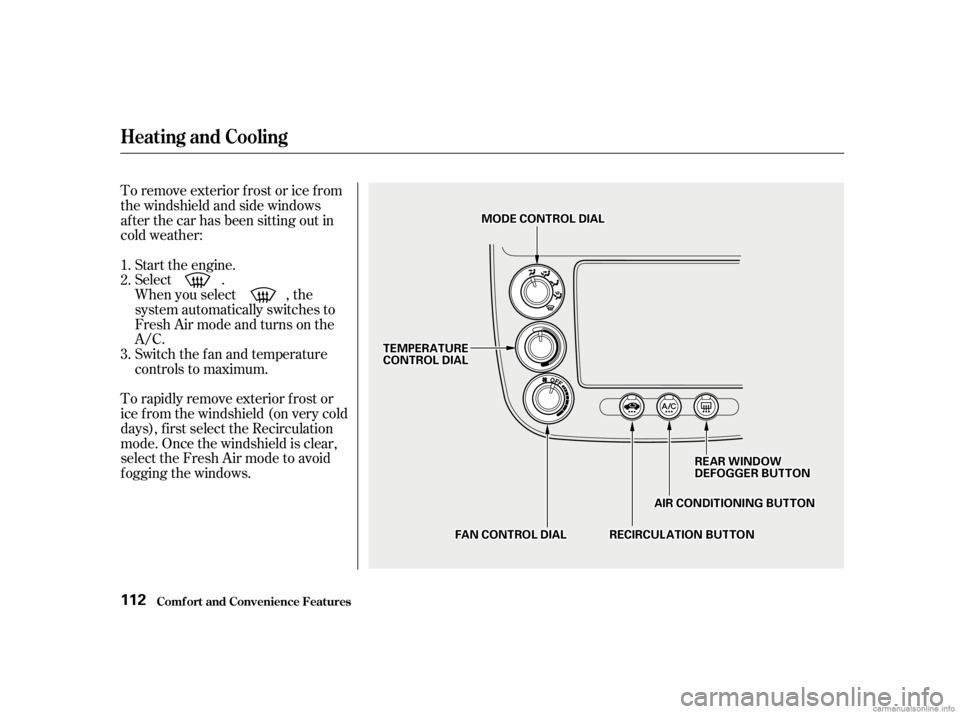

Start the engine.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
Switch the fan and temperature
controls to maximum.
To rapidly remove exterior f rost or
ice f rom the windshield (on very cold
days), f irst select the Recirculation
mode. Once the windshield is clear,
select the Fresh Air mode to avoid
f ogging the windows. To remove exterior f rost or ice f rom
the windshield and side windows
after the car has been sitting out in
cold weather:
1.
2.
3.
Comf ort and Convenience Feat ures
Heating and Cooling
112
M M O
ODDE
E C
COON NTTR
RO OL L D
DI
IAA L
L
T
T E
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L
R
REEC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N
A
A
I
IRR C
COON NDDI
ITT I
IOON NIINNG G B
BUUT TT
TO
ON N
F
FA A N
N C
COON NTTR
RO OL L D
DI
IAA L
L R
RE
EA
A R
R W
WI INND DO
OW W
D
D E
EF
FOOG GGGEER
R B
BUUT TT
TO
ON N

These settings direct all the air f low
to the defroster vents at the base of
the windshield and the side window
def roster vents. The air f low will get
warmer and clear the windows faster
as the engine warms up. You can
close the side vents with the dial
beside each vent. This will send
more warm air to the windshield
defroster vents.
For saf ety, make sure you have a
clear view through all the windows
bef ore driving away.You should shut the system
completely of f only f or the f irst f ew
minutes of driving in cold weather,
until the engine coolant warms up
enough to operate the heater. Keep
the fan on at all other times so stale
air does not build up in the interior. To shut of f the system temporarily,
turn the fan speed and temperature
control dials all the way to the lef t.
Heating and Cooling
Comf ort and Convenience Feat ures
To Turn Everything Of f
113

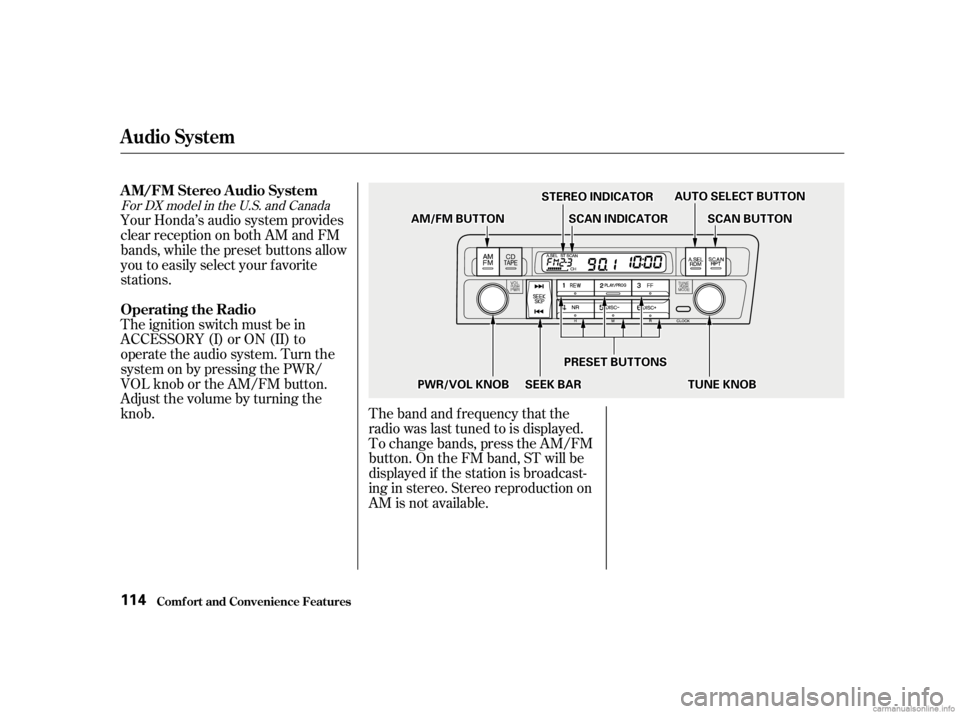

Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your f avorite
stations.
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pressing the PWR/
VOL knob or the AM/FM button.
Adjust the volume by turning the
knob.The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
For DX model in the U.S. and Canada
Audio System
Comf ort and Convenience Feat ures
AM/FM Stereo Audio System
Operating the Radio
114
P P R
RE ES
SE ET
T B
BUUT TT
TO
ON NSS
A
A
M
M /
/F
FM M B
BUUT TT
TO
ON N A
A
U
UT TO
O S
SEEL
LEE C
CT T B
BUUT TT
TO
ON N
S
SC CAA N
N B
BUUT TT
TO
ON N
P
P W
WR R//V
V O
OL L K
KNNO OBB S
SEEE
EK
K B
BAA R
R T
TU
UN NEE K
KNNO OBB
S
SC
CAA N
N I
INND DI
ICCA A T
TO
OR R
S
ST
TE
ER
RE EO
O I
INND DI
ICCA A T
TO
OR R

µµµ
CONT INUED

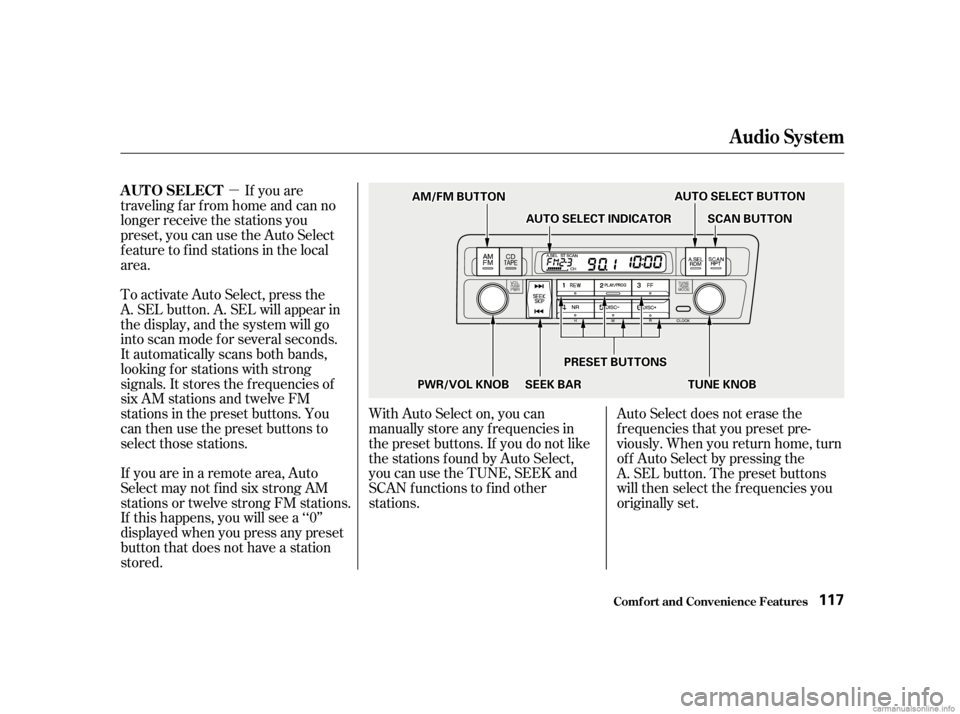

Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob clockwise to tune to a
higher f requency, or
counterclockwise to tune to a lower
f requency. You can use any of f ive methods to
find radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the Preset buttons.
To change the f requency rapidly,
press and hold the top or bottom of
theSEEKbar.Releasethebarwhen
the display reaches the desired
f requency. Depending on which part
of the bar you press, the system
scans upward or downward f rom the
current f requency. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, press
and release the top or bottom of the
SEEK bar. Depending on which part
of the bar you press, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal. The SCAN f unction
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. The system will scan
up the band for a station with a
strong signal. When it f inds one, it
will stop and play that station f or
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
Audio System
Comf ort and Convenience Feat ures
TUNE SEEK
SCA N
115

µYou can store the
f requencies of your f avorite radio
stations in the six preset buttons.
Each button will store one f requency
on the AM band, and two
f requencies on the FM band.
To store a f requency:
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM. Once a station’s frequency is stored,
simply press and release the proper
Preset button to tune to it.
The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
1.
2.
3.
4.
Audio System
Comf ort and Convenience Feat ures
Preset
116
S ST
TE
ER
RE EO
O I
INND DI
ICCA A T
TO
OR R
P
P R
RE ES
SE ET
T B
BUUT TT
TO
ON NSS
A
A
M
M /
/F
FM M B
BUUT TT
TO
ON N A
A
U
UT TO
O S
SEEL
LEE C
CT T B
BUUT TT
TO
ON N
S
SC CAA N
N B
BUUT TT
TO
ON N
P
P W
WR R//V
V O
OL L K
KNNO OBB S
SEEE
EK
K B
BAA R
R T
TU
UN NEE K
KNNO OBB
S
SC
CAA N
N I
INND DI
ICCA A T
TO
OR R

µIf you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
To activate Auto Select, press the
A. SEL button. A. SEL will appear in
the display, and the system will go
into scan mode f or several seconds.
It automatically scans both bands,
looking f or stations with strong
signals. It stores the f requencies of
six AM stations and twelve FM
stations in the preset buttons. You
can then use the preset buttons to
select those stations.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press any preset
button that does not have a station
stored. With Auto Select on, you can
manually store any f requencies in
the preset buttons. If you do not like
the stations found by Auto Select,
you can use the TUNE, SEEK and
SCAN f unctions to f ind other
stations.
Auto Select does not erase the
f requencies that you preset pre-
viously. When you return home, turn
of f Auto Select by pressing the
A. SEL button. The preset buttons
will then select the f requencies you
originally set.
Audio System
Comf ort and Convenience Feat ures
AUTO SELECT
117
P P
R
RE ES
SE ET
T B
BUUT TT
TO
ON NSS
A
A
M
M /
/F
FM M B
BUUT TT
TO
ON N A
A
U
UT TO
O S
SEEL
LEE C
CT T B
BUUT TT
TO
ON N
S
SC CAA N
N B
BUUT TT
TO
ON N
P
P W
WR R//V
V O
OL L K
KNNO OBB S
SEEE
EK
K B
BAA R
R T
TU
UN NEE K
KNNO OBB
A
A
U
UT TO
O S
SEEL
LEE C
CT T I
INND DI
ICCA A T
TO
OR R
