A child who has outgrown a forward-
f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intendto drive.
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible, and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
3.
4.
5.
42
Using a Booster Seat
Protecting L arger Children
50
——y

y
(#yy

The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in the back seat.
If the passenger’s front airbag
inf lates in a moderate to severe
f rontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in f ront,
there are other important f actors you
should consider.
If you decide that a child can saf ely
ride up f ront, be sure to:
Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly positioned and secured.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
16
49
When Can a L arger Child Sit in
Front
Physical Size
Maturity
Protecting L arger Children
Driver and Passenger Saf ety
51
——y


y
(#yy

This could result
in serious neck injuries during a
crash. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
Additional Saf ety Precautions
Do not let a child wear a seat belt
across t he neck. Do not put any accessories on a
seat belt.
Do not let a child put the shoulder part of a seat belt behind t he backor under t he arm.
T wo children should never use thesame seat belt .
Protecting L arger Children
52
——y


y
(#yy

Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system as f ollows:
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows,
and set the heating and cooling
system as shown below.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. 1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
53
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
——y

y
(#yy

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which is removed by
the owner), contact your dealer f or a
replacement.U.S. modelsCanadian models
U.S. models only
Saf ety L abels
54
RADIATOR CAP SUN VISOR
DASHBOARD
——y

y
(#yy

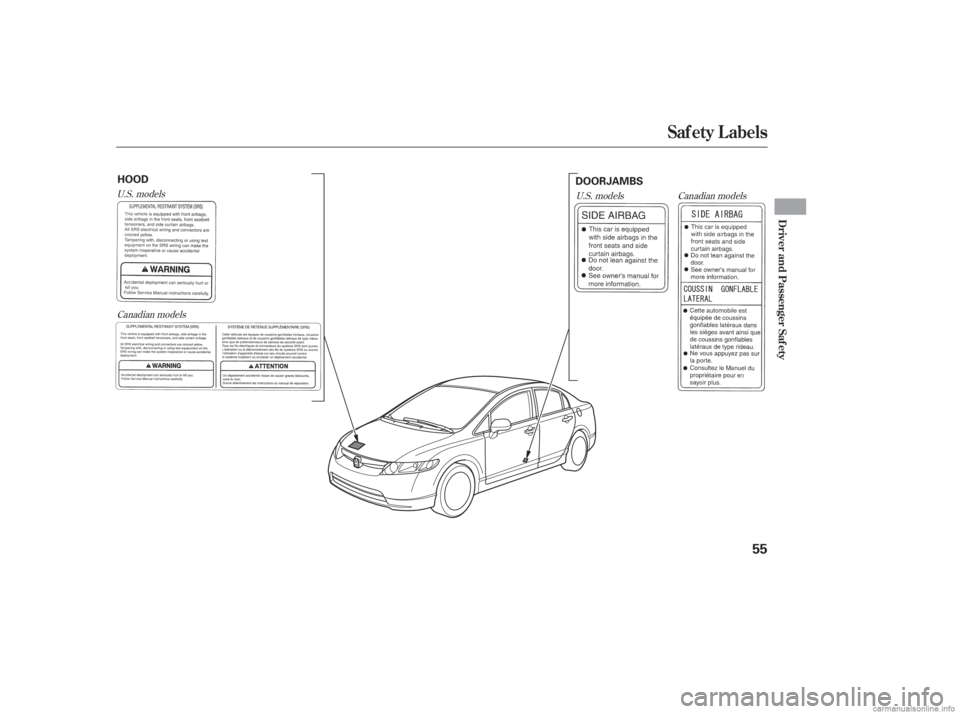

Canadian models
U.S. models
U.S. models
Canadian models
Saf ety L abels
Driver and Passenger Saf ety
55
HOOD DOORJAMBS
——y

y
(#yy

56
——y

y
(#yy

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .58
............................
Instrument Panel .59
..........
Instrument Panel Indicators .60
.............................................
Gauges .65
.....................................
Odometer .65
..............
Display Change Button .65
...................................
Trip Meter .66
..................................
Fuel Gauge .66
...................
Temperature Gauge .66
Outside Temperature
...................................
Indicator .67
..........
Check Fuel Cap Indicator .67
..................
Maintenance Minder .68
Controls Near the Steering ...........................................
Wheel .69
.
Windshield Wipers and Washers .70
...........
Turn Signal and Headlights .71
............
Daytime Running Lights .72
........
Instrument Panel Brightness .72
.................
Hazard Warning Button .72
.................
Rear Window Def ogger .73
..........
Steering Wheel Adjustment .73
...............................
Keys and Locks .74
........................
Immobilizer System .76
................................
Ignition Switch .77 ......................................
Door Locks .78
......................
Power Door Locks .78
..............
Childproof Door Locks .79
.
Auto Door Locking/Unlocking .79
.....................
Auto Door Locking .79
.................
Auto Door Unlocking .81
................................................
Trunk .84
........
Emergency Trunk Opener .84
.......................
Remote Transmitter .85
.................................................
Seats .88
..............................
Power Windows .93
.........................................
Moonroof .94
.............................................
Mirrors .96
.................................
Parking Brake .97
.................................
Interior Lights .98
...........
Interior Convenience Items .99
.....................
Beverage Holders .100
.........
Accessory Power Socket .100
..................................
Glove Box .100
.............
Console Compartment .100
Instruments and Controls
Inst rument s and Cont rols
57
——y


y
(#yy

Î
Î Î
Î: If equipped

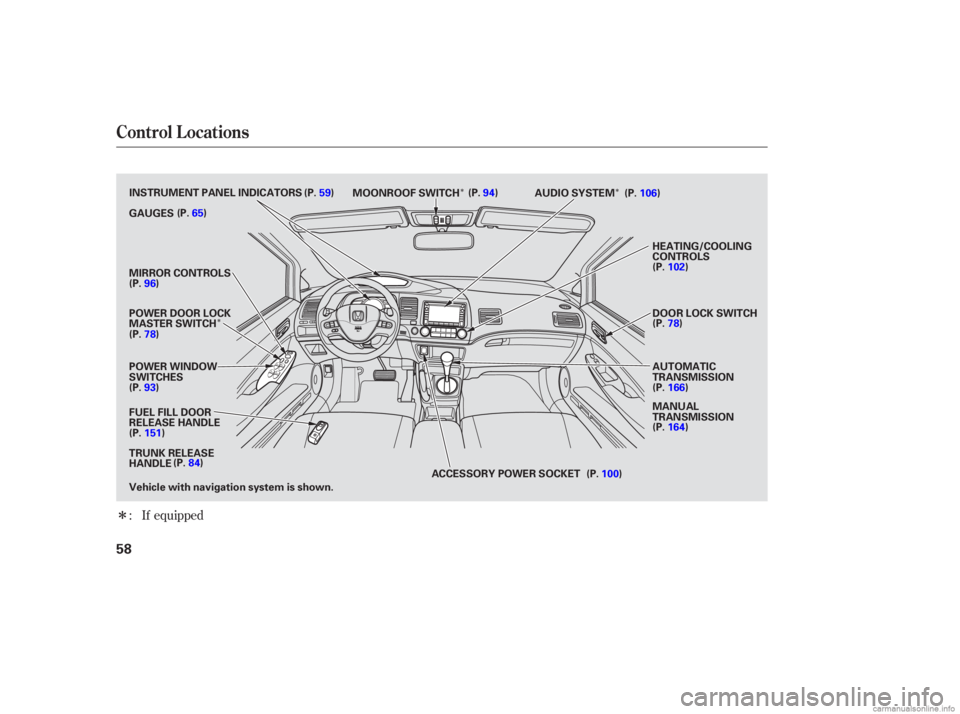

Control L ocations
58
POWER WINDOW
SWITCHES
AUDIO SYSTEM
HEATING/COOLING
CONTROLS
POWER DOOR LOCK
MASTER SWITCH MIRROR CONTROLS
FUEL FILL DOOR
RELEASE HANDLE AUTOMATIC
TRANSMISSION
ACCESSORY POWER SOCKET MANUAL
TRANSMISSIONDOOR LOCK SWITCH
MOONROOF SWITCH
(P.94)
GAUGES
(P.96)
(P.78)
(P.93)
(P.151) (P.106)
(P.102)
(P.78)
(P.166)
(P.164)
(P.100)
(P.65)
TRUNK RELEASE
HANDLE (P.84)
Vehicle with navigation system is shown. INSTRUMENT PANEL INDICATORS (P.59)
——y

y
(#y
y

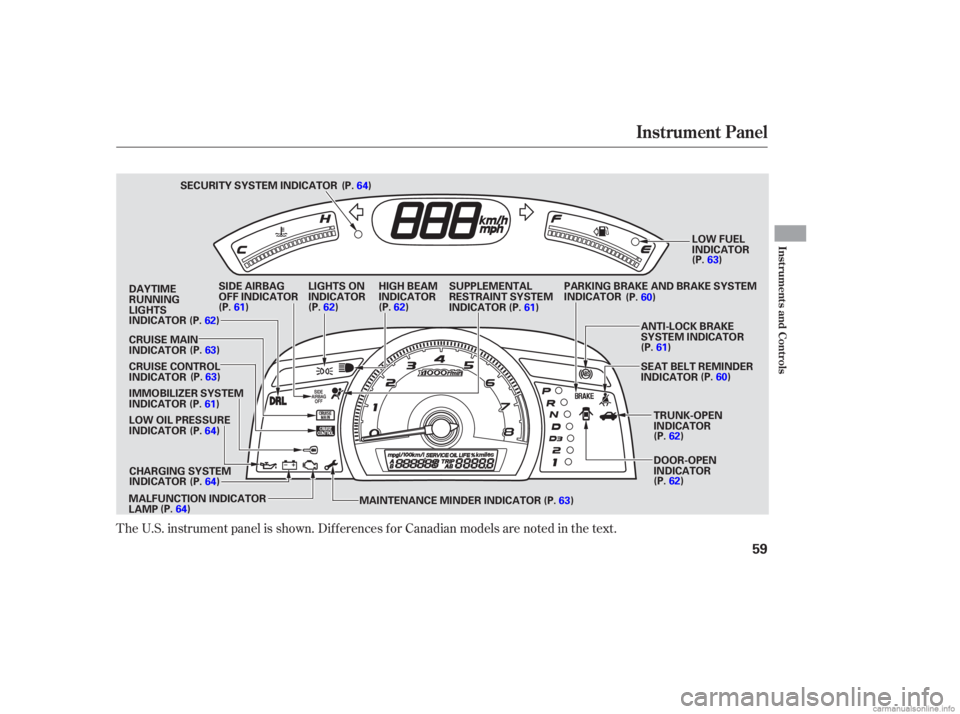

The U.S. instrument panel is shown. Dif f erences f or Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
59
IMMOBILIZER SYSTEM
INDICATORCHARGING SYSTEM
INDICATOR
LOW OIL PRESSURE
INDICATOR SEAT BELT REMINDER
INDICATOR
MAINTENANCE MINDER INDICATOR SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR
LIGHTS ON
INDICATOR
CRUISE CONTROL
INDICATOR CRUISE MAIN
INDICATOR SECURITY SYSTEM INDICATOR
LOW FUEL
INDICATOR
SIDE AIRBAG
OFF INDICATOR
DOOR-OPEN
INDICATOR TRUNK-OPEN
INDICATOR
ANTI-LOCK BRAKE
SYSTEM INDICATOR
MALFUNCTION INDICATOR
LAMP HIGH BEAM
INDICATOR
(P.64)
(P.63) (P.63)
(P.61) (P.61)
(P.62)
(P.62) (P.61)(P.60)(P.63)
(P.61) (P.60)
(P.62)
(P.62)
(P.63)
(P.62)
DAYTIME
RUNNING
LIGHTS
INDICATOR
(P.64)
(P. 64)
(P. 64)
