display HONDA CIVIC SEDAN 2009 Navigation Manual (in English)

Navigation System1
Table of Contents
Introduction ..................................4
Manual Overview ............................4
System Overview ............................4
Accessories Precautions ..................5
Important Safety Information ..........5
Map Overview .................................6
Current Street ....................................6
Verified/Unverified Street ..................6
User Agreement ............................8
Getting Started ...........................10
System Controls ............................10
Voice Control Basics .....................12
Using the Voice Control System ......13
Improving Voice Recognition ..........13
Selecting an Item (Button) on the
Screen .........................................14
Selecting an Item in a List .............14
Using the On-screen Keyboard .....15
System Start-up .............................16
Bluetooth® HandsFreeLink® .......18
Map Screen Legend .......................19
Map Screen Description ................20
Zoom In/Out.....................................20
Map Scrolling ..................................20
Displaying Current Location .........20
System Function Diagram .............21
Entering a Destination ..............22
By Address ....................................23
Selecting the State or Province ........23
Selecting the City .............................23
Selecting the Street ..........................25
Entering the Street Number .............27
By Intersection...............................27
Selecting the State or Province ........28
Selecting the City .............................28
Selecting the Street ..........................30
By Places .......................................32
Finding the Place by Category ........32
Finding the Place by Name..............36
Finding the Place by Phone
Number .........................................36
By Map Input .................................36
Showing the Map of Current
Position.........................................37
Showing the Map of City..................38
Showing the Map of State ................38
Showing the Map of Continental
USA...............................................39
By Previous Destinations...............40
By Today’s Destinations ...............41
Editing Today’s Destinations List ...41
Adding Destinations to the List........42
By Address Book ...........................43
Adding Addresses to the Personal
Address Book ................................43
By Go Home ..................................44
Driving to Your Destination .....45
Driving to Your Destination ..........45
Calculate Route to Screen..............45
Changing the Routing Method .........46
Viewing the Routes...........................47
Viewing the Destination Map ..........48
Map Screen ....................................48
Route Line ........................................48
Guidance Prompts ...........................49
Map Screen Legend .........................50
Guidance Screen ............................51
Guidance Screen Legend.................51
Distance and Time to
Destination ..................................52
Direction List .................................52
Exit Info.
(Freeway Exit Information) ..........53
Split-Screen Guidance ...................53
Map Scale ......................................54
Map Orientation .............................55
Destination Icon .............................56
00X31-SNA-8200
2009 Civic

2Navigation System
Table of Contents
Landmark Icons .............................56
Showing Icons on the Map...............58
Icon Options ....................................58
Going Off the Route ......................60
Off-road Tracking..........................60
Viewing/Saving the Current Location ......................................61
Pop-Ups and Disclaimers ..............62
Changing the Route .......................63
Change Route By Screen .................63
Waypoints ........................................63
Reroute: Avoid Streets .....................65
Reroute: Detour ...............................65
Reroute: Change Routing Method ...65
Cancel Current Route ......................66
Back to Current Route .....................66
Changing Your Destination ...........66
Find Nearest (Voice command) .......66
Go Home (Voice command) ............66
Using Joystick to Change Destination ...................................66
Entering a Destination from the Menu Screen (while en route) ................68
Continue Trip Screen.....................68
Information Features ................69
Information Screen ........................69
Cellular Phonebook .......................69
Voice Command Help ...................69
Map Legend ...................................70
Calendar .........................................71
Entering Your Schedule ...................71
Calculator.......................................72
Unit Conversion ...............................73
System Setup ..............................74
Setup Mode ....................................74
Setup Screen (first) ........................74
Brightness ........................................74
Volume .............................................74
Display .............................................75
Guidance Prompts ....... ....................76
Contrast ...........................................76
Setup Screen (second) ...................77
Personal Information .....................77
Address Book ...................................77
Home Address ..................................81
PIN Number .....................................81
User Name .......................................82
Previous Destinations ......................82
Routing & Guidance ......................83
Rerouting .........................................83
Unverified Area Routing ..................84 Edit Avoid Area................................88
Edit Waypoint Search Area..............90
Guidance Mode ....
............................91
Vehicle ...........................................91
Off-road Tracking ............................91
Correct Vehicle Position..................92
System Information .......................93
Basic Settings.................................93
Keyboard Layout.. ............................93
Units (mile or km) ............................93
Voice Recognition Fe edback ...........93
Clock Settings ................................94
Clock Adjustment .............................94
Clock Type .......................................95
Color ..............................................96
Map Color ........................................96
Menu Color ......................................96
System Initialization ..................97
System Initialization ......................97
Entering the Security Code ............97
GPS Initialization ...........................98
Map Matching................................98
System Limitations ....................99
Database Limitations...............101
2009 Civic

Navigation System3
Table of Contents
Customer Assistance ................103
Reporting Errors ..........................103
Honda Automobile Customer
Service ......................................103
Visiting Your Dealer ...................104
Obtaining a Navigation Update DVD .........................................104
Changing the DVD ......................105
PC Card Operation ......................106
Inserting the PC Card....................106
Voice Control of PC Card
Functions ....................................106
CD/CD-R Operation ....................106
Voice Control of CD Functions .....107
Coverage Areas .........................108
Map Coverage .............................108
U.S. Detailed Coverage Areas.......108
Canada Detailed Coverage Areas ..........................................113
Operation in Alaska and Hawaii ......................................121
Alaska ............................................121
Hawaii ...........................................121
Shipping a Vehicle To or From
Hawaii ........................................122
Frequently Asked Questions...123
Troubleshooting .......................133
Glossary ....................................135
Glossary .......................................135
Voice Command Index ............138
Global Commands .......................138
Navigation General Commands ................................138
Navigation Display Commands ................................139
Find Place Commands .................140
Radio Voice Commands ..............141
CD Voice Commands ..................142
PC Card Voice Commands ..........142
AUX Voice Commands ...............142
Information Screen Voice Commands ................................143
Setup Screen (first) Commands ................................143
On-Screen Commands .................144
On-Screen Commands Assist .........144
Index .........................................146
2009 Civic

Navigation System7
Introduction
Verified streets (dark colored) Unverified streets (light colored)
When
displayed These roads are found within
metropolitan areas, and
include interstate freeways and major roads
connecting cities. These roads are found in rural
areas, and typically include
residential street s away from the center of a town.
Street color Shown on daytime
map screen as black or red, such as
interstate freeways. Shown on the daytime
map screen as light brown.
Map quality The database vendor has
verified these streets.
Information like tu rn restrictions, average speed, and
whether it is a one-way street have been gathered and
used when creating your route to a destination. These streets have not been veri
fied by the database vendor. The
system does not contain inform ation on one-way streets, turn
restrictions, or the road’s average speed. They are shown on the
map for reference and may have e rrors in map location, naming,
and address range.
Routing
differences While driving to your destin
ation, the displayed route
line is solid blue. The system provides voice and map
guidance to your destination. Your route line is either a blue
dotted “vector line,” or a dashed
pink/blue line. For information on selecting this option, and the
routing differences, see Unverified Area Routing on page
84.
Cautions There are no pop-up boxes urging extra caution during
a route. However, because
roads constantly change,
you are urged to use common sense, and always obey
posted traffic restrictions. Regardless of whether the user c
hooses route guidance, there are
cautionary screens before and dur ing the route urging the user to
be extra cautious, and obey a ll traffic restrictions. See Unverified
Area Routing on page84.
Guidance
voice Voice guidance issues instruct
ions such as “In a half-
mile, make a right turn.” The phrase “if possible” is added
to each guidance instruction.
For example: “In a half-mile, ma ke a right turn, if possible.”
Time and
distance
“to go” The time and distance “t
o go,” displayed while en
route to a destination, is based on the average speed
and distance for the roads used for your route. Because the average speed of thes
e roads is not known, the time
and distance “to go” is based on a fixed average speed of 25 mph
for these roads.
2009 Civic

Navigation System9
User Agreement
 The terms and conditions hereof
apply to all subsequent users and
owners as well as to the original
purchaser.
 The logos of oil companies, hotels, and convenience stor es are displayed
for your information and
convenience, and in no way imply
any sponsorship, approval or
endorsement of these companies, or
their products. The logos are
trademarks of their respective
owners. The user shall indemnify and save
harmless the Licensors, and their
officers, employees and agents, from
and against any claim, demand or
action, irrespective of the nature of the
cause of the claim, demand or action,
alleging loss, costs, expense, damages
or injuries (including injuries resulting
in death) arising out of the use or
possession of the DVD or software.
Use, duplication, or disclosure of this
DVD by or on behalf of the United
States government is subject to
“Restricted Rights” as set forth at FAR
52.227-14, -19 or DFARS 252.227-
7013, as applicable. Manufacturers are
the Licensors, including HONDA
MOTOR CO., LTD., 2-1-1 Minami
Aoyama Minato-Ku Tokyo 107-8556
JAPAN., Alpine Electronics, Inc., 20-1
Yoshima Kogyodanchi, Iwaki,
Fukushima 970-1192 JAPAN.,
NAVTEQ Corporation, 222
Merchandise Mart, Suite 900, Chicago,
IL, 60654, INFO USA
CORPORATION, 5711 South 86th
Circle, Omaha, NE 68127., and
ZENRIN CO., LTD., 1-1-1 Muromachi,
Kokurakita-ku, Kitakyushu, Fukuoka
803-8630, JAPAN.
2009 Civic

10Navigation System
Getting Started
System Controls
NOTE:
On some vehicle models, the Premium Audio System is not available and the logo
will not be displayed on the navigation control panel.
Joystick/ENT buttonMAP/GUIDE button
CANCEL button
Screen
MENU button
INFO button
AUDIO button
OPEN button
ZOOM (IN)/
(OUT) buttons
SETUP button
OPEN button
Tilts the screen down to access the CD,
DVD, and PC Card slots.
CLOSE button
Return the screen to the original
position.
Pressing the OPEN button tilts the
screen down.
NOTE:
 Voice commands are disabled when the screen is tilted down.
 Press the CLOSE button to return
the screen to the upright position.
CLOSE button Navi DVD Slot
(Located behind
drop-down
cover)
PC Card Slot
CD Slot
2009 Civic

Navigation System11
Getting Started
Joystick/ENT button
Moves left, right, up, and down to move
the highlighting around the display, to
scroll through lists, or to look around a
displayed map. After making a selection
in a menu or list, push in on the joystick
to enter the selection into the system.
In almost all cases, you can enter a
selection into the system by using the
voice control system, highlighting the
item and pushing in on the joystick, or
by touching the appropriate item you
wish to select.
INFO button
Displays the screen for selecting
Cellular Phonebook , Voice
Command Help , Map Legend,
Calendar, and Calculator. See
page
69.
MAP/GUIDE button
Displays the map. When en route,
switches between the map, guidance ,
and Direction list screens. See page
19
or 50.
MENU button
Displays the Enter destination by
screen. When en r oute, displays the
Change route by screen. SETUP button
Displays the
Setup screens to change
and update informa tion in the system.
See page
74 .
CANCEL button
Cancels the current sc reen and returns to
the previous screen display.
NOTE:
The NAVI BACK button on the steering
wheel performs the same basic function.
ZOOM (IN)/ (OUT) buttons
Press ZOOM to zoom in (to show
more detail), or ZOOM to zoom out
(to show more area and less detail)
while a map screen is displayed.
ZOOM IN reduces the scale (showing
less area with greater detail). ZOOM
OUT increases the scale (showing more
area with less detail).
AUDIO button
Press to display the audio screen.
For information on audio system
features, see the Audio section of the
vehicle Owner’s manual. Other buttons
See the Audio sectio
n of the vehicle
Owner's manual.
Screen
All selections and instructions are
displayed on the screen. In addition, the
display is a “touch screen” – you can
enter information into the system by
touching the images (icons) on the
screen with your finger.
For example, if you need to enter a
street name, a keyboard will be
displayed. You can type in the street
name by saying or selecting the
individual character s on the screen.
Clean the screen with a soft damp cloth.
You may use a mild cl eaner intended for
use on liquid crystal displays (LCDs).
Harsher chemicals may damage the
screen.
2009 Civic

Navigation System13
Getting Started

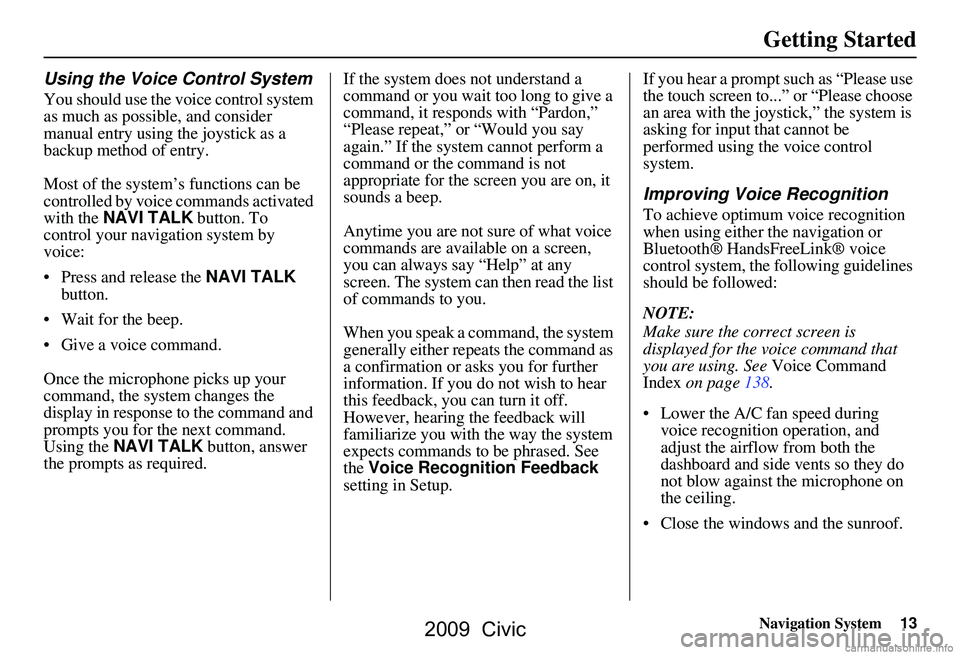

Using the Voice Control System
You should use the voice control system
as much as possible, and consider
manual entry using the joystick as a
backup method of entry.
Most of the system’s functions can be
controlled by voice commands activated
with the NAVI TALK button. To
control your navigation system by
voice:
 Press and release the NAVI TALK
button.
 Wait for the beep.
 Give a voice command.
Once the microphone picks up your
command, the system changes the
display in response to the command and
prompts you for the next command.
Using the NAVI TALK button, answer
the prompts as required. If the system does not understand a
command or you wait too long to give a
command, it responds with “Pardon,”
“Please repeat,” or “Would you say
again.” If the system cannot perform a
command or the command is not
appropriate for the screen you are on, it
sounds a beep.
Anytime you are not sure of what voice
commands are available on a screen,
you can always say “Help” at any
screen. The system can then read the list
of commands to you.
When you speak a command, the system
generally either repeats the command as
a confirmation or asks you for further
information. If you do not wish to hear
this feedback, you can turn it off.
However, hearing the feedback will
familiarize you with the way the system
expects commands to be phrased. See
the
Voice Recognition Feedback
setting in Setup. If you hear a prompt such as “Please use
the touch screen to...” or “Please choose
an area with the joystick,” the system is
asking for input that cannot be
performed using the voice control
system.
Improving Voice Recognition
To achieve optimum voice recognition
when using either the navigation or
Bluetooth® HandsFreeLink® voice
control system, the following guidelines
should be followed:
NOTE:
Make sure the correct screen is
displayed for the vo
ice command that
you are using. See Voice Command
Index on page138.
 Lower the A/C fan speed during voice recognition operation, and
adjust the airflow from both the
dashboard and side vents so they do
not blow against the microphone on
the ceiling.
 Close the windows and the sunroof.
2009 Civic

Navigation System15
Getting Started

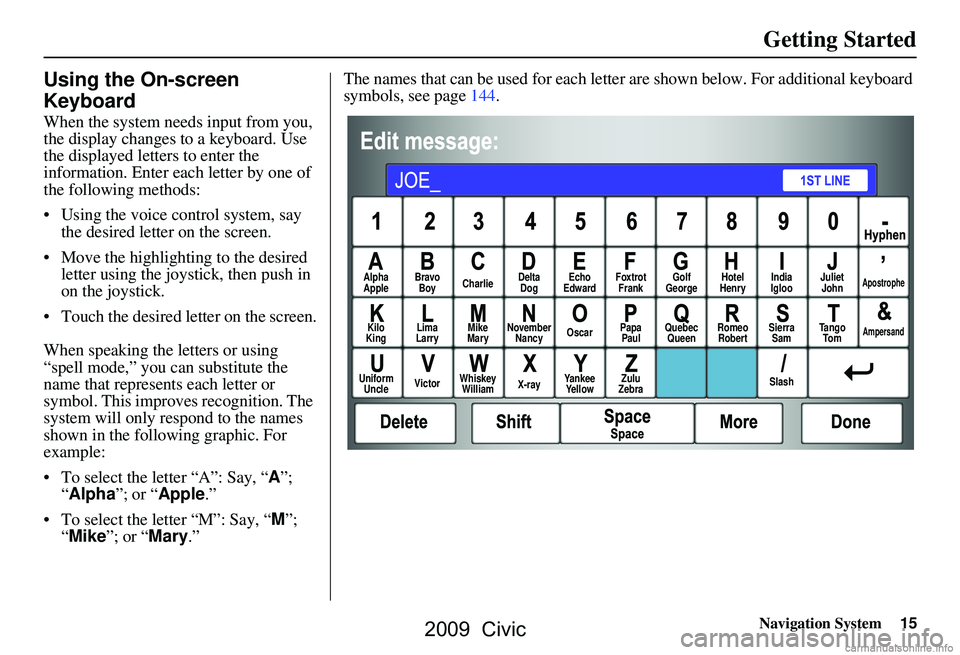

Using the On-screen
Keyboard
When the system needs input from you,
the display changes to a keyboard. Use
the displayed letters to enter the
information. Enter each letter by one of
the following methods:
 Using the voice control system, say the desired letter on the screen.
 Move the highlighting to the desired letter using the joystick, then push in
on the joystick.
 Touch the desired le tter on the screen.
When speaking the letters or using
“spell mode,” you can substitute the
name that represents each letter or
symbol. This improves recognition. The
system will only re spond to the names
shown in the following graphic. For
example:
 To select the letter “A”: Say, “ A”;
“ Alpha ”; or “Apple .”
 To select the letter “M”: Say, “ M”;
“ Mike”; or “Mary.” The names that can be used for each lette
r are shown below. For additional keyboard
symbols, see page144.
Alpha
Apple Bravo
Boy Charlie Delta
Dog Echo
Edward Foxtrot
Frank Golf
George Hotel
Henry Juliet
JohnApostrophe
Kilo
King Lima
Larry Mike
Mary November
Nancy Oscar
Papa
Paul Quebec
Queen Romeo
Robert Sierra
Sam Ta n g o
To mAmpersand
Uniform Uncle Victor
Whiskey
William X-rayYankee
Ye l l o w Zulu
Zebra SlashIndia
Igloo
2009 Civic

16Navigation System
Getting Started

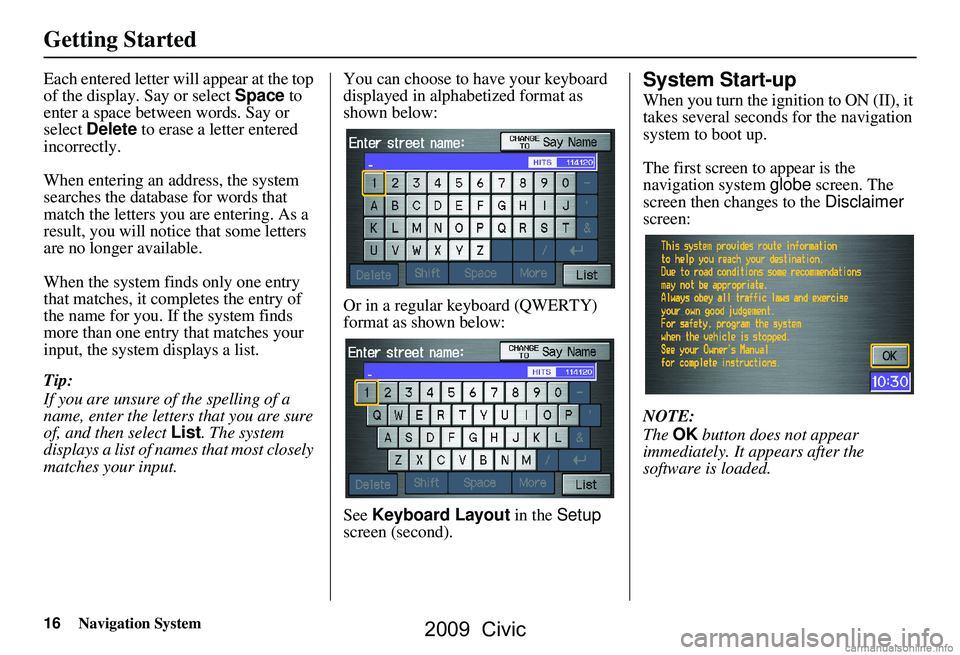

Each entered letter will appear at the top
of the display. Say or select Space to
enter a space between words. Say or
select Delete to erase a letter entered
incorrectly.
When entering an address, the system
searches the database for words that
match the letters you are entering. As a
result, you will notice that some letters
are no longer available.
When the system finds only one entry
that matches, it completes the entry of
the name for you. If the system finds
more than one entry that matches your
input, the system displays a list.
Tip:
If you are unsure of the spelling of a
name, enter the lette rs that you are sure
of, and then select List. The system
displays a list of names that most closely
matches your input. You can choose to have your keyboard
displayed in alphabetized format as
shown below:
Or in a regular keyboard (QWERTY)
format as shown below:
See
Keyboard Layout in the Setup
screen (second).System Start-up
When you turn the ignition to ON (II), it
takes several seconds for the navigation
system to boot up.
The first screen to appear is the
navigation system globe screen. The
screen then changes to the Disclaimer
screen:
NOTE:
The OK button does not appear
immediately. It appears after the
software is loaded.
2009 Civic
