HONDA CIVIC SEDAN 2012 (in English) Manual Online

80

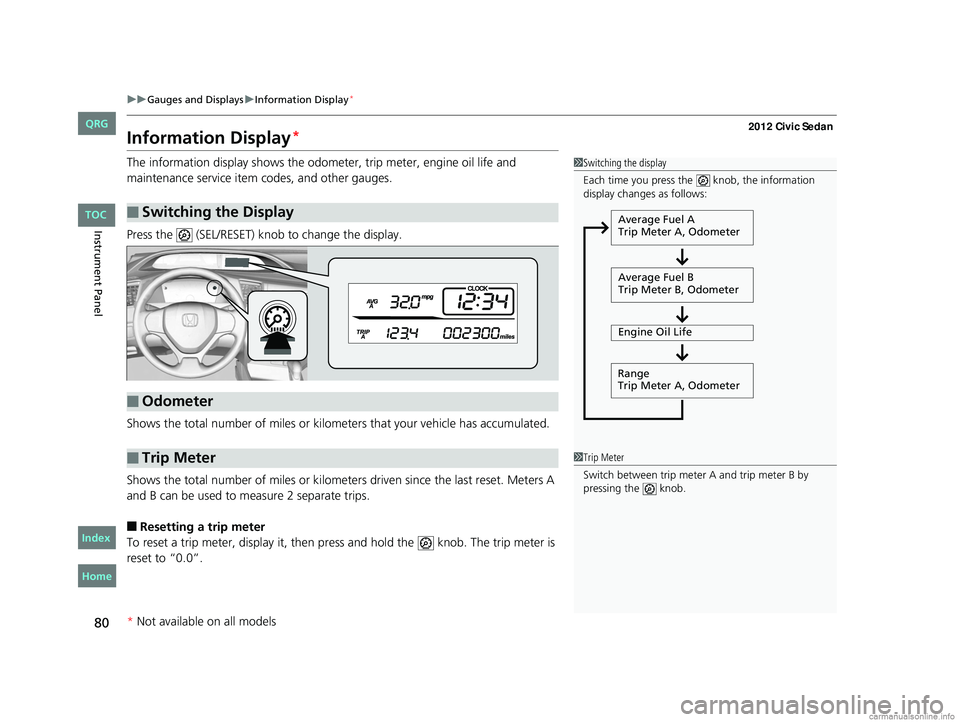

uuGauges and Displays uInformation Display*
Instrument Panel
Information Display*
The information display shows the odome ter, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (SEL/RESET) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure 2 separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to “0.0”.
■Switching the Display
1 Switching the display
Each time you press the knob, the information
display changes as follows:
Average Fuel A
Trip Meter A, Odometer
Average Fuel B
Trip Meter B, Odometer
Engine Oil Life
Range
Trip Meter A, Odometer
■Odometer
■Trip Meter1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
* Not available on all models
CIVIC 4D-31TR3600.book 80 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

81
uuGauges and Displays uInformation Display*
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance Minder™ P. 243
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your trips in the past.
Appears when the fuel fill cap is loose or is not installed.
2Check/Tighten Fuel Cap Message P. 314
■Average Fuel Economy
■Engine Oil Life
■Range
■Check Fuel Cap
CIVIC 4D-31TR3600.book 81 ページ ２０１１年２月１４日　月曜日　午後２時５１分
Home
QRG
IndexTOC
*
Not av ailable on all mo dels

82
uuGauges and Displays uMulti-Information Display*
Instrument Panel

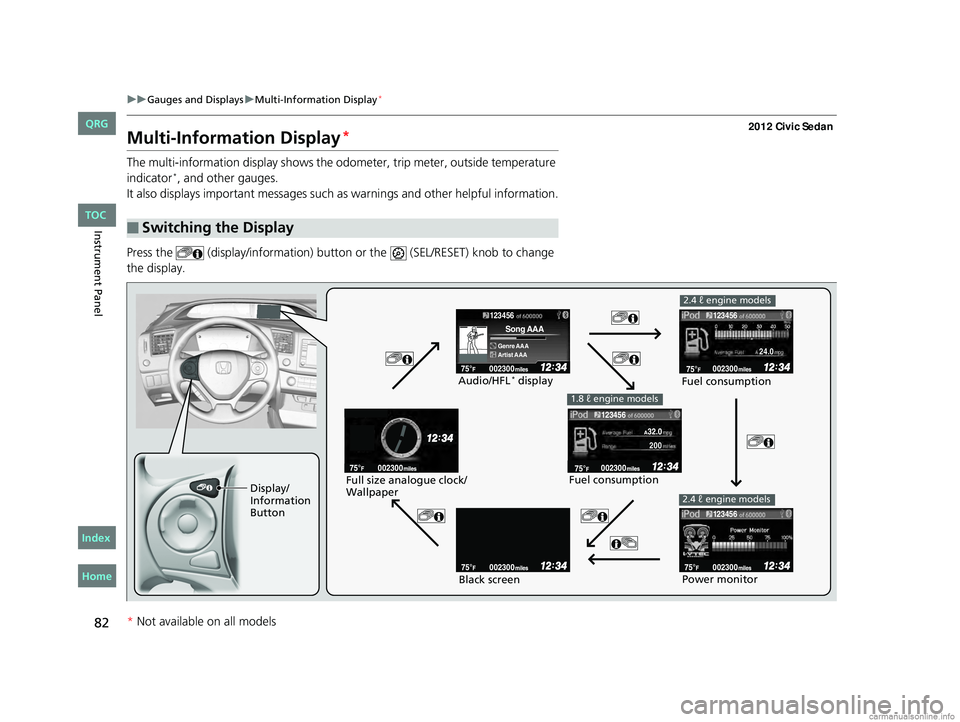

Multi-Information Display*
The multi-information display shows the odometer, trip meter, outside temperature
indicator*, and other gauges.
It also displays important messages such as warnings and other helpful information.
Press the (display/information) butto n or the (SEL/RESET) knob to change
the display.
■Switching the Display
123456
Genre AAA
Song AAA
Artist AAA
200
24.0
123456
123456
123456
Display/
Information
Button Fuel consumption
Audio/HFL
* display
Fuel consumption
Black screen
Full size analogue clock/
Wallpaper
2.4 ℓ engine models
Power monitor
1.8 ℓ engine models
2.4 ℓ engine models
* Not available on all models
CIVIC 4D-31TR3600.book 82 ページ ２０１１年２月１４日　月曜日　午後２時５１分
Home
QRG
Index TOC

Continued83
uuGauges and Displays uMulti-Information Display*
Instrument Panel

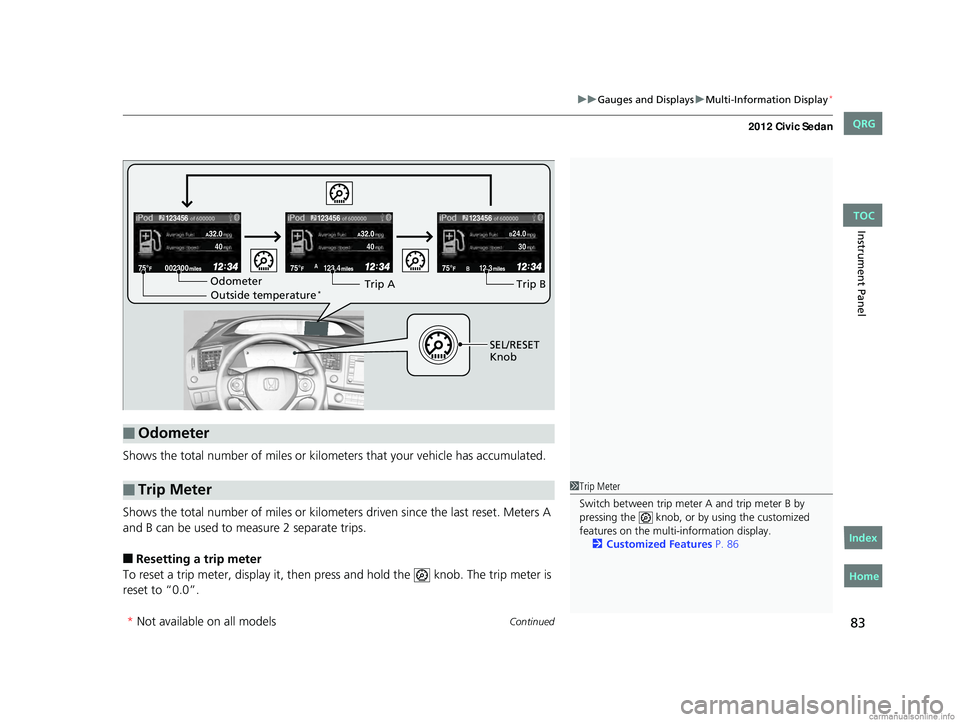

Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure 2 separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to “0.0”.
■Odometer
■Trip Meter
123.4A12.3B
123456123456123456
B24.0304040
Odometer Outside temperature*Trip ATrip B
SEL/RESET
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob, or by using the customized
features on the multi-information display.
2 Customized Features P. 86
* Not available on all models
CIVIC 4D-31TR3600.book 83 ページ ２０１１年２月１４日　月曜日　午後２時５１分
Home
QRG
IndexTOC

uuGauges and Displays uMulti-Information Display*
84
Instrument Panel

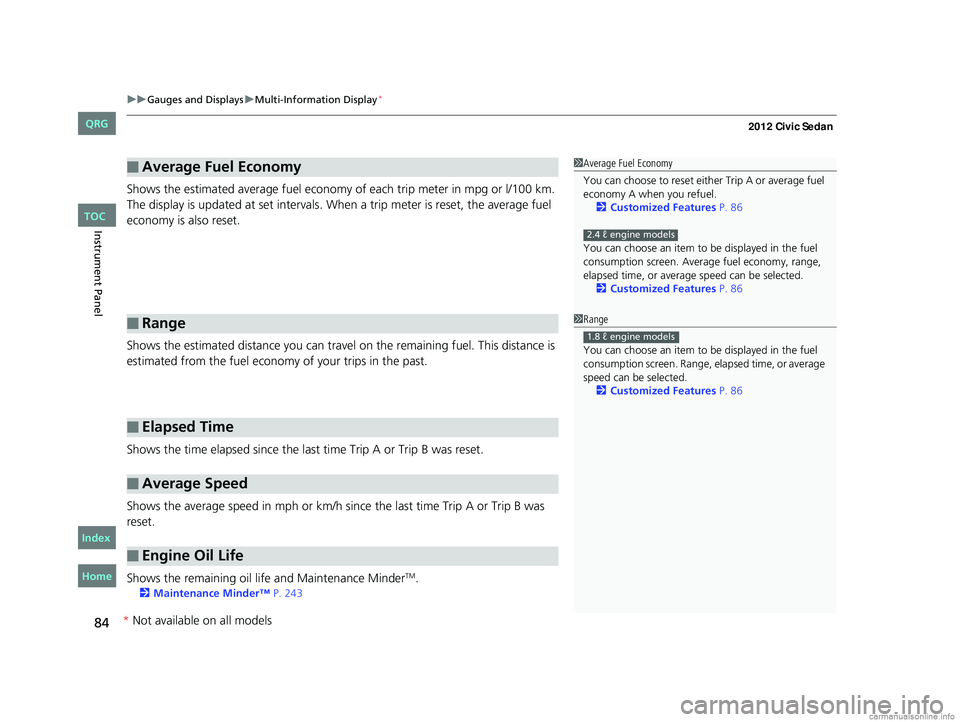

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
Shows the time elapsed since the last time Trip A or Trip B was reset.
Shows the average speed in mph or km/h si nce the last time Trip A or Trip B was
reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance Minder™ P. 243
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can choose to reset either Trip A or average fuel
economy A when you refuel.
2 Customized Features P. 86
You can choose an item to be displayed in the fuel
consumption screen. Averag e fuel economy, range,
elapsed time, or average speed can be selected.
2 Customized Features P. 86
2.4 ℓ engine models
1Range
You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected. 2 Customized Features P. 86
1.8 ℓ engine models
CIVIC 4D-31TR3600.book 84 ページ ２０１１年２月１４日　月曜日　午後２時５１分
* Not available on all models
Home
QRG
IndexTOC

Continued85
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the multi-information display's customiz ed features to correct the temperature.
2Customized Features P. 86
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Engine horsepower usage while driving is
displayed in the power monitor.
“100%” indicates that horsepower is at its
maximum.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the navigation system manual
■Outside Temperature*
■Instant Fuel Economy*
■Power Monitor*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
1Power Monitor
Engine horsepower is affected by external conditions
such as driving conditions, or vehicle condition. The
power monitor can compensate for some of these
variables, but different re adings may be displayed.
■Turn-by-Turn Directions*1Turn-by-Turn Directions
You can select whether th e turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 86
* Not available on all models
CIVIC 4D-31TR3600.book 85 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

uuGauges and Displays uMulti-Information Display*
86
Instrument Panel

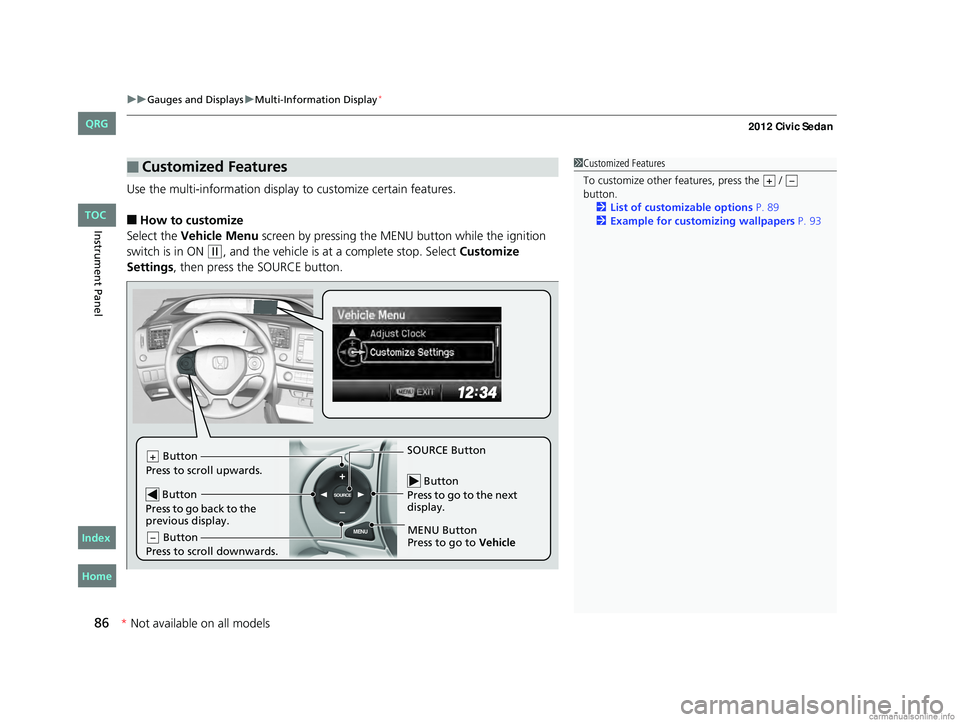

Use the multi-information display to customize certain features.
■How to customize
Select the Vehicle Menu screen by pressing the ME NU button while the ignition
switch is in ON
(w, and the vehicle is at a complete stop. Select Customize
Settings , then press the SOURCE button.
■Customized Features1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 89
2 Example for customizing wallpapers P. 93
+–
MENU
SOURCE Button
Press to go to the next
display.
SOURCE Button
MENU Button
Press to go to Vehicle
Button
Press to scroll upwards.+
Button
Press to go back to the
previous display.
Button
Press to scroll downwards.–
CIVIC 4D-31TR3600.book 86 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
* Not availabl eon allmo dels
Home
QRG
Index

87
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
■Customization flow
Press the MENU button.1 Customized Features
You can exit the customizing screen at any time by
pressing the MENU button.
Vehicle Menu
Vehicle Information
Odometer/Trip Meter
Adjust Clock
Maintenance info
Trip Meter Reset
Select Trip/Odometer
CIVIC 4D-31TR3600.book 87 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
*Not availabl eon allmo dels

88
uuGauges and Displays uMulti-Information Display*
Instrument Panel

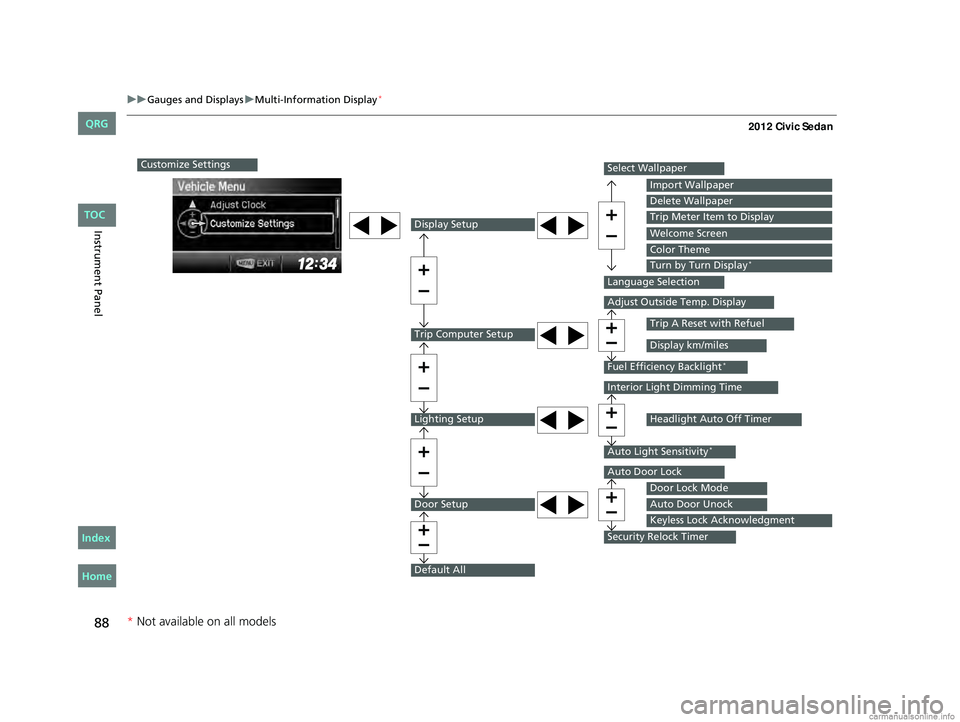

Customize Settings
Display Setup
Trip Computer Setup
Lighting Setup
Door Setup
Default All
Select Wallpaper
Language Selection
Adjust Outside Temp. Display
Fuel Efficiency Backlight*
Interior Light Dimming Time
Auto Light Sensitivity*
Auto Door Lock
Security Relock Timer
Import Wallpaper
Delete Wallpaper
Trip Meter Item to Display
Welcome Screen
Color Theme
Turn by Turn Display*
Trip A Reset with Refuel
Display km/miles
Headlight Auto Off Timer
Door Lock Mode
Auto Door Unock
Keyless Lock Acknowledgment
* Not available on all models
CIVIC 4D-31TR3600.book 88 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

89
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

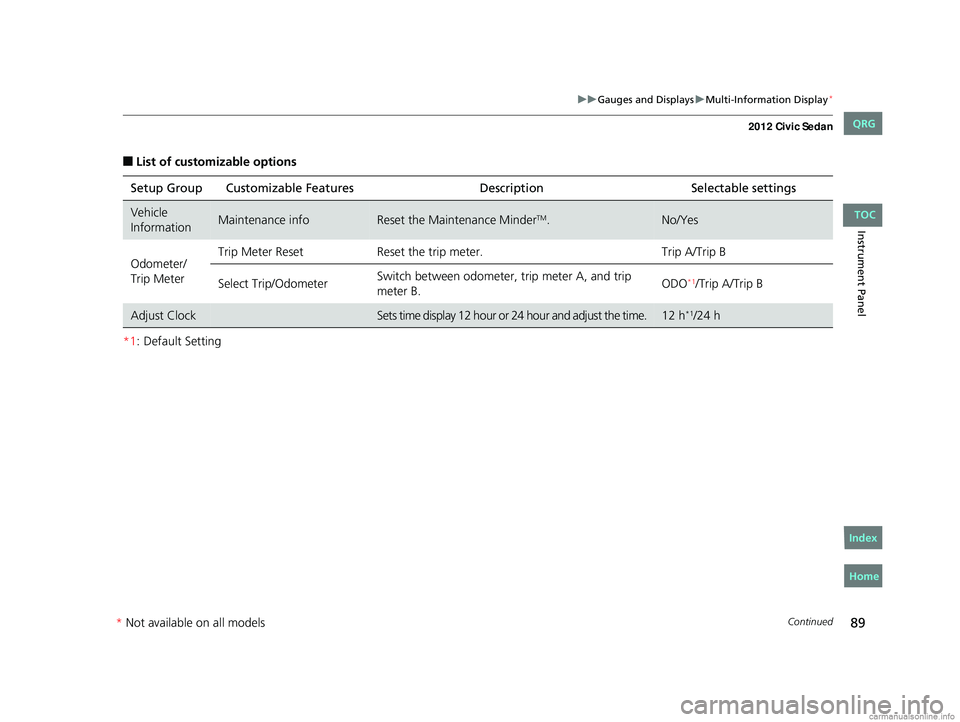

■List of customizable options
*1: Default Setting Setup Group Customizable Features
DescriptionSelectable settings
Vehicle
InformationMaintenance infoReset the Maintenance MinderTM.No/Yes
Odometer/
Trip Meter Trip Meter Reset
Reset the trip meter. Trip A/Trip B
Select Trip/Odometer Switch between odometer, trip meter A, and trip
meter B. ODO
*1/Trip A/Trip B
Adjust ClockSets time display 12 hour or 24 hour and adjust the time.12 h*1/24 h
CIVIC 4D-31TR3600.book 89 ページ ２０１１年２月１４日　月曜日　午後２時５１分
