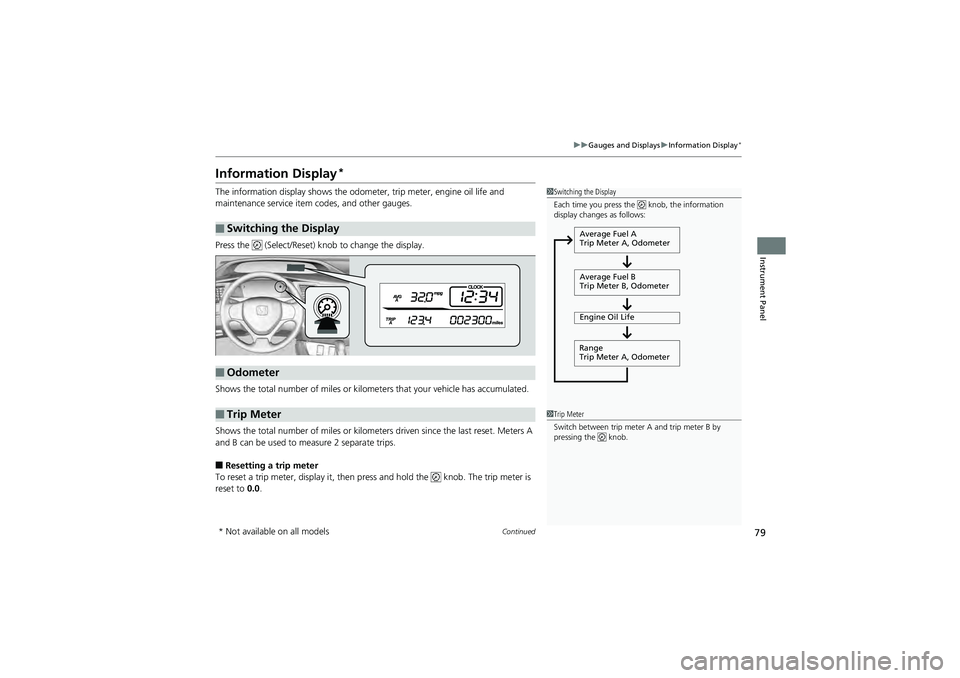

79
uuGauges and Displays uInformation Display*
Continued
Instrument Panel
Information Display*
The information display shows the odomete r, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (Select/Reset) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure 2 separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the knob. The trip meter is
reset to 0.0.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Average Fuel A
Trip Meter A, Odometer
Average Fuel B
Trip Meter B, Odometer
Engine Oil Life
Range
Trip Meter A, Odometer
■Odometer
■Trip Meter1 Trip Meter
Switch between trip mete r A and trip meter B by
pressing the knob.
* Not available on all models

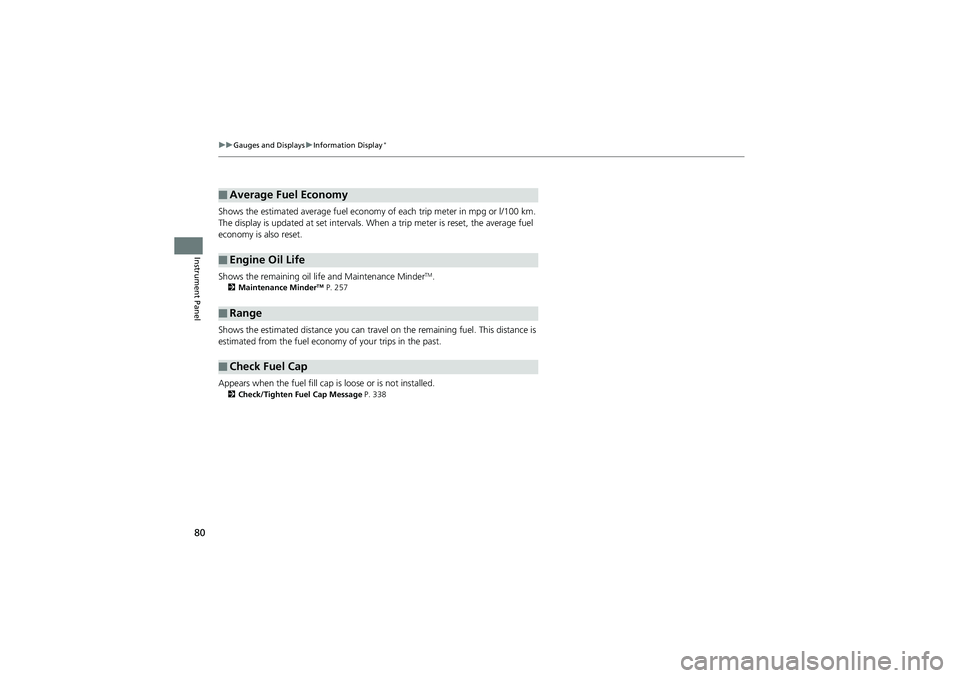

80
uuGauges and Displays uInformation Display*
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the remaining oil life and Maintenance Minder
TM.2 Maintenance MinderTM P. 257
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your trips in the past.
Appears when the fuel fill cap is loose or is not installed.
2Check/Tighten Fuel Cap Message P. 338
■Average Fuel Economy
■Engine Oil Life
■Range
■Check Fuel Cap

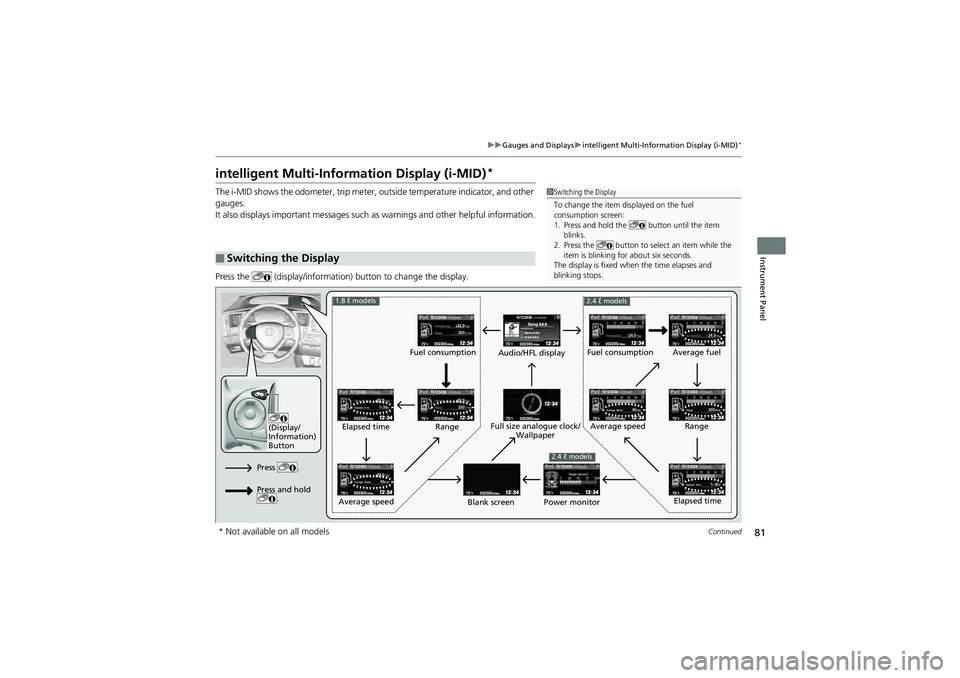

81
uuGauges and Displays uintelligent Multi-Info rmation Display (i-MID)*
Continued
Instrument Panel
intelligent Multi-Information Display (i-MID)*
The i-MID shows the odometer, trip meter, outside temperature indicator, and other
gauges.
It also displays important messages such as warnings and other helpful information.
Press the (display/information) button to change the display.
■Switching the Display
1Switching the Display
To change the item displayed on the fuel
consumption screen:
1. Press and hold the button until the item
blinks.
2. Press the button to select an item while the
item is blinking for about six seconds.
The display is fixed when the time elapses and
blinking stops.
123456
Genre AAASong AAA
Artist AAA200
2001h 30mElapsed Time
1h 30mElapsed Time
24.024.0
40mphAverage Speed
40mphAverage Speed200milesRange
123456
123456
123456123456
123456
123456123456
123456123456
123456

(Display/
Information)
Button
Audio/HFL display Fuel consumption
Blank screen Full size analogue clock/
Wallpaper
2.4 ℓ models
Power monitor
1.8 ℓ models
2.4 ℓ models
Fuel consumption
Range
Elapsed time
Average speed Elapsed time
Average speed
Average fuel
Range
Press .
Press and hold .
* Not available on all models

uuGauges and Displays uintelligent Multi-Information Display (i-MID)*

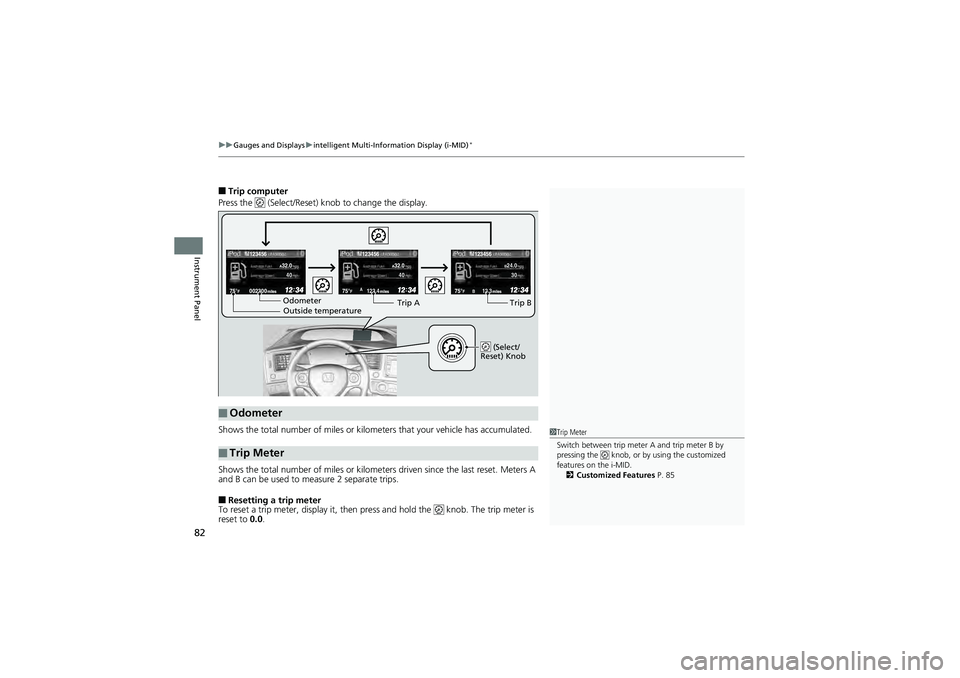

82
Instrument Panel
■Trip computer
Press the (Select/Reset) kn ob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure 2 separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Odometer
■Trip Meter
123.4A12.3B
123456123456123456
B24.0304040
Odometer
Outside temperature Trip ATrip B
(Select/
Reset) Knob
1 Trip Meter
Switch between trip mete r A and trip meter B by
pressing the knob, or by using the customized
features on the i-MID.
2 Customized Features P. 85

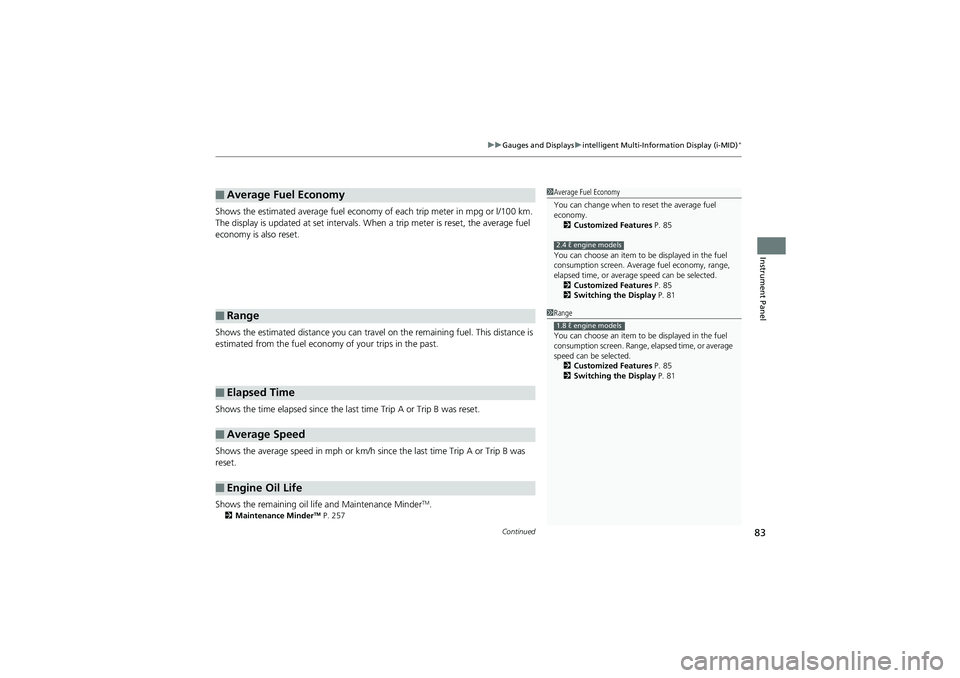

Continued83
uuGauges and Displays uintelligent Multi-Info rmation Display (i-MID)*
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
Shows the time elapsed since the last time Trip A or Trip B was reset.
Shows the average speed in mph or km/h si nce the last time Trip A or Trip B was
reset.
Shows the remaining oil life and Maintenance Minder
TM.2 Maintenance MinderTM P. 257
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 85
You can choose an item to be displayed in the fuel
consumption screen. Average fuel economy, range,
elapsed time, or average speed can be selected.
2 Customized Features P. 85
2 Switching the Display P. 81
2.4 ℓ engine models
1Range
You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected. 2 Customized Features P. 85
2 Switching the Display P. 81
1.8 ℓ engine models

uuGauges and Displays uintelligent Multi-Information Display (i-MID)*

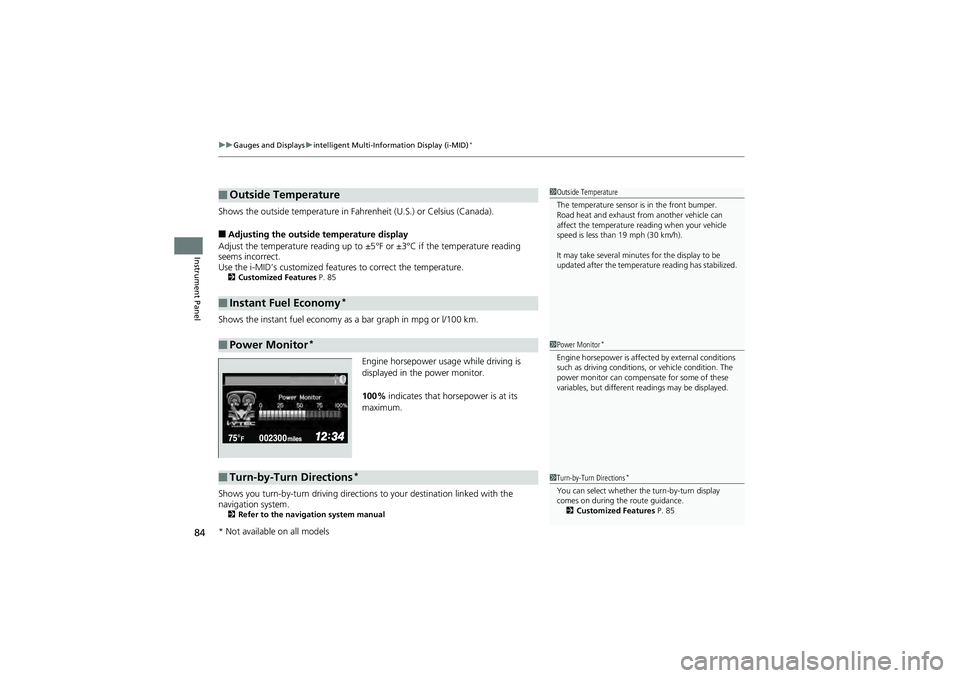

84
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5 °F or ±3°C if the temperature reading
seems incorrect.
Use the i-MID’s customized featur es to correct the temperature.
2Customized Features P. 85
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Engine horsepower usage while driving is
displayed in the power monitor.
100% indicates that horsepower is at its
maximum.
Shows you turn-by-turn driving directions to your destination linked with the
navigation system.
2 Refer to the naviga tion system manual
■Outside Temperature
■Instant Fuel Economy*
■Power Monitor*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
1 Power Monitor*
Engine horsepower is affected by external conditions
such as driving conditions, or vehicle condition. The
power monitor can compensate for some of these
variables, but different re adings may be displayed.
■Turn-by-Turn Directions*1Turn-by-Turn Directions*
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 85
* Not available on all models

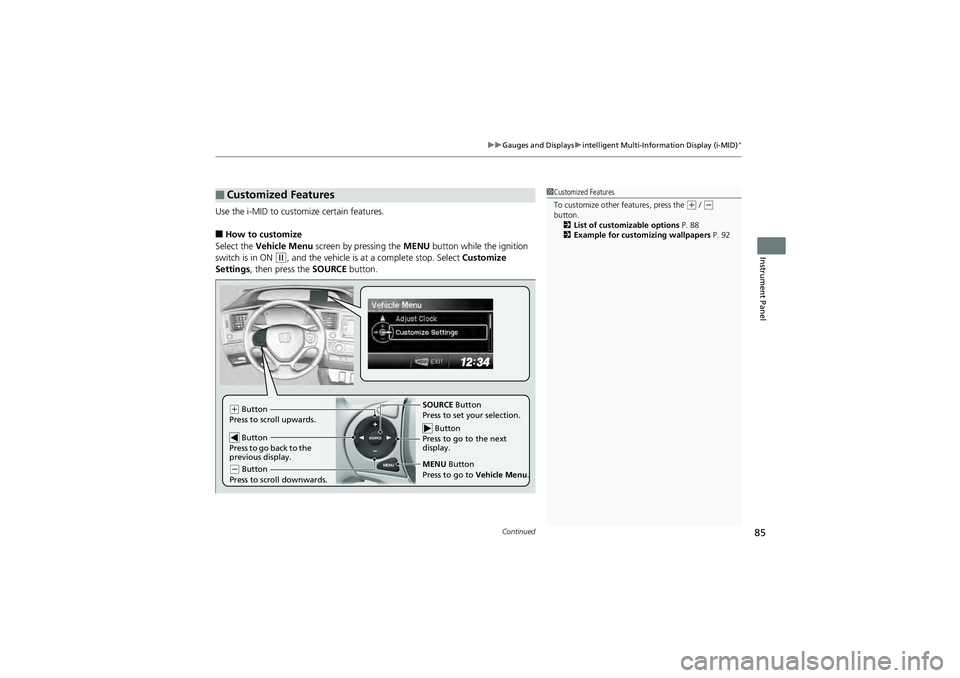

Continued85
uuGauges and Displays uintelligent Multi-Info rmation Display (i-MID)*
Instrument Panel
Use the i-MID to customize certain features.
■How to customize
Select the Vehicle Menu screen by pressing the MENU button while the ignition
switch is in ON
(w, and the vehicle is at a complete stop. Select Customize
Settings , then press the SOURCE button.
■Customized Features1Customized Features
To customize other features, press the
(+ / (-
button.
2 List of custom izable options P. 88
2 Example for custom izing wallpapers P. 92
MENU
SOURCE Button
Press to go to the next
display.
SOURCE Button
Press to set your selection.
MENU Button
Press to go to Vehicle Menu.(+ Button
Press to scroll upwards.
Button
Press to go back to the
previous display.
(- Button
Press to scroll downwards.

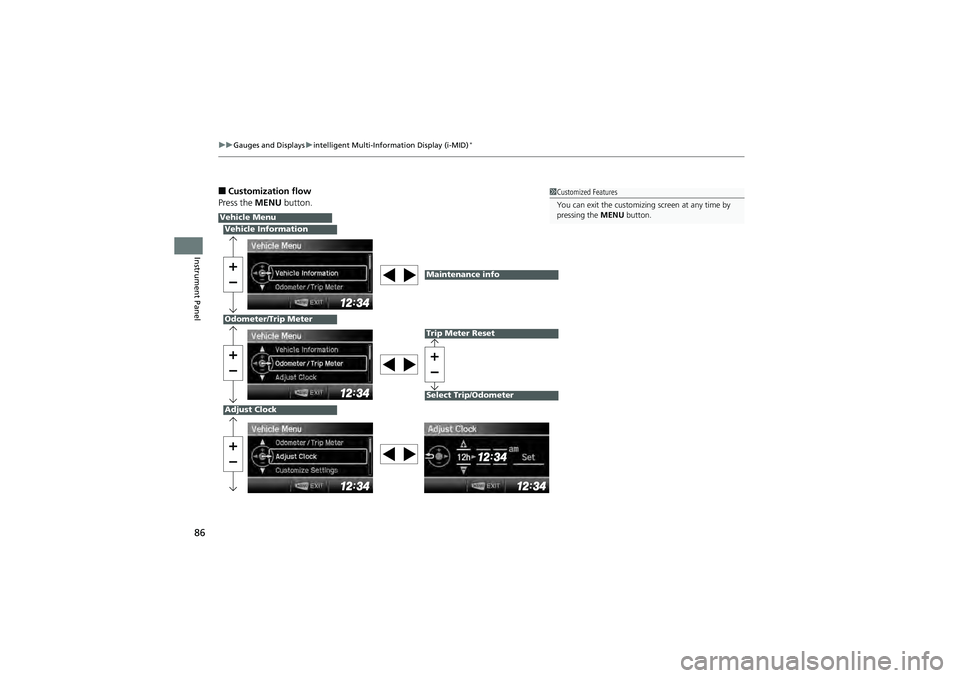

86
uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
Instrument Panel
■Customization flow
Press the MENU button.1Customized Features
You can exit the customizing screen at any time by
pressing the MENU button.
Vehicle Menu
Vehicle Information
Odometer/Trip Meter
Adjust Clock
Maintenance info
Trip Meter Reset
Select Trip/Odometer

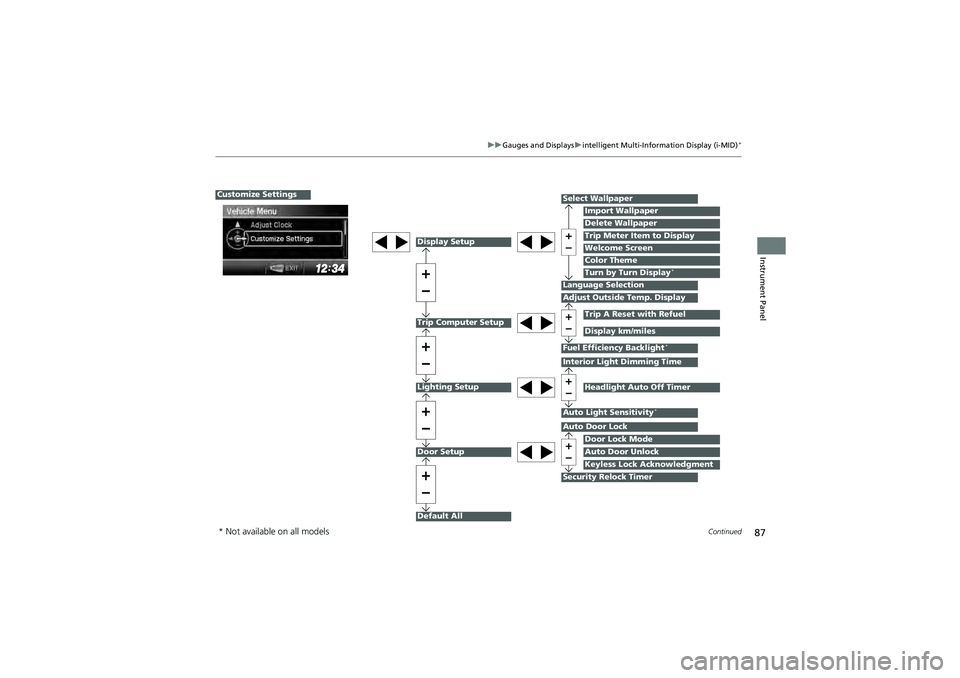

87
uuGauges and Displays uintelligent Multi-Info rmation Display (i-MID)*
Continued
Instrument Panel
Display Setup
Lighting Setup
Trip Computer Setup
Door Setup
Default All
Select Wallpaper
Import Wallpaper
Delete Wallpaper
Language Selection
Adjust Outside Temp. Display
Trip A Reset with Refuel
Display km/miles
Auto Light Sensitivity*
Door Lock Mode
Auto Door Unlock
Keyless Lock Acknowledgment
Auto Door Lock
Security Relock Timer
Trip Meter Item to Display
Welcome Screen
Color Theme
Fuel Efficiency Backlight*
Interior Light Dimming Time
Headlight Auto Off Timer
Customize Settings
Turn by Turn Display*
* Not available on all models

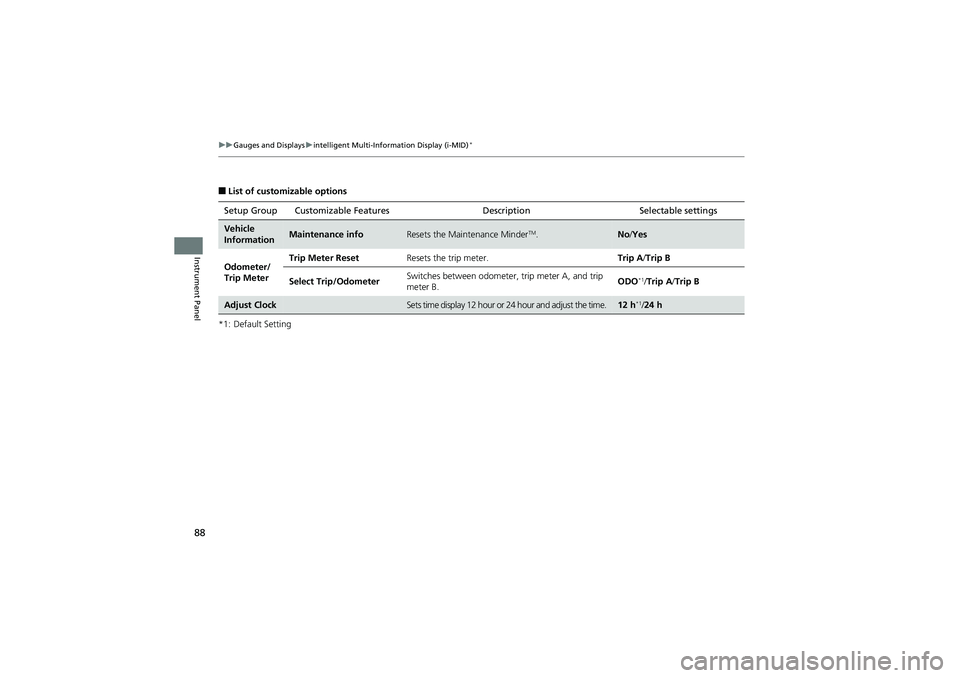

88
uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group Customizable Features Description Selectable settings
Vehicle
InformationMaintenance infoResets the Maintenance MinderTM.No
/Yes
Odometer/
Trip Meter Trip Meter Reset
Resets the trip meter. Trip A/Trip B
Select Trip/Odometer Switches between odometer, trip meter A, and trip
meter B. ODO
*1/
Trip A /Trip B
Adjust ClockSets time display 12 hour or 24 hour and adjust the time.12 h*1/24 h
