HONDA CIVIC SEDAN 2014 Owner's Manual (in English)

240

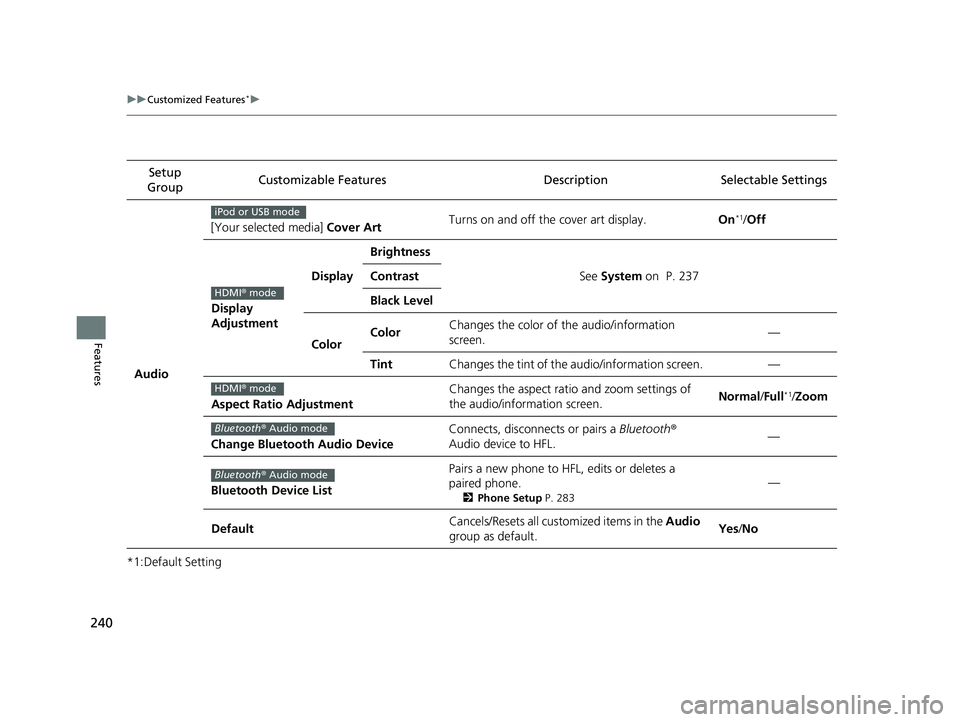

uuCustomized Features*u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Audio [Your selected media]
Cover Art Turns on and off the cover art display.
On
*1/Off
Display
Adjustment Display
Brightness
See System on P. 237
Contrast
Black Level
Color Color
Changes the color of the audio/information
screen. —
Tint Changes the tint of the audio/information screen. —
Aspect Ratio Adjustment Changes the aspect ratio and zoom settings of
the audio/information screen.
Normal
/Full
*1/Zoom
Change Bluetooth Audio Device Connects, disconnects or pairs a
Bluetooth®
Audio device to HFL. —
Bluetooth Device List Pairs a new phone to HF
L, edits or deletes a
paired phone.
2 Phone Setup P. 283
—
Default Cancels/Resets all cust
omized items in the Audio
group as default. Yes
/No
iPod or USB mode
HDMI ® mode
HDMI ® mode
Bluetooth ® Audio mode
Bluetooth ® Audio mode
14 CIVIC 4D_SI-31TR36210.book 240 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

241

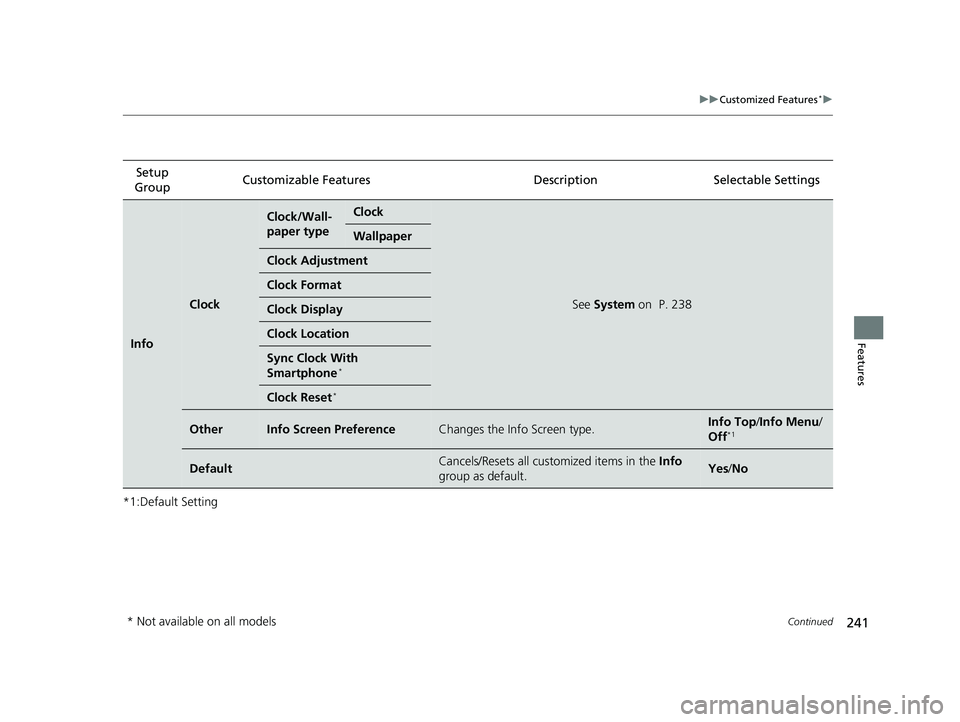

uuCustomized Features*u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Info
Clock
Clock/Wall-
paper typeClock
See
System on P. 238
Wallpaper
Clock Adjustment
Clock Format
Clock Display
Clock Location
Sync Clock With
Smartphone*
Clock Reset*
OtherInfo Screen PreferenceChanges the Info Screen type.Info Top /Info Menu/
Off*1
DefaultCancels/Resets all cust omized items in the Info
group as default.Yes /No
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 241 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

242

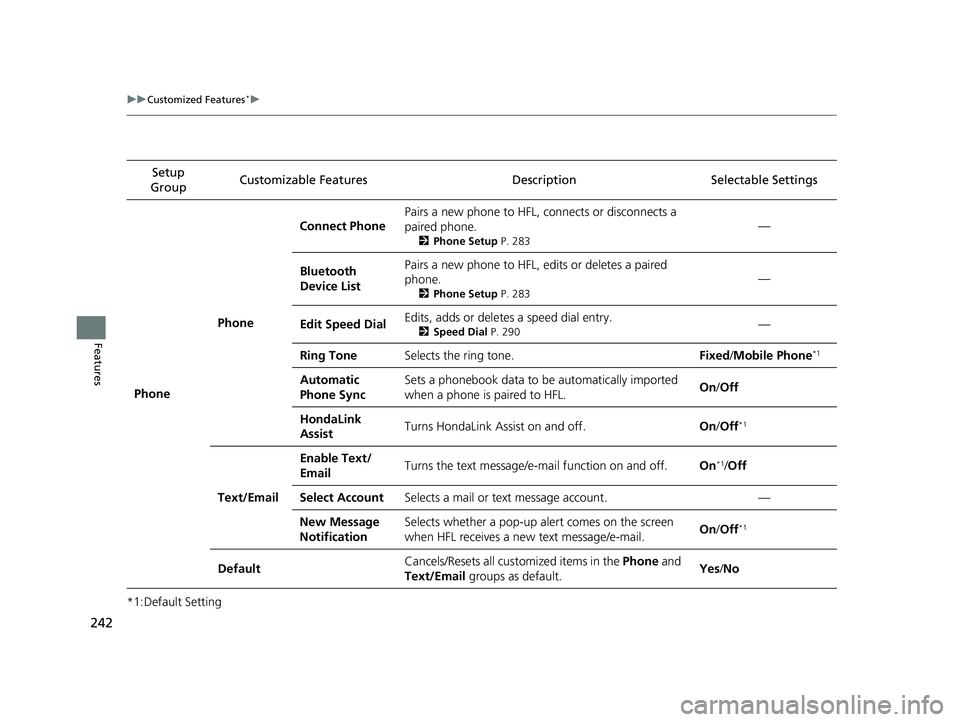

uuCustomized Features*u
Features
*1:Default Setting Setup
Group Customizable Features Descri
ption Selectable Settings
Phone PhoneConnect Phone
Pairs a new phone to HFL, connects or disconnects a
paired phone.
2
Phone Setup P. 283
—
Bluetooth
Device List Pairs a new phone to HFL, edits or deletes a paired
phone.
2
Phone Setup P. 283
—
Edit Speed Dial Edits, adds or deletes a speed dial entry.
2
Speed Dial P. 290—
Ring Tone Selects the ring tone. Fixed/Mobile Phone
*1
Automatic
Phone Sync Sets a phonebook data to be automatically imported
when a phone is paired to HFL.
On
/Off
HondaLink
Assist Turns HondaLink Assist on and off.
On/Off
*1
Text/Email Enable Text/
Email
Turns the text message/e
-mail function on and off. On
*1/Off
Select Account Selects a mail or text message account. —
New Message
Notification Selects whether a pop-up al
ert comes on the screen
when HFL receives a new text message/e-mail. On
/Off
*1
Default Cancels/Resets all cust
omized items in the Phone and
Text/Email groups as default. Yes
/No
14 CIVIC 4D_SI-31TR36210.book 242 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

243

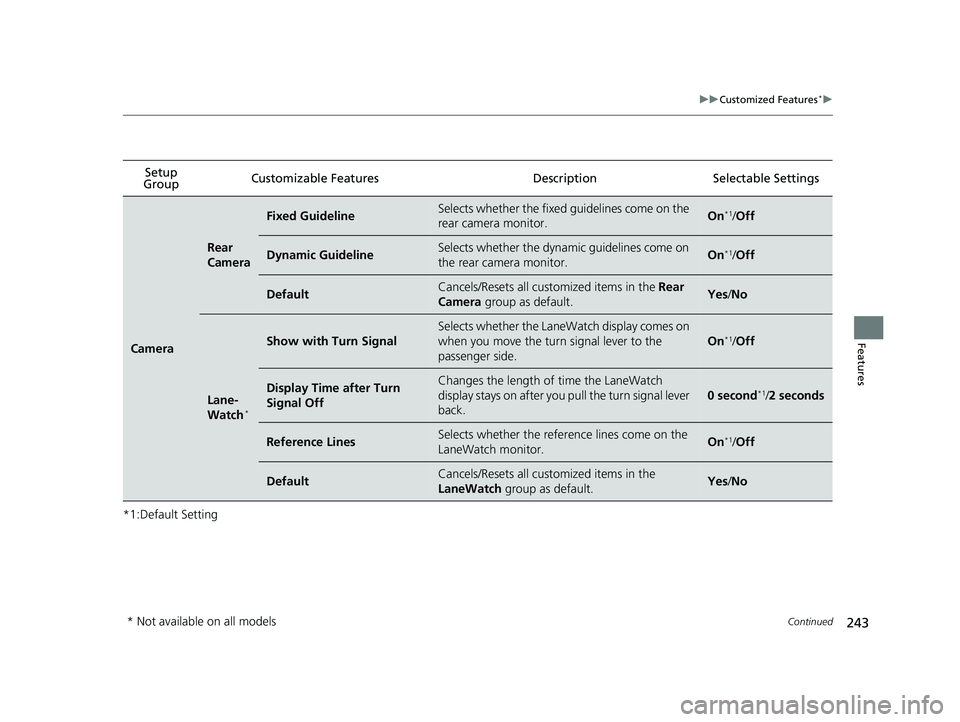

uuCustomized Features*u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Camera
Rear
Camera
Fixed GuidelineSelects whether the fixed guidelines come on the
rear camera monitor.On*1/
Off
Dynamic GuidelineSelects whether the dyna mic guidelines come on
the rear camera monitor.On*1/ Off
DefaultCancels/Resets all customized items in the Rear
Camera group as default.Yes /No
Lane-
Watch*
Show with Turn Signal
Selects whether the LaneWatch display comes on
when you move the turn signal lever to the
passenger side.
On*1/Off
Display Time after Turn
Signal OffChanges the length of time the LaneWatch
display stays on after you pull the turn signal lever
back.
0 second*1/2 seconds
Reference LinesSelects whether the reference lines come on the
LaneWatch monitor.On*1/Off
DefaultCancels/Resets all customized items in the
LaneWatch group as default.Yes/No
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 243 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

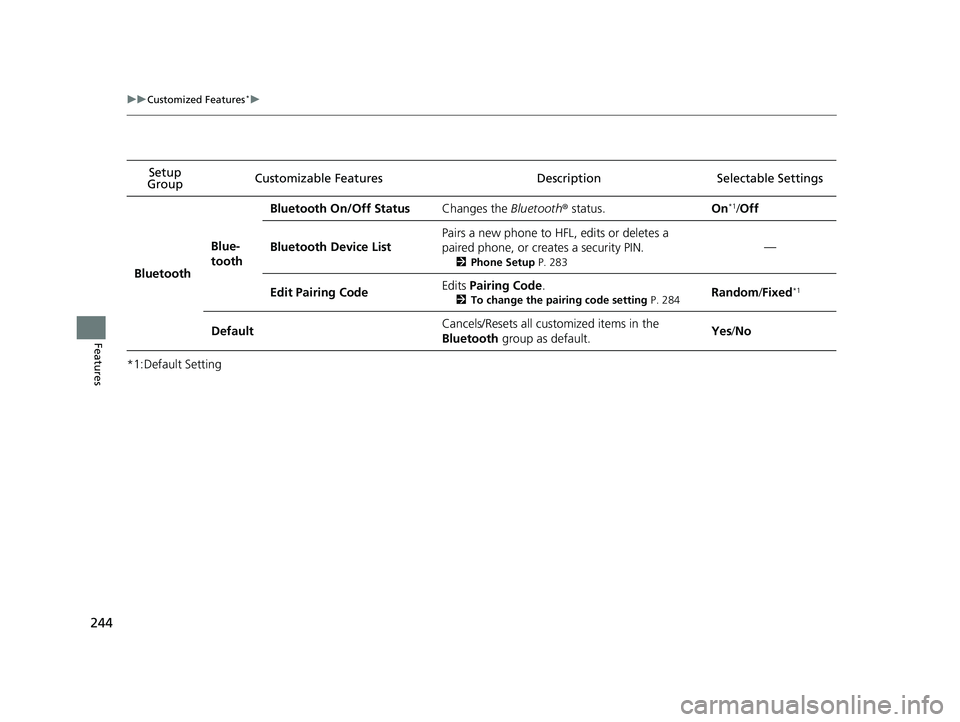

244
uuCustomized Features*u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Bluetooth Blue-
toothBluetooth On/Off Status
Changes the Bluetooth® status. On
*1/Off
Bluetooth Device List Pairs a new phone to HFL, edits or deletes a
paired phone, or creates a security PIN.
2
Phone Setup P. 283
—
Edit Pairing Code Edits
Pairing Code .
2To change the pairing code setting P. 284Random/Fixed*1
Default Cancels/Resets all cust
omized items in the
Bluetooth group as default. Yes
/No
14 CIVIC 4D_SI-31TR36210.book 244 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

245
uuCustomized Features*uDefaulting All the Settings
Features

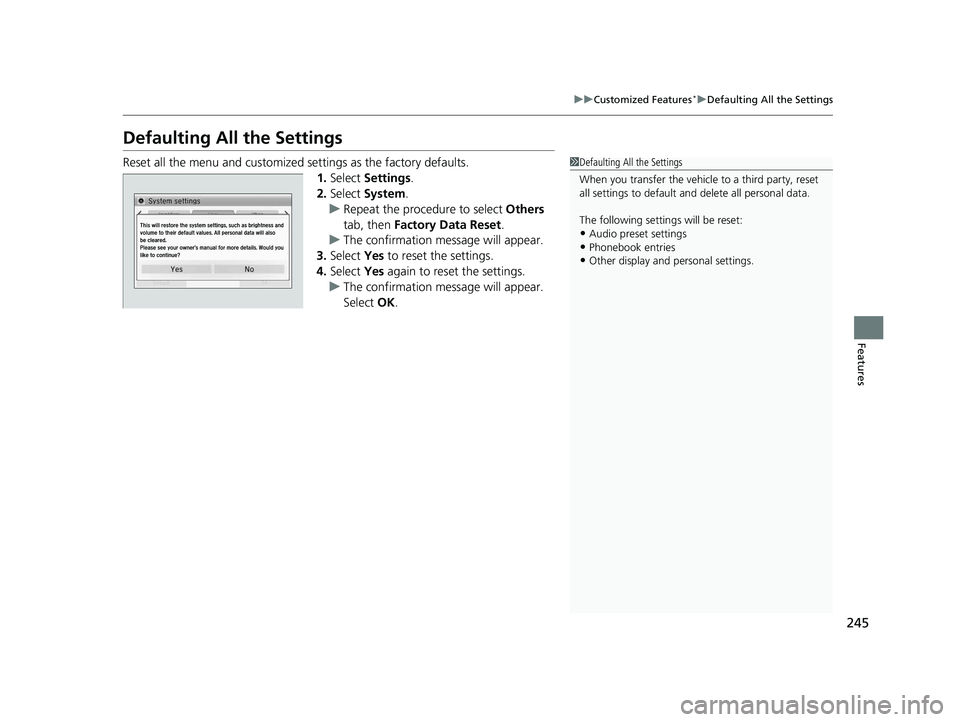

Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1.Select Settings .
2. Select System.
u Repeat the procedure to select Others
tab, then Factory Data Reset .
u The confirmation message will appear.
3. Select Yes to reset the settings.
4. Select Yes again to reset the settings.
u The confirmation message will appear.
Select OK.1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
The following settings will be reset:
•Audio preset settings
•Phonebook entries•Other display and personal settings.
14 CIVIC 4D_SI-31TR36210.book 245 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

246
Features
Bluetooth® HandsFreeLink ®*
For models with the navigation system, s ee the Navigation System Manual for how
to operate the Bluetooth® HandsFreeLink ®.
Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the Phone screen or to answer an
incoming call.
(Hang-up/back) button: Press to end a call or to cancel a command.
(Talk) button: Press to call a number with a stored voice tag.
PHONE button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■HFL Buttons
1Bluetooth ® HandsFreeLink ®*
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528 -7876.
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
•Press and release the but ton when you want to
call a number using a st ored voice tag. Speak
clearly and naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system's
volume knob or the remote audio controls on the
steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
If you receive a call while using the audio system, the
system resumes its operati on after ending the call.
Models with navigation system
Non-navi models with one display
Talk Button
Volume up
Microphone
Hang-up/Back Button
Pick-up
Button
Volume
down
Selector
Knob
PHONE

Button
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 246 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

247
uuBluetooth® HandsFreeLink ®*uUsing HFL
Features

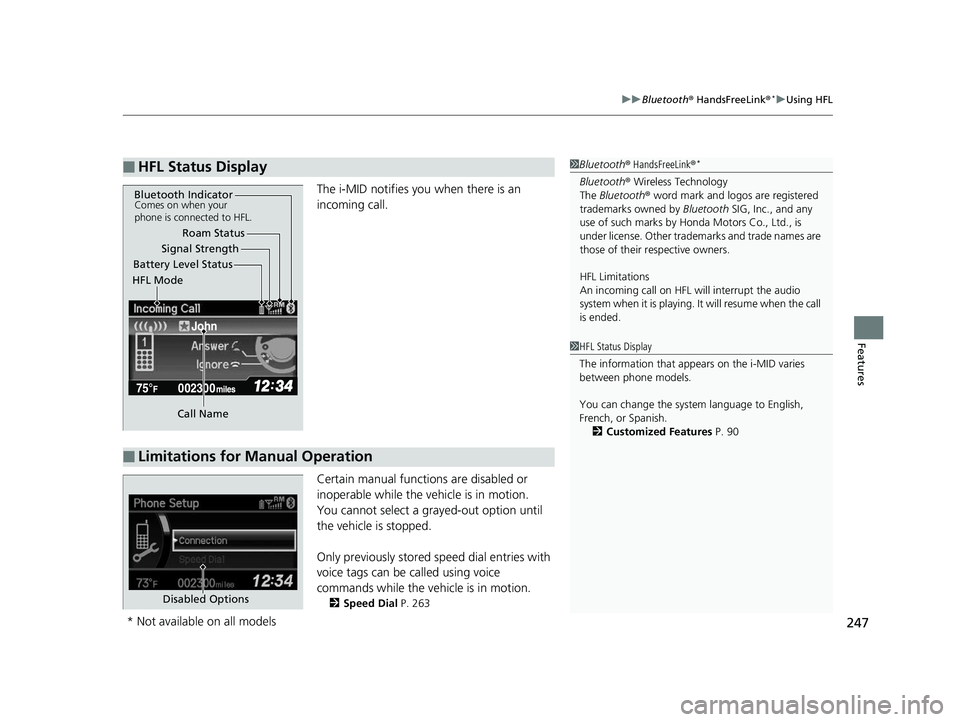

The i-MID notifies you when there is an
incoming call.
Certain manual functions are disabled or
inoperable while the vehicle is in motion.
You cannot select a grayed-out option until
the vehicle is stopped.
Only previously stored speed dial entries with
voice tags can be called using voice
commands while the ve hicle is in motion.
2Speed Dial P. 263
■HFL Status Display1Bluetooth ® HandsFreeLink ®*
Bluetooth® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motors Co., Ltd., is
under license. Other tradem arks and trade names are
those of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
John
Signal Strength
HFL Mode Battery Level Status Roam Status
Call Name
Bluetooth IndicatorComes on when your
phone is connected to HFL.
■Limitations for Manual Operation
1 HFL Status Display
The information that appears on the i-MID varies
between phone models.
You can change the system language to English,
French, or Spanish.
2 Customized Features P. 90
Disabled Options
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 247 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

248
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

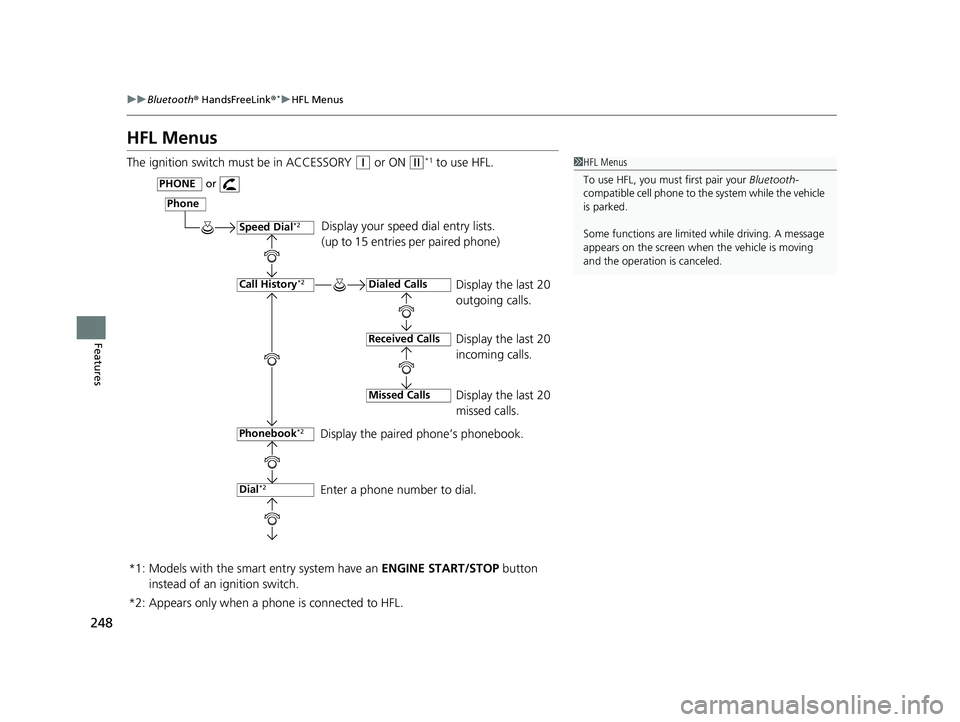

HFL Menus
The ignition switch must be in ACCESSORY (q or ON (w*1 to use HFL.1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
Display your speed dial entry lists.
(up to 15 entries per paired phone)
Display the last 20
outgoing calls.
Display the last 20
incoming calls.
Display the last 20
missed calls.
Display the paired phone’s phonebook.
Enter a phone number to dial.
Phone
Speed Dial*2
Call History*2
PHONEor
Phonebook
*2
Dial*2
Dialed Calls
Received Calls
Missed Calls
*2: Appears only when a pho ne is connected to HFL.
*1: Models with the smart entry system have an
ENGINE START/STOP button
instead of an ignition switch.
14 CIVIC 4D_SI-31TR36210.book 248 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

249
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features

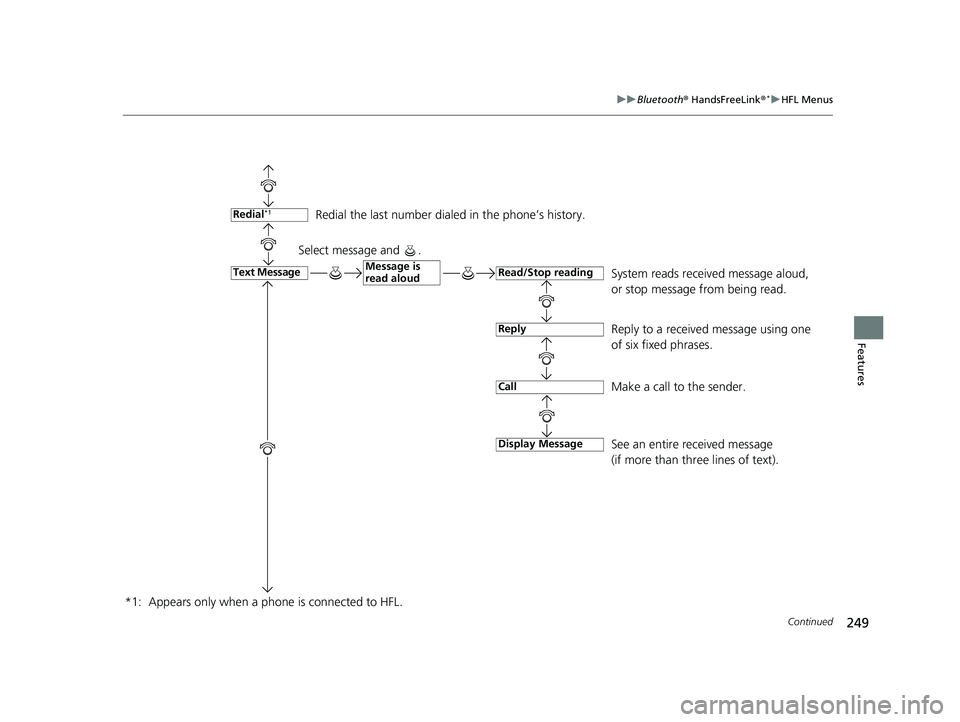

Redial the last number dialed in the phone’s history.
System reads received message aloud,
or stop message from being read.
Reply to a received message using one
of six fixed phrases.
Make a call to the sender.
See an entire received message
(if more than three lines of text).Redial*1
Message is
read aloudText MessageRead/Stop reading
Reply
Call
Display Message
*1: Appears only when a phone is connected to HFL. Select message and .
